USER MANUAL CEHPT60B CONTINENTAL EDISON

Installation (Mode extraction)

Important safety instructions.

Description of the pieces.

Installing the hood.

Preparation before installation.

Installation (Mode extraction).

Important information befo-re installing the appliance.

Using the extractor hood as an exhaust air hood (with air extracted to outdoors).

Converting the extractor hood to a circulation hood.

Mounting the carbon filter.

Electrical connection.

Informations on air flow.

Control Panel Functions.

Technical informations.

Further information.

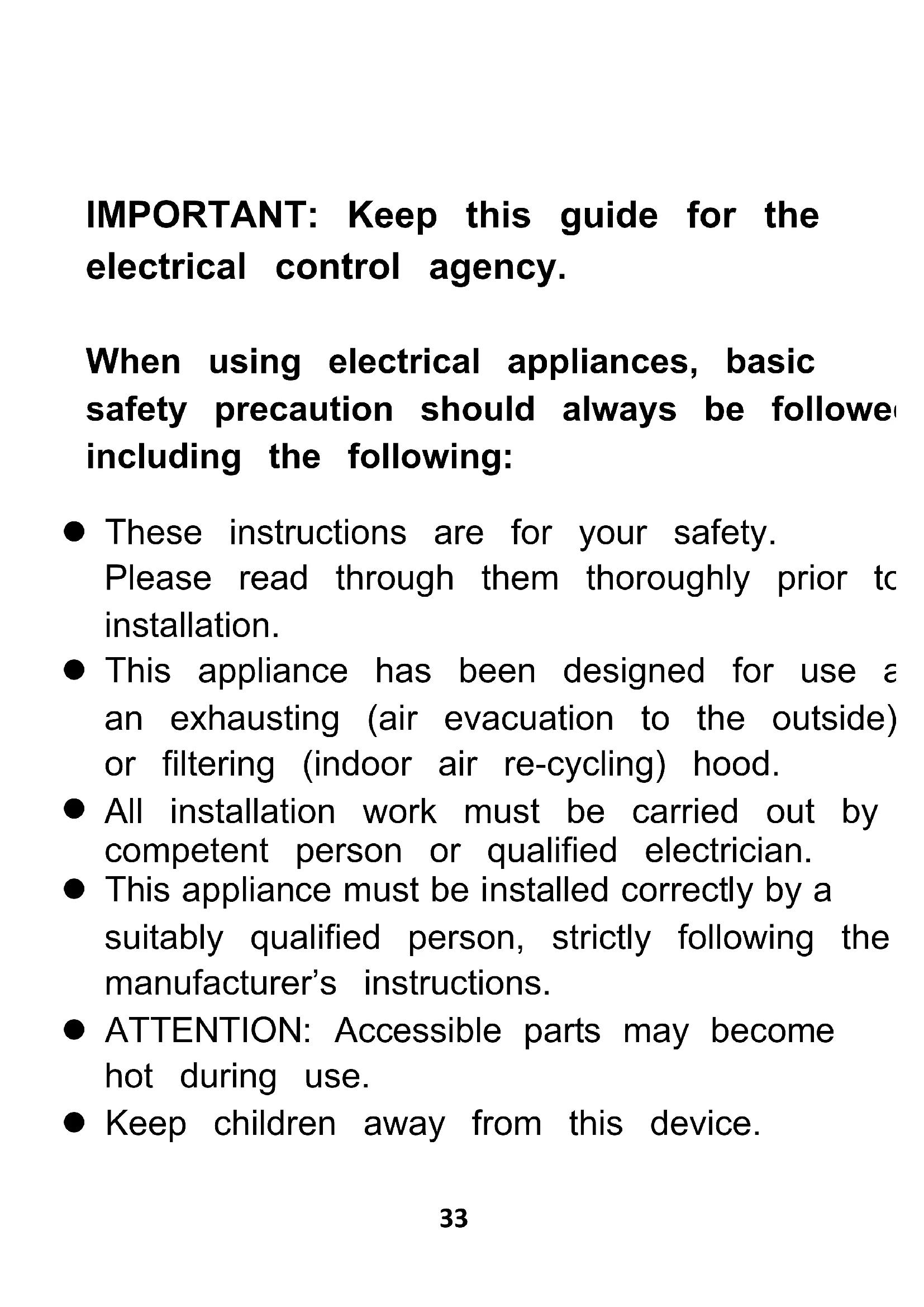

IMPORTANT: Keep this guide for the electrical control agency. When using electrical appliances, basic safety precaution should always be followed, including the following: These instructions are for your safety. Please read through them thoroughly prior to installation. This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.

All installation work must be carried out by a competent person or qualified electrician. This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions. ATTENTION: Accessible parts may become hot during use. Keep children away from this device.34 The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Regularly check the power plug and power cord for signs of damage. If the supply cord is damaged, it must be replaced by themanufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not allow the electric cables to touch the hot parts of the appliance.35 Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable.

Do not use flammable sprays in close vicinity to the appliance.

Please dispose of the packing material carefully. We also recommend that you pay special attention during use and during cleaning. Refer to the instructions in the "CLEANING" section. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timeror separated remote-control system.36

Warning: When using for extraction, refer to

the national regulations for building ventilation systems. Do not connect the exhaust pipe to a VMC type ventilation system, to a flue (chimney, boiler, ...). Also check the absence of disturbance with the ventilation of the room when there are gas appliances (water heater, gas stove, ...). If in doubt, use the hood in recycling mode.

Proper ventilation of the room must be provided when the hood is used simultaneously with appliances using gas or other fuel.

Air must not be discharged intoa flue that is used for exhaustingfumes from appliances burning gas or other fuels. The rules concerning the evacuation of the air must be respected.37

Warning: The hood may stop working during an

electrostatic discharge (e.g.lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.

To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil. Do not flame under the range hood. Do not use the hood if it shows signs of damage or imperfection. Contact customer services.

When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed: Gas hobs: 800mm Electric hobs: 700mm38

Warning:There is a risk of electric shock and

fireif cleaning is not carried out in accordance with the instructions.

Warning: For safety reason, please use only

the same size of fixing or mounting screw which are recommended in this instruction manual.

Warning: Failure to install the screws or fixing

device in accordance with these instructions may result in electrical hazards.

Warning: Before connecting the hood: switch

off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate. Electrical Shock Hazard Failure to follow these instructions can result in death, fire, or electric shock.39 For model CEHPT60B:The available lamps and the correspondenceILCOS D codes and lamp pictures:Use type lamp(or use in alternative type lamp)DBL-3-S-350(ILCOS D code in according to standard IEC 61231). -LED modules-linear lamp -Max wattage:3W -Voltage range:≤25V -Dimensions:diameter length 350mm -Pictures: Note:If the supply LED bulb is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.40 For model CEHPT90B:The available lamps and the correspondenceILCOS D codes and lamp pictures:Use type lamp(or use in alternative type lamp)DBL-4-S-650(ILCOS D code in according to standard IEC 61231). - LED modules-linear lamp - Max wattage:4W -Voltage range:≤25V -Dimensions:diameter length 650mm -Pictures: Note :If the supply LED bulb is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.41

PL-8 φ8×φ6 (Not include)

Preparation before installation Carefully remove the carton. Wear gloves to protect your hands from sharp edges. Remove the protective film from the product before putting it into service. Installation (Mode extraction) If the wall has an opening to the outside, your hood may be connected as shown in the diagram below using the suitable exhaust pipe (not supplied), such as ductwork, flexible aluminum or other non- flammable material with an inside diameter of less than 150mm.44 1 Installation data / dimensions

Note: Before installation, check that the dimensions indicated correspond to the dimensions of the product.

During and after installation of the ap- pliance, use a spirit level to ensure that the cooker hood is level. Otherwise, grease and/or condensation may accumulate in the corners of the appliance.45

• Clean the environment thoroughly before and after installation so that no dust or construction debris can be sucked in during initial operation.

• Check the condition and load-bearing capacity of the electrical cables. The installation of the appliance by a specialist is recommended. Follow the description of the work steps in the mounting chapter and all further instructions. In the execution with air exhausted out-doors, the vapours are extracted via an air exhaust hose fixed to the connector ring.

• The diameter of the exhaust air hose must conform to that of the connector ring.

• The exhaust air hose must not be led through a shaft together with gas pipes, hot air pipes etc.

• Route the exhaust hose as straight as possible away from the hood. The maximum permissible bend to the outside is 120°.

• If a smoke non-return valve is used or is planned, check whether it can open and close freely after the installation of the exhaust air hose.46 3 .Using the extractor hood as an exhaust air hood (with air extracted to outdoors) If the extractor hood has been fitted at the factory with a carbon filter, this must be removed for exhaust air operation. It is only practicable to use this when operating your hood in circulation mode. 4.Converting the extractor hood to a circulation hood If you wish to use the hood as a circulati-on hood, you must mount the activated carbon filter(s) to the fan motor before using the hood. If not included in the scope of supply, you must obtain the carbon filter(s) from the supplier of your extractor hood.

5. Mounting the carbon filter

Place the carbon filter into the unit and turn it clockwise. Repeat the same on the other side. NOTE: Make sure the filter is securely locked. Otherwise, it can fall and cause danger. When charcoal filters are used, the suction power is decreased. The carbon filter must be replaced at least once a year depending on how frequent the cooker hood used.47 6.Electricalconnection

Only connect the appliance to the po-wer supply once it is properly installed.

Never install the appliance if the data on the rating plate (V) does not agree with your supply voltage. You will find the rating plate inside the appliance, behind the grease filter. If the extractor hood is fitted with a standard connector plug, connect this to an easily accessible standard socket.

If the appliance is not fitted with a con-nector plug, a two-pole switch, confor-ming to standards with a minimum open contact gap of 3 mm is to be installed by an authorized tradesman in an easily ac-cessible location.48 7.Mounting the hood Note: The ventilation system has sharp edges. Use safety gloves. The mounting time is 1-3 hours and there are 2 people required for assembly.

• For CEHPT90B ,Make sure your installation space is not less than 900mm(L)x600(W)x735(H);For CEHPT60B ,Make sure your installation space is not less than 600mm(L)x600(W)x735(H).

• Before mounting, all appropriate core holes for the installation of the ex-haust hose must be present or made.

• Select the installation position so that the appliance can be easily connected to the power supply.

• Please get an exhaust hose ø 150 mm with two hose clamps (not included!)49

Model CEHPT60B : Provide the worktop with the mat-ching cutout (600 x 95 mm) for the ventilation system.

Model CEHPT90B : Provide the worktop with the mat-ching cutout (855 x 95 mm) for the ventilation system. Note: Before carving, check that the dimensions indicated correspond to the dimensions of the product.50

Insert the ventilation system into the cut-out and connect them by means of the holding rails under the counter-top andonthebody.

The glass plate is used for visual impression and is hung in frontofthegreasefilters. Thefunctionof yourextractorhood is not affectedbythis.

• Mount the case legs.51

Adjust the appropriate height of the case legs to give the appliance additi-onal stability.

You have the option to connect the motor unit depending on the location of the opening provided for this pur-pose on the ventilation housing. Turn the ventilation outlet in the appropri-ate direction and screw the motor to the bracket. Note: Make sure that you have suf-ficient cable reserver for the plug connection!52

Join the plug contacts together and check the function of the appliance.

Screw the motor unit with the bracket to the housing. Attach the exhaust duct to the ven-tilation outlet of the motor unit and connect it to the provided exhaustairopeningbymeansofthehoseclamps.53 Note: Images are for illustration purpo-ses only and may vary.

The exhaust air line should be as short and straight as possible.

To avoid excessive noise or a reduced extractioncapacitythediameteroftheexhaustair pipeline should not be less than 150 mm.

Use or form only large radius bends. Small radius bends reduce the extrac-tion capacity of the hood.

Use only smooth pipelines or flexible hoses of non-flammable materials for the exhaust air pipeline

If the exhaust air pipeline is horizon- tally routed, there must be a minimum gradient of 1 cm per metre or an incli-nation angle of 2°. (Fig. 3) Otherwise condensation water could run into the extractor hood motor.

If the exhaust air is directed into an exhaust air duct, the end of the entry fitting must be directed in the direc-tion of flow.54

• If the exhaust air is directed into an exhaust air duct, the end of the entry fitting must be directed in the direc-tion of flow.

• If the exhaust air pipeline is routed though cool rooms, lofts etc. there can be a large temperature drop within the individual parts of the pipeline, resulting in sweating or condensation water production. This renders outlet pipeline insulation necessary.

• In some cases a condensation water barrier must be installed in addition to adequate insulation

The manufacturer is not responsible for any faults occurring through non-com-pliance with the above information and provisions.55

• The hob should have a maximum width of 92 cm.

• The cooking zones should be arranged side by side and not one behind the other, as shown in the following illus-tration (top view):56 Regarding the instructions for the cleaning and maintenance of the appliance, please refer to below paragraphs of this manual. Attention! Before cleaning switch the unit off and pull out the plug. Regular Cleaning Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit. Monthly Cleaning for Grease Filter ESSENTIAL: Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust. It is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.57 Operating the hood Lighting control Timer Powersetting/ Slidercontrol Booster function Power level setting On/ Off On/Off

If you keep the on/off key pressed for 3 seconds, the hood is extended. By pressing the key again, the hood retracts. Important! : Make sure that the hood is not blocked or obstructed when ret- racting or extending. There is a risk of a pot being lifted (e.g. by a protruding handle) and hot contents being spilt.

Briefly pressing the key in opera- ting mode stops operation (appliance beeps, lighting remains unaffected). Power level setting

The appliance has a total of 10 power levels (9 + booster function).

You can also use the key to set the desired power level: Pressing briefly will increase the power in single steps, holding it leads to a smooth, faster setting. After level 9, the setting returns to level 1.

Toimmediately adjustthe power to the lowest level, press the key below theslider. Booster function

The 10th speed level is the booster / high performance level.

To start the booster and maximize power, touch and hold the key below the slider for 2 seconds (A beep sounds, highest level indicator flashes).

To stop the booster function, use the slider to set a lower power level.

After 5 minutes the booster function is automatically deactivated. Timer (automatic switch-off):

Pressing the keyduringoperation causesthehoodtoswitchoffautoma- ticallyafter3minutes(witha beep). The flashing of the inicator light indicatestherunningcountdown.

To deactivate the timer, press the key again. Lighting control:

To switch the light on and off, press the keyinworkingstate.58 Symbol Value Unit Model identification Ref.:CEHPT60B & CEHPT90B Models:BX2-5C-D1J6L01 &BX2-5C-D1I9L01 Annual Energy Consumption AEC hotte

kWh/a Energy Efficiency class A++ Time increase factor

Fluid Dynamic Efficiency class

Energy Efficiency Index EEI hotte

Measured air flow rate at best efficiency point

Measured air pressure at best efficiency point

Maximum air flow(Boost setting)

Maximum air flow(highest setting)

Air flow at working point(highest setting)

Air flow at working point(lowest setting)

Measured electric power input at best efficiency point

W59 Nominal power of the lighting system

Average illumination of the lighting system on the cooking surface

3W:21.7 4W:47.3 lux/W Lighting efficiency class

Measured power consumption off mode

Boost setting:72 Highest setting:68 Lowest setting:52

hotte hotte The method of measurement and calculation of the above table is in accordance with Commission Regulation (EU) No 65/2014 and 66/201460 CONTINENTALEDISON 120-126 quai de Bacalan CS11584 33000 Bordeaux Importé par A.M.C. 123 quai Jules Guesde 94400 Vitry sur SeineNote : The following recommendations specify how to reduce the overall environmental impact of the cooking process. (1) Install the range hood in a suitable location with good ventilation. (2) Clean the cooker hood regularly so that nothing blocks the air. (3) Do not forget to turn off the hood lamp once cooking is complete. (4) Do not forget to turn off the range hood once cooking is complete. Disassembly Information Do not disassemble the unit in a manner that is not indicated in the operating instructions. This device must not be disassembled by the user. At the end of its life cycle, the appliance must not be disposed of with household waste. For recycling tips, please contact your local administration or dealer. ENVIRONMENTAL PROTECTION Electrical and electronic equipment is subject to selective collection. Do not dispose of used electrical and electronic equipment with unsorted household waste; instead, take part in their selective collection. It is for this reason that your appliance, as indicated by the symbol on its nameplate or on the packaging, must never be thrown in a public or private bin intended for household waste. The user has the right to deposit the device in public collection places that selectively dispose of the waste to be recycled or reused for other applications. The packaging is recyclable..www.continentaledison.fr
