| Product type | Solar ground light garland |
| Brand | Melinera |
| Model | IAN 296716 / 10402 |
| Power supply | Solar panel and Li-ion 18650 battery (1500 mAh, 3.7 V) |
| Rated power | 5 × 0.2 W (total 1 W) |
| Protection type | IP44 (protection against water splashes) |
| Number of LEDs | 5 SMD LEDs (non-replaceable) |
| Battery | Lithium-ion 18650, 1500 mAh, 3.7 V (replaceable) |
| Switching | Automatic at dusk/dawn, ON/OFF switch |
| Usage | Outdoor only (decorative ambient lighting) |
| Operating temperature | Withstands down to -21 °C |
| Package contents | 1 solar garland, 1 battery, 1 stake for panel, 5 stakes for lanterns, user manual |
| Maintenance | Clean with a dry cloth, replace battery every 12 months |
| Safety | Do not short-circuit, keep out of reach of children, observe polarity |
| Warranty | 36 months |
| Customer service | Uni-Elektra GmbH, Tel. 00800 888 11 333, uni-service-FR@teknihall.com |
Frequently Asked Questions - IAN 296716 MELINERA
User questions about IAN 296716 MELINERA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Outdoor solar lighting in PDF format for free! Find your manual IAN 296716 - MELINERA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 296716 by MELINERA.
USER MANUAL IAN 296716 MELINERA
SOLAR-BODENLICHTERKETTE / SOLAR GROUND LIGHTS CHAIN / BALISES SOLAIRES
DE AT CH
SOLAR-BODENLICHTERKETTE
Operation and Safety Notes
NL BE
SOLAR-VLOERLAMPJESKETTING
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IEOperation and Safety NotesPage 11
List of pictograms used
Introduction
Intended use Page 12
Parts description.. Page 12
Technical data.. Page 13
Scope of delivery.. Page 13
Safety instructions
Product-specific safety instructions.. Page 13
Safety instructions for rechargeable batteries.. Page 13
Functionality
Initial use
Assembling the fairy lights. Page 14
Installing the fairy lights.. Page 14
Switching the fairy lights on/off. Page 14
Replacing the rechargeable battery. Page 15
Charging.. Page 15
Maintenance and cleaning.. Page 15
Troubleshooting
Disposal
Warranty and Service
Service address.. Page 16
Manufacturer.. Page 16

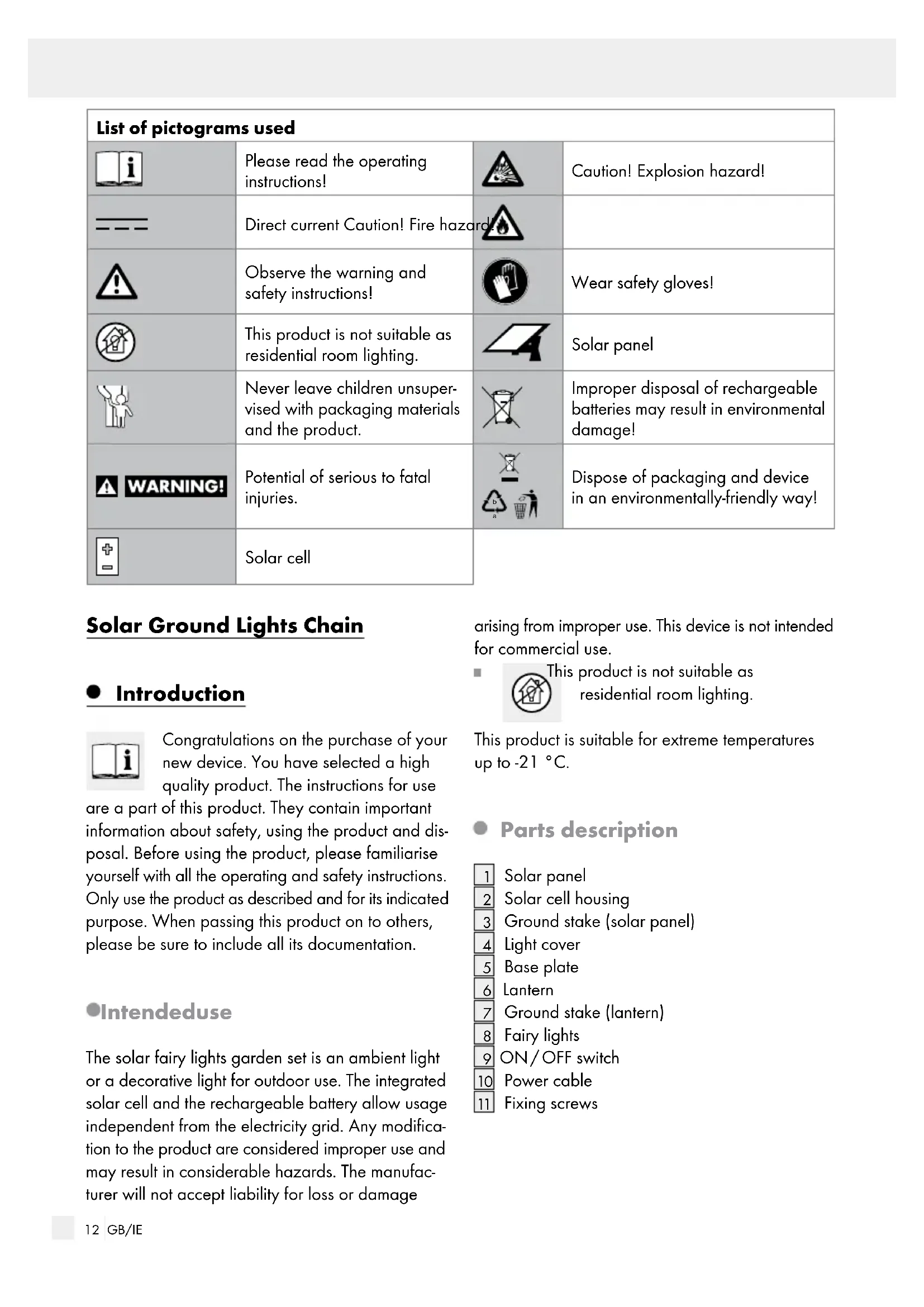

| List of pictograms used | |||
| i | Please read the operating instructions! | Caution! Explosion hazard! | |
| - - - | Direct current Caution! Fire hazard! | ||
| Observe the warning and safety instructions! | Wear safety gloves! | ||
| This product is not suitable as residential room lighting. | Solar panel | ||
| Never leave children unsupervised with packaging materials and the product. | Improper disposal of rechargeable batteries may result in environmental damage! | ||
| WARNING! | Potential of serious to fatal injuries. | Dispose of packaging and device in an environmentally-friendly way! | |
| Solar cell | |||
Solar Ground Lights Chain
Introduction
Congratulations on the purchase of your new device. You have selected a high quality product. The instructions for use
are a part of this product. They contain important information about safety, using the product and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Only use the product as described and for its indicated purpose. When passing this product on to others, please be sure to include all its documentation.
Intendeduse
The solar fairy lights garden set is an ambient light or a decorative light for outdoor use. The integrated solar cell and the rechargeable battery allow usage independent from the electricity grid. Any modification to the product are considered improper use and may result in considerable hazards. The manufacturer will not accept liability for loss or damage
arising from improper use. This device is not intended for commercial use.
This product is not suitable as residential room lighting.
This product is suitable for extreme temperatures up to -21^
- Parts description
Solar panel
2 Solar cell housing
3 Ground stake (solar panel)
4 Light cover
5 Base plate
6Lantern
Ground stake (lantern)
8 Fairy lights
ON/OFF switch
10 Power cable
11 Fixing screws
Technical data
Model-no.:10402
Rechargeable
battery: 1 × 18650 Li-ion rechargeable
battery, 1500mAh, 3.7V=
Illuminant: 5 × SMD-LED (not replaceable)
Rated power: ca. 0.2 W per LED
Degree of
protection:IP44(splash-proof)
- Scope of delivery
1 Solar Ground Lights Chain
1 18650 Li-ion rechargeable battery
(1500mAh/3.7V=）
1 Ground stake for the solar panel 1
5 Ground stakes for the lanterns 6
1 Set of instructions for use
Safety instructions
PLEASE READ THE OPERATING INSTRUCTIONS PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY, INCLUDE ALL DOCUMENTS!
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the appliance. Cleaning and user maintenance should not be performed by children without supervision.
Do not use the product if you detect any type of damage.
Switch the product off whilst storing in a dark environment to prevent draining the battery.
This product is only suitable for the specified use.
Product-specific safety instructions
CAUTION! RISK OF INJURY! Make sure that when the light is removed, the ground stakes are also removed, so that they cannot pose any risk (e.g. stumbling over them).
Make sure the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar panel will be diminished.
Cold temperatures negatively impact the battery operating time. If the solar fairy lights garden set will not be used for extended periods, e.g. in winter, it should be cleaned and stored in a dry, warm location.
The solar fairy lights garden set must not be connected with the power supply while it is still in its packaging, provided that the packaging has not been adjusted for exhibition purposes.
Safety instructions for rechargeable batteries
RISK OF VARNING!
ACCIDENT AND DANGER TO LIFE FOR INFANTS AND CHIL
DREN! Rechargeable batteries are not intended to be in the hands of children. Do not leave the batteries lying around. There is a danger that these will be swallowed by children or pets. If they are accidentally swallowed seek immediate medical attention.
CAUTION!
EXPLOSION HAZARD! Use only rechargeable batteries of the recom
mended type. Other rechargeable or single-use batteries could explode during charging.
FIRE HAZARD! Never short-circuit rechargeable batteries. Otherwise the rechargeable batteries may overheat, fire hazard or explode.
CAUTION!
EXPLOSION HAZARD! Never throw rechargeable batteries into
fire or water.
Expired or drained rechargeable batteries may leak chemicals which will damage the product.
Therefore remove the rechargeable battery if the fairy lights will not be used for extended periods.
WEAR PROTECTIVE GLOVES!
Leaked or damaged rechargeable batteries could cause chemical burns
on contact with the skin; you should therefore wear suitable protective gloves at all times if such an event occurs.
Only use rechargeable batteries of the correct size and and the recommended type (see section "Technical Data").
Make sure you fit the battery with the right polarity. This is displayed on the solar cell housing.
- Functionality
The solar cell built into the product converts sunlight into electricity and stores it in a LHON rechargeable battery. The light switches on at dusk. The built-in LED is an energy-saving illuminant with a very long life. The light duration depends on the amount of sunlight, the angle at which light hits the solar panel, and the temperature (the battery capacity varies by temperature). A vertical angle of light at temperatures above the freezing point is ideal. The rechargeable battery will only achieve its maximum capacity after several charging and discharging cycles.
- Initial use
Before first use, remove the protective film from the solar panel 1.
- Assembling the fairy lights
Insert the ground stake into the solar cell housing (see Fig. A).
Place the light cover 4 onto the base plate 5 so that the eyelets catch in the notches (see Fig. B).
Then, tighten the light cover 4 by turning it anticlockwise.
To loosen the connection, turn the light cover 4 clockwise from the base plate 5.
- Attach the ground stakes 7 to the base plates 5 by inserting the ground stakes 7 into the prefabricated notches on the underside of the base plates 5 and tighten them by turning them counterclockwise.
- Installing the fairy lights
ar protective gloves when assembl ing and setting up the fairy lights.
Ensure when setting them up that they are securely positioned.
Push the ground spike 3 far enough into the ground (lawn, flower bed) so it is firmly positioned upright in the ground.
Make sure it is firmly positioned. Do not use any force when assembling or setting up the product, e.g. hammer blows. This will damage the product. In order to achieve the best result, set the solar fairy lights garden set up in a place where the solar cell will get direct sunlight for as long as possible.
Make sure the solar cell is not impacted by other light sources, e.g. yard- or street lighting, or the light will not switch on at twilight. In low light the light will automatically switch on, and automatically switch off in normal ambient light.
Insert the lanterns 6 with the ground stakes 7 so far into the ground (lawn, flower bed) that they are positioned securely and upright in the ground (see Fig. C).
- Switching the fairy lights on / off (see Fig. D)
Slide the ON/OFF switch 9 to the "ON" position to switch the fairy lights 8 on. The fairy lights 8 will automatically switch on or off at twilight.
Slide the ON/OFF switch 9 to the "OFF" position to switch the fairy lights 8 off.
Replacingthe rechargeable battery
Note: For optimal performance, the rechargeable battery should be replaced every 12 months.
Slide the ON/OFF switch 9 to the "OFF" position to switch the fairy lights off.
Use a small cross-tip screwdriver to remove the fixing screws. Then use a slotted screwdriver to pry open the solar panel on the solar cell housing (see Fig. D).
Replace the old battery with a new one; be sure not to damage the cables. Be sure to insert the batteries in the correct direction. This is indicated in the battery compartment. Use only rechargeable batteries of the recommended type (see "Technical Data").
Place the solar panel 1 onto the solar cell housing 2 again and tighten the fixing screws 11 using a small cross-tip screwdriver (see Fig. A and D).
Slide the ON/OFF switch 9 to the "ON" position to switch the fairy lights 8 on.
- Charging
The battery charging period using the solar cell depends on the intensity of the sunlight and the angle incidence of the light on the solar cell. Place the solar cell as perpendicular as possible to the angle of light incidence. In this way you will receive the highest light levels.
- Maintenance and cleaning
The LEDs cannot be replaced. The solar fairy lights garden set is maintenance-free, except for any necessary change of rechargeable battery.
Routinely clean the solar fairy lights garden set with a dry, lint-free cloth. Use a slightly moist cloth if very dirty.
Troubleshooting
Note: The device contains sensitive electronic components. Radio transmitting equipment in the immediate vicinity may therefore cause interference. If you notice the device is malfunctioning, remove any sources of interference from the area around the device.
Note: Electrostatic discharge can lead to malfunctions. In the event of such malfunctions, remove the rechargeable battery briefly and reinsert it.
| Error Cause Solution | ||
| The light will not switch on even though the sun shone on the solar cell all day. | Artificial sources of light, e.g. street lighting, are interfering with the solar cell. | Install the solar cell in a location where it will not be affected by other light sources. |
| The light does not come on or comes on only briefly. | The rechargeable battery is broken or there was not enough daylight. | Replace the rechargeable battery or install the solar cell in a location where it has greater exposure to sunlight. |
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and/or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries/rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
Warranty and Service
Note: this product includes a 36 month warranty from the date of purchase. The product has been produced to the highest standards and thoroughly checked before dispatch. However, if defects in manufacturing or material arise during the warranty period, please contact your retailer immediately.
The warranty does not cover damages due to improper handling, failure to comply with the operating instructions, or manipulation by unauthorised persons. Most malfunctions are caused by incorrect operation. Therefore please first refer to the operating instructions if a malfunction occurs.
Please contact the Uni-Elektra GmbH service address with any questions. The product can only be returned to us after contacting us. Postage due shipments will not be accepted. Warranty services do not extend or restart the warranty period of 36 months.
Service address
Uni-Elektra GmbH
Kirchstr. 48
DE-72145 Hirrlingen
GERMANY
Tel.: 00800 888 11 333
GB uni-service-GB@teknihall.com
IE uni-service-IE@teknihall.com
IAN 296716
Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.
Manufacturer
Uni-Elektra GmbH
Kirchstr. 48
DE-72145 Hirrlingen
GERMANY
Pile: 1 pile 18650 Li-ion,
$$ 1 5 0 0 \mathrm {m A h}, 3, 7 \mathrm {V} = = $$
