USER MANUAL IAN 114133 MELINERA

LED CURTAIN LIGHTS / LED CURTAINLIGHTS / RIDEAU LUMINEUX À LED

DE AT CH

LED-LICHTERVORHANG

Operation and safety notes

NL BE

LED-LICHTGORDIJN

GB/IEOperation and safety notesPage 17

Proper use.. Page 19
Delivery scope.. Page 19
Description of parts.. Page 20
Technical data.. Page 20

Safety information.. Page 21

Use

Timer function.. Page 24

Cleaning and care.. Page 25

Disposal.. Page 25

Warranty.. Page 26

Warranty claim procedure.. Page 27
Service . Page 28

List of pictograms used
i	Read the instructions!		Short-circuit-proof safety isolating transformer
~	Alternating current/voltage		Independent lamp control gear
---	Direct current/voltage		Polarity of D.C. connector (light chain)
Hz	Hertz (Frequency)		This icon indicates that the product is mains operated.
W	Watt (effective power)		Warning! Danger of electric shock!
	Protection class II Splashproof
	Observe the warning and safety instructions!		6 hour timer with automatic repetition on a daily basis
2m 10m		This icon indicates that the length of the power cable is approx. 10 m and LED light 2 m x 1 m.

LED curtain lights

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

This product is suitable for indoors and outdoor use. This product is intended for use in private, domestic environment only and not for commercial purposes.

Delivery scope

1 LED curtain lights
1 mains adapter
1 instructions for use

Description of parts

LED fairy lights
Timer button
Socket

Mains adapter Supply line plug Union nut

- Technical data

Light chain + mains adapter:

Total power consumption: HG05205A: 4.5 W HG05205B: 4.5 W

LED Fairy Lights 1:

Operatingvoltage:30V
LEDs total: 3.6 W (LEDs are non-replaceable)
Protection system: IP44 (Splashproof)
LED Fairy Lights (Model No. HG05205A / HG05205B)
GS certified.

LED Colour: HG05205A: warm white

HG05205B: cold white

Mains adapter 4:

Nominal voltage primary: 220 - 240V 50 / 60Hz

Nominal voltage

secondary:30V = = 7 3.6W

Protection system: IP44 (Splashproof)

Protection class:

Mains adapter (Model No. S036G300W8D) GS certified.

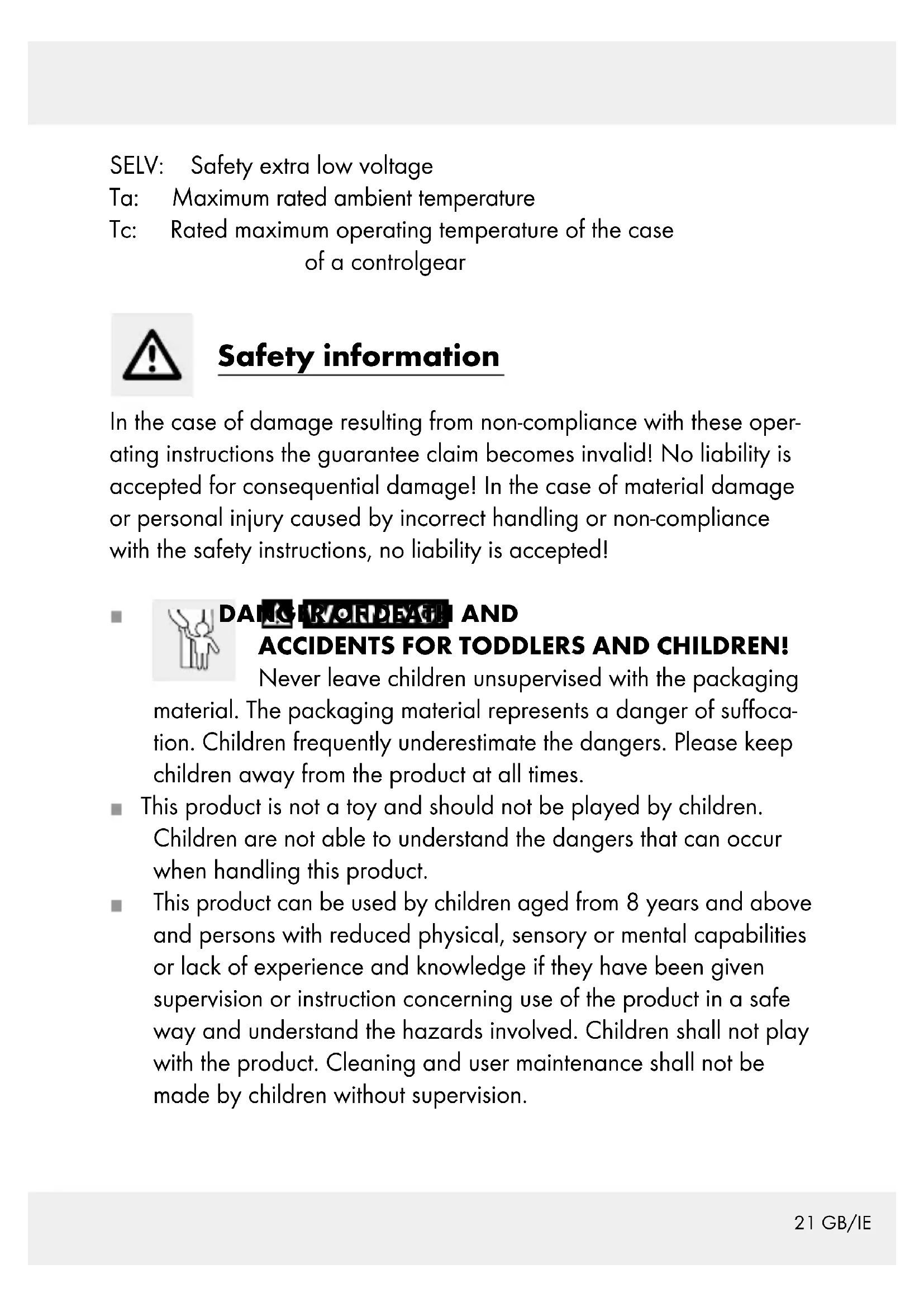

SELV: Safety extra low voltage

Ta: Maximum rated ambient temperature
Tc: Rated maximum operating temperature of the case of a controlgear

Safety information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

DANG WORDEAT AND

ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product is not a toy and should not be played by children.

Children are not able to understand the dangers that can occur when handling this product.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

Ensure that the product is installed by suitably experienced or qualified persons only.

CAUTION! RISK OF OVERHEATING! Do not operate the product inside the packaging.

After use, keep the product in the packaging to prevent unwanted damage.
- Do not pull the product cable and make sure it is laid down properly so that no one walks or trips over it.
The product can be used on all surfaces officially classified as being of "normal flammability".
Do not attach any other objects to the product.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (220-240 V~).
Before connecting the product to the mains you should always check the product for any damage.
Never use the product if you discover that it is damaged in any way.
This product's external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire product.
This product does not contain any parts which can be serviced by the user. The bulbs cannot be replaced.
Only use the product with the supplied mains adapter 4 for the type (Model No. S036G300W8D); all warranty claims will otherwise expire.
- Never open any of the electrical parts or insert any kind of object into them.
- Protect the product from sharp edges, mechanical loads and hot surfaces.

Do not install with sharp fasteners or nails.
Always unplug the mains adapter 4 from the socket before installation, dismantling or cleaning.
Never touch the product plug or the product itself with wet hands.

The product must not be electrically connected to another light chain.

WARNING - THIS LIGHTING CHAIN MUST NOT BE USED WITHOUT ALL GASKETS BEING IN PLACE.

If the product is not in use for any length of time (e.g. holidays), disconnect them from the power supply.
If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.
The product is protected against splashes of water (IP44) as long as the socket meets the minimum protection standard.
The product is only suited for use with the included mains adapter (S036G300W8D).
Please note that the mains adapter continues to draw a small amount of power even if the product is turned off as long as the mains adapter is plugged into a power outlet. To switch the product off completely, unplug the mains adapter from the socket.

The LEDs are not replaceable.

If the LEDs fail at the end of their lives, the entire product must be replaced.

Use

Note: Remove all packaging materials from the product.

Note: The product has eight different lighting modes.

Insert the supply line plug 5 into the socket 3 of the mains adapter 4. Turn clockwise to tighten the union nut 6.

Plug the mains adapter into the socket.
The product is now switched on.
Press the timer button to switch to the next lighting mode.

When you reach lighting mode 8, the next press of the button switches the product back into lighting mode 1.

The light mode is listed as below:

1. combination (combination of all lighting mode)
2. in wave (LED lighting flashing in changing frequency)
3. sequential (LED light up alternating)
4. Slo-Glo (LED slowly light up alternating)
5. chasing / flash (LED flash alternating)
6. slow fade (LED light up and fade out slowly)
7. twinkle / flash (LED light up alternating like twinkle)
8. steady on (all LED on)

To switch the product off, disconnect the mains adapter from the socket.

You can mount the product on the desired surface and mount the product by attaching it with the help of mounting material such as cable ties, glue. (Mounting material is not included).

Timer function

Start the timer function in the previously selected light mode (see chapter "Use").

To switch on the timer function, press and hold 2 second the timer button 2 after the product is connected to the socket of power

cable. The timer button 2 will light up green when the timer function is activated.

The product glows permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.
To switch off the timer function, press and hold 2 second the timer button 2 again and the light of the timer button 2 will be turned off.
When the timer function is switched off, the product glows continuously. To switch off the product completely, the mains adapter has to be unplugged from the socket.

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK! First remove the mains adapter 4 from the socket.

CAUTION! DANGER OF ELECTRIC SHOCK! For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.

• Do not use any solvents, petrol or similar items. This would damage the product.
  Only a dry, lint-free cloth should be used for cleaning.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

C∈IP44
