USER MANUAL IAN 74195 MELINERA

Color gradient bar transitioning from black to white (no text or symbols)

GB IE

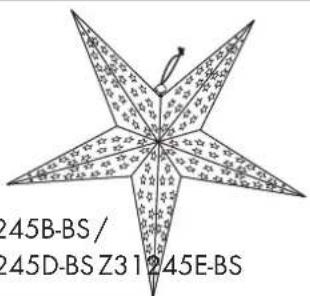

LED STAR LIGHT

Operation and Safety Notes

Z31245A-BS

Z31245B-BS

Z31245C-BS

Z31245D-BS

Z31245E-BS

Melinera®

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

A

Line drawing of a hand holding a triangular ruler and a flat object, with a numbered marker '1' pointing to the ruler (no text or symbols on the diagram itself)

B

Line drawing of a hand holding a paper airplane with a pointer and number 1 above (no text or symbols)

C

D

E

F

Symmetrical star-shaped diagram with radial lines and decorative patterns, no text or symbols present.

G

2x

LED Star Light

- Introduction

Keep all the safety advice and instructions in a safe place for future reference. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

This product is suitable only for use in an indoor environment. The product is intended only for use in a private domestic environment and not for commercial use.

• Description of parts

1 Lamp shade
2 Mains plug
3 LED light set
4 LED bracket
5 Cord stopper
6 Cord

- Technical data

LED light set (light chain):

Rated power

and voltage: 220-240V\~, 50Hz, 1.05W

Bulbs: θ=xOLED, W

Protection class:

Model No.:

Z31245A-BS: red

Z31245B-BS: gold matt

Z31245C-BS: white

Z31245D-BS: silver matt

Z31245E-BS: yellow / black

- Included items

1 LED light set (light chain)
1 LED bracket
1 Lamp shade
2 Spare bulbs
1 Operating instructions

Safety advice

The right to claim under the warranty is made invalid in respect of damage caused by the non-observance of these operating instructions. No liability is accepted for consequential damage. No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice.

RIS AD WOKING! OF LIFE AND AG FANTS AND CHI

leave children unsupervised with the packaging materials. Packaging materials present a suffocation hazard. Children often underestimate danger. Always keep children away from the product.

This product is not a toy. It does not belong in the hands of children. Children do not appreciate the dangers associated with the product.

Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the product without supervision or instruction by a person responsible for their safety. Children must be supervised so that they do not play with the product.

■ Ensure that the product is operated only by people who know how to use it.

CAUTION! RISK OF OVERHEATING! Do not operate the product whilst it is still in the packaging.

■ After use store the product in the original packaging to avoid causing unintentional damage.

Do not pull on the product's lead.

Do not attach any other objects to the product.

■

product is designed only for use indoors in dry and enclosed rooms.

Avoid risk to life from electric shock!

Before use ensure that the available mains voltage agrees with the operating voltage specified for the product (220–240 V\~).

Before connecting the product to the mains, always check it and the mains plug for any damage.

Do not use the product if you discover it is damaged in any way.

This product's external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire product.

■ Never open any electrical fittings or allow any object to be inserted into them.

■ Protect the mains lead from sharp edges, mechanical loads and hot surfaces.

■ Never fix the product in place with clips or nails.

Before installing, uninstalling or cleaning, always pull the mains plug out of the mains socket.

Do not touch the product's plug or even the product itself if your hands are wet.

- Keep the product away from moisture.

This product must not be electrically connected to another product.

■ Disconnect the product from the mains supply if it is not going to be used for some time (e.g. holiday).

If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.

Do not remove nor replace any LEDs if the light set is still connected to the mains power supply.

- Replace LEDs only with LEDs of the same type as the ones supplied with the product.

Use

Note: The bulbs are connected in series. If one bulb is defective, up to 10 bulbs may not light up.

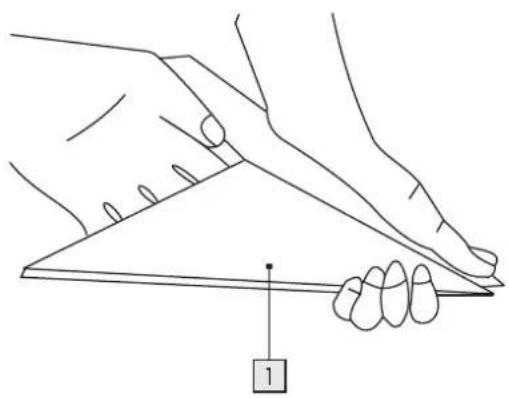

□ Unfold the lamp shade (Fig. A and B).
☐ Insert the LED bracket with the LED light set 3 into the lamp shade 1 (Fig. C and D). ☐ Fold the lamp shade back together.
☐ Pull the cord through the cord stopper 5 to close the lamp shade 1 (Fig. E).
☐ Insert the mains plug into the mains socket. The LEDs are switched on.
☐ Pull the mains plug out of the mains socket to switch off the LEDs.

- Replacing a bulb

☐ Replace the bulb as shown in Fig. G.

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK!

First of all pull the mains plug out of the mains socket.

CAUTION! RISK OF ELECTRIC SHOCK!

For electrical safety reasons never clean the product with water or other fluids nor immerse it in water.

Do not use solvents, such as petrol and the like, as they could damage the product.

Use only a dry, fluff-free cloth for cleaning.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your discarded product.

In the interest of the environment, do not throw out your product with your household refuse. Take it to a suitable centre where it can be disposed of properly. Your local council will be able to tell you where the collection centres are located and their opening times.

EMC CE

IAN 74195

Milomex Ltd.

c/o Milomex Services

Hilltop Cottage

Barton Road

Pulloxhill

Bedfordshire

MK45 5HP

UK

Model No.: Z31245A-BS/Z31245B-BS/Z31245C-BS/Z31245D-BS/Z31245E-BS

Version: 06/2012

© by ORFGEN Marketing

Last Information Update: 05 / 2012

Ident.-No.: Z31245A/B/C/D/E-BS042012-6
