Product type	Solar LED string lights
Brand	Melinera
Model	IAN 321664
Number of LEDs	100 LEDs (depending on version: warm white, cool white or multicolor)
Length of each light string	Approx. 5 m
Power cable	Approx. 3 m
Solar panel dimensions	Approx. 11.5 x 11.5 cm
Operating voltage	3.7 V (DC)
Battery	Li-Ion 3.7 V, 1300 mAh, non-replaceable
Protection rating	IP44 (protected against splashing water)
Lighting duration (fully charged battery)	Approx. 8 hours
Charging time (summer)	Approx. 2 to 4 days
Number of light modes	8 modes
Timer function	Yes, 6 hours (activate by holding Mode button for 3s)
Use	Indoor and outdoor, private use
Package contents	2 x 5 m light strings, 1 ground stake, 1 rod, 1 manual
Warranty	3 years
Maintenance	Clean with a dry, lint-free cloth; no maintenance required
Batteries	Integrated non-replaceable battery; do not throw into fire
Safety	Do not connect to 230 V; keep away from children; use with sealing washers
Repairability	LEDs and battery non-replaceable; at end of life, replace the entire unit

Frequently Asked Questions - IAN 321664 MELINERA

How to install the solar string lights?

Insert the ground stake into the soil, attach the rod, place the solar panel in a sunny location, and wrap the light strings around a tree or railing. Ensure the panel receives direct sunlight.

How to turn the string lights on and off?

Press the ON/OFF button to automatically turn on at dusk. Press again to turn off and disable charging.

What lighting modes are available?

There are 8 modes: Combination, Waves, Sequential, Slo-Go, Flashing/Strobe, Slow Fade, Twinkle/Sparkles, and Steady On. Use the Mode button to change.

How to activate the timer function?

Press and hold the Mode button for 3 seconds (the button lights up green). The lights will turn on for 6 hours each night and then turn off. To deactivate, hold again for 3 seconds.

What to do if the lights do not turn on?

Check that the solar panel is not in shade or exposed to artificial light. If the battery is empty, it is not replaceable; replace the product.

Can the battery or LEDs be replaced?

No, the battery and LEDs are not replaceable. At end of life, the entire product must be disposed of according to local regulations.

Are the string lights waterproof?

Yes, it has an IP44 rating, protected against splashing water. However, the sealing washers must be properly placed to prevent water ingress.

Can the string lights be used indoors?

Yes, it can be used both indoors and outdoors for private use.

How to clean the string lights?

Clean it regularly with a dry, lint-free cloth. For stubborn dirt, use a slightly damp cloth. Do not use abrasive cleaners.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt as proof. In case of defects, contact customer service.

USER MANUAL IAN 321664 MELINERA

Black-and-white photo of a decorative installation with light bulbs and a solar panel, showing a potted plant in the background (no text or symbols visible)

LED-SOLAR-LICHTERKETTE 2 X 5 M / 100 LED SOLAR FAIRY LIGHTS 2 X 5 M / GUIRLANDES LUMINEUSES SOLAIRES À LED 2 X 5 M

DE AT CH

Assembly, operating and safety instructions

NL BE

LED-SOLAR-LICHTKETTING 2X 5M

Image containing a lowercase 'i' icon and a stylized open book with a patterned front panel.

GB / IE Assembly, operating and safety instructions Page 19

Description of parts and features...... Page 21

Scope of delivery....Page 21

Technical data......Page 21

Safety instructions......Page 22

Product-specific safety instructions ...... Page 23

Safety instructions for batteries /

rechargeable batteries.... Page 23

Functioning...... Page 24

Installation Page 25

Operation Page 25

Setting up the product...... Page 25

Timer function ...... Page 27

Maintenance and care ...... Page 27

Troubleshooting Page 27

Disposal Page 28

Warranty Page 30

Warranty claim procedure......Page 30

Service Page 31

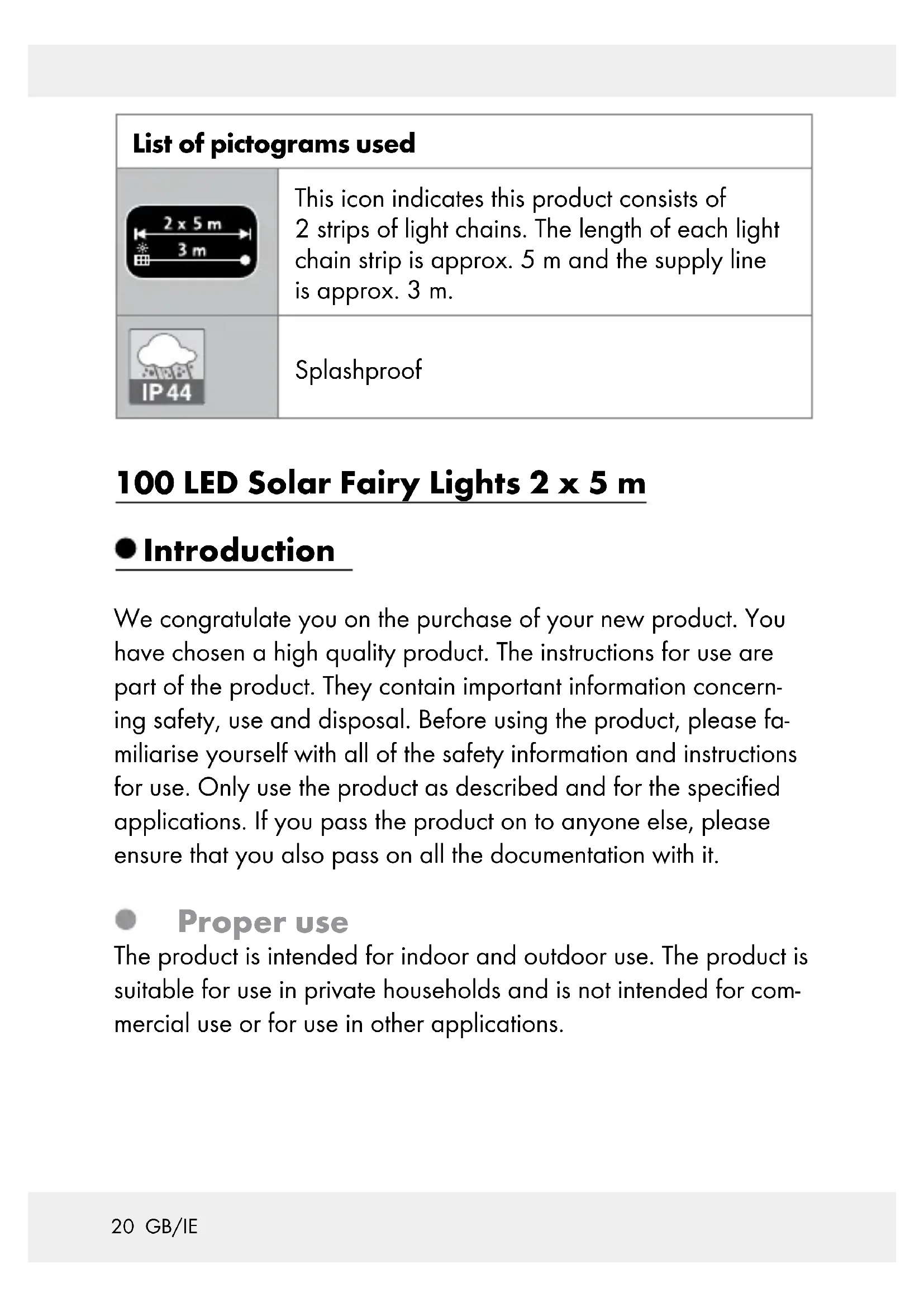

List of pictograms used
	This icon indicates this product consists of 2 strips of light chains. The length of each light chain strip is approx. 5 m and the supply line is approx. 3 m.
	Splashproof

100 LED Solar Fairy Lights 2 x 5 m

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Proper use

The product is intended for indoor and outdoor use. The product is suitable for use in private households and is not intended for commercial use or for use in other applications.

Description of parts and features

1 ON/OFF button
2 Mode button
3 Supply line plug
4 Socket of solar panel
5 Ground spike holder
6 Solar panel
7 Pole
8 Ground spike
9 LED solar light chain

Scope of delivery

1 100 LED Solar Fairy Lights 2 x 5 m
1 Ground spike
1 Pole
1 Assembly, operating and safety instructions

Technical data

Operating voltage: 3.7V (direct current)

Rechargeable battery: 1 x 3.7 V === (direct current) not replaceable / rechargeable Lithium ion battery with 1300 mAh

LED:HG05422A:

100 LEDs x 0.06 W (warm white)

HG05422B:

100 LEDs x 0.06 W (cold white)

HG05422C:

100 LEDs x 0.06 W (colourful (red, green, yellow and blue))

Protection type: IP44 (splash proof)

Solar panel: approx. 11.5 x 11.5 cm

Lighting time

(with full charge): approx. 8 hours

Safety instructions

PLEASE READ THE INSTRUCTIONS FOR USE PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASS- ING THIS PRODUCT ON TO A THIRD PARTY ALSO INCLUDE ALL DOCUMENTS.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
Do not use the product if you detect any kind of damage.
Always switch off the product, when storing it in a dark environment, in order not to discharge the rechargeable battery.
The LEDs are not replaceable.
If the LEDs fail at the end of their lives, the entire product must be replaced.
The product does not contain any parts that can be serviced by the user.
- Never plug in the product directly into a 230 V \~ (alternating current).
The product is not a toy and should not be played with by children. Children are not able to understand the dangers that can occur when handling the product.

■ WARNING! This lighting chain must not be used without all gaskets being in place.

Product-specific safety instructions

■ Make sure that the solar panel is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar panel 6 will diminish.

CAUTION: When removing the product, make sure to also remove the pole 7 and ground spike 8 so it cannot pose any risk (e.g. tripping).

Safety instructions for batteries / rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge

non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE GLOVES! Leaked or dam-

aged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.

Functioning

The solar panel 6 installed in the product converts sunlight into electrical energy and stores it in the rechargeable battery. Insert the supply line plug 3 into the socket of the solar panel 4. Turn clockwise tighten the union nut. Press model button 2 for 1 time, the product will automatically light on as it begins to get dark. The LEDs are a very long-life and energy-saving light source. The light duration depends on the amount of sunlight, the angle of light on the solar panel 6 and the temperature (the rechargeable battery capacity is temperature-dependent). A vertical angle of light at temperatures above the freezing point is ideal. The rechargeable battery does not achieve maximum capacity until after several charge and discharge cycles.

In summer a completely drained rechargeable battery takes about 2 to 4 days to fully recharge in constant sunlight. To switch the product off, press the mode button 2 for 1 time again.

Installation (see Fig)

1. Insert the pole 7 into the ground spike holder 5 and insert the ground spike 8 in to the pole 7.

2. Push the stake into the ground (lawn, flower bed, etc.).

3. You can fix the product on the desired surface, twist on the tree or railing by using the mounting material such as cable tie (mounting material is not included).

Note: Ensure the product is stable. Do not use force when assembling or setting up the product e.g. hammer blows. This will damage the product.

Note: For the best results, put the product in a place where the solar panel 6 is exposed to di rect sunlight for as long as possible. Do not put the product under bushes, trees, canopies etc. as this reduces the incidence of incoming sun light. Position the product in such a way that the solar panel 6 is not covered or in the shade.

Note: Make sure the solar panel 6 is not impacted by other light sources, e.g. yard- or street lighting, or the product will not switch on at twilight.

Operation

Setting up the product

1. Press the ON / OFF button 1 for one time, the product will automatically switch on at dusk.
2. Press the mode button 2 to switch to the next lighting mode. When you reach lighting mode 8, the next press of the mode button 2 switches the product back into lighting mode 1.

The lighting modes are listed as below:

Mode 1: combination (combination of all lighting mode)

Mode 2: in wave (red-orange LEDs and blue-green LEDs shine alternately)

Mode 3: sequential (HG05422A: warm white only; HG05422B: cold white only; HG05422C: red-orange LEDs and blue-green LEDs flash alternately in different frequencies)

Mode 4: Slo-Glo (HG05422A: warm white only; HG05422B: cold white only; HG05422C: red-orange LEDs and blue-green LEDs slowly light up alternating)

Mode 5: chasing / flash (HG05422A: warm white only; HG05422B: cold white only; HG05422C: red-orange LEDs and blue-green LEDs flash at the same time)

Mode 6: slow fade (LEDs light up and fade out slowly)

Mode 7: twinkle / flash (HG05422A: warm white only; HG05422B: cold white only; HG05422C: red-orange LEDs and blue-green LEDs light up alternating like twinkle)

Mode 8: steady on (all LED on)

1. Press the ON / OFF button 1 to disable the product and charging process.

Note: If you no longer use the product, please unplug the supply line plug 3 from the socket of solar panel 4.

Note: The charging time of the rechargeable battery when the solar panel 6 is used depends on the intensity of the sun-light and the angle of incidence of the light on the solar panel 6. Place the solar panel 6 as perpendicular as possible to the angle of incidence of the light. In this way you will receive the highest light levels.

Timer function

1. To switch on the timer function, connect the product to the socket of solar panel 4, then pressing the mode button 2 for 3 second. The mode button 2 lights up green when the timer is pressed. Function is activated.
2. The product will automatically light on as it begins to get dark. Once get bright light or light up for 6 hours, the product will turn off. Afterwards, the product will light up 6 hours again when get dark and then turn off again.
3. To switch off the timer function, press and hold 3 second the mode button 2 again and the light of the mode button 2 will be turned off.

Note: The timer function can only be switched on or off in dark. (The green light goes out in daylight, but switches on again in dark.)

Note: If no longer use, please unplug the supply line plug 3 from the socket of solar panel 4.

Maintenance and care

The LEDs cannot be replaced. The product requires no maintenance.

☐ Clean the product regularly with a dry, lint-free cloth. Use a slightly dampened cloth to remove more stubborn dirt.

Troubleshooting

Note: This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. If you notice that the product is

malfunctioning, remove any sources of interference from the area of the product.

Error Cause Solution
The product will not switch on even though the sun shone on the product all day.	1. Artificial sources of light, e.g. street lighting, are interfering with the product.2. The battery could be discharged.	1. Mount the product in a place where it cannot be disturbed by other sources of light.2. The rechargeable battery cannot be replaced. Dispose of the product properly (see “Disposal”).
The product doesn’t light up	Rechargeable battery defective	The rechargeable battery cannot be replaced. Dispose of the product properly (see “Disposal”)

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations.

The chemical symbols for heavy metals are as follows:

Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR / Min., (peak))

(0,06 EUR / Min., (off peak))

E-Mail: [e-mail]

CE IP 44
