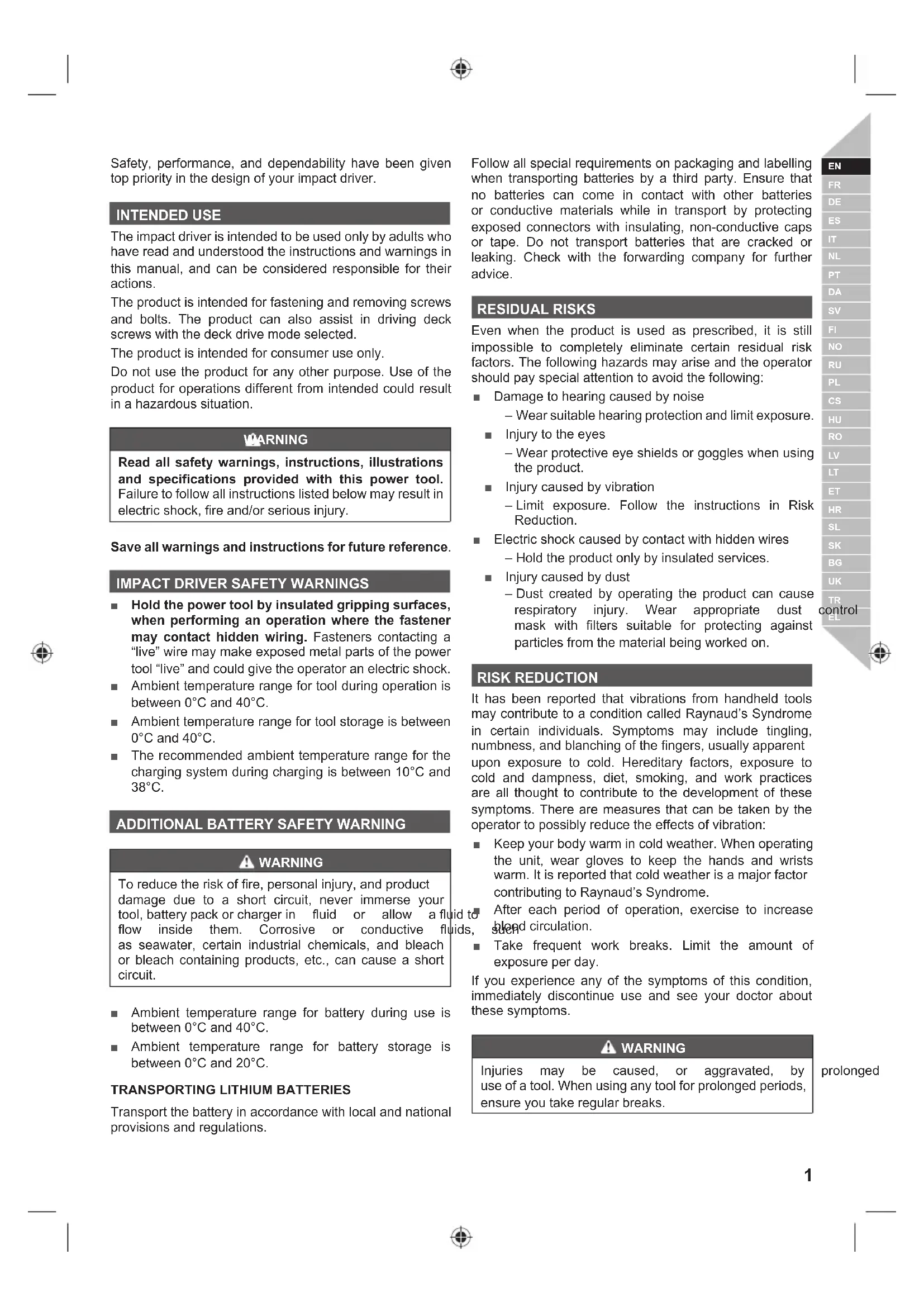

Safety, performance, and dependability have been given top priority in the design of your impact driver. INTENDED USE The impact driver is intended to be used only by adults who have read and understood the instructions and warnings in this manual, and can be considered responsible for their actions. The product is intended for fastening and removing screws and bolts. The product can also assist in driving deck screws with the deck drive mode selected. The product is intended for consumer use only. Do not use the product for any other purpose. Use of the product for operations different from intended could result in a hazardous situation. WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in HOHFWULFVKRFN¿UHDQGRUVHULRXVLQMXU\ Save all warnings and instructions for future reference.

IMPACT DRIVER SAFETY WARNINGS

Ŷ Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Ŷ Ambient temperature range for tool during operation is between 0°C and 40°C. Ŷ Ambient temperature range for tool storage is between 0°C and 40°C. Ŷ The recommended ambient temperature range for the charging system during charging is between 10°C and 38°C.

damage due to a short circuit, never immerse your WRROEDWWHU\SDFNRUFKDUJHULQ ÀXLG RU DOORZ DÀXLGWR ÀRZ LQVLGH WKHP &RUURVLYH RU FRQGXFWLYH ÀXLGV VXFK as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., can cause a short circuit. Ŷ Ambient temperature range for battery during use is between 0°C and 40°C. Ŷ Ambient temperature range for battery storage is between 0°C and 20°C.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations. Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice. RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following: Ŷ Damage to hearing caused by noise – Wear suitable hearing protection and limit exposure.

– Limit exposure. Follow the instructions in Risk Reduction. Ŷ Electric shock caused by contact with hidden wires – Hold the product only by insulated services.

Ŷ ,QMXU\FDXVHGE\GXVW

– Dust created by operating the product can cause

UHVSLUDWRU\ LQMXU\ :HDU DSSURSULDWH GXVW FRQWURO

mask with filters suitable for protecting against particles from the material being worked on. RISK REDUCTION It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud’s Syndrome in certain individuals. Symptoms may include tingling,

QXPEQHVVDQGEODQFKLQJRIWKH¿QJHUVXVXDOO\DSSDUHQW

upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: Ŷ Keep your body warm in cold weather. When operating the unit, wear gloves to keep the hands and wrists ZDUP,WLVUHSRUWHGWKDWFROGZHDWKHULVDPDMRUIDFWRU contributing to Raynaud’s Syndrome. Ŷ After each period of operation, exercise to increase blood circulation. Ŷ Take frequent work breaks. Limit the amount of exposure per day. If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms. WARNING ,QMXULHV PD\ EH FDXVHG RU DJJUDYDWHG E\ SURORQJHG use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.2 | English

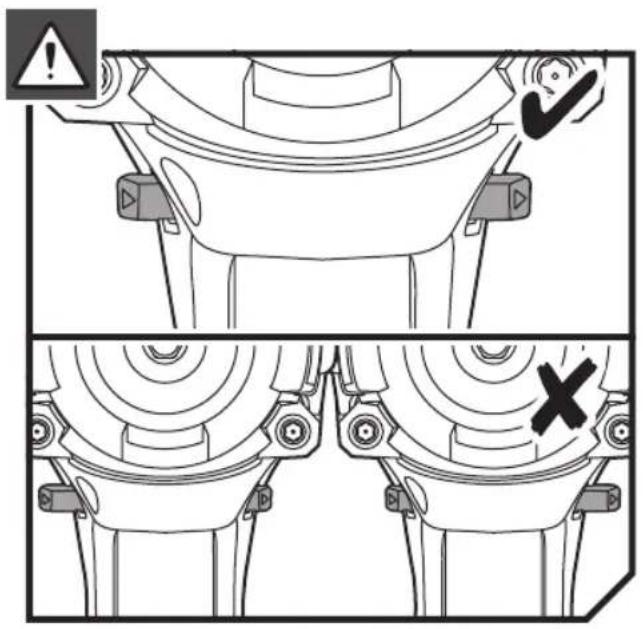

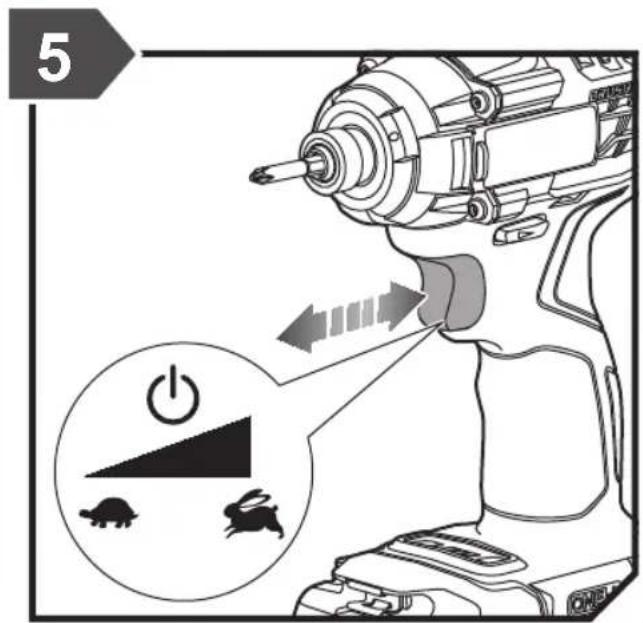

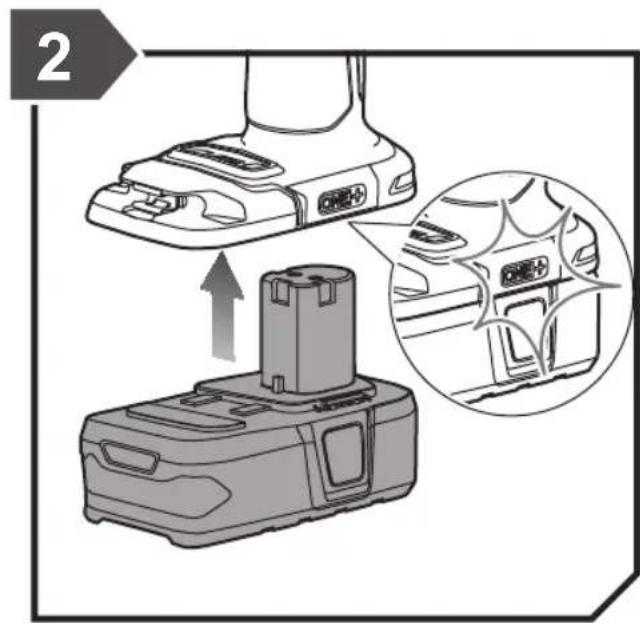

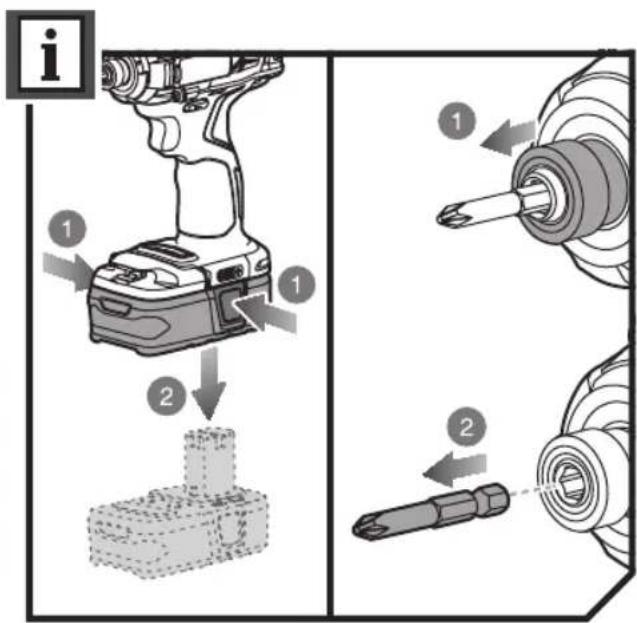

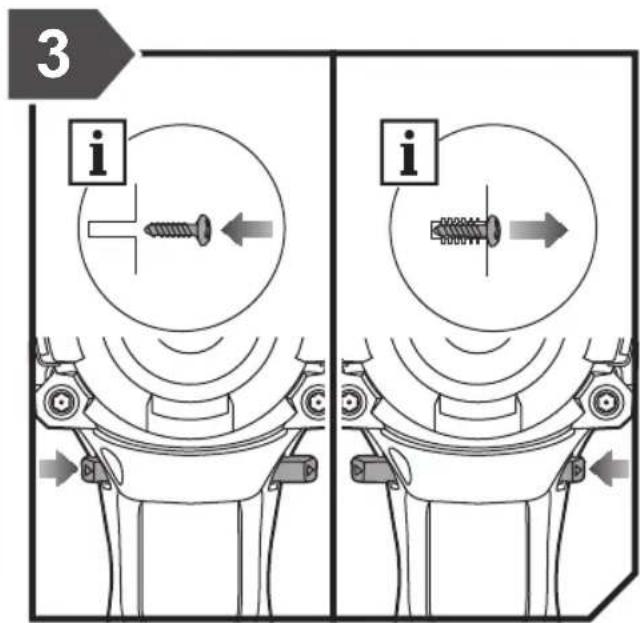

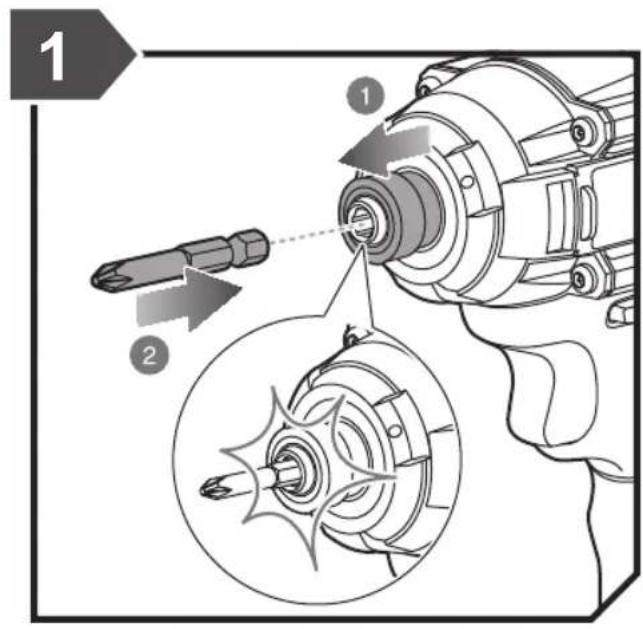

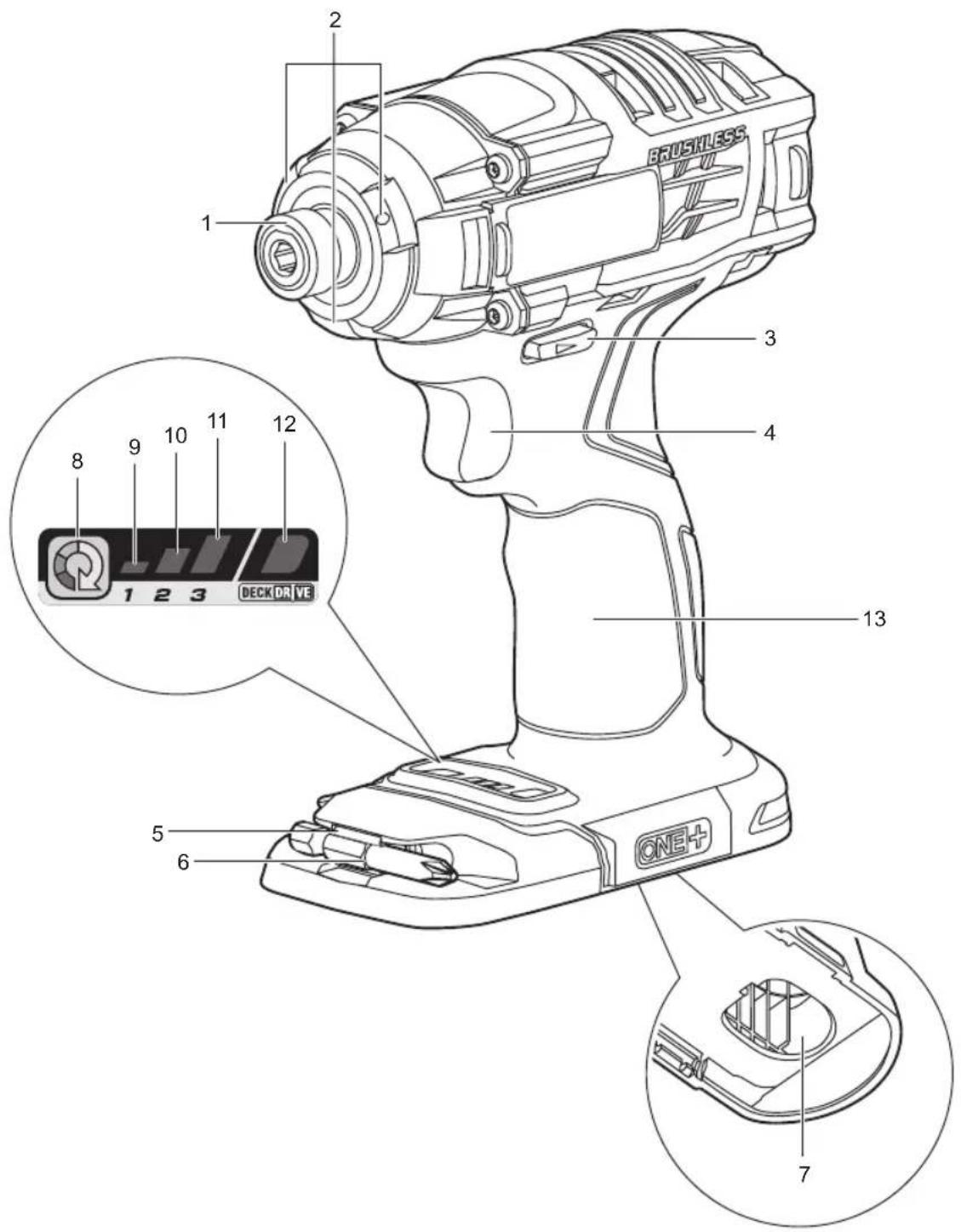

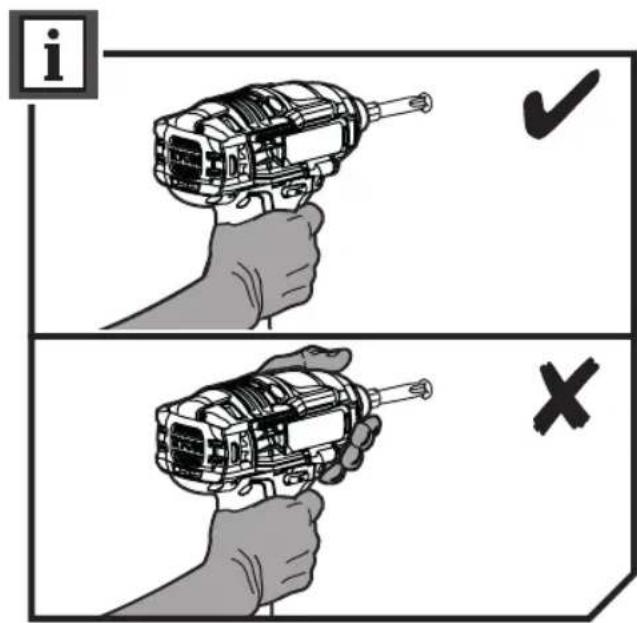

13. Handle, insulated gripping surface

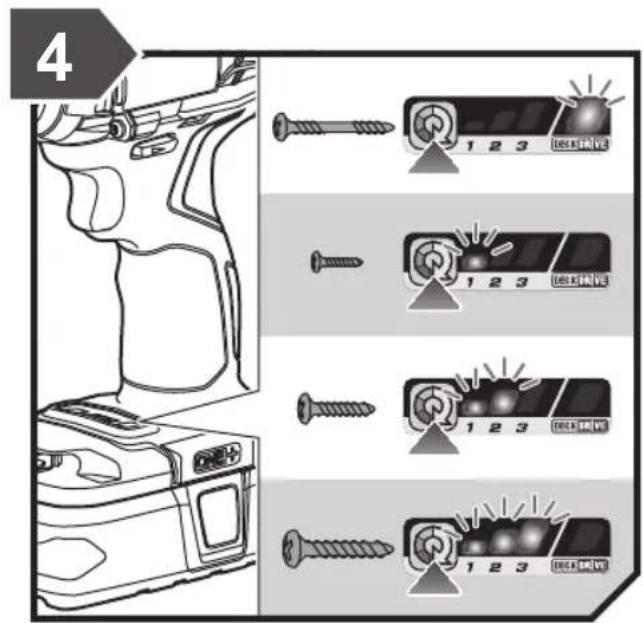

MODE SELECTION The product features electronic speed control. Press the mode selection button to change the performance of the product to suit your application. Changing the speed on an impact driver also effects the torque. For small screws, use speed 1. For a better control with mid-sized screws, use speed 2. For maximum speed and power when driving large screws, use speed 3. '(&.'5,9( LV D PRGH SURJUDPPHG ZLWK D SUR¿OH WKDW suits driving decking screws. It has a soft start-up to catch the screw thread, the impact driver then accelerates up to full speed before slowing down when the screw is almost ÀXVK WR DOORZ \RX WR VHW WKH VFUHZ KHDG FRUUHFWO\ 7KLV

SUR¿OHLVRSWLPLVHGIRUGULYLQJVFUHZVDURXQG[PP

LQWR VRIWZRRG GHFNLQJ DQG SUHVVXUH WUHDWHG SLQH MRLVWV without a pilot hole. MAINTENANCE WARNING The product should never be connected to a power

VXSSO\ ZKHQ DVVHPEOLQJ SDUWV PDNLQJ DGMXVWPHQWV

cleaning, performing maintenance, or when the product is not in use. Disconnecting the product from the power supply will prevent accidental starting that could cause VHULRXVLQMXU\ WARNING When servicing, use only original manufacturer’s replacement parts, accessories and attachments. Use of any other parts may create a hazard or cause product damage. Ŷ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc. WARNING

'RQRWDWDQ\WLPHOHWEUDNHÀXLGVJDVROLQHSHWUROHXP

based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal LQMXU\ WARNING For greater safety and reliability, all repairs should be performed by an authorised service centre. Ŷ Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask. LUBRICATION All of the bearings in the product are lubricated with a VXI¿FLHQWDPRXQWRIKLJKJUDGHOXEULFDQWIRUWKHOLIHVSDQRI the product under normal operating conditions. Therefore, no further lubrication is required. ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. The machine, accessories, and packaging should be sorted for environment- friendly recycling.

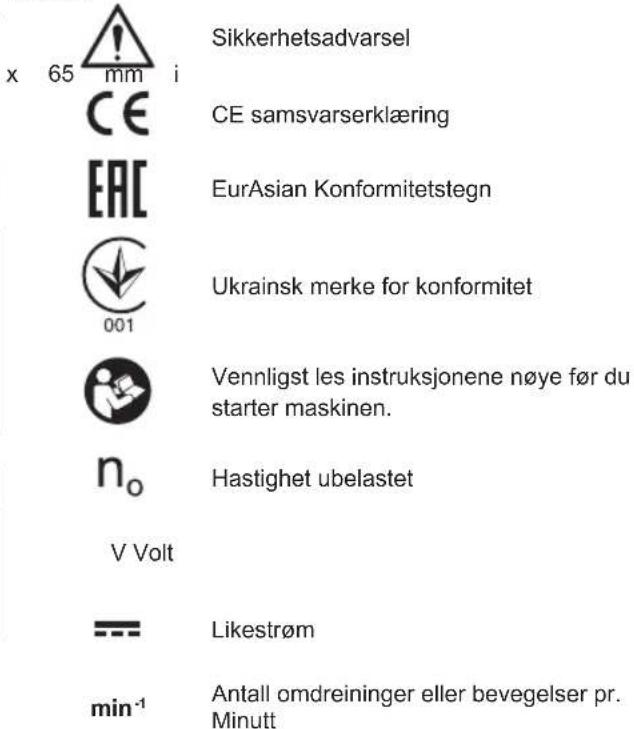

SYMBOLS ON THE PRODUCT

Safety alert CE conformity EurAsian Conformity Mark Ukrainian mark of conformity Please read the instructions carefully before starting the machine. No-load speed V Volts Direct current min

Revolutions or reciprocations per minute3 English |

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL
