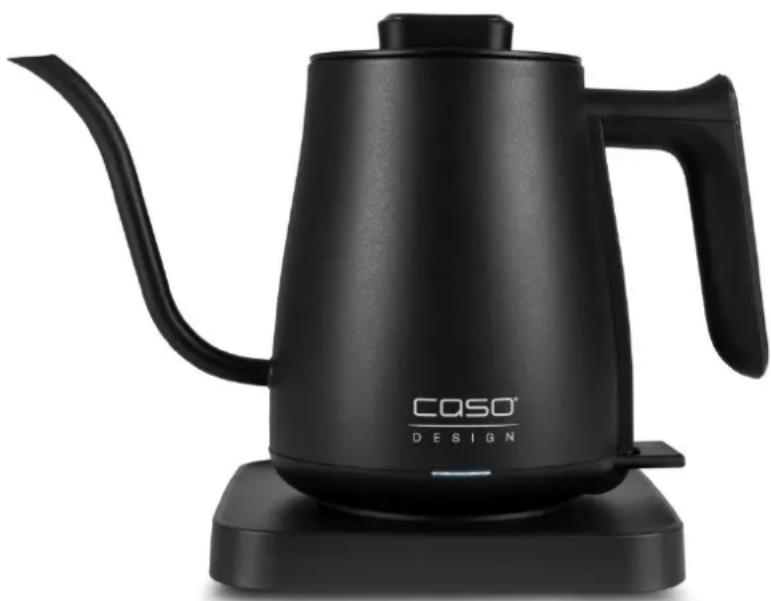

Coffee Classic Kettle - Kettle CASO - Free user manual and instructions

Product type	Electric kettle
Brand	CASO
Model	Coffee Classic Kettle
Article number	1877
Capacity	0.6 L
Dimensions (L × W × H)	280 × 205 × 160 mm
Net weight	0.855 kg
Supply voltage	220-240 V ~ 50-60 Hz
Power consumption	1100-1310 W
Auto shut-off	Yes
Operation indicator	Yes, LED
Base	Yes, included
Warranty	24 months
Care	Clean with damp cloth; descale every 2 weeks
Safety	Automatic shut-off at end of boiling; overheating protection
Use	Boil water only
Included accessories	Base, user manual

Frequently Asked Questions - Coffee Classic Kettle CASO

How to descale the Coffee Classic Kettle?

Fill the jug with water and a commercial descaling product or a little vinegar. Heat the mixture without boiling, then rinse with clear water. Descale every two weeks according to water hardness.

What to do if the kettle does not turn on?

Check that the base is properly plugged in and that the jug is correctly placed on the base. If the problem persists, contact customer service.

Can I heat milk or other liquids?

No, this kettle is designed only for boiling water. Heating other liquids may damage the appliance and pose a burn risk.

Why does the water not boil?

Make sure the appliance is plugged in and the on/off switch is pressed. Check that there is enough water (at least up to the MIN mark, not specified). If the appliance turned off automatically, it may have already boiled.

What is the maximum capacity?

The maximum capacity is 0.6 L, indicated by the MAX mark inside the jug. Do not exceed to avoid overflowing.

How to clean the outside of the kettle?

Wipe the jug with a damp cloth. Do not use harsh or abrasive products. Never immerse the jug, base, or cable in water.

What if I ran the kettle without water?

Immediately unplug and let the appliance cool for at least 15 minutes before using again. Do not restart until it has cooled down.

Does the kettle shut off automatically?

Yes, the appliance shuts off automatically as soon as the water boils. You can also manually switch it off by pressing the on/off switch or lifting the jug.

What is the warranty period?

The warranty is 24 months from the date of purchase, for manufacturing or material defects. To claim the warranty, contact customer service before returning the appliance, with proof of purchase.

Can I use a different base?

No, the kettle must only be used with the supplied base. The base should not be used for other purposes.

USER MANUAL Coffee Classic Kettle CASO

Homepage: www.caso-design.de

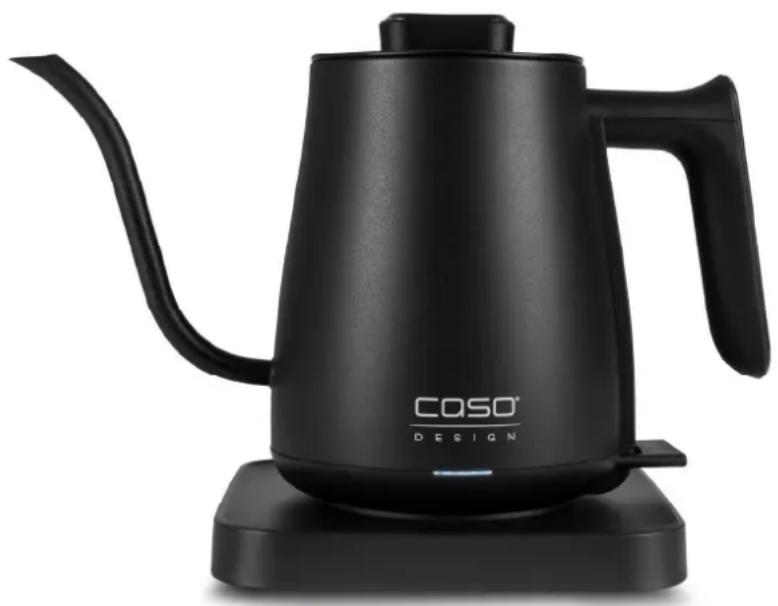

Original Operating Manual Coffee Classic Kettle

Art.-No. 1877

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your device will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the Coffee Classic Kettle (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device.

This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning · Operation · Troubleshooting and/or · Cleaning
• Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR

Danger

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

Warning

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in ordert o avoid the personal injuries.

AVORSICHT

Attention

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

Please note

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observation of the manual
Uses for non-intended purposes
Improper repairs
- Technical alterations, modifications of the device

• Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

• Boiling of drinking water.

Do not use the device to boil coffee, tea, chemicals or alcohol. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
• in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG

Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please

note

Please observe the following general safety notices with regard to the safe handling of the device.

Read all instructions before using.
DO NOT use this device for anything other than its intended use.
This appliance is for HOUSEHOLD USE ONLY.
Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
- Persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge are not allowed to use the device unless they are supervised by a person responsible for their safety or have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Children shall not use this device. Keep the device and its cord out of reach of children
Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children.
- Do not leave the device unsupervised when it is in operation.
The device should be used with provided bower base. The power base cannot be used for other purposes.
Unplug the device when device is empty, before you fill water in, before moving of the device and before cleaning.
Let the device cool down before cleaning it.
- Use only spare parts and accessory provided by the manufacturer in order to avoid the risk of fire, electric shock or injury.

HINWEIS

Please note

Do not heat without water, the device could be damaged.
Should you accidentally have used the device with less or without water, unplug the device and allow it to cool down for minimum 15 minutes.
Do not overturn the device. The lid is not fully sealed in order to release steam during boiling. The device can drop water when overturned.
For safety concern you cannot restart the device directly after operating. Let the device cool down, before restart it again.
Hold the device at its handle.
Do not heat up frozen water!
- Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
SAVE THESE INSTRUCTIONS.

12.3 Danger of burns

WARNING

Warning

The device and the heated water in the device can become very hot.

Observe the following safety instructions and be careful not to burn or scald yourself or others:

Hot steam is created during cooking. Do not touch the spout and do not open the lid of the device during and immediately after cooking

WARNING

Warning

Take care that you do not have contact with the escaping hot steam!
Pour out hot water slowly and carefully. Risk of scalding.
Do not move the device when it is switched on.
- Be cautious when moving the pot containing hot water to avoid being scalded.
Always ensure the lid is firmly closed and do not open the lid while water is boiling, to avoid being scalded.
Do not fill the device over the "max"-marking (0.6 l).
Do not overfill the device, hot water can spurt out.
Incorrect use of appliance may cause serious burns, therefore, attention shall be taken.
Do not touch the pot directly after using it. Residual heat can cause burns!

12.4 Dangers due to electrical power

GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

• Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

AGEFAHR

Danger

To protect against electric shock, DO NOT immerse cord, plug or the device in water or other liquids.
Avoid that water splashes on the power cord.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

WARNING

Warning

Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the Coffee Classic Kettle is delivered with the following components:

• Coffee Classic Kettle - Base - Operation Manual

HINWEIS

Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

Remove the device out of the carton and remove the packaging material.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

13.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Do not use the device outdoors.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not operate the product near hot gas or hot stove.

• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• Do not place the appliance near any inflammable materials, explosive and/or self-igniting gases.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

In this chapter, you'll find important information on the design and function of the device.

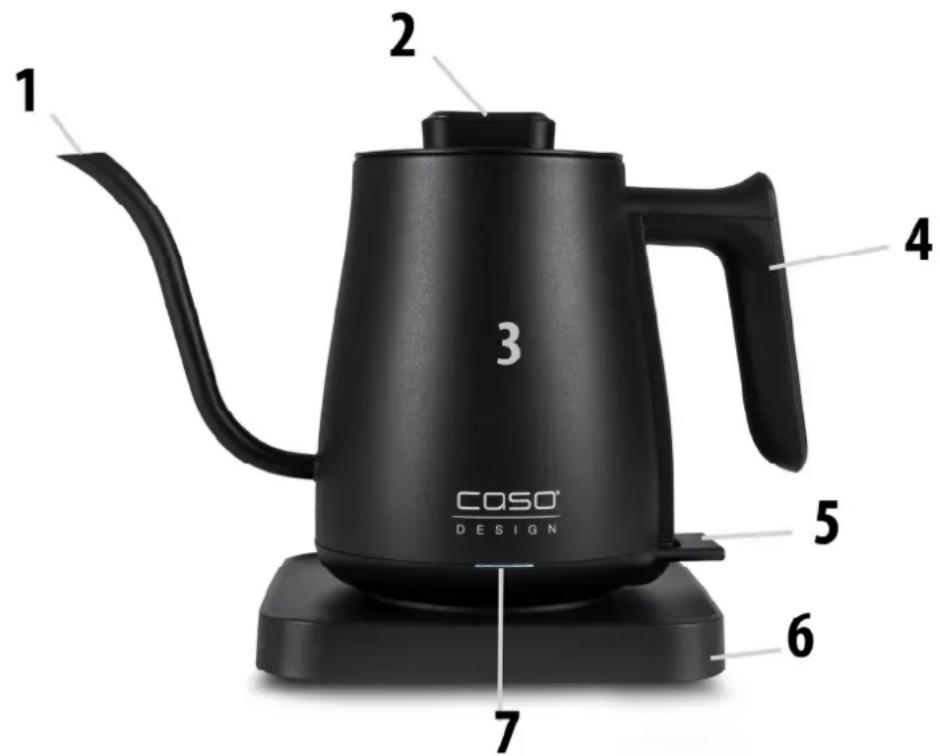

14.1 Overview

1. spout
2. lid
3. pot
4. handle
5. on/off lever
6. base
7. operation indicator

14.2 Rating plate

The rating plate with the connection and performance data can be found beneath the device.

15 Operation and Handling

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.

WARNING

Warning

Do not leave the appliance unsupervised during operation.

15.1 Before first use

Fill the device with water up to the maximum water level. Boil the water and let the device cool down. Discard the water. Repeat this.

15.2 Use

Remove the pot from the base and open the lid. Fill water into the pot.

HINWEIS

Please note

Do not fill the pot over maximum level as water may spout out of device when boiling. Make sure the lid is firmly closed before you place it on the base again.

Place the device on the base and connect to suitable power supply.

Press on/off-lever. The operation indicator will light up to show that the device is heating up. The operation indicator will switch off when boiling has finished. The device switches off automatically.

During the boiling process you can stop heating at every time by pressing on/off-lever or lifting the pot.

Lift the pot from the base. Pour the boiling water through the spout.

WARNUNG Warning: Risk of scalding

Use caution when pouring the hot water and do not open the lid.

Unplug the device when not in use. Clean and dry it and put it back on the base.

15.3 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.4 Safety information

AVORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The Coffee Classic Kettle must be cleaned at regular intervals and limescale should be removed.
- Switch off the Coffee Classic Kettle prior to cleaning it and unplug the plug from the wall power outlet.
Do not use any aggressive or abrasive cleaning agents or solvents.
Do not scrape off stubborn dirt with hard items.
Do not immerse pot, base or power cord in water.

15.5 Cleaning

Pot

• Rinse the pot with a damp cloth.

15.6 Descaling

• Depending on the hardness of water you should descale the device once every two weeks.
• Fill the pot with water and a commercial descaler or give a sip of vinegar into the water. Heat the mixture but do not boil it to prevent overcooking. Rinse the pot with fresh water after descaling.

HINWEIS

Please note

Regularly decalcifying your Coffee Classic Kettle will reduce the electricity used and prolong the life of the device.

16 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

A VORSICHT

Attention

• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.

Improperly performed repairs can cause considerable dangers for the user and damages to the device.

17 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.

Ensure that your old device is stored safely away from children until it is taken away.

18 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

19 Technical Data

Device Coffee Classic Kettle

Item No.: 1877

Mains data 220-240V~50-60 Hz

Power consumption 1100-1310 W

External measurements 280 x 205 x 160 mm

Net weight 0,855 kg

Capacity 0,6 L

PykoBoDCTBO NOIb3OBaTeJIa Coffee Classic Kettle

C E

ApTnKyn No1877

60PykoBoDcTBO nolb3OBaTeJn: oBune cBeDeHnA

IpouHTaIte coepkaunec3decb cBeHnna 6bictporo 03HaKOMneHnca np6opom n BO3MOxHOCTn erO NCIOJIb3OBAHnB IONHOM o6beMe.

Baw npibop npocnyknt Bam dojnne rodbi npu ycnoBn haJnEkaeero obaueHn yxoda.KeJaem npraTHoro noIb3OBAHn.

60.1 Информацnia O данHom rykoBoDCTBe

3TO pykoBODCTBO NOIb3OBATeJI RAJIaTcR CoCTABHOn YacTbIO N3dennr Coffee Classic Kettle (Ha3bIbaemoro daane "Pn6op") n Daet BaxKnble yka3aHnro oero noDrotOBKe K IcNoJIb3OBAHnIO, 6e3oNaChOCTN, HAnIeKaUeMy npImHeHnIO uYxOdy 3a Hm.

60.3 OrpaHnueHne OTBETCTBeHHOCTN

Bce coepkaaunec B daHHom pyKOoDCTBe TexHueckne CBeDeHnA, daHHbIe n yka3aHnno yctahOBKe, nCNoJIb3OBAHnIO u xOydu 3a npi6opom akTyalbHbI Ha MOMeHT neuATn IdaHbI NCxOJaN3 BCEX haunx 3HaHnI, c yHeTOM HaJeero npexKHeRo ONbITa N IOHNMaHn. DaHHbIe, pucyKnI OOncaHnA, coepkaunec B daHHom pyKOoDCTBe, He MOrytABJIaTBcR OCHOBaHnEm dIra KaNX-Pl6o PpeTeH3nI.

Pon3BOinteH He Hecet OTBeTCTBHeHOctn 3a yuep6, BO3HNKwB BCJeCTBNE:

• Heco6JIIOdeHn yka3aHn pykoBODCTBa - nCNoIb3OBaHn np6opa He no Ha3HaueHnIO
• HeinpabInbHoro peMOHTa - npImeHnHa Hepa3peWeHHbIX 3anAcTei
• TexHHuecknX n3MeHeHn, MoDnΦnKauŋ npN6opa

MoIuKauu np6opa He peKoMeHdyOTc H He NOKpbIAOTc rapaHTne. NepeBoDbl BbIOJHeHb I CxOJa I3 BCEX Haunx 3HaHn. Mbl He Hecem OTBeTCTBEHHOCTN 3a OUn6Kn B nepeBOe, daXe ecnI nepeBOD 6bl BbIOJHe HAMn IJI NNo HAWeMy 3aka3y. HAsn 063aTeNbCTBa ORpaHnUBAOTc TOIbKO INCXOHNbIM HeMeUcKIM TEKCTOM.

60.4 3auntata aBtopcknx npab

63.2 Ta6nueka yctpoicTba

3abodckay Tabnukca cnHopmaueo NOKIOUeHN K 3neKTPOcETN INTexHnueCKMn XapaKTePncTnKaMn HaxODNTcra Ha HNXHe cSTOPHe np6opa.

64O6cnyxmbaHne nncnoJb3OBaHne

B 3ToI rnaBe cOepeKAtc BaxHbIe yka3aHnNo o6cnykBaHnIO np6opa. CneyIte 3Tm yka3aHnM, YTO6bl n36exKaTb ONaCHOCTe N NOBpeJDeHn.

YCTaHOBNTe npnbop Ha OCHOBaHne N BCTaBbTe BNkCy CeTeBOrO shHpya B NOxOJaIyU p03ETky.

HaXMMTe Ha pbIaR BKNIOUeHn/BlKNIIOUeHn. CBeueHne INHdNkaTopa pa6oTbI CBnDEteJIbCTByET O cyHKUHOHPOBaHn np6opa. I0 OKOHuaHn IpOcecca KINpaHn INHdkaTop pa6oTbI racHeT. 3aTeM np6Op aBtOMaTNUeCKn OTKlIOuAetc.

Ipocecc KINJyehnmoXHO OCTaHOBntb B JIO6oMOMeHT, HaxaB Ha pbUar BKIOUeyH/ByIKJIOUeyHn CJIerka npINODHbKyBUnH.

CHIMnTe KByuHnC OCHOBaHNy. BbIeNte KInnAuyo Body Upe3 HocNK.

WARNING

ПЕДОCTEPEЖЕНЕ Onacnoctb OXKORB
