USER MANUAL VAKO 2 CASO

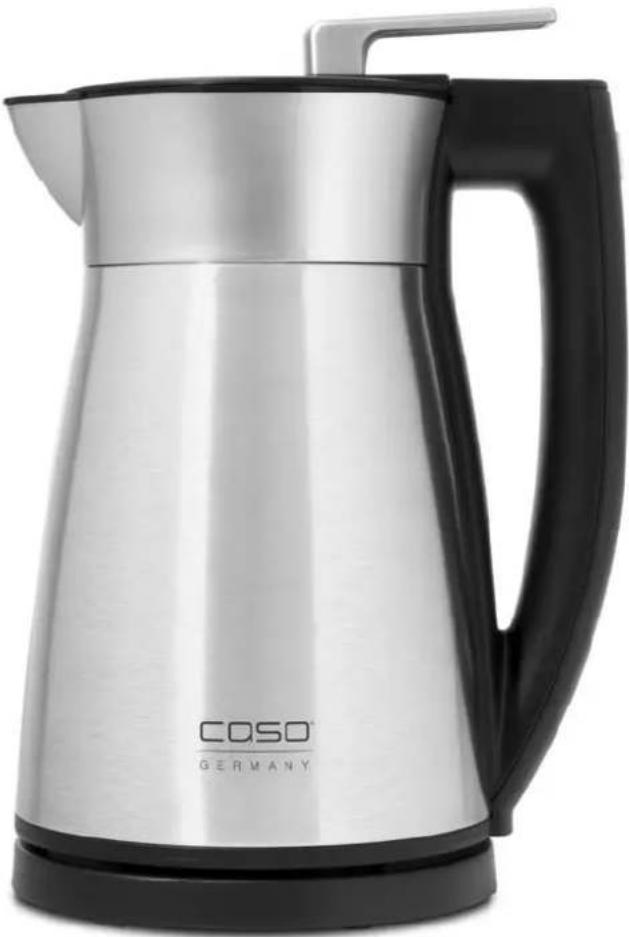

Exterior view of a modern stainless steel water heater with black handle and brand logo (no text-heavy elements)

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

11 Operating Manual....20

11.1 General 20

11.2 Information on this manual....20

11.3 Warning notices....20

11.4 Limitation of liability 21

11.5 Copyright protection ......21

12 Safety 21

12.1 Intended use....21

12.2 General Safety information 22

12.3 Danger of burns 22

12.4 Dangers due to electrical power....23

13 Commissioning....23

13.1 Safety information 23

13.2 Delivery scope and transport inspection....24

13.3 Unpacking....24

13.4 Disposal of the packaging....24

13.5 Setup location requirements: 24

13.6 Electrical connection....24

14 Design and Function 25

14.1 Overview....25

14.2 Rating plate 25

15 Operation and Handling 25

15.1 Before first use....26

15.2 Use 26

15.3 Cleaning and Maintenance....26

15.4 Safety information 26

15.5 Cleaning....26

15.6 Descaling....27

16 Troubleshooting....27

17 Disposal of the Old Device....27

18 Guarantee....28

19 Technical Data....28

Technical diagram of a kettle with numbered parts for identification

4.1 Übersicht

Original Operating Manual

VAKO ^2

Exterior view of a modern stainless steel water heater with black handle and label 'COSO GERMANY' (no other text or symbols visible)

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your device will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the VAKO ^2 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

- Commissioning • Operation • Troubleshooting and/or • Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

Danger

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

Warning

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in ordert o avoid the personal injuries.

▲VORSICHT

Attention

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

Please note

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

• Boiling of drinking water
  Do not use the device to boil coffee, tea, chemicals or alcohol.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Read all instructions before using.
▶ DO NOT use this device for anything other than its intended use.
▶ This appliance is for HOUSEHOLD USE ONLY.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
▶ Persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge are not allowed to use the device unless they are supervised by a person responsible for their safety or have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not use this device. Keep the device and its cord out of reach of children
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children.
▶ Do not leave the device unsupervised when it is in operation.
▶ The device should be used with provided bower base. The power base cannot be used for other purposes.
▶ Unplug the device when device is empty, before you fill water in, before moving of the device and before cleaning.
▶ Let the device cool down before cleaning it.
▶ Use only spare parts and accessory provided by the manufacturer in order to avoid the risk of fire, electric shock or injury.
▶ Do not heat without water, the device could be damaged.
▶ Should you accidentally have used the device with less or without water, unplug the device and allow it to cool down for minimum 15 minutes.
▶ Do not overturn the device. The lid is not fully sealed in order to release steam during boiling. The device can drop water when overturned.
▶ After boiling press the spout opener to release the hot steam.
For safety concern you cannot restart the device directly after operating. Let the device cool down, before restart it again.
▶ Hold the device at its handle.
▶ Do not heat up frozen water!
▶ SAVE THESE INSTRUCTIONS.

12.3 Danger of burns

⚠️WARNUNG

Warning

The device and the heated water in the device can become very hot.

Observe the following safety instructions and be careful not to burn or scald yourself or others:

▶ Hot steam is created during cooking. Do not touch the spout and do not open the lid of the device during and immediately after cooking

⚠️WARNUNG

Warning

▶ Take care that you do not have contact with the escaping hot steam!
▶ Pour out hot water slowly and carefully. Risk of scalding.
▶ Do not move the device when it is switched on.
▶ Be cautious when moving the pot containing hot water to avoid being scalded.
▶ Always ensure the lid is firmly closed and do not open the lid while water is boiling, to avoid being scalded.
▶ Do not fill the device over the "max"-marking (1500ml).
▶ Do not overfill the device, hot water can spurt out.
▶ Incorrect use of appliance may cause serious burns, therefore, attention shall be taken.
▶ Do not touch the inside of the pot directly after using it. Residual heat can cause burns!

12.4 Dangers due to electrical power

⚠GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ To protect against electric shock, DO NOT immerse cord, plug or the device in water or other liquids.
▶ Avoid that water splashes on the power cord.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

⚠️WARNUNG

Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the VAKO ^2 is delivered with the following components:

- VAKO ^2 • Base • Operation Manual

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

Remove the device out of the carton and remove the packaging material.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

13.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Do not use the device outdoors.
• Do not operate the product near hot gas or hot stove.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• Do not place the appliance near any inflammable materials, explosive and/or self-igniting gases.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

- Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

In this chapter, you'll find important information on the design and function of the device.

14.1 Overview

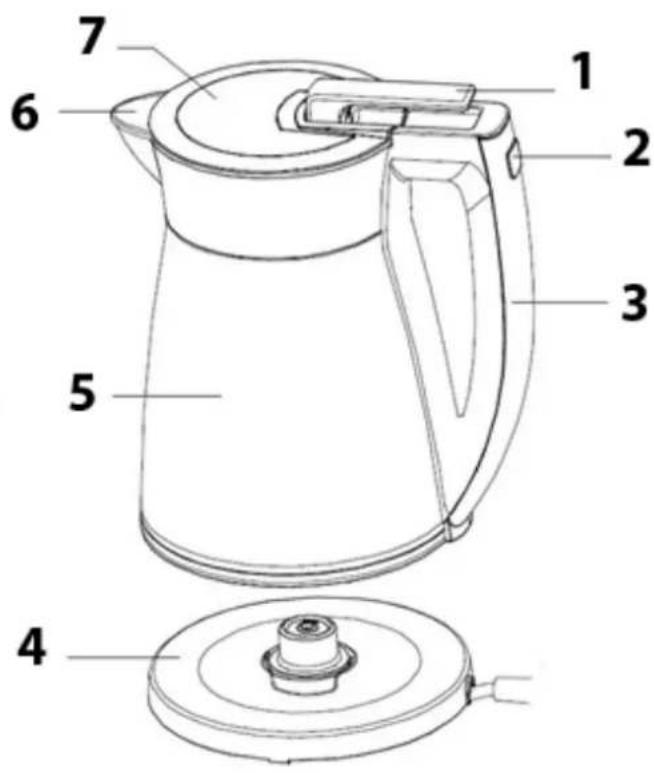

Technical diagram of a kettle with numbered parts for identification and assembly reference

1. spout opener
2. on/off button
3. handle
4. base with power cord
5. pot
6. spout
7. lid

14.2 Rating plate

The rating plate with the connection and performance data can be found beneath the device.

15 Operation and Handling

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.

⚠️WARNUNG

Warning

▶ Do not leave the appliance unsupervised during operation.

15.1 Before first use

Fill the device with water up to the maximum water level. Boil the water and let the device cool down. Discard the water. Repeat this.

15.2 Use

Remove the pot from the base and open the lid. Fill water into the pot.

HINWEIS

Please note

▶ Do not fill the pot over maximum level as water may spout when boiling. Make sure the lid is firmly closed before you place it on the base again.

Place the device on the base and connect to suitable power supply.

Press on/off-button. The button will light up to show that the device is heating up. The light will switch off when boiling has finished. The device switches off automatically.

During the boiling process you can stop heating at every time by pressing on/off-button.

Lift the pot from the base. Press the spout opener and pour the hot water.

▲VORSICHT

Attention: Risk of scalding

▶ Use caution when pouring the hot water and do not open the lid, use the spout opener. The water in the pot is kept warm due to the vacuum between inner and outer pot without any power consumption (2hrs thermal insulation of 80 °C , 4 hrs thermal insulation of 70 °C )

15.3 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.4 Safety information

▲VORSICHT

Attention

Please observe the following safety notices, before you commence with cleaning the device:

The VAKO ^2 must be cleaned at regular intervals and calcium deposits should be removed.
▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
▶ Do not immerse pot, base or power cord in water.

15.5 Cleaning

Pot

- Rinse the pot with a damp cloth.

15.6 Descaling

• Depending on the hardness of water you should descale the device once every two weeks.
• Fill the pot with water and a commercial descaler or give a sip of vinegar into the water. Heat the mixture but do not boil it to prevent overcooking. Rinse the pot with fresh water after descaling.

HINWEIS

Please note

▶ Regularly decalcifying your VAKO ^2 will reduce the electricity used and prolong the life of the device.

16 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

▲VORSICHT

Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

Problem	Cause	Solution
The device switches off before boiling or before it has reached desired temperature.	Too much scale in the pot.	Descale the device.
The device cannot be switched on.	The device has not cooled down sufficiently.	Allow the device to cool down.

17 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the

environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

18 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

19 Technical Data

Device water kettle VAKO2

Item No.: 1872

Mains data 220-240 V, 50 Hz

Power consumption 1500-1800 W

External measurements 27,6 x 19,8 x 15,3 cm

Net weight 1,30 kg

Capacity 1,5 l

CQSO®

GERMANY

Mode d'emploi VAKO²

Exterior view of a modern stainless steel water heater with black handle and brand logo (no text-heavy elements)

20 Mode d'emploi

20.1 Généralités

Technical diagram of a kettle with numbered parts for identification and assembly reference.

23.1 Vue d'ensemble

Exterior view of a modern stainless steel water heater with black handle and brand logo (no text-heavy elements)

Articolo-N. 1872

30 Istruzione d'uso

30.1 In generale

Labeled diagram of a kettle with numbered parts for identification

Exterior view of a modern stainless steel water heater with black handle and brand logo (no text-heavy elements)

Ref. 1872

Technical diagram of a kettle with numbered parts for identification

43.1 Sinopsis

Exterior view of a modern stainless steel water heater with black handle and brand logo (no text-heavy elements)

Artikelnummer 1872

Technical diagram of a kettle with numbered parts for identification
