USER MANUAL WK2100 compact CASO

11.1 General 24
11.2 Information on this manual 24
11.3 Warning notices 24
11.4 Limitation of liability 25
11.5 Copyright protection 25

12 Safety. 25

12.1 Intended use 25
12.2 General Safety information 26
12.3 Sources of danger 28

12.3.1 Danger of burns 28
12.3.2 Dangers due to electrical power 28

13 Commissioning. 29

13.1 Safety information 29
13.2 Delivery scope and transport inspection 29
13.3 Unpacking 29
13.4 Disposal of the packaging 29
13.5 Setup 30
13.5.1 Setup location requirements: 30
13.6 Electrical connection 30

14 Design and Function 31

14.1 Complete overview 31
14.2 Display with Buttons 32

15 Safety equipment. 32

15.1.1 Warning notices 32
15.2 Rating plate 32

16 Operation and Handing 32

16.1 Before first us 32
16.2 Operation 32
16.3 Keep warm function 33
16.4 Cleaning and Maintenance 34
16.5 Safety information 34
16.6 Cleaning 34
16.7 D escaling 34

17 Troubleshooting 35
18 Disposal of the Old Device 35
19 Guarantee 35
20 Technical Data 36

Original Operating Manual

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your WK 2100 compact will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the WK 2100 compact (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning

Operation

• Troubleshooting and/or

• Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

AGEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: - Non-observation of the manual - Uses for non-intended purposes

• Improper repairs
• Technical alterations, modifications of the device
• Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

Heating and boiling of water

• Keeping warm of water

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
• in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
- Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
Children are not allowed to play with the device.
The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
- Do not leave the device unsupervised when it is in operation.

HINWEIS

Please note

Do not operate the WK 2100 compact when it is empty. This can damage the devise.
If the pot is full there is a risk that boiling water squirts out, which can lead to burns or scalding. Therefore never fill the kettle beyond the maximum mark.
The water kettle is intended to heat water only. It is not designed to be used for cooking food or for heating any other fluids.
The cord shall not come into contact with the hot parts of the device.
- Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
Operatethe device only with the supplied base.
- Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
- Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

12.3 Sources of danger

12.3.1 Danger of burns

WARNING

Warning

The water heated in the device as well as the pot, can become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others.

• When boiling water the pot and the lid of the device become hot.
  Touch the hot pot only at its handle.
  Always test the temperature of the water before you drink it.
  Do not operate the device with open lid.
  Pay attention to the hot water steam that is produced during cooking process. Risk of burns.

12.3.2 Dangers due to electrical power

AGEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

• Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.

AGEFAHR

Danger

• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

WARNING

Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

• Packaging materials may not be used for playing. There is a danger of suffocation.
  Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

13.2 Delivery scope and transport inspection

As a rule, the WK 2100 compact is delivered with the following components:

Pot

Base with cord

Operating Instructions

HINWEIS

Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Setup

13.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity for the WK 2100 compact.
• Place the device only on a waterresistant surface.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

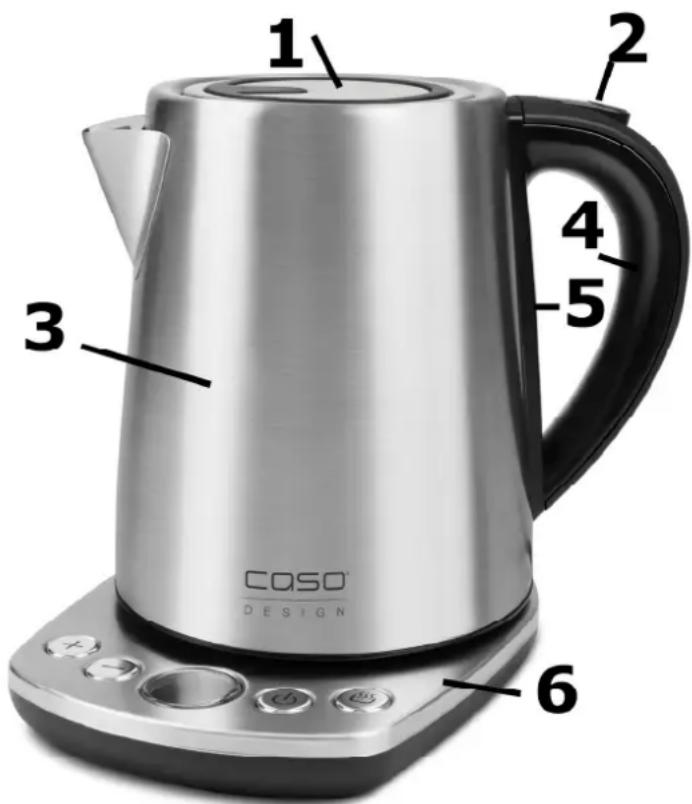

14.1 Complete overview

1 Lid
2 Button for opening the lid
3 Pot
4 Handle
5 Waterlevel indicator
6 Base with Display and Buttons

14.2 Display with Buttons

The display shows above the line the selected temperatur and below the line the actual temperature.

• button to increase the temperature

button to decrease the temperature

on/off button

-keep warm button

15 Safety equipment

15.1.1 Warning notices

▲WARNUNG

Warning

The heated water as well as the pot, can become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others.

• When boiling water the pot and the lid of the device become hot.
  Touch the hot pot only at its handle.

15.2 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

16 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

WARNING

Warning

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

16.1 Before first us

Rinse the inside and outside of the pot with a damp cloth.

16.2 Operation

But the device on a firm and level surface. The cord can be wound into the bottom of the base. Plug in the power plug. A beep will sound, the display and all buttons light up blue.

Then the device turns off.

Press the button for opening the lid, fill in the water.

Fill in at the minimum 0,5 liter and at the maximum 1 liter water.

Close the lid, make sure that lid is closed correctly.

Put the pot on the base. The button flashes blue.

The device switches to standby-mode automatically after 5 seconds.

Turn the device on by pressing. The display shows above the line the selected temperatur and below the line the actual temperature. You can set the temperature only

when you have pressed. Set the desired temperature by using the +/- Buttons, the device immediately begins to heat the water.

Temperature settings

10-30°C rapid heating of water up to a comfortable drinking temperature

40-60 °C water temperature for preparing baby food

70^ water temperature for delicate teas (green/white tea)

85 °C water temperature for instant coffee or instant soup

100 °C water temperatur for black tea/herbal tea

Stick to the recommended temperature on the tea package.

When the water has reached the desired temperature, three beeps will sound, the button flashes blue and the device turns off automatically. You can cancel the cool

process at any time by pressing the button.

16.3 Keep warm function

Press the keep warm button directly after setting the desired temperature. When the water has reached the desired temperature, three beeps will sound and the device starts

the keep warm function. The button continuously lights up slowly and turns off. Press

the button or to end the keep warm function.

HINWEIS

Please note

• When you do not cancel the keep warm function, the device will turn off automatically after 2 hours.

16.4 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.5 Safety information

AVORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The WK 2100 compact must be cleaned at regular intervals and limescale should be removed.
Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
Do not use any aggressive or abrasive cleaning agents or solvents.
Do not scrape off stubborn dirt with hard items.
Do not immerse pot, base or power cord in water.

16.6 Cleaning

Pot
- Rinse the pot with a damp cloth.
Mesh
- The mesh is located it the sprout of the pot. Pull it up and wash it under running water. Then place the mesh back correctly.
Base
- The stainless steel surface of the base can be cleaned with a commercial stainless steel cleaning agent.
Buttons
- Clean the buttons with a damp cloth. Do not use cleaning agents.

16.7 Descaling

• Depending on the hardness of water you should descale the device once every two weeks.
• Fill the pot with water and a commercial descaler or give a sip of vinegar into the water. Heat the mixture to 70^ but do not boil it to prevent overcooking. Rinse the pot with fresh water after descaling.

HINWEIS Please note

Regularly decalcifying your WK 2100 compact will reduce the electricity used and prolong the life of the device.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

AVORSICHT Attention

• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
• Improperly performed repairs can cause considerable dangers for the user and damages to the device.

Problem Cause Solution
The device switches off before boiling or before it has reached desired temperature.	Too much scale in the pot.	Descale the device.
The device does not switch off.	The lid is not closed correctly, the mesh is not inserted correctly.	Close the lid correctly. Place the mesh into device correctly.
The device cannot be switched on.	The device has not cooled down sufficiently.	Allow the device to cool down.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However,

they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery.

All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device Water kettle
Name WK 2100 compact
Item No.: 1869
Mains data 220 V - 240 V; 50 Hz / 60 Hz
Power consumption WK 2100 compact 1850 W - 2200 W
Power consumption keep warm function 1850 W - 2200 W
External measurements (W x H x D) 155 x 290 x 210 mm
Capacity 1,2 L
Net weight 1,16 kg
