USER MANUAL AD 7043 ADLER

Blue and black handheld vacuum cleaner with handle extended (no visible text or symbols)

AD 7043

Labeled diagram of a vacuum cleaner with numbered parts for identification

Exploded view diagram of a device showing internal components and parts (no text or symbols)

Diagram showing a mechanical component before and after assembly, labeled 'Picture. 2' (no text or symbols on the diagram itself)

ENGLISH

SAFETY CONDITIONS. IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. The appliacable voltage is 220-240V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.
6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
7. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.
8. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.
9. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
10. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.
11. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.
12. Never use the product close to combustibles.
13. Do not let cord hang over edge of counter.
14. Do not immerse the motor unit in water.
15. Do not handle the appliance or power cord with wet hands.
16. For household use only.
17. Do not use the vacuum cleaner to pick up flammable items (such as fuel, solvents).

18. Do not vacuum objects with sharp edges (e.g. broken glass).

19. Do not aim the vacuum cleaner toward other people or animals.

20. The vacuum cleaner may be used only on dry surfaces.
21. Only use accessories designed for this appliance.
22. Use extra care when vacuuming stairs.
23. Do not block any vents.
24. Do not operate the vacuum cleaner without the filter.
25. Do not pull the vacuum cleaner by the hose.
26. Make sure that the power cord is not wedged by a door and does not get jammed. When moving the vacuum cleaner please note the length of the power cord. Pulling the vacuum cleaner suddenly when the cord is taut may damage it.
27. Vacuuming dust and residues of construction causes immediate loss of warranty. The vacuum cleaner is designed for domestic use only.
28. The device is outfitted with a rechargeable battery. Do not throw into a fire, puncture, crush or damage the battery.

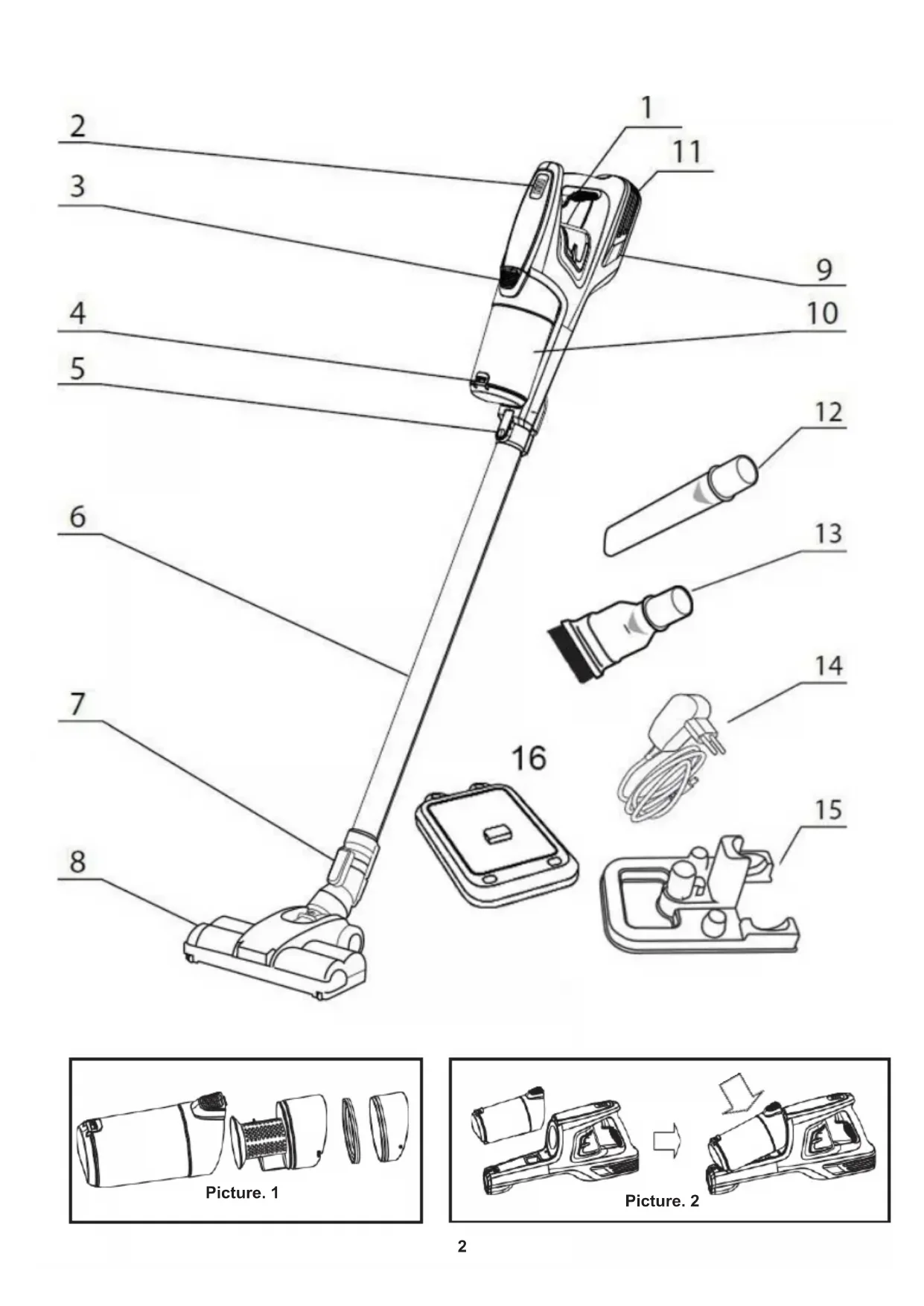

Device Description: (Handheld vacuum cleaner)

1. On/off button and speed control button 2. Battery indicator 3. Dust cup release button 4. Dust release button 5. Main body release button 6. Electric tube 7. Brush release button 8. Powder brush 9. Battery 10. Dust cup 11. Adaptor connector

2. 2 in 1 crevice nozzle 13. Furniture tool 14. Adaptor 15. Docking station 16. Wall mounting

Using the device:

To turn the device On, press the On/Off button(1) once.

To increase speed press the On/Off button(1) again.

To turn off the device press the On/Off button a third time.

Charging:

To charge the device please plug the Adaptor (14) into the wall socket with the appropriate current.

Then insert the plug into the corresponding input on the Battery unit (9).

During the charging, the indicator lamp will start flashing.

Once the battery is full it will stop flashing.

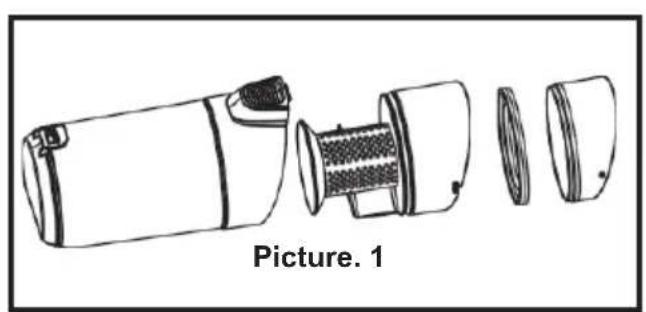

Cleaning:

To clean the device please follow the below steps:

1. Press the dust cup release button (3) downwards with a firm press.

2. Once the cup is released from the main body press the Dust release button (4) over a garbage container to release the dust stored inside.

3. On the upper side of the container, you will see 2 small handles. Pull-on them to release the plastic filter from the dust container.

4. Rinse the container with water and a nonabrasive cloth and leave to dry.

5. to release the sponge filter press on the handles with some force counterclockwise until you hear a click. Once you hear the Click pull upwards to release the filter.

6. Rinse the filter with water and let it dry in the sun.

DO NOT INSERT OR ASSEMBLE WHILE WET OR DAMP. MAKE SURE ALL PARTS ARE DRY BEFORE ASSEMBLY.

DO NOT USE THE DEVICE WITHOUT FILTERS.

Assembly:

Please resemble the filters and cup by following the Cleaning instructions backward.

After that please align the cup with the motor unit.

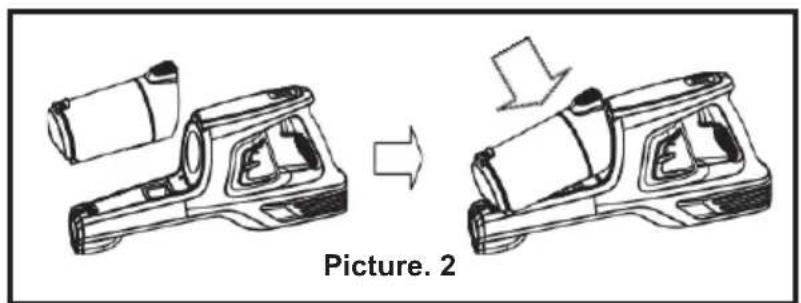

At the bottom of the Dust container there is a groove, place the container base against it as shown on Picture 2.

Press firmly the upper part of the container against the motor unit until you hear a click sound.

Tube and Electro Brush.

To use the device it is advised that you use the tube and electro brush.

For that please insert the tube(7) into the main motor unit.

Make sure that the power connectors at the bottom part of the motor unit and the tube are aligned. Press the tube into the main motor unit until you hear a Click. Do the same thing with the Electro brush.

Technical Data: Adaptor Input Power: 220-240V 50/60Hz Adaptor Output: 27V 500mA Battery Power: 22,2V Nominal Power: 100W Maximum Power: 250W

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.

DEUTSCH

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

1:YNY12WB-270050DE 2:230 V 3:50 Hz

4: =27,0 V

5: 0,5 A

6: 13,5 W

7: 84,4 %

8: 76,2 %

9: 0,07 W

GB DE FR

1: Model identifier

2: Input voltage

3: Input AC frequency

4: Output voltage

5: Output current

6:Output power

7: Average active efficiency

8:Efficiency at low load (10 %)

9: No-load power consumption

1: Modellkennung

2: Eingangsspannung

1: identificator model
