AIR HOSE REEL

1. Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The operating instructions are part of the product. They contain important information concerning safety, use and disposal. Before using the product, familiarise yourself with all of the operating instructions and safety instructions. Use the product only as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Due to its 20m hose length, the air hose reel can be used for a wide range of jobs in any workshop or garage: No more tripping over loose hoses lying around simply roll-out the desired hose length and after the job is finished effortlessly pull on the reel. It is a safe and clean piece of equipment with a very robust design and a rigid plastic casing. It is UV resistant, protects the hose from wear and tear and keeps the workplace clean and safe.

1.1 Intended use

The air hose reel is designed and constructed according to the state of the art and the recognised safety regulations. Nevertheless if it is improperly used or not used as intended there may be dangers to life and limb for the users or third parties as well as damage to the equipment itself and/or to other property.

The air hose reel is designed for the distribution of compressed air and is suitable for universal use in almost all spheres of compressed air technology. This device is not suitable for the transport of oxygen or other gases. Any other use or use outside these conditions is not use for the purpose intended. The user carries the risk. Use for the purpose intended includes the observance of the operating and installation instructions as well as the observance of the servicing conditions.

1.2 Features and fittings

1 Carrying handle
Rotating handle
3 Fast coupling
4 Compressor connection hose
5 Guide rail
Holder

1.3 Included items

1 Air hose reel
1 Air hose 20m
1 Manual

1.4 Technical data

Article number: 5200110003

Maximum working pressure: 16 bar (at 23^ ) 11 bar (at 60^ )

Type of hose: Type C (heavy service)

Hose inside diameter: 11,3mm

Hose outer diameter: 6,3mm

Wall thickness: 2,5 mm

Coupling: DN 7,2/6 mm

Length: 20 m

2. Safety instructions

Read all the safety advice and instruction.

Failure to observe the safety advice and instructions could result in serious injury and/or damage to property.

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

In addition to the instructions in these Operating Instructions the general safety and accident prevention regulations must be observed.

Pass on these Operating Instructions to third parties.

Take care third parties only use this product after they have received the necessary instructions.

• Keep children away from the equipment and prevent it being used by other people.

Do not leave the equipment unattended when it is ready to use. Under no circumstances allow children to get close to it. It is forbidden for children to use the product. Protect the product from unauthorised use.

Always be alert and watch what you are doing.

Do not do any work on this product, if you are inattentive or are under the influence of drugs, alcohol or medication. Just a moment of inattention when using this product can lead to serious accidents and injuries.

Watch out for damage.

Check the equipment before putting it into service for damage. If the equipment has defects it must definitely not be used.

Do not use pointed objects.

Never insert points and/or metallic objects inside the equipment.

Do not use the equipment in a way that it was not intended to be used.

Only use the equipment for the purposes intended in these Operating Instructions.

Check it regularly.

The use of this device can lead to wear in certain parts. So check it regularly for any damage and defects.

Only use original spare parts.

For your own safety only use accessories and additional equipment which are specifically mentioned in the Operating Instructions or are recommended by the manufacturer.

Do not use outside.

Do not use the equipment in places where there is a risk of explosion, in which there are substances such as combustible liquids, gases and, in particular, areas where there is paint and dust fog.

2.1 Specific safety instructions

Changes as a result of technical progress can be introduced by the manufacturer without prior notice and may not be included in the Operating Instructions.
- Check the equipment before putting it into service to see that it is complete, functions properly and is air tight!
- Never put a defective or non-functional piece of equipment into service. Contact the manufacturer or get the equipment checked by a qualified technician.
- Never stand on the equipment!
- Hold the hose when unrolling and rolling up so that the hose cannot injure anyone while swinging about!
- Pay attention to the maximum working pressure of the hose. Only operate the hose within the given parameters (see Technical data).
- At very low temperatures the hose may become inflexible and stiff. This can lead to problems when rolling up!
Take care when the hose is moved it is not damaged by sharp edges and objects!
- Never store or put the hose in a place where there is direct sunlight!
- Never use the hose to carry dangerous liquids (chemicals, acids, alkaline solutions, etc).
- Turn off the air flow before rolling up the hose!
Always work cautiously and with the necessary care!
- Never use excessive force!

3. Operation

Hold the hose when unrolling and rolling up so that the hose cannot injure anyone while swinging about.
Pay attention to the maximum working pressure of the hose. Only operate the hose within the given parameters (see Technical data).

1. Plug the connection hose into the compressor.
2. Slowly unroll the desired length of hose.
3. Connect the compressed air tool by means of the fast coupling.

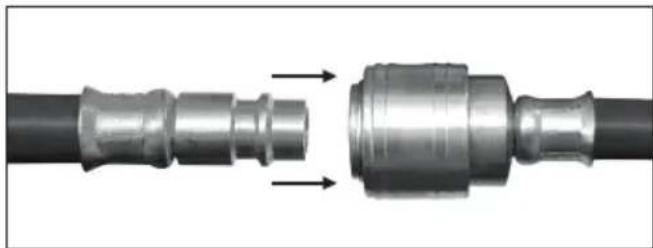

Fig. 1 Connect compressed air hose

1. Remove the tool from the hose after the work has been completed by pulling the coupling backwards hard. Roll up the hose again when the job is done.

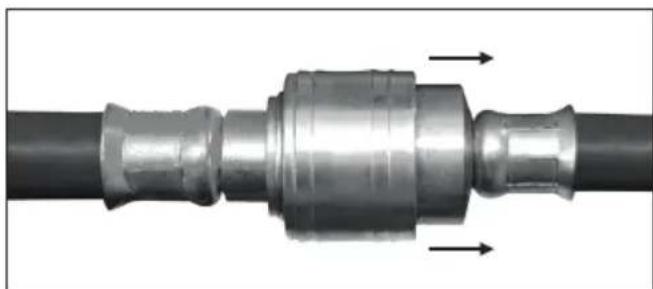

Fig. 2 Open compressed air hose

1. Adjust holder

The holder for the air hose reel is on the back of the device. To apply the holder pull the plastic downwards and to release pull the plastic up again.

4. Maintenance, Cleaning and Storage

Disconnect the hose reel from the compressed air source before you begin to maintain it.

If the hose is dirty, clean it before you roll it up again. Never use aggressive cleaning materials!
Regularly check that the hose is airtight.
Regularly lubricate the moving parts of the hose drum.
- Immediately change defective and damaged parts.
Roll up the hose completely when not in use and store it in a dry, clean and frost free place.

5. Disposal

Do not dispose of the product with household rubbish!

Triman logo is valid in France only.

The packaging is made of environmentally friendly materials that can be disposed of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations and numbers with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

6. ROWI Germany GmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place.

This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 354125_2010) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

NOTICE: At www.lidl-service.com you can download this manual as well as many other manuals, product videos and software. This QR code will take you directly to the Lidl service page (www.lidl-service.com) and allow you to open your operating instructions simply by entering the article number (IAN 354125_2010).

7. Service

Should problems arise whilst operating your ROWI Germany product, please proceed as follows:

Contact us

You may contact the ROWI Germany Service-Team at:

ROWI Germany GmbH

(free of charge from landline)

IAN 354125_2010

Most problems can be resolved with the skilled technical support of our Service Team.
