USER MANUAL FTP 400 E4 FLORABEST

Translation of the original instructions

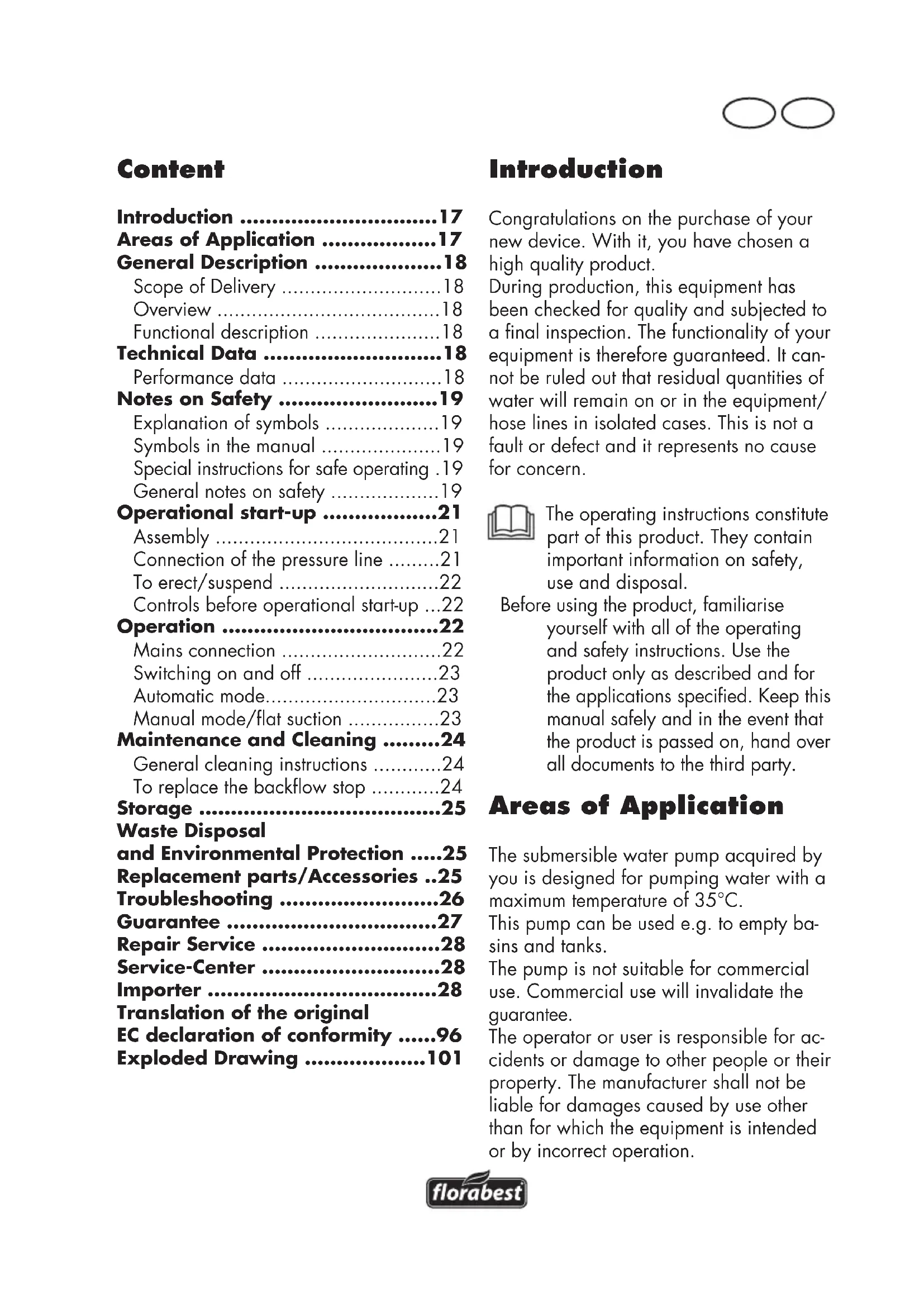

Motorschutz schaltet die Pumpe wegen zu starker Wasserver- schmutzung ab. Netzstecker ziehen und Pumpe so- wie Schacht reinigen. Wassertemperatur zu hoch, Motor- schutz schaltet Gerät ab. Auf maximale Wasser-Temperatur von 35°C achten!1 7 G B I E Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. It can- not be ruled out that residual quantities of water will remain on or in the equipment/ hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. AreasofApplication The submersible water pump acquired by you is designed for pumping water with a maximum temperature of 35°C. This pump can be used e.g. to empty ba- sins and tanks. The pump is not suitable for commercial use. Commercial use will invalidate the guarantee. The operator or user is responsible for ac- cidents or damage to other people or their property. The manufacturer shall not be liable for damages caused by use other than for which the equipment is intended or by incorrect operation. Content Introduction ...............................17 Areas of Application ..................17 General Description ....................18 Scope of Delivery ............................18 Overview .......................................18 Functional description ......................18 Technical Data ............................18 Performance data ............................18 Notes on Safety .........................19 Explanation of symbols ....................19 Symbols in the manual .....................19 Special instructions for safe operating .19 General notes on safety ...................19 Operational start-up ..................21 Assembly .......................................21 Connection of the pressure line .........21 To erect/suspend ............................22 Controls before operational start-up ...22 Operation ..................................22 Mains connection ............................22 Switching on and off .......................23 Automatic mode..............................23 Manual mode/at suction ................23 Maintenance and Cleaning .........24 General cleaning instructions ............24 To replace the backow stop ............24 Storage ......................................25 Waste Disposal and Environmental Protection .....25 Replacement parts/Accessories ..25 Troubleshooting .........................26 Guarantee .................................27 Repair Service ............................28 Service-Center ............................28 Importer ....................................28 Translation of the original EC declaration of conformity ......96 Exploded Drawing ...................1011 8 G B I E In addition, the pump also has a backow stop that prevents water from owing back, for example during an interruption in the power supply. Technical Data Submersible Water Pump .........FTP 400 E4 Mains connection (U) .......230 V~, 50 Hz Power consumption (P) .................400 W Max. discharge rate (Qmax) .....................approx. 10000 l/h Max. discharge head (Hmax) ............7 m Max. depth of immersion ..................7 m Max. water temperature (Tmax) .......35°C Hose connection ............ ½“, ¾“, 1“, 1 ½“ (13mm,19mm, 25mm, 38mm) Tap connection with internal thread on the angle adaptor G1 ½“ (44.9mm) on the hose adaptor ......G1“ (33.3mm) Max. foreign body size ...............ø 5 mm Mains cable .................................. 10 m Weight (incl. accessories) ........... 3.66 kg Safety class ..........................................I Degree of protection ....................... IPX8 Performance data

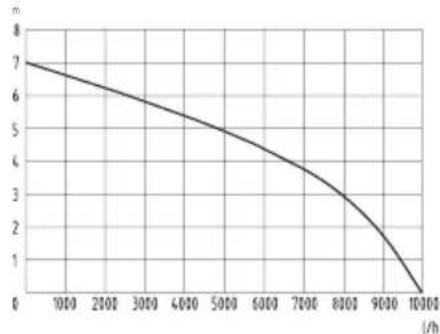

The measurement of the maximum per- formance data takes place under optimal conditions, such as a straight, direct exit. GeneralDescription The illustration of the princi- pal functioning parts can be found on the front foldout page. ScopeofDelivery Carefully unpack the appliance and check that it is complete. Dispose of the packag- ing material correctly. - Submersible water pump (pump) - Angle adaptor + hose adaptor - 8m nylon rope - Instructional manual Overview 1 Carrying handle 2 Mains cable 3 Pump casing 4 Pump output 5 Float switch 6 Float switch retaining clip 7 Float switch cable 8 Float switch fastening 9 Hose adaptor 10 backow stop with seal 11 Angle adaptor 12 8 m nylon rope Functionaldescription The pump is tted with a oat switch, which automatically switches the equip- ment on or off. In case of overload, the pump is switched off by the integrated thermal protection switch. After cooling, the motor restarts automatically.1 9 G B I E NotesonSafety Explanationofsymbols Caution! Not suitable for wa- ter with high sand content! Read and follow the operat- ing instructions provided for the device. Attention: Remove the plug from the socket as soon as the power lead is damaged or cut. 7 m Greatest possible operating immersion depth. Electric appliances should not be disposed of in the domes- tic garbage. Symbolsinthemanual Warning symbols with in- formation on damage and injury prevention. Hazard symbol with infor- mation on the prevention of personal injury caused by electric shock. Instruction symbols with infor- mation on preventing dam- age. Remove the mains plug! Help symbols with informa- tion on improving tool han- dling. Specialinstructionsfor safeoperating

• The equipment is not to be operat- ed if there are people in the water. There is a risk of electric shock.

• Connect the equipment only to a socket with a residual current protection device (residual current circuit breaker) with a rated cur- rent of not more than 30mA.

• If the power cable for this equip- ment is damaged, it must be re- placed by the manufacturer, a cu- stomer service agent of the same or a similarly qualied person in order to prevent hazards.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance must not be carried out by chil- dren unless they are supervised.

• Children should be supervised to ensure that they do not play with the appliance.

• Contamination of the liquid can occur when the lubricant leaks out.

See further information in the section on “Maintenance and Cleaning”. Generalnotesonsafety This section deals with the basic safety regulations to be observed when working with the machine.2 0 G B I E Working with the equipment: Caution: to avoid accidents and injuries:

• People who are unfamiliar with the operating instructions are not permitted to use the equipment. Local regulations or bylaws may determine the mini- mum age for using the device.

• Wear sturdy footwear to protect against electric shock.

• Should there be people in the water, do not operate the equip- ment. Risk of electric shock!

• Take appropriate measures to keep children away from the equipment whilst it is running. There is a risk of injury!

• Do not use the equipment in the vicinity of ammable liquids or gases. Non-observance will re- sult in a risk of re or explosion.

• The transportation of aggressive, abrasive (grinding effect), cor- rosive, combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and food- stuffs is not permitted. The tem- perature of the liquid being trans- ported must not exceed 35°C.

• Store the equipment in a dry place and out of reach of children. Caution! To avoid damage to the equipment and any pos- sible person injury resulting from this:

• Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before ini- tial operation, have a specialist check that the required electrical protection measures are in place.

• Monitor the equipment during operation (particularly in resi- dential spaces, in order to detect automatic switching off or dry running of the pumps in time. Regularly check the function of the oat switch (see chapter “Operational start-up“). Non- observance will invalidate all guarantee and liability claims.

• Please note that the pump is not suitable for continuous operation (e.g. for watercourses in garden ponds). Check the equipment regularly for correct functioning.

• Note that the lubricants used in the equipment may cause dam- age or contamination if they escape. Do not use the pump in garden ponds with sh stocks or valuable plants.

• Do not carry or x the equipment by the cable or pressure line.

• Protect the equipment from frost and from running dry.

• Use only original accessories and do not carry out conversion work on the equipment.

• Please read the notes in the op- erating instructions on the topic of “Maintenance and Cleaning” and “Storage”. Any measures above and beyond these, par- ticularly opening the equipment, are to be carried out by an elec- trician. In the case of repairs, al- ways contact our service centre.2 1 G B I E

• Disconnect the mains plug from the socket before all work on the equipment, in case of leaks in the water system, during work breaks, and when not in use.

• The cross-section of mains con- nection lines must be no smaller than rubber hose lines with the designation 05RN8-F. The line must be 10 m long. The exible lead cross-section of the exten- sion cord must at least 2.5mm

• If the power cable for this equip- ment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualied per- son in order to prevent hazards. Operationalstart-up Assembly To screw-on the adaptor:

1. Screw the angle adaptor (11) and the

hose adaptor (9) onto the pump outlet (4). Float switch assembly:

2. Clip the oat switch retaining clip (6) into

one of the two recesses on the handle (1). Connection of the pressureline The installation of the submersible water pump is implemented either - with xed pipe or - with exible hose line.

• If using a ½” hose, attach the hose over the pump’s hose connection (9) and fas- ten it with a hose clamp if necessary.

• To use a ¾”, 1“ or 1½” hose, cut off the connection above and attach the hose over the correct connection (xing with a hose clamp). Electrical safety: Caution: to avoid accidents and injuries from electric shocks:

• After erection, the mains plug must be freely accessible when the equipment is in operation.

• Before operating your new pump, have a specialist check: - The earthing, the protective multiple earthing; the residual current circuit breaking must be compliant with the safety regula- tions of the energy supply com- pany and function without fault, - The protection of the electrical plug connections from the wet.

• If there is a risk of ooding, x the plug connections in an area that is safe from ooding. Risk of electric shock.

• Ensure that the mains voltage matches the specications on the rating plate.

• The electrical installation shall be according to national wiring rules.

• Before each use, check the equip- ment, cable and plug for dam- age. Defective cables are not to be repaired, but rather replaced by new ones. Have damage on your equipment repaired by an authorised specialist.

• Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.

• Do not carry or x the equipment by the cable.

• Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage.2 2 G B I E

• For the use of a tap connector with internal thread (G 1”) for connecting ex- ternal hose connection systems, cut the top three connections off directly over the G 1” threaded pipe.

• Connect a tap connector with internal thread (G 1 ½”) directly to the angle adapter (11). The measurement of the maximum performance data takes place under optimal conditions, such as a straight, direct exit. The angle adaptor (11) and the backow stop- per (

10) may reduce output.

To increase pump output, the backow stopper

10) may be taken out of the angle adap-

tor (11) (see “replacing backow stopper”). This is particularly recommended for hose connections smaller than 1“. Please bear in mind that the water may then ow back dur- ing pumping, or in the event of a power cut. Toerect/suspend The pump can be erected or sus- pended in the water. The cord (12) contained in the delivery contents may be used to suspend and/or extract the pump. The pump shaft should have the dimen- sions 40 x 40 x 50cm at least, so that the oat switch can move freely. Fix the nylon rope (12) onto the carrying handle (1). Ensure that the equipment is not hung up or held by the mains cable. There is a risk of electric shock from dam- aged mains cables. Note that, over time, dirt and sand may collect on the bottom of the shaft, which could damage the pump. We recommend placing the pump on a brick or a grid. If the water level is too low, the silt in the shaft can quickly dry out and im- pede the pump when warming up. Controlsbeforeoperational start-up

• Check that the oat switch is work- ing (see chapter: “Operation“).

• Check that the pump is resting on the pit base

• Check that the pressure line has been attached properly

• Check the proper status of the electrical plug socket and make sure that the plug socket is sufciently fused (at least 6 A). Insert the pump plug into the plug socket and the pump is ready for operation.

• Make sure that moisture or water never come in contact with the mains connec- tion.There is a risk of electrocution. Operation Mains connection The submersible water pump acquired by you is already provided with an grounded plug. The equipment is designed for con- nection to an earthed wall socket with a residual current operated device (RCD switch) at 230 V ~ 50Hz. Only start to operate the device after all the above conditions have been observed.2 3 G B I E Switching on and off

1. Insert the plug in the socket. The pump

starts working immediately. The pump immediately starts running when the swimming switch is in the correct position (see „Automatic opera- tion“ and „Manual operation“).

2. To switch off, withdraw the plug from

the socket. The pump stops. If the water level is too low, the oat switch will automatically switch off the pump. Supervise the appliance while it is in operation in order to be immedi- ately aware if the automatic cut-out operates or the pump runs dry, to limit any damage to a minimum. Automatic mode In automatic mode, the oat switch (5) au- tomatically switches the pump on or off. In the case of stationary installa- tion, check regularly (no less then once every three months) that the oat switch (5) is working. The On/Off switch point of the oat switch (5) is innitely variable: You can vary the switch-on and switch-off point by: - selecting one of the two notches on the handle (1). - varying the length of the oat switch ca- ble (7). Push/pull the cable (7) through the eye on the retaining clip (6) for this. Check the oat switch (5). - It must be positioned so that it can lift and lower freely. The switching point heights “On” and “Off” must be easy to reach. Check this by placing the pump into a vessel lled with water and lift the oat switch (5) care- fully by hand and then lower it again. In this case, you can see whether the pump switches on and off. - Make sure that the distance between the oat switch (5) and oat switch retaining clip (6) is not too small. In the case of a separation distance which is too small, trouble-free functioning cannot be guaranteed. - During the adjustment of the oat switch (5), ensure that the oat switch does not contact the oor before the pump switches off. There is a risk of dry running if the oat switch cable (7) is chosen too long, in particular if the oat switch retaining clip (6) is not clipped in (see “Initial start-up”). Manualmode/at suction Caution: Avoid dry running of the pump! Danger of over- heating! Never touch an overheated pump! There is a danger of burns! In manual mode, the pump does not switch off automatically, as the oat switch (5) is bypassed.2 4 G B I E The oat switch (5) must be positioned ver- tically upwards on the pump for this. Clip the oat switch retaining clip (6) into one of the two recesses on the handle (1). Pull the oat switch cable (7) through the retaining clip (6), until the oat switch (5) is positioned vertically above the retaining clip (6). See illustration

Monitor the pump constantly when in manual mode. Switch the pump off immediately (disconnect from the mains) if no more water is be- ing pumped. There is a risk of dam- age if the pump runs dry. Maintenance and Cleaning Clean and maintain your equipment regu- larly. This will guarantee its performance and long durability. Ask our service centre to car- ry out any work that is not described in these instruc- tions. Use only original parts. There is a risk of injury! Pull out the power plug before eve- ry maintenance operation. There is a risk of electrocution or of injury from moving parts. General cleaning instructions

• In case of transport for utilization in different locations, the pump must be cleaned with clear water after every use.

• In case of stationary installation, the function of the oat switch (

to be checked regularly (at the latest every three months).

• With a water jet, remove uff and brous particles which are possibly present in the pump casing ( 3).

• Clean precipitation from the oat switch (

5) with clear water.

• Regularly remove sludge from the pit base (at the latest every 3 months) and also clean the shaft walls.

• Dirt on the bottom of the pump can be washed down with clear water. Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre. Toreplacethebackow stop Replace a defective backow stop (see “Replacement parts/Accessories”).

1. Unscrew the hose adapter (9) on the

angle adapter (11) and take out the backow preventer (10).

2. Set the backow stop (10) between the

angle adaptor (11) and the hose adap- tor (9) in such a manner that the stop is opened in the owing direction and closed against the owing direction.2 5 G B I E Storage

• Clean the pump before storage.

• Store the appliance in a dry, frost-free place, and where children cannot gain access to it.

• When the pump is not to be used for a longer period, it must be thoroughly cleaned after its last use, and before it is next used. Otherwise there may be problems in starting the pump, caused by deposits and residues. WasteDisposalandEn- vironmental Protection Be environmentally friendly. Return the tool, accessories and packaging to a recy- cling centre when you have nished with them. Electric appliances should not be disposed of in the domestic gar- bage. Hand the tool in at a recycling centre. The plastics and metal parts can be separated and recycled. Ask your Service Center about this. Defective units returned to us will be disposed of for free. Replacementparts/Accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone (see “Service-Center” page 28). Please have the order number mentioned below ready. Item Item Description Order Instruction Exploded number manual drawing 9/10 40,41,43 Hose adaptor, with backow stop 9110124 6 11 39,42 Angle adaptor 9110124 5 The backow stop is subject to wear; its replacement is not covered by guarantee.2 6 G B I E Troubleshooting Faults Causes Remedies Pump does not start Mains voltage is not applied Check plug socket, cable, line and plug, where appropriate, have re- paired through electrical specialist Float switch (

5) does not switch Bring oat switch into higher position

Pumps has no discharge Pump pedestal inlet grating blocked Use a water jet to clean the pump pedestal inlet grating (see “General cleaning instructions”) Reduces pump performance, through severely contaminated water and additions in the water which produce a grinding effect Clean pump Backow stop (

rectly tted or faulty Check the backow stop’s connec- tion. Change it if necessary (see “Maintenance and Cleaning”) Pump does not switch off Float switch cannot drop Set up pumps correctly on the pit base Flow rate insufcient Pump pedestal inlet grating blocked Use a water jet to clean the pump pedestal inlet grating (see “General cleaning instructions”) Reduces pump performance, through severely contaminated water and additions in the water which produce a grinding effect Clean pump Backow stop (

pump performance Remove the backow stop from the angle adaptor (

up”) Pump switch- es off after a short period Motor contactor disconnects the pumps because of water pollution that is too severe Pull out power plug and clean the pump as well as shaft Water temperature too high, motor contactor breaks Note maximum water temperature of 35°C!2 7 G B I E The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. backow stop, sealing ring) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. In the case of pumping water containing sand or aggressive liquids or other incor- rect, non-design-appropriate use, as well as in case of non-observance of the operating manual, application of force in use or inap- propriate or insufcient maintenance, no guarantee claim exists, since seals, impeller wheel, motor or other parts are damaged by this. Also, sewage water pumps are not suitable for the pumping of abrasive materi- als (sand, stone). Note: submersible pumps are drainage pumps. This kind of pump is constructed with the purpose of transporting or remov- ing a certain volume of water – depending on its output category – as quickly as possi- ble. Submersible pumps are not intended as irrigation (for example, in garden irrigation systems) or as constant water-ow pumps (such as in articial streams or ornamental fountains). Inappropriate use will invalidate the warranty. Periodically check that the Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defec- tive equipment and proof of purchase to be presented within the three-year period with a brief written description of what consti- tutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period be- gins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery.2 8 G B I E oat switch is operational. Warranty and liability claims will be void in case on non- compliance or if the pump runs dry. In particular, the guarantee is likewise void in the case of employment of the sewage water pumps without base plate or (this applies for all pumps) in case of damages which are caused by supporting on or sus- pending from the mains cable. The pumps must not be run dry or exposed to frost. Processing in Case of Guarantee To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identica- tion number (IAN 298703) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.
