Product type	Garden pump
Brand	Florabest
Model	FGPS 1100 B2
Power consumption	1100 W
Supply voltage	230 V ~ 50 Hz
Max. flow rate	4600 l/h
Max. delivery head	45 m
Max. suction head	7 m
Max. water temperature	35 °C
Hose connection	1" (30.3 mm)
Protection class	I
Ingress protection	IPX4
Sound pressure level (LPA)	75.2 dB(A) (KPA=3.0 dB)
Measured sound power level (LWA)	88.24 dB(A) (KWA=2.89 dB)
Guaranteed sound power level	91 dB(A)
Main functions	Automatic pumping, overload protection, dry running prohibited
Maintenance and cleaning	Clean with a damp cloth, rinse with clean water, drain before frost
Safety	Use a residual current device (RCD) ≤ 30 mA, cable H07RN-F
Spare parts and repairability	Available at www.grizzly-service.eu or by phone at customer service
Warranty	3 years from date of purchase
IAN number	270726

Frequently Asked Questions - FGPS 1100 B2 FLORABEST

How do I prime the pump before first use?

Open the filler cap (filler screw), pour water into the pump until it overflows, then screw the cap back on. Never operate the pump dry.

Can the pump be used for drinking water?

No, this pump is not suitable for connection to a drinking water supply system. It is designed for clean water and rainwater only.

What should I do if the pump does not deliver water?

Check that the suction line is fully immersed and there is no air. Make sure the pre-filter is not clogged. The pump must be primed (filled with water) before each use.

Can the pump run continuously?

No, the pump is not designed for continuous operation. Extended operation reduces lifespan and may void the warranty. Use intermittently.

How to protect the pump in winter?

Before frost, completely drain the pump by opening the drain plug. Rinse with clean water and store it in a dry, frost-free place.

What type of water can I pump?

Only clean water or rainwater (max temperature 35 °C). Do not pump salt water, chemicals, flammable liquids, or water containing abrasive particles (sand).

Is the pump noisy?

The sound pressure level is 75.2 dB(A) and the guaranteed sound power level is 91 dB(A). This is normal for a pump of this power.

Where can I find spare parts?

Spare parts (suction hose kit, filler screw, drain plug, fan wheel) are available at www.grizzly-service.eu. You can also contact customer service by phone.

What is the warranty on the pump?

The pump comes with a 3-year warranty from the date of purchase. Keep your receipt as proof. The warranty does not cover wear parts or damage due to improper use.

Do I need to use a residual current device?

Yes, it is mandatory to connect the pump to a socket protected by a residual current device (RCD) with a rated residual current not exceeding 30 mA for safety reasons.

USER MANUAL FGPS 1100 B2 FLORABEST

GARTENPUMPEN-SET/GARDEN PUMP SET/POMPE D'ARROSAGE FGPS 1100 B2

DE AT CH

GARTENPUMPEN-SET

Translation of the original instructions

NL BE

TUINPOMPSET

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Translation of the original instructions Page 14

Service-Center....13

Importeur 13

(LPA)....75,2 dB (A); KPA=3,0 dB

Intended purpose......15

General Description......15

Scope of Delivery....15

Functional description....15

Overview....15

Technical Data......16

Notes on Safety 16

Symbols in the manual....16

Symbols on the equipment .....16

General notes on safety 17

Initial Operation......18

Mount carrying handle 18

Setting up 18

Mains Connection....18

Connecting the hoses 18

Filling the pump....19

Checks before initial operation...19

Switching ON and OFF......19

Cleaning/Maintenance .....19

General cleaning instructions......20

Drain garden pump....20

Storage....20

Waste Disposal and

Environmental Protection ......20

Guarantee 20

Spare Parts/Accessories......21

Repair Service....22

Service-Center 22

Importer 22

EC declaration of conformity .....74

Exploded Drawing 80

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases.

This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The garden pump is intended for use in private homes and gardens. The unit is suitable for service water supply and the irrigation of gardens. It is solely intended for pumping clear and rain water up to temperatures of no more than 35^ C.

Any other use, not expressly authorised in these instructions (e.g. for transporting foodstuffs, salt water, motor fuels, chemical products or water with abrasive materials), may cause damage to the equipment and represent a serious risk for the user.

The garden pump is not suitable for continuous duty. Continuous operation reduces the durability and shortens the guarantee period. This equipment is not suitable for commercial use.

Commercial use will invalidate the guarantee.

The operator or user is responsible for accidents or damage to other people or their property.

The manufacturer shall not be liable for damages caused by use other than for which the equipment is intended or by incorrect operation.

General Description

The illustration of the principal functioning parts can be found on the front and back foldout pages.

Scope of Delivery

Carefully unpack the appliance and check that it is complete:

• Garden pump
• Carrying handle
• 2 fixing screws
• Suction hose
• Seal ring
• Adapter
• Prefilter with reflow stopper
• Instruction Manual

Functional description

After connecting the suction and pressure hoses and filling the garden pump with water, it will output a defined volume of clear water.

Overview

1 Protective cap

2 Water inlet
3 Protective cap
4 Water outlet
5 On/Off switch (not visual)
6 Power cable
7 Carrying handle
8 2 fixing screws
9 Filler screw
10 Draining screw 11 Adapter
12 Seal ring
13 Suction hose connection, water inlet
14 Suction hose
15 Prefilter with reflow stopper
16 Suction hose connection, prefilter

GBIE

Technical Data

Garden pump set.....FGPS 1100 B2

Mains connection.....230 V\~, 50 Hz

Power consumption 1100 W

Suction lift....7 m

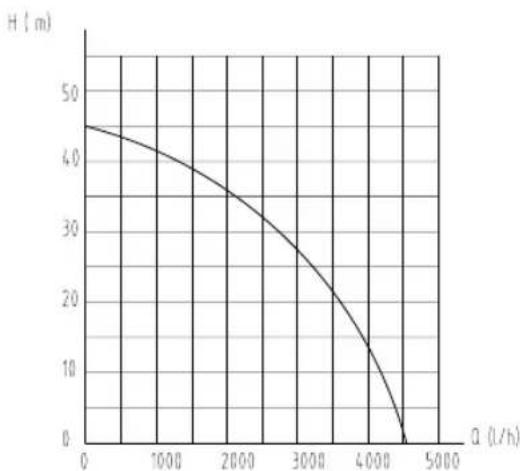

Max. discharge rate ....4.600 l/h*

Max. discharge head (Hmax) ..... 45 m

Max. water temperature (Tmax) ..... 35 °C

Hose connection ....1" (30.3 mm)

Safety class ....

Degree of protection....IPX4

Sound pressure level

(L_PA) 75.2 dB(A); K_PA = 3.0 dB

Sound power level (LWA)

measured ..... 88.24 dB(A); KWA=2.89 dB

guaranteed....91 dB (A)

* With the included suction hoss (14), the maximum discharge rate of the garden pump can not be reached.

Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are without guarantee. Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.

Tighter hoses can reduce the output.

Notes on Safety

This section deals with the general safety regulations for working with the equipment.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

Symbols on the equipment

Caution! Not suitable for water with a high sand content!

Read and follow the operating instructions provided for the device!

Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.

Information of the acoustic power level LWA in dB

Water inlet

Water outlet

Electric appliances should not be disposed of in the domestic garbage.

General notes on safety

Working with the equipment:

Caution: to avoid accidents and injuries:

• People who are unfamiliar with the operating instructions are not permitted to use the equipment. Local regulations or bylaws may determine the minimum age for using the device.

- Should there be people in the water, do not operate the equipment.

• Take appropriate measures to keep children away from the equipment whilst it is running.

- Dispose of the packaging material correctly.

- Do not use the equipment in the vicinity of flammable liquids or gases. Non-observance will result in a risk of fire or explosion.

- Do not use for water containing abrasive particles such as sand. The dispensing of aggressive, abrasive (grinding effect), corrosive, combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted. Liquid temperature not to exceed 35°C.

- Store the equipment in a dry place and out of reach of children.

Caution! To avoid damage to the equipment and any possible person injury resulting from this:

- Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electrical pro-

tection measures are in place.

• Do not carry or fix the equipment by the cable or pressure line.
• Protect the equipment from frost and from running dry.
• Use only original accessories and do not carry out conversion work on the equipment.
• Please read the notes in the operating instructions on the topic of "Cleaning/Maintenance" and "Cleaning". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Electrical safety:

Caution: to avoid accidents and injuries from electric shocks:

• After erection, the mains plug must be freely accessible when the equipment is in operation.
- Before operating your new pump, have a specialist check:

• The earthing, the protective multiple earthing; the residual current circuit breaking must be compliant with the safety regulations of the energy supply company and function without fault,
• The protection of the electrical plug connections from the wet.

• If there is a risk of flooding, fix the plug connections in an area that is safe from flooding.

• Ensure that the mains voltage matches the specifications on the rating plate.

• The electrical installation shall be according to national wiring rules.
• Connect the equipment only to a socket with a residual current protection

GBIE

device (residual current circuit breaker) with a rated current of not more than 30 mA; minimum fuse 10 amperes.

• Before each use, check the equipment, cable and plug for damage. Defective cables are not to be repaired, but rather replaced by new ones. Have any damage to your equipment repaired by a specialist.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.
• Do not carry or fix the equipment by the cable.
• Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage.
• Before any work on the equipment, during work breaks and in the case of non-use, remove the plug from the socket.
• The cross-section of mains connection lines must be no smaller than rubber hose lines with the designation H07RN-F. The power cable wire cross section must be at least 2.5 mm ^4

Initial Operation

Mount carrying handle

B

Fix the carrying handle (7) to the garden pump using the fixing screws (8).

Setting up

• Place the unit on a firm, horizontal, non-flooding surface.
• If you would like to install the device, screw it together with the base. A screw connection with a fastening plate also prevents the device from slipping. By doing so, ensure a free access to the drain screw (A 10).
• Always put up the garden pump at a point higher than the water surface you wish to pump water from.

Where this is impossible, install a low pressure-resistant shut-off implement between the appliance and the suction hose (available from specialist retailers).

Mains Connection

The pump you have purchases is already fitted with an earthed plug. The pump is intended for connection to an earthed socket at 230 V \~ 50 Hz.

Connecting the hoses

- On the suction side, attach a hose with reflow stopper and install a prefilter (available from specialist retailers).

• On the suction side, do not use any quick-action connection systems.
• Do not use the suction hose as a pressure pipeline.

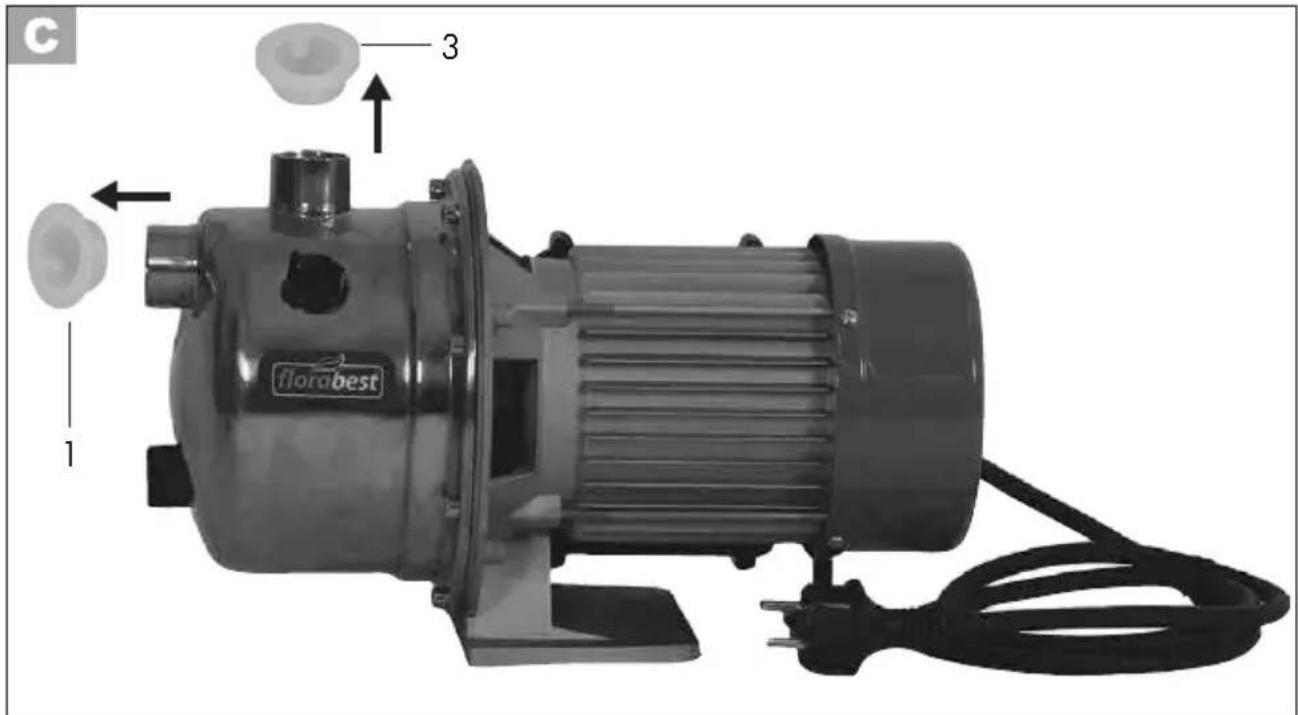

C

1. Remove the cover caps (1/3) from the device.

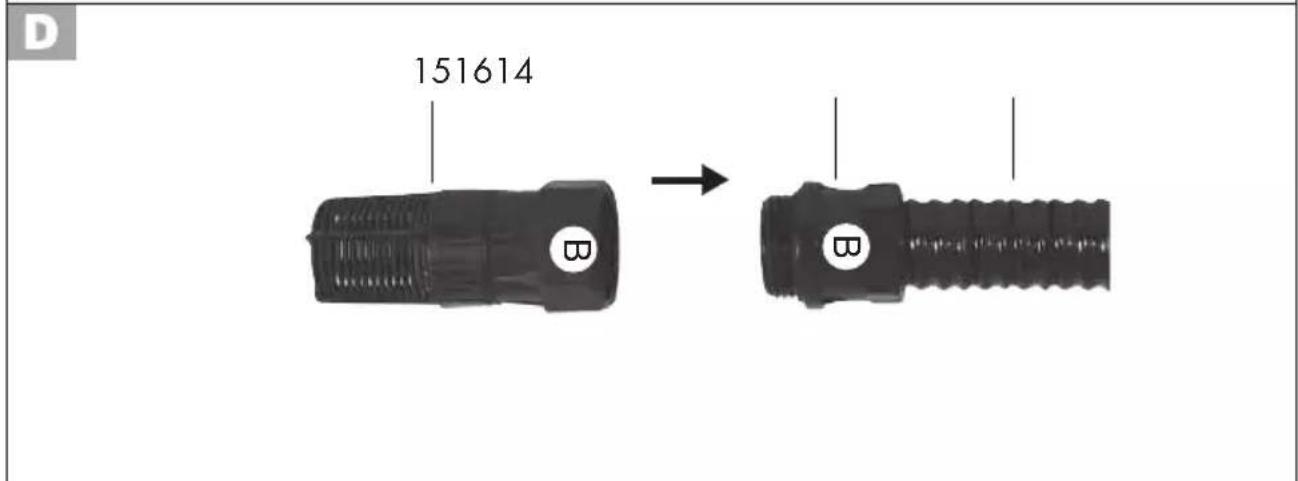

D

1. Attach the prefilter with reflow stopper (15) to the connector prefilter (16) at the suction hose (14). Both piecese marked with a B.

florabest

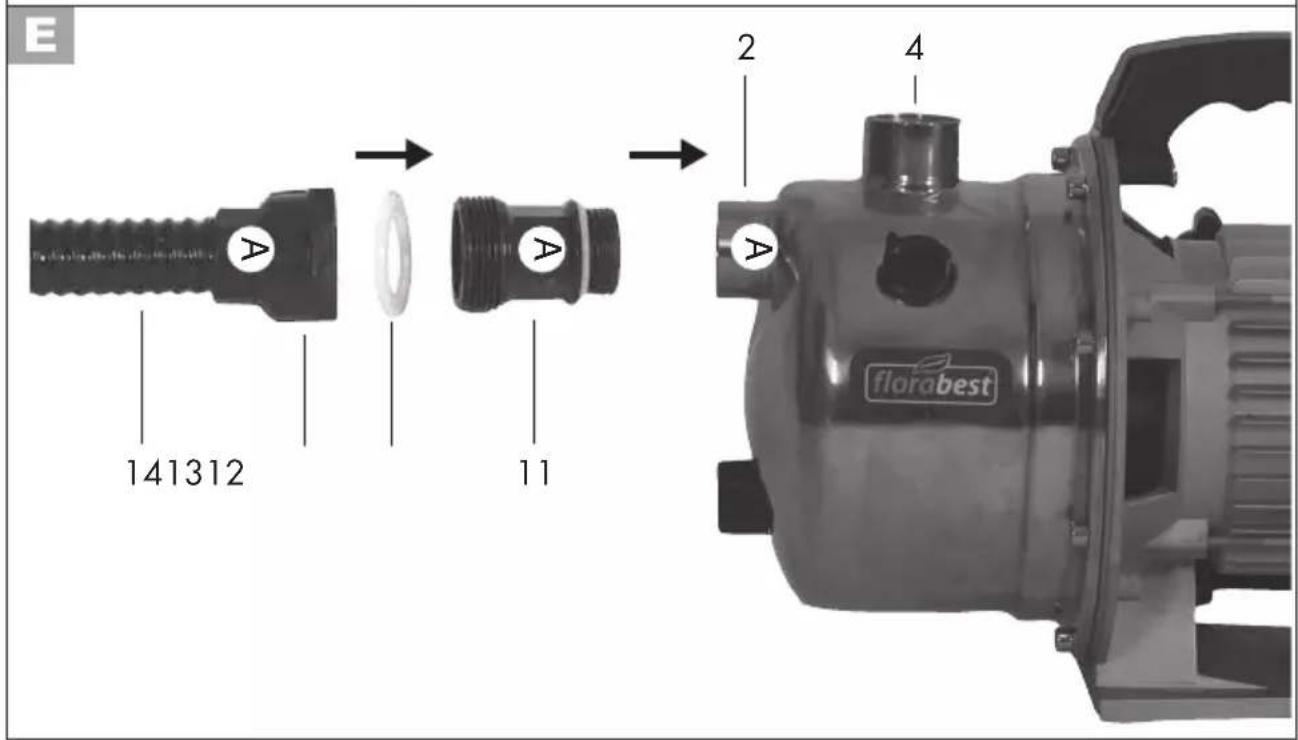

1. Attach the adapter (11) to the water inlet (2). Both pieces marked with an Ⓐ.

2. Attach the suction hose connection water inlet (13) with the seal ring (12) to the adaptor (11). Both pieces marked with an A. Fit the water inlet free from air.

3. Fit a pressure hose to the water outlet (4) Fit the water outlet free from air.

Air in the suction hose will stop the garden pump from working properly.

Filling the pump

Fill up the garden pump every time before you start using it. This will ensure an immediate start. Running dry will destroy the pump.

1. Open the filling screw (A9) on the garden pump.

2. Fill with water to the fill point and retighten the filling screw (A 9).

Checks before initial operation

- Check that the electrical connection is 230V \~50Hz

- Check the proper status of the electrical plug socket and make sure that the plug socket is sufficiently fused (at least 10 A).

- Make sure that moisture or water never come in contact with the mains connection.

There is a risk of electrocution.

• Control the suction hose. The end of the suction hose must be placed in water.
• Control the suction hose. The end of the suction hose must be in outlet position.

The device is not suitable to be connected to a drinking water supply system.

Switching ON and OFF

1. Connect the power cable (6) to the power supply.
2. Switching On:

On/Off Switch ( A 5) In position "I"

After a suction period the pump begins the supply of water.

1. Switching Off:

On/Off Switch ( A 5) In position "0"

Overload protection: In the event of overload the equipment automatically switches off. To restart, allow the equipment to cool then switch it back on.

Cleaning/Maintenance

Clean and maintain your equipment regularly. This will guarantee its performance and long durability.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.

Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.

GBIE

Never direct the water jet against the appliance, nor clean the appliance under flowing water. This could give rise to the danger of electric shock and damage the appliance!

General cleaning instructions

• Keep the motor fins and motor housing clean. To do so, use a damp cloth or a brush.
  Do not use any detergents or solvents.
• Remove fluff and fibrous particles, which have accumulated in the pump housing, by rinsing it with water.
• In case the unit clogs up, remove the suction and pressure hoses. Flush water through the threaded hole on the pump in order to remove the foreign body.

Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Drain garden pump

If there is a danger of frost or longer periods of non-use (e.g. winter) the garden pump must be completely emptied.

1. Open the drain screw (A 10) and empty the water from the device.
2. Rinse the device with clear water.

Storage

- Keep the equipment clean, dry and out of the reach of children.

- Before longer storage periods (e.g. winter) drain the pump (see "Drain garden pump"). Difficulties in start-up can arise due to precipitation and residues.

Waste Disposal and Environmental Protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge. Defective units returned to us will be disposed of for free.

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the

date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. suction hose kit, prefilter or fan wheel) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" Page 22). Please have the order number mentioned below ready.

Position instruction manual

Position exploded drawing

Description

Order No.

A 9 1,2 Filler screw + seal 91100910 + 91100911

A 10 4,5 Draining screw + seal 91100913 + 91100914

A 11,12,14,15 Suction hose kit 91100965

29 Fan wheel 91100938

GBIE

warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item number (IAN 270726) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 270726

Servicelreland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 270726

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service Réparations ......32

Service-Center 32

Importeur ......32

Schakelaar "Aan/uit" (A 5) in stand "I".

Service-Center....52

Importador 52

Service-Center....72

Importador 72

GBIE	Translation of the original EC declaration of conformity
We hereby confirm that the Garden pump set model FGPS 1100 B2Serial number 201510000001 - 201510015000conforms with the following applicable relevant version of the EU guidelines:
2006/95/EC • 2004/108/EC • 2000/14/EC • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012 • EN 60335-2- 41:2003/A2:2010EN 55014-1:2006/A2:2011 • EN 55014-2:1997/A2:2008EN 61000-3-2:2006/A2:2009 • EN 61000-3-3:2008 • EN 62233:2008
We confirm the following in accordance with the 2000/14/EC emissions guideline:Sound power level:guaranteed: 91 dB(A)measured: 88,24 dB(A)Compliance evaluation process carried out in accordance with AppendixV / 2000/14/EC
This declaration of conformity (14)** is issued under the sole responsibility of the manufacturer:
	Grizzly Tools GmbH & Co. KGStockstädter Straße 20D-63762 Großostheim, GERMANY08.01.2016	Volker LappasDocumentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

** The last two digits of the year in which the CE marking was affixed.

Translation of the original EC declaration of conformity

informativ, informative, informatif, informatief, informativo

2015-10-02_rev03_ts

GRIZZLY TOOLS GMBH & CO. KG
