| Product type | Solar electronic repellent |
| Brand | Florabest |
| Model | HG00249 |
| Operating voltage | 3.6 V (DC) |
| Protection type | IP44 (protected against water splashes) |
| Protection class | III |
| Signal frequencies | 13.5 kHz - 23.5 kHz |
| Motion detector - Range | Approx. 8 meters |
| Motion detector - Detection angle | Approx. 110° |
| Power supply | 3 AA Ni-MH 1.2 V / 800 mAh batteries (included) + solar panel + USB charging |
| Package contents | Solar scarer, USB cable, ground stake (2 parts), 3 AA Ni-MH 800 mAh batteries, wall plug (Ø6 mm), screw (3.8×30 mm), instruction manual |
| Main functions | Ultrasonic repellent and light flash; motion detector; 5 programs (4 frequencies + flash); solar and USB charging |
| Maintenance and cleaning | Clean with dry cloth; keep solar panel clean; avoid water infiltration |
| Safety | Do not use within human hearing range; strict battery guidelines; do not open; keep out of reach of children |
| Spare parts and repairability | Replaceable batteries (AA Ni-MH); repair by after-sales service; no listed spare parts |
| General information | 3-year warranty; non-commercial use; repels animals (except protected species) |
Frequently Asked Questions - HG00249 FLORABEST
User questions about HG00249 FLORABEST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Solar electronic repellent in PDF format for free! Find your manual HG00249 - FLORABEST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG00249 by FLORABEST.
USER MANUAL HG00249 FLORABEST
SOLAR POWERED ANIMAL REPELLER
GBIE NI
SOLARPOWERED ANIMALREPELLER
Operation and safety notes
FR BE
EFFAROUCHEURSOLAIRE

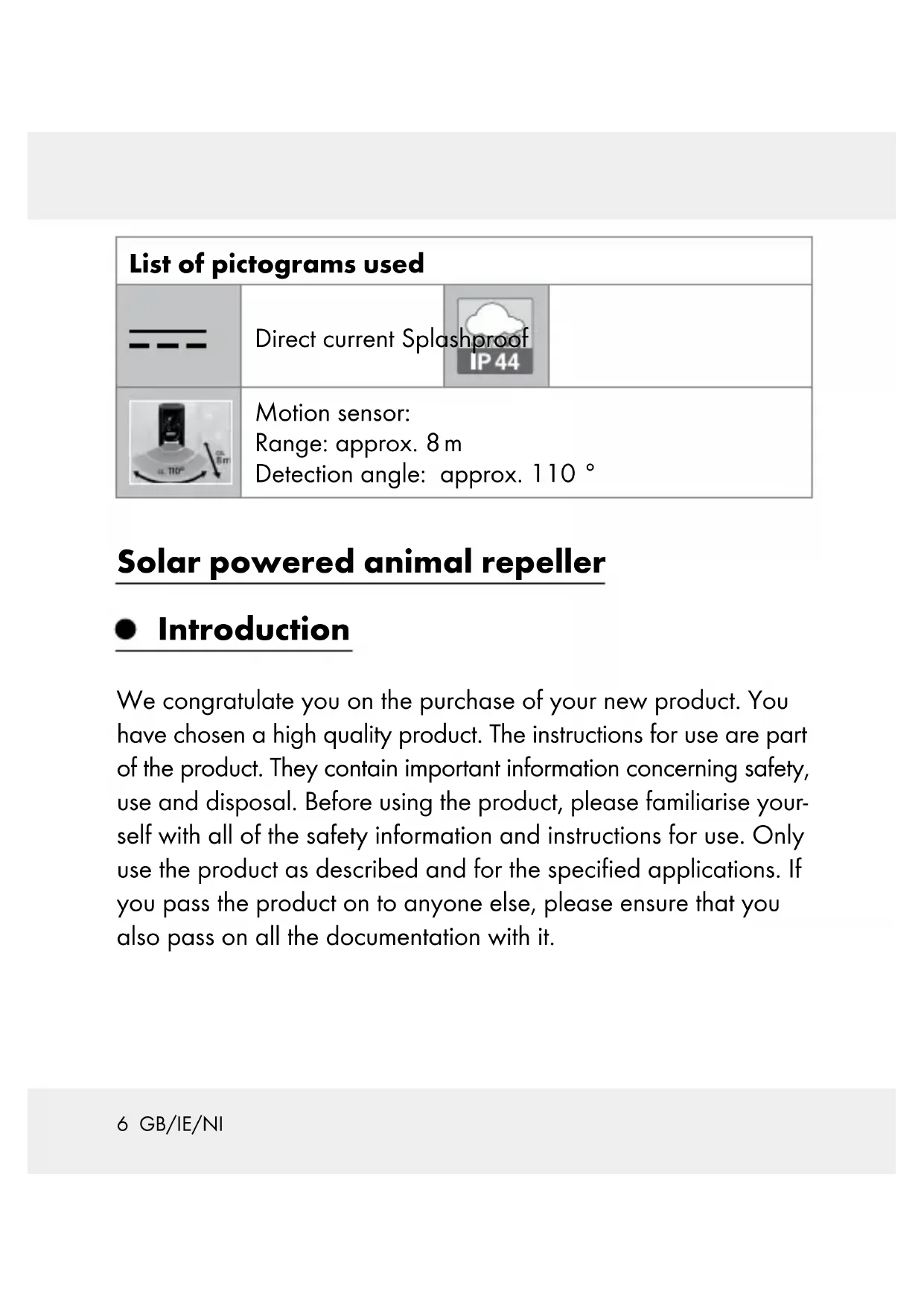

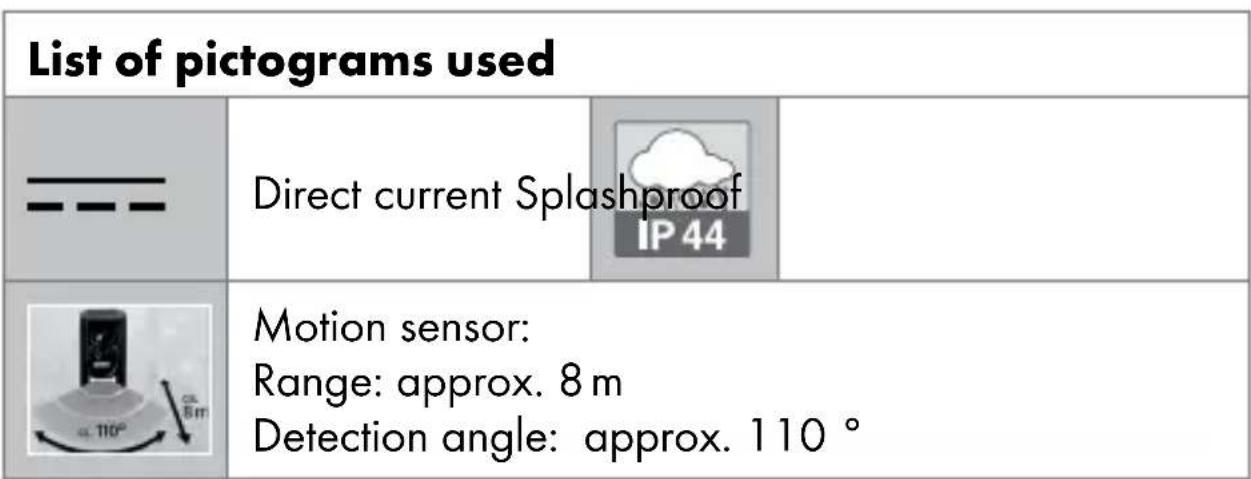

List of pictograms used
Introduction
Intended use Page 7
Mechanism . Page 7
Description of parts.. Page 8
Scope of delivery.. Page 8
Technical data Page 9
Safety instructions.. 9
Safety instructions for batteries/rechargeable batteries......Page 11
Before use.. Page 13
Replacing / inserting rechargeable batteries . Page 13
Charging the rechargeable batteries.. Page 14
Start-up Page 16
Installation on the ground, using the ground spike . Page 16
Installation on a wall using a screw/peg Page 17
Operation
Adjusting the motion sensor.. Page 17
Adjusting the signal frequency.. Page 18
Maintenance and cleaning
Troubleshooting
Disposal
Warranty.. Page 21
Solar powered animal repeller
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
This product is intended for use as an animal repellant, through the use of high frequency tones and / or flashing light. Animals, which are under species protection, e.g. the mole, must not be caught, injured or killed. Any use of the product for other or additional purposes is considered improper use. No claims can be made for problems cause by improper use or failure to comply with the operational and safety instructions included in the operational manual. The product is not intended for commercial use.
Mechanism
The product registers the body heat of animals that move in the detection range of the motion sensor. As soon as an animal is registered, the product produces high frequency tones, which are uncomfortable for animals. As different animals can have different hearing ranges, the frequency of the signal can be adjusted. Nocturnal animals can also trigger an automatic flashing light. To be able to repel lots of different animals, you can adjust the settings to combine any of the signal frequencies with the flashing light.
WARNING: Frequencies from 16Hz to a maximum of 20kHz can generally be heard by humans. However, with increasing age, human's ability to hear higher frequencies is reduced. You should work on the assumption the programmes 1, 2 and 5 release frequencies, which can be heard by humans.
Thus you should set up the product so that it is out of the hearing range of humans.
Note: The product will not affect any electronic equipment, including pacemakers, garage door openers, remote controls and such like.
Description of parts
1 Speaker
2 Sensitivity controller
3 Frequency controller
4 Flashing light
5 Motion sensor
6 Charge indicator
7 Loop
8 Battery compartment cover
9 Seal
10 Solar panel
11 Holder for the ground spike
12 DC charging socket
13 USB charging cable
14 Ground spike
15 Ground spike connector
16Rechargeablebatteries
(3 x AA, Ni-MH, 800 mAh each)
17 Screw
18 Peg
- Scope of delivery
1 Solar powered animal repeller
1 USB charging cable
1 Ground spike (two parts)
3 Rechargeable batteries (AA, Ni-MH, 800 mAh each)
1 Peg (0 6 mm)
1 Mounting screw (3.8 × 30 ~mm)
1 Set of instructions for use
- Technical data
Operational voltage: 3.6V
Rechargeable batteries: 3 × Ni-MH batteries/AA/1.2 V/800 mAh
Protection class: III/
Protection type: IP44 (splash-proof)
Signal frequency: approx. 13.5 kHz-23.5 kHz
DC charging socket: 5V = -7 max. 500 mA
Polarity of the direct
current power supply:
Motion sensor:
Range: approx. 8 m
Detection angle: approx. 110^
Safety instructions
Before using the product, please familiarise yourself with all of the safety information and instructions for use! When passing this product on to others, please also include all the documents!
is product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience or knowledge, so long as they are supervised or instructed. Life use of the product and understand the associated do not allow children to play with the product. Cleaning or maintenance should not be performed by children supervision.
Do not use this product if you notice any damage.
Ensure that the solar panel does not get dirty or covered in snow or ice. Otherwise the performance of the solar panel will be diminished.
Do not place objects on top of the product!
Keep away from open flames!
If the product makes unusual noises or you discover smoke or similar faults, removed the rechargeable battery from the product immediately or separate the product from the USB charging cable.
Never use the product within human hearing range. The product releases frequencies, which can be disturbing or uncomfortable for many people.
Safety instructions for batteries / rechargeable batteries
DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and/or open them.
Overheating, fire or bursting can be the result.
Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
- avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES! Leaked or dam
aged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable pro
tective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
Remove batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
Remove exhausted batteries / rechargeable batteries from the product immediately.
Before use
Note: Remove all packaging materials from the product. Note: First install rechargeable battery in the product.
- Replacing/inserting rechargeable batteries
Insert / replace the rechargeable batteries when you notice the operational period of the product has noticeably decreased over time, despite full exposure to solar radiation.
Open the battery compartment cover and remove the old rechargeable batteries 16 Then remove the fixing screws of the battery compartment cover 8.
If necessary, remove the old rechargeable batteries and insert three new rechargeable batteries. Clean the rechargeable battery and battery compartment contacts if necessary. Only use Ni-MH rechargeable batteries of type AA 1.2 V, 800 mAh. When inserting, ensure the correct polarity has been used. This is indicated in the battery compartment.
When closing the battery compartment, ensure that the seal is in the correct place.
- Charging the rechargeable batteries
The rechargeable batteries are delivered fully charged. In direct sunlight the rechargeable batteries are charged by the built-in solar panel [10]. They can also be charged using the enclosed USB charging cable [13].
Charging the rechargeable batteries with the solar panel
The product's solar panel [10] converts sunlight into electrical energy and stores it in the rechargeable batteries.
To ensure optimal rechargeable battery charging, position the product in a place, in which the solar panel [10] is exposed to direct sunlight. To fully charge unloaded batteries, the solar panel [10] must be exposed to at least 8 hours of direct sunlight.
Charging the rechargeable batteries with the USB charging cable
Especially during the darker times of the year, depending on the length of time for which the product is activated each day, you may find that sunlight does not provide the rechargeable batteries with enough energy. However, you can charge the rechargeable batteries using the enclosed USB charging cable [13] and your computer or a standard USB adapter (not included in delivery).
This charging process must be carried out indoors because the splash protection no longer works when the DC charging socket 12 is open. The charge level of the rechargeable batteries is shown on the product on the charge indicator 6 (a red LED on the motion sensor 5) when it is switched on:
Red LED is slow flashing: the rechargeable batteries need to charge.
Not any LED and sound effect response: the rechargeable batteries voltage is very low, they must be charged immediately.
Red LED is fast flashing: the rechargeable batteries are in the charging status.
Red LED is illuminated: the rechargeable batteries are fully charged.
Switch the frequency control to Programme 0 during the charging process to prevent disturbances from visual or acoustic signals.
Remove the rubber plugs from the DC charging socket.
Plug the USB charging cable 13 round plug into the DC charging socket 12 and connect the USB plug of the USB charging cable 13 to your computer with a USB port. Alternatively, you can use a USB adapter, which can be bought from a retailer.
Depending on the current charging state of the batteries, charging takes approx. 5-10 hours. During the charging process, the charge indicator 6 flashes.
When the rechargeable battery is fully charged, the charge indicator 6 will illuminate.
- Start-up
The product is protected against splash water and is also suitable for outdoor use. Ensure that all seals [9] (under the battery compartment cover [8] and on the DC charging socket [12]) are positioned correctly. There are two possible installation options:
Installation on the ground, using the ground spike
The enclosed ground spike 14 and ground spike connector 15 comes in three parts (see Fig. C), but for low installation heights, one part can be used on its own. Never place the product directly onto the ground: it can be flooded in heavy rain.
Push the point of the ground spike into soft earth. Never use force.
Push the open end of the ground spike into the holder for the ground spike 11.
Point the product, so that the motion sensor is pointed towards the area you wish to monitor. Make sure that the area you wish to monitor is not blocked by objects, such as trees or garden furniture.
Installation on a wall using a screw / peg
Use the enclosed peg 18 ( 0.6 mm ) and the screw 17 to install the product on a wall. This installation material is intended for a normal wall. If the wall you wish to install the product on has a different consistency, check with a specialist to find out which material is suitable for installation on your wall.
Ensure the screw is a maximum of 1.5m above the ground.
□ Allow the screw to protrude approx. 1 cm from the wall and use the loop 7 to hang the product on the screw.
Operation
The product has two adjustment options:
Adjusting the motion sensor
The sensitivity of the sensor can be adjusted using the sensitivity controller 2. If a movement is detected, a signal / flash sounds / shines approx. 30 sec. Adjust to MAX position, the detection range approx. 8 m.
Adjusting the signal frequency
The product has 5 different programmes to repel certain kinds of animals.
Adjust the frequency controller 3 to select below frequency programme.
| Programme 0 The product is switched off. The charging function using the solar panel 10 or the USB charging cable 13 is activated. | |
| Programme 1 | 13.5 kHz- 17.5 kHz (against rodents like mice or rats) |
| Programme 2 | 15.5 kHz- 19.5 kHz (against dogs and foxes) |
| Programme 3 | 19.5 kHz- 23.5 kHz (against dogs, cats and birds) |
| Programme 4 | Flashing light |
| Programme 5 | All programmes are used. |
- Maintenance and cleaning
Regularly clean the product with a dry, lint-free cloth.
Regularly check the solar panel for dirt. Keep the solar panel 10 free of snow and ice, especially in winter.
If the product is very dirty, use a slightly damp cloth with a detergent.
Ensure that no water enters the product during cleaning.
Regularly clean the seals under the battery compartment cover 8 and the rubber plugs of the DC charging socket 12 with Vaseline. This will stop the seals from becoming brittle.
- Troubleshooting
Note: The product contains sensitive electronic components
For this reason it is possible that it can be disrupted by radio transmitting equipment in the immediate vicinity. If you notice that the product is malfunctioning, remove any sources of interference from the area around the product.
Notice: Electrostatic discharge can lead to malfunctions. In the event of such malfunctions, briefly remove and reinsert the rechargeable batteries.
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
C∈IP44
De anvende piktogrammers legende Side 24
Indledning
Formalsbestemt anvendelse.. Side 24
Signalfrekvenser: ca. 13,5kHz-23,5kHz
DC-Ladebøsning: 5 V
, max. 500mA
Jævnstrøm-
nettilsluttingens polaritet:
Bevægelsessensor:
Rækkevidde: ca. 8 m
Registraringsvinkel: ca. 110°
