E 91 - Juicer STEBA - Free user manual and instructions

Device type	Juice extractor
Brand	Steba
Model	E 91
Adjustable speeds	5 speeds (1 to 5) with recommendations for different fruits and vegetables
Safety system	Safety lock with circuit breaker; appliance only operates if all parts are correctly engaged
Motor protection	Automatic shutdown in case of overload (10 seconds); max continuous running time: 7 minutes, cooling down 15 minutes
Pulp container capacity	Removable container (capacity not specified)
Included accessories	Pusher, cleaning brush, collection jug, pulp container
Cleaning	Removable parts washable with hot water and dish soap; motor base wiped with a damp cloth (do not immerse)
Recipes included	Yes, several juice and cocktail recipes
Power supply	220-240 V ~ 50/60 Hz
Strainer material	Stainless steel (sharp blades)
Usage	Household use only; do not use fruits with hard pits or shells

Frequently Asked Questions - E 91 STEBA

How to correctly assemble the Steba E 91 juice extractor?

Make sure the speed controller is set to OFF and the appliance is unplugged. Place the juice collector on the base, with the spout in the notch. Insert the strainer by pressing until you hear a click. Put the lid on and close the locks. Attach the pulp container under the ejection. Before plugging in, check that all parts are correctly engaged.

What to do if the appliance does not start?

Check that the safety lock is engaged and that the pulp container is correctly installed. If the motor stops during use, remove hard pits, reduce pressure on the pusher, and clean the strainer if clogged.

How to clean the strainer?

After use, turn off and unplug. Remove the lid and the collector. Hold the strainer by the edge and wash it under running water with the supplied brush. Ensure it is always clean to prevent blockages.

Can I use fruits with hard pits like peaches or plums?

Yes, but remove the pits beforehand as they can damage the blades. Fruits with hard shells (nuts, etc.) are not allowed.

How long can I use the appliance continuously?

Do not run the motor continuously for more than 7 minutes to avoid overheating. If the motor stops, let it cool down for 15 minutes before restarting.

Juice overflows between the lid and the collector, what to do?

Slow down the extraction by pushing less hard on the food with the pusher. If the problem persists, clean the strainer to remove fibers blocking the holes.

What speed to use for apples?

For apples, use speed 4 (pineapple and apples) or 5 (pineapple, apples and vegetables). Soft fruits (strawberries) use speed 1.

How to prevent apple juice from browning?

Add a splash of lemon juice to the apples before extraction to preserve the color.

Can I blend bananas or avocados?

No, these fruits can clog the appliance. They are not suitable for extraction.

What to do if the appliance vibrates abnormally or makes noise?

Turn off and check that the strainer is correctly installed. Re-seat it according to the instructions. If the problem persists, contact after-sales service.

USER MANUAL E 91 STEBA

Instructions for use 12

Mode d'emploi 17

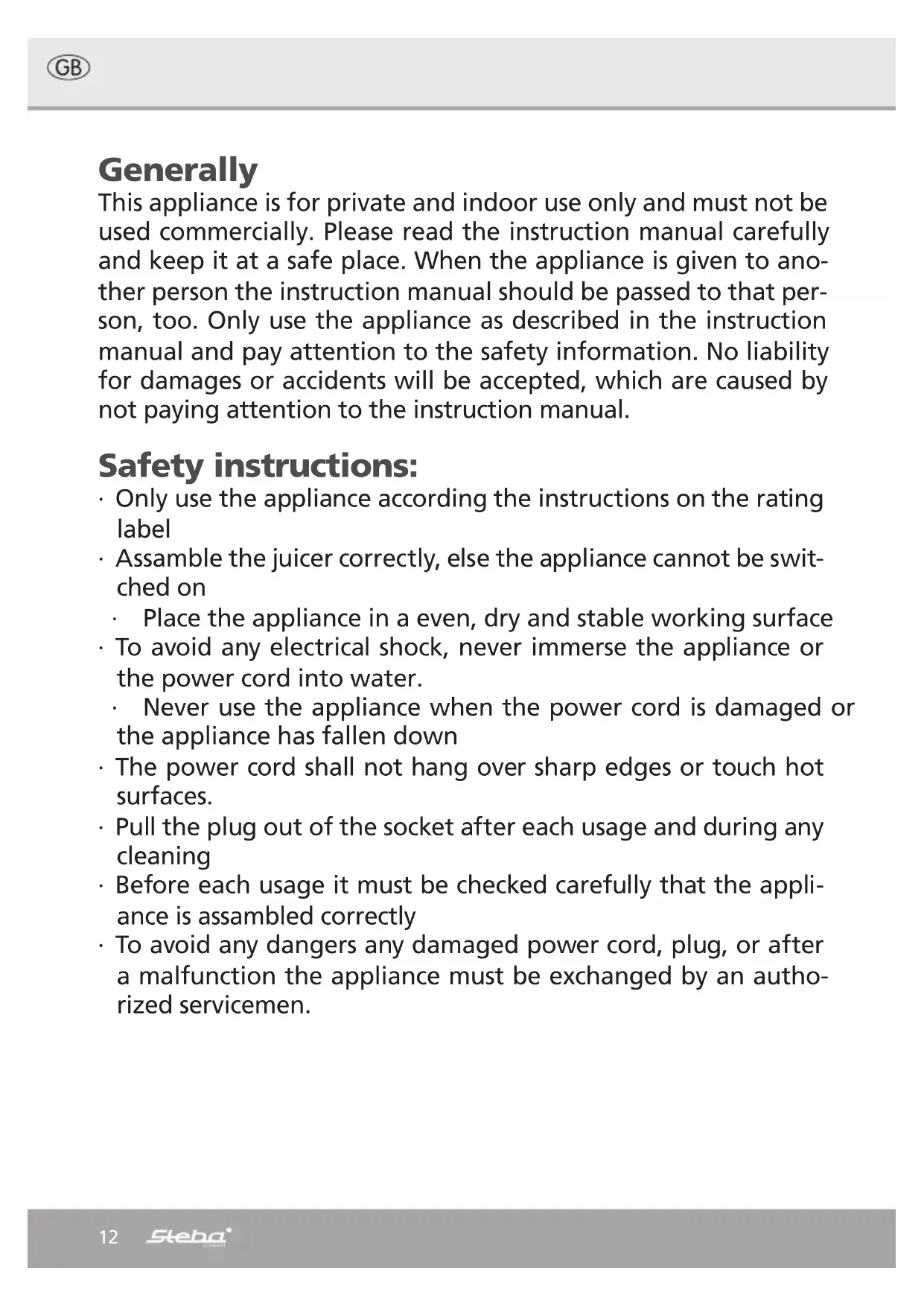

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety instructions:

• Only use the appliance according to the instructions on the rating label
• Assamble the juicer correctly, else the appliance cannot be switched on
• Place the appliance in a even, dry and stable working surface
• To avoid any electrical shock, never immerse the appliance or the power cord into water.
• Never use the appliance when the power cord is damaged or the appliance has fallen down
• The power cord shall not hang over sharp edges or touch hot surfaces.
• Pull the plug out of the socket after each usage and during any cleaning
• Before each usage it must be checked carefully that the appliance is assembled correctly
• To avoid any dangers any damaged power cord, plug, or after a malfunction the appliance must be exchanged by an authorized servicemen.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• The appliance must not be operated using a timer or a separate remote system!

• Never push food with the fingers or any other non suitable item into the feeding opening, only use the delivered pusher.

• Never touch the blades at the bottom of the sieve with the fingers. Danger of cuts!

• The appliance must not be used when the sieve or any other part is damaged.

• Never run the motor for more than 7 minutes, to avoid any overheating. If the motor is overloaded for more than 10 seconds, the motor will switch off automatically. When this happens, please turn the switch to "0" position, plug out and let the machine cool down for 15 minutes. Continue your drink preparation.

• Be sure to check that the filter basket is always clean.

Assembly:

• The motor base should be wiped with a damp cloth. All other parts can be rinsed and dryed.

In the sieve are sharp knives!

• Ensure that the speed is set to "OFF" and the appliance is not connected.

• Place the filter basket in the collection bowl and carefully press down the filter basket at the edges until it audibly engages on the drive and does not wobble.

• Place the filling cover onto the juice collection bowl and flip the catches downwards. Ensure that the pulp ejector is against the outflow when doing this

• Ensure that the locking bow is tightly closed.

• Lead the pulp container under the pulp ejection, place vertically and put into place. Hint: For a more easy cleaning of the pulp container put a small plastic bag inside to collect the pulp.

• Place an juice jug under the spout.

n plug in the appliance.

Usage:

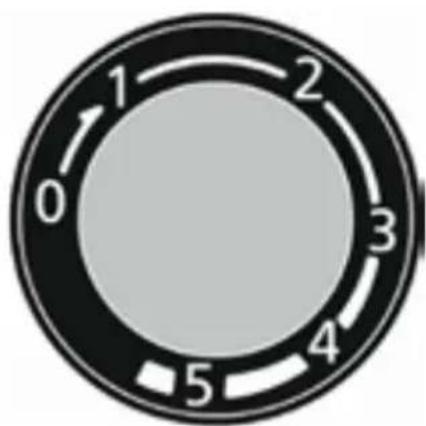

Speed control:

Setting 1 Soft fruits with high water content
Setting 2 Soft fruits and citrus fruits
Setting 3 Citrus fruits
Setting 4 Pineapples and apples
Setting 5 Pineapples, apples and vegetables

• Put the food from which the juice is to be extracted into the filling funnel with the motor running.
• Never put food with hard seeds or shells into the filling funnel, since this may damage the blades.
• Press the pusher slowly, without force down. Never use any other appliances or put fingers into the feeding opening. Risk of injuries!
• After the last filling let the appliance work for some seconds, that the juice can drop out of the spout.
• Do not overfill the pulp container, as this can cause problems during usage or even demage the appliance.
• When the device is being used for the first time, the motor may briefly generate a slight odour.

Hints:

Rinse all fruits or vegetables. It is not necessary to cut most of fruits or vegetables, when they fit into the feeding opening.

The skins of fruits with a hard or a skin which is not suitable for eating, like kiwi or melon, should be removed before juicing.

At Pineappels the hard base should be removed, it is not necessary to peel it.

Citrus fruits should be peeled before juicing.

Add a small amount of lemon juice to apple juice. This avoids that the color of the juice changes.

The stone of fruits must be removed.

Do not juice banana or avocado, as this will jam the appliance.

The pulp contains fibers and cellulose and contains plenty of nutritious ingredients.

The pulp of vegetables can be used e.g. to thicken a soup. The pulp must be used on the same day!

Failure list

Possible problem Easiest solution for the problem
The appliance is not working when switched on	The locking bow is not placed in the correct position. Check the position of it.
The motor jams during juicing Remove large fruit stones. Always put the fruit into the appliance when it is working. Never push too hard with the pusher on the food.
Pulp is collecting in the sieve or at the lid	Stop working. Open the lid and remove the pulp with a small spoon. Then assemble the lid on the base again.
The pulp is too wet and not so much juice	Work slower. Remove the sieve and clean it with a soft brush. Remove all fibers which are accumulated there and clean the openings of the sieve.
The appliance is very loud or vibrates Swit ch off the appliance and check if the sieve is placed at the correct position.
Pulp is not collected at the pulp container	Switch off the appliance and place the pulp container at the correct position

Cleaning

• Put the switch to position "0" and pull the plug out of the socket.
• Open the locking bow and remove the lid.
  Pull with both hands the juice collector upwards.
• Turn the juice collector around carefully, that the sieve slips out slowly.
• Hold the sieve at the edge and rinse it carefully with the brush, which is at the delivered accessories, under running water.
• All other parts, except the motor base, can be rinsed in warm water with some detergants.
• Wipe the motor base with a damp cloth and take care, that no water can get inside the motor base.

Disposal:

Packaging disposal:

Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point.

Plastic packaging material and foils should be collected in the special collection containers.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
