E 150 - Juicer STEBA - Free user manual and instructions

Brand	Steba
Model	E 150
Appliance type	Centrifugal juice extractor
Power supply	230 V ~, 50/60 Hz, 850 W
Dimensions (H x W x D)	44 x 35 x 24 cm
Number of speeds	2
Slow speed (I)	For soft fruits (grapes, melons, etc.)
Fast speed (II)	For hard fruits and vegetables (apples, carrots, etc.)
Material of perforated basket	Stainless steel
Housing material	Plastic
Safety	Safety lock preventing operation if improperly assembled
Included accessories	Pusher, cleaning brush, pulp container, juice container, collection tray
Optional accessory	Juice jug (ref. 99-16-00)
Cleaning	Removable parts washable with soapy water; motor base wiped with a damp cloth
Maximum continuous use time	10 minutes
Extraction type	Centrifugal with pulp ejection
Food preparation	Peel hard-skinned fruits, remove pits, cut if necessary
Not recommended foods	Bananas, avocados, hard-stone fruits
After-sales service	After-sales service available (address on request)

Frequently Asked Questions - E 150 STEBA

How to correctly assemble the Steba E 150 juice extractor?

Place the juice collection tray on the motor base, then insert the perforated basket aligning the arrows on the drive. Put on the lid and close the locking clamp. Attach the pulp container under the ejection. Only plug in after complete assembly.

What to do if the appliance does not start?

Check that the safety lock (clamp) has engaged the notch and that the pulp container is correctly in place. If the problem persists, unplug and reassemble.

Can I extract juice from bananas?

No, bananas and avocados are not suitable as they clog the appliance. Also avoid un-pitted hard stone fruits.

How to clean the perforated basket?

After unplugging, carefully remove the perforated basket and clean it under running water with the provided brush. Beware of sharp blades! Other parts (tray, container) can be washed with soapy water.

Why does the motor stop during extraction?

This may be due to hard pits or overload. Remove pits beforehand, fill while motor is running, and do not press too hard on the pusher.

Which speed to use for apples?

Use fast speed (II) for hard fruits like apples and carrots. Slow speed (I) is for soft fruits (grapes, melons).

How to prevent apple juice from discoloring?

Add a little lemon juice to the apples before extraction. This slows oxidation and preserves color.

Can I use fruits with pits?

All fruits with pits or seeds (plums, peaches, etc.) must be pitted or seeded before extraction, otherwise the blades may be damaged.

What to do if juice spurts from the spout?

This indicates overload or too much pressure on the pusher. Work more slowly and do not press too hard.

How to dispose of the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a recycling center or the point of sale. The crossed-out wheeled bin symbol indicates it must be collected separately.

USER MANUAL E 150 STEBA

Exterior view of a modern stainless steel juice<|im_start|> Greenland brand blender with a small cup (no text or symbols visible)

Premium Juicer E 150

Instructions for use 10

Mode d'emploi 14

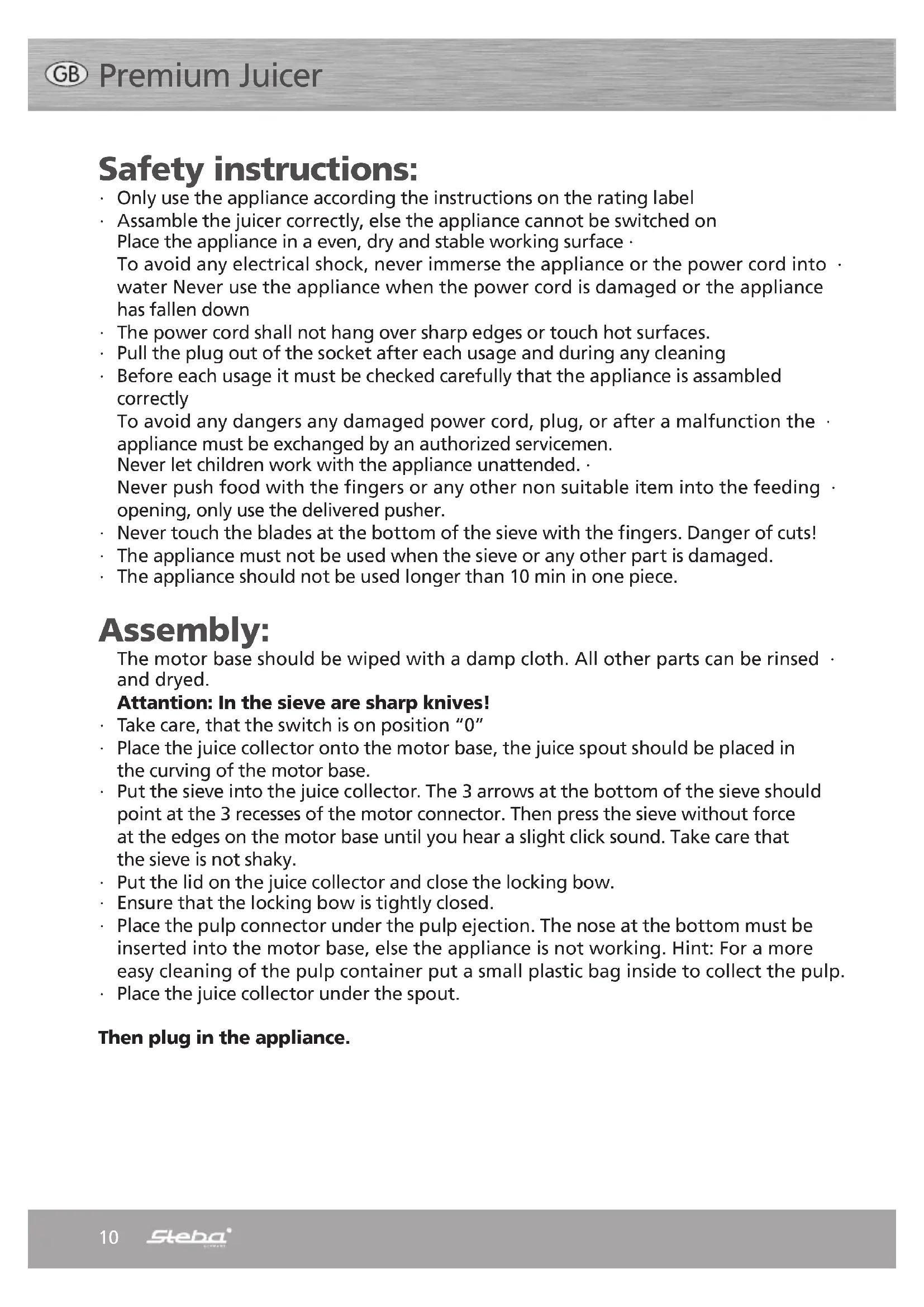

Safety instructions:

• Only use the appliance according the instructions on the rating label
• Assemble the juicer correctly, else the appliance cannot be switched on. Place the appliance in a even, dry and stable working surface.

To avoid any electrical shock, never immerse the appliance or the power cord into water. Never use the appliance when the power cord is damaged or the appliance has fallen down

• The power cord shall not hang over sharp edges or touch hot surfaces.
• Pull the plug out of the socket after each usage and during any cleaning
• Before each usage it must be checked carefully that the appliance is assembled correctly

To avoid any dangers any damaged power cord, plug, or after a malfunction the appliance must be exchanged by an authorized servicemen.

Never let children work with the appliance unattended.

Never push food with the fingers or any other non suitable item into the feeding - opening, only use the delivered pusher.

• Never touch the blades at the bottom of the sieve with the fingers. Danger of cuts!
• The appliance must not be used when the sieve or any other part is damaged.
• The appliance should not be used longer than 10 min in one piece.

Assembly:

The motor base should be wiped with a damp cloth. All other parts can be rinsed and dried.

Attantion: In the sieve are sharp knives!

• Take care, that the switch is on position "0"
- Place the juice collector onto the motor base, the juice spout should be placed in the curving of the motor base.
- Put the sieve into the juice collector. The 3 arrows at the bottom of the sieve should point at the 3 recesses of the motor connector. Then press the sieve without force at the edges on the motor base until you hear a slight click sound. Take care that the sieve is not shaky.
- Put the lid on the juice collector and close the locking bow.
- Ensure that the locking bow is tightly closed.
- Place the pulp connector under the pulp ejection. The nose at the bottom must be inserted into the motor base, else the appliance is not working. Hint: For a more easy cleaning of the pulp container put a small plastic bag inside to collect the pulp.
- Place the juice collector under the spout.

Then plug in the appliance.

Usage:

When the appliance is used for the first time the motor can have a little smell, which stops fast

Switch position "I": slow speed- for soft fruits like grapes, melon, etc Switch position - "II": high speed- for hard fruits and vegetables like apples, carrots etc

- Never place food with a stone or a hard skin into the feeding opening.

- Press the pusher slowly, without force down. Never use any other appliances or put fingers into the feedding opening. Risk of injuries!

- After the last filling let the appliance work for some seconds, that the juice can drop out of the spout.

Do not overfill the pulp container, as this can cause problems during usage or even - damage the appliance.

Hints:

Rinse all fruits or vegetables. It is not necessary to cut most od fruits or vegetables, when they fit into the feeding opening.

The skins of fruits with a hard or a skin which is not suitable for eating, like kiwi or melon, should be removed before juicing.

At ananas the hard base should be removed, it is not necessary to peel it.

Citrus fruits should be peeled before juicing.

Add a small amount of lemon juice to apple juice. This avoids that the color of the juice changes.

The stone of sruits must be removed.

Do not juice banana or avocado, as this will jam the appliance.

The pulp contains of fibres and cellulose and contains plenty of nutritious ingredients.

The pulp of vegetables can be used e.g. to thicken a soup. The pulp must be used on the same day!

Cleaning

Put the switch to position "0" and pull the plug out of the socket.

Open the locking bow and remove the lid.

Pull with both hands the juice collector upwards.

Turn the juice collector around crefully, that the sieve slips out slowly.

- Hold the sieve at the edge and rinse it carefully with the brush, which is at the delivered accessories, under running water.

- All other parts, except the motor base, can be rinsed in warm water with some detergants.

- Wipe the motor base with a damp cloth and take care, that no water can get inside the motor base.

Disposal:

Packaging disposal:

Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Service and Repair:

If the appliance must be repaired, plaese get in touch with your trader or with the manufacturer:
