USER MANUAL E 90 STEBA

Instructions for use 10

Mode d'emploi 14

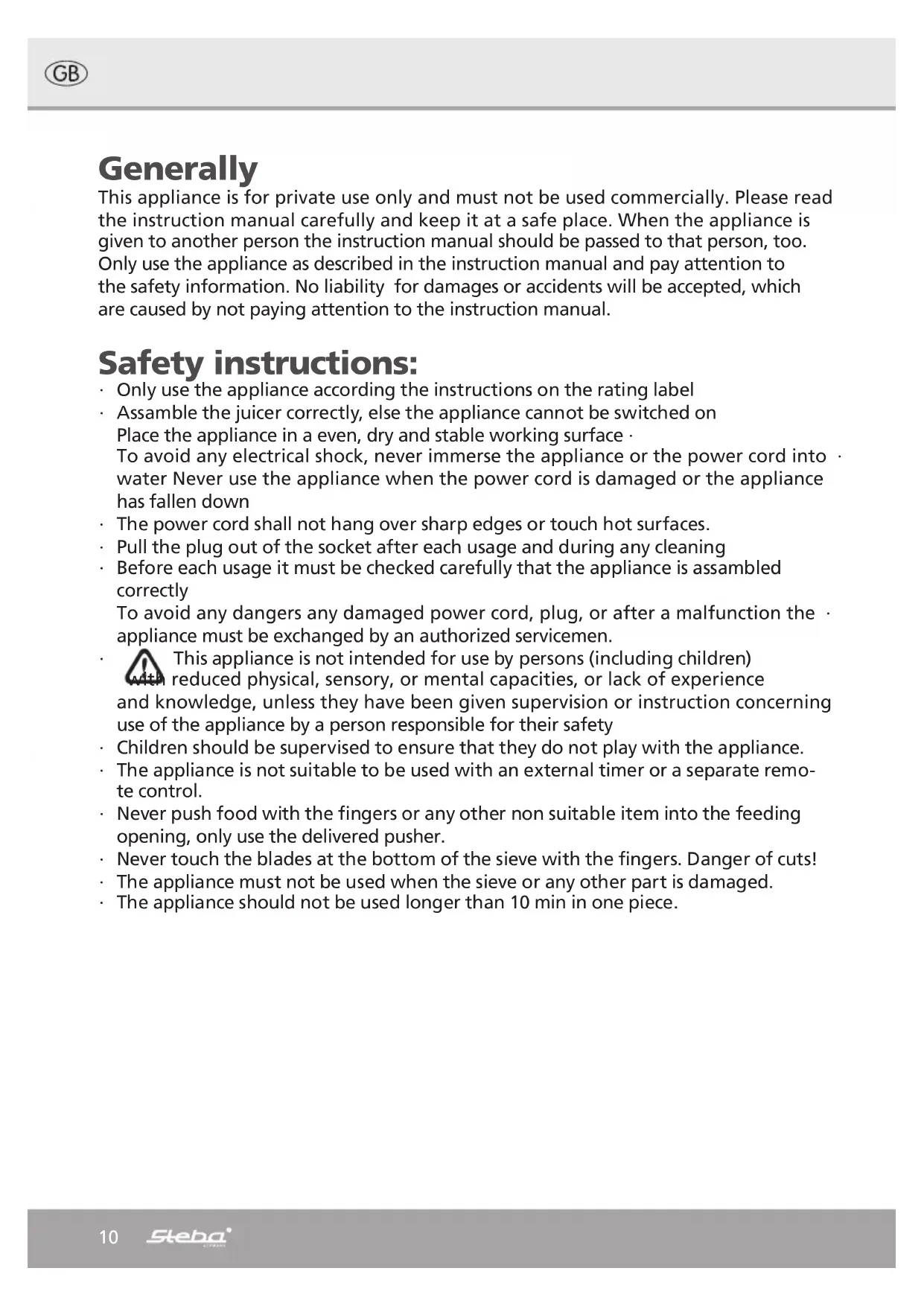

This appliance is for private use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety instructions:

• Only use the appliance according the instructions on the rating label
• Assamble the juicer correctly, else the appliance cannot be switched on. Place the appliance in a oven, dry and stable working surface.

To avoid any electrical shock, never immerse the appliance or the power cord into water Never use the appliance when the power cord is damaged or the appliance has fallen down

The power cord shall not hang over sharp edges or touch hot surfaces.
- Pull the plug out of the socket after each usage and during any cleaning
- Before each usage it must be checked carefully that the appliance is assembled correctly

To avoid any dangers any damaged power cord, plug, or after a malfunction the appliance must be exchanged by an authorized servicemen.

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

Children should be supervised to ensure that they do not play with the appliance.
- The appliance is not suitable to be used with an external timer or a separate remote control.
- Never push food with the fingers or any other non suitable item into the feeding opening, only use the delivered pusher.
- Never touch the blades at the bottom of the sieve with the fingers. Danger of cuts!
The appliance must not be used when the sieve or any other part is damaged.
The appliance should not be used longer than 10 min in one piece.

Assembly:

The motor base should be wiped with a damp cloth. All other parts can be rinsed and dryed.

Attention: In the sieve are sharp knives!

Take care, that the switch is on position "0".

• Place the juice collector onto the motor base, the juice spout should be placed in the curving of the motor base.

Put the sieve into the juice collector. Then press the sieve without force at the edges on the motor base until you hear a slight click sound. Take care that the sieve is not shaky.

Put the lid on the juice collector and close the locks.

Ensure that the locking bow is tightly closed.

• Place an pulp connector under the pulp ejection. Hint: For a more easy cleaning of the pulp container put a small plastic bag inside to collect the pulp.

Place the juice collector under the spout.

Then plug in the appliance.

Usage:

When the appliance is used for the first time the motor can have a little smell, which stops fast

Switch position "I": slow speed- for soft fruits like grapes, melon, etc Switch position "II": high speed- for hard fruits and vegetables like apples, carrots etc

• Never place food with a stone or a hard skin into the feeding opening.
• Press the pusher slowly, without force down. Never use any other appliances or put fingers into the feedding opening. Risk of injuries!
  After the last filling let the appliance work for some seconds, that the juice can drop out of the spout.
• Do not overfill the pulp container, as this can cause problems during usage or even damage the appliance.

Hints:

Rinse all fruits or vegetables. It is not necessary to cut most od fruits or vegetables, when they fit into the feeding opening.

The skins of fruits with a hard or a skin which is not suitable for eating, like kiwi or melon, should be removed before juicing.

At ananas the hard base should be removed, it is not necessary to peel it.

Citrus fruits should be peeled before juicing.

Add a small amount of lemon juice to apple juice. This avoids that the color of the juice changes.

The stone of sruits must be removed.

Do not juice banana or avocado, as this will jam the appliance.

The pulp contains of fibres and cellulose and contains plenty of nutritious ingredients.

The pulp of vegetables can be used e.g. to thicken a soup. The pulp must be used on the same day!

Cleaning

Put the switch to position "0" and pull the plug out of the socket.

Open the locking bow and remove the lid.

Pull with both hands the juice collector upwards.

Turn the juice collector around crefully, that the sieve slips out slowly.

• Hold the sieve at the edge and rinse it carefully with the brush, which is at the delivered accessories, under running water.
• All other parts, except the motor base, can be rinsed in warm water with some detergants.

Wipe the motor base with a damp cloth and take care, that no water can get inside the motor base.

Disposal:

Packaging disposal:

Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it

Responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Service and Repair:

If the appliance must be repaired, plaese get in touch with your trader or with the manufacturer:
