ZP 3 - Juicer STEBA - Free user manual and instructions

Product type	Electric citrus juicer
Brand	Steba
Model	ZP 3
Power supply	220-240 V ~ 50/60 Hz
Extraction type	Citrus fruits (orange, lemon, grapefruit)
Number of cones	2 (large and small)
Integrated filter	Yes, to retain pulp
Juice collector	Yes, with swivel spout
Lever arm	Yes, for pressing fruits
Motor protection	Overload protection, automatic shutdown if excessive pressure
Max continuous use time	10 minutes
Cleaning of removable parts	Wash with hot water and dish soap
Cleaning the motor unit	Wipe with a damp cloth
Removable parts	Cones, filter, collector, cap, drive shaft
Not submersible	Do not immerse the motor unit in water
Use	Household use only
After-sales service	Contact authorized service center for any repairs

Frequently Asked Questions - ZP 3 STEBA

How to clean the juicer after use?

After use, always unplug the appliance. Remove the removable parts (cones, filter, collector, cap) and wash them in hot water with dish soap. Wipe the motor unit with a damp cloth. Never immerse the motor unit in water.

Can I use non-citrus fruits?

No, this appliance is designed exclusively for citrus fruits (oranges, lemons, grapefruits). Using other fruits may damage the appliance.

What is the maximum continuous use time?

Do not operate the appliance for more than 10 minutes continuously. If the housing becomes hot, let it cool down for a few minutes before using again.

What to do if the appliance stops during use?

The appliance is equipped with motor protection that activates if you press too hard. Release the pressure and wait a few moments before continuing with lighter pressure.

Can I wash the parts in the dishwasher?

The instructions do not mention the dishwasher. It is recommended to wash the parts by hand in hot water with dish soap to avoid any damage.

How to use the spout?

The spout can be tilted down to pour the juice into a glass. Lift it up to collect the liquid in the collector.

How to change the pressing cone?

Remove the filter and collector. Lift the current cone, then place the new cone on the drive shaft. For large fruits, use the large cone over the small one.

Is the appliance suitable for children?

Children aged 8 and above may use the appliance under supervision. Children under 8 must be kept away from the appliance and the cord.

What to do in case of a technical problem?

Unplug the appliance and contact the authorized after-sales service. Do not attempt to repair the appliance yourself.

How to store the appliance?

Store the appliance in a dry place away from moisture. Do not store it outdoors or in a damp room.

USER MANUAL ZP 3 STEBA

Steba brand juice maker with a black handle and silver casing (no visible text or symbols on the device itself)

220 - 240V\~; 50Hz; 100W

Zitruspresse

ZP 3

Instructions for use 8

Mode d'emploi 14

Exploded view diagram of a handwashing machine with numbered parts for identification

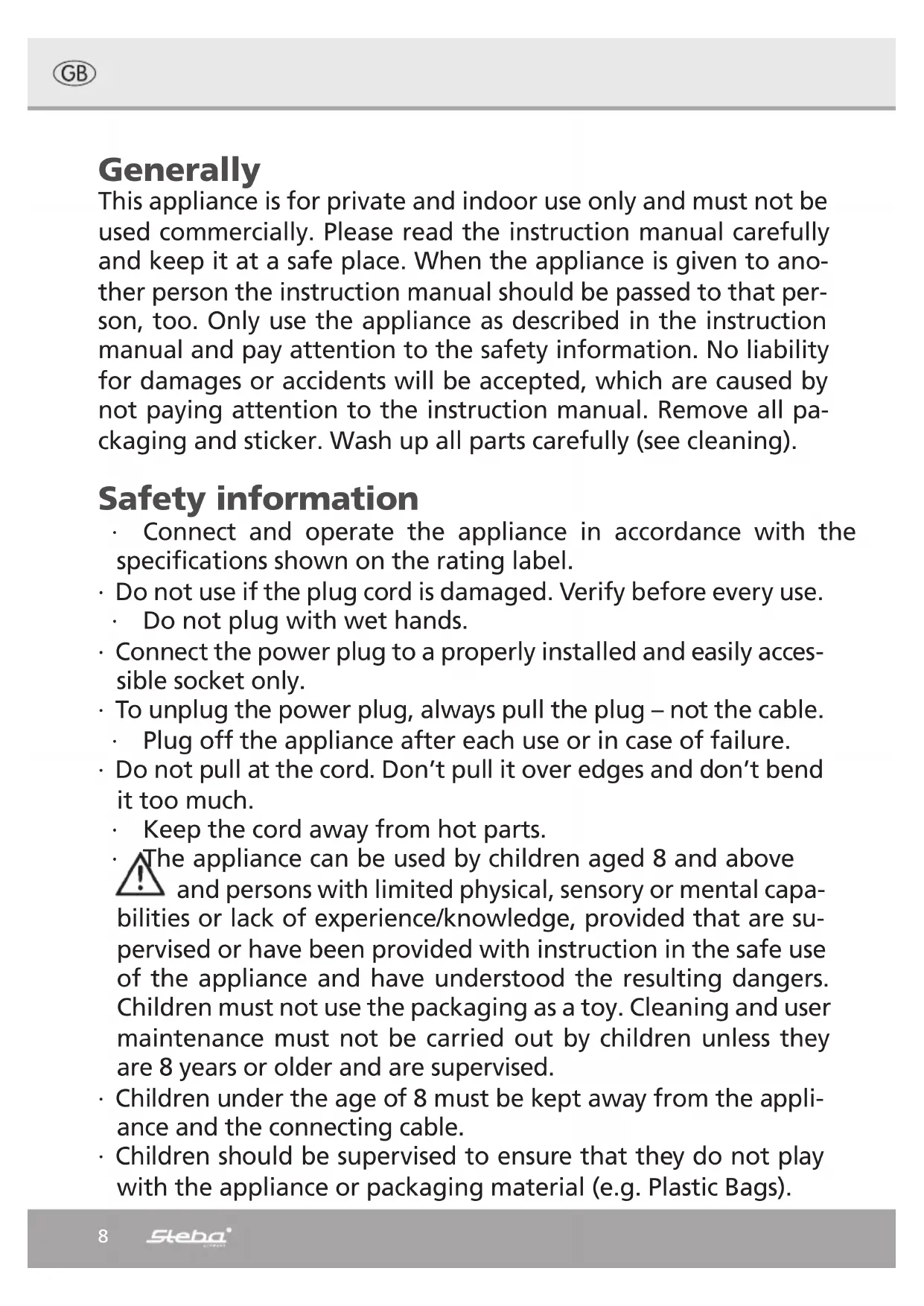

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

• Connect and operate the appliance in accordance with the specifications shown on the rating label.
• Do not use if the plug cord is damaged. Verify before every use.
• Do not plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
• Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.
• Keep the cord away from hot parts.
  The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.
• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

- The appliance must not be operated using a timer or a separate remote system!

- Never leave the appliance unattended when in use.

- Do not leave the appliance outdoors or in a damp area.

- Never immerse the unit in water.

- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

- The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

Do not let the device work for more than 10 minutes constantly.

- If you do heavy work with the device, the housing may become warm. Most of the work is done in seconds. But if the housing is getting warmer than lukewarm, let the device cool down for some minutes.

• Only use the device as described in this manual.

- This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

- Before initial use: clean all parts carefully and leave to dry.

- If an extension cable is used, it has to have a cross-section of 1,5mm^2 . A cable drum must always be unwound.

- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more then 3680 watts due to fire hazard.

- Make sure that children do not tease the cable or that a trip hazard occurs.

• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Hygiene: Please always clean the device to avoid bacteria and mold formation.

Cleaning

Attention! Pull the plug before cleaning

- Never immerse the unit into water.

• Food residues must be removed for reasons of hygiene.
• The holding cap for the fruit halves can be removed by gently pressing the black button on the lever-arm. Remove all other parts such as juice cone, filter insert and drip tray and clean everything in light soapy water and let dry thoroughly.
  • Take care that the juice cones are cleaned from bellow, too, and that the sieve openings are cleaned completely, too.
• The motor base should be wiped with a damp cloth.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

Exploded view diagram of a kitchen grater with numbered parts labeled 1 through 7

- Wipe the appliance and the cones with a damp cloth. Take care, that the appliance is not plugged in, as it could start with a pressure on the juice cone.

- Place the carrier spindle on the motor part.

- Put the juice container on the motor base. The spout must be placed at the opening.

- Put the sieve onto the juice container.

- Place the small juice cone onto the carrier spindle. For bigger fruit, place the bigger juice cone on the small cone.

• The fruit shall be cut into halves.

- Put the fruit halves on the juice cone. By a slight pressure on the lever-arm the juice cone rubs the juice out of the flesh. Do not press too hard, in order not to scrape the white skin which mostly tastes bitter.

- If you press too tight, the motor protection will react and the device will stop. Continue working with light pressure.

- The juice is collected in the juice collector. When the spout is moved downwards the juice will run out of the spout in a glass, which must be placed beneath the spout before. Lift the spout for collecting the juice again.

- It must be taken care, that the sieve gets not jammed.

- Never try to clean the sieve when the motor is running. The juicer must be unplugged and the sieve should be cleaned under running water.

- Citrus juice should be consumed quickly and stored in a metal container.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Technical diagram of a handwashing machine with seven labeled parts in Chinese

Exploded view diagram of a handwashing machine with numbered parts for identification

Technical diagram of a handwashing machine with seven labeled parts in Chinese

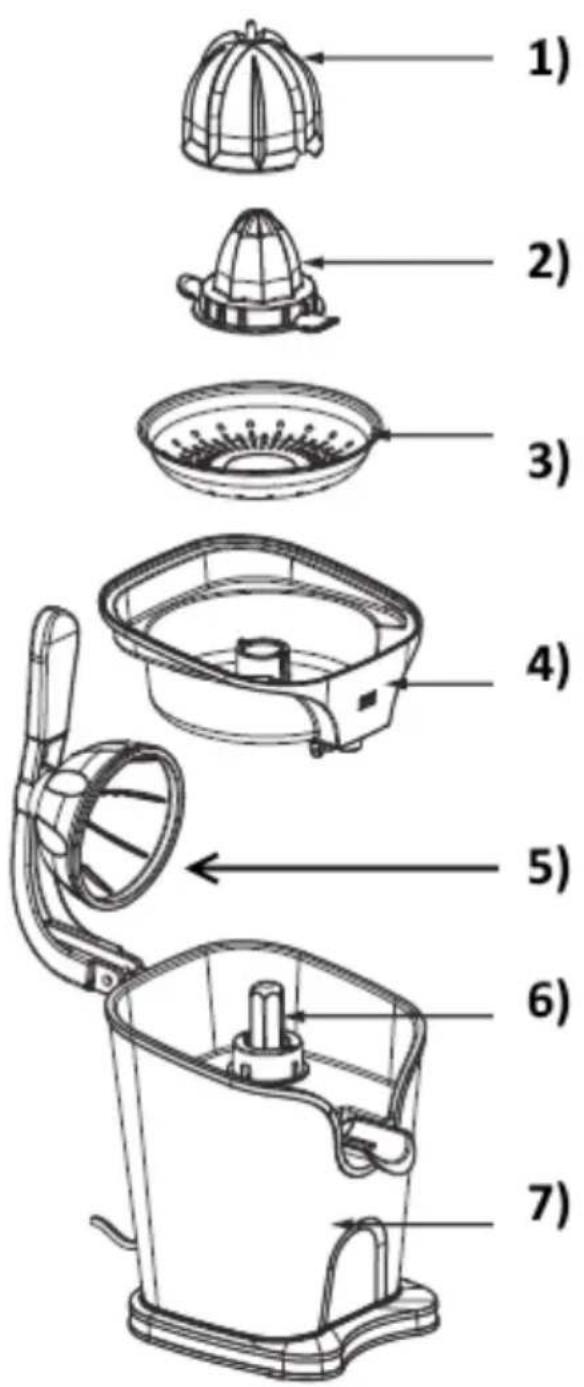

1) Stor saftkegle
2) Lille saftkegle
3) Si
4) Saftbeholder
5) Trykkegle
6) Akse
7) Motordel
