USER MANUAL PerfectCup 1000 Pro CASO

14.2.1 Set the desired amout of water for small and large cups ...................................... 35

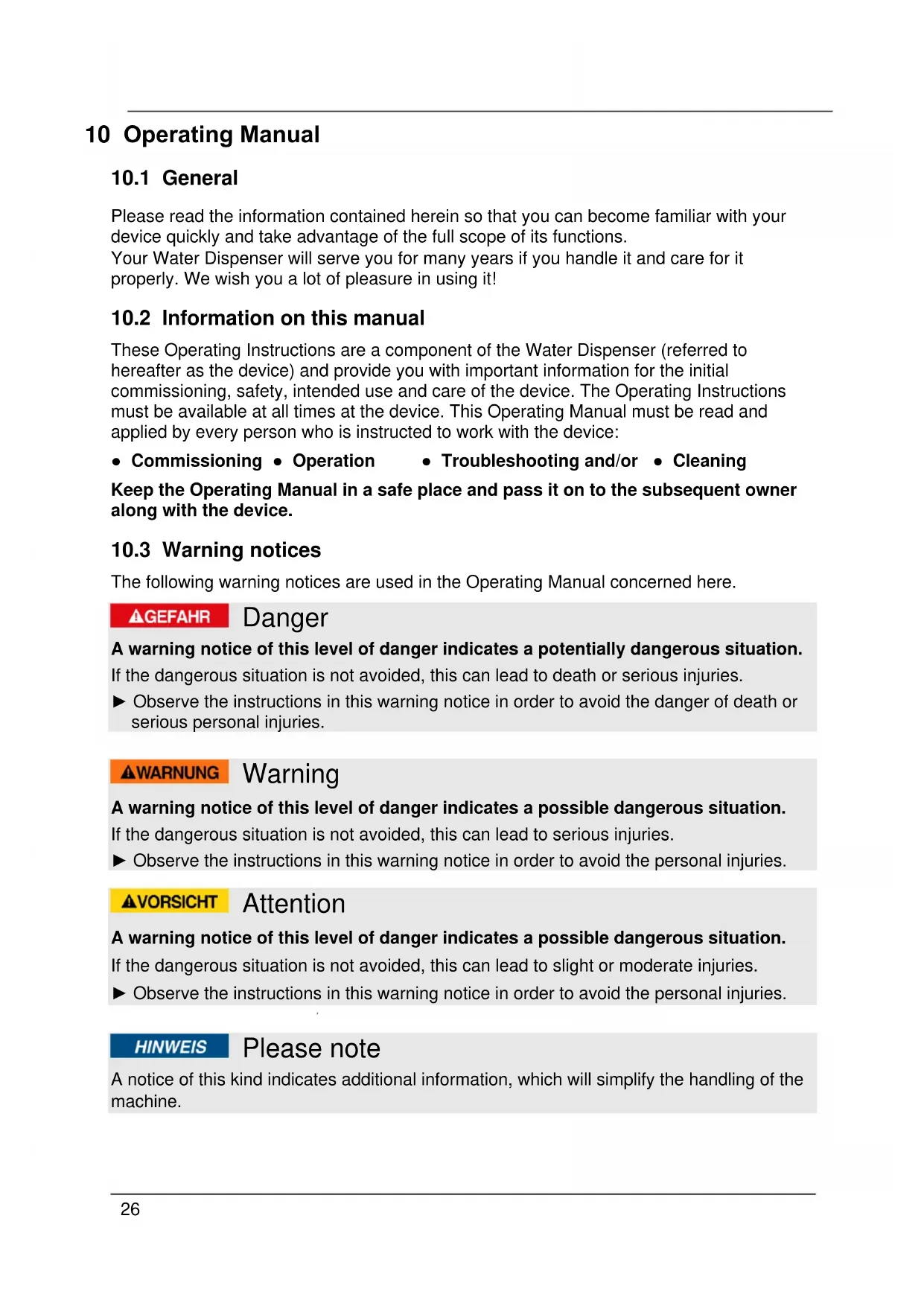

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your Water Dispenser will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

10.2 Information on this manual

These Operating Instructions are a component of the Water Dispenser (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: ● Commissioning ● Operation ● Troubleshooting and/or ● Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. Danger A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

Warning A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. Attention A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries.

Please note A notice of this kind indicates additional information, which will simplify the handling of the machine.27

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual • Uses for non-intended purposes

• Improper repairs • Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 11 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device (with waterfilter included) is only intended for use in households in enclosed spaces for boiling of drinking water. The device is not suitable for permanent commercial operation. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; in B&Bs,

• in agricultural estates;

• by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.28

11.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Read all instructions before using. ► This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device. ► The device and its connecting cable must be kept away from children who are less than 8 years old. ► The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Unplug the device when not in use and before cleaning. Allow device to cool before cleaning. ► Inspect the device, its power cord and plug for any damage before using. If there appears to be any damage or if the device shows signs of malfunctioning, do not use the appliance. Return the appliance to the nearest authorized service facility for inspection and repair. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.29 Please note ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► Do not use accessory attachments that have not been recommended by the manufacturer. ► Do not use outdoors. ► Do not allow cord to touch hot surfaces or hang over sharp edges such as those on countertops. ► Do not place the device on or near a hot gas or electric burner, or heated oven. ► Always handle the device gently. Do not place it near the edge of the table or counter to protect against the deformation or functional damage in case it falls down from the table accidently. ► Do not use this appliance for any unintended use. ► SAVE THESE INSTRUCTIONS.

11.3 Danger of burns

Warning The water heated in the device and the device can become very hot. Please observe the following safety notices in order not to burn or scald yourself or others. ► When boiling water the device become hot. ► Do not touch the hot surface and not the spout when the device is in operation. Danger of burns. ► Open the lid of the water tank slowly, to prevent scalding through the escaping steam. ► Always test the temperature of the water before you drink it. ► Pay attention to the hot water steam that is produced during cooking process. Risk of burns.30

11.4 Dangers due to electrical power

Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not dip the cable, device or plug into water or other liquid to prevent an electric shock. ► Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. 12 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

Warning ► Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the Water Dispenser is delivered with the following components: ● Water Dispenser ● Operation Manual ● Waterfilter Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, proceed as follows: Remove the device out of the carton and remove the packaging material.31

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

12.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity for the device.

• Place the device only on a waterresistent surface.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not use the device outdoors.

• Do not operate the product near hot gas or hot stove.

• Choose the setup location in such a way that children cannot reach the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.32

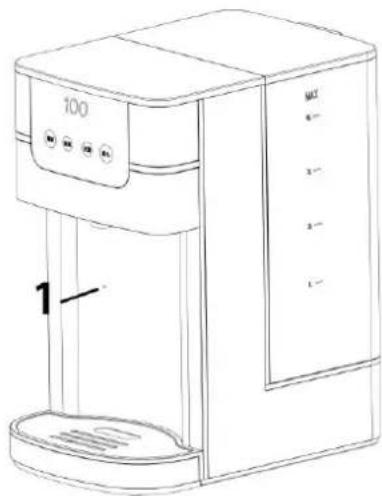

The appliance is equipped with an overheating protection facility. If the temperature of the appliance exceeds the critical limit the appliance shuts off further power supply for safety reasons. By pressing the reset button (1) the appliance can be reactivated. Unplug the device before reset. When the device is only producing cold water please press reset button. Please use enclosed reset-key for the reset-button. 13 Design and Function In this chapter, you'll find important information on the design and function of the device.

Warning ► Warning symbol: hot steam. ► Caution hot steam can escape at device. Risk of burns.33

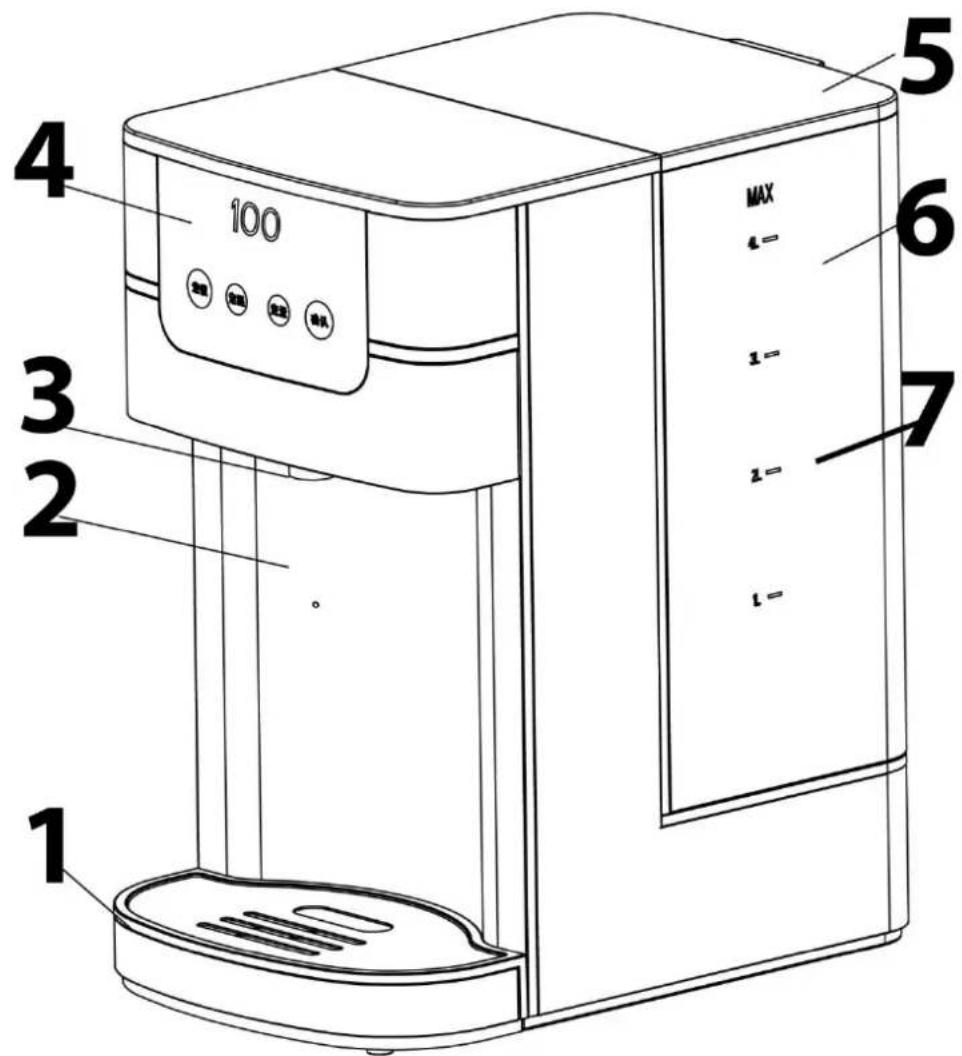

1 drip tray 2 main body 3 spout 4 control panel 5 tank cover 6 tank 7 water scale The drip tray consists of drip tray A with cover of trip tray B.34

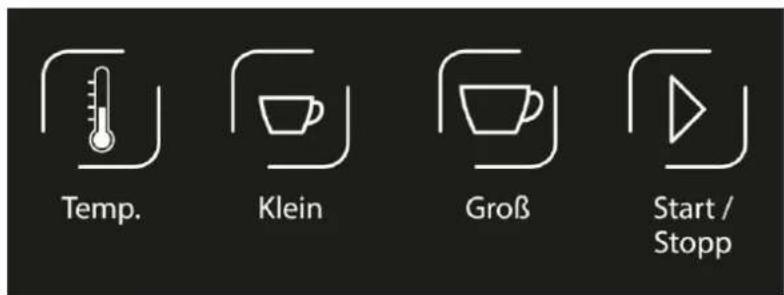

Button for setting the desired temperature according to 70°C, 80°C, 90°C, 100°C.

Press this button for the amount of water for a small cup. Preset 150 ml

Press this button for the amount of water for a large cup. Preset 250 ml

Button to start and stop of operation.

The rating plate with the connection and performance data can be found beneath the device. 14 Operation and Handling This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages. Warning ► Do not leave the appliance unsupervised during operation.

14.1 Before initial use

14.1.1 Preparation of the waterfilter

1. Remove the waterfilter from all packaging. There may be a small residue of black

carbon particles in the bag or on the filter body. This is normal. These particles are harmless and will be washed off during the preparation process.

2. Soak the waterfilter upright in water for 10 min.

3. Rinse the waterfilter thoroughly under running water.35

4. The waterfilter is now ready for use.

Please note ► The lifetime of the waterfilter lasts about 4-6 weeks of normal use (filtering of approximately 150 l water in total). ► Store the replacement filters in a cool location, out of direct sunlight and away from heat sources.

14.1.2 Preparation of the device

1. Place device without drip tray and without filter.

2. Fill the tank up to max marking.

3. Place large vessel below the spout.

4. Let the device dispense a large cup of water with temperature setting 70 °C.

5. Let the device dispense two large cups of water with temperature setting 100 °C.

6. The device can now be equipped with waterfilter and filled with fresh water.

7. The device is ready for use.

1. Fill the watertank with water, you can remove the watertank to do this.

2. Place your cup on the removable drip tray, make sure it aligns with the spout.

14.2.1 Set the desired amout of water for small and large cups

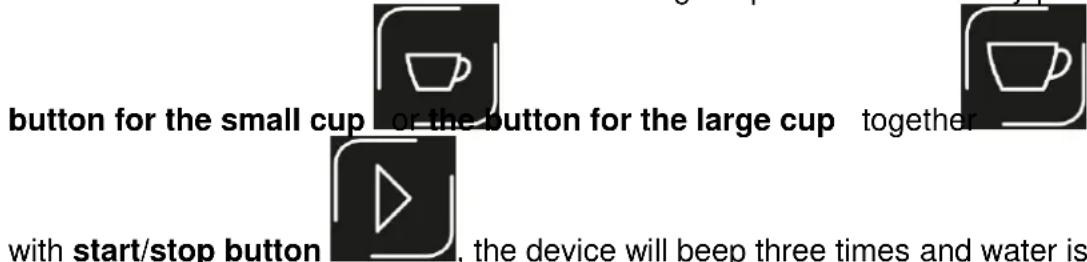

You can set the amout of water for small and large cup size as desired by pressing the button for the small cup or the button for the large cup together with start/stop button , the device will beep three times and water is dispensed. Once the desired amount of water was dispensed you press start/stop button again, to save the amount of water.

1. Press to choose your desired temperature and press the button for the small

cup or the button for the large cup to set the desired cup size.36

2. Press to start the operation of the device. The desired water will flow out from

water spout. Press again, when you want to stop the operation. Danger of burns ► When you have stopped the dispensing, then the water which was already in the spout will rinse. Be careful. Danger of burns.

3. If you want to dispense water again, repeat the steps above.

Please note ► Without operation the device will switch to standby mode after 5 hours, then only the start/stop button is illuminated. You can reactivate the device at any time by pressing the start/stop button. ► If device was not used for longer time there could be scale deposits despite water filter. In this case let the device dispense amount for large cup with 100 °C. ► The device saves your settings for the amount of water for the cup sizes, this setting is saved even if you pull the plug of the device. ► The ambient temperature changes everyday. This leads to different amounts of water. It can vary up to +- 15%.

14.2.3 Water disposal from the drip tray

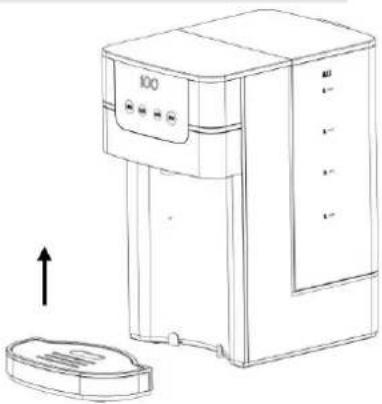

1. When the drip tray is full, grasp and stabilize the device by

one hand and use the other hand to lift up the drip tray slightly to remove it.

2. Empty the drip tray and insert it into the original place. Make

sure it is properly inserted.

14.2.4 Replacing the waterfilter

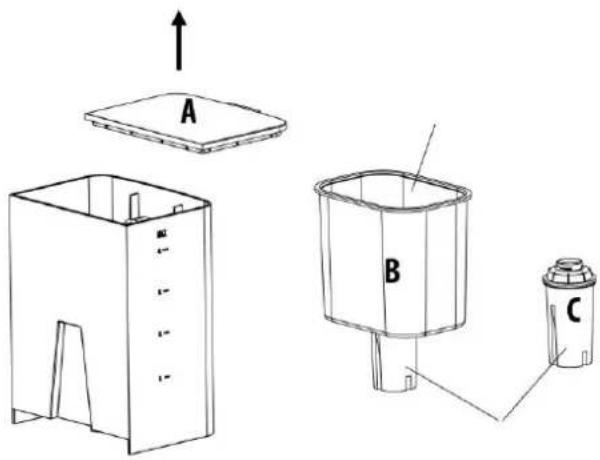

1. Open the tank cover (A) and take out the filter box (B) with the

3. Rinse the new waterfilter thoroughly under

with the new waterfilter (see fig.). Therefor take out the filter box, place the new waterfilter and pull it down from the bottom.

14.2.5 Error code Lo

If the appliance stops to operate with a beeping sound and the display shows the error code Lo, it means that there is too little water or no water in the water tank. Please fill in enough water into the water tank immediately. 15 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

Attention Please observe the safety instructions, before cleaning your device ► Unplug the device when not in use and before any cleaning. ► Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher. ► Do not use iron brush, abradant, kitchen cleaner, or sharp cleaning tool for cleaning.

1. Remove the plug from the outlet and let the device cool down.

2. To maintain the performance of the device, descale the appliance at least once a

month. If you use a CASO waterfilter and change it as regular as described in “replacing the waterfilter” then you should descale the device every 3 months.

3. Remove the water filter. Add some vinegar into the water tank. Change the setting for

the large cup to 2 L. Let the device dispense 2 L of the vinegar water mixture with 80 °C. The scale will be removed. After that, pour out the water in the water tank. Rinse the water tank thoroughly and fill it with water, let the device dispense 2 L. Then you can change the setting for the large cup to desired amount of water.

4. Do not clean the main device. Only wipe it with a damp cloth.38

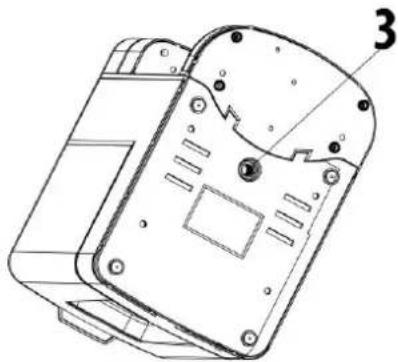

Drainage stopper The drainage stopper prevents water from flowing out of the device. You can unscrew the stopper (3) with a screwdriver so that the dirty water can drain off. Then put the stopper back into the opening. Tighten it again so that it seals the drain. Please note ► If you need to send the device to customer service, then first remove the water from the device. Spout The spout can be removed to clean it by turning it clockwise. Then it must be correctly installed again. To do this, insert the spout slightly to the left with spout to the front, see picture B, and then turn it counterclockwise to the right, see picture A. The spout must not be at the back, incorrect position – see picture C.

If the appliance is not used frequently, unplug and clean it, then put back into the original packing box to avoid that the electrical components from getting humidified or damaged. 16 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.39 Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 17 Guarantee We provide a 12 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 18 Technical Data Device Instant Boiler Water Dispenser PerfectCup 1000 Pro Item No.:
