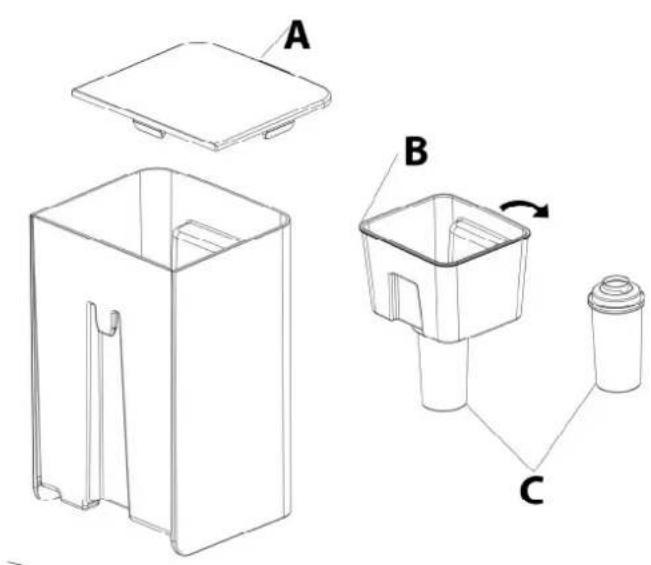

14.2.2 Replacing the waterfilter....36

14.2.3 Error code Lo Lack of water 36

14.2.1 Calibration 36

15 Cleaning and Maintenance 37

15.1 Safety information....37

15.2 Cleaning and descaling ....37

15.2.1 Cleaning and descaling function 37

15.3 Storage 37

16 Disposal of the Old Device 38

17 Guarantee....38

18 Technical Data 38

59.2.3 Foutcode Lo Lack of water....114

59.2.4 Calibratie 114

Technical line drawing of a mechanical or electronic device with labeled component '1' (no text or symbols beyond label)

Descaling Lack of water Baby Temp. Volume Clean Lock Start/Stop

Line drawing of a portable water dispenser with control panel and side-mounted buttons (no text or symbols)

Technical diagram of a device's internal components with labeled parts A, B, and C

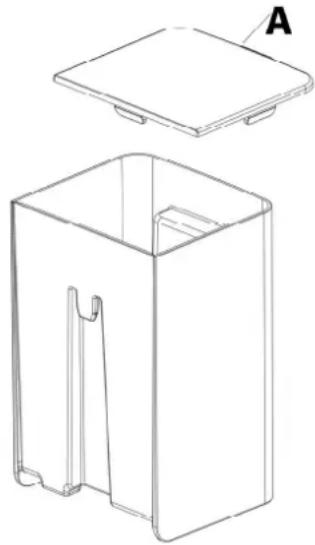

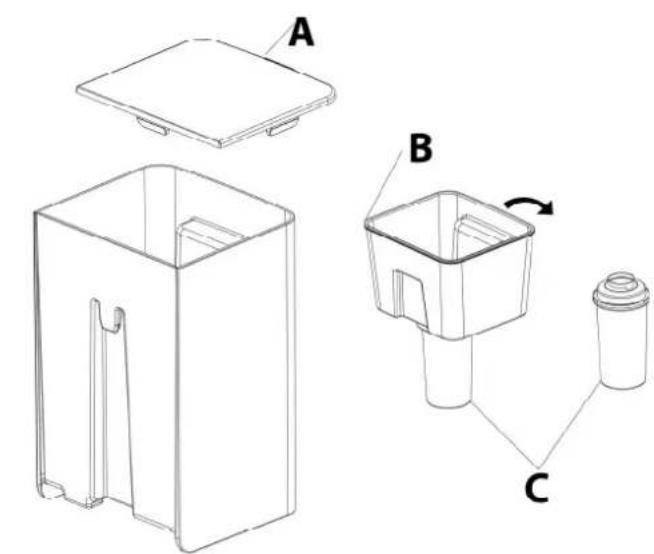

5.2.3 Fehlercode Lo Lack of water

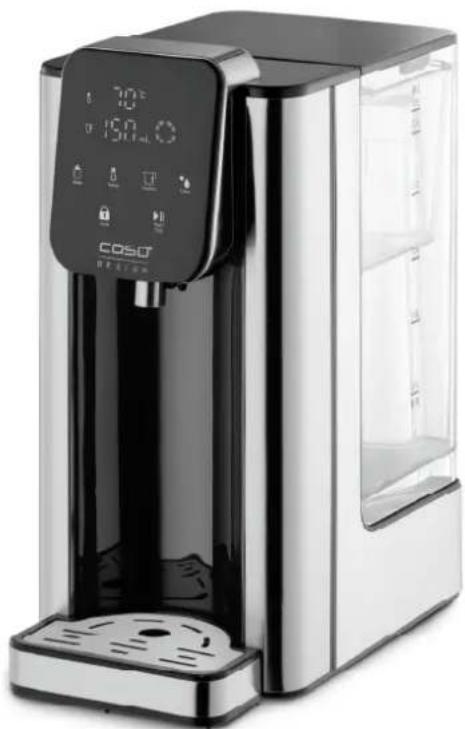

Original Operating Manual Instant Boiling Water Dispenser HOT 7

Exterior view of a modern stainless steel water dispenser with digital display and control buttons (no visible text or symbols)

CE

Item no. 1875

10 Operating Manual

10.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your Water Dispenser will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

10.2 Information on this manual

These Operating Instructions are a component of the Water Dispenser (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

- Commissioning - Operation - Troubleshooting and/or - Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

AGEFAHR Danger

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG Warning

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT Attention

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS Please note

A notice of this kind indicates additional information, which will simplify the handling of the machine.

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
- Improper repairs
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

11 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

11.1 Intended use

This device (with waterfilter included) is only intended for use in households in enclosed spaces for boiling of drinking water.

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG

Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

11.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Read all instructions before using.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Unplug the device when not in use and before cleaning. Allow device to cool before cleaning.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Do not use accessory attachments that have not been recommended by the manufacturer.
▶ Do not use outdoors.
▶ Do not allow cord to touch hot surfaces or hang over sharp edges such as those on countertops.

HINWEIS

Please note

▶ Do not place the device on or near a hot gas or electric burner, or heated oven.
▶ Always handle the device gently. Do not place it near the edge of the table or counter to protect against the deformation or functional damage in case it falls down from the table accidentally.
▶ Do not use this device for any unintended use.
▶ SAVE THESE INSTRUCTIONS.

11.3 Danger of burns

▲WARNUNG

Warning

The water heated in the device and the device can become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others.

▶ When boiling water the device becomes hot.
▶ Do not touch the hot surface and not the spout when the device is in operation. Danger of burns.
▶ Open the lid of the water tank slowly, to prevent scalding through the escaping steam.
▶ Always test the temperature of the water before you drink it.
▶ Avoid the risk of burns: Please check the temperature of the food before you give it to your baby. This can easily be done on the back of your hand.
▶ Pay attention to the hot water steam that is produced during cooking process. Risk of burns.

11.4 Dangers due to electrical power

▲GEFAHR Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not dip the cable, device or plug into water or other liquid to prevent an electric shock.
▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

12 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

⚠️WARNUNG

Warning

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the Water Dispenser is delivered with the following components:

- Water Dispenser - Operation Manual - Waterfilter

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.3 Unpacking

To unpack the device, proceed as follows: Remove the device out of the carton and remove the packaging material.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

12.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity for the device.
• Place the device only on a waterresistant surface. • Do not use the device outdoors.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not operate the product near hot gas or hot stove.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.

- The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

- Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

- The electrical outlet must be protected by a 16A safety cut-out switch.

- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

12.7 Overheating protection & reset

RESET BUTTON

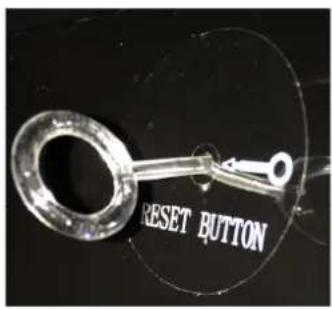

The device is equipped with an overheating protection facility. If the temperature of the device exceeds the critical limit the device shuts off further power supply for safety reasons. By pressing the reset button (1) the device can be reactivated. Unplug the device before reset. When the device is only producing cold water please press reset button.

Please use enclosed reset-key for the reset-button.

13 Design and Function

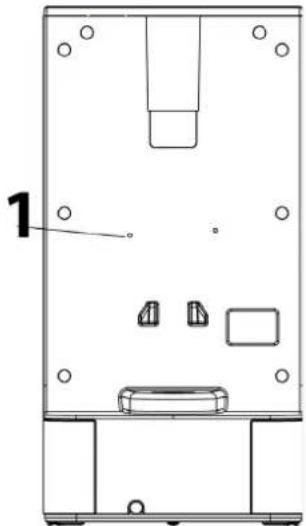

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

In this chapter, you'll find important information on the design and function of the device.

13.1 Overview

⚠️WARNUNG

Warning

▶ Warning symbol: hot steam.
▶ Caution hot steam can escape at device. Risk of burns.

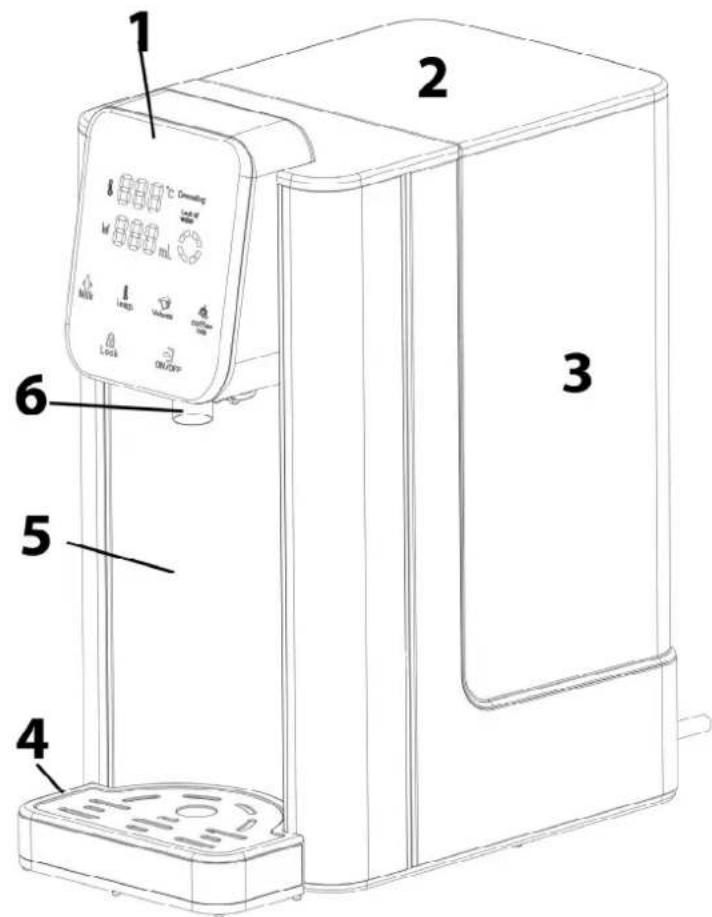

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

1 control panel
2 tank cover
3 tank
4 drip tray
5 main body
6 spout

HINWEIS

Please note

▶ Please note that the dispensed water (at all temperature settings) is not boiled before. Therefore, especially when preparing baby food, we recommend to boil the water first, cool it down to room temperature and then pour it into the water tank of the device.

13.2 Control panel

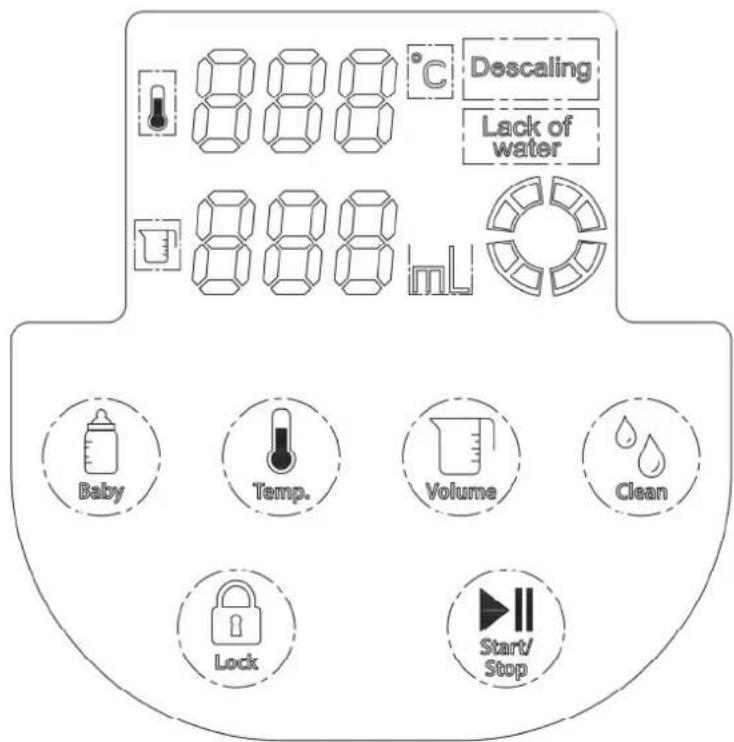

888 °C Descaling Lack of water 888 mL Baby Temp. Volume Clean Lock Start/Stop

Descaling: Device needs to be descaled.

Lack of water: Add water.

Baby Baby-button for dispensing of water with 40^ C for preparation of baby food. Water with 40^ C will be dispensed as long as button is pressed.

HINWEIS

Please note

▶ Do not fill milk into the device.

▲WARNUNG

Warning

▶ Avoid the risk of burns: Please check the temperature of the food before you give it to your baby. This can easily be done on the back of your hand.

Temp. Temp-button: Set the desired temperature according to 000 (normal temperature water), 40^ , 50^ , 60^ , 70^ , 80^ , 90^ , 100^ .

Volume Volume-button: Set the water volume according to 100ml, 150ml, 200ml, 250ml, 300ml, 350ml, 400ml, 000 (continuous water flow)

Clean Clean-button: For setting of water hardness and start of cleaning and descale function.

Lock

Lock-button: Press the button for about 3-5 seconds to unlock the device.

After approximately 10-15 seconds without operation it locks automatically. Press the button again to unlock the device.

Start/Stop

Start/Stop-button: Start and stop the dispense of water.

13.3 Rating plate

The rating plate with the connection and performance data can be found beneath the device.

14 Operation and Handling

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.

⚠️WARNUNG

Warning

▶ Do not leave the device unsupervised during operation.

14.1 Before initial use

14.1.1 Preparation of the waterfilter

1. Remove the waterfilter from all packaging. There may be a small residue of black carbon particles in the bag or on the filter body. This is normal. These particles are harmless and will be washed off during the preparation process.
2. Soak the waterfilter upright in water for 10 min.
3. Rinse the waterfilter thoroughly under running water.
4. The waterfilter is now ready for use.

HINWEIS

Please note

The lifetime of the waterfilter lasts about 4-6 weeks of normal use (filtering of approximately 150 l water in total).
▶ Store the replacement filters in a cool location, out of direct sunlight and away from heat sources.

14.1.2 Preparation of the device

1. Place device without drip tray.
2. Fill the tank up to max marking.
3. Place vessel below the spout which can collect whole content of watertank.
4. Start the device with 000 temperature setting until ca. 300 ml water is dispensed.
5. Turn to 100^ C temperature setting with continuous water flow and let the device dispense water.
6. When device shows Lo Lack of water (watertank is empty), then the process is finished.
7. The device can now be equipped with waterfilter and filled with fresh water.
8. The device is ready for use.

14.1.3 Set the water hardness

Press and hold Clean Clean-button, the display shows „001“ or „002“ as Volume. „001“ stands for soft water. This means that „Descale“ will light up in the display after 60 litres of water were dispensed. „002“ stands for hard water. This means that “Descale” will light up in

Volume

Volume-button you can

the display after 25 litres of water were dispensed. With the Volume Volume-button you can change between „001“ and „002“ confirm with Start/Stop.

14.2 Use

1. Fill the watertank with water, you can remove it to do this.
2. Place your cup on the removable drip tray, make sure it aligns with the spout.

1. First press Lock Lock-button about 3-5 seconds for unlocking the device,.

Temp.

Te

Lock-button about 3-5 seconds for unlocking the device,.

Volume

Volume-

1. Press Temp. Temp-button to choose your desired temperature and press Volume Button to set the water volume.

2. Press Start/Stop-button to start the device. The desired water volume will flow out from water spout. Press Start/Stop-button again, to stop the device. The device will stop working at once.

1. Alternatively: Press and hold Baby Baby-button for dispensing of water with 40^ C for preparation of baby food. Water with 40^ C will be dispensed as long as button is pressed.

HINWEIS

Please note

▶ Do not fill milk into the device.

▲WARNUNG

Warning

▶ Avoid the risk of burns: Please check the temperature of the food before you give it to your baby. This can easily be done on the back of your hand.

1. If you want to dispense water again, repeat the steps above.

HINWEIS

Please note

▶ If only a small amount of water is dispensed, then the desired temperature may differ. Preheat the vessel.
▶ If device was not used for longer time there could be scale deposits despite water filter. In this case let 100 ml with 100 °C run through the device.

HINWEIS

Please note

The device has a memory function if the plug is still plugged in. The settings, that were adjusted the last time, are still adjusted. The settings will be reset after unplugging.
The ambient temperature changes everyday. This leads to different amounts of water. It can vary up to +- 15%.

14.2.1 Water disposal from the drip tray

Line drawing of a portable water dispenser with control panel and base (no text or symbols)

1. When the drip tray is full, grasp and stabilize the device by one hand and use the other hand to lift up the drip tray slightly to remove it.
2. Empty the drip tray and insert it into the original place. Make sure it is properly inserted.

14.2.2 Replacing the waterfilter

1. Open the tank cover (A) and take out the filter box (B) with the old waterfilter (C).

2. Soak the new waterfilter upright in water for 10 min.

3. Rinse the new waterfilter thoroughly under running water.

4. Remove the old waterfilter and replace it with the new waterfilter (see fig.). Therefor take out the filter box, place the new waterfilter and pull it down from the bottom.

A B C

14.2.3 Error code Lo Lack of water

If the device stops to operate with a beeping sound and the display shows the error code Lo Lack of water, it means that there is too little water or no water in the water tank. Please fill in enough water into the water tank immediately.

14.2.1 Calibration

If you want to optimize the temperature or volume of water, then you can calibrate the device. Fill the tank up to max marking.

Place vessel below the spout which can collect whole content of watertank.

Press and hold Temp. Temp-button for 3 seconds until „CAL“ is displayed. When volume “000” is shown press Start/Stop for confirmation. The device performs the calibration and beeps once process is finished.

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

▲VORSICHT Attention

Please observe the safety instructions, before cleaning your device

▶ Unplug the device when not in use and before any cleaning.
▶ Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
▶ Do not use iron brush, abradant, kitchen cleaner, or sharp cleaning tool for cleaning.

15.2 Cleaning and descaling

Wipe the device with damp cloth.

Drainage stopper

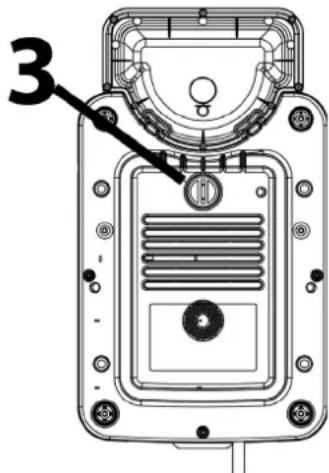

The drainage stopper prevents water from flowing out of the device. You can unscrew the stopper (3) with a screwdriver so that the dirty water can drain off. Then put the stopper back into the opening.

Tighten it again so that it seals the drain.

3

HINWEIS Please note

▶ If you need to send the device to customer service, then first remove the water from the device.

15.2.1 Cleaning and descaling function

When “Descale” is blinking in the display then the device needs to be descaled, please proceed as follows:

Place device without drip tray and without water filter. Fill the watertank up to max marking. Add a little bit of vinegar.

Place vessel below the spout which can collect whole content of watertank.

Press Clean-button. The display shows „50“ as temperature. With Temp. Temp-button you can select between 50, 80 und 100°C. We recommend 80°C. Start the process with Start/Stop. The device dispenses whole content of watertank and will be cleaned and descaled. Pour the water away. Rinse the watertank with fresh water after this.

15.3 Storage

If the device is not used frequently, unplug and clean it, then put back into the original packing box to avoid that the electrical components from getting humidified or damaged.

16 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.

Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

17 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use. In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

18 Technical Data

Device Instant Boiler Water Dispenser HOT 7
Item No.: 1875
Mains data 220 V - 240 V; 50 / 60 Hz
Power consumption 2200 W - 2600 W
Volume 2,7 L (with waterfilter)
External measurements (W x H x D): 155 x 315 x 255 mm
Net weight 2,4 kg

Mode d'emploi

Exterior view of a modern stainless steel water dispenser with digital display and control buttons (no visible text or symbols)

N°. d'article 1875

19 Mode d'emploi

19.1 Généralités

Technical line drawing of a mechanical or electronic device with labeled components (no text or symbols)

1 2 3 4 5 6 M °C Drinking Lifted MIL mL MTR Lifted Vacuum Lifted ON/Off LED

888 °C Descaling Lack of water 888 mL Baby Temp. Volume Clean Lock Start/Stop

Line drawing of a modern water dispenser with control panel and base (no text or symbols)

Technical line drawing of a plastic container with labeled components A, B, and C (no text or symbols beyond labels)

23.2.3 Code d'erreur Lo Lack of water

Exterior view of a modern digital water dispenser with control panel and digital display (no visible text or symbols)

CE

Technical diagram of a device casing with labeled components (no text or symbols present)

888 °C Descaling Lack of water 888 mL Baby Temp. Volume Clean Lock Start/Stop

Line drawing of a water dispenser with directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a rectangular box with a lid and internal cutout, labeled A (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with labeled parts B and C (no text or symbols beyond labels)

Exterior view of a modern glass water dispenser with digital display and control buttons (no text or symbols visible)

CE

Ref. 1875

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols

888 °C Descaling Lack of water 888 mL Baby Temp. Volume Clean Lock Start/Stop

Line drawing of a water dispenser device with control panel and base (no text or symbols)

Technical diagram of a plastic container with labeled parts A, B, and C showing internal structure and assembly.

41.2.3 Código de error Lo Lack of water

Exterior view of a modern water dispenser with digital display and control buttons (no visible text or symbols)

Artikel-Nr. 1875

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols

888 °C Descaling Lack of water 888 mL Baby Temp. Volume Clean Lock Start/Stop

Technical line drawing of a plastic container with labeled components A, B, and C (no text or symbols beyond labels)

50.2.1 Kalibrering

Exterior view of a modern water dispenser with digital display and control buttons (no visible text or symbols)

Artikel nr 1875

Diagram of a refrigerator interior with labeled parts (no text or symbols present)

888 Descaling Lack of water 888 Baby Temp. Volume Clean Lock Start/Stop

Line drawing of a portable water dispenser with control panel and base (no text or symbols)

59.2.3 Foutcode Lo Lack of water

A B C
