Product type	Standalone oven
Model name	TO 32 Classic
Article number	2975
Brand	CASO
External dimensions (W x H x D)	54 x 34.5 x 41 cm
Net weight	9.75 kg
Power supply	220-240 V ~ 50/60 Hz
Power consumption	1600-1850 W
Temperature range	70 to 230 °C
Heating functions	Top heat, bottom heat, both, grill with rotisserie, hot air circulation
Timer	Adjustable up to 120 min, with automatic shut-off and audible signal
Interior light	Yes, operated by a button
Included accessories	Baking tray, grill grate, crumb tray, rotisserie with removal aid, pizza stone
Safety	Automatic shut-off at timer end, hot surface warning, burn protection (gloves recommended)
Maintenance and cleaning	Regular cleaning with damp cloth, removable crumb tray, no harsh cleaners
Repairability	Repairs by an authorized after-sales service, original spare parts recommended
Warranty	24 months from purchase date
Intended use	Domestic use for heating, baking, roasting and grilling foods
Installation location	Flat, heat-resistant surface, at least 20 cm clear space on sides and 10 cm at rear
Manufacturer	Braukmann GmbH (CASO)

Frequently Asked Questions - TO 32 Classic CASO

How to use the rotisserie?

Insert the spit from the slightly rounded side on the right, then from the left. Place food on the spit, then select the grill with rotisserie function on the function selector.

What to do before first use?

Remove all accessories, wash them in warm soapy water and dry them. Wipe the inside of the oven with a damp cloth. Heat the oven empty for 15 minutes to remove the protective layer from the heating elements.

How to clean the oven?

Unplug the appliance and wait for it to cool down. Clean the interior with a damp cloth and mild detergent. The crumb tray is removable for easy cleaning. Do not use abrasive products.

The appliance does not heat up, what to do?

Check that the plug is properly connected and that the timer selector is set to a position other than OFF. If the problem persists, contact an authorized after-sales service.

What is the maximum temperature?

The maximum temperature is 230 °C. Use the temperature selector to set the desired value between 70 and 230 °C.

Can parchment paper be used?

Yes, you can cover the baking tray or grill grate with parchment paper to make cleaning easier. Make sure it does not touch the heating elements.

How to set the timer?

Turn the timer selector clockwise to set the cooking time (up to 120 minutes). An audible signal sounds at the end of cooking. For continuous operation, turn it to the ON position.

Is the oven suitable for pizzas?

Yes, a pizza stone is included. Place it on the grill grate in the middle position and preheat the oven to high temperature (230 °C) with the top and bottom heat function.

What accessories are included in the box?

The included accessories are: a baking tray, a grill grate, a crumb tray, a rotisserie with removal aid, and a pizza stone.

How to turn off the oven?

Turn the timer selector to OFF. If you use continuous mode (ON), the appliance stays on until you turn it off manually. Unplug the device after use.

USER MANUAL TO 32 Classic CASO

8 Entsorgung des Altgerätes 24
9 Garantie 24
10 Technische Daten 25
11 Operating Manual 27
11.1 General 27
11.2 Information on this manual 27
11.3 Warning notices 27
11.4 Limitation of liability 28
11.5 Copyright protection 28
12 Safety 28
12.1 Intended use 28
12.2 General Safety information 29
12.3 Sources of danger 30
12.3.1 Danger of burns 30
12.3.2 Danger of fire 31
12.3.3 Dangers due to electrical power 32
13 Commissioning 32
13.1 Safety information 32
13.2 Delivery scope and transport inspection 32
13.3 Unpacking 33
13.4 Disposal of the packaging 33
13.4.1 Setup location requirements: 33
13.5 Electrical connection 34
14 Design and Function 34
14.1 Warning notices on device 34

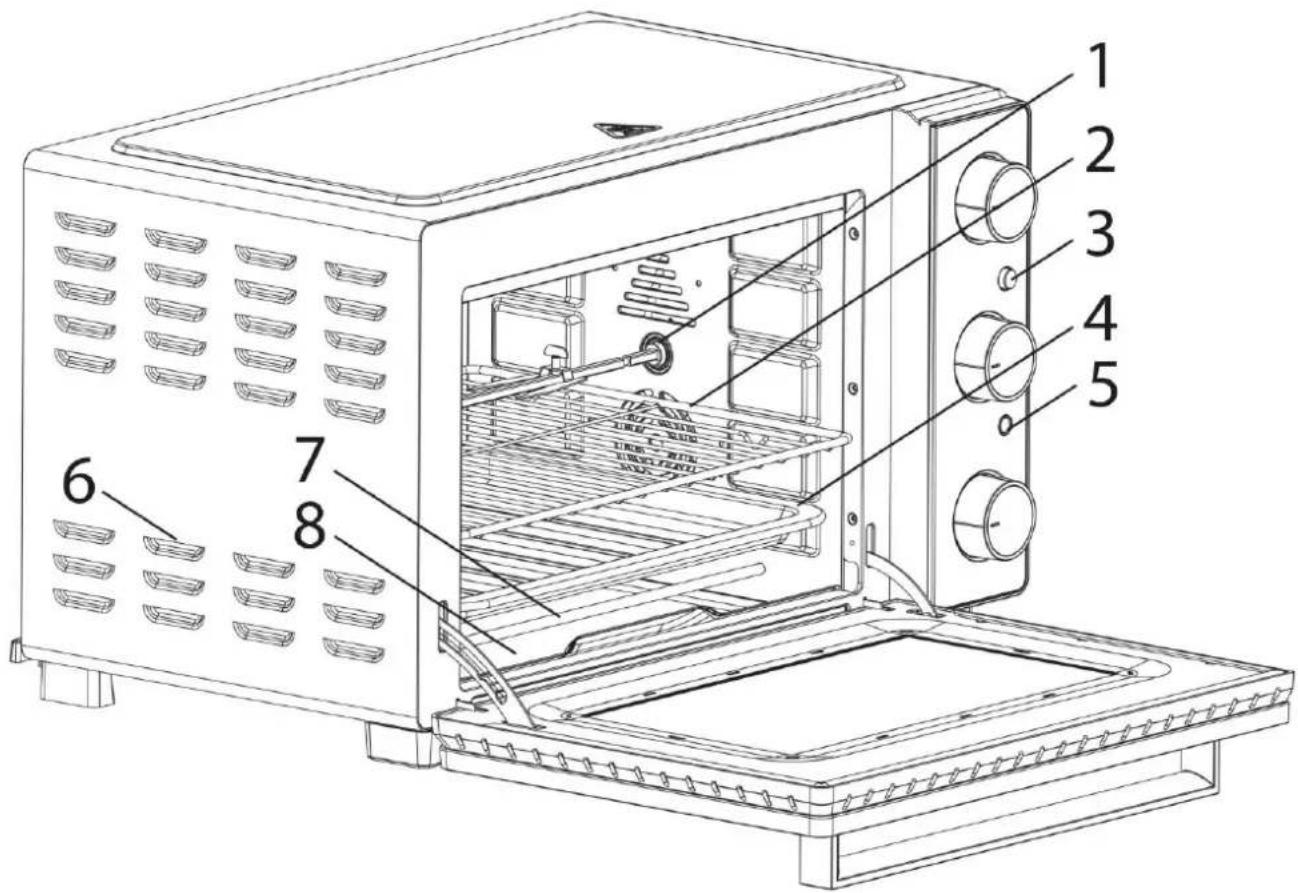

14.2 Overview 35
14.3 Accessories 36

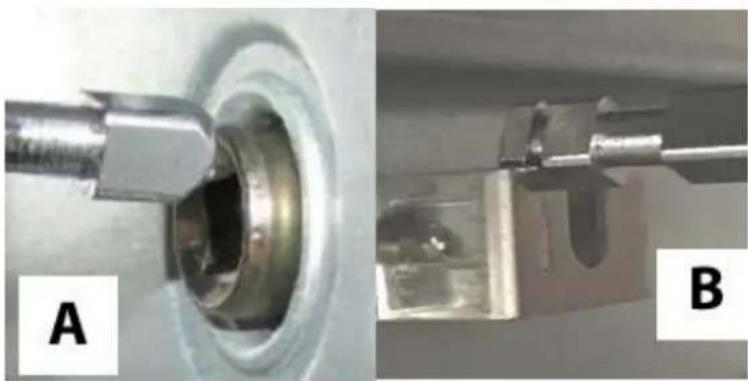

14.4 Use of rotisserie 36

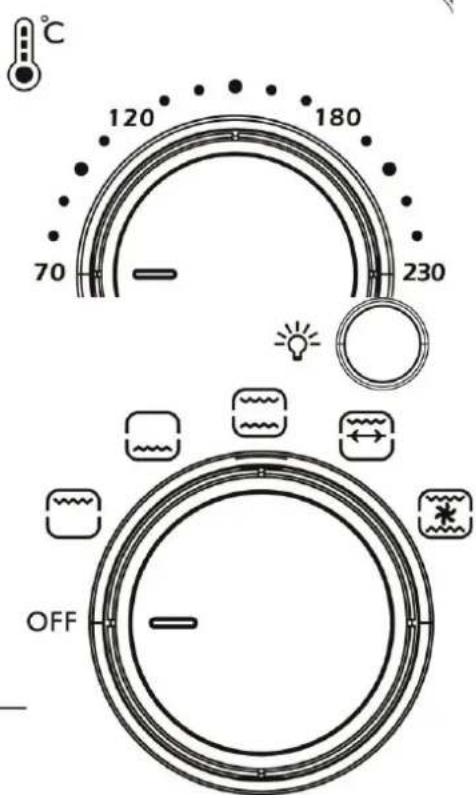

14.5 Knob for temperature 36
14.6 Knob for function 36

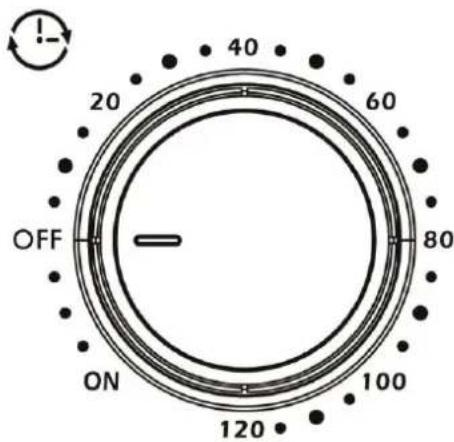

14.7 Knob for timer 37
14.8 Rating plate 37
15 Operation and Handing 37
15.1 Before first use 38
15.2 Use 38
16 Cleaning and Maintenance 39
16.1 Safety information 39
16.2 Cleaning 39

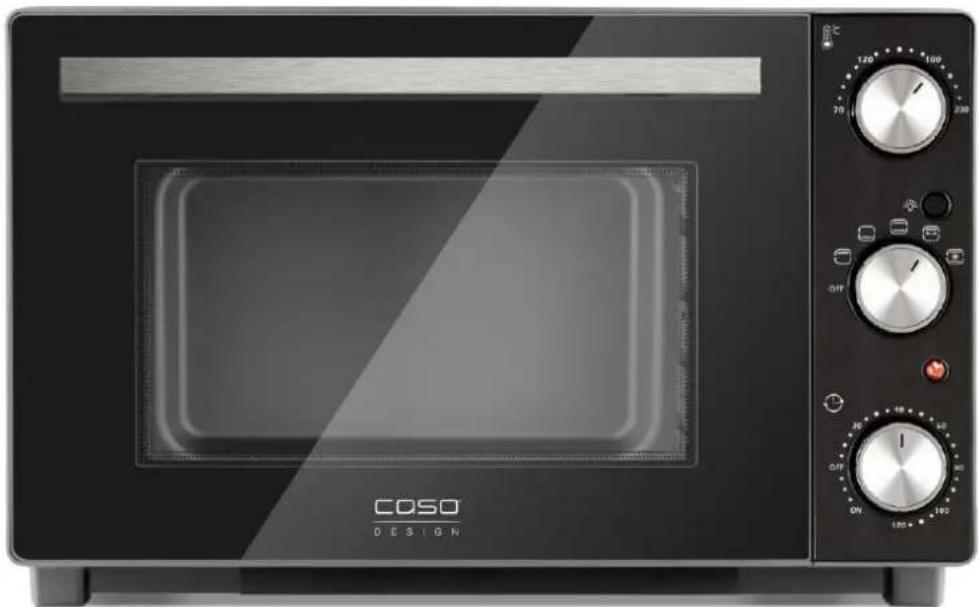

Original Operating Manual Freestanding oven TO 32 Classic

Item No. 2975

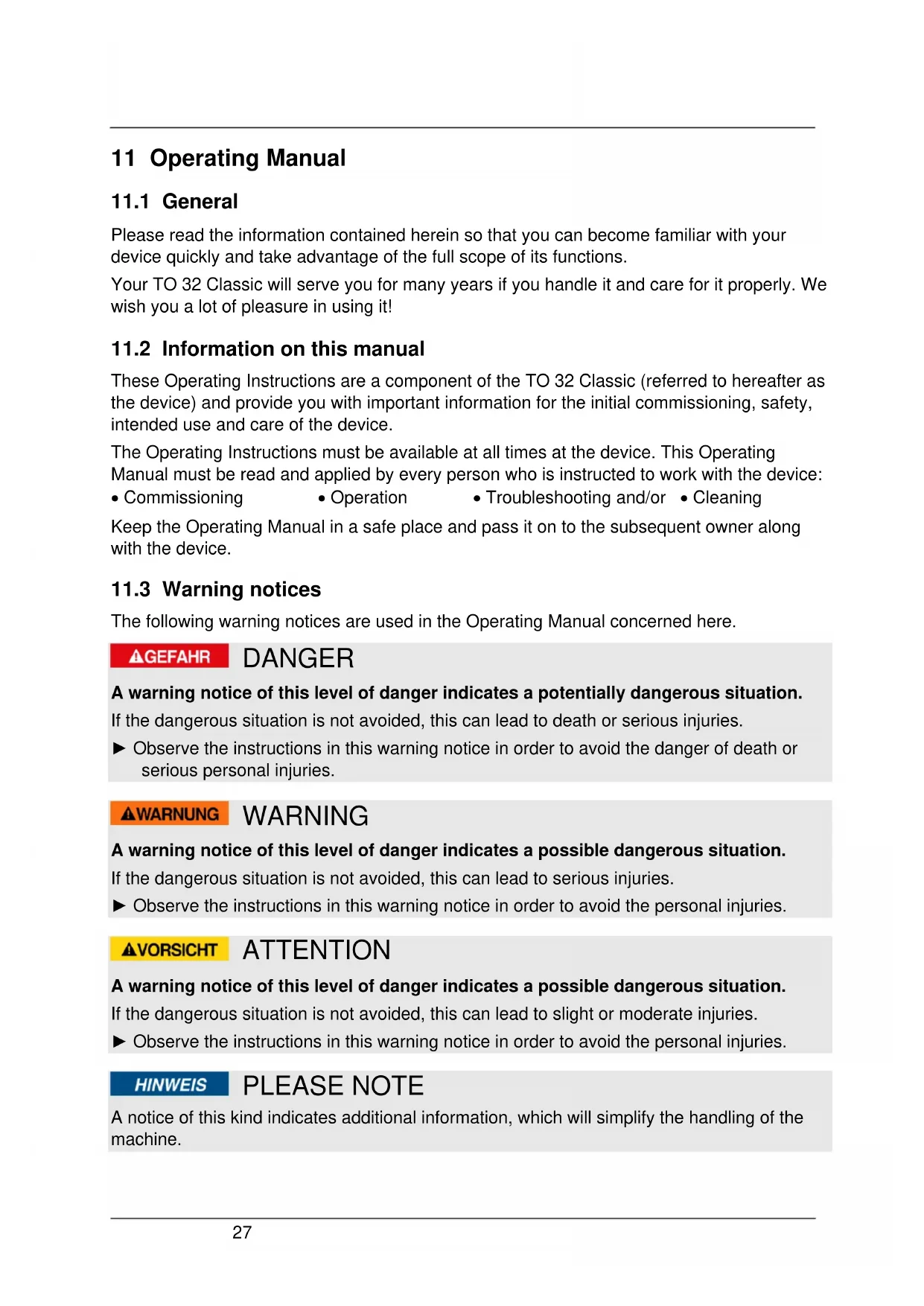

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your TO 32 Classic will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the TO 32 Classic (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning

Operation

• Troubleshooting and/or

• Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observation of the manual Uses for non-intended purposes

• Improper repairs

• Technical alterations, modifications of the device

• Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions.

The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for heating, cooking, baking and grilling of food.

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; - in B&Bs,
• in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING WARNING

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

Read all these instructions before using the device.
- Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
- Do not operate this device if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
This device can be used by children aged 8 and above, and by persons with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
Children shall not play with the device.
- Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
The device and its connecting cable must be kept away from children who are less than 8 years old.
- Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

HINWEIS

Please note

The device is not intended to be operated by means of an external timer or separate remote-control system.
- Unplug from the outlet when not in use and before cleaning and before assembling or deassembling parts.
- Use only the accessory recommended by the manufacturer or the device could be damaged.
Do not immerse in water, dishwasher or any other liquids.
Do not leave the device unsupervised during operation.
- Do not leave the door open for longer time when the device is in operation.
Unplug after use.

12.3 Sources of danger

12.3.1 Danger of burns

WARNING

Warning

The food prepared in the device, the device and the surfaces of the device can become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others

Attention: The functional surfaces and the adjacent surfaces can get very hot. Danger of burns!
The temperature of the accessible surface can become very hot when the device is operating.
- Use pot holders when you want to touch the hot device, accessory or food or want to remove them from the device.
Do not touch the heating elements. Danger of burns!
The upper side of the device is during and after use very hot. Do not store any items on the device.
- Do not move or change the position of the device during use. Danger of burns!
Be careful when handling hot food.

WARNING Warning

Let the device cool down before assembling/deassembling of parts and before cleaning.
Pay attention while handling the device especially if it is full of hot food.
- Keep children away from the device, since the surfaces of the device become hot during use and remain hot for a some time.

12.3.2 Danger of fire

▲WARNING Warning

There is a danger of fire due to the ignition of the content in the event the device is not used properly. Observe the following safety notices to avoid dangers of fire:

Never use the device to store or dry flammable materials.
Do not use the device for storage of food or utensils.
Do not operate the device when it is empty.
- Never cover the device with towels or other materials during use. Heat and steam must be free to escape. Danger of fire arises if the device is covered with flammable materials or comes in contact with curtains.
- Do not use the device near to flammable materials for example curtains.
- Caution: Very oily or fatty food can easily ignite at high heat. Therefor make sure that fat do not drip on the heating elements, for example through a overfilled baking tray.
Always remove grease residues in the device, as these residues can otherwise ignite.

12.3.3 Dangers due to electrical power

▲GEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
• Do not operate this device if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Do not unplug by pulling the cord pull the plug.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

▲WARNING WARNING

Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the Oven TO 32 Classic is delivered with the following components:

TO 32 Classic -baking tray grill rack crumb tray
- removal assistance for the grill rack - rotisserie - pizza stone
- removal assistance for the rotisserie - operating instructions

HINWEIS Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

Remove the device out of the carton, remove the packaging material, shovel and measuring container.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.4.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm, flat, level and heat-resistant surface with sufficient load-bearing capacity for the device and its contents.
• Dot not place the device on a metal surface.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• Do not place the device near a gas or electric cooker or an oven.
• The device requires an adequate flow of air in order to operate correctly. Make sure that the back of the device is at least 10cm away from the wall. Keep 20cm free space at the other sides of the device.
• Do not cover up any openings on the device and do not block these off.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The device and power cord should not come in contact with hot surfaces. The device could be damaged.
• The installation and assembly of this device in non-stationary setup locations must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.5 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

14.1 Warning notices on device

AVORSICHT ATTENTION

Danger due to hot surface!

There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot.

Do not touch the hot surfaces of the device. Danger of burns!
Do not set or lay any items on the device.

14.2 Overview

1 Rotisserie
2 Grill rack
3 Lighting: button for switching the interior lighting on and off
4 Baking tray
5 Control lamp: The control lamp is on when the device is in operation.
6 Ventilation slots
7 Heating elements (upper and lower)
8 Crumb tray

14.3 Accessories

1 Baking tray: Use for grilling, roasting and baking.
Cover with baking paper or aluminium foil for easier cleaning.
2 Grill rack - use for grilling, frying or roasting.
3 Removal assistance for grill rack
4 Rotisserie - For evenly grilling of meat for example poultry.
5 Removal assistance for rotisserie
6 Pizza stone
7 Crumb tray - For safe and easy remove of crumbs.

14.4 Use of rotisserie

14.5 Knob for temperature

With the knob for temperature you can set desired temperature from 70 - 230^ .

HINWEIS

Please note

The temperature knob is not for switching off the device.
The thermostat will turn on and off during heating to maintain the temperature.

14.6 Knob for function

A) Place with the slightly rounded side on the right side.
B) After this place at left side.

upper heat

lower heat

upper heat and lower heat

grill function for the rotisserie. The rotisserie rotates and the upper heating elements run.

convection

14.7 Knob for timer

Set the desired time clockwise, the control lamp lights up. A beep will sound when the desired time is over and the device will turn off.

Turn the device to OFF to switch it off.

When you turn the knob to ON, then the device will ON until you manually switch it off.

HINWEIS

Please note

If you want a cooking time shorter than 20 minutes then turn the timer knob to 40 minutes and then back to the desired time.

14.8 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

▲WARNUNG

Warning

• Do not let the device unsupervised during operation to be able to react quickly in case of dangers.

15.1 Before first use

Remove all accessory from the inside of the device, clean them with soapy water and dry them after this. Wipe the bottom and the top of the interior with a damp cloth and thoroughly dry the interior after this.

The heating elements have a protection layer. At first use little vapor can occur. This is not harmful and do not affect the performance of the device.

Therefore operate the device at first use for 15 minutes on highest level and let it thoroughly aerate after this and let it cool down.

15.2 Use

Check that the crumb tray is inserted correctly.

Heating up:

You can use any function to heat the oven. To do this, turn the knob for temperature to the desired temperature and the knob for the timer to the desired heating-up time or to "ON" to heat up the device without a time limit.

"Preparations":

If necessary, line the baking tray / grill rack with baking paper. Place your food on the baking tray / grill rack and slide it into the device.

Or: Place the food on the rotisserie and insert it into the device as described under "Use of rotisserie".

Positioning the grill rack

Above: grilling meat. Leave space at the top, be aware that the food could rise when grilling.

Medium: Ideal for baking and cooking processes (e.g. pizza), reheating, baking with convection. Grilling larger foods

Below: For cooking larger foods and reheating them. Also for low temperature cooking.

Starting the cooking process:

Set the desired temperature with the knob for temperature.

Set the desired function with the knob for function

Set the desired time with the knob for timer turn the knob counter-clockwise to "ON" to let the device run without time limit.

Make sure that the oven door is properly closed.

End of the cooking process:

After the set time has elapsed, an acoustic signal sounds. When set to ON, the device remains on until you switch it off manually.

When your food has finished cooking, set the timer to OFF.

Use oven gloves or the removal assistance to remove the accessories with food.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

A VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
Turn the knob of timer on OFF before cleaning and unplug the device.
The baking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
- Clean the baking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. Remaining food leftovers can catch fire during next heating.
- If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
Do not use any aggressive or abrasive cleaning agents or solvents.
Do not scrape off stubborn dirt with hard items.

16.2 Cleaning

WARNUNG Danger of fire

Always remove grease residues in the device, as these residues can otherwise ignite.

Clean the housing and the crumb tray with a damp cloth.

Clean the door with a soft cloth and some glass cleaner or a mild detergent.

Thoroughly wipe the bottom, the walls and top of the interior after each use with a damp soft cloth or a soft cleaning sponge.

Thoroughly dry the accessory and the device before using them again.

Slide the crumb tray back into the device after cleaning.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Safety notices

A VORSICHT Attention

• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
• Improperly performed repairs can cause considerable dangers for the user and damages to the device.

17.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults.

Problem	Solution
The device is not functioning	Please check whether the power plug is properly plugged.

HINWEIS Please note

If you are unable to solve the problem with the steps shown above, please contact Customer Service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.

Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device	Freestanding oven
Name	TO 32 Classic
Item No.:	2975
Mains data	220-240V~50/60Hz
Power consumption	1600-1850W
External measurements (W x H x D):	54 x 34,5 x 41 cm
Net weight	9,75 kg

▲WARNING WAARSCHUWING

▲WARNING WAARSCHUWING

▲WARNING WAARSCHUWING
