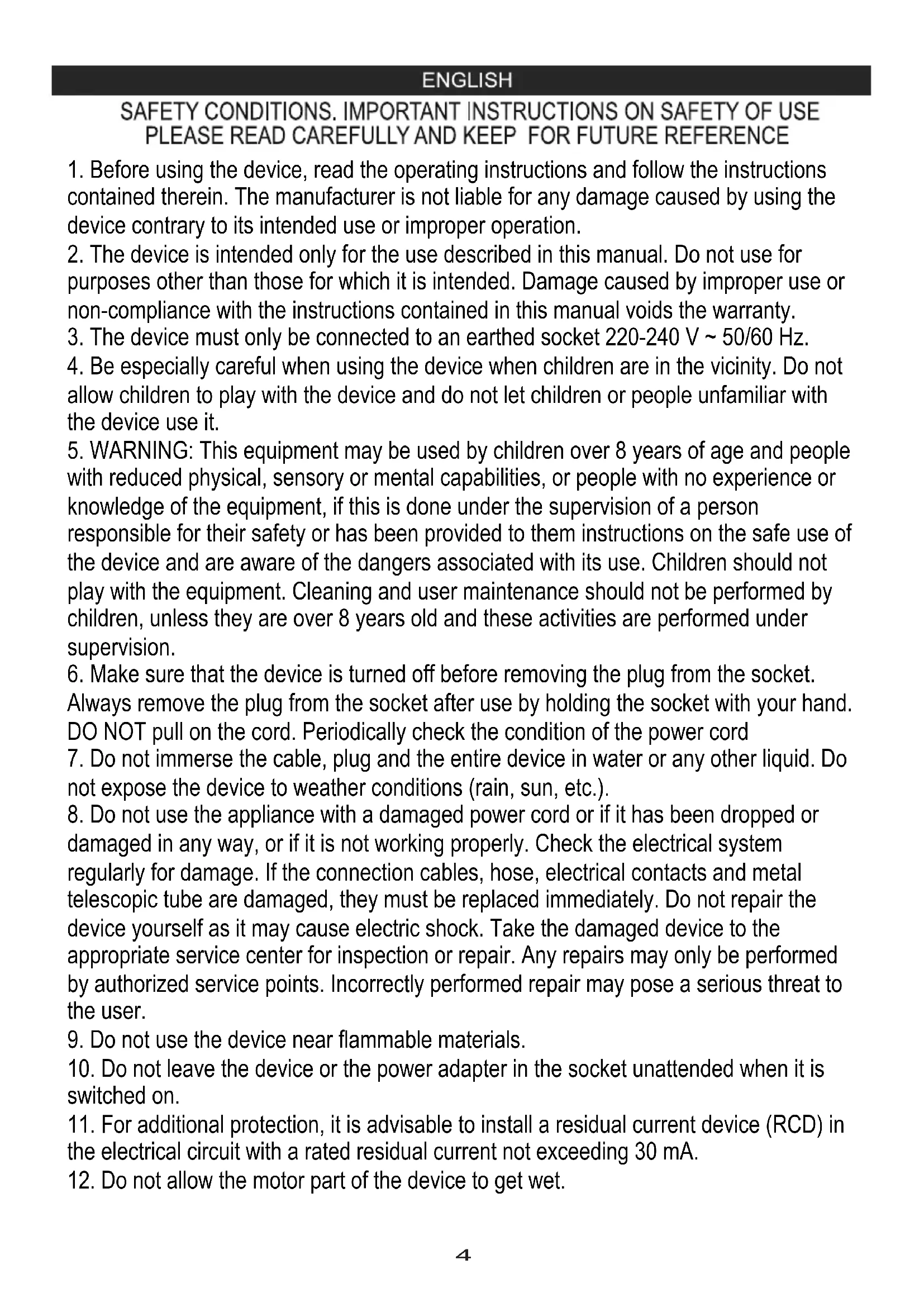

ENGLISH

SAFETY CONDITIONS. IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the operating instructions and follow the instructions contained therein. The manufacturer is not liable for any damage caused by using the device contrary to its intended use or improper operation.
2. The device is intended only for the use described in this manual. Do not use for purposes other than those for which it is intended. Damage caused by improper use or non-compliance with the instructions contained in this manual voids the warranty.
3. The device must only be connected to an earthed socket 220-240 V \~ 50/60 Hz.
4. Be especially careful when using the device when children are in the vicinity. Do not allow children to play with the device and do not let children or people unfamiliar with the device use it.
5. WARNING: This equipment may be used by children over 8 years of age and people with reduced physical, sensory or mental capabilities, or people with no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or has been provided to them instructions on the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and user maintenance should not be performed by children, unless they are over 8 years old and these activities are performed under supervision.
6. Make sure that the device is turned off before removing the plug from the socket. Always remove the plug from the socket after use by holding the socket with your hand. DO NOT pull on the cord. Periodically check the condition of the power cord
7. Do not immerse the cable, plug and the entire device in water or any other liquid. Do not expose the device to weather conditions (rain, sun, etc.).
8. Do not use the appliance with a damaged power cord or if it has been dropped or damaged in any way, or if it is not working properly. Check the electrical system regularly for damage. If the connection cables, hose, electrical contacts and metal telescopic tube are damaged, they must be replaced immediately. Do not repair the device yourself as it may cause electric shock. Take the damaged device to the appropriate service center for inspection or repair. Any repairs may only be performed by authorized service points. Incorrectly performed repair may pose a serious threat to the user.
9. Do not use the device near flammable materials.
10. Do not leave the device or the power adapter in the socket unattended when it is switched on.
11. For additional protection, it is advisable to install a residual current device (RCD) in the electrical circuit with a rated residual current not exceeding 30 mA.

12. Do not allow the motor part of the device to get wet.

13. Do not use the vacuum cleaner to pick up inflammable substances (such as fuel, solvents).

14. Do not point the vacuum cleaner towards other people or animals.
15. Use only accessories designed for this device.
16. Be especially careful when vacuuming stairs.
17. Do not block any vents.
18. Do not run the vacuum cleaner without the filter fitted.
19. Do not pull the vacuum cleaner by the hose.
20. Take care that the power cord is not pinched by a door and does not get jammed. Pay attention to the length of the power cord when moving the vacuum cleaner. If the vacuum cleaner is pulled sharply when the cord is taut, it may be damaged
21. Vacuuming dust and wet construction residues, moist sand is acceptable, but the device is not a pump and is not used to collect water from flooded basements or other small water reservoirs.
22. When vacuuming ash, wait until the fire is extinguished and the furnace has cooled down below 45^ C.
23. Do not operate the device with wet hands, always follow the safety rules.
24. Do not use the device to collect hot water / liquids, flammable objects or flammable liquids (e.g. gasoline, cigarette ash, matches, explosives or anything that is burning), or use in places where such substances and objects can become find.
25. Do not use the device to pick up toxic materials (eg chlorine bleach, ammonia).
26. Do not use the appliance without the dust bag and / or filters in place when dry vacuuming.
27. Before vacuuming, remove any large objects from the floor or surface to be cleaned to prevent damage to the filter.
28. If the hose inlet, floor nozzle or metal telescopic tube are blocked, turn off the vacuum cleaner immediately and disconnect it from the main power supply. Please remove the stuck object first before trying to restart the vacuum cleaner.
29. Before performing any maintenance or cleaning the filters, always switch off the vacuum cleaner and disconnect the plug from the socket.
30. Keep the ends of the hose, telescopic tube, and other openings away from your face and body.
31. Never clean the vacuum cleaner or any electrical part, especially electrical connections, with water or cleaning liquid.
32. Never try to make any electrical modifications to the vacuum cleaner.
33. Always store the machine indoors in a cool and dry place.

Product description: CR7045 vacuum cleaner – Picture A & B

1. Waterproof switch 2. 2000W power socket for tools

2. Suction port 4. Stainless steel container 25 liters

3. Drainage port 6. Lifting handle

4. Main cover 8. Metal clip

5. Detachable base 10. Wheel

6. Stainless steel telescopic tube

7. Washable HEPA filter

8. Sponge filter 14. Cover for blower

9. Cover for air outlet dust filter 16. Crevice nozzle

10. Plastic hose 18. Metal hose for ash

11. Aluminum nozzle for ash 20. Fire-retardant cotton filter

12. Sofa brush 22. Horse hair round brush

13. Tool adaptor 24. Wet & dry floor brush (industry)

14. Wet & dry floor brush (home) 26. Paper bag

15. Construction gasket

Assembly: Picture C

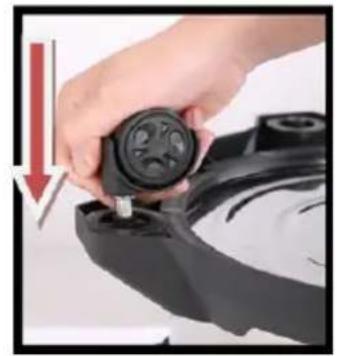

1. Press 4 wheels (10) onto the holes of the base (9).

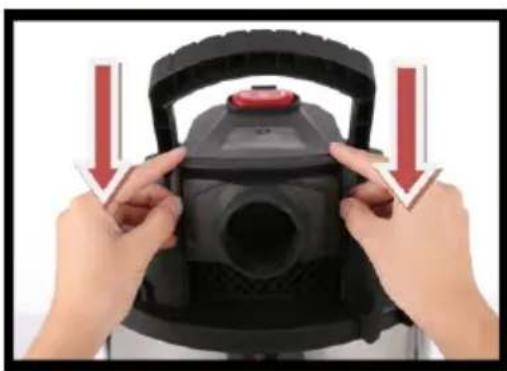

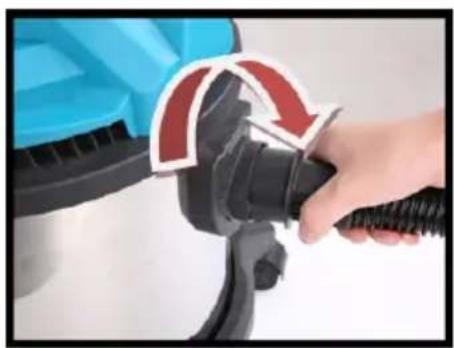

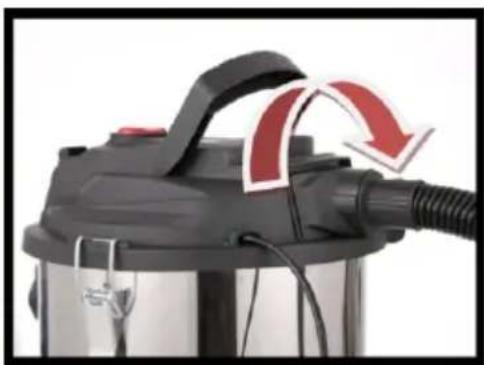

2. Insert the plastic hose (17) into the suction port (3) and turn it clockwise.
3. Insert the handle on the plastic hose (17) into the telescopic tube (11).

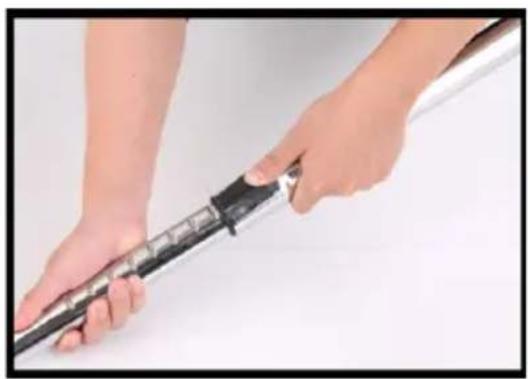

4. Press the button on the telescopic tube for extension.

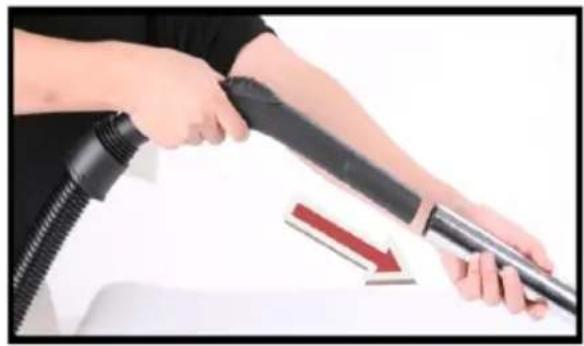

5. Insert the telescopic tube into the brush (24 or 25), or other accessories (21 or 22 or 23 or 16).
6. In the main cover (7) there are 2 covers for your choice for assembly:
   a. Dry and wet clearing function: Fit the cover of dust (15) on the back of the main cover (7) for filtering escaping motes.
   b. Blower function: Fit the cover of blower(14) on the back of the main cover (7), and insert the plastic hose (17) into it, before starting the blower. Blower helps to make order with fallen leaves in your garden or it helps to clean difficult to reach corners from dust.
7. Assemble suitable filters and accessories according to description in the chapter: Operation and close the main cover (7) by metal clips (8).

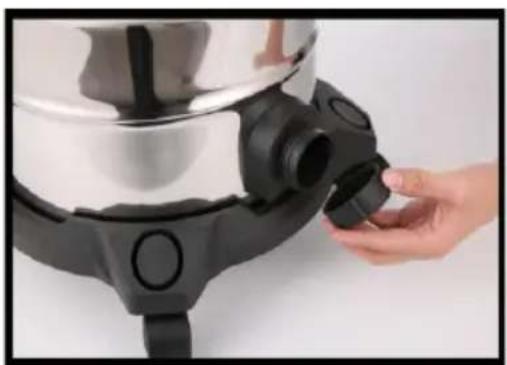

8. Pull out the drainage plug (5) for pouring out the liquid wet waste after use.

OPERATION

Before operating this device, please make sure that the corresponding filters are fitted properly according to desired purposes.

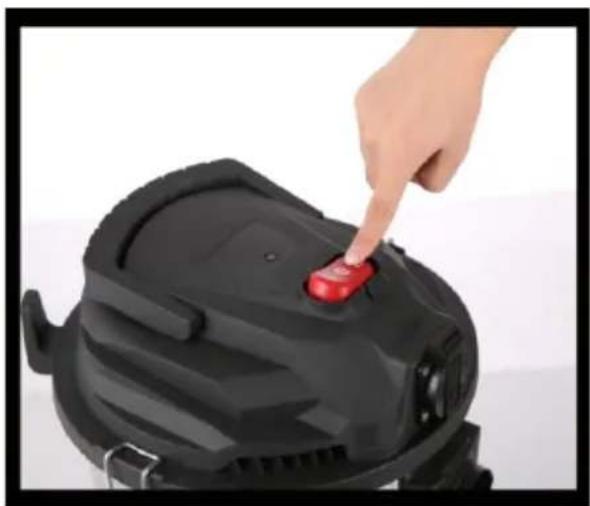

Press the switch (1) to position “I” to switch on the device, press the switch (1) to position “0” to switch off the device. The position “II” is only used when the other electric construction tool: e.g. wall sander had been plugged into the vacuum cleaner.

Once the stainless steel container (4) or paper bag (26) is full we recommend the container to be emptied and cleaned and the bag replaced, also the filters should be cleaned.

Function 1: Car / Upholstered furniture cleaning

Under the main cover (7) assemble the HEPA filter (12) and put the construction gasket (27) on the edge of stainless steel container (4).

The dust will be collected to the stainless steel container (4) directly. For this function use one of accessory: crevice nozzle (16), sofa brush (21) or Horse hair round brush (22) and plastic hose (17).

Function 2: Construction dust cleaning – 2 alternative methods are available:

a) Under the main cover (7) assemble the HEPA filter (12) and fire-resistance cotton filter (20). The dust will be collected to the stainless steel container (4) directly.

b) Under the main cover (7) assemble the HEPA filter (12) and fire-resistance cotton filter (20) as well as put the paper bag (26) on the suction port part located inside the stainless steel container (4). So, the dust will be collected to the paper bag for comfortable throwing away reducing the quantity of dust motes in air.

For this function is recommended to use the wet & dry floor brush (24) and stainless steel telescopic tube (11) with the plastic hose (17).

Function 3: Large space vacuuming - 2 alternative methods are available:

a) Under the main cover (7) assemble the HEPA filter (12) and fire-resistance cotton filter (20). The dust will be collected to the stainless steel container (4) directly.

b) Under the main cover (7) assemble the HEPA filter (12) and put the construction gasket (27) on the edge of stainless steel container (4), as well as put the paper bag (26) on the suction port part located inside the stainless steel container (4). So, the dust will be collected to the paper bag for comfortable throwing away reducing the quantity of dust motes in air.

For this function is recommended to use the wet & dry floor brush and stainless steel telescopic tube (11) with the plastic hose (17). The wet & dry floor brush (24) is designed for industry / commercial cleaning services as the suction power of this brush is higher. For home use is available the wet & dry floor brush (25) suitable for the carpet cleaning also.

Function 4: Collecting the ash from fireplace

Under the main cover (7) assemble the HEPA filter (12) and fire-resistance cotton filter (20). The ash will be collected to the stainless steel container (4) directly. For this purpose is need to use the metal hose for ash (18) and Aluminum nozzle for ash (19).

REMARK: Do not use this equipment for cleaning the ash when its temperature is higher than 45^ C, or when the residues of wood are still glowing!

Function 5: Wet cleaning

Under the main cover (7) assemble the sponge filter (13) and put the construction gasket (27) on the edge of stainless steel container (4). The wet waste will be collected to the stainless steel container (4) directly. The paper bag (26) is not advised for wet cleaning. For this function is recommended to use the wet & dry floor brush (24) and stainless steel telescopic tube (11) with the plastic hose (17).

REMARK: The device is intended to clean the wet mud, damp dust, wet sand. The device is not a dirty water pump to collect big quantity of water from for example the flooded basement.

Function 6: Blower

Blower helps to make order with fallen leaves in your garden or it helps to clean difficult to reach corners from dust. Fit the cover of blower (14) on the back of the main cover (7), next put the construction gasket (27) on the edge of stainless steel container (4). and insert the plastic hose (17) into hole in the cover of blower (14).

Tool socket with synchronization – Picture D

It is additional function of this device useful for construction branch that is extremely valuable with connection of the fact the device is equipped in extra-long 15 meters power cord.

The position "II" of switch (1) is only used when the other electric construction tool: e.g. wall sander had been plugged into the vacuum cleaner. When press the button to the 'II' position the vacuum cleaner doesn't work. But after the user connect the e.g. the wall sander, the vacuum cleaner will start working in 2 seconds. If the user switches off the wall sander, the vacuum cleaner will keep working for 8 seconds, so that it can suck up the left dust and after 8 seconds, the device stops working automatically. Tool socket is designed for the collaboration work of the vacuum cleaner and other power tools. The power of socket is 2000W. Use the tool adapter (23) and the plastic hose (17) to assemble your electric construction tool.

CLEANING AND MAINTENANCE

Switch off and unplug the device before cleaning and maintenance work.

A. Cleaning of filters.

1. Wash the filters with water (at 40^ C max). When washing HEPA filter (12) / sponge filter (13) / cotton filter (20), please be gentle and avoid brushing them, as they can be torn easily.
2. Remember to dry each filter for 24 hours at least before reusing them. You can contact with your local retailers for buying the spare ones.
3. Paper bag cannot be washed. Once it's full, please remember to replace it with a new one.

B. Cleaning of accessories

1. Wash hoses, the telescopic tube and the floor brushes regularly in order to avoid any trash blocking them.
2. Shake off the water left inside after cleaning, and make sure they are dried for at least 24 hours.

C. Cleaning of tank

1. Clean the surface of the tank and inside of it.
2. Remember to wipe it up!

TECHNICAL SPECIFICATION:

Tank capacity 25 liters

Air flow 36L/S (2.16m³/h)

Suction power 20 kPa

Nominal power 1400 W

Power tool socket with synchronization: 2000W

Maximum power 3400W

Power supply 220-240V \~50/60Hz

Noise level: 82 dB

Product dimensions 55 x 40 x 40 cm
