Product Type	Vacuum Cleaner
Brand	Camry
Model	CR 7023R
Rated Input Power	1200 W
Power Supply	220-240 V ~ 50 Hz
Energy Class	D
Annual Energy Consumption	42.7 kWh/year
Dust Pick-up on Carpet	0.82 (Class D)
Dust Pick-up on Hard Floor	1.111 (Class A)
Dust Re-emission	1.10% (Class D)
Sound Power Level	76 dB(A)
Insulation Class	Class II
Hose Length	Not specified (typical ~1.5 m)
Cord Length	Not specified (retractable)
Dust Container Type	Bagged (paper bag)
Filter Type	Inlet filter and exhaust filter (replaceable)
Floor Brush	Retractable bristles for carpet/hard floor
Weight	Not specified (approx. 4-5 kg)
Dimensions	Not specified (typical ~30x40x50 cm)
Safety Features	Do not use on wet surfaces; keep away from heat; do not vacuum sharp objects
Maintenance	Replace paper bag every 5 changes of dust container; clean cover with damp cloth
Accessories Included	Hose, wand, floor brush

Frequently Asked Questions - CR 7023R CAMRY

How do I replace the dust bag?

Press the dust container opening button (1.2) to open the vacuum cover. Remove the bag by pushing up the bag handle and sliding it from the handle. Insert a new bag and close the cover.

How do I clean or replace the filters?

For the inlet filter: push it upward to slide out, replace with a clean one. For the exhaust filter: slide the filter eject button (2.E), remove the cover and filter, insert a new filter. Replace filters after every five bag changes.

What is the suction power of this vacuum?

The rated input power is 1200 W. Suction can be adjusted via the slider on the wand.

Can I use this vacuum cleaner on wet surfaces?

No, the vacuum cleaner is for dry surfaces only. Do not use it to pick up liquids.

How do I rewind the power cord?

Press the cord retractor button (1.6) to automatically rewind the cord. Hold the plug while retracting.

What is the energy class of this vacuum?

It is class D with annual energy consumption of 42.7 kWh/year.

Is the vacuum suitable for carpets and hard floors?

Yes, the floor brush has retractable bristles. For carpets, extend the bristles; for hard floors, retract them.

How do I adjust the suction power?

Use the slider located on the wand to adjust suction power as needed.

What should I do if the vacuum cleaner stops working?

Check the power cord and plug. If the device is damaged, do not attempt to repair yourself. Contact an authorized service professional.

How often should I replace the filters?

Replace both inlet and exhaust filters after every five exchanges of the paper dust bag.

USER MANUAL CR 7023R CAMRY

Exterior view of a white and green vacuum cleaner with black handle (no text or symbols visible)

CR 7023

(GB) user manual
(F) mode d'emploi
(P) manual de serviço
(LV) lietošanas instrukcija
(RO) Instructiunea de deservire
(HU) felhasználói kézikönyv
(PL) instrukcja obsługi

(D) bedienungsanweisung
(E) manual de uso
(LT) naudojimo instrukcija
(EST) kasutusjuhend
(BIH) upute za uporabu
(FI) käyttöopas

Technical line drawing of two mechanical components: a square plate with a circular hole and a separate L-shaped bracket (no text or symbols)

Item	Technical Data	Class
Annual energy consumption (AE: kWh/year)	42,7	D
Rated input power (W)	1200W	N/A
Dust pick-up on carpet (dpuc)	0,82	D
Dust pick-up on hard floor (dpuhf)	1,111	A
Dust re-emission (100%)	1,10%	D
Sound power level (dB(A))	76	N/A

3D model of a mechanical component with a central circular hole and arrow indicating direction (no text or symbols)

2

Interior view of a car's internal compartment showing the hood and vent, with an arrow pointing to a component (no text or symbols present)

Top-down view of a black vacuum cleaner with visible exhaust grille and control panel (no text or symbols)

Black vacuum cleaner with open grid and labeled panel (F), no visible text or symbols on the device itself.

ENGLISH

SAFETY CONDITIONS. IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The appliacable voltage is 230V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device.

Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

1. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

2. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

3. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

4. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

5. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

6. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

7. Never use the product close to combustibles.

8. Do not let cord hang over edge of counter.

9. Do not immerse the motor unit in water.

10. Do not handle the appliance or power cord with wet hands.

11. For household use only.

12. Do not use the vacuum cleaner to pick up flammable items (such as fuel, solvents).

13. Do not vacuum objects with sharp edges (e.g. broken glass).

14. Do not aim the vacuum cleaner toward other people or animals.

15. The vacuum cleaner may be used only on dry surfaces.
16. Only use accessories designed for this appliance.
17. Use extra care when vacuuming stairs.
18. Do not block any vents.
19. Do not operate the vacuum cleaner without the filter.
20. Do not pull the vacuum cleaner by the hose.
21. Make sure that the power cord is not wedged by a door and does not get jammed. When moving the vacuum cleaner please note the length of the power cord. Pulling the vacuum cleaner suddenly when the cord is taut may damage it.

DESCRIPTION OF THE DEVICE (Fig. 1)

1.1 Air intake 1.2 Button to open the dust container 1.3 Handle 1.4 Power switch
1.5 Container (filter) removal button 1.6 Cord retractor button 1.7 Cord retractor 1.8 Wheel
1.9 Wand 1.10 Hose 1.11 Floor brush

USING THE DEVICE

Before use, check that the filter and the dust canister (bag) are in place.

1. Press the cord retractor (1.6) and pull the cord by the plug (Fig. 2.A).
2. Insert the hose end (1.10) to the air inlet (1.1)
3. Attach the wand (1.9) to the other end of the hose (1.10).
4. Slide the brush (1.11) on the end of the wand (1.9). Depending on the surface to be vacuumed, you can extend or retract the brush bristles by pressing the button on the brush.
5. Plug the power cord in an electrical outlet.
6. Turn on the vacuum pressing the ON switch (1.4).
7. You can adjust the suction power by moving the slider on the wand.
8. When done vacuuming, turn off the vacuum pressing the OFF switch (1.4) and unplug the cord from wall outlet.

CLEANING AND MAINTENANCE

1. Disconnect the hose (Fig. 1.10) from air inlet (1.1).
2. Open the vacuum cover by pressing the dust container opening button (1.2)

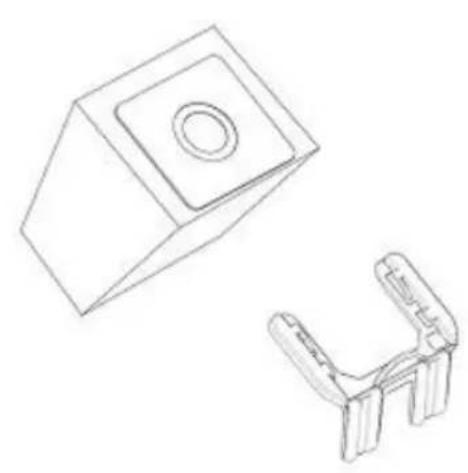

3. Remove the bag by pushing up the bag handle (Fig. 2.B). Slide the bag from the handle (Fig. 2.C).
4. Slide the inlet filter out by pushing it upward (Fig. 2.D). Insert a clean filter in its place.

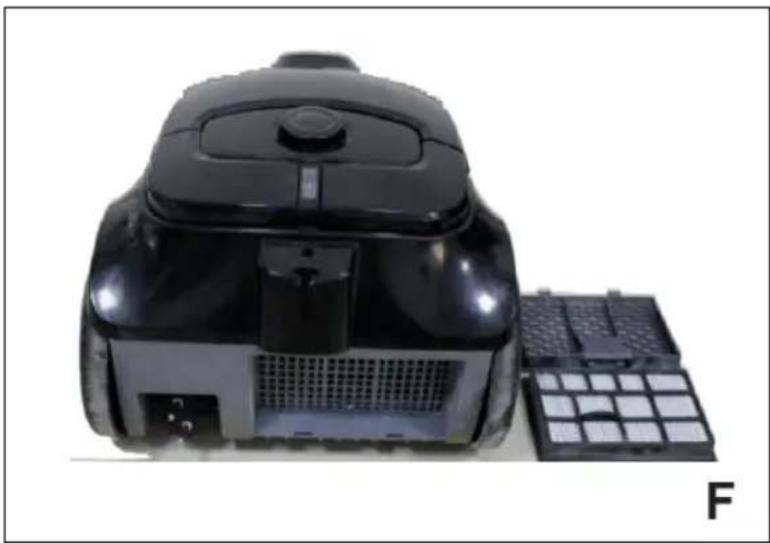

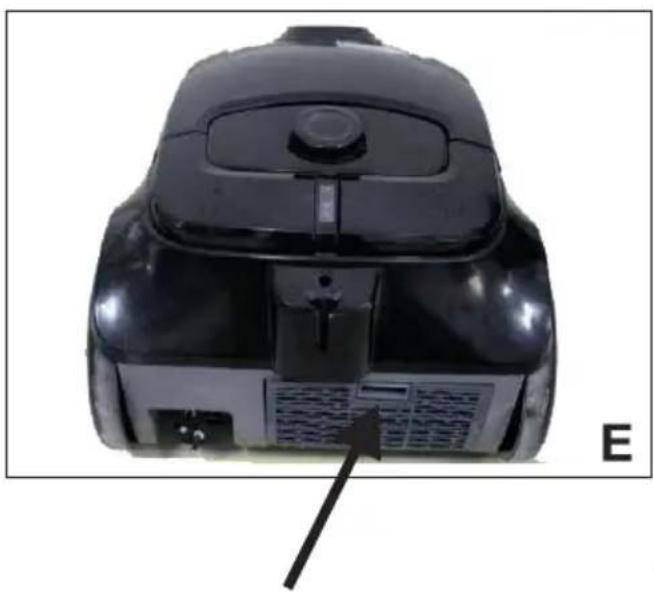

5. To change the exhaust filter: Slide the filter eject button (Fig. 2.E). Remove the cover and remove the exhaust filter (Fig. 2.F). Insert a new filter in its place. Replace filters at least once after every five exchanges of paper bag.
6. Clean soiled cover with a damp cloth.

TECHNICAL DATA

Power source: 220-240V \~ 50 Hz

Nom. power: 1200W

Device is made in class II of insulation. Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
