USER MANUAL CR 7430 CAMRY

Stack of folded baby towels with a remote control device on top (no visible text or symbols)

CR 743

(GB) user manual 6 (BIH) upute za rad 43

Prohibition sign with a diagonal line crossing over a document, indicating no prohibition or exclusion.

2

Prohibition sign with crossed-out scissors and a magnifying glass symbol, commonly used in safety or cleaning instructions.

3

0-3

4

5

PL	1. Przeczytaj instrukcję.2. Nie używaj zagiętego lub pofaldowanego.3. Nie wybiją szpilek, igieł ani innych przedmiotów.4. Nie używać przez bardzo male dzieci (0-3 lat).5. Maksymalna temperatura prania 30 °C. Normalny proces.
GB	1. Read the Instruction.2. Do not use folded or corrugated.3. Do not knock out pins, needles or other objects.4. Do not use for very small children (0-3 years).5. Maximum washing temperature 30 °C. Normal process.
D	1. Lesen Sie die Anweisung.2. Verwenden Sie keine gefalteten oder gewelten.3. Schlagen Sie keine Stifte, Nadeln oder andere Gegenstände aus.4. Nicht bei sehr kleinen Kindern (0-3 Jahre) anwenden.5. Maximale Waschtemperatur 30 °C. Normaler Prozess.
F	1. Lisez les instructions.2. Ne pas utiliser plié ou ondulé.3. Ne pas cogner les épingles, aiguilles ou autres objets.4. Ne pas utiliser chez les très jeunes enfants (0-3 ans).5. Température maximale de lavage 30 °C. Processus normal.
E	1. Lea las instrucciones.2. No usar doblado o corrugado.3. No golpee los alfileres, agujas u otros objetos.4. No usar para niños muy pequeños (0-3 años).5. Temperatura máxima de lavage 30 °C. Proceso normal.
P	1. Leia a Instrução.2. Não use dobrado ou corrugado.3. Não bata nos alfinetes, agulhas ou outros objetos.4. Não use para crianças muito pequenas (0-3 anos).5. Temperatura máxima de lavagem 30 °C. Processo normal.
LT	1. Perskaitykite Instrukciją.2. Nenaudokite sulenkto ar gofruoto.3. Nenaudokite kaiščių, adatų ar kitų daiktų.4. Nenaudoti labai mažiems vaikams (nuo 0 iki 3 metu).5. Didžiausia skalbimo temperatūra 30 °C.
LV	1. Izlasiet instrukciju.2. Nelietojiet salocītu vai gofrētu.3. Nenovietojiet tapas, adatas vai citus priekšmetus.4. Nelietot įoti maziem bērniem (0–3 gadi).5. Maksimālā mazgāśanas temperatūra 30 °C. Normāls process.
EST	1. Lugege juhendit.2. Ärge kasutage volditud või lainepapist.3. Ärge koputage tihvíd, nõelad või muud esemed.4. Ärge kasutage väga väikestel lastel (0–3 aastat).5. Maksimaalne pesemistemperatuur 30 °C. Tavaline protsess.
RO	1. Cititi Instructjunea.2. Nu utilizati pliate sau ondulate.3. Nu loviti bolțurile, acele sau alte obiecte.4. Nu utilizati pentru copii foarte mici (0-3 ani).5. Temperatura maximă de spălare 30 °C.
BIH	1. Pročitajte uputstvo.2. Nemojte koristiti presavijene ili valovite.3. Ne udarajte igle, igle ili druge predmete.4. Ne koristiti za vrlo malu djecu (0-3 godine).5. Maksimalna temperatura pranja 30 °C. Normalan proces.
H	1. Olvassa el az utasitásokat.2. Ne használjon hajtogatott vagy hullámos.3. Ne üsse ki a csapokat, tüket vagy más tárgyakat.4. Ne használjon nagyon kisgyermekeknek (0-3 év).5. Maximális mosási hómérseklet 30 °C. Normál folyamat.
GR	1. Διαβάστε την οδηγία.2. Μην χρησιμοποικείτε διπλωμένις ή κυματοκιδείς.3. Μηχτυπάτε καρφίτσες, βελόνες ή άλλα αντικείμενα.4. Μην χρησιμοποικείτε για πολύ μικρά ποιδιά (0-3 ετών).5. Μέγιστη θκρυοκρασία πλύστις 30 °C. Κανονική διαδικασία.

MK	1. Прочитайте го Упатството.2. Не користете преклопени или брановидни.3. Не истребувајте игли, игли или други предмети.4. Не користете за многу мали деца (0-3 години).5. Максимална температура за перење 30 ° C. Нормален процес.
CZ	1. Přečtěte si Pokyn.2. Nepoužívejte složené nebo zvlněné.3. Nevytahujte koliky, jehly ani jiné předměty.4. Nepoužívejte pro velmi malé děti (0-3 roky).5. Maximální teplota praní 30 ° C. Normální proces.
RUS	1. Прочитайте инструкцию.2. Не используйте в сложенном или гофрированном виде.3. Не выбивайте булавки, иголки или другие предметы.4. Не используйте для очень маленьких детей (0-3 лет).5. Максимальная температура стирки 30 ° C. Обычный процес.
NL	1. Lees de instructie.2. Gebruik geen gevouwen of gegolfd.3. Verwijder geen pinnen, naalden of andere voorwerpen.4. Niet gebruiken voor zeer kleine kinderen (0-3 jaar).5. Maximale wastemperatuur 30 ° C. Normaal proces.
SLO	1. Preberite navodilo.2. Ne uporabljajte prepognjene ali valovite.3. Ne odstranjujte zatičev, igel ali drugih predmetov.4. Ne uporabljajte za zelo majhne otroke (0-3 leta).5. Najvišja temperatura pranja 30 ° C. Normalni postopek.
HR	1. Pročitajte upute.2. Nemojte koristiti presavijeni ili valoviti sloj.3. Nemojte izbijati igle, igle ili druge predmete.4. Nemojte koristiti za vrlo malu djecu (0-3 godine).5. Maksimalna temperatura pranja 30 ° C. Normalan proces.
FIN	1. Lue ohjeet.2. Álă käytă taitettua tai aallotettua.3. Álă pudota nastoja, neuloja tai muita esineitä.4. Álă käytă hyvin pienille lapsille (0-3-vuotiaat).5. Suurin pesulämpõtila 30 ° C. Normaalí prosessi.
S	1. Läs instruktionerna.2. Använd inte vikta eller korrugerade.3. Slă inte ut tappar, nălar eller andra föremăl.4. Använd inte för mycket små barn (0-3 år).5. Maximal tvätttemperatur 30 ° C. Normal process.
SK	1. Prečitajte si pokyny.2. Nepoužívajte zložené alebo vlnité.3. Nevkladajte koliky, ihly ani iné predmety.4. Nepoužívať pre velmi malé deti (0-3 roky).5. Maximálna teplota prania 30 ° C. Normálny proces.
I	1. Leggi le istruzioni.2. Non utilizzare piegato o ondulato.3. Non mettere fuori uso spilli, aghi o altri oggetti.4. Non usare per bambini molto piccoli (0-3 anni).5. Temperatura massima di lavaggio 30 ° C. Processo normale.
SR	1. Прочитайте упутство.2. Немојте користити пресавијене или наборане.3. Не ударајте игле, игле или друге предмете.4. Не користити за веома малу дјецу (0-3 године).5. Максимална температура прања 30 ° Ц. Нормалан процес.
DK	1. Læs vejledningen.2. Brug ikke foldet eller bolget.3. Knæk ikke stifter, näle eller andre genstande.4. Må ikke anvendes til meget små barn (0-3 år).5. Maksimal vasketemperatur 30 ° C. Normal proces.
UA	1. Прочитайте інструкцію.2. Не використовуйте складені або гофровані.3. Не вибивайте шпильки, голки або інші предмети.4. Не використовуйте для дуже маленьких дітей (0-3 роки).5. Максимальна температура прання 30 ° C. Нормальний процес.

PL	Produkt może być użytkowany tylko z przełącznikiem sterującym podanym w oznakowaniu sprzętu:	PS7G-H/L
GB	The product may be used only with the control switch specified in the equipment marking:	PS7G-H/L
D	Das Produkt muss mit der Kontrollmarkierung verwendet werden:	PS7G-H/L
F	Le produit doit être utilisé avec le marquage de contrôle:	PS7G-H/L
E	El producto debe utilizarse con la marca de control:	PS7G-H/L
P	O produto deve ser usado com a marca de controle:	PS7G-H/L
LT	Produktas turi būti naudojamas su kontrolès ženklu:	PS7G-H/L
LV	Produkts jälieto kopā ar kontroles markejumu:	PS7G-H/L
EST	Toodet tuleb kasutada koos kontrollmärgisega:	PS7G-H/L
RO	Produsul trebuie utilizat cu marcajul de control:	PS7G-H/L
BIH	Proizvod se mora koristiti sa kontrolnom oznakom:	PS7G-H/L
H	A terméket az ellenőrző jelöléssel együtt kell használni:	PS7G-H/L
GR	To προϊόν πρέπει να χρησιμοποιείται με το σήμα ελέγχου:	PS7G-H/L
MK	Производот мора да се користи со контролната ознака:	PS7G-H/L
CZ	Výrobek musí být použit s kontrolním označením:	PS7G-H/L
RUS	Продукт должен использоваться с контрольной маркировкой:	PS7G-H/L
NL	Het product moet worden gebruikt met de controlemarkering:	PS7G-H/L
SLO	Proizvod se mora uporabljati s kontrolno oznako:	PS7G-H/L
HR	Proizvod se mora koristiti s kontrolnom oznakom:	PS7G-H/L
FIN	Tuotetta on käytettävä kontrollimerkinnän kanssa:	PS7G-H/L
S	Produkten måste användas med kontrollmarkeringen:	PS7G-H/L
SK	Výrobok sa musí použivať s kontrolným označením:	PS7G-H/L
I	Il prodotto deve essere utilizzato con il marchio di controllo:	PS7G-H/L
SR	Производ се мора користити са контролном ознаком:	PS7G-H/L
DK	Produktet skal bruges med kontrolmærket:	PS7G-H/L
UA	Продукт повинен використовуватися з контрольною маркуванням:	PS7G-H/L

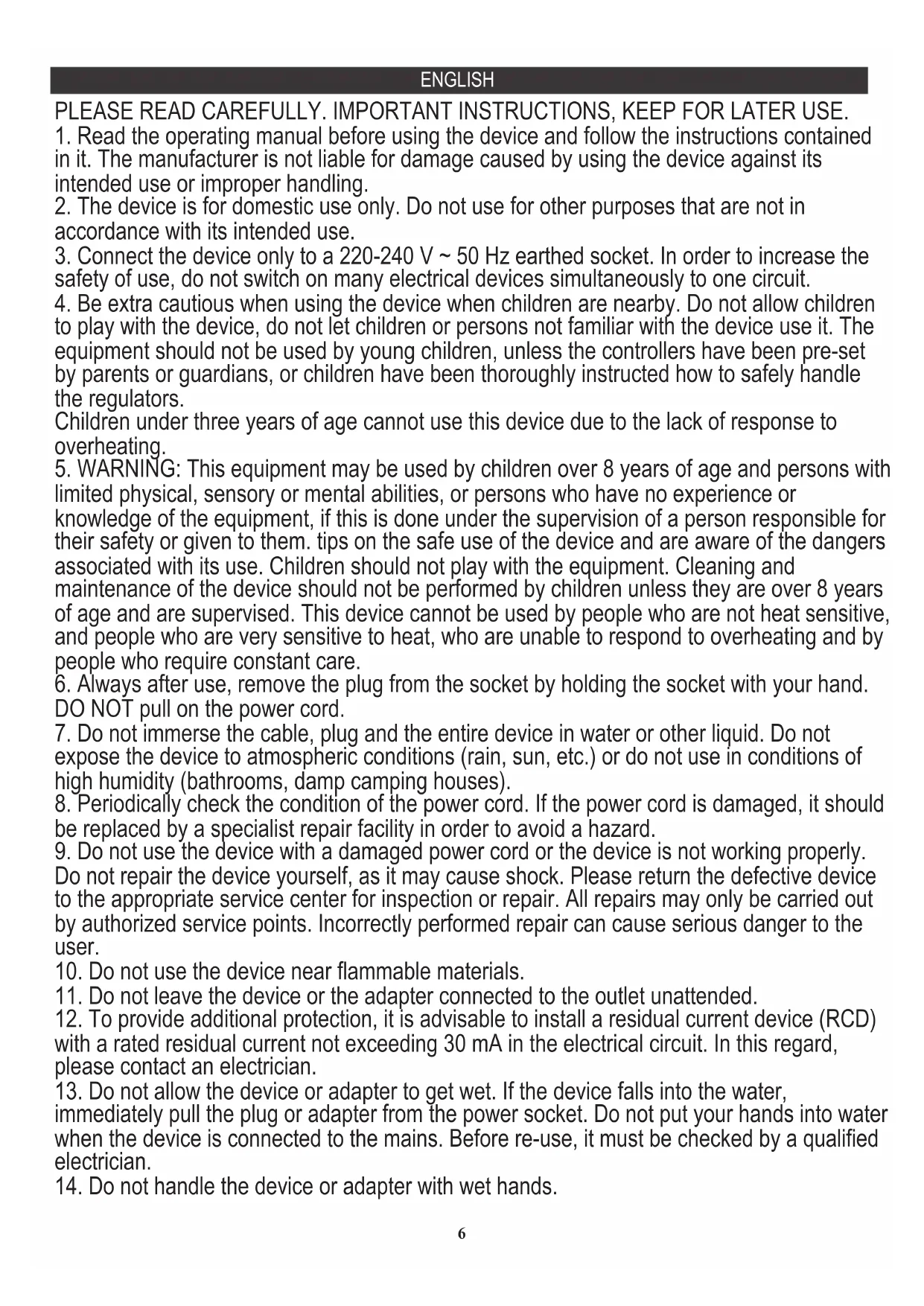

ENGLISH

PLEASE READ CAREFULLY. IMPORTANT INSTRUCTIONS, KEEP FOR LATER USE.

1. Read the operating manual before using the device and follow the instructions contained in it. The manufacturer is not liable for damage caused by using the device against its intended use or improper handling.
2. The device is for domestic use only. Do not use for other purposes that are not in accordance with its intended use.
3. Connect the device only to a 220-240 V \~ 50 Hz earthed socket. In order to increase the safety of use, do not switch on many electrical devices simultaneously to one circuit.
4. Be extra cautious when using the device when children are nearby. Do not allow children to play with the device, do not let children or persons not familiar with the device use it. The equipment should not be used by young children, unless the controllers have been pre-set by parents or guardians, or children have been thoroughly instructed how to safely handle the regulators.
   Children under three years of age cannot use this device due to the lack of response to overheating.
5. WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental abilities, or persons who have no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or given to them. Tips on the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the device should not be performed by children unless they are over 8 years of age and are supervised. This device cannot be used by people who are not heat sensitive, and people who are very sensitive to heat, who are unable to respond to overheating and by people who require constant care.
6. Always after use, remove the plug from the socket by holding the socket with your hand. DO NOT pull on the power cord.
7. Do not immerse the cable, plug and the entire device in water or other liquid. Do not expose the device to atmospheric conditions (rain, sun, etc.) or do not use in conditions of high humidity (bathrooms, damp camping houses).
8. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialist repair facility in order to avoid a hazard.
9. Do not use the device with a damaged power cord or the device is not working properly. Do not repair the device yourself, as it may cause shock. Please return the defective device to the appropriate service center for inspection or repair. All repairs may only be carried out by authorized service points. Incorrectly performed repair can cause serious danger to the user.
10. Do not use the device near flammable materials.
11. Do not leave the device or the adapter connected to the outlet unattended.
12. To provide additional protection, it is advisable to install a residual current device (RCD) with a rated residual current not exceeding 30 mA in the electrical circuit. In this regard, please contact an electrician.
13. Do not allow the device or adapter to get wet. If the device falls into the water, immediately pull the plug or adapter from the power socket. Do not put your hands into water when the device is connected to the mains. Before re-use, it must be checked by a qualified electrician.

14. Do not handle the device or adapter with wet hands.

15. The device should be turned off every time you put it down.

16. Do not use the device near water, for example: in the shower, in the bathtub or above the basin with water.
17. If the device uses a power supply, do not cover it, as it could lead to a dangerous increase in temperature and damage to the device. Always, first insert the plug into the power socket in the device and then the power supply to the mains socket.
18. Do not use the bed sheet in folded condition. Do not put pins, needles and other metal objects in the sheet.
19. Do not use the sheet if it is wet or damp. Leave the sheet hung loosely in a ventilated area until it is completely dry.
20. Do not put the power cord on a warmed sheet. Do not fold the equipment when it is placed on top during storage. Check the equipment periodically for signs of wear or damage. If such signs or equipment are used improperly, please contact your supplier before continuing to use it.
21. Store in a dry place. Never put heavy objects on the sheet.
22. Never go to sleep with the electric sheet turned on. Unplug the power plug from the outlet.
23. Never cover the controller.
24. Before switching on the electric sheet, make sure that it is evenly distributed, there are no kinks or folds.
25. . Disconnect the Product can be washed in the washing machine in 30°C temperature power cord and controller before washing. Switch or controller - the regulator must not be wet during washing, and during drying the cord must be in a horizontal position to ensure that the water does not flow into the switch or controller - the regulator.
26. Do not iron the electric sheet!
27. This equipment is not intended for medical use in hospitals.
28. The device should cool down before storage.
29. The device may be used only with the types of removable elements specified in the equipment marking.
30. Do not use the device on adjustable beds or if the device is used on an adjustable bed, check that the blanket and cord cannot get stuck or corrugated, eg on hinges.
31. The device is equipped with a fuse protecting against overheating, which should not work when used in accordance with the intended use of the equipment. If the fuse trips, the device will stop working, the equipment must be returned to the manufacturer or its representative for repair.

Product: Electric throw blanket CR7430

This electric blanket is intended to be used as an over blanket, it is to be on top of the individual and not under them, or it should be placed above a top sheet on top of the person and not under them on a mattress. Do not tuck it in around or under the person. It should remain loose so as not to prohibit the user's movement. Do not cover the controller and do not exert pressure on the controller.

BEFORE FIRST USE

1. The product needs to be unfolded before switching on.

2. Please set at "H" high temperature position preheating 30-60 minutes before using. When using it, select the appropriate temperature position according to human body's feeling.

DESCRIPTION OF THE DEVICE - electronic controller

1. Temperature controller 2. Power cord
2. Blanket 4. Socket to disconnect the power cord before washing
3. HIGH temperature button 6. Switch "ON/OFF"
4. Heating setting indicator 8. Time setting indicator
5. Temperature setting button 10. Time setting button

OPERATING INSTRUCTIONS – electronic controller

1. The starting up state is the standby state. The digital display of temperature position is "0" and the digital display of timing position is "0".
2. Press "Temp" button (9), the digital display of temperature position is "7" and the digital display of timing position is "9".

3. Press "Temp" button (9), the heating setting indicator (7) circulates from "L.1.2.3.4.5.6.7". L being low, and 7 being high.

4. Press "Time" button (10), the time setting indicator (8) circulates from "1.2.3.4.5.6.7.8.9". 1 is for 1 hour, 9 is for 9 hours.

5. Press "High" button, the high temperature position is preheating, which is displayed as "H". The high temperature position will automatically change to "L" low temperature position after 1 hour.
6. Switch off the product and unplug after use.

STORING

Always allow the product to cool down before folding and storing. Roll or fold it loosely and store in a bag. Avoid creating sharp creases in the product; for example do not store it under other items that may result in bending the inside heating wires. Storage the blanket in a cool and dry.

CLEANING & AIR DRYING

The product can be machine washed because it is equipped in detachable controllers.

Unplug and remove power cord with controllers from socket (4) to disconnect the power cord before washing.

Fold and pre-soak the product for 15 minutes in a mild soap and lukewarm water solution. Ensure the water temperature is less than 30^ C.

When washed, remove the blanket from the net bag and drape it over a clothes line to dry.

Wash on the delicate or gentle cycle for 2 minutes.

Rinse in fresh lukewarm water.

Gently stretch the product to its original size.

Air dry over a clothes line. DO NOT use clothes pegs or clips of any kind.

DO NOT use mothproofing agents on the blanket.

Insulation of the blanket will be damaged if the blanket is dried under the sun, ironed or when mothproofing agents are used. Damage on the insulation material will cause safety problem.

DO NOT use the product until it is completely dry!

DO NOT iron the product!

Troubleshooting solution: PROBLEM -> CAUSE -> REMEDY

1. If your PROBLEM IS: No Power to Controller / No Indicator Lights showing on Front Display. Or "P" appears. The CAUSE is: Possible that the controller or coupler is not connected. Your REMEDY is: Please turn the controller off and reconnect the coupler. If you cannot troubleshoot, it means the internal connection of the electric blanket is broken. Need to be overhauled or scrapped.

2. If your PROBLEM IS: No Indicator Lights showing on Front Display when a heat or time setting is selected. Or "E" appearing on the screen. The CAUSE is:

a) Internal connection short circuited. Your REMEDY is: Please shut down and restart. If you cannot troubleshoot, the blanket is damaged.

b) The controller has overheated and blown the Over-Temp thermal fuse. Your REMEDY is: The controller has overheated by means of an external heat source, or the electric blanket element has been damaged.

1. If your PROBLEM IS: Indicator Lights showing on Front Display but blanket is not heating. The CAUSE is:

a) Detachable Plug from Controller to Blanket is not fitted correctly or has come loose. Your REMEDY is: Ensure the detachable plug is fitted correctly into the socket on the blanket.

b) The selected heat setting is too low. Your REMEDY is: Increase the Heat setting.

c) Pre-heat time is too short. Your REMEDY is: Allow the Electric Blanket more time to heat up. More time is required depending on the ambient temperature.

d) Blanket not in contact with body. Your REMEDY is: The blanket may not feel warm to touch unless it is wrapped around your body. Areas of the blanket not in contact will stay cool.

1. If your PROBLEM IS: The controller is Warm to Touch. The CAUSE is: This is normal. Your REMEDY is: Nothing to do. It is no cause for alarm.

TECHNICAL DATA CR7430

Nominated power input: 110-120W

Supply voltage: 220-240 V \~50Hz

Dimensions: 180x160 cm

Controller: PS7G-H/L

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.

DEUTSCH DEUTSCH

Dimensions: 180x160 cm

INSTRUCTIUNI DE INSTRUCTIUNI - controller electronic

TEKNISET TIEDOT CR7430

Nimetty teho: 110-120W

Tulojännite: 220-240 V \~ 50Hz

Mitat: 180x160 cm

Ohjain: PS7G-H / L
