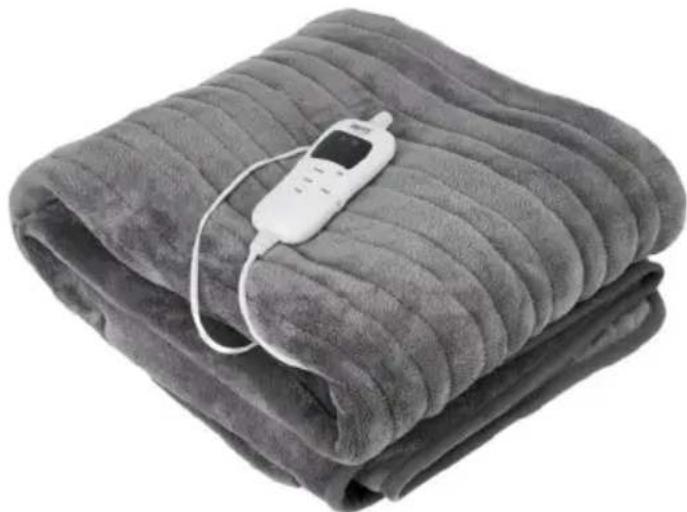

USER MANUAL CR 7418 CAMRY

The product may be used only with the control switch specified in the equipment marking: PS7G-H/L

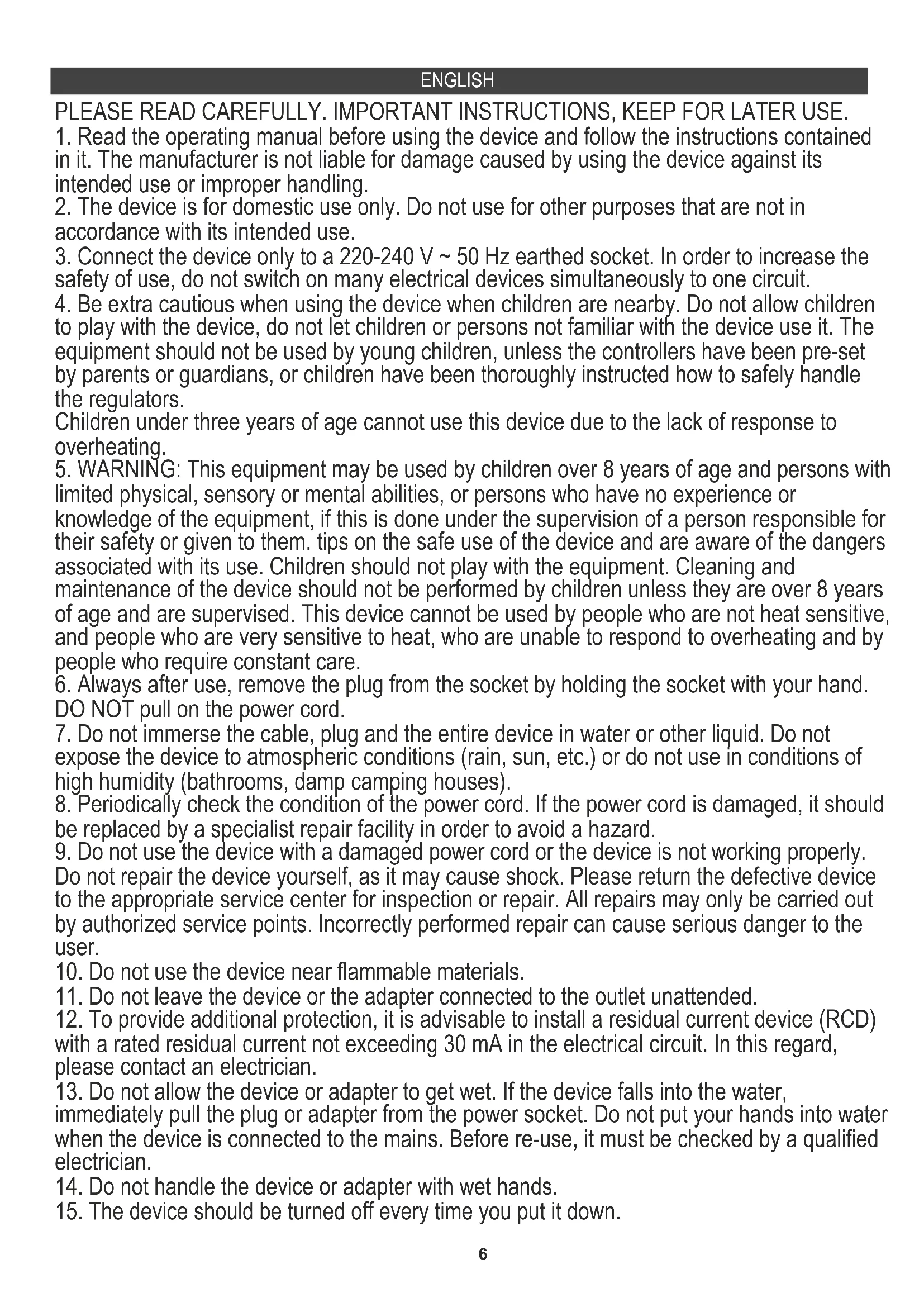

1. Read the operating manual before using the device and follow the instructions contained

in it. The manufacturer is not liable for damage caused by using the device against its intended use or improper handling.

2. The device is for domestic use only. Do not use for other purposes that are not in

accordance with its intended use.

3. Connect the device only to a 220-240 V ~ 50 Hz earthed socket. In order to increase the

safety of use, do not switch on many electrical devices simultaneously to one circuit.

4. Be extra cautious when using the device when children are nearby. Do not allow children

to play with the device, do not let children or persons not familiar with the device use it. The equipment should not be used by young children, unless the controllers have been pre-set by parents or guardians, or children have been thoroughly instructed how to safely handle the regulators. Children under three years of age cannot use this device due to the lack of response to overheating.

5. WARNING: This equipment may be used by children over 8 years of age and persons with

limited physical, sensory or mental abilities, or persons who have no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or given to them. tips on the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the device should not be performed by children unless they are over 8 years of age and are supervised. This device cannot be used by people who are not heat sensitive, and people who are very sensitive to heat, who are unable to respond to overheating and by people who require constant care.

6. Always after use, remove the plug from the socket by holding the socket with your hand.

DO NOT pull on the power cord.

7. Do not immerse the cable, plug and the entire device in water or other liquid. Do not

expose the device to atmospheric conditions (rain, sun, etc.) or do not use in conditions of high humidity (bathrooms, damp camping houses).

8. Periodically check the condition of the power cord. If the power cord is damaged, it should

be replaced by a specialist repair facility in order to avoid a hazard.

9. Do not use the device with a damaged power cord or the device is not working properly.

Do not repair the device yourself, as it may cause shock. Please return the defective device to the appropriate service center for inspection or repair. All repairs may only be carried out by authorized service points. Incorrectly performed repair can cause serious danger to the user.

10. Do not use the device near flammable materials.

11. Do not leave the device or the adapter connected to the outlet unattended.

12. To provide additional protection, it is advisable to install a residual current device (RCD)

with a rated residual current not exceeding 30 mA in the electrical circuit. In this regard, please contact an electrician.

13. Do not allow the device or adapter to get wet. If the device falls into the water,

immediately pull the plug or adapter from the power socket. Do not put your hands into water when the device is connected to the mains. Before re-use, it must be checked by a qualified electrician.

14. Do not handle the device or adapter with wet hands.

15. The device should be turned off every time you put it down.

16. Do not use the device near water, for example: in the shower, in the bathtub or above the

17. If the device uses a power supply, do not cover it, as it could lead to a dangerous increase

in temperature and damage to the device. Always, first insert the plug into the power socket in the device and then the power supply to the mains socket.

18. Do not use the bed sheet in folded condition. Do not put pins, needles and other metal

objects in the sheet.

19. Do not use the sheet if it is wet or damp. Leave the sheet hung loosely in a ventilated

area until it is completely dry.

20. Do not put the power cord on a warmed sheet. Do not fold the equipment when it is

placed on top during storage. Check the equipment periodically for signs of wear or damage. If such signs or equipment are used improperly, please contact your supplier before continuing to use it.

21. Store in a dry place. Never put heavy objects on the sheet.

22. Never go to sleep with the electric sheet turned on. Unplug the power plug from the outlet.

23. Never cover the controller.

24. Before switching on the electric sheet, make sure that it is evenly distributed, there are no

25. . Disconnect the Product can be washed in the washing machine in 30°C temperature

power cord and controller before washing. Switch or controller - the regulator must not be wet during washing, and during drying the cord must be in a horizontal position to ensure that the water does not flow into the switch or controller - the regulator.

26. Do not iron the electric sheet!

27. This equipment is not intended for medical use in hospitals.

28. The device should cool down before storage.

29. The device may be used only with the types of removable elements specified in the

30. Do not use the device on adjustable beds or if the device is used on an adjustable bed,

check that the blanket and cord cannot get stuck or corrugated, eg on hinges.

31. The device is equipped with a fuse protecting against overheating, which should not work

when used in accordance with the intended use of the equipment. If the fuse trips, the device will stop working, the equipment must be returned to the manufacturer or its representative for repair. Product: Electric throw blanke CR7418 / Cr7434 This electric blanket is intended to be used as an over blanket, it is to be on top of the individual and not under them, or it should be placed above a top sheet on top of the person and not under them on a mattress. Do not tuck it in around or under the person. It should remain loose so as not to prohibit the user’s movement. Do not cover the controller and do not exert pressure on the controller.

1.The product needs to be unfolded before switching on. 2. Please set at “H” high temperature position preheating 30-60 minutes before using. When using it, select the appropriate temperature position according to human body’s feeling. DESCRIPTION OF THE DEVICE - electronic controller

1. Temperature controller 2. Power cord

3. Blanket 4. Socket to disconnect the power cord before washing

OPERATING INSTRUCTIONS – electronic controller 1. The starting up state is the standby state. The digital display of temperature position is “0” and the digital display of timing position is “0”. 2. Press “Temp” button (9), the digital display of temperature position is “7” and the digital display of timing position is “9”. 3. Press “Temp” button (9), the heating setting indicator (7) circulates from “L.1.2.3.4.5.6.7”. L being low, and 7 being high. 4. Press “Time” button (10), the time setting indicator (8) circulates from “1.2.3.4.5.6.7.8.9”. 1 is for 1 hour, 9 is for 9 hours.8 5. Press “High” button, the high temperature position is preheating, which is displayed as “H”. The high temperature position will automatically change to “L” low temperature position after 1 hour.

6. Switch off the product and unplug after use.

STORING Always allow the product to cool down before folding and storing. Roll or fold it loosely and store in a bag. Avoid creating sharp creases in the product; for example do not store it under other items that may result in bending the inside heating wires. Storage the blanket in a cool and dry.

CLEANING & AIR DRYING

The product can be machine washed because it is equipped in detachable controllers. Unplug and remove power cord with controllers from socket (4) to disconnect the power cord before washing. Fold and pre-soak the product for 15 minutes in a mild soap and lukewarm water solution. Ensure the water temperature is less than 30°C. When washed, remove the blanket from the net bag and drape it over a clothes line to dry. Wash on the delicate or gentle cycle for 2 minutes. Rinse in fresh lukewarm water. Gently stretch the product to its original size. Air dry over a clothes line. DO NOT use clothes pegs or clips of any kind. DO NOT use mothproofing agents on the blanket. Insulation of the blanket will be damaged if the blanket is dried under the sun, ironed or when mothproofing agents are used. Damage on the insulation material will cause safety problem. DO NOT use the product until it is completely dry ! DO NOT iron the product ! Troubleshooting solution: PROBLEM -> CAUSE -> REMEDY 1. If your PROBLEM IS: No Power to Controller / No Indicator Lights showing on Front Display. Or “P” appears. The CAUSE is: Possible that the controller or coupler is not connected properly. Your REMEDY is: Please turn the controller off and reconnect the coupler properly. If you cannot troubleshoot, it means the internal connection of the electric blanket is broken. Need to be overhauled or scrapped. 2. If your PROBLEM IS: No Indicator Lights showing on Front Display when a heat or time setting is selected. Or “E” appearing on the screen. The CAUSE is: The blanket has been used while folded or crumpled and it has overheated. As a safety measure, the controller has turned off. Your REMEDY is: Turn the controller OFF, unplug the blanket, lay it down completely flat and leave to cool down, and then turn on the controller again. If problem persists, it is likely that the blanket has overheated and blown the Over-Temp thermal fuse. The unit needs to be replaced. 3.If your PROBLEM IS: “C” appearing on the screen. The CAUSE is: The controller has been placed under or inside the blanket and it has overheated. As a safety measure, the controller has turned off. Your REMEDY is: Turn the controller OFF, unplug the blanket, lay it down completely flat and leave to cool down, and then turn on the controller again.

4. If your PROBLEM IS: Indicator Lights showing on Front Display but blanket is not heating. The CAUSE is:

a) Detachable Plug from Controller to Blanket is not fitted correctly or has come loose. Your REMEDY is: Ensure the detachable plug is fitted correctly into the socket on the blanket. b)The selected heat setting is too low. Your REMEDY is: Increase the Heat setting. c) Pre-heat time is too short. Your REMEDY is: Allow the Electric Blanket more time to heat up. More time is required depending on the ambient temperature. d) Blanket not in contact with body. Your REMEDY is: The blanket may not feel warm to touch unless it is wrapped around your body. Areas of the blanket not in contact will stay cool. e) When selected at “H” high temperature setting, the temperature setting will automatically revert to “L” low temperature setting after 1 hour so as to avoid overheating which may cause discomfort. Your REMEDY is: Re-select at “H” or “7” temperature setting. 5. If your PROBLEM IS: The controller is Warm to Touch. The CAUSE is: This is normal. Your REMEDY is: Nothing to do. It is no cause for alarm.

TECHNICAL DATA CR 7418 / CR 7434

Nominated power input: 120W Supply voltage: 220-240V ~50Hz Dimensions: 180x160 cm Controller: PS7G-H/L To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin. DEUTSCH DEUTSCH BITTE AUFMERKSAM LESEN. WICHTIGE HINWEISE, FÜR SPÄTERER VERWENDUNG AUFBEWAHREN.
