KA 9263 - Coffee maker SEVERIN - Free user manual and instructions

Product type	Filter coffee maker
Brand	Severin
Model	KA 9263
Power supply	230 V, 50 Hz
Power	1000 W
Tank capacity	1.25 L (10 cups of 125 ml)
Filter	Permanent filter included, compatible with paper filter size 4
Main functions	Anti-drip system, hot plate for keep warm, automatic shut-off after 35 minutes
Safety	Automatic shut-off, overheating protection, anti-drip lid lock
Maintenance and cleaning	Carafe and filter are dishwasher safe, descaling recommended every 30 to 40 cycles with vinegar
Spare parts and repairability	Glass carafe with lid, filter holder, permanent filter available through Severin customer service
Warranty	2 years against material and manufacturing defects
General information	Conforms to CE directives, domestic use, avoid placing in a closed cabinet

Frequently Asked Questions - KA 9263 SEVERIN

How to descale my Severin KA 9263 coffee maker?

Mix 80 ml of vinegar essence with the maximum amount of cold water. Pour into the tank, insert a paper filter (without coffee) and run a filtration cycle. Repeat if necessary. Then run 2-3 cycles with pure water to rinse.

What to do if my coffee maker does not turn on?

Check that the plug is properly inserted and that the outlet works. Make sure the on/off switch is pressed. If the problem persists, contact Severin customer service.

How much ground coffee should I use per cup?

Use approximately 6 g (1 to 2 teaspoons) of medium or fine ground coffee for a standard 125 ml cup.

Can I use a paper filter with this coffee maker?

Yes, this coffee maker is compatible with paper filters size 4. You can also use the included permanent filter.

How to clean the glass carafe?

The carafe and its lid can be cleaned with hot water or in the dishwasher. To remove the lid, pull it after opening.

What to do if coffee flows slowly or not at all?

This may indicate a need for descaling. Limescale deposits block the circuit. Follow the descaling procedure described in the manual.

Does the coffee maker turn off automatically?

Yes, the appliance turns off automatically about 35 minutes after the end of the brewing cycle to save energy.

Can I brew multiple cycles of coffee in a row?

Yes, but turn off the appliance between cycles and let it cool for about 5 minutes before refilling. Caution: filling immediately after a cycle may cause steam burns.

Where can I find spare parts?

Contact Severin customer service by phone or email. The contact details are in the manual (appendix). Common parts such as the carafe or permanent filter are available.

What is the maximum water capacity?

Do not exceed the maximum level indicated on the tank and carafe. The maximum capacity is approximately 1.25 L, i.e., 10 cups of 125 ml.

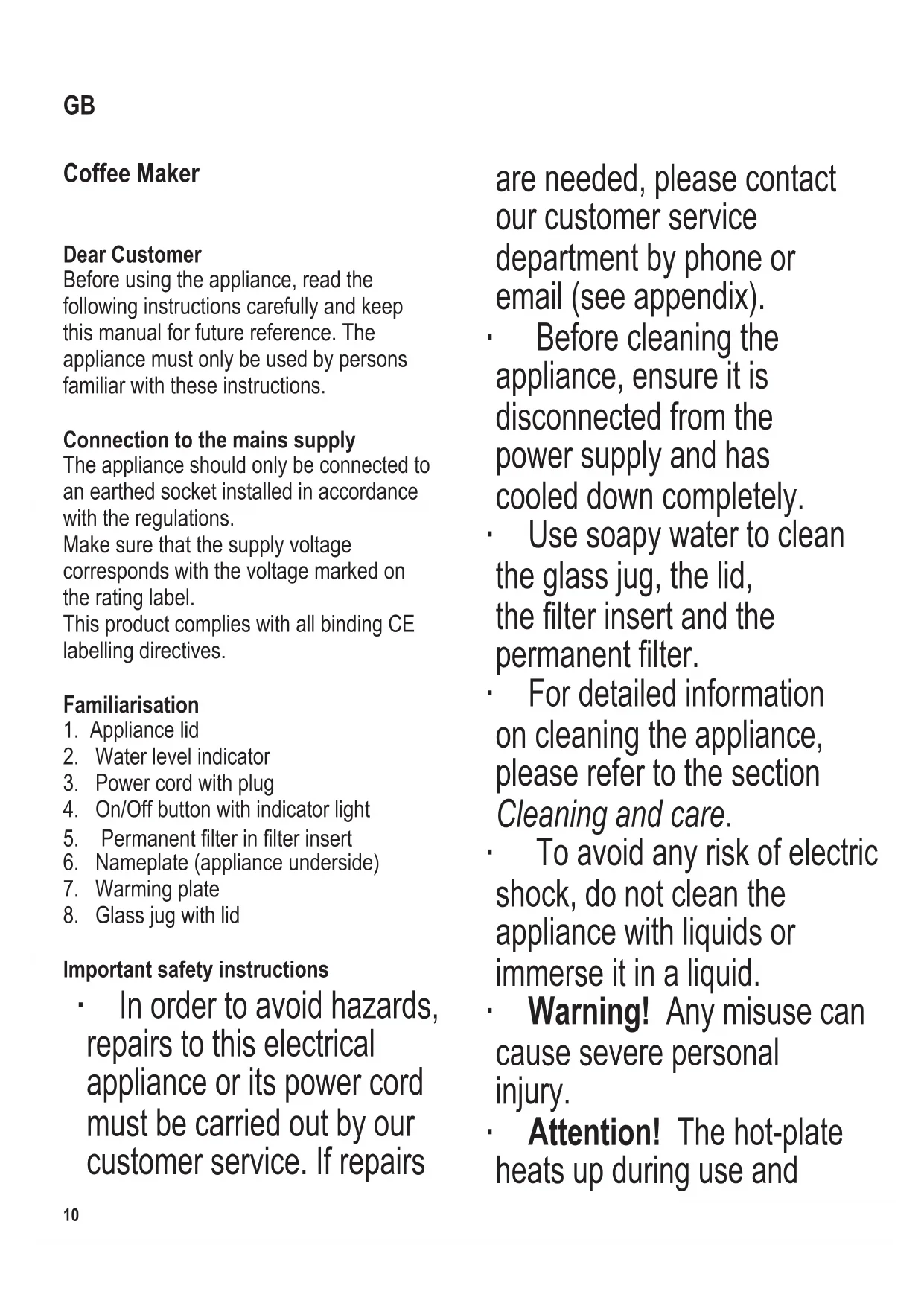

USER MANUAL KA 9263 SEVERIN

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds with the voltage marked on the rating label.

This product complies with all binding CE labelling directives.

Familiarisation

1. Appliance lid
2. Water level indicator
3. Power cord with plug
4. On/Off button with indicator light
5. Permanent filter in filter insert
6. Nameplate (appliance underside)
7. Warming plate
8. Glass jug with lid

Important safety instructions

In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs

are needed, please contact our customer service department by phone or email (see appendix).

Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
- Use soapy water to clean the glass jug, the lid, the filter insert and the permanent filter.
- For detailed information on cleaning the appliance, please refer to the section Cleaning and care.
- To avoid any risk of electric shock, do not clean the appliance with liquids or immerse it in a liquid.
- Warning! Any misuse can cause severe personal injury.
- Attention! The hot-plate heats up during use and

will remain hot for sometime afterwards.

The appliance must never be operated inside an enclosed cabinet.
This appliance is intended for domestic or similar applications, such as

• in staff kitchens in shops, offices and other similar working environments,
• in agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been

given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

Children must not be permitted to play with the appliance.
Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
The appliance and its power cord must be kept well away from children under 8 at all times.

• Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.
  Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull

the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

• During operation, the coffee maker must be placed on a level, non-slip surface, impervious to splashes and stains.
• Do not allow the appliance or its power cord to touch hot surfaces or to come into contact with any heat sources.
• Warning! Before opening up the coffee machine or removing accessories, the appliance must first be switched off and allowed to cool thoroughly. Otherwise, hot water or steam may escape.
• Do not leave the appliance without supervision while it is connected to the mains.
  Always remove the plug from the wall socket

-in case of any malfunction,
- after use, and also
- before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
• Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Automatic switch-off

To save energy, the appliance (including the hot-plate) will switch itself off automatically about 35 minutes after the brewing cycle is complete.

Before using for the first time

• Remove all remaining packaging material and any promotional stickers from the appliance. Never remove the identification label.
• Clean the appliance as described in the Cleaning and Care section.
• Before making coffee for the first time, let the appliance go through two or three filtration cycles using the indicated maximum amount of cold water, but without using ground coffee. This should also be done if the appliance has not been used for an extended period of time, and after descaling.

General information

• There is a water level indicator on the water reservoir and on the jug, to help with measuring the amount of fresh water. The water level indicator is based on normal-sized cups, holding a volume of about 125ml . Do not fill higher than the specified maximum number of cups.
• If several consecutive brewing cycles are required, switch off the coffee maker after each cycle and let the appliance cool down for approx. 5 minutes.
• Important: When filling with fresh water shortly after the brewing process, hot steam may escape from the water outlet (risk of scalding). It is therefore important to let the appliance cool down before you add fresh water.

Making coffee

Filling with water:

Open the appliance lid and pour the required amount of cold water into the water reservoir.

Inserting the paper filter:

Insert the permanent filter or a paper filter, size 4, into the filter insert. Fold over the perforated sides of the paper filter before inserting.

Filling with ground coffee:

For each normal-sized cup (125 ml), we recommend using about 6 g = 112 to 2 teaspoons of medium to finely ground coffee. Then close the appliance lid.

Preparing the glass carafe:

Close the jug lid and place the jug in position in the appliance. During the brewing process, the drip cap in the filter is opened up by the lid.

Starting the brewing cycle:

Plug the appliance in and use the button to switch the coffee machine on. Water starts to flow through. to turn the coffeemaker on. The filtration cycle starts and the water passes through the filter.

Removing the glass carafe:

Wait for the water to pass through the filter and then remove the jug.

• Switching off the coffee maker:

The coffee may be kept warm inside the carafe by leaving it standing on the hot-plate. Once the last cup has been poured, press to switch the coffee maker off. Unless the appliance is switched off manually, the hot-plate remains hot for around 35 minutes after the brewing cycle, when the appliance will switch itself off automatically. Always switch off the

appliance after use and remove the plug from the wall socket.

After use:

Unplug from mains power and clean the appliance as described in the Cleaning and Care section.

Cleaning and care

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid any risk of electric shock, do not clean the coffee maker with liquids or immerse it in a liquid. The appliance may be cleaned with a slightly damp cloth, using a mild detergent. Wipe dry afterwards.
• Do not use abrasives or harsh cleaning solutions.
• To remove any used coffee grounds, open the appliance lid and take out the filter insert.
• Dispose of the paper filter with the used coffee grounds. The coffee grounds can be composted.
• Empty out the permanent filter, clean with soapy water, rinse and allow to dry.
• Rinse out the filter insert, wipe it dry and replace it.
  Clean the coffee jug and lid after use, with soapy water, or in the dishwasher.
• For easy cleaning, open the carafe lid and remove it by pulling it up. Replace it after cleaning, applying light pressure.

Dscaling

Depending on the water quality (lime content) in your area as well as the frequency of use, all thermal household

appliances using hot water need.
descaling (i.e. removal of lime deposits)
on a regular basis to warrant proper
functioning.

• Any warranty claim will be null and void if the appliance malfunctions because of insufficient descaling.
• A lengthening of the brewing time, increased noise during brewing or residual water remaining in the container indicate that descending has become necessary.
  An excessive build-up of lime deposits is very difficult to remove, even when strong descending agents are used. It may also cause the brewing system to leak. We therefore strongly recommend descending the appliance after each thirty to forty brewing cycles. For descending, a vinegar solution may be used as follows:
• Mix 80ml of vinegar essence with the indicated maximum amount of cold water.
• Pour the descending solution into the water container, insert a paper filter into the filter holder without adding any ground coffee as described in section Making coffee, and let the appliance run through one filtration cycle. Repeat the procedure if necessary. During descending, ensure sufficient ventilation and do not inhale any vinegar vapours.
  To clean the appliance after descending, let it run through 2-3 filtration cycles using clean water only.
• Do not pour descalers down enamel sinks.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
