Notice PARKSIDE PWS 20 A1 - page 16
Pick your language and provide your email: we'll send you a specifically translated version.
Brand Parkside
Model PWS 20 A1
Device type Injection/Extraction Vacuum Cleaner (Waschsauger)
Use Carpet cleaning, vacuuming dust and liquids (household use)
Not suitable for Industrial use, flammable/explosive/hazardous substances
Rated voltage 220-240 V~, 50/60 Hz
Motor power 1600 W
Suction power 0.16 bar (16 kPa)
Spray pressure 1.5 bar (150 kPa)
Spray flow rate 1 l/min
Tank capacity (gross) 20 litres
Water tank capacity (gross) 3 litres
Weight (accessories included) approx. 8.02 kg
Power cord length 5 m
Protection class II (Double insulation)
Protection type IPX4
Sound pressure level 79 dB(A); K_pA = 3 dB
Package contents Motor head, stainless steel tank, 4 casters, foam filter, paper bag, suction tube (2 parts), suction hose, floor/crevice/textile nozzle, textile washing nozzle, hard surface washing nozzle, 4 screws, manual
Filters Foam filter for liquids, paper bag for coarse debris (optional: micro-filter bag)
Washing function Yes, with pump and water tank (pump switch)
Automatic shut-off Float cuts suction when tank full
Maintenance No maintenance required; clean foam filter with soapy water, rinse conduits
Warranty 3 years (France and Belgium)
After-sales service France: 0800 919270, Belgium: 070 270 171 (0.15 EUR/min)
Identification number (IAN) 314192_1910

Frequently Asked Questions - PWS 20 A1 PARKSIDE

What types of waste can I vacuum with the Parkside PWS 20 A1?
This injection/extraction vacuum cleaner can vacuum both dry dust and liquids, but it is not suitable for combustible, explosive or health-hazardous substances (e.g. hot ash, gasoline, solvents). For fine dust (e.g. sanding), use the optional micro-filter bag.
How do I use the washing function to clean carpets?
Fill the clean water tank (max. 3 l), place the foam filter on the strainer, connect the hose and the washing nozzle (for textiles or hard surfaces). Turn on the appliance, then activate the pump with the switch (position 1). Slowly pull the nozzle over the textile while pressing the trigger to spray water. Empty the tank immediately after use.
What accessories are included in the box?
The delivery includes: the motor head, the stainless steel tank, 4 swivel casters, a foam filter, a paper filter bag, a two-part suction tube, a suction hose, a floor nozzle, a crevice nozzle, a textile nozzle, a textile washing nozzle, a hard surface washing nozzle, and 4 Phillips screws.
How do I clean and maintain the appliance?
Always unplug the appliance before any maintenance. Empty the tank after each use and clean it with a damp cloth. The foam filter should be washed in warm soapy water and dried completely before reuse. Rinse the water lines with clean water. Replace the paper dust bag when full. Do not spray water on the appliance or use solvents.
What should I do if suction is weak or non-existent?
First check that the hose, tube and nozzles are not blocked. Make sure the air adjustment on the handle is closed, the tank is closed properly and not full. Also check the filter (foam or bag): if it is full or saturated, clean or replace it. If the float is stuck, free it. If the problem persists, contact after-sales service.
Can I use the appliance without a filter?
No. The appliance must never be used without a filter, as this could damage it. When vacuuming dust, use the paper bag (or the optional micro-filter bag); for liquids, use only the foam filter.
How to vacuum liquids safely?
Remove the paper bag, place the dry foam filter on the strainer. Always install the water tank. Do not stand in the water being vacuumed (risk of electric shock). When the tank is full, the float automatically cuts the suction. Empty the tank immediately after use; it is not designed to store liquids.
What is the warranty period and how to activate it?
The warranty is 3 years from the date of purchase. Keep your receipt as proof. In case of defect, first contact after-sales service (France: 0800 919270, Belgium: 070 270 171) or by email to grizzly@lidl.fr / grizzly@lidl.be. You will receive instructions for returning the appliance.
Where can I buy spare parts and accessories?
Spare parts and accessories are available on the website www.grizzly-service.eu. You can also order via the contact form. Part references (e.g. tank, filter, nozzles) are listed in the user manual.
Is the appliance suitable for persons with reduced mobility or children?
This appliance can be used by children aged 8 years and above and by persons with reduced capabilities, provided they are supervised or have received instructions on safe use and understand the dangers. Children must not play with the appliance. Cleaning and maintenance must not be performed by children without supervision.

User questions about PWS 20 A1 PARKSIDE

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual PWS 20 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PWS 20 A1 by PARKSIDE.

USER MANUAL PWS 20 A1 PARKSIDE

text_image PDF ONLINE www.lidl-service.com

PARKSIDE PWS 20 A1 - 1

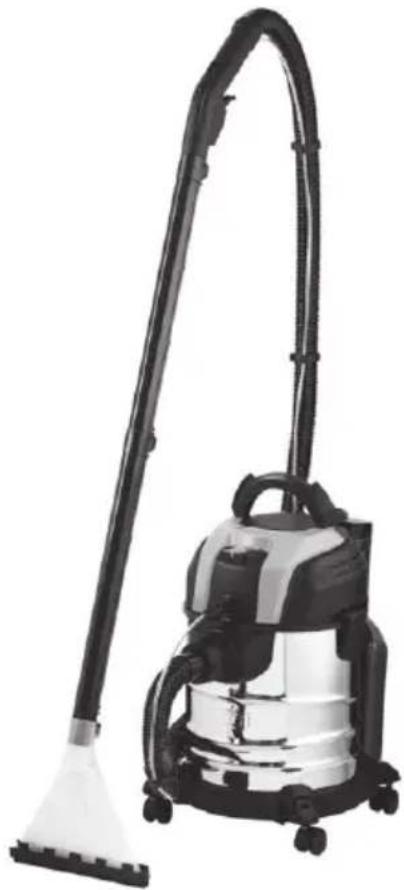

natural_image Black and white photo of a vacuum cleaner with long arm and filter blade (no text or symbols visible)

PARKSIDE PWS 20 A1 - 2

Translation of the original instructions

NL BE

Waszuiger

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Translation of the original instructions Page

text_image Diagram showing three labeled components: a droplet icon, a black rectangular object with crosshair marks, and a mechanical part with circular features.

PARKSIDE PWS 20 A1 - Waszuiger - 1

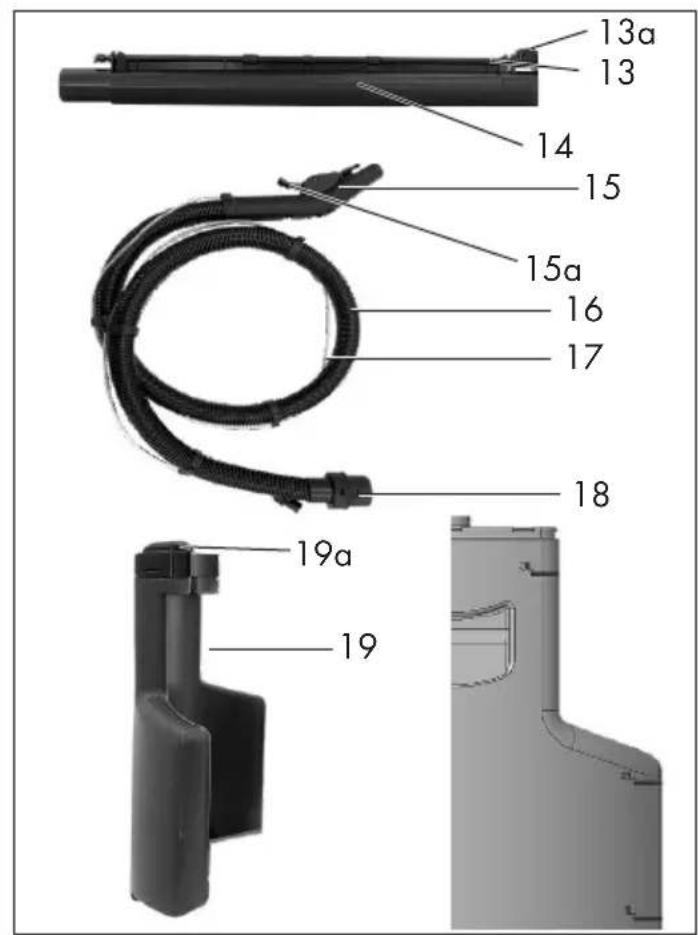

text_image 13a 13 14 15 15a 16 17 18 19a 19

PARKSIDE PWS 20 A1 - Waszuiger - 2

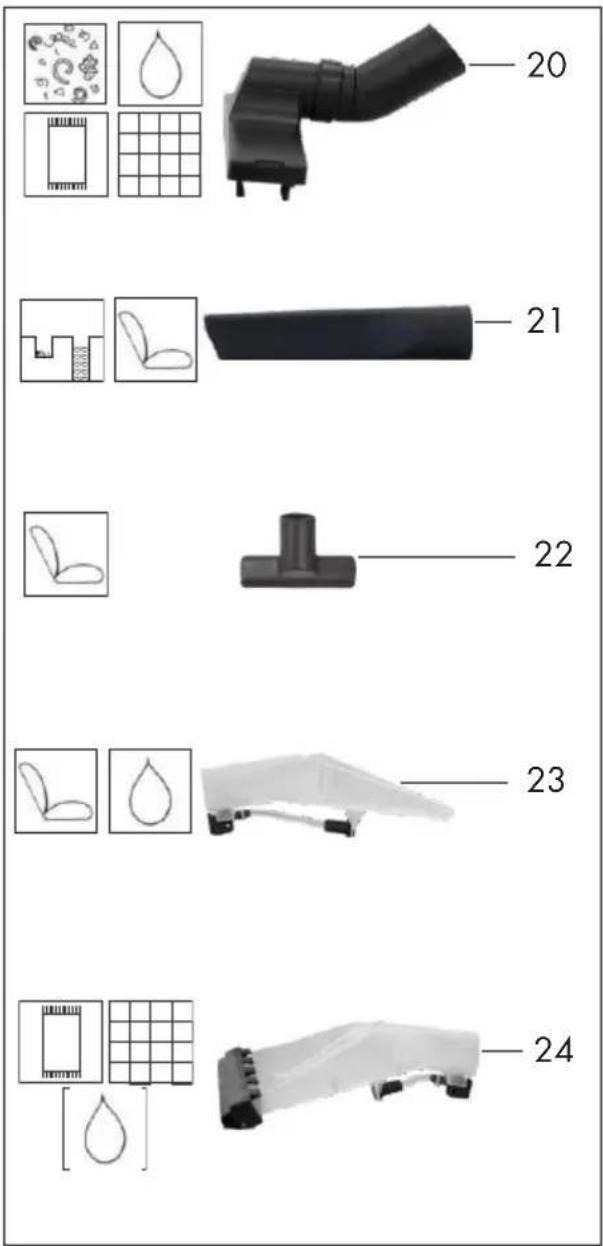

text_image List of 24 numbered product images with corresponding icons and labels, likely for product identification or labeling.

Inhalt

Einleitung......4

Bestimmungsgemäße

Verwendung......4

Service-Center....14

Importeur 14

Fehlersuche....15

Intended purpose......16

General description......17

Extent of the delivery 17

Overview....17

Description of operation....17

Technical data....18

Symbols and icons ......18

Symbols used in the instructions .....18

Symbols on the appliance ....18

Pictograms regarding the use of nozzles and filters....18

Safety information....18

Assembly....20

Operation 20

Switching on/off....20

Washer function 20

Breaks 21

Dry vacuuming 21

Wet suctioning....21

Carpet cleaning 22

Cleaning/Maintenance ......22

General Cleaning Work 22

Maintenance 22

Storage....22

Disposal/Environmental

protection 23

Replacement parts/Accessories ..23

Guarantee 24

Repair Service....25

Service-Center......25

Importer 25

Trouble shooting 26

Translation of the original

EC declaration of conformity .....89

Exploded Drawing 96

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality appliance.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. In some cases, residual amounts of water may be present on or in the device or in hose lines. This is not a flaw or a defect and is no cause for concern.

The operating instructions constitute part of this appliance. They contain important information on safety, use and disposal. Before using the appliance, familiarise yourself with all of the operating and safety instructions. Use the appliance only as described and for the applications specified. Keep this manual safely and in the event that the appliance is passed on, hand over all documents to the third party.

Intended purpose

The appliance is intended as a carpet cleaner. The appliance can also be used as a wet and dry vacuum cleaner in residential applications, e.g. in the home, hobby room, car or garage, or for suctioning up water. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee. Vacuuming of flammable or explosive materials or those which endanger health is prohibited. The manufacturer will not be held responsible for injuries resulting from use which does not comply with the directions, or from incorrect use.

General description

PARKSIDE PWS 20 A1 - General description - 1

The illustration of the principal functioning parts can be found on the front and back foldout pages.

Extent of the delivery

Carefully unpack the appliance and check that it is complete.

The appliance is supplied with the motor head fitted (A 4). To remove the motor head, open the sealing clips (A 6).

Dispose of the packaging material correctly.

A 4 Motor head 7 Container

8 4 castors with accessory holders

11 Foam filter

12 Paper filter bag

14 Suction pipe (2 parts)

16 Suction hose

20 Floor nozzle

21 Crevice nozzle

22 Upholstery nozzle

23 Washer nozzle for cleaning upholstery

24 Washer nozzle with attachment for hard surfaces

25 Phillips screw

- Instruction Manual

Overview

Housing

1 Carrying handle (not visible)

2 On/Off switch

3 Pump switch

4 Motor head with filter basket (4a)

5 Water duct connector

6 Fastening clip

7 Container

8 4 castors with accessory holders (8a)

9 Mains connection cable

10 Suction connector

Filters

11Foamfilterfor
12Paperfilterbag
coarse dirt

Accessories

13 Water duct at the suction pipe 13a Release

14 Suction pipe

15 Handle with air regulation

16 Suction hose

17 Water duct at the suction hose 18 Notch

19 Water tank 19a Water tank lid

Nozzles

20 Floor nozzle

21 Crevice nozzle

22 Upholstery nozzle

23 Washer nozzle for cleaning upholstery

24 Washer nozzle with attachment for hard surfaces

B 25 Phillips screw

Description of operation

The carpet cleaner is equipped with a stable stainless steel container for collecting dirt and a separate water container for the washer function. The castors provide good manoeuvrability of the appliance. The suction flow is switched off by a float during wet vacuuming once the waste tank is full. The following describes the function of the operating parts.

Technical data

Carpet cleaner.....PWS 20 A1

Mains voltage (U) 220-240 V\~, 50/60 Hz

Power consumption of motor (P) ...1600 W

Suction power ....0.16 bar (16 kPa)

Spray pressure (p) .....1.5 bar (150 kPa)

Fluid quantity (Q) 1 l/min

Protection class ....☐ II

Protection type....IPX4

Cable length....5 m

Waste tank capacity (gross)...... 20 l

Water tank content (gross)....3 l

Weight (incl. all

accessories)......approx. 8.02 kg

Sound pressure level

(L_pA) 79 dB(A); K_pA = 3 dB

Symbols and icons

Symbols used in the instructions

PARKSIDE PWS 20 A1 - Symbols used in the instructions - 1

Read the operating instructions carefully.

PARKSIDE PWS 20 A1 - Symbols used in the instructions - 2

Hazard symbols with information on prevention of personal injury and property damage.

PARKSIDE PWS 20 A1 - Symbols used in the instructions - 3

Precaution symbol with information on prevention of harm / damage.

PARKSIDE PWS 20 A1 - Symbols used in the instructions - 4

Pull out the mains plug.

PARKSIDE PWS 20 A1 - Symbols used in the instructions - 5

Connect the machine to the power supply.

PARKSIDE PWS 20 A1 - Symbols used in the instructions - 6

Notice symbol with information on how to handle the device properly.

Symbols on the appliance

PARKSIDE PWS 20 A1 - Symbols on the appliance - 1

Electrical machines must not be disposed of with household refuse.

PARKSIDE PWS 20 A1 - Symbols on the appliance - 2

Protection class (Double insulation)

Pictograms regarding the use of nozzles and filters

PARKSIDE PWS 20 A1 - Pictograms regarding the use of nozzles and filters - 1

Nozzle to vacuum carpets.

PARKSIDE PWS 20 A1 - Pictograms regarding the use of nozzles and filters - 2

Nozzle to vacuum smooth surfaces and hard floor surfaces.

PARKSIDE PWS 20 A1 - Pictograms regarding the use of nozzles and filters - 3

Nozzle to vacuum dust and dirt from joints and cracks.

PARKSIDE PWS 20 A1 - Pictograms regarding the use of nozzles and filters - 4

Specific nozzle to vacuum cushions and mattresses.

PARKSIDE PWS 20 A1 - Pictograms regarding the use of nozzles and filters - 5

Specific nozzle to clean the car.

PARKSIDE PWS 20 A1 - Pictograms regarding the use of nozzles and filters - 6

To absorb liquids.

PARKSIDE PWS 20 A1 - Pictograms regarding the use of nozzles and filters - 7

Not suitable to absorb liquids.

PARKSIDE PWS 20 A1 - Pictograms regarding the use of nozzles and filters - 8

To absorb dry dirt from the house, garage and workshop.

PARKSIDE PWS 20 A1 - Pictograms regarding the use of nozzles and filters - 9

To absorb fine dust e.g. stone dust or wood dust.

Safety information

PARKSIDE PWS 20 A1 - Safety information - 1

Caution! When using power tools, observe the following basic safety measures for the

prevention of electric shocks and the risk of injury and fire:

To avoid accidents and injuries:

- This device can be used by children aged 8 and over and by people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge, if they are supervised or have been instructed regarding safe use of the device and understand the resulting risks. Children are not permitted to play with the device. Cleaning and user maintenance are not to be undertaken by children without supervision.

  • Never leave a machine which is ready for operation unattended at the workplace.
    • People and animals must not be vacuumed with the machine.
  • Do not vacuum any hot, incandescent, flammable, explosive materials, or those which endanger health. This includes hot ashes, petrol, solvents, acids or caustic solutions. Personal injury could occur.
  • Nozzles and suction tubes must not reach head level whilst in use. Personal injury could occur.

To avoid accidents and injuries from electric shocks:

  • Ensure that the mains cable is not damaged by being pulled over sharp edges, by jamming, or by pulling on the cable.
    • Before each use, check the

power supply lead and the extension cable for damage and ageing. Do not use the equipment if the cable is damaged or worn. Danger of electric shock hazard.

  • If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
  • Switch the machine off and disconnect the mains plug:
  • when the machine is not in use,
  • before the machine is opened up,
  • for all maintenance and cleaning work,
  • if the connecting cable is damaged or tangled up.
  • Never use the mains lead to pull the plug out of the socket or to pull the appliance. Protect the cable from heat, oil, and sharp edges.
    • Make sure that the mains voltage corresponds with the information on the rating plate.
  • Only plug the appliance into a socket which is safeguarded.
  • The device must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30 mA.
  • Do not expose the unit to rain

PARKSIDE PWS 20 A1 - To avoid accidents and injuries from electric shocks: - 1

CAUTION! The following states how damage to the appliance and possible injury to people can be avoided:

GB IE

  • Ensure that the machine is correctly assembled and the filters are in the correct position.
  • Do not use without the filter. This could damage the machine.
  • Only use replacement parts and accessories delivered and recommended by our Service Centre. The use of parts by other manufacturers immediately renders the guarantee void.
  • Only have repairs carried out at our authorised customer service points.
  • Observe the instructions for cleaning and maintenance of the machine.
  • Store the appliance in a dry place and out of reach of children.

B Assembly

PARKSIDE PWS 20 A1 - B Assembly - 1

Pull out the mains plug. Danger of electric shock.

  1. Attach the castors (8) with accessory holders (8a) to the underside of the container (7).
  2. Fasten the castors (8) using the Phillips screws (25).
  3. Place the motor housing (4) on top of the container (7) and close it with the clips (6).
    The motor head (4) can only be placed in one position on the container (7). The air flow control (3) and the device socket (11) must be above the suction connection (10). The water duct connector (5) must be above the suction connector (10).

  4. Installing the accessories:

  5. Push the vacuum hose (16) into the suction connection (10) until it locks in place.

To remove it, press the catch (18) and pull the vacuum hose (16).
- Connect the water duct at the suction hose (17) to the water duct connector (5).
- Press the water tank (19) into the holders on the back of the motor head (4) and the container (7).
- Assemble the suction pipes (14). Make sure to connect the water channels (13+17) correctly. To disassemble the suction pipes, press the release (13a) on the water duct and pull the suction pipes apart.
- Install the nozzle ( A 20-24) desired.

Never vacuum without a filter!

The nozzles (20-24) can be attached directly onto the handle with air regulation (15).

Operation

i Fully unwind the suction hose (16) before commencing work.

Switching on/off

Connect the mains plug.

Switching on the vacuum cleaner (Permanent operation):

Move the On/Off switch (2) to the "1" position.

Switching off the vacuum cleaner: Move the On/Off switch (2) to the "0" position.

Washer function

Switching on the washer function

  1. Turn the appliance on (On/Off switch).
  2. Move the pump switch (3) to position "1".

Switching off the washer function

  1. Move the pump switch (3) to position "0".

  2. Turn the appliance off (see Switching on/off).

PARKSIDE PWS 20 A1 - Switching off the washer function - 1

Breaks

If you want to store away the assembled suction equipment when you take a break, you can plug the suction pipe into the accessory holders (8a) on the castors.

PARKSIDE PWS 20 A1 - Breaks - 1

Dry vacuuming

Vacuuming with the paper filter bag:

PARKSIDE PWS 20 A1 - Vacuuming with the paper filter bag: - 1

To avoid the fluted filter becoming clogged, we recommend the additional use of a paper filter bag (brown).

  1. Fold the side flaps on the paper filter bag (12) down on the perforation.
  2. Unfold the paper filter bag (12) completely and invert it over the internal suction fitting of the suction connection (10).
    The sealing ring on the filter bag opening must completely enclosed the arm on the suction nozzle.

PARKSIDE PWS 20 A1 - Vacuuming with the paper filter bag: - 2

A fine dirt filter bag made of micro filter fleece is also optionally available, which can be used in place of the included paper filter bag (see "Replacement parts/Accessories").

Vacuuming fine dust:

Certain suction processes (e.g. sanding paints and varnishes, drilling walls, grinding or drilling hard wood) can pose a risk due to hazardous dust.

We recommend using the following optional filter combination, which is available, for fine dust (see "Spare parts/Accessories"):

  1. Fine dust filter bag made of fleece (optionally available see "Replacement parts/Accessories"), which is used in stead of the paper filter bag (12) included in the scope of delivery.

PARKSIDE PWS 20 A1 - Vacuuming fine dust: - 1

Wet suctioning

PARKSIDE PWS 20 A1 - Wet suctioning - 1

For wet suctioning, always attach the water tank (19).

  1. For wet suctioning, place the foam filter (11) onto the filter basket (4a). To prevent the foam filter (11) from tearing,
  2. Only insert dry filters;
  3. Before inserting, twist the edge of the filter slightly and then roll it back.
  4. Suctioning up (draining): Place the suction hose (16) on the handle part (15) into the water tank and suction up the water.
  5. Empty the dirt container immediately after vacuuming, as it is not designed to store liquids (see "Cleaning/Maintenance").

PARKSIDE PWS 20 A1 - Wet suctioning - 2

Never reach into the water to be suctioned up. Danger of electric shock.

PARKSIDE PWS 20 A1 - Never reach into the water to be suctioned up. Danger of electric shock. - 1

When the container (7) is full, the suction opening is shut off by a float, and suction is then cut off. Switch the device off, remove the water tank (B 19) and the motor head (A 4) and empty the container (A 7). Afterwards, make sure to re-assemble the device completely.

GB IE

PARKSIDE PWS 20 A1 - GB IE - 1

If foam or liquid exits, switch off the machine immediately.

PARKSIDE PWS 20 A1 - GB IE - 2

Carpet cleaning

PARKSIDE PWS 20 A1 - Carpet cleaning - 1

For carpet cleaning, only use the washer nozzle with the attachment for hard surfaces (24) or the washer nozzle for cleaning upholstery (23).

  1. Place the foam filter (11) onto the filter basket (4a).

To prevent the foam filter (11) from tearing,

- Only insert dry filters;

- Before inserting, twist the edge of the filter slightly and then roll it back.

  1. Fill the water tank (B 19) with fresh water (max. 3 l). Pay attention to the markings on the container (A 19).

  2. Pull (do not push!) the nozzle (A 23/24) in rows over the carpet/ upholstery.

Overlap the rows a bit to ensure thorough cleaning.

  1. Press the lever for the spray function (A 15a) on the handle part to turn on the spray function.

  2. Empty the container (7) immediately after vacuuming, as it is not designed to store liquids (see "Cleaning/Maintenance").

PARKSIDE PWS 20 A1 - Carpet cleaning - 2

In case of excessive dirt or stains, add a bit of cleaning agent to the water tank (not included in delivery).

Cleaning/Maintenance

PARKSIDE PWS 20 A1 - Cleaning/Maintenance - 1

Pull out the mains plug. Danger of electric shock.

General Cleaning Work

PARKSIDE PWS 20 A1 - General Cleaning Work - 1

Never hose the appliance down with water. Never use aggressive cleaning agents or solvents. This could damage the appliance.

- Remove the water tank (A 19) and empty the container (A 7) after use.

- Clean the container (7) with a damp cloth.

- Wash the foam filter (11) with warm water and soap and let it dry.

- Rinse the water channels ( A 13+17) with fresh water.

- Replace the paper filter bag ( A 12) when full (see "Replacement parts/Accessories" for reordering).

- After finishing the cleaning work, reinstall the motor head (A 4) and the water tank (19).

- Always check the appliance before use for any obvious faults such as a defective mains cable, and have these repaired or replaced.

Maintenance

The device is maintenance free.

PARKSIDE PWS 20 A1 - Maintenance - 1

Storage

  1. Wind the mains connection cable (9) around the retaining bracket on the back of the appliance.
  2. Wind the vacuum hose (16) around the motor head (4).
  3. The accessory holders (8a) on the castors (8) are used to store the suction pipes and the smaller accessories.
  4. Store the appliance in a dry place (recommended ambient temperature 15 - 30 °C) and out of reach of children.

Disposal/Environmental protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

PARKSIDE PWS 20 A1 - Disposal/Environmental protection - 1

Machines must not be disposed of with household refuse.

Take the machine to a recycling point. The waste plastic and metal parts can be separated, accurately graded and passed on for recycling. Contact our Service Centre for more details.

Defective units returned to us will be disposed of for free.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 25).

Item Item Description Use Product No. Instruction Exploded Manual Drawing

A 6142Fastening clips
A 717-31Container911058
A 833+34Castors with accessory holders, 4 piece91105810
A 1111Foam filter91105820
A 13+1443Suction pipe with water duct91105813
A 1642Suction hose91105812
A 1935-41Water tank91105811
A 2045Floor nozzle91105815
A 2148Crevice nozzle91105818
A 2249Upholstery nozzle91105819
A 2347Washer nozzle for cleaning upholstery91105817
A 2446Washer nozzle with attachment for hard surfaces91105816

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. Filters or attachments) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

- Please have the receipt and identification number (IAN 314192_1910) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: 0800 4047 657

E-Mail: grizzly@lidl.co.uk

IAN 314192_1910

IE Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: grizzly@lidl.ie IAN 314192_1910

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Problem Possible cause Fault correction
Device does not startMains voltage is not presentCheck plug socket, cable, line, plug and fuse, where appropriate, repair through electrical specialist
Defective on/off switch (A 2)Repair through customer service
Worn carbon brushes
Defective motor
Low or lack of suctionSuction hose (A 16) or nozzle (20-24) blockedRemove obstructions and blockages
Air control on the handle (15) openClose the air control
Container (A 7) openClose container
Container (A 7) fullEmpty container
Filter (A 11/12) full or cloggedEmpty, clean or replace filter
Float in the filter basket (D 4a) cannot moveRelease float
Float in the filter basket (D 4a) faultyRepair by Customer Care
Float does not switch the appliance offFloat in the filter basket (4a) cannot moveRelease float
Float in the filter basket (D 4a) faultyRepair by Customer Care
Dust or dirt is blow out of the deviceFilter (A 11/12) is not or not correctly assembledUse missing filters or check the correct position of the filter

Table des matières

Introduction ......27

Service-Center....39

Importateur 39

Service-Center....51

Importeur ....51

Service-Center......63

Importer 63

Service-Center....74

Dovozce....74

Hledání chyb....75

Service-Center......85

Dovozca....85

Vyhládávaniechýb .....86

PARKSIDE PWS 20 A1 - Table des matières - 1 Translation of the original EC declaration of conformity
We hereby confirm that the Carpet Cleaner model PWS 20 A1 Serial number 202005000001~202005060000 conforms with the following applicable relevant version of the EU guidelines:
2014/35/EU • 2014/30/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A2:2019 • EN 60335-2-2:2010/A1:2013 • EN 50564:2011 EN 55014-1:2017 • EN 55014-2:2015 • EN 62321-1:2013 EN IEC 61000-3-2:2019 • EN 61000-3-3:2013/A1:2019 • EN 62233:2008
This declaration of conformity (20)** is issued under the sole responsibility of the manufacturer:
[GT3D] PARKSIDE PWS 20 A1 - Table des matières - 2 Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim GERMANY 30.05.2020PARKSIDE PWS 20 A1 - Table des matières - 3 Christian Frank Documentation Representative

Translation of the original EC declaration of conformity

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

** The last two digits of the year in which the CE marking was affixed.

text_image FSC® www.fsc.org MIX From responsible sources FSC® C141586

PARKSIDE PWS 20 A1 - Translation of the original EC declaration of conformity - 1

text_image FSC® www.fsc.org MIXTE Issu de sources responsables FSC® C141586

IAN 314192_1910

PARKSIDE PWS 20 A1 - Translation of the original EC declaration of conformity - 2

PARKSIDE PWS 20 A1 - Translation of the original EC declaration of conformity - 3

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PARKSIDE

Model : PWS 20 A1

Category : Vacuum Cleaner
