| Product type | Water meter |
| Brand | Parkside |
| Model | PWM 4 A1 |
| Power supply | 1 x 3.0 V battery type CR2032 |
| Water temperature | +5 °C to +40 °C |
| Ambient temperature | +5 °C to +60 °C |
| Measurement tolerance | ±5 % (at least ±0.5 l) |
| Max. operating pressure | 12 bar |
| Max. flow rate | 1800 l/h |
| Flow range | 2–30 l/min |
| Water connection | G 3/4" (26.44 mm) |
| Protection rating | IPX4 (protected against water splashes) |
| Display modes | TOTAL 1, TOTAL 2, AUTO, flow rate (L/min or GAL/min) |
| Units of measurement | Liters or gallons |
| Reset function | Yes (long press on M button) |
| Maintenance | Clean the turbine unit with running water; clean the device with a soft, dry cloth |
| Safety | Do not direct the jet at people, animals, or electrical devices; do not use for drinking water; no frost protection |
| Spare parts | Sealing rings, turbine unit, CR2032 battery |
| Warranty | 3 years (France and Belgium) |
Frequently Asked Questions - PWM 4 A1 PARKSIDE
User questions about PWM 4 A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Water meter in PDF format for free! Find your manual PWM 4 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PWM 4 A1 by PARKSIDE.
USER MANUAL PWM 4 A1 PARKSIDE
Operating instructions
NL BE
WATERMETER
Gebruiksaanwijzing
CZ
PRÜTOKOMÉR
Návod k obsluze
IAN 332669_1907
DE PL
CZ SK
DE AT CH
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
Information about these operating instructions 18
Proper use 18
Warnings 18
Safety 19
Basic safety instructions 19
Handling batteries 20
Package contents 22
Appliance description 22
Symbols on the display 23
Setting up 23
Consider the requirements of the installation site 23
Inserting/replacing the battery 24
Connecting the appliance 25
Operation 26
Dismantling 26
Troubleshooting 27
Cleaning. 27
Cleaning the appliance 27
Cleaning the turbine unit 27
Storage 28
Disposal 28
Disposal of the appliance. 28
Disposing of the batteries 28
Disposal of the packaging 29
Attachment 29
Technical data 29
Notes on the EU Declaration of Conformity 29
Kompernass Handels GmbH warranty 30
Service 31
Importer 32
Introduction
Information about these operating instructions
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before
using the product, please familiarise yourself with all the operating and safety instructions.
Use the product only as described and for the range of applications specified. Retain these operating instructions for future reference. Please also pass these operating instructions on to any future owner.
Proper use
This appliance is used exclusively for measuring quantities of fresh water in outdoor areas. Commercial or industrial use is not permitted. No liability will be assumed in cases of improper use. No liability will be assumed for damage caused by misuse or improper handling, the use of force or unauthorised modification. The risk is borne solely by the user.
Warnings
The following warnings are used in these operating instructions:
WARNING
A warning at this hazard level indicates a potentially hazardous situation.
Failure to avoid this hazardous situation could result in injuries.
Follow the instructions in this warning notice to prevent injuries.
CAUTION
A warning at this hazard level indicates a risk of property damage.
Failure to avoid this situation could result in property damage.
Follow the instructions in this warning notice to prevent property damage.
NOTE
A note provides additional information which makes handling the appliance easier for you.
Safety
Basic safety instructions
To ensure safe operation of the appliance, follow the safety guidelines set out below:
- Check the appliance before every use to make sure it is in perfect condition. Do not use the product if it is damaged in any way.
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
Open the appliance only when it is dry.
Before use, check the appliance and its supply lines for tightness.
Avoid direct sunlight.
Do not operate the appliance close to naked flames.
- Do not aim the water jet at electrical equipment, people or animals!
This appliance is not to be used for drinking water abstraction.
The appliance is not frost-proof.
After using the appliance, always close the water outlet (tap).
- Check the appliance and its supply lines at regular intervals for leaks and fault-free operation.
Repairs to the appliance during the warranty period may only be carried out by a customer service department authorised by the manufacturer. Otherwise, no warranty claims will be considered for any subsequent damages.
Defective components must always be replaced with genuine replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used.
Handling batteries
WARNING
This appliance is battery operated. Mishandling batteries can cause fires, explosions, leakages or other hazards!
- Keep batteries out of the hands of children. Store batteries out of the reach of children.
If a battery has been swallowed, seek medical assistance immediately.
Batteries must never be short-circuited, taken apart, deformed or thrown into a fire.
Never try to charge non-rechargeable batteries.
WARNING
Chemicals from leaking or damaged batteries can cause skin irritations when touched. Use suitable protective gloves if this occurs. In the event of contact with your skin, rinse off with plenty of water. If the chemicals come into contact with your eyes, rinse them thoroughly with plenty of water, do not rub and consult a doctor immediately.
Always use the stated battery type.
- Ensure that the batteries are inserted with the correct polarity. This information is displayed in the battery compartment.
If necessary, clean the battery and appliance contacts before inserting the battery.
- Remove the battery from the appliance if you do not plan to use it for a while.
Always remove discharged batteries from the appliance immediately.
The product is equipped with a lithium button cell or the battery is supplied with the product.
Package contents
(See fold-out page for illustrations)
Water quantity meter incl. water hose connection
- Tap connector G^3/4 (26.44 mm)
- Coupling G^3/4 (26.44 mm)
- Turbine unit
- 1 × 3.0V battery, type CR 2032
These operating instructions
NOTE
Check the package for completeness and signs of visible damage.
If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the service hotline (see section Service).
Appliance description
(See fold-out page for illustrations)
Tap connector
Coupling
3 Turbine unit
4 Display
M button
6 Water hose connection
R button
3.0 V battery, type CR 2032
Battery compartment cover
10 Sealing rings
Symbols on the display
Volume unit GAL (gallon)
Volume unit LITER
13 Display mode: Flow rate in LITER/MIN or GAL/MIN
14 Flow symbol: display during active measurement
Water quantity
16 Battery change indicator: low battery indicator
17 Display modes: TOTAL 1 / TOTAL 2 / AUTO
Setting up
Consider the requirements of the installation site
The installation location must meet the following requirements to ensure safe and error-free operation of the appliance:
The temperature of the water flowing through the appliance must be between 5^ and 40^
The ambient temperature must be between 5^ and 60^ .
Use only clear fresh water.
Inserting/replacing the battery
The appliance is delivered and operated with a 3.0 V battery, type CR 2032
Disconnect the appliance from the water connection.
Turn the battery compartment cover 9 in the direction of the arrow and remove it.
If necessary, remove the empty battery.

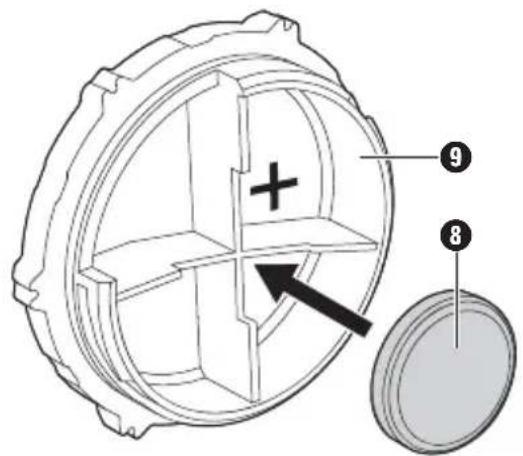

Insert a 3.0V battery, type CR 2032 into the battery compartment cover . Make sure that the polarity is correct (see fig. 1).

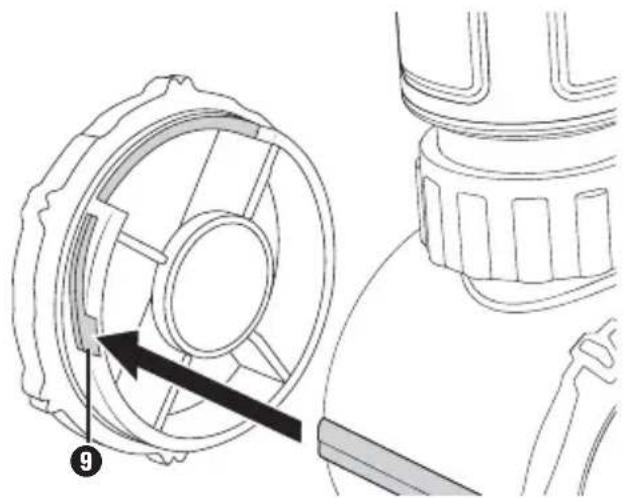

Place the battery compartment cover 9 on the battery compartment with the large recess facing upwards. Make sure that the small recess fits onto the battery compartment. Turn the battery compartment cover 9 as far as it will go in the opposite direction to the arrow shown on the type plate (see fig. 2).
Fig.1 Fig.2
NOTE
If the battery is low, the battery change indicator 16 appears. The battery should be replaced as soon as possible.
- When the battery is changed, all memory functions are automatically reset to 0.
Connecting the appliance
The appliance can be connected to a water connection with a G^3/4 internal or external thread. Alternatively the appliance can be connected to a garden spray, for example, to allow a direct view of the display during watering.
Water connection G^3 / 4 external thread (see fig. 3)
Screw the tap connector 1 clockwise onto a water connection with a G^3 / 4 external thread so that it is hand-tight.
Connect a water hose to the water hose connection 6.
Water connection G^3 / 4 internal thread (see fig. 4)
Unscrew the coupling 2 including the tap connector 1 from the appliance.
Screw the appliance clockwise onto a water connection with a G^3/4 internal thread so that it is hand-tight.
Connect a water hose to the water hose connection 6.
Connection for garden sprayer etc. (see fig. 5)
Push the front part of the coupling 2 to the rear and pull the tap connector 1 out of the coupling 2.
Insert the garden sprayer or similar into the socket of the coupling 2.
Connect a water hose to the water hose connection 6.
- You may need an additional adapter depending on the watering system. If this is case, contact your dealer.
Operation
The appliance has three memory functions that meter the amount of water consumed. The modes on the display 4 show the amount of water consumed either in litres or gallons.
Press the button to activate the display 4.
Press the button 5 repeatedly to switch to one of the other display modes.
Press the R button 7 to switch between litres and gallons.
TOTAL 1
The water quantity is counted until it is reset (e.g. water consumption per day).
TOTAL 2
The water quantity is counted until it is reset (e.g. water consumption per season).
AUTO
The water quantity is counted per watering process up to an interruption of 3 seconds. During the next watering process the display starts again at 0.
LITER/MIN or GAL/MIN
In this mode, the current flow rate is displayed in l/min or gal/min.
NOTE
- If no water flows through for longer than approx. 1 minute or if you do not press any key, the appliance switches to standby mode.
Press them button 5 again to activate the display 4.
Reset
Press the button for 3 seconds in TOTAL 1/TOTAL 2 or AUTO display mode to reset the water quantity measurement to 0. You only reset the water quantity measurement for the display mode you are currently in.
Dismantling
Unscrew the appliance or tap connector 1 anticlockwise from the water connection. When using a garden sprayer or similar, push the front part of the coupling 2 to the rear and pull off the garden sprayer.
Disconnect the water hose from the water hose connection 6.
Troubleshooting
The following table will help you to identify and rectify minor malfunctions:
| Fault Possible cause Remedy | ||
| No indication on the display 4. | No battery inserted. Insert a battery. | |
| Battery is empty. Replace the battery. | ||
| The appliance is in standby mode. | Press the M button 5 to activate. | |
| Water flow rate is insufficient or the display value does not change. | Turbine unit 6 is dirty. | Clean the turbine unit 3 under running water. |
Cleaning
Cleaning the appliance
CAUTION
- To avoid irreparable damage to the appliance, ensure that no moisture can penetrate into the battery compartment during cleaning.
- Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfaces of the appliance.
Clean the surfaces of the appliance with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth with a little mild detergent.
Cleaning the turbine unit
Unscrew the coupling 2 including the tap connector 1 from the appliance.
Remove the sealing rings 10 from the coupling 2 and the tap connector 1. Clean the sealing rings 10, the inside of the coupling 2 and the tap connector 1 under running water. Replace the sealing rings 10 in the coupling 2 and in the tap connector 1.
Remove the turbine unit 3 from the appliance and pull the turbine unit 3 apart.
Clean all parts under running water.
Put the turbine unit 3 back together again and insert the turbine unit 3 back into the appliance (see fold-out page).
Screw the coupling 2 including the tap connector 1 onto the appliance.
Storage
If you plan not to use the product for a long period, remove the batteries and store it in a clean, dry, frost-free place out of direct sunlight.
Disposal
Disposal of the appliance
The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be handed over to specially set-up collection locations, recycling depots or disposal companies.
This disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
Disposing of the batteries
Batteries should not be disposed of with normal household waste. Consumers are legally obliged to dispose of used batteries at a collection point in their town/ district or at a retail store. They may contain poisonous heavy metals and must be disposed of in accordance with the rules for the treatment of hazardous waste. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead.
Dispose of batteries only when they are fully discharged.
Disposal of the packaging
The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.
Attachment
Technical data
| Water quantity meter | |
| Power supply | 1 × 3.0 V (DC) Battery type CR 2032 |
| Water temperature 5-40°C | |
| Environmental temperature 5-60°C | |
| Measurement tolerance ± 5% (minimum ± 0.5 l) | |
| Max. operating pressure 12 bar | |
| Max. flow rate 1800 l/h* | |
| Flow range 2-30 l/min* | |
| Water connection G3¼" (26.44 mm) | |
| Protection type IPX4 (splashproof) | |
- Measurements outside this flow range are not to be taken into account. The specified measuring tolerance is not guaranteed.
Notes on the EU Declaration of Conformity
This appliance complies with the essential requirements and other relevant regulations of the Electromagnetic Compatibility Directive 2014/30/EU and the RoHS Directive 2011/65/EU.
The complete EU Declaration of Conformity is available from the importer.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.
Service
GB Service Great Britain
Tel:08004047657
E-Mail: kompernass@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 332669_1907
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Table des matieres
Introduction 34
Chere cliente, cher client,
Chere cliente, cher client,
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Inhoud
Inleiding 52
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Spistresci
Wstep. 68
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Obsah
Uvod 84
Informace k tomuto navodu k obsluze 84
Pouzitivsouladusurcenim 84
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Obsah
Uvod 100
LITER/MIN, resp. GAL/MIN
V toto rezime sa zobrazi aktualtyPrietok v/ min alebo gal/min.
UPOZORNENIE
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Stand der Informationen - Last Information Update - Version des informations
Stand van de informatie - Stan informaci - Stav informaci - Stav informaci: 12/2019 - Ident-No.: PWM4A1-102019-2
IAN 332669_1907
8
