Brand	Parkside
Model	PSHL 2 B1
Product type	Automatic welding helmet
Filter dimensions	110 × 90 × 9 mm
Field of view	92 × 42 mm
Protection level (light state)	DIN 4
Protection level (dark state)	DIN 9 to DIN 13 (adjustable)
Switching time (light to dark)	0.23 to 0.72 ms
Switching time (dark to light)	0.12 s
Power supply	Solar cell + battery (type not specified, 1 battery)
UV/IR protection	DIN 16
Operating temperature	-5 °C to +55 °C
Compatible welding processes	MMA, MIG, MAG, TIG, plasma welding, plasma cutting
Maximum service life	Approximately 6 years
Available settings	Darkening level, sensitivity, delay, LED lighting
Grind function	Yes (disables automatic darkening)
Integrated LED lighting	Yes, with darkening sensor (on/auto/off)
Function test	Test button
Cleaning	Soft, dry or slightly damp cloth; do not use alcohol, gasoline or solvent
Storage	Dry place, out of reach of children, LED switch off
Package contents	1 automatic welding helmet, 1 instruction manual
Warranty	3 years
Weight (estimated)	Approximately 500 g (not specified exactly)

Frequently Asked Questions - PSHL 2 B1 PARKSIDE

What is the DIN protection level of this Parkside PSHL 2 B1 helmet?

The helmet offers DIN 4 protection in the light state and an adjustable level from DIN 9 to DIN 13 in the dark state. UV/IR protection is DIN 16.

How to adjust the automatic darkening?

Turn the side darkening regulator (9) to select a level between 9 and 13. For grinding, set it to the 'Grind' position which disables automatic darkening.

Does the Parkside PSHL 2 B1 helmet work with batteries?

Yes, it uses one battery (type not specified) in addition to the solar cell. A red LED (10) indicates when the battery is discharged. Open the compartment (15) to replace it, observing polarity.

Which welding processes are compatible with this helmet?

It is suitable for MMA, MIG, MAG, TIG, plasma welding and plasma cutting. It is not suitable for laser welding or oxy-acetylene welding.

How to clean the filter and protective screen?

Use a soft, dry or slightly damp cloth. Do not use alcohol, gasoline or solvent. Do not immerse the filter in water.

What to do if the filter does not darken automatically?

Check that the protector and arc sensor are clean. If the welding current is too low, increase the sensitivity. If the problem persists, stop immediately and contact customer service.

What is the maximum service life of this welding helmet?

The maximum service life is approximately 6 years, but it may be reduced depending on use, cleaning and storage. Replace immediately if visible damage occurs.

How to use the integrated LED lighting?

The LED switch (14) has three positions: left = OFF, middle = ON (manual), right = AUTO (automatic activation in dark environment via darkening sensor). Always turn off before storing.

Is the Parkside PSHL 2 B1 helmet suitable for vertical or overhead welding?

No, it is not recommended for overhead welding or cutting, as drops of molten metal could pass through the filter and cause burns.

How to test the helmet's proper operation before use?

Use the Test button (11): approach the helmet to a light source of more than 40 W. The filter should darken and then clear. You can also check the sensitivity and delay settings.

USER MANUAL PSHL 2 B1 PARKSIDE

AUTOMATIC WELDING HELMET PSHL 2 B1

GBDKIENI

AUTOMATIC WELDING HELMET AUTOMATISK SVEJSEHJELM

Operation and Safety Notes

Translation of the original instructions

FRBE BENL

CASQUE DE SOUDAGE AUTOMATIQUE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IE/NI Assembly,operating and safety instructions Page 5

List of pictograms used

Introduction

Intended use
Parts Description 6
Technical Data Page 7
Scope of delivery

Safety instructions.. 7

Initial use

Troubleshooting

Cleaning and Maintenance.. 14

Storage 14

Environmental instructions and disposal information.. 14

Warranty and service information

Warranty terms.. 15
Extent of warranty . 15
Processing of warranty claims.. 15
Service 16

Label meanings 16

EU Declaration of Conformity 17

List of pictograms used
	Caution! Read instructions for use!		Attention, potential dangers!
	Do not dispose of electrical equipment in household waste!		Important notice!
	Attention: The welding helmet does not provide any eye, ear or face protection!		Warning: arc rays can injure the eye's retinas!
	Made from recycling material		Dispose of batteries in an environmentally friendly manner!

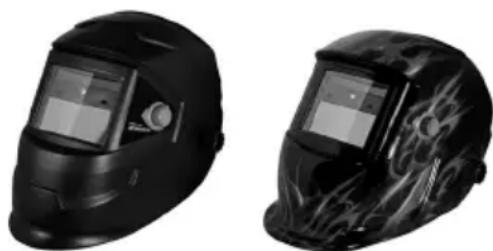

Automatic Welding Helmet PSHL 2 B1

Introduction

Congratulations!

You have chosen a high-qualified

ty product from our company. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the instructions for use and the safety instructions below.

KEEP OUT OF THE REACH OF CHILDREN!

- Intendeduse

This welding helmet protects the eyes and face from sparks, splashes and UV rays while welding and automatically adapts to the lighting conditions. It ensures an immediate, sensor-controlled darkening upon arc ignition as well as automatic illumination at the end of the welding procedure (including a short delay to protect against afterglow). This welding helmet provides a freely adjustable DIN protection level with a lateral

adjustment wheel and is also adjustable for flying sparks during grinding work. Only use the product as described and for its indicated purpose. Keep these instructions in a safe place.

When passing this product on to others, please also include all the documents. Any use other than the intended is prohibited and potentially dangerous. Damages resulting from noncompliance or misuse are not covered by the warranty and are not included in the manufacturer's liability. This device has been designed for household use and may not be used for commercial or industrial purposes.

- Parts Description

Viewing pane
2 Helmet casing
3 Solar cell
4 Rear pane
5 Headband
6 Rear control dial headband
7 Lateral control dial headband
8 UV filter
Darkening regulator
10 Low battery display
11 Test button

Sensitivity setting
13 Delay setting
14 LED Lighting switch
15 Battery compartment
16 Bracket
17 Arc sensor
18 LED
Battery

Technical Data

Filter cartridge size: 110 × 90 × 9 mm

Field of vision: 9.2 × 4.2 cm

Bright state: DIN 4

Dark state: DIN 9-DIN 13

Switching times

Bright to dark: 0.23 0.72 ms

Dark to bright: 0.1~2 s

Switch on / off: Fully automatic

Energy supply: Solar cell

UV/IR protection: DIN 16

Operating temperature: -5^ to +55^

Storage temperature: -20 °C to +70 °C

Welding procedure: MMA, MIG, MAG, TIG, plasma cutting and plasma welding

Maximum service life: approx. 6 years

- Scope of delivery

1 Auto-Darkening Welding Helmet
1 Set of instructions for use

Safety instructions

Please carefully read the instructions for use and follow the specified notices. Familiarise yourself with the equipment, its proper use and the safety notices using these instructions for use.

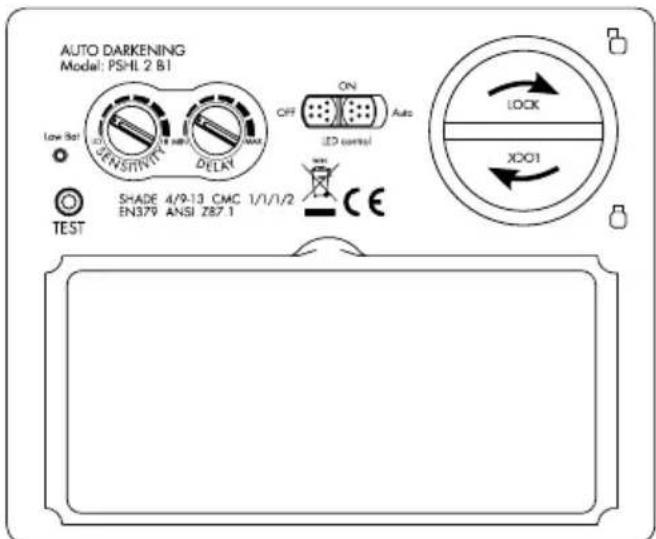

All technical data about this welding helmet is on the label, please learn about this product's technical facts.

The product is not suitable for laser welding.
The product is only approved for use within a temperature range of between -5^ to 55 ^ C
The product is not fire-resistant.
Welding helmet and ADF filter must not be exposed to any heat or moisture.
- Do not remove the ADF filter from the welding helmet and never open the housing of the ADF filter without authorisation from the manufacturer.
Prior to each use, check whether the Welding/Grinding setting was selected correctly.

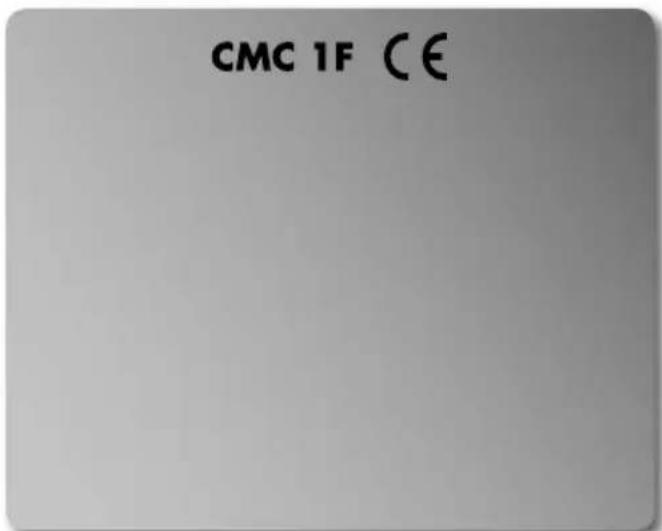

The cover lens must be installed on the outer side of the ADF filter. Otherwise, the ADF filter can get damaged.
- Do not carry out any modifications/replacements on the welding helmet and ADF filter without consent.
If the filter does not darken automatically whilst welding please stop the operation immediately and contact the dealers without delay.

• Do not use any alcohol, fuel or diluting agents to clean the ADF filter. Do not place the ADF filter in water.
  The response time of the ADF liquid crystal slows down if the ambient temperature is lower, however this does not have an impact on the protective functions.
  Please replace the housing of the ADF filter immediately if it is damaged or scratched because this can impair visibility and the protective performance.
  Please replace the viewing pane immediately if it is broken or scratched. Do not use any hard objects to replace the viewing pane of the filter.
  Regularly clean the surfaces of the ADF filter, sensor and solar cells.
  The welding helmet cannot withstand any damages that are caused by a heavy blow, explosion or abrasive liquids.
  The useful life depends on many different individual factors such as usage, cleaning, storage and maintenance. Regular inspections and replacement in the case of damage are recommended.
  The material used to manufac

ture the product will age over time. This can result in breakages on the welding helmet, for example. As a result of these damages, the welding helmet is no longer able to provide effective protection. In this case, the user should replace the welding helmet immediately.

This product cannot be used for overhead welding work and cutting operations. If this product is use for overhead welding or cutting, the molten metal drops could burn through the ADF filter and result in injuries to the user.
If the filter is faulty, the user must stop using the welding helmet immediately. Slag splashes can damage the surface of the filter and cause injury to the user's skin or cause other serious accidents.
This product is temperature resistant and hardly inflammable but in case of direct contact with naked flames or in case of access to an object with a high temperature, the helmet may begin to burn or melt. Please store and only use the welding helmet in the manner described in order to reduce such risks.

The ADF filter is an electronic product that is not waterproof. Please ensure it is kept dry and clean and not stored in a damp environment.
- Improper use could result in injury to the user and cause other types of diseases.
Please examine the filter prior to each use. As soon as the function and appearance seem defective, they must no longer be used.
The use of the welding helmet is prohibited if the filter flickers or if the level of darkening no longer corresponds to the standard value or there are other abnormal working conditions.
Please do not expose this product to unnecessary solar radiation.
- Please only use original spare parts. The use of non-original parts can cause problems with regard to the protective function, serviceability and degree of product protection.
- Exceeding the service life (insufficient protection) - please check the protective glasses prior to each use for damage and durability.
Using eye protection without the filter effect against radia

tion (damages the eyes) - prior to each use check whether the eye protection exhibits the necessary scale number.

Using the product against splashes (insufficient protection) - always check whether the correct protective effect is present.
Using the product against large dust particles (injury, accident). The eye protection equipment must only be used for the work described in the operating instructions. Any deviation from the instructions in the operating instructions can result in injuries or accidents.
Using damaged products (insufficient protection) - prior to each use check the protective glasses for damage and durability.
- Improper use of the eye protection (injury, accident). The eye protection device must only be used for the work described in the operating instructions. Any deviation from the instructions can result in injuries or accidents.
This device may be used by children aged 16 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking

experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the product. Cleaning and user main tenance should not be performed by children without supervision.

The welding helmet with automatic darkening is not suitable for laser and gas welding.
- Never place the welding helmet on hot surfaces.
- Never open the welding helmet. Never carry out repairs on or modifications to the welding helmet. These may only be carried out by trained experts.
Please ensure that you have set the automatic darkening before each welding procedure.
The safety visor should not be opened. It protects the filter from dirt and damage.
If the filter does not automatically darken, then immediately end the welding procedure and contact the manufacturer.
Only use the welding helmet in temperatures between -5^ and +55^ . The filter's reaction time will slow down if this

temperature has not been reached or is exceeded.

Clean the filter, the surface of the helmet and the solar cells regularly.
- Replace the protective visor if scratches or damages appear.
The welding helmet does not provide protection against impact.
- Frequent use, cleaning or storage can mean that the service life is less than 6 years. Replace the welding helmet immediately if the viewing panel gets scratched or the viewing panel is visibly damaged in any other way.

ATTENTION! Materials that come into contact with the wearer's skin may cause allergic reactions in people with sensitive skin.
ATTENTION! Eye protection can represent a hazard for the wearer if it is worn over normal corrective glasses due to the impact from high-speed particles.
ATTENTION! If protection against high-speed particles at extreme temperatures is required, the eye protection chosen must be labelled with the letter T direct

ly after the letter for the impact intensity, i. e. FT, BT or AT. If the letter for the impact intensity is not followed by the letter T, the eye protection may only be used against high-speed particles at room temperature.

- Initial use

Note: Only use the welding helmet with the rear pane mounted 4.
Note: Keep the UV filter's sensors 8 clean and clear.
After opening the package, immediately check to ensure that the package contents are complete and undamaged. Contact your dealer immediately if the package contents is incomplete or has any defects. Do not use the device if it is defective
Check that the welding helmet and the protective screen are intact before each use. If the protective screen has scratches, cracks or irregularities, it must be replaced before use, as serious injuries may occur otherwise.
Remove the protective film from the inside and the outside of the visor.

Adjust the welding helmet with the help of the headband 5 Turn the rear control dial headband 6 in order to adjust the welding helmet to the respective head size and the lateral control dial headband 7 in order to lock the welding helmet. When adjusting, ensure that your head is placed as far into the helmet as possible and that it sits as close as possible to your face.

Set the appropriate darkening shade before the welding procedure (see the following table). The darkening shade may be manually adjusted from 9 to 13 by twisting the darkening regulator on the outside of the helmet.

ATTENTION! The darkening regulator has the setting position "grind". If the darkening regulator is set to this position the automatic darkening is deactivated. Only use this setting when you do not wish to use the welding helmet for welding. The automatic darkening is then no longer active.
Check the light density before each use.

Table for setting the darkening shades

	Arc current (ampere)
	1,5	6	10	15	30	40	60	70	100	125	150	175	200	225	250	300	350	400	450	500	600
Grind	Grinding function - automatic dimming not active
SMAW	8							9		10		11		12		13			14
MAG	8								9	10		11		12				13			14
TIG / GTAW	8				9			10		11			12			13
MIG (heavy)	9									10		11			12		13		14
MIG (light)	10											11		12		13		14
PAC	9									10	11	12			13
PAW	4	5		6	7	8		9	10		11		12		12

SMAW: welding with coated electrodes

MIG (heavy): MIG welding heavy metals

MIG (light): MIG welding light metals and alloys

TIG / GTAW: welding with inert gases

MAG: welding with metal active gass

PAC: plasma cutting

PAW: plasma welding

Grind: Grinding function: Automatic dimming not active. Only use the setting if you do not use welding helmet for welding.

Test procedure

You can use the test button to check whether the welding helmet's darkening feature is working properly.

Bring the viewing panel closer to an external light source with a value of more than 40 W and examine whether or not the screen darkens or illuminates. To do so, turn the darkening control 9 clockwise from "Grind" to the next position. This sets the filter to auto-darkening mode.

If you turn the darkening cont anticlockwise back to "Grind", the filter's auto-darkening feature is once again deactivated.

Change UV filter

Press the dip downwards to change the UV filter / solar cell. (see fig. C). Subsequently you can remove the filter (see fig. C).

Then remove the darkening control from the exterior of the welding helmet by simply pulling it away, and unscrew the nut that is located beneath it (see fig. D).

Once you have removed the nut from the thread, you can completely remove the filter from the welding helmet. (see fig. D)

Delay setting

You can adjust the delay setting to configure whether or not the auto-darkening feature should be switched off immediately after stopping welding work, depending on the type of welding work. At the lowest setting, auto-darkening is switched off immediately. Turn the rotary switch clockwise towards the highest setting to prolong the time the auto-darkening feature remains active after welding work. This feature is very useful for handling afterglow.

Sensitivity setting

You can use the sensitivity setting to adjust the light sensitivity of the sensor. With low incident light, the control can be adjusted to the highest setting to ensure that the auto-darkening feature is activated even for a weak light source. Even with this additional feature, you can also adjust the light sensitivity of the sensor to suit your own personal requirements.

LED light with lowlight sensor

The LEDs 18 integrated in the welding helmet are controlled with the LED light switches 14. The LED 18 can be manually switched on by pressing the LED light switch 14 (middle position "ON").

The welding helmet as a lowlight sensor. This is activated by switching the LED light switch 14 to the right position "Auto". The lowlight sensor automatically switches the LED lamp on in dark environments and off in brightly lit environments. This helps to illuminate the object being welded in dark working conditions. The LED light switch 14 should always be switched of (left position "OFF") at the end of work and when storing the welding helmet.

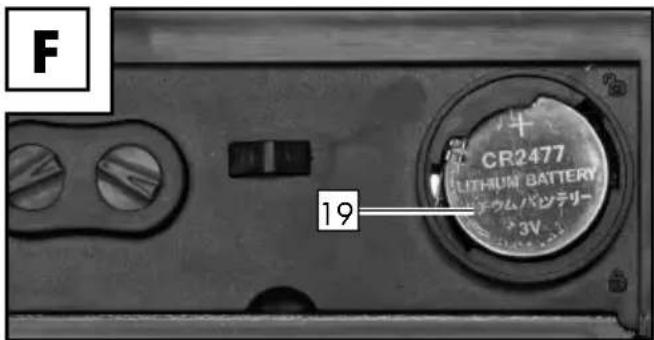

Battery replacement

If the battery charge level is too low you can replace the batteries. A low battery charge level is indicated with a red warning light on the Battery display 10.

In order to open the battery compartment 15, you must turn the cover of the battery compartment 15 counter-clockwise (see image B).
You can remove the battery once you have removed the battery compartment 15.
Observe the correct polarity when inserting the new battery. The positive pole marking "+" must face upwards (see following Figure F).

Then, close the battery compartment. To close the battery compartment, you must turn the position the battery compartment and turn it clockwise.

- Troubleshooting

Error Cause Solution
The filter does not darken in a normal way or flickers.	The protector does not darken in a normal way or flickers.	Clean the protector or replace it.
	The arc sensor is not clear. Clean the arc sensor's surface.
	The welding current is too low.	Set the sensitivity to the maximum degree.
The reaction is slow. The ambient temperature is too low / high.	Only use the welding helmet in temperatures between -5 °C and +55 °C.
	The sensitivity is too low. Set the sensitivity to a higher setting.
The visibility is poor. The protector	/ the protective screen is dirty.	Clean the protector and the protective screen.
	The protective film on the protective screen was not removed.	Remove the protective film.
	The ambient light is not sufficient. Apply more light to your work surroundings.
	The wrong darkening shade has been set.	Reset the darkening shade.
The welding helmet slips.	The headband 5 has been put on incorrectly.	Put on the headband 5 again tighter.

- Cleaning and Maintenance

Environmental instructions and disposal information

• Do not use any harsh cleaning agents to clean the helmet casing 2.

• Never bring the UV filter into contact with water.

Clean the product with a soft and dry or moistened cloth or clean it with a cloth moistened with disinfectant.

Don't waste, recycle!

Storage

• Keep the device in a dry place and out of the reach of children.
  During storage, make sure the LED light switch [4] is switched off [left position "OFF)].

The device, accessories and packaging should be recycled in an environmentally friendly manner.

Do not throw the auto-darkening welding helmet into household rubbish, fire or water. If possible, non-operational equipment should be recycled. Contact your local retailer for information.

As the consumer you are legally obliged (by the German Battery

Ordinance) to return any and all used batteries. Batteries containing harmful substances are labelled with the adjacent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the relevant heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Take used batteries to a waste management company in your city or community, or return them to your dealer. This satisfies your legal obligations while also making an important contribution to protecting the environment.

Warranty and service information

Creative Marketing & Consulting GmbH warranty

Dear customer, the warranty for this device is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not limited in any way by our warranty detailed below.

Warranty terms

The warranty period begins on the date of purchase. Please keep the original receipt in a safe place. This document is required as your proof of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, it will be repaired or replaced – at our choice – by us free of charge. This warranty is conditional on the defective device and the receipt of purchase being presented within the 3 year warranty period, and that there is a brief written description of the nature of the defect and of the date it arose.

If the defect is covered by our warranty, you will receive the product which has been repaired or a new product. A repair or

exchange of the device does not begin a new warranty period.

- Extent of warranty

The appliance has been manufactured to strict quality guidelines and meticulously examined before delivery.

The warranty applies to defects in material or manufacture. This warranty does not apply to product parts subject to normal wear and tear and which can therefore be considered as wear items, or to damage to fragile parts, e.g. switches, storage batteries or glass parts.

This warranty becomes void if the device has been damaged or improperly used or maintained.

All instructions provided in the instructions for use must be followed strictly to constitute proper use of the product. Purposes and practices which the operating instructions warn of or advise against must be avoided without fail.

This product is intended for private, non-commercial use only. Any incorrect or improper use of the device, use of force and changes not performed by our authorized service branch will void the warranty.

- Processing of warranty claims

Please follow the instructions below to ensure your claim is processed quickly:

When inquiring about your product please have your receipt and product number (e.g. IAN) ready as your proof of purchase.

The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left) or the decal at the back or bottom. In the event of malfunctions or other defects, please first contact

the service department below by phone or e-mail.

A product recorded as defective, along with the proof of purchase (sales receipt) and a description of the defect and when it occurred, can then be returned free of charge to you to the service address provided.

Note:

On www.lidl-service.com you can download this as well as many other manuals, product videos and software.

Service

Only use original accessory parts:

Black variant / Variant with flames (PSHL 2 B1, Item no.:2182/2183):

Viewing pane (CMC 1F CE): 118mm× 95mm× 1.0mm
Rear lens (CMC 1F CE): 103.8 ~mm × 47.3 ~mm × 1.0 ~mm

How to contact us:

GB/IE/NI

Name: C.M.C. Creative Marketing & Consulting GmbH

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 314800

Please note that the following address is not a service address. Please first contact the service point named above.

Address:

C.M.C. Creative Marketing & Consulting GmbH

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

DEUTSCHLAND

Ordering spare parts:

www.lidl.com/contact-us

Label meanings

Safety viewing panels approved according to DIN EN 166 (CXXXXCMC, CXXXXCMC):

Viewing pane: CMC 1 F CE

CMC = manufacturer code

1 = optical class

F = mechanical strength (low-energy impact at 45 m/s)

CE = CE symbol)

- Rear pane: CMC 1 F CE

CMC = manufacturer code

1 = optical class

F = mechanical strength (low-energy impact at 45 m/s)

CE = CE symbol)

ADF approved according to

DIN EN 379:4/9-13 CMC

1/1/1/2/379 CE (CXXXXCMC)

Legend:

4 = bright state

9-13 = dark state

CMC = manufacturer code

number 1 = optical class

number 2 = scattered light grade

number 3 = homo-geneity class

number 4 = angle dependency class

379 = test standard

CE = CE symbol

Welding helmet case: CMC EN 175 F CE (CXXXXCMC, CXXXXCMC):

Manufacturer identification: CMC
Number of the standard: EN 175
Area(s) of application (if required): S, F, B
Mass in grams (if required)
IP rating for welding helmet, order no.:
2182/2183: F
CE = CE symbol

Symbol	Protection type	Description of scope of application
S	increased strength	Mechanical strength
F	Low energy impact	Mechanical strength
B	Medium energy impact	Mechanical strength

If the symbols F, B and S are not obtained for the viewing panel as well as the supporting body, the entire eye protection device is to be conferred with a lower rating.

Certification body:

EU Declaration of Conformity

1. PSA (product, type, batch or serial number):

Automatic welding helmet
IAN: 314800
Serial number:
2182 (black variant) /
2183 (variant with flames)
Year of manufacture: 2019/25
Model: PSHL 2 B1

1. Name and address of the manufacturer and his/her representative, if required:

C.M.C. Creative Marketing & Consulting GmbH
Documentation Officer: Alexander Hoffmann
Katharina-Loth-Str. 15
66386 St. Ingbert
GERMANY

1. The manufacturer is solely responsible for the creation of the declaration of conformity.

C.M.C. Creative Marketing & Consulting GmbH

1. The object of the declaration (identification of the PPE that enables traceability; if necessary, it can contain a sufficient sharp image if it is necessary for the identification of the PPE):

Welder visor PSHL 2 B1, item no. 2182, welder visor PSHL 2 B1, item no. 2183

Viewing pane without filter effect
PSHL 2 B1, item no. 2182, 2183

Viewing pane without filter effect
PSHL 2 B1, item no. 2182, 2183

Automatic welder protective filter with manually adjustable protection level PSHL 2 B1, item no. 2182, 2183

1. The object of the declaration described

under number 4 corresponds to the relevant harmonisation legislation of the union:

Electromagnetic Compatibility

2014 / 30 / EU

RoHS directive

2011 / 65 / EU

Personal Protective Equipment - Ordinance

(EU) / 2016/425

1. Indication of the relevant harmonised standards used or other technical specifications in relation to which conformity is declared, including the date of the standards or other technical specifications:

EN 166:2001

EN 175:1997

EN 379:2009.

1. The notified certification body DIN CERTCO Gesellschaft für Konformitätsbewertung mbH, Alboinstrasse 56, 12103 Berlin, Notified body number 0196, carried out the EC type

examination and issued the EC type examination certificate CXXXXCMC/RO, CXXXXCMC/RO, CXXXXCMC/RO, CXXXXCMC/RO, CXXXXCMC/RO.

On behalf of M. Sc. Alexander Hoffmann - Quality Assurance -

Symbolforklaring 22

Indledning 22

Formalsbestemt anvendelse Side 22

Shift of UV - filter

Skub boilevaek nedefter for at skifte UV-filteret / solcellen (se afb. C). Derefter kan du tage filteret ud (se afb. C).

www.lidl.com/contact-us

F = mekanisk fasthed

(Stod med lille kraft 45m / s )

CE = CE-maerkninq

F = mekanisk fasthed

(Stod med lille kraft 45m / s )

CE = CE-maerkninq

ADF kontROLLERet i henhold til DIN EN 379:

4/9-13 CMC 1/1/1/2/379 CE

(CXXXXCMC)

Forklaring:

4 = lys tilstand

www.lidl.com/contact-us

C.M.C. Creative Marketing &

Name: C.M.C. Creative Marke

ting & Consulting GmbH

Internetadresse: www.cmc-creative.de

E-Mail: service.de@cmc-creative.

[e-mail]
