PRRS 15 A3 - Plumbing accessory PARKSIDE - Free user manual and instructions

Product type	Drain cleaning set
Brand	Parkside
Model	PRRS 15 A3
Flexible hose length	15 m
Maximum working pressure	150 bar (15 MPa)
Maximum permissible pressure	180 bar (18 MPa)
Maximum flow rate	450 l/h
Max. water inlet temperature	60 °C
Compatibility with high-pressure cleaners	Parkside PHD 100 (except 2009), PHD 110, 135, 150, 170, PHDP 180
Min. pipe diameter	40 mm
Min. bending radius	70 mm
Max. bending angle	90°
Delivery contents	Drain cleaning set, adapter, instruction manual
Main functions	Unclog drains, waste pipes, toilets
Care and cleaning	Clean with a damp cloth; store frost-free
Safety	Wear safety goggles; insert the hose at least up to the red marking before pressurizing
Spare parts and repairability	Spare parts available at www.grizzly-service.eu; adapter part no. 30300513
Warranty	3 years (according to conditions)

Frequently Asked Questions - PRRS 15 A3 PARKSIDE

Which type of Parkside high-pressure cleaner is compatible with the PRRS 15 A3?

The set is compatible with models PHD 100 (except year 2009), PHD 110, 135, 150, 170 and PHDP 180 with a max. pressure of 150 bar.

What is the maximum working pressure of the set?

The working pressure is 150 bar (15 MPa), with a maximum permissible pressure of 180 bar (18 MPa).

What is the length of the flexible hose?

The flexible hose is 15 meters long.

Can the set be used with a high-pressure cleaner of another brand?

Yes, thanks to the included adapter, the set is compatible with standard high-pressure cleaners from other manufacturers.

What pipe diameter can be treated?

The set is suitable for pipes with a diameter of at least 40 mm, with a minimum bending radius of 70 mm and a maximum bending angle of 90°.

How to correctly insert the hose into the pipe?

Push the flexible hose at least up to the red safety marking before turning on the cleaner. This avoids any risk of injury from the high-pressure jet.

What are the important safety instructions?

Wear safety goggles, never point the jet at people or animals, and do not remove the hose while it is under pressure.

How to maintain the drain cleaning set?

Clean it with a damp cloth. It requires no special maintenance. Store it in a frost-free place.

What is the maximum water temperature?

The water inlet temperature must not exceed 60 °C to avoid damaging the flexible hose.

Where to find spare parts?

Spare parts are available on the website www.grizzly-service.eu. For example, the adapter has part number 30300513.

USER MANUAL PRRS 15 A3 PARKSIDE

Translation of the original instructions

NL BE

Buisreinigungsset

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR B

GB/IE Translation of the original instructions Page

General description. 10

Extent of the delivery 10

Functional description 10

Overview. 10

Technical specifications. 10

Safety information 10

Initial Operation. 11

Connectionwithoutadapter 11

Connection with adapter.. 11

Operation 11

Cleaning/Maintenance/Storage..12

Waste disposal/

Environmental protection .12

Replacement parts/Accessories..12

Guarantee 12

Service-Center. 13

Importer 13

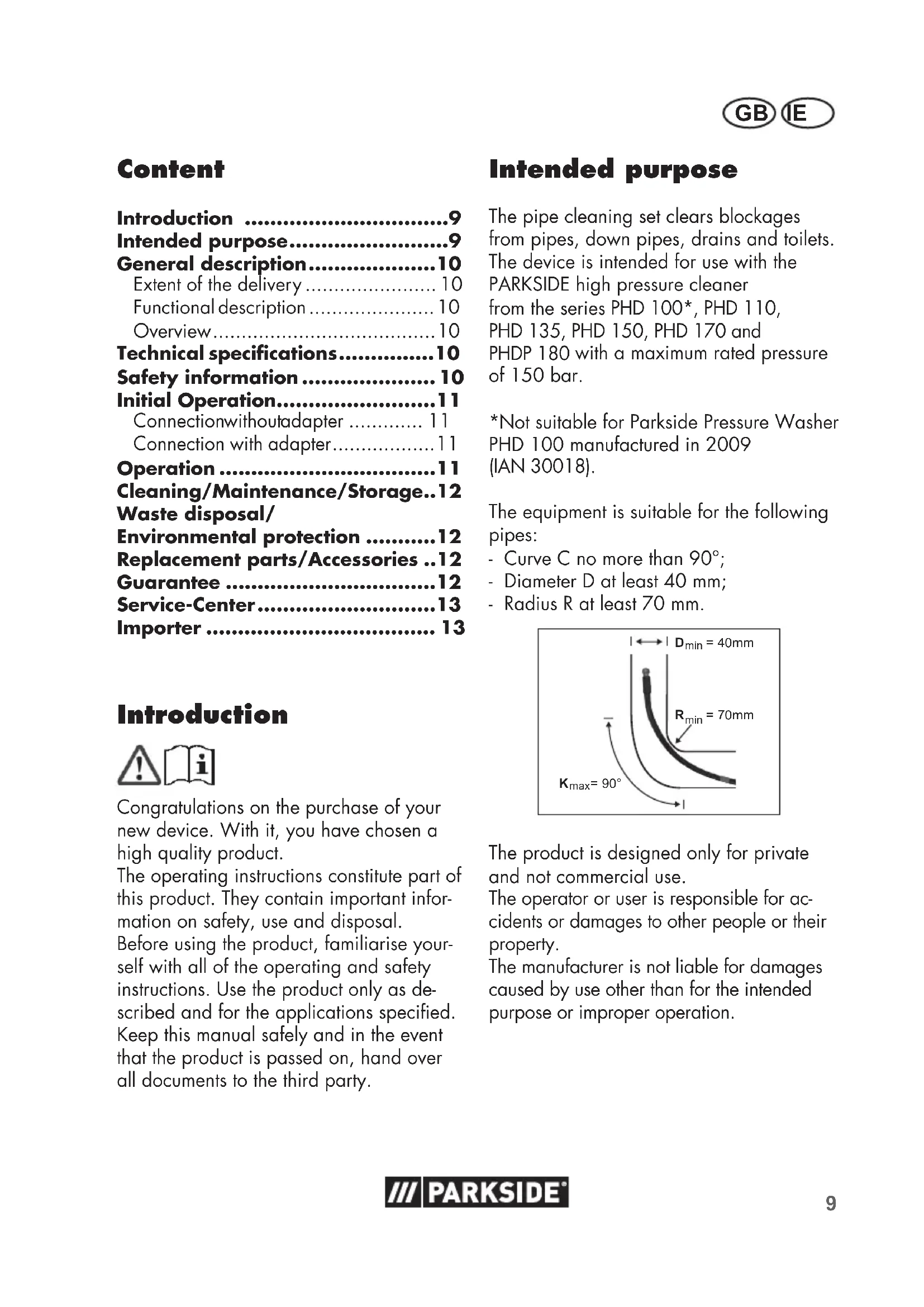

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The pipe cleaning set clears blockages from pipes, down pipes, drains and toilets. The device is intended for use with the PARKSIDE high pressure cleaner from the series PHD 100*, PHD 110, PHD 135, PHD 150, PHD 170 and PHDP 180 with a maximum rated pressure of 150 bar.

*Not suitable for Parkside Pressure Washer PHD 100 manufactured in 2009 (IAN 30018).

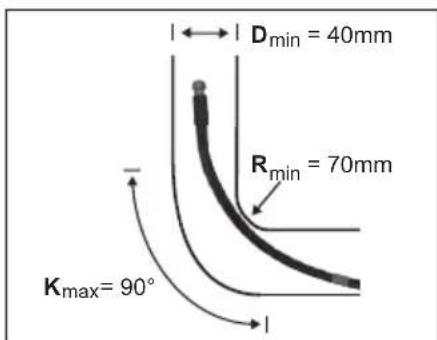

The equipment is suitable for the following pipes:

• Curve C no more than 90^

• Diameter D at least 40 mm;

• Radius R at least 70 mm.

The product is designed only for private and not commercial use.

The operator or user is responsible for accidents or damages to other people or their property.

The manufacturer is not liable for damages caused by use other than for the intended purpose or improper operation.

General description

See the front fold-out page for illustrations.

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Pipe cleaning set
  -Adapter
• Instruction Manual

Functional description

The pipe cleaning set comprises a nozzle head and a 15m long, flexible hose, which can be connected to a pressure washer. The hose is moved through the pipe by the four high-pressure jets that are directed backwards and the blockage is released by the water jet. The adapter is suitable for connecting to other common high pressure cleaners made by other manufacturers.

Overview

1 Pipe cleaning set

Connecting piece

3 Nozzle head
4 Pipe cleaning hose
5 Red safety marking
6 Marking ring
7 Scale

8 Pressure washer jet gun (sold separately)

9 Adapter

10 Retainer nut

Technical specifications

PRRS 15 A3

Pipe cleaning set:

Max. inlet temperature

(T max) 60 °C/140 °F

Length. 15 m

Use the product only as described and for the applications specified:

Rated pressure (p) 15 MPa / 150 bar Allowable pressure

(p max) 18 MPa / 180 bar

Max. flow rate (Q max) 450 l/h

Safety information

Please also observe the safety instructions for your pressure washer.

To avoid accidents and injuries:

Pressure washers can be dangerous if used incorrectly. Do not di

rect the jet at people, animals, live electrical equipment or the equipment itself.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
  Operation of the equipment is not permitted for people under the age of 16.
• Wear goggles to protect your eyes

against loose dirt while working.

• To avoid damage and personal injury, only use the unit on leak-tight pipes and drains that are resistant to pressure.
• Do not leave equipment unattended in the workplace.
• Switch on the pressure washer only when the pipe cleaning hose is at least up to the red marking in the pipe to be cleaned.

During high pressure operation, do not pull the inserted hose completely out of the pipe to be cleaned. You might be injured by the four pressure jets coming out at the back.

• The maximum washing temperature must not exceed 60^ . The hose could be damaged.

Initial Operation

Connection without adapter

Connecting: Connect the connecting piece (2) to the pressure washer jet gun PARKSIDE (8).

1. Turn it by 90^ until it engages (bayonet joint).

Disconnecting:
3.	Release	the
by	pressing	and
90°	in	the
(bayonet	locking

Connection with adapter

Connecting: Attach the adapter (9) to the connection piece (2) and turn it through 90^ until it locks into

place (bayonet locking device).

1. Connect the jetz gun (8) (bayonet locking device) and screw the retainer nut (10) of the adapter (9) to the spray gun.

Disconnecting:

1. Release the rettair the adapter (9).

2. Release the lockin pressing and turning 90^ in the opposite (bayonet locking device).

Operation

1. Push the pipe cleaning hose (4) at least up to the red safety marking (5) into the pipe to be cleaned. Caution! The red safety marking must be in the pipe before the pressure washer is switched on. The high-pressure jet could cause injury.

2. Switch on the pressure washer and squeeze the trigger on the spray gun (B 8).

3. Whilst the nozzle head (3) is moving through the pipe independently, feed in the pipe cleaning nuction hose (4pcaually. (2) 4turinglease bcbaggs, squeeze site theding several times in a rowe. then release it.
4. Your progress in the pipe can be marked with the marking ring (6). The progress can be read from the white scale (A 7) on the hose, which is spaced at intervals of 1m .

Cleaning/Maintenance/Storage

Always remove the mains plug of the high pressure cleaner before working on the device.

Otherwise, there is a risk of electric shock.

• Clean the equipment with a damp cloth.
  The equipment is maintenance free.
• Keep the equipment in a frost-proof area.

Waste disposal/ Environmental protection

Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Hand over the device at an utilization location.

Ask our Service-Center for details.

Replacement parts/ Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 13).

9 Adapter 30300513

Guarantee

This equipment is provided with a 3-year guarantee from the date of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. adapter) or to cover damage to breakable parts.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

Please have the receipt and item number (IAN 346401_2004) ready as proof of purchase for all enquiries.

Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
