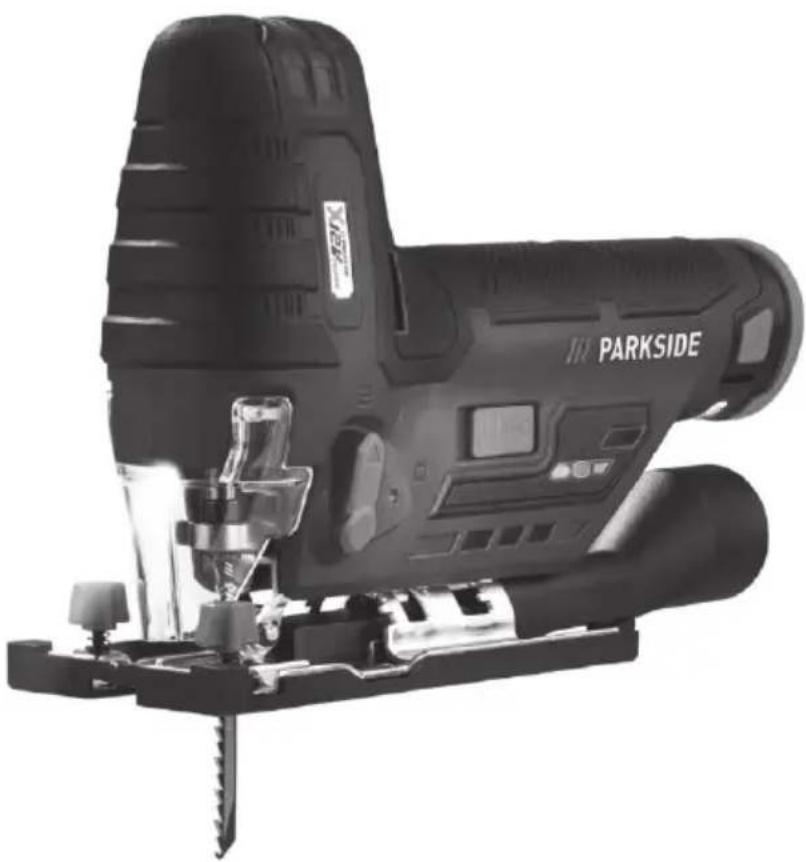

PSTKA 12 B3 - Electric saw PARKSIDE - Free user manual and instructions

Brand	Parkside
Model	PSTKA 12 B3
Product type	Cordless jigsaw
Rated voltage	12 V
Idle speed	1500 - 2800 min⁻¹ (adjustable in 6 levels)
Stroke length	18 mm
Cutting depth (wood)	max. 70 mm
Cutting depth (aluminum)	max. 3 mm
Weight (with battery)	approx. 1.6 kg
Power supply	Li-Ion battery 12 V, 2.0 Ah (Parkside X 12 V TEAM range)
Miter angle	-45° to 45° (6 detents)
Pendulum stroke	3 positions (0, 1, 2)
Work light	Integrated LED
Blade type	T-shank (single pin fixing)
Included	2 blades (wood T144D, metal T118A), Allen key, anti-splinter guard, guide shoe, protective cover, dust extraction adapter, reducer, parallel guide, battery, charger, storage case
Sound pressure level (LₚA)	77.2 dB(A), K=5 dB
Sound power level (LWA)	88.2 dB(A), K=5 dB
Vibration (wood)	12.27 m/s², K=1.5 m/s²
Vibration (metal)	14.67 m/s², K=1.5 m/s²
Intended use	Domestic, straight/curved/miter cuts in wood, plastic, light metal
Warranty	3 years (conditions in manual)

Frequently Asked Questions - PSTKA 12 B3 PARKSIDE

How to change the saw blade on the Parkside PSTKA 12 B3?

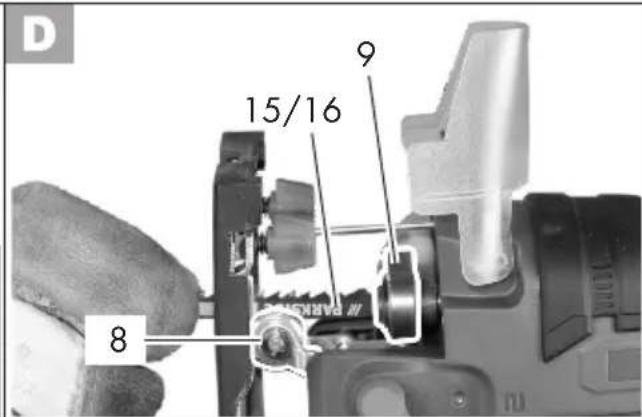

Turn the collet chuck (9) forward and hold it. Insert the new blade (T-shank) into the chuck ensuring that the back rests in the groove of the guide pulley (8). Release the chuck. Wear gloves.

Which battery to use with the Parkside PSTKA 12 B3 jigsaw?

Use exclusively a battery from the Parkside X 12 V TEAM range (models PAPK 12 A1, A2, B1 or B2). The charger must be from the corresponding range (PLGK 12 A1, A2 or B2).

How to adjust the miter angle on the Parkside PSTKA 12 B3 saw?

Take out the Allen key (17) from the housing. Loosen the hexagon screws (6) under the base plate. Tilt the base plate from -45° to 45° (6 detents). Retighten the screws. For extreme angles, lift or remove the protective cover (13) and the anti-splinter guard (22).

How to clean and maintain the Parkside PSTKA 12 B3 jigsaw?

Turn off the device and remove the battery. Clean the ventilation slots, housing, and handles with a damp cloth or a brush. Do not use water or detergents. The device requires no particular maintenance.

What accessories are included with the Parkside PSTKA 12 B3?

The delivery includes: 2 saw blades (wood T144D and metal T118A), an Allen key, an anti-splinter guard already mounted, a guide shoe, a protective cover, a dust extraction adapter with reducer, a parallel guide, a battery, a charger and a storage case.

Can I use the Parkside PSTKA 12 B3 saw for plunge cuts?

Yes, only on soft materials (wood, aerated concrete, plasterboard) with a miter angle of 0° and a short blade. Place the front edge of the plate on the workpiece, turn on the saw, plunge gently at an angle, then straighten it.

How to adjust the cutting speed on the Parkside PSTKA 12 B3 saw?

Use the dial (27) on the back of the device to set the speed to 6 levels, from 1500 to 2800 min⁻¹. Adapt the speed to the material: low for metal, high for wood.

What to do if the Parkside PSTKA 12 B3 saw does not start?

Check that the battery (23) is correctly inserted and charged (the indicator (3) should show at least one red LED). If the problem persists, contact customer service (switch or motor defective).

How to mount the parallel guide on the Parkside PSTKA 12 B3 saw?

Loosen the locking screws (11). Insert the parallel guide (18) into the holes (10) on the desired side. Retighten the screws. It can be mounted on both sides.

Can I use an external vacuum cleaner with the Parkside PSTKA 12 B3 saw?

Yes, push the dust extraction adapter (19) into the rail between the device and the base plate until it stops. Connect an approved vacuum cleaner (not included). Use the reducer (20) if necessary.

USER MANUAL PSTKA 12 B3 PARKSIDE

PDF ONLINE www.lidl-service.com

Black Parkside Jigsaw tool with visible circuit board and screw base (no text or symbols on body)

Akku-Stichsäge / Cordless Jigsaw / Scie sauteuse sans fi l PSTKA 12 B3

DE AT CH

Akku-Stichsäge

Translation of the original instructions

NL BE

Accu-decoupeerzaag

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Translation of the original instructions Page

Service-Center......20

Importeur 20

Original-EG-

General description......22

Extent of the delivery 22

Description of functions....22

Overview....22

Technical data 23

Safety instructions......24

Symbols and icons 24

General Safety Directions

for Power Tools 24

Additional safety instructions .....27

Additional safety instructions

for sabre saws....27

Residual risks....28

Assembly....28

Attaching/removing

the protective cover 28

Assembling/removing

the slide shoe 28

Removing/inserting

the rechargeable battery 29

Checking the charge status

of the rechargeable battery .....29

Recharging the battery....29

Installing/changing the saw blade ....29

Removing/attaching

the parallel guide....30

Removing/attaching

the tension tear protection ....30

Operation 30

Switching on and off 30

Adjusting the mitre angle ....30

Adjusting the stroke strength .....31

Connecting external dust extraction...31

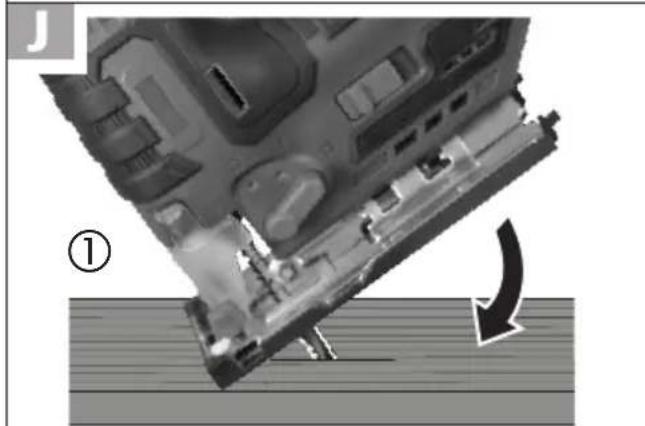

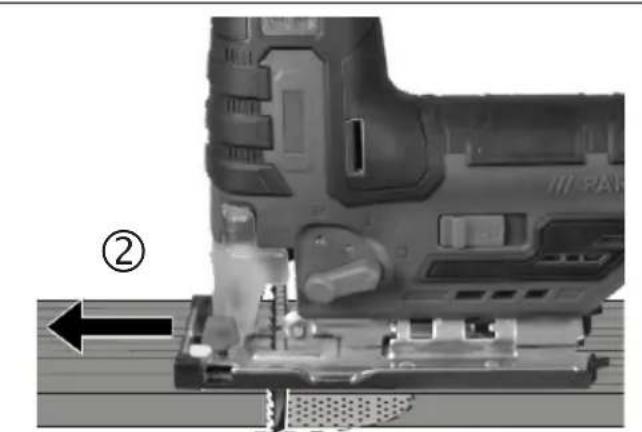

Plunge cuts....31

Working instructions....31

Cleaning and Servicing......32

Cleaning....32

Maintenance 32

Storage....32

Disposal and protection of the environment....32

Replacement parts/Accessories ..33

Trouble shooting 34

Guarantee 35

Repair Service....36

Service-Center......36

Importer 36

Translation of the original EC declaration of conformity ....123

Exploded Drawing ......129

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Proper use

With firm support, the device is suitable for straight and curved cuts as well as mitre cuts of up to 45^ on edged workpieces made of plastic, wood and light metal. The

GBIE

device is only approved for private use in dry spaces.

Please note the information on saw blade types.

Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

The user or operator is responsible for accidents causing injury to other people or damage to property.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The device is part of the Parkside X 12 V TEAM series and can be operated using Parkside X 12 V TEAM series batteries. The batteries may only be charged using chargers from the Parkside X 12 V TEAM series.

General description

The illustration of the most important functional components can be found on the front and the back fold-out pages.

Extent of the delivery

Carefully unpack the trimmer and check that it is complete:

• Cordless Jigsaw

• Accessories:

• 1 saw blade for wood (T144D)

• 1 saw blade for metal (T118A)
• 1 Allen key (Stowed laterally in device)
• Tension tear protection (already fitted)
• Slide shoe (already fitted)

• Protective cover (already fitted)

• Adapter for external dust extraction (already fitted)

• Reducer
• Parallel guide
• Rechargeable battery

• Charger

• Storage case

• Separate instruction manual for battery and charger
• Instruction manual

Dispose of the packaging material correctly.

Description of functions

The cordless sabre saw has a pendulum stroke device, a work light and a parallel guide.

The notches for mitre angles allow you to work precisely.

Please refer to the descriptions below for information on how the operating elements work.

Overview

1 On/Off switch

2 Handle

3 Battery charge indicator
4 Baseplate
5 Slide shoe
5a Notch

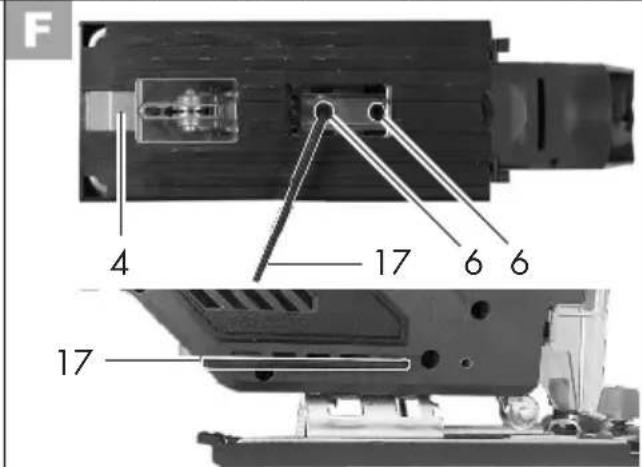

6 Hexagon socket screws (not visible)
7 Pendulum stroke switch
8 Guide roller
9 Chuck
10 Slide-in openings

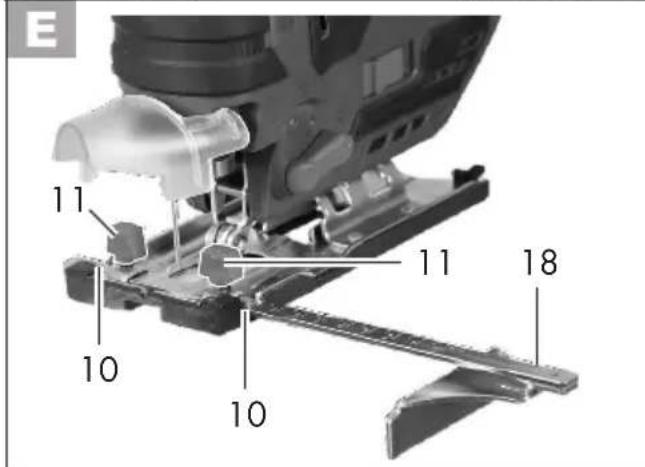

11 Retaining screws
12 Guard
13 Protective cover
14 LED work light (not visible)

15 Saw blade for metal
16 Saw blade for wood
17 Allen key
18 Parallel guide

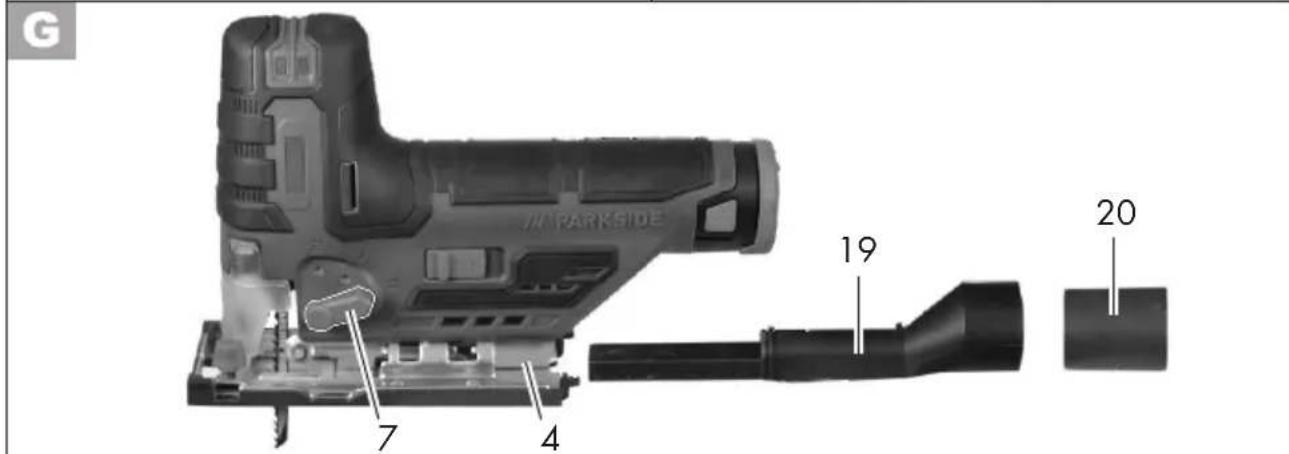

19 Adapter for external dust extraction
20 Reducer

21 Recess in slide shoe

22 Tension tear protection

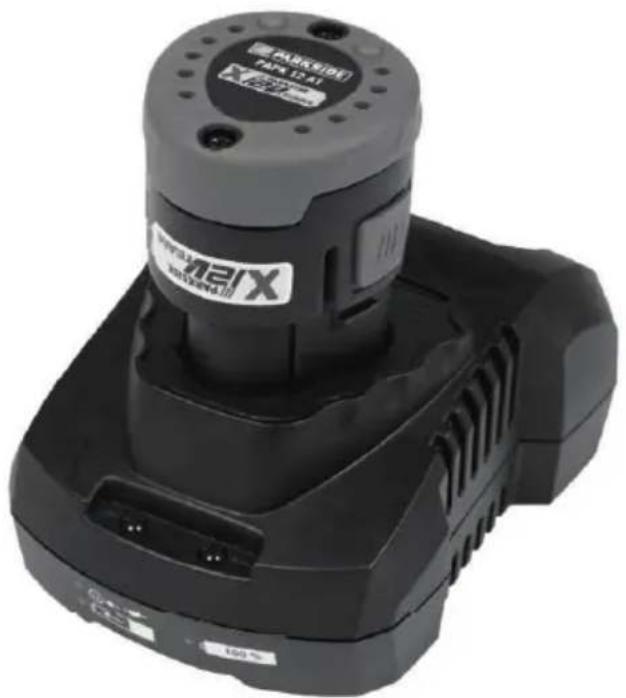

23 Rechargeable battery

24 Release button for rechargeable battery

25 Charger

26 Storage case

27 Rotary wheel

Technical data

Cordless Jigsaw ...... PSTKA 12 B3

Nominal input voltage U....12 V= Idle speed n₀....1500 - 2800 rpm Saw stroke....18 mm Cutting depth in wood....max. 70 mm Cutting depth in aluminium....max. 3 mm Weight (with battery)....Approx. 1.6 kg Sound pressure level

(L_pA) 77,2 dB(A), K_pA = 5 dB

Sound power level

(L_WA) 88,2 dB(A), K_WA = 5 dB

Vibration ( q_h )

in wood.....12,27 m/s ^2 ; K= 1,5 m/s ^2

in metal ..... 14,67 m/s²;K= 1,5 m/s²

Temperature..... max. 50 °C

Charging process....4 - 40 °C

Operation....-20 - 50 °C

Storage....0 - 45 °C

Attention! An up-to-date list of battery compatibility can be found at:

www.lidl.de/akku

This device can only be operated with the following rechargeable batteries:

PAPK 12 A1, PAPK 12 A2,

PAPK 12 B1, PAPK 12 B2.

This type of battery may be charged with the following chargers: PLGK 12 A1, PLGK 12 A2, PLGK 12 B2.

Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity.

The vibration emission value has been measured according to a standardised testing method and may be used for comparison with another power tool.

The indicated vibration emission value may also be used for an introductory assessment of the exposure.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).

GBIE

Safety instructions

Ensure that the safety instructions are observed when operating the trimmer.

Symbols and icons

Symbols on the trimmer:

This device is part of the Park-side X 12 V TEAM series.

Carefully read these operating instructions.

Electrical appliances must not be disposed of with the domestic waste.

Symbols in the manual:

Warning symbols with information on damage and injury prevention.

Instruction symbols with information on preventing damage.

Wear cut-resistant gloves

Help symbols with information on improving tool handling.

General Safety Directions for Power Tools

WARNING! Read all safety notices, instructions, illustrations and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool).

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a RCD (Residual Current Device) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat,

or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related hazards.

h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Remove the plug from the wall socket and/or remove the rechargeable battery before you change the device's settings, change accessory parts or put away the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Look after the power tool and application tool carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking

into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in unexpected situations.
5) Careful handling and use of battery devices
a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.
c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.
d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.
e) Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.

f) Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130 °C can cause an explosion.

g) Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

Additional safety instructions

- Hold the electric tool by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring. Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.

- Fasten and secure the workpiece by means of clamps or with another method on a stable underground. If you hold the workpiece only with your hand or against your own body, it will stay instable and this can lead to a loss of control.

- Do not use any accessories that are not recommended by PARK-SIDE. This can result in electric shock or fire.

Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 12 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.

Additional safety instructions for sabre saws

- Keep hands away from the sawing area. Do not reach underneath the workpiece. Upon contact with the blade there is a risk of injury.

- Move the power tool against the workpiece only when it is turned on. Otherwise, there is a risk of kickback if the attachment tools jam in the workpiece.

• Make sure that the footplate is secure during sawing. A tilted saw blade may break or cause a kickback.

- After you have finished work, turn the power tool off and do not pull the saw blade out of the cut until it has come to a standstill. In this way you will avoid any kickback and can safely put down the power tool.

- Use only undamaged saw blades in perfect condition. Bent or blunt blades can break, adversely affect the cut or cause kickback.

- Do not brake the saw blade after switching the device off by applying side pressure. The saw blade may be

GBIE

damaged, break or cause a kickback.

- Use suitable detectors in order to find hidden supply lines or consult the local utility company.

Contact with electric cables can lead to fire and electric shock.

Damage to a gas pipe can cause an explosion. Penetration into a water line causes property damage.

• Secure the workpiece. A workpiece that is retained with clamping appliances or a vice is held more securely than with your hand.
• Wait until the power tool has stopped before placing it down. The attachment tools can jam and lead to a loss of control over the power tool.

Residual risks

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Assembly

Only insert the battery once the battery-operated tool is fully ready for use.

Attaching/removing the protective cover

Attaching the protective cover

1. Press the two holders on the protective cover (13) into the recesses on the appliance housing. The protective cover (13) locks into place.

You can fold the fitted protective cover (13) up by 90°.

Removing the protective cover

1. Carefully press the two holders on the protective cover (13) apart.
2. Pull the protective cover (13) to the front.

Assembling/removing the slide shoe

When working on scratch-sensitive workpieces, working with the slide shoe (5) is recommended.

Attaching the slide shoe

1. Place the shoe (5) on the front of the bottom plate (4).
2. Now, press the notches (5a) on the back of the slide shoe over the base-plate (4).

Removing the slide shoe

1. Press the slide shoe (5) on the notches (5a) from the baseplate (4).
2. Pull the slide shoe (5) forward, away from the baseplate (4).

Removing/inserting the rechargeable battery

1. To remove the battery (23) from the device, press the release button (24) on the battery and pull the battery (23) out.
2. To insert the battery (23), push the battery (23) along the guide rail into the device. You will hear it click into place.

Only insert the battery once the battery-operated tool is fully ready for use.

Checking the charge status of the rechargeable battery

The battery charge indicator (3) signalises the state of charge of the battery (23) when the device is in operation.

3 LEDs light up (red, orange and green): Battery is fully charged.
2 LEDs light up (red and orange):
Battery has a residual charge.
1 LED lights up (red):
Battery has to be charged

Only charge the battery (23) when the red LED on the charge status indicator (3) is on.

Recharging the battery

Allow a hot battery to cool before charging.

The charging time is around 1 hour.

1. Remove the battery (23) from the appliance, as necessary.

2. Insert the battery (22) in the charging compartment of the battery charger (25).

3. Plug the battery charger (25) into a mains outlet.

4. When the battery is fully recharged unplug the battery charger (25) from the mains.
5. Remove the battery (23) from the charger (25).

Installing/changing the saw blade

Wear protective gloves when attaching the saw blade. Risk of injury when touching the saw blade.

Only saw blades with a T-shank mount (single lug shank) such as the supplied saw blades (15/16) can be used.

Installing the saw blade

Make sure that the saw blade holder is free of splinters or other material residue.

1. Turn the chuck (9) as far forward as possible and hold it firmly in this position.
2. Insert the saw blade (15/16) into the chuck (9). When inserting the saw blade (15/16), make sure that the back of the saw blade is in the notch of the guide roller (8). Make sure that the saw blade (15/16) is attached correctly and the teeth are pointing in the cutting direction.
3. Release the chuck (9).

Be sure to always use the correct saw blade for the material.

Removing the saw blade

1. Turn the chuck (9) as far forward as possible and hold it firmly in this position.
2. Remove the saw blade (15/16) from the chuck (9).
3. Release the chuck (9).

Removing/attaching the parallel guide

The parallel guide can be fitted on both sides of the device.

Attaching the parallel guide

1. Loosen the retaining screws (11) if necessary.
2. Slide the parallel guide (18) through the slide-in openings (10).
3. Retighten the retaining screws (11).

Removing the parallel guide

1. Loosen the retaining screws (11).
2. Pull the parallel guide (18) out of the slide-in openings (10).

Removing/attaching the tension tear protection

Removing the tension tear protection

1. Press the tension tear protection (22) away from the recess in the slide shoe (21).

Attaching the tension tear protection

1. Press the tension tear protection (22) into the recess in the slide shoe (21).

Operation

Switch off the device and remove the battery before carrying out any maintenance work.

Ensure that the ambient temperature does not exceed 50 °C or fall below -20 °C during work.

Switching on and off

1. Push the battery (23) along the guide rail into the device. You will hear it click into place.

Switching on:

1. The rotary wheel (27) on the back of the device has 6 levels for achieving the desired speed.
2. To switch the device on, push the on/off switch (1) forwards.

Switching off:

1. Pull the On/off switch (1) backwards to switch off the device.

Adjusting the mitre angle

1. Remove the Allen key (17) from the storage area on the side of the device housing.
2. Loosen the hexagon socket screws (6) with the Allen key (17).
3. Set the bottom plate (4) to the desired position (-45° to 45°). A total of 6 levels can be set (-45°, -22.5°, 0°, 15°, 30° and 45°).
4. Tighten the hexagon socket screws (6) with the Allen key (17).
5. Place the Allen key (17) back into the storage area on the side of the device housing

The maximum mitre angle can only be set on both sides if the protective cover (13) is folded up or disassembled (see "Attaching/removing the protective cover") and the tension tear protection is removed (See "Removing/attaching the tension tear protection").

Adjusting the stroke strength

The pendulum movement of the saw blade can be adjusted with the pendulum stroke switch (7). There are 3 positions for the pendulum stroke switch (7):

0 - no stroke
1 - low stroke
2 - medium stroke

The optimal stroke strength can be established through practice; the following settings are recommended:

• Fine and clean cutting edges can be achieved with little or no pendulum motion (level 1 or 0).
• For thin material, hard material (e.g. Aluminium) and for cutting curves, use level 0 also.
• Soft material (wood, plastic, etc.): Set the pendulum to level 1 or 2.

With the pendulum stroke activated you can work much faster.

Connecting external dust extraction

Connecting external dust extraction:

1. Slide the adapter for external dust extraction (19) as far as it will go into

the guide rail between the device and baseplate (4).

1. Connect an approved dust extractor (not included in delivery) to the adapter for external dust extraction.
2. If the external dust extractor does not fit, use the additional reducer (20) if necessary.

Removing the external dust extraction:

1. Disconnect the suction tube from the adapter for external dust extraction (19).
2. Disconnect the adapter for external dust extraction (19).

Plunge cuts

Plunge cuts may only be made in soft materials such as wood, aerated concrete, plasterboard, etc. However, this requires a certain amount of practice and is possible only with short saw blades.

Plunge cuts are only allowed if the mitre angle is 0^ .

1. Place the front edge of the baseplate onto the workpiece surface.
2. Switch the saw on.
3. Slowly saw at an angle into the workpiece, then bring the saw into a vertical position.
4. Continue sawing along the cutting line.
5. Turn off the saw and lift it off the workpiece after finishing work.

Working instructions

• Clamp the workpiece. Use a clamping device for small workpieces.
• Draw a line to specify the direction in which the saw blade is guided.

GBIE

• Hold the device securely by the handle.
• Set the sawing speed.
• Adjust the mitre angle.
• Set the pendulum stroke position.
• Turn on the device.
• Wait until the device has reached full speed.
• Place the bottom plate (4) on the workpiece.
• Slowly move the device along the marked line, pressing the bottom plate firmly against the workpiece.
• Do not apply too much pressure to the device. Let the device do the work.
• Before shutting down the device, switch it off and wait for it to come to a complete standstill.

Cleaning and Servicing

Switch off the device and remove the battery before carrying out any maintenance work.

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original parts.

Cleaning

The device must not be sprayed with water or placed in water. Otherwise there is a risk of electric shock.

Do not use any cleaning agents or solvents. This could damage the device irreparably. Chemical substances may attack the plastic parts of the device.

- Keep the ventilation slits, motor housing and handles of the machine clean. Use a damp cloth or brush to do this.

Maintenance

The device is maintenance free.

Storage

• Always store the devices and accessories:

• dry.
• clean.
• protected against dust.
• out of the reach of children.

- Remove the rechargeable battery from the device before storing the device (see the separate operating instructions for the battery and charger).

- The storage temperature for the battery and the device is between 0 °C and 45 °C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.

Disposal and protection of the environment

Remove the battery from the device and recycle the device, accessories and packaging in an environmentally-friendly manner. Instructions on how to dispose of the battery can be found in the instruction manual for your battery.

Machines do not belong with domestic waste.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.
• Defective units returned to us will be disposed of for free.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 36).

Position Description Order no.

16	Wood saw blade 13800406
15	Metal saw blade 13800403
22	Tension tear protection	91105854
13	Protective cover	91105853
19	Adapter for external dust extraction
20	+ Reducer 91105855
18	Parallel guide 91105856

Trouble shooting

In the event of an accident or malfunction, remove the battery from the device immediately! Failure to comply may result in injuries from cuts.

Problem Possible	cause Corrective action
Appliance won't start	Battery (23) not inserted	Insert battery (23) (See “Inserting/removing the rechargeable battery”)
	Battery (23) discharged	Recharge battery (23) (Observe the separate operating instructions for the rechargeable battery and charger)
	On/Off switch (1) defective	Send in to Service Centre for repair
	Motor defective
Intermittent operation	Internal loose contact	Send in to Service Centre for repair
	On/Off switch (1) defective
Poor sawing performance	Saw blade (15/16) unsuitable for the workpiece to be processed	Insert a suitable saw blade (15/16)
	Saw blade (15/16) is blunt	Insert a new saw blade (15/16)
	Incorrect sawing speed Adjust sawing speed
	Low battery power	Charge the battery (23) (observe the separate operating instructions for the battery and charger)
Saw blade quickly becomes blunt	Saw blade (15/16) unsuitable for the workpiece to be processed	Insert a suitable saw blade (15/16)
	Too much pressure applied Reduce the pressure
	Sawing speed too high Reduce the sawing speed

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. saw blades) or to cover damage to breakable parts (e.g. switches, tension tear protection, slide shoe).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item number (IAN 341749_2001) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

GBIE

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail] IAN 341749_2001

JE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 341749_2001

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service-Center....72

Importeur 72

Service-Center......89

Importer 89

Service-Center......121

Dovozca....121

GBIE	Translation of the original EC declaration of conformity
We confirm, that the Cordless JigsawDesign Series PSTKA 12 B3Serial number202007000001 - 202007031852conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 62841-1:2015 • EN 62841-2-11:2016 • EN 62471:2008EN 55014-1: 2017 • EN 55014-2: 2015 • EN 62321-1:2013
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 GroßostheimGermany01.08.2020

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

informativ · informative · informatif · informatief · pouczający · informační · informatívny
PSTKA 12 B3

C 1 23 24 27 17 Parkside

D 9 15/16 8

E 11 10 10 11 18

F 4 17 6 6 17

G Parkside 7 4 19 20

Close-up of a mechanical component with a curved arrow indicating a process or movement (no visible text or symbols)

Close-up of a mechanical device with a lever mechanism and a numbered label (②), no readable text or symbols present.

GRIZZLY TOOLS GMBH & CO. KG

FSC® www.fsc.org MIX Paper from responsible sources FSC® C142944

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C142944

IAN 341749_2001

8=

PDF ONLINE www.lidl-service.com

Black and white photo of a PAP 12.4T power supply unit (no visible text or symbols on body)

Akku / Rechargeable battery / Batterie PAPK 12 A2 / Ladegerät / Charger / Chargeur PLGK 12 A2

DE AT CH

Rechargeable battery / Charger 12 V

Translation of the original instructions

NL BE

Accu / Oplader 12 V

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Translation of the original instructions Page

Service-Center......13

Importeur 13

Original-EG-

PLGK 12 A2, UK......80001336

Garantie

Intended purpose......14

General description......15

Extent of the delivery 15

Overview....15

Technical data....15

Safety instructions......15

Symbolsinthemanual....15

Symbols on the battery 16

Symbols on the recharger....16

GeneralSafetyDirections......16

Correct handling

of the battery charger....17

Charging the battery......18

Inserting/removing the battery......19

Checking the battery charge level ..... 19

Recharging the battery....19

Used batteries 20

Storage......20

Wall mounted charger 20

Cleaning 20

Maintenance 21

Disposal and protection

of the environment......21

Replacement parts ......21

Guarantee 22

Repair Service....23

Service-Center 23

Importeur 23

Translation of the original

EC declaration of conformity .....79

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The rechargeable battery and charger are to be used in conjunction with a device from the Parkside X 12 V Team series.

The rechargeable battery compatible with all devices in the Parkside X 12 V TEAM series. The battery may only be charged using chargers from the Parkside X 12 V TEAM series. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The manufacturer is not liable for damages caused by an improper use or incorrect operation of this device.

General description

The illustrations are on the front fold-out page.

Extent of the delivery

- Rechargeable battery

- Charger

- Instruction Manual

Dispose of the packaging material correctly.

Overview

1 Rechargeable battery

Battery release button

3 Charger

4 Red LED

5 Green LED

Technical data

Rechargeable battery (Li-ion) PAPK 12 A2

Number of cells 3

Nominal voltage 12 V—

Capacity....2.0 Ah

Energy 24 Wh

Charging time ......ca. 1 h

Temperature......max. 50 °C

Charging process....4 - 40 °C

Operation....-20 - 50 °C

Storage....0 - 45 °C

Charger ......PLGK 12 A2

Rated input....50 W

Input

voltage .....220-240 V\~, 50-60 Hz

Output

Output voltage....12 V =

Output current 2.4 A

Device fuse....T2A

Protection class ......☐ II

Attention! This charger can only recharge the following batteries: PAPK 12 A1, PAPK 12 A2, PAPK 12 B1, PAPK 12 B2.

This type of battery may only be charged with the following chargers: PLGK 12 A1, PLGK 12 A2, PLGK 12 B2.

An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

Safety instructions

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Help symbols with information on improving tool handling.

Symbols on the battery

The rechargeable battery is part of the Parkside X 12 V TEAM series.

Read the operating instructions carefully.

Do not dispose of batteries in household waste,

fire or water.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 50 °C).

Take batteries to an old bat- tery collection point where they will be recycled in an environmentally friendly man- ner.

Electrical devices must not be disposed of with domestic waste.

Symbols on the recharger

The recharger is part of the Parkside X 12 V TEAM series.

Warning!

Read the operating instructions carefully.

The charger is only suitable for use indoors.

Device fuse

Protection class II (Double insulation)

Electrical devices must not be disposed of with domestic waste.

LED display while charging.

General Safety Directions

Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and fire.

Please read all these instructions before using this electric tool and please keep the safety instructions.

Careful handling and use of battery devices

- Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

• In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

- Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal ob-

jects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.
• Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.
• Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130 °C can cause an explosion.
• Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions.

Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

Service

- Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

Special safety directions for battery-operated tools

• Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.
• Recharge the batteries indoors only because the battery charger is designed for indoor use only.
• To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.
• Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.
• Allow a hot battery to cool before charging.
• Do not open up the battery and avoid mechanical damage to the battery.
  Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.
• Do not use non-rechargeable batteries!

Correct handling of the battery charger

- Keep the equipment away from children and pets. Children must be supervised to ensure that they do not play with the device.

GBIE

• Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.
• Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.
• Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device.
• Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.
• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.
• Avoid mechanical damage to the charger. This can result in internal short circuits.
• Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.

• If the connection cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualified person in order to avoid hazards.

• The battery of your device is only partially pre-charged upon delivery and must be fully charged before being used for the first time. Insert the battery into the base and connect the charger to the mains.

• Remove the mains plug when the battery is fully charged and disconnect the battery from the charger.
• Do not attempt to charge non-rechargeable batteries in the charger.
• Do not use any accessories that are not recommended by PARK-SIDE. This can result in electric shock or fire.

Charging the battery

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only. Prior to attaching the charger, check that the battery's outer surface is clean and dry. There is a risk of injury due to electric shock.

i Switch off the device and remove the battery before carrying out any maintenance work.

The rechargeable battery only reaches its full capacity once it has been charged several times.

• Charge the battery before using it for the first time.
• Only use chargers from the Parkside X 12 V Team series to recharge the battery.
• If the operating time is considerably shortened despite charging, this shows that the rechargeable battery is depleted and must be replaced. Only use an original replacement battery from the Parkside X 12 V Team series, which can be purchased from the online shop (see the "Spare parts" section).
• Always comply with the latest safety information, as well as the regulations and information relating to environmental protection.
• Defects resulting from improper handling are not covered by the guarantee.

Inserting/removing the battery

1. To remove the battery (1) from the device, press both release buttons (2) on the battery and pull the battery out.
2. To insert the battery (1), push the battery along the guide rail into the device. You will hear it click into place.

Only insert the rechargeable battery once the battery-operated tool is ready for use.

Checking the battery charge level

The battery's (1) charge level is indicated by the charge state indicator.

The charge level of the battery is indicated by illumination of the corresponding LED lights while the device is in operation. Press and hold the power button to view. red-yellow-green => Battery fully charged red and yellow => Battery half charged red => Battery needs to be charged

Recharging the battery

If warm, allow the battery to cool before charging.

Charge the battery (1) when only the red LED on the level indicator is illuminated.

The battery's (1) charge level is indicated by the charge state indicator.

The charging time is around 1 hour (PAPK 12 A2).

1. Remove the battery (1) from the appliance if necessary.
2. Plug the battery charger (3) into a mains outlet.
3. Insert the battery (1) in the charging compartment of the battery charger (3).
4. Pull the battery (1) out of the battery charger (3).
5. Unplug the battery charger (3) from the mains.

Overview of the LED indicators on the charger (3):

Green LED (5) lights up without battery inserted: Charger ready.

Green LED (5) lights up: Battery such alleged charged.

Red LED (4) lights up: Battery charging.

Red LED flashes: Error

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an original replacement battery from the Parkside X 12 V Team series, which can be purchased from the online shop (see the "Spare parts" section).
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see "Cleaning and Maintenance").

Storage

• Remove the battery before storing the unit for longer periods of time.
• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.
• The storage temperature for the battery is between 0 °C and 45 °C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.

Wall mounted charger (optional)

You can also mount the charger (3) on the wall.

• Using dowels, place two screws 54 mm apart at the desired position of a wall.
• The screw head can have a diameter of 7 - 9 mm
• Leave the screw heads protruding at a distance of approx. 10 mm from the wall.
• With the openings of the wall bracket, you can attach the charger (3) to the two screws and pull the charger down until it stops.

When drilling, be careful not to damage any supply lines. Use suitable search devices to find these or consult an installation plan for guidance. Contact with electrical cables can lead to electric shock and fire. Contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property damage and electric shock.

Cleaning

Clean the charger and the battery with a dry cloth or with a paint brush. Do not use water or metal objects.

Maintenance

- The appliance cleaner is maintenance free.

Disposal and protection of the environment

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

- Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.

- Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.

- Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.

- Defective units returned to us will be disposed of for free.

Replacement parts

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 23).

Battery PAPK 12 A2 80001263

Battery PAPK 12 B2....80001262

Charger

PLGK 12 A2, EU 80001335

PLGK 12 A2, UK....80001336

Guarantee

Dear Customer,

This device comes with a three-year warranty from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The warranty is only valid for material or manufacturing defects. This warranty does not extend to consumable parts exposed to normal wear and tear (e.g. battery capacity).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Neither does it extend to damage resulting from water, frost, lightning and fire or improper transport. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 341749_2001) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 341749_2001

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 341749_2001

Importeur

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service Réparations ......36

Service-Center......36

Importateur 36

RLGK 12 A1, PLGK 12 A2, PLGK 12 B2.

PLGK 12 A2, UK....80001336

Garantie - France

Chère cliente, cher client,

Service-Center......46

Importeur 46

Accu (lithium-ion) ......PAPK 12 A2

Aantal cellen 3

Nominale spanning....12 V ===

Capaciteit 2,0 Ah

Vermogen 24 Wh

PLGK 12 A2, UK......80001336

Garantie

Service-Center....56

Importer 56

Service-Center......66

Dovozce....66

PLGK 12 A2, UK......80001336

Záruka

Vážení zákazníci,

Service-Center....76

Dovozca....76

PLGK 12 A2, UK......80001336

Záruka

GBIE	Translation of the originalEC declaration of conformity
We hereby confirm that theCharger /Rechargeable Batterydesign series PLGK 12 A2/PAPK 12 A2IAN: 341749_2001conforms with the following applicable relevant version of the EU guidelines:
2014/30/EU • 2014/35/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A13:2017 • EN 62233:2008EN 60335-2-29:2004/A11:2018 • EN 62841-1:2015 Appendix KEN 55014-1:2017 • EN 55014-2:2015 • IEC 62133-2:2017EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 62321-1:2013
This declaration of conformity (20)** is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KGStockstädter Straße 20D-63762 Großostheim, GERMANY01.08.2020	Christian Frank(Documentation Representative)

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
** The last two digits of the year in which the CE marking was affixed.

FSC® www.fsc.org MIX Paper from responsible sources FSC® C142944

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C142944

IAN 341749_2001

8=
