USER MANUAL PAS 1200 E4 PARKSIDE

• Service Schweiz Tel.: [phone] (0,08 CHF/Min., Mobilfunk max. 0,40 CHF/Min.) E-Mail: [e-mail] IAN 345813_2001 Importeur Bitte beachten Sie, dass die folgende Anschrift keine Serviceanschrift ist. Kon- taktieren Sie zunächst das oben genannte Service-Center. Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim DEUTSCHLAND www.grizzly-service.eu16 GB IE Contents Introduction p. 16
• Application p. 16
• General description p. 17
• Delivery Contents p. 17
• Description of operation p. 17
• Overview p. 17
• Technical data p. 17
• Safety information p. 18
• Device symbols p. 18
• Symbols used in the instructions p. 18
• General notes on safety p. 19
• Assembly p. 20
• Reel assembly p. 20
• Folded lter assembly p. 21
• Suction hose assembly p. 21
• Switching on/off p. 21
• Operating Instructions p. 22
• Cleaning/Maintenance p. 22
• General Cleaning Work p. 22
• Cleaning the folded lter p. 23
• Storage p. 23
• Disposal/Environmental protection p. 23
• Trouble shooting p. 24
• Spare Parts/Accessories p. 24
• Guarantee p. 25
• Repair Service p. 26
• Service-Center p. 26
• Importer p. 26
• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise your- self with all of the operating and safety instructions. Use the product only as de- scribed and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Application The motorised ash vacuum cleaner is a household appliance intended for remov- ing cold ash and other cold small objects from chimneys, charcoal stoves, ashtrays or barbecue grills. The equipment is not suitable for vacuum- ing liquids, soot or cement dust or for vacuuming heating boilers and oil-burning ovens. The vacuuming of glowing embers and of materials that are combustible, ex- plosive or harmful to health is prohibited. This equipment is not suitable for commer- cial use. Commercial use will invalidate the guarantee. The manufacturer will not be held respon- sible for injuries resulting from use which does not comply with the directions, or from incorrect use. Translation of the original EC declaration of conformity p. 90
• Exploded Drawing IEGB General description See the front fold-out page for illustrations. Delivery Contents Unpack the equipment and check that it is complete. Dispose of the packaging mate- rial in a proper manner. - Container lid incl. motor housing - Metal container - Suction hose - Suction tube - Crevice nozzle - Pleated lter - Instruction Manual Description of operation The ash vacuum cleaner is provided with a stable metal container with cover and reels. The suction equipment consists of a exible suction hose, an aluminium suction tube and an attachment for crevice cleaning. A safety switch prevents the appliance from being operated without the lter. A thermal fuse disconnects the power circuit in the event of overheating or re inside the device. The following describes the function of the operating parts. Overview p. 9717

1 Power cord 2 Holder for suction tube/suction hose 3 Filter cleaning switch 4 Suction tube holder 5 Carry handle 6 Power cord holder 7 Viewing window lling level indicator 8 On/off switch 9 Seal clips 10 Container lid 11 Hose connection 12 Arched handle for metal con- tainer 13 Metal container 14 Reels with attachment port 15 Suction hose 16 Suction tube 17 Crevice nozzle 18 Pleated lter

Protection category...........................IPX0 Suction force .......... 16,5 kPA (165 mbar) Metal container capacity, gross ...........................................18 l actual .......................................... 14 l Suction hose Length ........................approx. 150 cm Outside diameter ..........approx. 35 mm Suction tube Length suction tube + crevice nozzle ..................approx. 40 cm Diameter suction tube .......approx. 35 mm Weight (incl. all accessories) ..................... approx. 3,9 kg18 GB IE Safety information This appliance can be used by chil- dren aged from 8 years and above and persons with reduced physi- cal, sensory or mental capabilities or lack of experience and knowl- edge if they have been given su- pervision or instruction concerning use of the appliance in a safe way and understand the hazards in- volved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Device symbols For cold ash only, see manual! Do not vacuum any soot or am- mable substances. Always check hoses and vacuum cleaner for heating when vacuuming. Always empty and clean vacuum cleaner before and after vacuuming. Please clean the lter regularly. Warning! Read carefully before use. Retain for reference. Do not expose the unit to rain. Max. 40 °C / 104

• “Cold ashes” are ashes that have cooled for a sufcient time and no longer contain pockets of embers. This can be determined by sifting through the ashes with a metal implement before using the equipment. The cold ashes emit no further perceptible heat radiation. Do not suck up any liquids with the device! Insert the folded lter correctly Semi-auto- matic lter self-cleaning system Switch for lter cleaning system. Suction tube connection metal container Electrical machines do not belong with domestic waste. Safety class II Symbols used in the instructions Hazard symbols with in- formation on prevention of personal injury and property damage. Precaution symbol with infor- mation on prevention of harm / damage.19 IEGB Plug in the power plug Pull off the power plug Notice symbol with informa- tion on how to handle the device properly. General notes on safety The information contained in these operating instructions must be observed. In ad- dition, legal safety and ac- cident prevention regulations must also be observed. Caution: when using the equipment, observe the fol- lowing basic safety measures in order to protect against the risks of injury and re: To avoid accidents and inju- ries from electric shocks:

• Ensure that the power cord is not damaged by being pulled over sharp edges, by jamming, or by pulling on the power cord.

• Before each use, check the pow- er supply lead and the extension cable for damage and ageing. Do not use the equipment if the cable is damaged or worn. Dan- ger of electric shock hazard.

• If the power cord for this equip- ment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualied per- son in order to prevent hazards.

• Switch the machine off and dis- connect the mains plug: - when the machine is not in use, - before the machine is opened up, - for all maintenance and clean- ing work, - if the connecting cable is dam- aged or tangled up.

• Do not use the power cord to pull the plug out of the socket. Protect the power cord from heat, oil, and sharp edges.

• Make sure that the mains voltage corresponds with the information on the rating plate.

• Only plug the appliance into a socket which is designed for 13A operation.

• The device must be connected to a mains socket via a residual- current circuit breaker (RCD) with a rated leakage current of not more than 30mA.

• Do not expose the equipment to the rain. Do not use the equipment in a damp or wet environment.

Protect yourself from electric shocks. Avoid bodily contact with earthed parts (e.g. pipes, radiators, electric cookers, cool- ing devices).

• Use extension cables outdoors. Use only extension cables that are approved and labelled ac- cordingly for outdoor use.

• Avoid accidental starting. Ensure that the switch is off when plug- ging into the socket. To avoid accidents and injuries:

• Never leave a machine which is ready for operation unattended at the workplace.

• People and animals must not be vacuumed with the machine.20 GB IE

• Nozzles and suction tubes must not reach head level whilst in use. Personal injury could occur.

• Do not vacuum up substances or dusts that are hot, glowing, com- bustible, explosive or hazardous to health (dust classes L, M, H). This includes hot ashes, petrol, solvents, acids or caustic solu- tions. Personal injury could occur.

• Caution! Do not vacuum up haz- ardous substances (e.g. petrol, solvents, acids or lyes) and ash from unauthorised fuels (e.g. from oil-burning ovens or heating boil- ers). There is a risk of injury.

• Do not vacuum up ne, combustible dusts. There is a risk of explosion.

• Do not vacuum up hot ashes and hot, glowing or combustible objects (e.g. charcoal, ciga- rettes...). There is a risk of re.

• Do not vacuum up liquids, soot or plaster and cement dust. You could damage the equipment.

• The vacuum must not exceed a temperature of 40°C. Vacuum material that appears cool from the outside may still be hot inside. Hot vacuum material can re-ignite in the air stream. Furthermore, the equipment can be damaged. In the event of a rise in tempera- ture, switch off the equipment and disconnect at the plug. Place the equipment outside and monitor it as it cools. The following states how damage to the appliance and possible injury to people can be avoided:

• Ensure that the equipment is as- sembled correctly and the lter is in the correct position.

• When vacuuming, do not place the equipment on heat sensitive oors. For safety reasons, use a reproof base when cleaning ovens, chim- neys or barbecue equipment.

• Do not extinguish hot ash par- ticles with water, as the sudden temperature differences can cause cracks in your chimney.

Use only replacement parts and ac- cessories supplied and recommend- ed by our service centre. The use of foreign parts will result in immediate invalidation of the guarantee.

• Have repairs carried out only by customer service points that we have authorised.

• Observe the instructions for the cleaning and maintenance of the equipment.

• Empty and clean the vacuum before and after vacuuming in order to prevent the accumula- tion in the vacuum of materials that represent a re load.

• Keep the equipment in a dry place, out of reach of children. Assembly Disconnect at the plug before carry- ing out any work on the equipment. Risk of electric shock! Reel assembly Clip the three reels ( 14) at the lower edge of the housing onto the relevant cur- vatures. The curvatures are located on the bottom of the housing21 IEGB Folded lter assembly The metal folded lter (18) is alrea- dy pre-assembled before initial use.

1. Place the folded lter (18) on the inver-

ted container cover (10).

2. Screw in the folded lter (18) tightly in

a clockwise direction. The folded lter (18) must rest on the

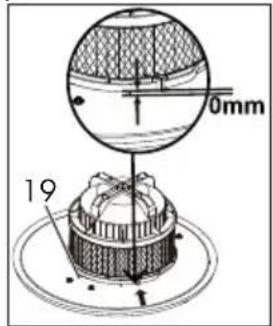

container cover (10). Then press down the switch of the safety switch (19). The arrow on the fol- ded lter (18) must be at the same height as the arrow on the label of the container cover (10). If the safety switch (19) is not pressed down, the appliance can- not be started. If the folded lter (18) is rotated further, as the arrow mark on the label indicates, the folded lter can rmly suction to the container cover (10).

3. Place the container cover (10)

on the metal container (13) and lock it with the locking clips (9). When tting the container cover (10), you must ensure that the on/off switch (8) and the hose connection (11) are roughly aligned to each other or the container cover cannot be put on correctly.

Suction hose assembly

1. Connect the suction hose (15).

To do this, insert the rotatable plastic end piece with the printed symbol

into the hose connection (11) and screw it on clockwise (bayonet connection). When assembling/detaching the suction hose (15), hold the black plastic end piece and not the suc- tion hose (15). Twisting or bending could damage the hose. Suction tube: Plug the suction tube (16) onto the rigid end piece of the suction hose (15). Crevice nozzle: Place the crevice nozzle (17) on the rigid end piece of the suction hose (15). Suction tube and crevice nozzle: Place the crevice nozzle (17) on the suc- tion tube (16) and place this on the rigid end piece of the suction hose (15). Switching on/off Connect the mains plug. The appliance is equipped with a safety switch (

operation only if the folded lter (

18) is tted correctly.

Switching On: On/Off Switch (see

Switching Off: On/Off Switch (see

8) In position “0”22

GB IE Operating Instructions The vacuuming of glowing embers and of materials that are combustible, explosive or harmful to health is prohib- ited. There is a risk of injury!

• Place the equipment on a level surface that is not heat sensitive.

• Always use the suction tube (16) for vacuuming. In case of minor contamina- tion, hold the suction tube (16) approx. 1cm above the ash. Remove large ash volumes by directly immersing the suc- tion pipe.

• Vacuum only cooled ash at less than 40°C.

• When vacuuming, keep checking the metal container (13) and suction hose (15) for rises in temperature.

• In the event of a rise in temperature, switch off the equipment and discon- nect at the plug. Place the equipment outside and monitor it as it cools.

• During breaks, you can insert the suction pipe (16) into the holder (2) on the container cover (10) or into an attachment port on one of the rollers (14).

• Always use the carry handle (5) for transporting the equipment.

• The metal container (13) may be lled to no more than half, so the pleated lter (18) always remains clear.

• Empty the container outside in order to avoid mess (see “cleaning/maintenance“).

• Clean the pleated lter (18) (see “Cleaning/Maintenance”): - if suction power declines - if the inspection window on the con- tainer lid of the blockage indication system (7) turns red. Filter cleaning switch Insert the mains plug of the device and turn the device on. If the suction power decreases, you can improve it by pressing the lter cleaning switch (3)

1. Turn the machine on.

2. Close the suction opening of the suction

pipe/suction hose (16/15) by hand.

3. Press the switch (3)

downwards to unlock. Keep the switch pressed and turn it 70° clockwise until you hear a clicking sound.

4. Now release the switch.

Repeat the procedure three times. Cleaning/Maintenance Pull out the mains plug. Danger of electric shock. Do not spray down the container cover (

10) with water. Do not

use abrasive cleaning agents or solvents to clean the device. The device could become damaged. General Cleaning Work Clean the equipment after each use:

• Carry out cleaning outside in order to avoid mess.

• Remove the container lid (10) and empty the metal container (13). Clean the metal container (13) with water and allow it to dry.23 IEGB

• After removing the suction hose (15), clean the dust and soot particles from the connections. This ensures that the suction hose (15) can be inserted again easily.

• Clean the folded lter (18) (see “Cleaning the folded lter”).

Cleaning the folded lter Replace the pleated lter ( 18) if it is worn, damaged or heavily soiled (see “Spare Parts/Accesso- ries“).

1. Take off the container cover (10).

2. Rotate the folded lter (18) in an anti-

clockwise direction and remove it.

3. Tap out the pleated lter (18) and clean

it with a paintbrush or hand brush. Don‘t wash the pleated lter (18) in water.

4. Place the folded lter (18) on the inver-

ted container cover (10).

5. Screw in the folded lter (18) tightly in

a clockwise direction. The folded lter (18)

must rest on the con- tainer cover(10) and press the safety switch (19) down- wards. The arrow on the folded lter (18) must be at the same height as the arrow on the label of the container cover (10). Storage

• To store, wind the power cord (1) around the retaining bracket (6) on the container lid (10).

• Keep the equipment in a dry place, out of reach of children. For space-saving storage of the ash vacu- um, you can for example:

• place the other end of the hose on the holder (2);

• t the suction pipe (16) and the crevice nozzle (17) onto one of the three roll- ers with an attachment port (14). Disposal/Environmental protection Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have nished with them. Machines must not be disposed of with household refuse. Take the machine to a recycling point. The waste plastic and metal parts can be sepa- rated, accurately graded and passed on for recycling. Contact our Service Centre for more details. Defective units returned to us will be dis- posed of for free.24 GB IE Trouble shooting Problem Possible cause Fault correction Device does not start Mains voltage is not present Check plug socket, power cord, line, plug and fuse, where appropriate, repair through electrical specialist The equipment is not switched on Switch on the equipment (see “Switching on/off“) Safety stop due to missing or incor- rectly inserted pleated lter ( 18) Insert the pleated lter correctly (see “Cleaning/Maintenance“) Defective on/off switch (

Repair through customer service Defective motor Low or lack of suction Suction hose (

Remove obstructions and blockages Metal container ( 13) is not closed Close the metal container Metal container (

Empty the metal container (see “Cleaning/Maintenance“) Pleated lter (

Clean or replace the pleated lter (see “cleaning/maintenance“) Spare Parts/Accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone (see “Service-Center” Page 26). Please have the order number mentioned below ready. Position instruction Position exploded Description Order No. manual drawing 15 19 Suction hose 91102908 16+17 10+11 Suction tube + Crevice nozzle

18 13 Pleated lter 91102910 13 18 Metal container 9110291125 IEGB Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. lters) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and identica- tion number (IAN 345813_2001) ready as proof of purchase for all en- quiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by26 GB IE telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specication of what constitutes the defect and when it occurred. In or- der to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Translation of the original EC declaration of conformity We hereby conrm that the Ash vacuum cleaner model PAS 1200 E4 Serial number 202004000001 - 202009093614 conforms with the following applicable relevant version of the EU guidelines: 2014/30/EU • 2014/35/EU • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as na- tional standards and stipulations have been applied: EN 60335-1:2012/A2:2019 • EN 60335-2-2:2010/A1:2013 • PPP 52341D:2015 EN 62233:2008 • EN 55014-1:2017 • EN 55014-2:2015 EN IEC 61000-3-2:2019 • EN 61000-3-3:2013/A1:2019 • EN 62321-1:2013 This declaration of conformity (20)** is issued under the sole responsibility of the manufacturer: Christian Frank (Documentation Representative) Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim, Germany

• The object of the declaration described above satises the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. ** The last two digits of the year in which the CE marking was afxed.91
