USER MANUAL Maverick Force S Spot Chauvet

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, proof of purchase must be provided in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives the customer specific legal rights. The customer may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,

Luxembourg, France, Germany, and Mexico. For warranty terms in other countries, please consult a local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
  DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
  DO NOT leave any flammable material within 50~cm of this product while operating or connected to power.
  The luminaire should be positioned so that prolonged staring into it at a distance closer than 15.4 ft (4.7 m) is not expected.
• CAUTION: Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
• USE a safety cable when mounting this product overhead.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
  If the external flexible cable or cord of this luminaire is damaged, it shall be replaced with a special cable or cord exclusively available from the manufacturer or its service agent.
  The light source contained in this luminaire shall only be replaced by the manufacturer, its service agent, or a similarly qualified person.
  The maximum ambient temperature is 113^ (45^) . Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.

FCC Compliance

This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Warning for North America and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20~cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact a distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

Maverick Forces Spot
- Seetronic Powerkon IP65 power cord

2 Omega brackets with mounting hardware
Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50 / 60Hz

Power Linking

It is possible to link up to 2 Maverick Force's Spot products at 100V , 2 products at 120V , 4 products at 208V , 5 products at 230V , or 5 products at 240V . Never exceed this number. Power-linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Maverick Force s Spot will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Maverick Force s Spot uses a 3- or 5-pin DMX data connection for its DMX personalities: 22Ch and 29Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer, as not all DMX controllers have this capability. The Maverick Force s Spot supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Signal Connection

The Maverick Force s Spot can link to controller software using an Ethernet connection. If using other Art-NetTM- or sACN-compatible products with the Maverick Force s Spot, each product can be controlled individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Art-Net™ Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP, which transfers a large amount of DMX512 data using an Amphenol XLR Net RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN-compatible network.

Mounting

Before mounting this product, read the Safety Notes. Use at least two mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

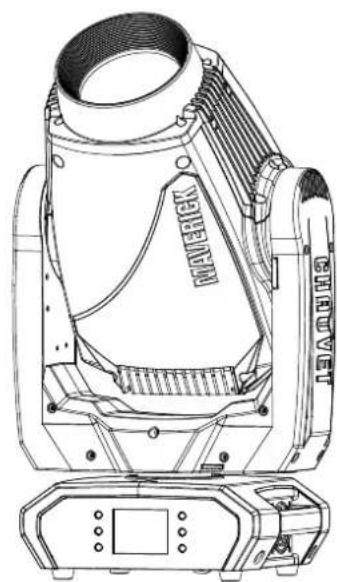

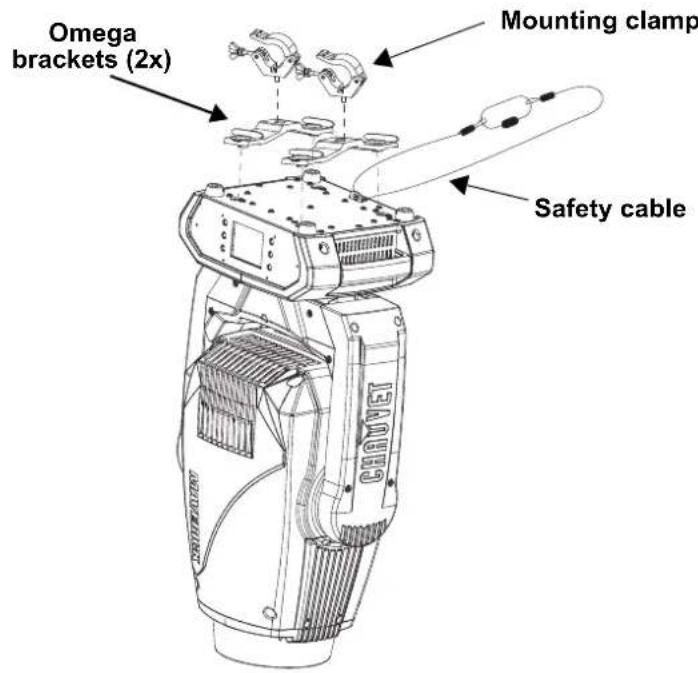

Mounting Diagram

Overhead Mounting

Floor Mounting

Control Panel Description

Button Name Function
< ↑ >	<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
< ↓ >	<MENU>Exists from the current menu or function
< ↓ >	<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function
< ← >	<LEFT>Navigates leftwards through the menu list
< ← ↓ >	<ENTER>Enables the currently displayed menu or sets the currently selected value into the selected function
< → >	<RIGHT>Navigates rightwards through the menu list

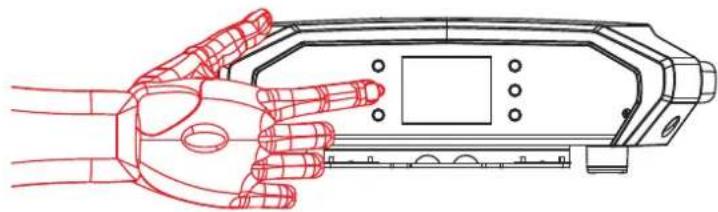

Battery-Powered Display

Press and hold until menu screen appears (approximately 15 seconds).

Refer to the Maverick Force s Spot product page on www.chauvetprofessional.com for the latest menu map.

Menu Map

Main Level Programming Levels Description
Address 001-512 Sets the starting address
Network Setup	IP Mode	Manual Manually set IP address
		DHCP Network sets IP address
		Static Product sets IP address
	Universe	000-255 (Art-NetTM)001-256 (sACN)	Sets the universe
	Ip 002.243.075	222 Sets the IP address in Manual mode
	SubMask 255.000.000.000.000 Sets the Subnet Mask in Manual mode
Personality	Dmx Mode 22CH	YES	Selects the 22-channel mode
		NO
	Dmx Mode 29CH	YES	Selects the 29-channel mode
		NO
Settings	Control Mode	DMX	Sets the control protocol
		WDMX
		ArtNet
		sACN
	Pan Reverse	NO Normal pan
		YES Reversed pan
	Tilt Reverse	NO Normal tilt
		YES Reversed tilt
	Screen Reverse	NO Normal display
		YES Inverted display
		AUTO Automatic display orientation
	Pan Angle	540 540° pan range
		360 360° pan range
		180 180° pan range
	Tilt Angle	270 270° tilt range
		180 180° tilt range
		90	90° tilt range
	BL. O. P/T Move	NO Do not black out while panning/tilting
		YES Blackout while panning/tilting
	BL. O. Color Move	NO Do not black out while color wheel moving
		YES Blackout while color wheel moving
	BL. O. Gobo Move	NO Do not black out while gobo wheels moving
		YES Blackout while gobo wheels moving
	Calibration	NO Calibration disabled
		YES Calibration enabled
	Touchscreen Lock	NO Touchscreen enabled
		YES Touchscreen disabled
	Lock Screen	NO Lock the buttons and touchscreen Passcode: 2323
		YES
	Swap XY	NO Do not swap pan and tilt
		YES Pan controls tilt, tilt controls pan
	WDMX Reset	NO Do not reset WDMX
		YES Reset WDMX

Main Level Programming Levels Description
Settings (cont.)	Backlight Timer	30S Display turns off after 30 seconds
		1M Display turns off after 1 minute
		5M Display turns off after 5 minutes
		ON Display stays on
	Loss of Data	Hold Holds last s signal received
		Close Blacks out fixture
	Fans	Auto Fan speed according to product temperature
		Full Fan speed set on high
		ECO Quiet mode
		TV25	Maintains LED output up to an ambient temperature of 77 °F (25 °C) (TV25) or 95 °F (35 °C) (TV35).
		TV35	When using these fan modes, please set the PWM Options to 6000Hz or 15000Hz to prevent any possible harmonization noise.
	Dimmer Curve	Linear	Sets the dimmer curve
		Square
		I Squa
		SCurve
		Linear2
	Dimmer Speed	Smooth	Sets the dimmer speed
		Fast
	PWM Option	600Hz	Sets the Pulse Width Modulation frequency
		1200Hz
		4000Hz
		6000Hz
		15000Hz
	LED Power 64-255 Sets the maximum LED output
	Min Zoom Focus	NO	Enables/disables minimum zoom focus
		YES
	Preset Select	PRESET A	Selects recorded preset menu optionsRESET B
		PRESET C
	Preset Sync	NO Allows recorded preset menu options to be transferred to other Maverick Force s Spot fixtures in the DMX daisy chain
		YES
	USB Update	NO	Enables/disables software update using USB
		YES
	Reset Function	Pan/Tilt	NO/YES	Reset individual functions or all functions from start-up
		Iris/Prism
		Color/CMY
		Gobo/Gobo Rotate
		Frost
		All
	Factory Settings	NO	Reset to factory default settings
		YES

Main Level

Programming Levels

Description

Test

Auto Test Auto test all functions

Manual Test

Pan

000-255

Manually control and test all settings through the control panel

Pan Fine

Tilt

Tilt Fine

P/T Speed

Dimmer

Dimmer Fine

Shutter

Virtual Shaking

Cyan

Magenta

Yellow

Color

Gobo

Gobo Rotate

Gobo Index

Gobo2

Focus

Focus Fine

Focus Auto

Zoom

Zoom Fine

Prism

Prism Rotate

Iris

Frost

CMY Macro

CMY Macro Speed

Special Function

Information

Fixture Information

Ver V Shows firmware version

Running Mode _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ DMX Address _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ starting address

Temperature _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fixture Hours _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ lp _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ SubMask _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ MAC _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - _ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - _ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Main Level Programming Levels Description
Information	Channel Information	Pan	000-255 Shows all current values from input signals
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter
		Virtual Shaking
		Cyan
		Magenta
		Yellow
		Color
		Gobo
		Gobo Rotate
		Gobo Index
		Gobo2
		Focus
		Focus Fine
		Focus Auto
		Zoom
		Zoom Fine
		Prism
		Prism Rotate
		Iris
		Frost
		CMY Macro
		CMY Macro Speed
		Special Function

Dmx Mode 29 CH

DMX Values

Channel	Function Value Percent/Setting
1	P a n		000 ⇌ 255 0-100%
2	Fine pan		000 ⇌ 255	Fine control (16-bit)
3	T i l t		000 ⇌ 255 0-100%
4	Fine tilt		000 ⇌ 255	Fine control (16-bit)
5	Pan/tilt speed		000 ⇌ 255	Fast to slow
6 Dimmer 000 ⇌ 255 0-100%
7	Fine dimmer		000 ⇌ 255	Fine control (16-bit)
8	S t r o		000 ⇌ 003	Closed
			004 ⇌ 007	Open
			008 ⇌ 076	Synchronized strobe, slow to fast
			077 ⇌ 145	Pulse strobe, slow to fast
			146 ⇌ 215	Random strobe, slow to fast
			216 ⇌ 255	Open
9	V i r t		000 ⇌ 001	Open
			002 ⇌ 128	Shaking effest, slowto fast r o b e
			129 ⇌ 255	Fading effect, slow to fast
10	Cyan		000 ⇌ 255	0-100%
11	Magenta		000 ⇌ 255	0-100%
12	Yellow		000 ⇌ 255	0-100%
13	Color wheel		000 ⇌ 006	Open
			007 ⇌ 013	Red
			014 ⇌ 020	Orange
			021 ⇌ 027	Green
			028 ⇌ 034	Magenta
			035 ⇌ 041	UV
			042 ⇌ 048	CRI
			049 ⇌ 059	CTB
			060 ⇌ 187	Split colors
			188 ⇌ 219	Reverse color scroll, fast to slow
			220 ⇌ 223	Stop
			224 ⇌ 255	Color scroll, slow to fast

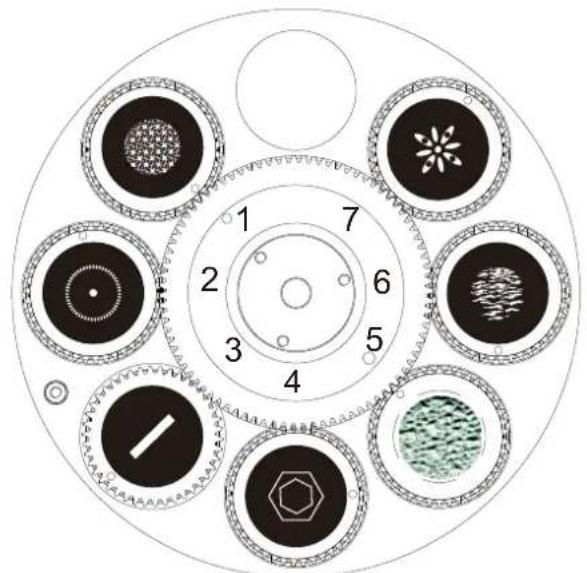

14	Gobo wheel 1 (rotating) (see Gobo Designs)		000 ⇌ 007	Open
			008 ⇌ 015	Gobo 1 (sailboats)
			016 ⇌ 023	Gobo 2 (radial dot)
			024 ⇌ 031	Gobo 3 (mower blade)
			032 ⇌ 039	Gobo 4 (bolts)
			040 ⇌ 047	Gobo 5 (shower glass)
			048 ⇌ 055	Gobo 6 (ballistic clouds)
			056 ⇌ 063	Gobo 7 (four eyes)
			064 ⇌ 071	Gobo 7 shaking
			072 ⇌ 079	Gobo 6 shaking
			080 ⇌ 087	Gobo 5 shaking
			088 ⇌ 095	Gobo 4 shaking
			096 ⇌ 103	Gobo 3 shaking
			104 ⇌ 111	Gobo 2 shaking
			112 ⇌ 119	Gobo 1 shaking
			120 ⇌ 127	Open
			128 ⇌ 191	Gobo scroll, slow to fast
			192 ⇌ 255	Reverse gobo scroll, slow to fast

Channel	Function	Value	Percent/Setting
15 Gobo 1 rotation		000 ⇌ 063	Gobo index
		064 ⇌ 145	Gobo rotation, fast to slow
		146 ⇌ 149	Stop
		150 ⇌ 231	Reverse gobo rotation, slow to fast
		232 ⇌ 255	Bounce effect, short to long
16	Fine gobo 1 rotation	000 ⇌ 255	Fine control (16-bit)

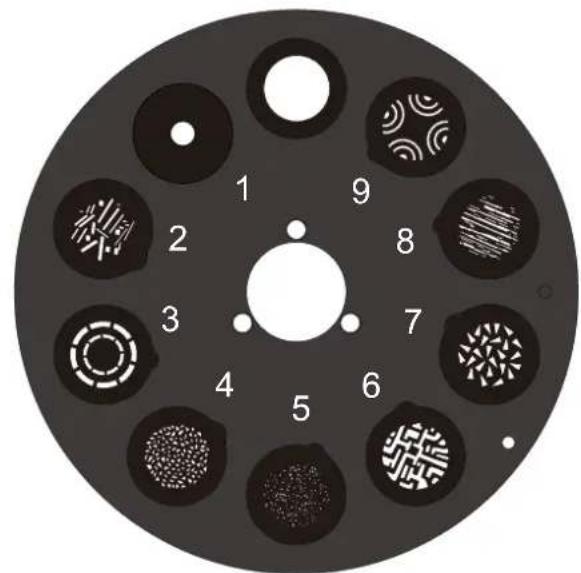

17	Gobo wheel 2 (static)(see Gobo Designs)	000 ⇌ 005	Open
		006 ⇌ 011	Gobo 1 (beam)
		012 ⇌ 017	Gobo 2 (bars)
		018 ⇌ 023	Gobo 3 (circles)
		024 ⇌ 029	Gobo 4 (breakup)
		030 ⇌ 035	Gobo 5 (dots)
		036 ⇌ 041	Gobo 6 (circuits)
		042 ⇌ 047	Gobo 7 (triangles)
		048 ⇌ 053	Gobo 8 (forest)
		054 ⇌ 063	Gobo 9 (rainbows)
		064 ⇌ 069	Gobo 9 shaking
		070 ⇌ 075	Gobo 8 shaking
		076 ⇌ 081	Gobo 7 shaking
		082 ⇌ 087	Gobo 6 shaking
		088 ⇌ 093	Gobo 5 shaking
		094 ⇌ 099	Gobo 4 shaking
		100 ⇌ 105	Gobo 3 shaking
		106 ⇌ 111	Gobo 2 shaking
		112 ⇌ 117	Gobo 1 shaking
		118 ⇌ 127	Open
		128 ⇌ 191	Gobo scroll, slow to fast
		192 ⇌ 255	Reverse gobo scroll, slow to fast
18 Focus 000 ⇌ 255 0-100%
19	Fine focus	000 ⇌ 255	Fine control (16-bit)
20 Auto focus		000 ⇌ 010	No function
		011 ⇌ 030	0-5 m auto focus
		031 ⇌ 050	6 m auto focus
		051 ⇌ 070	7 m auto focus
		071 ⇌ 090	8 m auto focus
		091 ⇌ 110	9 m auto focus
		111 ⇌ 130	10 m auto focus
		131 ⇌ 150	12.5 m auto focus
		151 ⇌ 170	15 m auto focus
		171 ⇌ 190	17.5 m auto focus
		191 ⇌ 210	20-60 m auto focus
		211 ⇌ 255	Auto-detect distance
21 Zoom 000 ⇌ 255 0-100%
22	Fine zoom	000 ⇌ 255	Fine control (16-bit)
23 Prism		000 ⇌ 004	No function
		005 ⇌ 255	Prism effect
24 Prism rotation		000 ⇌ 127	Prism index
		128 ⇌ 189	Prism rotation, fast to slow
		190 ⇌ 193	Stop
		194 ⇌ 255	Reverse prism rotation, slow to fast
25 Iris		000 ⇌ 063	0-100%
		064 ⇌ 127	Auto change, slow to fast
		128 ⇌ 191	Slow expand, fast shrink (slow to fast)
		192 ⇌ 255	Slow shrink, fast expand (slow to fast)
26 Frost 000 ⇌ 255 0-100%
Channel Function Value Percent/Setting
27 CMY	macro	000 ⇌ 009	No function
		010 ⇌ 014	Full CTO
		015 ⇌ 020	½ CTO
		021 ⇌ 255	CMY macro
28	CMY macro speed	000 ⇌ 255	CMY macro speed, fast to slow
29 Control		000 ⇌ 007	No function
		008 ⇌ 015	Pan tilt blackout
		016 ⇌ 023	Color blackout
		024 ⇌ 031	Gobo blackout
		032 ⇌ 039	Pan tilt/color blackout
		040 ⇌ 047	Pan tilt/gobo blackout
		048 ⇌ 055	Pan tilt/color/gobo blackout
		056 ⇌ 095	No function
		096 ⇌ 103	Pan reset
		104 ⇌ 111	Tilt reset
		112 ⇌ 119	Color reset
		120 ⇌ 127	Gobo reset
		128 ⇌ 131	High color temperature gobo on
		132 ⇌ 135	High color temperature gobo off
		136 ⇌ 143	Prism reset
		144 ⇌ 151	No function
		152 ⇌ 159	All reset
		160 ⇌ 167	Iris reset
		168 ⇌ 175	Frost reset
		176 ⇌ 183	Zoom reset
		184 ⇌ 191	CMY reset
		192 ⇌ 199	Fan ECO
		200 ⇌ 207	Fan full
		208 ⇌ 215	Fan auto
		216 ⇌ 217	Fan TV25
		218 ⇌ 220	Fan TV35
		221 ⇌ 225	Iris fast mode
		226 ⇌ 230	Iris smooth mode
		231 ⇌ 235	Pan tilt swap on
		236 ⇌ 240	Pan tilt swap off
		241 ⇌ 245	Min Zoom Focus on
		246 ⇌ 250	Min Zoom Focus off
		251 ⇌ 255	No function

Dmx Mode 22 CH

Channel Function Value Percent/Setting
1	P a n	000 ⇌ 255 0-100%
2	Fine pan	000 ⇌ 255 Fine control (16-bit)
3	T i l t	000 ⇌ 255 0-100%
4	Fine tilt	000 ⇌ 255 Fine control (16-bit)
5	Pan/tilt speed	000 ⇌ 255 Fast to slow
6 Dimmer 000 ⇌ 255 0-100%
7	S t r o	000 ⇌ 003 Off 004 ⇌ 007 On 008 ⇌ 076 Synchronized strobe, slow to fast 077 ⇌ 145 Pulse strobe, slow to fast 146 ⇌ 215 Random strobe, slow to fast 216 ⇌ 255 Off
8	V i r t	000 ⇌ 001 No function 002 ⇌ 128 Shaking effect, slow to fast r o b e 129 ⇌ 255 Fading effect, slow to fast
9	Cyan	000 ⇌ 255 0-100%
10	Magenta	000 ⇌ 255 0-100%
11	Yellow	000 ⇌ 255 0-100%
12	Color wheel	000 ⇌ 006 Open 007 ⇌ 013 Red 014 ⇌ 020 Orange 021 ⇌ 027 Green 028 ⇌ 034 Magenta 035 ⇌ 041 UV 042 ⇌ 048 CRI 049 ⇌ 059 CTB 060 ⇌ 187 Split colors 188 ⇌ 219 Reverse color scroll, fast to slow 220 ⇌ 223 Stop 224 ⇌ 255 Color scroll, slow to fast
13	Gobo wheel 1 (rotating) (see Gobo Designs)	000 ⇌ 007 Open 008 ⇌ 015 Gobo 1 (sailboats) 016 ⇌ 023 Gobo 2 (radial dot) 024 ⇌ 031 Gobo 3 (mower blade) 032 ⇌ 039 Gobo 4 (bolts) 040 ⇌ 047 Gobo 5 (shower glass) 048 ⇌ 055 Gobo 6 (ballistic clouds) 056 ⇌ 063 Gobo 7 (four eyes) 064 ⇌ 071 Gobo 7 shaking 072 ⇌ 079 Gobo 6 shaking 080 ⇌ 087 Gobo 5 shaking 088 ⇌ 095 Gobo 4 shaking 096 ⇌ 103 Gobo 3 shaking 104 ⇌ 111 Gobo 2 shaking 112 ⇌ 119 Gobo 1 shaking 120 ⇌ 127 Open 128 ⇌ 191 Gobo scroll, slow to fast 192 ⇌ 255 Reverse gobo scroll, slow to fast
14	Gobo 1 rotation	000 ⇌ 063 Gobo index 064 ⇌ 145 Gobo rotation, fast to slow 146 ⇌ 149 Stop 150 ⇌ 231 Reverse gobo rotation, slow to fast 232 ⇌ 255 Bounce effect, short to long

Channel Function Value Percent/Setting
15	Gobo wheel 2 (static)(see Gobo Designs)	000 ⇌ 005006 ⇌ 011012 ⇌ 017018 ⇌ 023024 ⇌ 029030 ⇌ 035036 ⇌ 041042 ⇌ 047048 ⇌ 053054 ⇌ 063064 ⇌ 069070 ⇌ 075076 ⇌ 081082 ⇌ 087088 ⇌ 093094 ⇌ 099100 ⇌ 105106 ⇌ 111112 ⇌ 117118 ⇌ 127128 ⇌ 191192 ⇌ 255	OpenGobo 1 (beam)Gobo 2 (bars)Gobo 3 (circles)Gobo 4 (breakup)Gobo 5 (dots)Gobo 6 (circuits)Gobo 7 (triangles)Gobo 8 (forest)Gobo 9 (rainbows)Gobo 9 shakingGobo 8 shakingGobo 7 shakingGobo 6 shakingGobo 5 shakingGobo 4 shakingGobo 3 shakingGobo 2 shakingGobo 1 shakingOpenGobo scroll, slow to fastReverse gobo scroll, slow to fast
16 Focus 000 ⇌ 255 0-100%
17 Zoom 000 ⇌ 255 0-100%
18 Prism		000 ⇌ 004005 ⇌ 255	No functionPrism effect
19 Prism rotation		000 ⇌ 127128 ⇌ 189190 ⇌ 193194 ⇌ 255	Prism indexPrism rotation, fast to slowStopReverse prism rotation, slow to fast
20 Iris		000 ⇌ 063064 ⇌ 127128 ⇌ 191192 ⇌ 255	0-100%Auto change, slow to fastSlow expand, fast shrink (slow to fast)Slow shrink, fast expand (slow to fast)
21 Frost 000 ⇌ 255 0-100%

Channel Function Value Percent/Setting		000 ⇌ 007 No function 008 ⇌ 015 Pan tilt blackout 016 ⇌ 023 Color blackout 024 ⇌ 031 Gobo blackout 032 ⇌ 039 Pan tilt/color blackout 040 ⇌ 047 Pan tilt/gobo blackout 048 ⇌ 055 Pan tilt/color/gobo blackout 056 ⇌ 095 No function 096 ⇌ 103 Pan reset 104 ⇌ 111 Tilt reset 112 ⇌ 119 Color reset 120 ⇌ 127 Gobo reset 128 ⇌ 131 High color temperature gobo on 132 ⇌ 135 High color temperature gobo off 136 ⇌ 143 Prism reset 144 ⇌ 151 No function 152 ⇌ 159 All reset 160 ⇌ 167 Iris reset 168 ⇌ 175 Frost reset 176 ⇌ 183 Zoom reset 184 ⇌ 191 CMY reset 192 ⇌ 199 Fan ECO 200 ⇌ 207 Fan full 208 ⇌ 215 Fan auto 216 ⇌ 217 Fan TV25 218 ⇌ 220 Fan TV35 221 ⇌ 225 Iris fast mode 226 ⇌ 230 Iris smooth mode 231 ⇌ 235 Pan tilt swap on 236 ⇌ 240 Pan tilt swap off 241 ⇌ 245 Min Zoom Focus on 246 ⇌ 250 Min Zoom Focus off 251 ⇌ 255 No function
22 Control

Gobo Designs
Rotating gobo wheel

Static gobo wheel

Acerca deEsta Guía

RDM (Remote Device Management)

General Information Technical Support

World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

U.K.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax. [phone]

Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Germany

Address: Bruno-Burgel-Str. 11

28759 Bremen

Germany Website: www.chauvetprofessional.eu

Voice: [phone]

Mexico

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Lerma, Edo. de Mexico, CP 52000

Voice: [phone]

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

m = 311

R

CSA

E11

573

C22.2 No.166

093
