USER MANUAL EM 44 BEURER

If the instruction manual is damaged or if you no longer have the instruction manual in your possession, please contact Beurer customer service. Please see warranty for service contact. Dear Customer, Thank you for choosing this Beurer product. Our name stands for high-quality, thoroughly tested products for applications in the areas of heating, weight management, blood pressure, body temperature, pulse, gentle therapy, massage, beauty and air. Please read these instructions completely and carefully before using this product and keep them for later reference. Be sure to make them accessible to other users and observe the information they contain. With kind regards, Your Beurer team

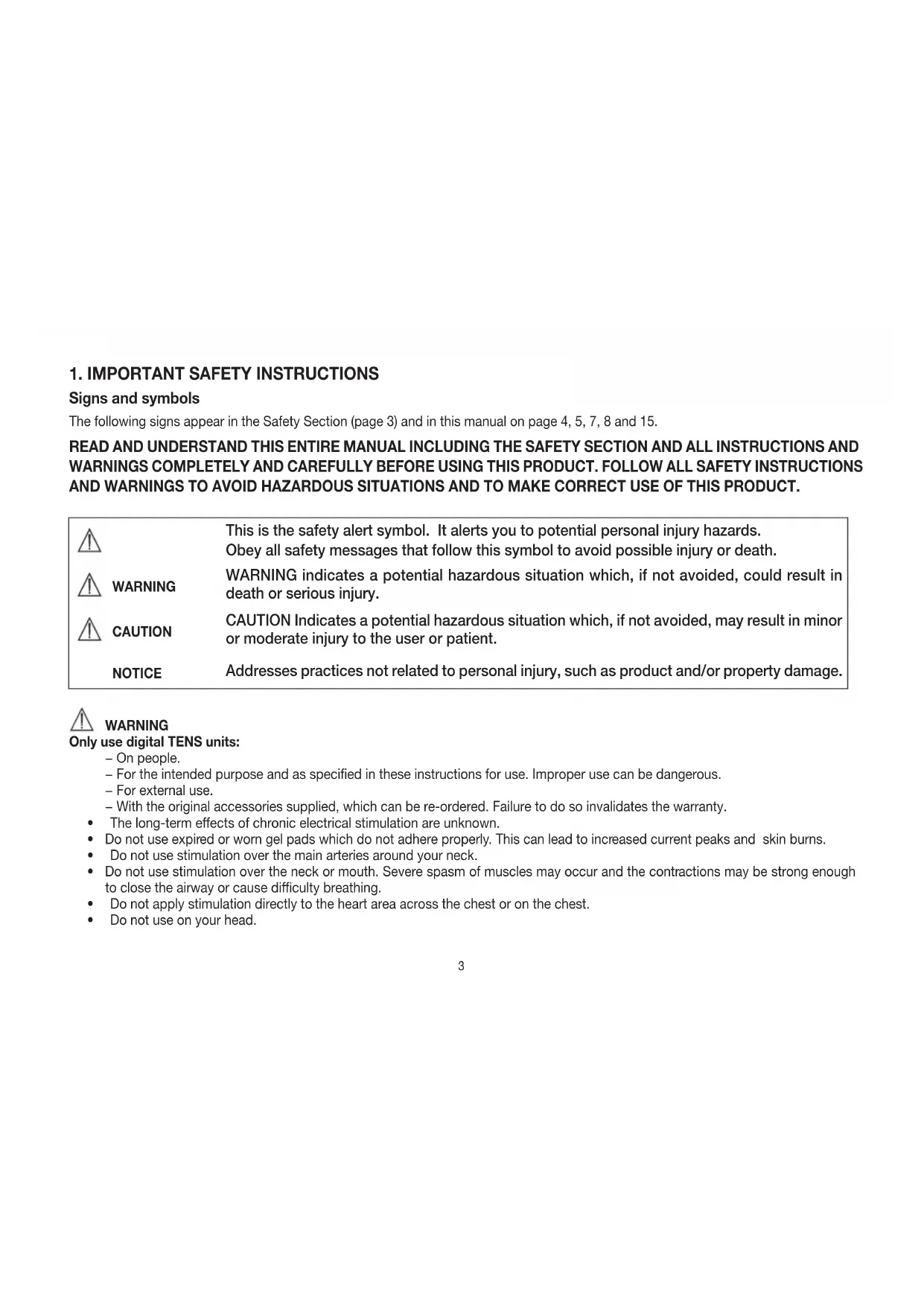

Signs and symbols The following signs appear in the Safety Section (page 3) and in this manual on page 4, 5, 7, 8 and 15. READ AND UNDERSTAND THIS ENTIRE MANUAL INCLUDING THE SAFETY SECTION AND ALL INSTRUCTIONS AND WARNINGS COMPLETELY AND CAREFULLY BEFORE USING THIS PRODUCT. FOLLOW ALL SAFETY INSTRUCTIONS AND WARNINGS TO AVOID HAZARDOUS SITUATIONS AND TO MAKE CORRECT USE OF THIS PRODUCT. This is the safety alert symbol. It alerts you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING WARNING indicates a potential hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION Indicates a potential hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient. NOTICE Addresses practices not related to personal injury, such as product and/or property damage. WARNING Only use digital TENS units: − On people. − For the intended purpose and as specified in these instructions for use. Improper use can be dangerous. − For external use. − With the original accessories supplied, which can be re-ordered. Failure to do so invalidates the warranty.

• The long-term eects of chronic electrical stimulation are unknown.

• Do not use expired or worn gel pads which do not adhere properly. This can lead to increased current peaks and skin burns.

• Do not use stimulation over the main arteries around your neck.

• Do not use stimulation over the neck or mouth. Severe spasm of muscles may occur and the contractions may be strong enough to close the airway or cause diculty breathing.

• Do not apply stimulation directly to the heart area across the chest or on the chest.

• Do not use on your head.4

• Do not use over swollen, infected, or inflamed areas or skin eruptions, e.g., phlebitis, thrombophlebitis, varicose veins.

• Do not use if you have cancer.

• Never use this product near the following devices: pacemakers or any other embedded electronic medical devices, heart-lung ma- chine and any other life keeping electronic medical devices, electrocardiograph and any other medical screening and monitoring devices. Simultaneous use of the product and any of the above devices will cause malfunction and can be very dangerous to the users.

• To avoid personal injury, do not use the digital TENS unit in the following situations: − With implanted electrical devices (such as a pacemaker or defibrillator). − If you have metal implants or electronic auxiliary devices. − If you use an insulin pump. − If you have a higher than normal temperature. − If you have a known or acute cardiac arrhythmia, or disorders of the heart’s impulse and conduction system. − If you have a tendency toward internal bleeding. − Near the heart. The stimulation electrodes must not be placed on any part of the front ribcage (where the ribs and breastbone are located), especially not on the two large pectorals. This can increase the risk of ventricular fibrillation and induce cardiac arrest. − On the skeletal skull structure, or around the mouth, throat or larynx. − In the neck/carotid artery area. − In the genital area. − On acutely or chronically diseased (injured or irritated) skin (inflamed skin whether painful or not, reddened skin, rashes, allergies, burns, bruises, swellings, both open and healing wounds, and post-operative scars where the healing process could be aected). − after consuming alcohol. − if connected to a high-frequency surgical device. CAUTION

• Do not use the product during pregnancy.

• Do not use if you have heart problems.

• Do not use if you have epilepsy.

• Do not use the device: − When there is a tendency to hemorrhage following acute trauma or fracture. − Following recent surgical procedures when muscle contraction may disrupt the healing process. − Over areas of the skin which lack normal sensation.

• Do not use the products near the heart; it may cause fast or irregular heartbeat.

• Some patients may experience skin irritation or hypersensitivity due to the electrical stimulation or electrical conductive medium. The irritation can usually be reduced by using an alternate conductive medium (like gel), or alternate electrode placement.

• Keep product out of the reach of children.

• Use this product only with the leads and electrodes recommended by the manufacturer.

• Never apply the pads to your skin with the power on, which will result in sudden shock. To move the pads to another body part, shut5 down the device first, and then relocate the pads.

• Two pads should be used together as a pair. Always peel o the protective film on the pads before use. To avoid an electrical shock, do not connect two pads to each other.

• Do not apply pads to the same spot for over 40 minutes at a time.

• Do not use the product whilst asleep, driving, operating machinery, or during any activity in which involuntary muscle contractions may put the user at undue risk of injury.

• Do not use the product in bathroom or a moist environment. Do not use while bathing.

• Do not use the product in the condition of air mixed with flammable gases, substances or explosives.

• Never use this product in concurrence with high frequency surgical equipment; it may result in burns at the site of the stimulator elec- trodes and possible damage to the control unit.

• Never use this product near a microwave oven, or other high frequency equipment.

• Do not operate the product within three feet (~1m) of shortwave therapy equipment as it may produce instability in stimulator output.

• Do not use this device on patients whose pain syndromes are undiagnosed.

• Do not use this device on babies or infants.

• Using pads that are too small or incorrectly applied could result in discomfort or skin burns. NOTICE:

• Do not insert the electrode plug into any place other than the jack on the main unit.

• Do not pull on the electrode cord during treatment.

• Do not use the device while wearing electronic devices such as watches as this may damage the device.

• Do not use near a cell phone as this may cause the stimulator to malfunction.

• Do not bend or pull the end of the cord.

• When pulling out the cord from the device, hold the plug and pull.

• Replace the cord when broken or damaged.

• The size, shape and type of pads may aect the safety and eectiveness of electrical stimulation.

• The electrical performance characteristics of pads may aect the safety and eectiveness of electrical stimulation.

• Check the device for signs of wear and tear or damage. If found, or if the device was used improperly, discontinue use and contact customer service.

• Switch the device o immediately if it is faulty or not working properly.

• Do not attempt to open and/or repair the device yourself. Repairs may only be carried out by Customer Service. Failure to comply will result in voiding of the warranty.

• The manufacturer is not liable for damage resulting from improper or careless use.6 Before using the device, consult your doctor if any of the following applies to you:

• Serious illnesses, in particular if you suspect or have been diagnosed with high blood pressure, a blood coagulation disorder, pro- pensity to thrombo-embolic conditions or recurrent malignant growths.

• Any skin conditions.

• Unexplained chronic pain in any part of the body.

• Any sensory impairment that reduces the feeling of pain (e.g. metabolic disorders).

• If you are receiving medical treatment.

• In the event of complaints linked to stimulation treatment.

• If you suer from persistently irritated skin due to long-term stimulation at the same electrode site. Battery Handling Safety Precautions

• Keep batteries away from children and pets. Batteries may be harmful if swallowed. Should a child or pet swallow a battery, seek medical assistance immediately.

• Use alkaline batteries.

• Use only the size and type of batteries specified.

• Be sure to follow the correct polarity when installing the batteries. Reversed batteries may cause damage to the device.

• Do not mix dierent types of batteries together (e.g. Alkaline and Carbon-zinc or rechargeable batteries) or old batteries with fresh ones. Always replace batteries as a simultaneous set.

• If the batteries in the device are depleted or the device will not be used for a long period of time,remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries not intended to be recharged; they can overheat and rupture (followbattery manufacturer’s direc

• Do not dispose of batteries in fire, batteries may explode or leak.

• Clean the battery contacts and also those of the device prior to battery installation.

• Remove discharged batteries from the product and dispose/recycle in compliance with all applicable laws. The device is not a substitute for medical consultation and treatment. Consult your doctor first if you are experiencing any pain or are suering from an illness.7

2. Important information

Signs and symbols The following symbols are used in these instructions for use, on the packaging and on the type plate for the device and accessories: READ ALL INSTRUCTIONS BEFORE USE. Do not use the device with a pacemaker. Operating Permissible storage temperature and humidity Storage Permissible operating temperature and humidity Serial number Type BF applied part Direct current Keep dry8

This Digital TENS Device features 15 separate programs. In all programs you can set the impulse intensity of each channel individually. You can also set various parameters in programs 13 – 15 to adjust the eect to the application area.

• Patients may experience skin irritation and burns beneath the stimulation electrodes applied to the skin.

• Patients may experience headache and other painful sensations during or following use.

• Patients should stop using the device and should consult with their physicians if they experience adverse reactions from the device. How does stimulation current work? The Digital TENS device works on the basis of transcutaneous (meaning “through the skin“) electrical nerve stimulation (TENS). TENS is a clinically proven, eective, medication-free method of treating certain types of pain which, when used properly, is free of side eects. It is also approved as a means of simple self-treatment. The pain-relieving eect is caused by suppressing the transmission of pain in the nerve fibers (particularly through high-frequency impulses) and increasing the release of the body‘s own endorphins, which decrease the sensation of pain. Every condition that calls for the use of TENS must be clarified by your physician. He or she will also give you information about the specific benefits of TENS self-treatment.

• 4 Adhesive Electrodes 1.8 x 1.8 in (45 x 45 mm)

• 3 x 1.5 V AAA Batteries

• 1 Instruction Manual Replacement electrodes available for separate purchase on www.amazon.com 4 x adhesive electrodes 1.8 x 1.8 in (45 x 45 mm), item no.: 642.729

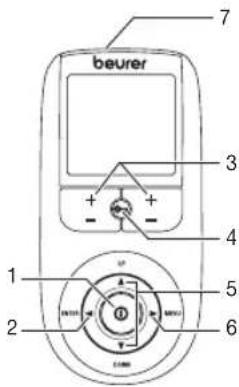

6. Parts and Controls

Button functions Each time you press a button, the unit beeps to notify you. This beeping cannot be switched o. ON/OFF (1) Press briefly to switch the device on. (2) Press once to interrupt stimulation treatment. (3) Press and hold to switch o the device (approx. 2 seconds).10 UP and DOWN Choice of treatment program, treatment time, frequency, pulse width, operating time, and pause time. MENU Return to program selection screen. ENTER (1) Menu selection. (2) Confirmation of a selection made using UP/DOWN, except channel intensity. Intensity setting buttons (Ch1 +/- left, Ch2 +/- right) Adjusts impulse intensity. Keylock Locks the buttons to avoid them being pressed accidentally. (1) To activate, press and hold the button until the symbol is visible in the display (approx. 3 seconds). (2) To deactivate, press and hold the button until the symbol disappears from the display (approx. 3 seconds).

7. Electrode Pad Usage

• Do not bend or fold pads. Store pads on the plastic storage sheet when not in use.

• Do not apply ointment or any solvent to the pads or to your skin.

• The pads are pre-gelled and will adhere to your skin.

• Apply the pads only to the skin or to the plastic storage sheet provided.

• Place the pads at least two inches (5 cm) apart on your skin. The pads should never touch each other.

• Always place clean pads in accordance with illustrations provided. Make sure the components are connected properly and the pads are attached to the part of the body you wish to treat.

• Pads should not touch each other when placed onto your skin.

• Do not place on your spine or backbone.

• Pads should not touch any metal object, such as a belt buckle or necklace.

• Pads should not be placed simultaneously on the soles of both feet.

• Pads should not be placed simultaneously on the calves of both legs.

• Do not share pads with another person. This may cause a skin irritation or infection. Pads are intended for use by one person.

• Do not place or relocate the pads while the device is on. Always turn the power o before removing or changing the pad location.

• Do not leave pads attached to the skin after treatment.

• Always pull firmly on electrodes to remove them from the skin to prevent injuries in the unusual case of highly sensitive skin.

• Do not expose the device to direct sunlight or high temperatures.11

• Protect the device from dust, dirt and humidity. Never immerse the device in water or other liquids.

• The device is suitable for self-treatment.

• If the device does not work properly, or you feel unwell or experience pain, stop using it immediately.

• Do not modify electrodes (e.g. by cutting them). This increases the current intensity, which is potentially hazardous (max. recommend- ed output value for the electrodes is 58.1 mA/sq in (9 mA/cm²), an eective current intensity beyond 12.9 mA/sq in (2 mA/cm²) requires increased awareness).

• Ensure that no metallic objects (e.g. belt buckles or necklaces) come into contact with the electrodes during stimulation. If you are wearing jewellery or have piercings in the area to be treated (e.g. a navel piercing), these must be removed before using the device. Failure to do so could result in spot burns.

• Make sure not to confuse the electrode cables including contacts with your headphones or other devices and do not connect the electrodes to other devices.

• Do not use the device whilst using other devices that transmit electrical impulses into your body.

• Do not use rechargeable batteries and always use the same battery types.

• During the initial few minutes use the device while sitting or lying down to minimise the risk of injuries as a consequence of isolated cases of vagal responses (feeling of faintness). If you feel faint, immediately switch o the device, lie down and support the legs in an elevated position (approx. 5 – 10 min).12

1. Remove the belt clip from the unit (if attached).

2. Remove the battery compartment cover on the rear of the device by sliding it in the

direction of the arrow.

3. Insert three „AAA“ alkaline batteries in accordance with the polarity markings inside the

4. Reattach the battery compartment cover. (Fig.1)

5. Attach the belt clip, if desired.

6. Attach the electrodes to the cables. (Fig.2)

7. Insert the plugs of the cables into the sockets on the top of the device. (Fig.3)

Do not pull, twist or make sharp bends in the cables. (Fig.4) NOTE: When the batteries are replaced or removed, all settings are restored to the factory defaults.13

9. Positioning the Electrodes

It is important to position the electrodes properly. Consult your doctor to establish the ideal electrode positions for your intended appli- cation area. The figure on the display is intended as an initial aid to help you position the electrodes. Refer to the inside of the cover for more detailed information on how to position the electrodes. Progr. no. Area of application, indications Phase Running time (min) Possible electrode positions 1 Pain relief – acute pain 1 30 1-17, 21, 23-28 2 Pain relief – chronic pain (pulse width modulated)

3 Endorphin eect (burst) 1 30 Progr. no. Area of application, indications Phase Running time (min) Possible electrode positions 4 Chronic pain in the lower back

10, 11 5 Pain in the lower back 1 30 6 Knee, ankle, joint pain 1 5 12, 13, 25, 28

9 Osteoarthritis of the knee joint

• Sensible distance: 2-6 in (5-15 cm).

• At distances below 2 in (5 cm), the unit stimulates surface structures intensely.

• At distances greater than 6 in (15 cm), large areas and deep structures are stimulated very weakly. NOTES: As part of pain relief treatment, position the electrodes of a channel so that the area aected by the pain is between the electrodes or position one electrode directly on the area aected by the pain and the other electrode at least one inch (2 – 3 cm) away. You may use the electrodes of the second channel to simultaneously treat additional areas aected by pain or use them in conjunction with the electrodes of the first channel to restrict the area aected by pain (position electrodes opposite). In this case, position electrodes as crosses. Always use all four electrodes for optimum treatment. Use the electrodes on skin that is clean and has as little hair and oil as possible, in order to extend the life of the electrodes. If required, clean skin with water and remove hair prior to treatment. If an electrode should come loose during use, the impulse intensity of both channels is reduced to the lowest level. Apply the electrode again and reset the desired intensity level. WARNING Exclusively use the electrodes on skin that is clean and preferably free from hair and grease, in order to extend the lifecycle of the elec- trodes. Worn electrodes may cause skin irritations as they can no longer ensure an even distribution of current. We recommend replacing the electrodes after having used them a maximum of 20 times. If the electrodes partially detach before they have been used 20 times, replace them at an earlier stage. For more information on where to purchase replacement electrodes, see page 8.16 TENS Program Table NOTES: TENS programs 1-12 can’t be customized- see below. Electrode positions should surround the area aected by pain. In the event that groups of muscles cause pain, group the electrodes around the aected muscles. To relieve joint pain, surround the joint with electrodes at the front and back as well as on the left and right of the joint, if possible. The distance between electrodes must be 2 – 6 inches (5 – 15 cm). Figures 25 and 28 apply to knee and ankle joints. Burst programs are suitable for all areas of application to be treated with changing signal patterns (to minimize having the area become accustomed to the treatment).

• The device shuts o if it is not in use for two minutes (automatic shuto). When the unit is switched on again, the LCD screen displays the menu selection and the most recently used menu flashes.

• A short beep sounds when a valid button is pressed. Two short beeps sound when an invalid button is pressed.

• Pause the stimulation at any time by pressing the ON/OFF button. To continue, press the ON/OFF button again and reset the desired impulse intensity. Procedure for TENS programs 1 – 12:

1. Select a suitable program from the program tables.

2. Place the electrodes on the desired area for treatment. For positioning suggestions, see the „Positioning the Electrodes“ section. Connect the cables to the main unit. The figure on the display is to help you position the electrodes.

3. Select a program.

a. Press the ON/OFF button to switch on the device. b. Using the UP/DOWN buttons, select the desired program and confirm your selection with the ENTER button.

4. To return to the previous selection menu, press the MENU button. By holding down the ENTER button, you

can skip individual setting steps and start directly with the stimulation treatment.

5. At the start of a session, the impulse intensity of Ch1 and Ch2 is set to 00 by default. No impulses are

sent to the electrodes yet. Using the +/- buttons, select the desired impulse intensity (Fig. 3). The impulse intensity of each channel can be set individually. NOTE: If the program is in a pause phase, the intensity cannot be increased.

6. To end a session early, press the ON/OFF button.17

Program 13: Program 13 is a preset program that you can also personalize. In this program, you can set the impulse frequency between 1 and 120 Hz and the impulse width between 50 and 250 μs. 1. Place the electrodes on the desired area for treatment. For positioning suggestions, see the „Positioning the Electrodes“ section. Connect the cables to the main unit. Select Program 13, as described in step 3 in the previous section.

5. Select the desired impulse intensity.

Program 14: Program 14 is a preset burst program that you can also personalize. In this program you can set an impulse width between 50 and 250 μs. 1. Place the electrodes on the desired area for treatment. For positioning suggestions see the „Positioning the Electrodes“ section. Connect the cables to the main unit. Select Program 14.

4. Select the desired impulse intensity.

Program 15: Program 15 is a preset program that you can also personalize. In this program, you can set the impulse frequency between 1 and 120 Hz. The impulse width changes automatically during the stimulation treatment. 1. Place the electrodes on the desired area for treatment. For positioning suggestions see the „Positioning the Electrodes“ section. Connect the cables to the main unit. Select Program 15.

4. Select the desired impulse intensity.

Custom Function The Custom Function is a special setting to allow you to access your personal program directly. Your individual program settings are recalled and activated when the device is switched on.18 Setting the Custom Function

• Select your program and the corresponding settings as described in

• At the start of treatment, the impulse intensity is set to 00 by default. No impulses are sent to the electrodes yet. Before setting the desired impulse intensity using the intensity setting buttons, press and hold the `CH2-´ button for 5 seconds. Storage in the Custom Function is confirmed by a long beep. If you switch on the device again, the program you saved using the Custom Function is recalled. Deleting the Custom Function To clear the device and gain access to other programs again, press and hold the`CH2-´ button again for approx. 5 seconds. To do this, the impulse intensity must be set to 00. Deletion of the Custom Function is confirmed with a long beep.

11. Care and Maintenance

Adhesive Electrodes: 1. To ensure that the adhesive on the electrodes lasts as long as possible, run the adhesive side under lukewarm water and pat dry with a lint-free cloth. Before cleaning with water, remove the connection cables from the electrodes.

2. Reapply the electrodes to the carrier foil after treatment.

1. Remove the batteries from the device before cleaning.

2. Clean the device after use with a soft, slightly damp cloth. You can also moisten the cloth with a mild detergent solution. Ensure that no water enters the device.

3. Do not use any chemical or abrasive cleaning agents.

1. Remove the batteries from the device if you will not be using it for a prolonged period of time.

2. Do not make sharp bends in the connection cables and electrodes.

3. Disconnect the connection cables from the electrodes.

4. Reapply the electrodes to the carrier foil after use.

5. Store the device and accessories in a cool, well-ventilated space. Never place any heavy objects on the device.19

12. Troubleshooting Guide

Problem: The device does not switch on. Solutions:

• Ensure batteries have been inserted correctly and are in contact with the terminals.

• Replace batteries, if applicable.

• Contact Customer Service. Problem: Electrodes do not adhere to the body. Solutions:

• Clean the adhesive surface of the electrodes using a damp, lint-free cloth. Replace the electrodes if they still do not adhere securely.

• Clean the skin prior to any application; do not use skincare lotions or oils prior to treatment. Shaving may increase the life of electrodes. Problem: There is no noticeable stimulation. Solutions: 1. Press the ON/OFF button to pause. Ensure the connection cables are correctly connected to the electrodes and that the electrodes are in firm contact with the treatment area.

2. Ensure the connection plug is firmly connected to the device.

3. Press the ON/OFF button to restart the program.

4. Check electrode positions and ensure that adhesive electrodes do not overlap.

5. Gradually increase the impulse intensity.

• Batteries are weak; replace batteries. Problem: Unpleasant sensation near the electrodes. Solution:

• The electrodes are not positioned correctly. Check and reposition.

• The electrodes are worn. This may cause irritated skin because of uneven current across the area. Replace the electrodes. Problem: Skin in the treatment area turns red. Solution: Immediately stop treatment and wait for the skin color to return to normal. If the redness is directly under the electrode and goes away after a brief time, this is normal and is caused by increased blood flow. Consult your doctor before continuing if the skin irritation persists and is accompanied by an itching sensation or inflammation, as this may be an allergic reaction to the adhesive.20

Type: EM44 Model: SEM 44 Output wave form: Biphasic rectangular pulse Pulse length: 50 – 360 µs Pulse frequency: 1 – 150 Hz Max Output Voltage: 100 Vpp (500 ohm) Max Output Current: 200 mApp (500 ohm) Power Supply: 3 x 1.5 V AAA batteries Treatment Time: 5 – 100 minutes Intensity Levels: 0 – 50 Operating Conditions: 50 °F – 104 °F (10 °C – 40 °C), relative humidity 30 – 85% Storage Conditions: 14 °F – 122 °F (-10 °C – 50 °C), relative humidity 10 – 95% Dimensions: 5.2 x 2.5 x 1.2 in (132 x 63 x 29.5 mm) including belt clip Weight: 3.5 oz (101 g) including belt clip Electrode Pad Size: 1.8 x 1.8 in (45 x 45 mm) Battery Life: About 15 hours

Changes or modifications to the product not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfe- rence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Subject to error and change21

Limited Lifetime Warranty For Original Purchaser The Your Beurer Digital Tens Device Model EM 44, is warranted to be free from defects in materials and workmanship for the life of the pro- duct under normal conditions of intended use and service. This warranty extends only to the original retail purchaser and does not extend to retailers or subsequent owners. We will, at our option, repair or replace the Beurer Digital Tens Device, Model EM 44, without additional charge, for any part or parts covered by these written warranties. No refunds will be given. Repair or replacement is our only responsibility and your only remedy under this written warranty. If replacement parts for defective materials are not available, Beurer reserves the right to make product substitutions in lieu of repair or replacement. For warranty service contact our customer service department at 1-800-536-0366 or at info@beurer.com to provide a description of the pro- blem. If the problem is deemed to be within the scope of the limited lifetime warranty, you will be asked to mail the product at your costs in its original package with proof of purchase, your name, address and phone number. If the problem is not deemed to be within the scope of the limited lifetime warranty, we will provide a quotation for repair respectively replacement and return shipping fee. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of unauthorized accessory; alteration to the product; improper installation; misapplication; lack of reasonable care with respect to the product; unauthorized repairs or modifications; improper use of electrical/power supply; old worn batteries; normal wear; loss of power; dropped product; malfunction or damage of an ope- rating part as a result of failure to comply with instructions for use or to provide manufacturer’s recommended maintenance; transit damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Beurer. This warranty is void if the product is ever used in a commercial or business environment. The maximum liability of Beurer under this warranty is limited to the purchase price actually paid by the customer for the product covered by the warranty, as confirmed by proof of purchase, regardless of the amount of any other direct or indirect damage suered by the customer. This warranty is eective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adaptation to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty. THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THIS APPLICABLE WRITTEN WARRANTY. Some states do not allow limit- ations on how long an implied warranty lasts, so the above limitations may not apply to you. IN NO EVENT SHALL BEURER BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS, IMPLIED OR ANY OTHER THEORY OF LIABILITY, WHATSOEVER. Some states do not allow the exclusion or limitation of special, incidental, or consequential damages, so the above limitation may not apply to you. Beurer does not authorize anyone, including, but not limited to, retailers, the subsequent consumer purchaser of the product from a retailer22 or remote purchaser, to obligate Beurer in any way beyond the terms set forth herein. This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on Internet auction sites and/or products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate in connection with any products or parts thereof which are repaired, replaced, altered, or modified, without the prior explicitly written consent of Beurer. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. For more information regarding our product line in the USA, please visit: www.beurer.com. Distributed by: Beurer North America LP 900 N Federal Hwy, Suite 300 Hallandale Beach, FL 33009. USA www.beurer.com Made in China23 CONTENIDO ESPAÑOL

3 Endorphin eect (burst) 1 30 Progr. no. Area of application, indications Phase Running time (min) Possible electrode positions 4 Chronic pain in the lower back

10, 11 5 Pain in the lower back 1 30 6 Knee, ankle, joint pain 1 5 12, 13, 25, 28

9 Osteoarthritis of the knee joint

3 Endorphin eect (burst) 1 30 Progr. no. Area of application, indications Phase Running time (min) Possible electrode positions 4 Chronic pain in the lower back

10, 11 5 Pain in the lower back 1 30 6 Knee, ankle, joint pain 1 5 12, 13, 25, 28

9 Osteoarthritis of the knee joint

• communiquez avec le vendeur ou un technicien radio/TV expérimenté pour obtenir de l’aide.63 Electromagnetic Compatibility Information Table 1 Guidance and manufacture’s declaration – electromagnetic emissions The EM 44 is intended for use in the electromagnetic environment specified below. The customer or the user of the EM 44 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment – guidance RF emissions CISPR 11 Group 1 The EM 44 uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. RF emissions CISPR 11 Class B The EM 44 is suitable for use in all establishments, including domestic establishments and those directly con- nected to the public low-voltage power supply network that supplies buildings used for domestic purposes. Harmonic emissions IEC 61000-3-2 Not applicable Voltage fluctuations/flicker emissions

Not applicable Table 2 Guidance and manufacturer’s declaration – electromagnetic immunity The EM 44 is intended for use in the electromagnetic environment specified below. The customer or the user of the EM 44 should assure that it is used in such an environ

ment. IMMUNITY test IEC 60601 test level Compliance level Electromagnetic environment – guidance Conducted RF

3 V rms 150 kHz to 80 MHz 3 V/ m 80 MHz to 2,5 GHz 3 V 3 V/ m Portable and mobile RF communications equipment should be used no closer to any part of the EM 44, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance:

d = 1,2 80 MHz to 800 MHz d = 2,3 800 MHz to 2,5 GHz Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,

should be less than the com- pliance level in each frequency range.

Interference may occur in the vicinity of equipment marked with the following symbol: NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is aected by absorption and reflection from structures, objects and people.

Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site sur

vey should be considered. If the measured field strength in the location in which the EM 44 is used exceeds the applicable RF compliance level above, the EM 44 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the EM 44.

Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.64 Subject to error and change758.876-0617 Table 3 Guidance and manufacturer’s declaration – electromagnetic immunity The EM 44 is intended for use in the electromagnetic environment specified below. The customer or the user of the EM 44 should assure that it is used in such an env

± 6 kV contact ± 8 kV air ± 6 kV contact ± 8 kV air Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 %. Electrical fast transient/burst

± 2 kV for power supply lines ± 1 kV for input/output lines ± 1 kV for input/output lines Mains power quality should be that of a typical commercial or hospital environment. Surge

± 1 kV line to line ± 2 kV line to earth Not applicable Mains power quality should be that of a typical commercial or hospital environment. Voltage dips, short interruptions and voltage variations on power supply input lines

for 5 s Not applicable Mains power quality should be that of a typical commercial or hospital environment. If the user of the EM 44 requires continued operation during power mains interruptions, it is recommended that the EM 44 be powered from an uninterruptible power supply or a battery. Power frequency (50/60 Hz) magnetic field

3 A/m 3 A/m Power frequency magnetic fields should be at levels characte

ristic of a typical location in a typical commercial or hospital env- ironment. NOTE: U

is the a.c. mains voltage prior to application of the test level.
