USER MANUAL SL 60 BEURER

Detailed snoring analysis including snores per hour, recording duration and determination of the maximum snoring volume

Calendar with snoring diary

Evaluation view (in days/weeks/year)

Adjustable impulse intensity and sensitivity System requirements: iOS ≥ 12.0, Android™ ≥ 8.0, Blue tooth

≥ 4.0 List of supported devices:

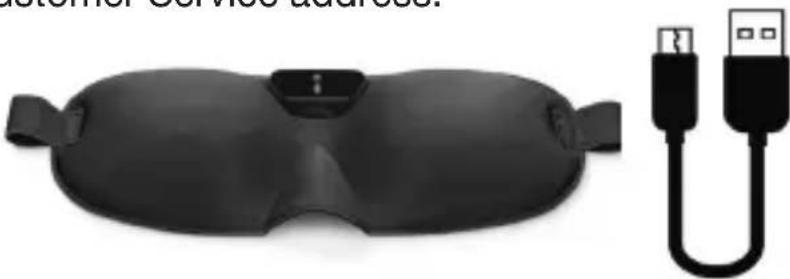

1. Included in delivery

Check that the exterior of the delivery cardboard packaging is intact and make sure that all components are present. Before use, ensure that there is no vis- ible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address. 1x snore mask 1x micro USB charging cable Table of contents

1. Included in delivery

2. Signs and symbols

4. Warnings and safety notes

6.1 Connecting the snore mask to the

8. Charging the battery

9. Transferring data to your smart-

10. Cleaning and maintenance

13. Warranty/service

2. Signs and symbols

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device: WARNING Warning notice indicating a risk of injury or damage to health IMPORTANT Safety note indicating possible damage to the device/accessory Note Note on important information Read the instructions Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE

PAP Dispose of packaging in an environmentally friendly manner Manufacturer This product satisfies the requirements of the applicable Euro- pean and national directives. Certification symbol for products that are exported to the Russian Federation and members of the CIS Voltage supply

WARNING The snore mask must only be used by humans. Do not use the snore mask on animals. The snore mask is only intended for use in enclosed spaces and for domestic/private use. The snore mask is not intended for medical or com

mercial use. The snore mask must only be used for the purpose it was deve- loped for and in the manner specified in these instructions for use. Any form of improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or incorrect use.16

4. Warnings and safety notes

The removable control unit of the snore mask is only splash-proof.

Keep the removable control unit of the snore mask away from water!

Protect the snore mask from impacts, humidity, dirt, marked temperature fluctuations and direct sunlight.

Keep the snore mask and packaging material away from children. Choking hazard!

Keep the removable control unit of the snore mask away from heat sources and do not use it near (~1 m) shortwave or microwave devices.

Use and store the snore mask at an ambient temperature between 0°C and 60°C. Higher or lower temperatures may damage the snore mask.

Do not use chemical cleaners or abrasive cleaning agents when cleaning the removable control unit of the snore mask. Clean the removable control unit occasionally with a 70% isopropyl alcohol pad. The snore mask itself is machine washable at 30°C (extra-delicate cycle).

If your skin or eyes come into contact with fluid from a rechargeable battery cell, flush out the aected areas with water and seek medical assistance.

Protect batteries from excessive heat.

Risk of explosion! Never throw batteries into a fire.

Do not disassemble, split or crush the batteries.

Fully charge the battery prior to initial use.

Fully charge the battery at least every 3 months.

Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications in these instructions for use regarding correct charging must be observed at all times.17

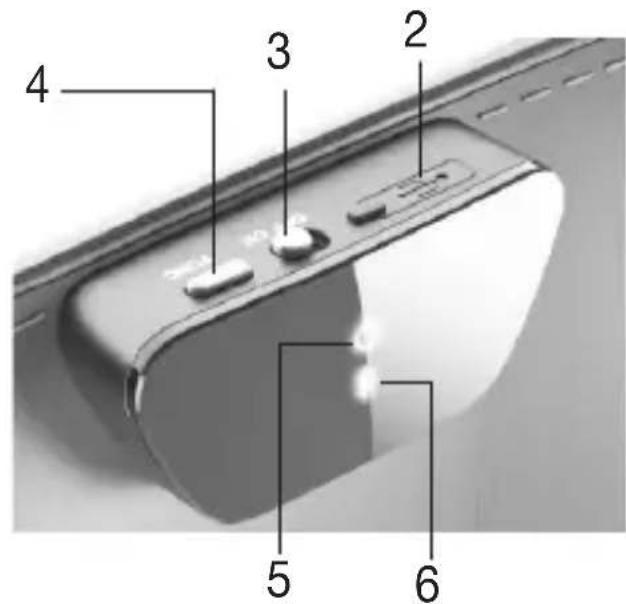

connection button 5 Operating light Green = ready for use Red = charge the battery 6 Display for Blue tooth

6.1 Connecting the snore mask to the “beurer SleepQuiet” app

You can use the basic functions of the snore mask also without the “beurer SleepQuiet” app. The additional features such as recording, statistics, calendar and settings are only available in conjunction with the “beurer SleepQuiet” app. To connect your snore mask with the “beurer SleepQuiet” app, please pro- ceed as follows:

1. Ensure that your smartphone is connected to the Internet.

Download the free “beurer SleepQuiet” app from the Apple App Store (iOS) or at Google Play (Android

Depending on the smartphone settings, additional charges may be incurred for connecting to the Internet or transferring data.

4. Start the “beurer SleepQuiet” app and follow the instructions.18

6.2 Putting on the snore mask

To ensure optimum wearing comfort, adjust the hook-and-loop fastener on the back of the snore mask to your desired size. Ensure that the snore mask is not too tight or too loose.

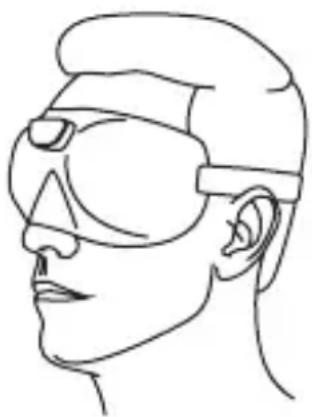

2. Put the snore mask on like a regular sleeping mask.

Ensure that the plastic panel on the back of the snore mask is touching the forehead with light pressure. This is the only way to ensure optimum snoring detection.

Move the ON/OFF switch to “ON” to switch on the snore mask. The operat- ing light will now illuminate green for 15 seconds. The snore mask is ready for use. Additionally, the Blue tooth

display will flash blue for a maximum of 15 seconds. The blue flashing indicates that the snore mask is attempting to establish a connection with your smartphone. The Blue tooth

display will continuously illuminate blue while data is being transferred. If the snore mask does not switch on or the operating light illuminates red, you must charge the batteries of the snore mask. Recharge the battery as described in Chapter “6. Charging the battery”.

Put the snore mask on and go to bed. So as not to disturb the sleep of others, the lights on the device switch o automatically after 15 seconds.

3. As soon as you get up, remove the snore mask and switch it o. Move the

ON/OFF switch to “OFF” to switch o the snore mask.19

8. Charging the battery

To check the current battery capacity, press the Blue tooth

connec- tion button. If the operating light is green, the battery has sucient capacity for use for another night (more than 41%). If the operating light is red, you must first charge the battery prior to use. If the snore mask is connected to the “beurer SleepQuiet” app, you will be able to see the current battery capacity (%) in the app. If you are a heavy snorer, we recommend that you charge the battery daily. To charge the battery, proceed as follows:

1. Open the cover of the micro USB connection on the snore mask.

2. Connect the charging cable included in delivery to the snore mask and a

computer that is switched on. Alternatively, connect the charging cable to the snore mask and a USB mains adapter (not included in delivery). Insert the USB mains adapter into a suitable socket.

3. Whilst charging, the operating light flashes green. As soon as the battery is

fully charged, the operating light will remain green.

4. It usually takes approx. 2 hours to fully charge the battery. As soon as the

battery is completely charged, remove the charging cable from the computer or the socket and the USB mains adapter and the snore mask.

When the battery is fully charged, the battery life is approx. 2 to 3 days. The operating light turns red as soon as the battery capacity is below 41%.

9. Transferring data to your smartphone

To transfer the recorded data from your snore mask to the “beurer Sleep Quiet” app, proceed as follows:

3. Slide the ON/OFF switch on the snore mask to “ON”. The display for Blue-

flashes blue. As soon as the snore mask is connected to your smart- phone, the Blue tooth

display will continuously illuminate blue. The record- ed data is now transferred to the smartphone. For a large volume of data, this may take some time. After data has been transferred, the Blue tooth

display will go out.20

10. Cleaning and maintenance

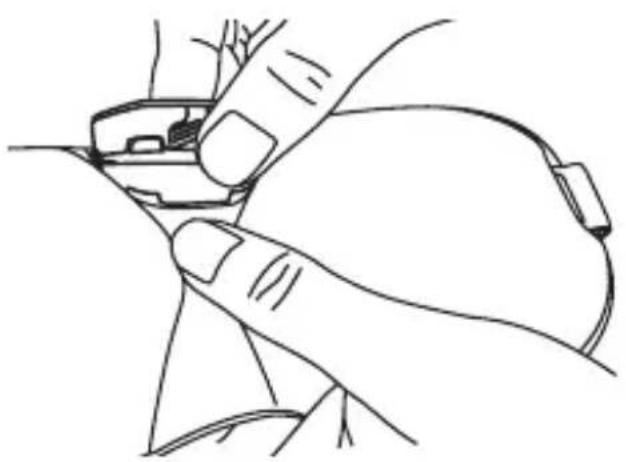

The control unit of the snore mask is re- movable. To do this, use both hands to pull the control unit from the snore mask, following the direction of the arrow on the underside. Please note that removing the control unit too frequently has a negative eect on the product. The control unit should only be removed in order to wash the snore mask. IMPORTANT

Before cleaning, always remove the control unit from the snore mask. Otherwise there is a risk of damage. IMPORTANT

The control unit of the snore mask must never come into contact with water or other liquids. This may cause damage. When cleaning the control unit use a cotton pad soaked in 70% isopropyl al

cohol. Do not use any chemical or abrasive cleaning agents. IMPORTANT

Please note that the snore mask must not be chemically cleaned, wrung out, tumble dried, put through a mangle or ironed. Otherwise the snore mask may be damaged. The snore mask is machine washable. To do this, close the hook-and-loop fastener on the back of the snore mask and place it in a pillow case or wash bag. Set the washing machine to a particularly gentle wash cycle at 30°C (extra-delicate cycle). For ecological reasons, always wash the snore mask together with other tex

tiles. Use a delicate laundry detergent and measure it out according to the manufacturer's instructions. IMPORTANT

Please note that washing has a negative eect on the snore mask. The snore mask should therefore be washed in a washing machine a maxi- mum of 10 times during its life. Let the snore mask dry flat on a clothes horse.21 IMPORTANT

Only reattach the control unit to the snore mask when the snore mask is fully dry. Otherwise the control unit may be damaged.

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the device at a suitable local collection or recycling point in your country. Dispose of the device in accordance with EC Direc- tive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities re- sponsible for waste disposal.

Polycarbonate (PC), Polymethacrylate (PMMA) Mask: Textile Data transfer Blue tooth

low energy technology Permissible operating conditions 0°C to 60°C, 30 to 75% RH 860 to 1060 hPa ambient pressure Permissible transport/ storage conditions -20°C to 60°C, < 75% RH 860 to 1060 hPa ambient pressure Frequency band 2402 to 2480 MHz Transmission power 3.7 dBm22 Subject to technical changes. We hereby confirm that this product complies with the European RED Direc- tive 2014/53/EU. The CE Declaration of Conformity for this product can be found under: https://www.beurer.com/web/we-landingpages/de/cedeclarationofconform- ity.php.

13. Warranty/service

2. Active Blue tooth

1. Active Blue tooth
