EKF7700R - Coffee maker ELECTROLUX - Free user manual and instructions

Brand	Electrolux
Model	EKF7700R
Product type	Programmable coffee maker
Water tank capacity	Not specified, but graduated carafe for multiple cups
Filter	Permanent filter included (compatible with 1x4 paper filter)
Main functions	Delayed programming (Auto On), aroma selector (mild, medium, strong), automatic safety shut-off (40 min)
Anti-drip system	Yes
Hot plate	Yes, keeps coffee warm
Display	Digital clock with time display
Descaling reminder	Yes, after 70 uses (alternating display 'dESC' and '-ALE')
Cleaning and maintenance	Carafe and lid dishwasher safe; filter holder dishwasher safe; wipe exterior surfaces with a damp cloth
Descaling	Recommended every 70 uses with vinegar or descaling agent (1:1 mixture)
Power consumption	Not specified in the manual
Safety	Automatic shut-off after 40 min; hot surface (caution); do not immerse; cord out of reach of children
Spare parts	Use original Electrolux accessories and spare parts
Repairability	Power cord replacement by a qualified professional
General information	Household use only; do not use outdoors; suitable mains voltage

Frequently Asked Questions - EKF7700R ELECTROLUX

How to set the time on the Electrolux EKF7700R coffee maker?

After plugging in, the display flashes (12:00 default). Press the HOUR and MIN buttons to set the time. You can change the time at any time, even during programming. If the appliance is unplugged, the time must be set again.

How to program the coffee maker to start automatically?

Press the PROG button to enter programming. The desired start time is displayed. Set the time with HOUR and MIN, then press AUTO ON to confirm. The screen shows the current time and the 'auto' symbol.

How to use the aroma selector?

Press the AROMA button to choose the intensity: once = mild coffee, twice = medium coffee, three times = strong coffee. This extends the brewing time for a stronger coffee, ideal for fewer than 6 cups.

What to do if the screen alternates between 'dESC' and '-ALE'?

This is the descaling reminder after 70 uses. Fill the tank with a water-vinegar mixture (1:1) or descaling solution. Place a filter (no coffee) and the carafe. Let it sit for 15 minutes, then run the solution through. Rinse twice with fresh water. To reset, press AUTO and PROG simultaneously.

Can I wash the parts in the dishwasher?

Yes, the carafe, its lid, and the filter holder are dishwasher safe. However, do not clean the body in the dishwasher; wipe it with a damp cloth.

Why does coffee overflow from the filter?

This can happen if you remove the carafe for more than 30 seconds during brewing. The anti-drip system prevents dripping, but the filter can overflow if the carafe is missing too long. Put it back quickly.

Does the coffee maker turn off automatically?

Yes, the Automatic Safety Shut-off function turns off the appliance after 40 minutes of inactivity, even if you do not turn it off manually.

What to do if the coffee is too weak or too strong?

Adjust the amount of ground coffee: one scoop (6-7 g) per cup for a medium-strength coffee. Use the aroma selector to strengthen extraction. Also check that the filter is properly positioned.

Can I use a paper filter instead of the permanent filter?

Yes, a size 1x4 paper filter can be placed in the filter holder instead of the included permanent filter. Both are suitable.

What to do in case of malfunction?

First, check that the appliance is properly plugged in and the water tank is filled. If the cord is damaged, have it replaced by a qualified professional. For any other issues, contact Electrolux customer service.

USER MANUAL EKF7700R ELECTROLUX

Exterior view of a Electrolux coffee maker with digital display and control panel (no visible text or symbols on the device itself)

GB INSTRUCTION BOOK

FR MODE D'EMPLOI

BG БРОШУРА С ИНСТРУКЦИИ

CZ NÁVOD K POUŽITÍ

Line drawing of a bucket with handle and labeled point F (no text or symbols on the object itself)

Illustration of a bucket with handle and labeled point E* (no text or symbols beyond label)

Illustration of a kettle with a handle and spout, labeled 'G' (no text or symbols on the object itself)

Labeled diagram of a coffee maker with parts marked A through H, showing interior and exterior views.

Aroma HOUR MIN 88:88° AUTO PROG AUTO ON ON OFF O N M L K P J

2 www.electrolux.com

Illustration of a digital coffee maker with an attached power outlet, showing the device's open lid and internal components.

2 12:00 HOUR Min

3

Illustration of a coffee maker with open lid and lid, showing internal components (no text or symbols)

6 RADMA 88:88

7

Diagram of a toilet with a blue eye highlighted and dashed circle, no text or symbols present

Illustration of a coffee maker with a crossed-out rectangular block nearby (no text or symbols)

10

Illustration of a modern coffee maker with a bottle beside it (no text or symbols visible)

Illustration of a coffee maker with a blue lid pouring liquid into it, next to a bottle (no text or symbols present)

Illustration of a kitchen sink with buckets and a magnified view of the drain (no text or symbols)

CONTENTS

ENGLISH 6	HRVATSKI 30		SRPSKI	54
FRANÇAIS 9	MAGYAR 33		PYCCKIЙ 57
БЪЛГАРСКИ 12	ITALIANO	36	SVENSKA	60
ČEŠTINA 15	LIETUVIŠKAI	39	SLOVENŠČINA	63
DEUTSCH 18	LATVIEŠU	42	SLOVENČINA	66
DANSK 21	NORSK	45	TŸRKÇE	69
EESTI 24	POLSKI	48	УКРАÏНСЬКА	72
SUOMI 27	ROMÂNĂ	51

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

4 www.electrolux.com

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

5www.electrolux.com

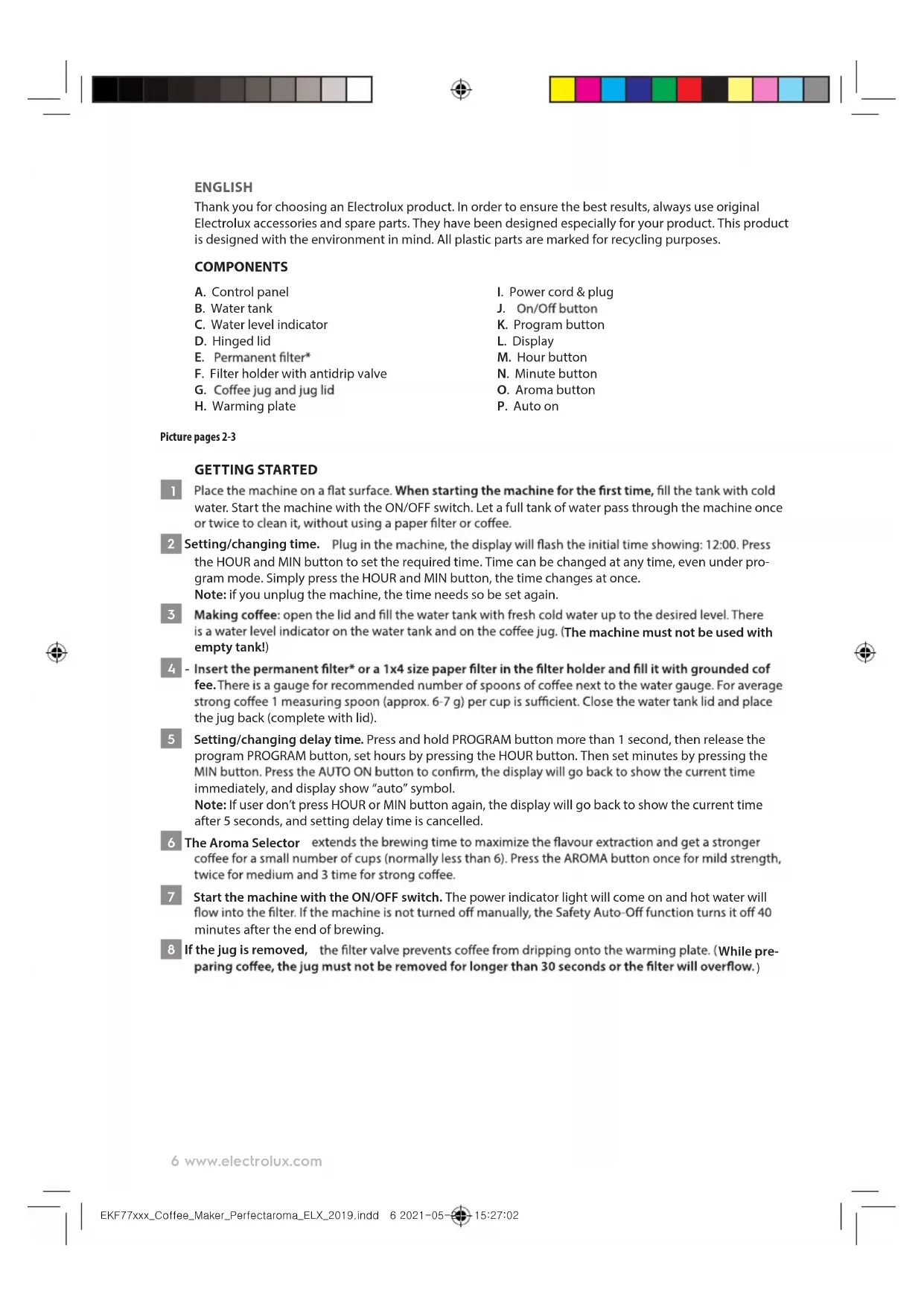

ENGLISH

Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

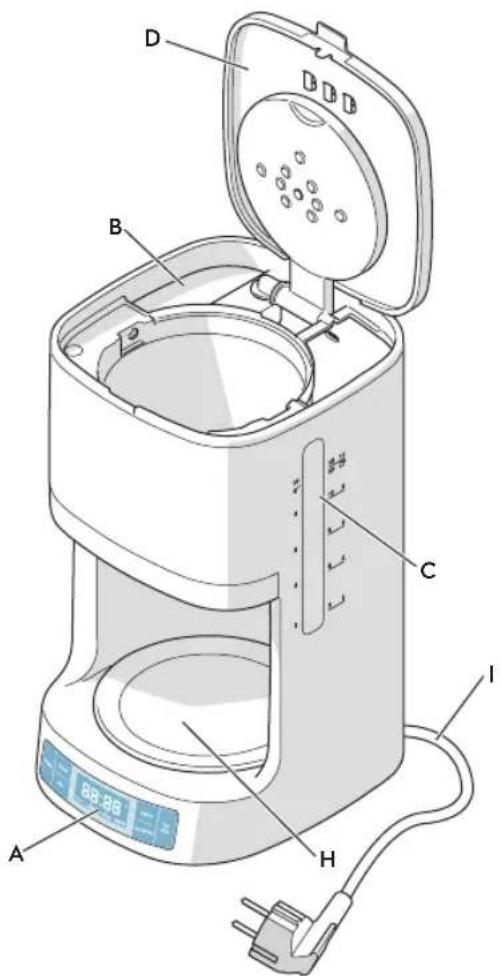

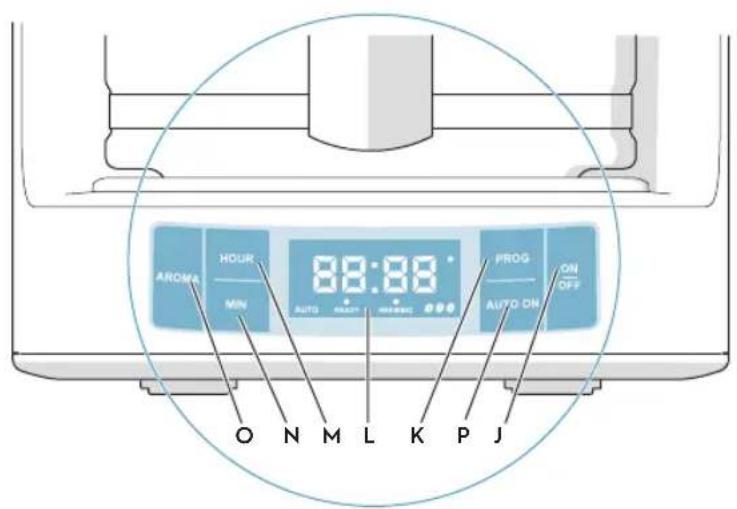

COMPONENTS

A. Control panel
I. Power cord & plug
B. Water tank
J. On/Off button
C. Water level indicator
K. Program button
D. Hinged lid
L. Display
E. Permanent filter*
M. Hour button
F. Filter holder with antidrip valve
N. Minute button

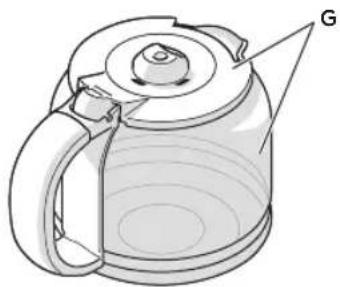

G. Coffee jug and jug lid
O. Aroma button
H. Warming plate
P. Auto on

Picture pages 2-3

GETTING STARTED

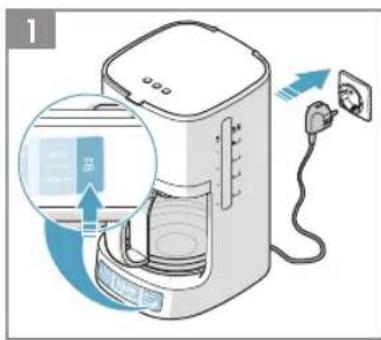

1 Place the machine on a flat surface. When starting the machine for the first time, fill the tank with cold water. Start the machine with the ON/OFF switch. Let a full tank of water pass through the machine once or twice to clean it, without using a paper filter or coffee.

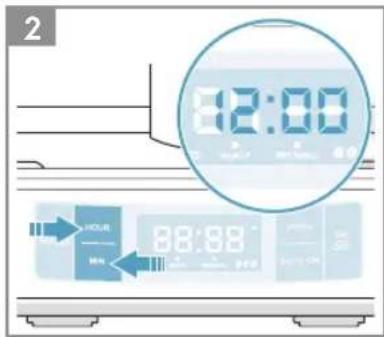

2 Setting/changing time. Plug in the machine, the display will flash the initial time showing: 12:00. Press the HOUR and MIN button to set the required time. Time can be changed at any time, even under program mode. Simply press the HOUR and MIN button, the time changes at once. Note: if you unplug the machine, the time needs so be set again.

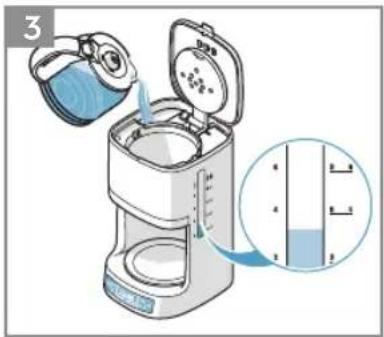

3 Making coffee: open the lid and fill the water tank with fresh cold water up to the desired level. There is a water level indicator on the water tank and on the coffee jug. (The machine must not be used with empty tank!)

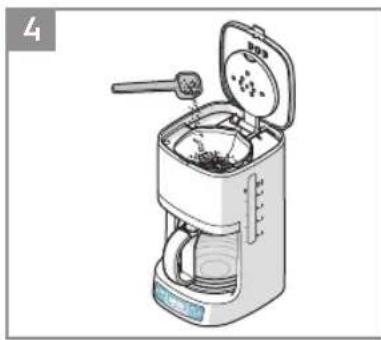

4 - Insert the permanent filter* or a 1x4 size paper filter in the filter holder and fill it with grounded cof fee. There is a gauge for recommended number of spoons of coffee next to the water gauge. For average strong coffee 1 measuring spoon (approx. 6-7 g) per cup is sufficient. Close the water tank lid and place the jug back (complete with lid).

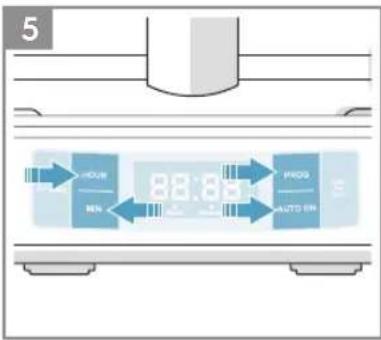

5 Setting/changing delay time. Press and hold PROGRAM button more than 1 second, then release the program PROGRAM button, set hours by pressing the HOUR button. Then set minutes by pressing the MIN button. Press the AUTO ON button to confirm, the display will go back to show the current time immediately, and display show "auto" symbol. Note: If user don't press HOUR or MIN button again, the display will go back to show the current time after 5 seconds, and setting delay time is cancelled.

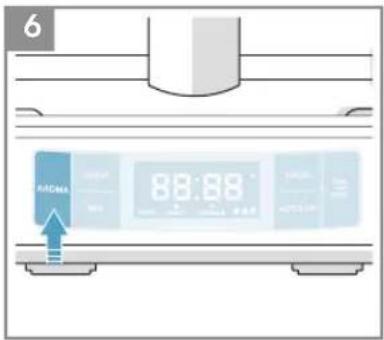

6 The Aroma Selector extends the brewing time to maximize the flavour extraction and get a stronger coffee for a small number of cups (normally less than 6). Press the AROMA button once for mild strength, twice for medium and 3 time for strong coffee.

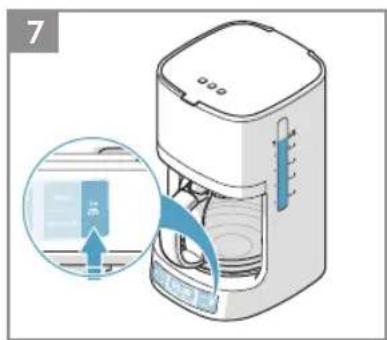

7 Start the machine with the ON/OFF switch. The power indicator light will come on and hot water will flow into the filter. If the machine is not turned off manually, the Safety Auto-Off function turns it off 40 minutes after the end of brewing.

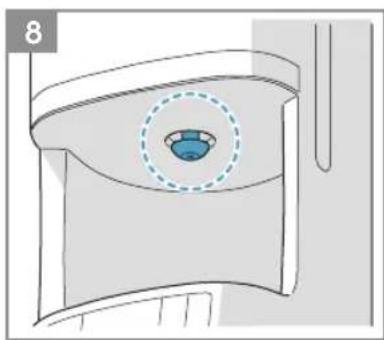

8 If the jug is removed, the filter valve prevents coffee from dripping onto the warming plate. (While preparing coffee, the jug must not be removed for longer than 30 seconds or the filter will overflow.)

CLEANING AND CARE

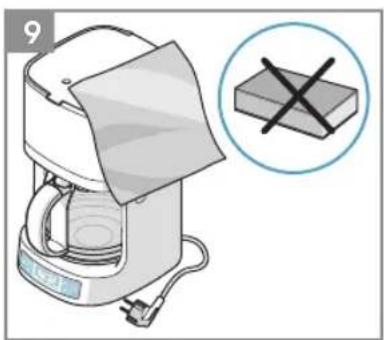

9 Turn the machine off and unplug the power cord. Wipe all outer surfaces with a damp cloth. Coffee jug and jug lid are dishwasher proof. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!

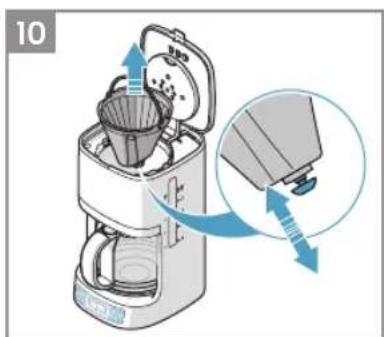

10 To clean the filter holder, lift up the handle and remove the filter holder. To clean the filter valve thoroughly, push it several times while it is being rinsed. The filter holder can also be washed in the dishwasher.
11 As a precaution we recommend descaling after 70 uses. Use only an environmentally friendly descaling agent and always follow the manufacturer's instructions.
12 As a precaution, we recommend descaling your product after using it 70 times. This coffee maker has a built-in reminder set up. When an alternating display of "dESC" & "-ALE" appears, you should:

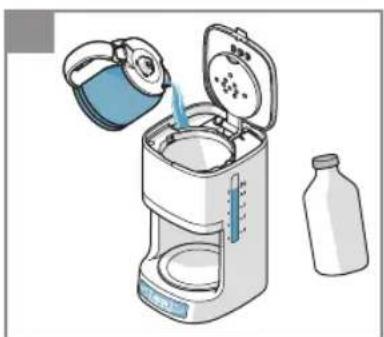

1. Fill the water tank with water + vinegar (1:1) or water + decalcifier according to the decalcifier product instructions.

2. Place the filter inside the basket and keep it there through the whole process.

3. Place the coffee jug with the lid on the warming plate.
4. Leave the descaling solution to work for approximately 15 minutes.
5. Switch on the appliance.
6. Once the descaling solution has percolated through, switch the appliance off.
7. If necessary, repeat the descaling procedure.
8. Repeat the procedure at least twice using clean water.
9. To reset the descaling counter Press the "AUTO"&"PROG" buttons at same time.

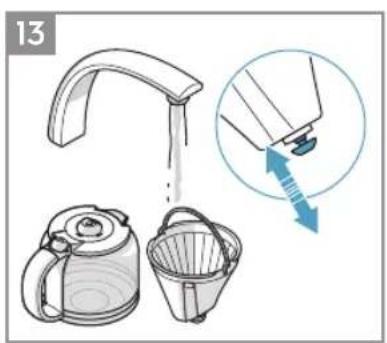

13 Attnat the caffeicjug, jug lid and filter insert thoroughly under running water. valve several times as it is rinsed.

Enjoy your new Electrolux product!

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.

• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
  • Always place the appliance on a flat, level surface.

• Never leave the appliance unattended while connected to the supply mains.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
• Do not immerse the appliance in water or any other liquid.
• Do not use or place the appliance on a hot surface or near source of heat.
• Warning: Avoid spillage on the connector.
• Attention: The heating element surface is subject to residual heat after use.
• The mains cable must not come into contact with any hot parts of the appliance.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• Never operate appliance with open lid.

This appliances is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and others working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.

FRANÇAIS

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Abstract geometric design with three overlapping white shapes on a black background (no text or symbols)

3481 E EKF77xxx 02 01 0521
