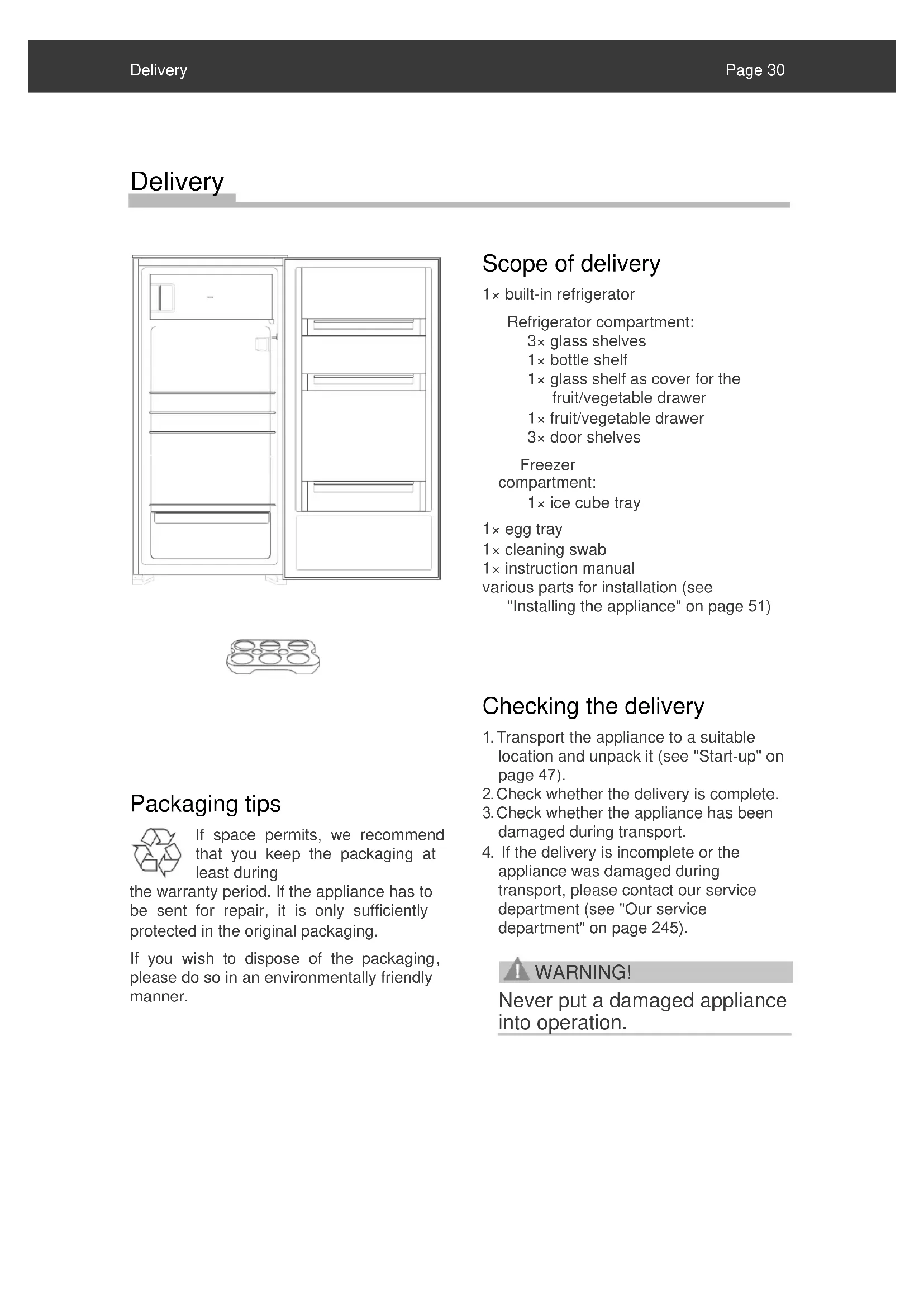

• N/A 26g 23gPage 29 Table of contents Table of contents Delivery p. 30
• Packaging tips p. 30
• Scope of delivery p. 30
• Checking the delivery p. 30

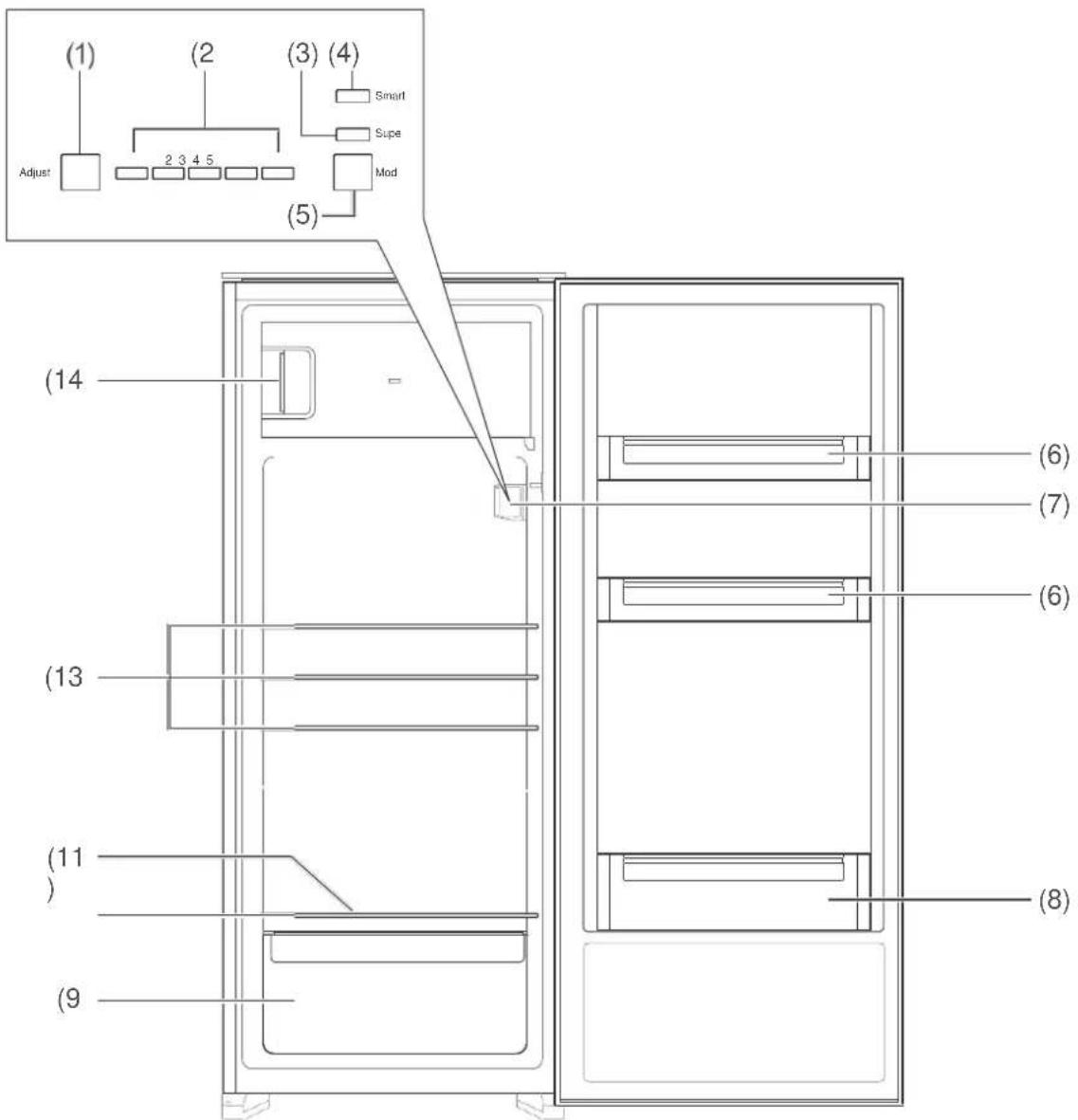

• Appliance parts / controls p. 31
• For your own safety p. 32
• Intended use p. 32
• Explanation of terms p. 32
• Safety instructions p. 32
• Operation p. 37
• Requirements for safe use p. 37
• Switching the appliance on/off p. 37
• Setting the temperature p. 37
• Door alarm p. 38
• Rearranging the shelves p. 38
• Refrigerating food p. 39
• Refrigeration tips p. 39
• Preserving quality p. 39
• Freezing food / Storing frozen food p. 40
• Freezing p. 40
• Storing frozen food p. 41
• Defrosting food p. 42
• Preparing ice cubes p. 42
• Care and maintenance p. 43
• Inspecting and cleaning the door seals …. 43 Defrosting the refrigerator compartment….43 Cleaning the refrigerator compartment p. 43
• Defrosting and cleaning the freezer compartment p. 44
• Start-up p. 46
• Transportation and unpacking p. 46
• Selecting a suitable location p. 46

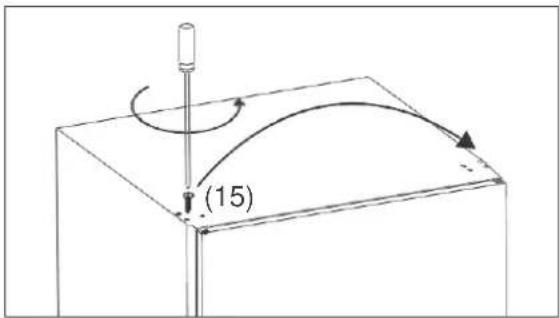

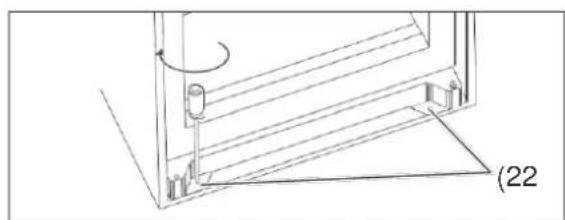

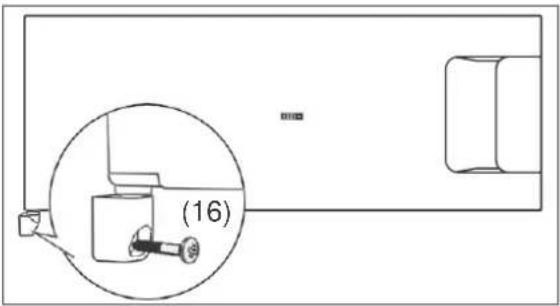

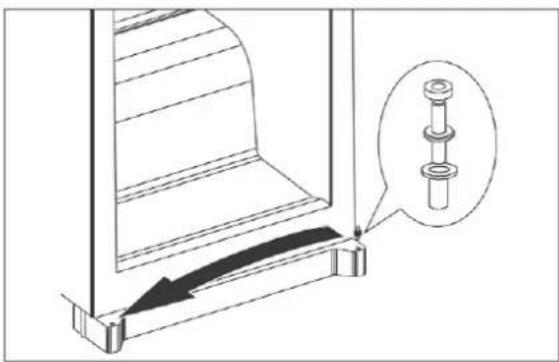

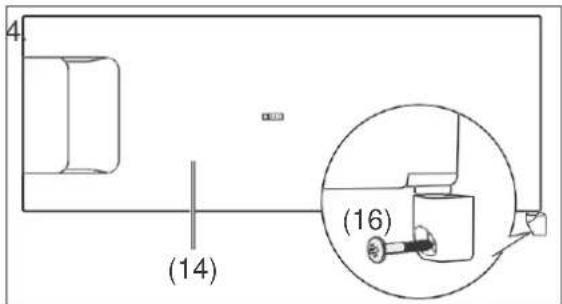

• Changing the door hinge p. 47
• Installation p. 49

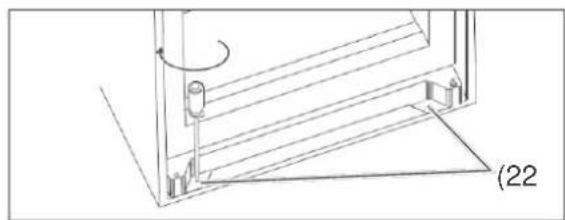

• Installing the appliance p. 50
• Basic cleaning p. 51
• Using the appliance for the first time p. 51
• Troubleshooting table p. 52
• Our service department p. 245
• Support, ordering and complaints p. 245
• Repairs and spare parts p. 245
• Environmental protection p. 54
• Disposing of the appliance p. 54
• Our contribution to protecting the ozone layer p. 54
• Data sheet You can find information about the installation and start-up starting on page 47. Before you use the appliance, please first read through the safety instructions and the instruction manual carefully. Only then can you use all of the functions safely and reliably. In addition, please observe the national regulations of your country which are applicable in addition to the regulations named in these instructions. Keep all safety instructions and instructions for use for future reference. Pass on all safety instructions and instructions for use to the subsequent user of the product.Page 30 Delivery Delivery Scope of delivery 1× built-in refrigerator Refrigerator compartment: 3× glass shelves 1× bottle shelf 1× glass shelf as cover for the fruit/vegetable drawer 1× fruit/vegetable drawer 3× door shelves Freezer compartment: 1× ice cube tray 1× egg tray 1× cleaning swab 1× instruction manual various parts for installation (see "Installing the appliance" on page 51) Packaging tips If space permits, we recommend that you keep the packaging at least during the warranty period. If the appliance has to be sent for repair, it is only sufficiently protected in the original packaging. If you wish to dispose of the packaging, please do so in an environmentally friendly manner. Checking the delivery p. 55

1. Transport the appliance to a suitable

location and unpack it (see "Start-up" on page 47).

2. Check whether the delivery is complete.

3. Check whether the appliance has been

damaged during transport.

4. If the delivery is incomplete or the

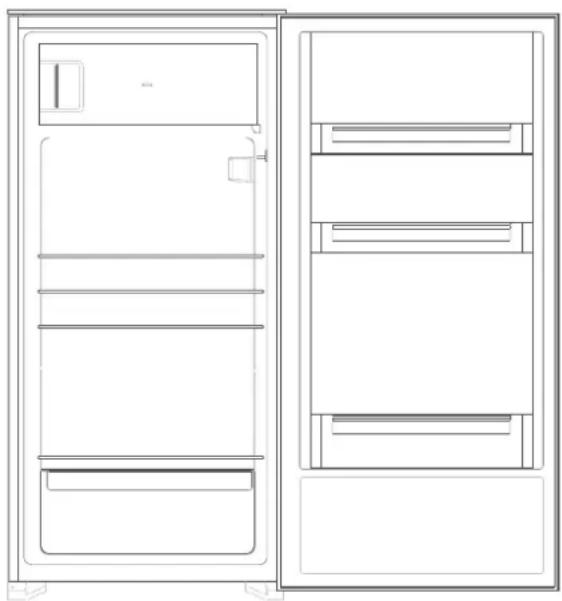

appliance was damaged during transport, please contact our service department (see "Our service department" on page 245). WARNING! Never put a damaged appliance into operation.Page 31 Appliance parts / controls Appliance parts / controls (6) (7) (6) (8) (1) Adjust: Setting the temperature in the refrigerator compartment (2) Temperature display in the refrigerator compartment (3) Super: Lower the temperature in the freezer compartment further (4) Smart: Automatic mode (5) Mode: Set "Super" or "Smart" (6) Door shelves (7) Control and refrigerator compartment lighting (8) Large door shelf (9) Fruit/vegetable drawer (10) Glass shelf as cover for the fruit/vegetable drawer (11) Condensation drain (13) Glass shelves (14) Freezer compartment

)Page 32 For your own safety For your own safety Intended use The appliance is suitable for the refrigeration of fresh food, for the storage of commercially available frozen food, for deep-freezing fresh food at room temperature and for ice preparation. It may only be operated if it is installed properly in a suitable built-in cabinet. The appliance is solely intended for use in private households. Only use the appliance as described in this instruction manual. Any other use is regarded as improper use and may result in damage or even personal injury. The manufacturer assumes no liability for damage resulting from improper use. Explanation of terms The following signal words are used in this instruction manual. WARNING This signal word indicates a hazard with a medium level of risk that, if not avoided, could result in death or serious injury. CAUTION This signal word indicates a hazard with a low level of risk that, if not avoided, could result in minor or moderate injury. NOTE This signal word warns of possible damage to property. This symbol refers to useful additional information. Safety instructions This chapter provides you with general safety instructions that you must observe at all times for your own protection and for the protection of third parties. Please also observe the warnings in the individual chapters about operation, start-up, etc. WARNING Risks when handling household electrical appliances Risk of electrical shock! Touching live parts may result in serious injury or death.

Only use the appliance indoors. Not operate the appliance in damp locations or in the rain.

Do not put the appliance into operation or continue to operate it if

there is visible damage on it, e.g. the connection cable is defective,

if it emits smoke or gives off a burning smell,

makes unusual noises. In such a case, pull out the power plug or switch off the fusePage 33 For your own safety

and contact our service department (see "Our service department" on page 245). The appliance meets the requirements of protection class 1 and may only be connected to a socket with properly installed protective earth conductor. It is not permitted to connect the appliance to a power strip, multiple socket, time switch or a separate telecontrol system for remote monitoring and control.

If the power plug is no longer accessible after installation, an all-pole separator that meets overvoltage category III must be connected in the domestic installation with a contact clearance of at least 3 mm; this includes fuses, circuit breakers and contactors.

Do not kink or clamp the power cable or place it over sharp edges.

Keep the appliance, power plug and power cable away from open flames and hot surfaces.

Always pull the power plug itself, not the power cable.

Never touch the power plug with wet hands.

Never immerse the power cable and plug in water or other liquids.

If the appliance power plug is damaged, it must be replaced by the manufacturer, its customer service or a qualified specialist. The appliance may only be modified or repaired, e.g. changing the refrigerator compartment lighting, by authorized specialists (see "Our service department" on page 245).

Unauthorized repairs to the appliance may cause damage and personal injury and result in the forfeiting of all liability and guarantee claims. Never attempt to repair a defective – or supposedly defective – appliance yourself.

Only parts that match the original appliance data may be used for repairs. This appliance contains electrical and mechanical parts that are essential to protect against potential hazards.

Do not insert objects into or through the housing openings and ensure that children are also prevented from inserting objects.

In case of a fault or before performing extensive cleaning work, pull out the power plug or switch off the fuse. Risks for children Risk of suffocation! Children may get entangled or suffocate in the packaging foil or ingest and choke on small parts.

Do not allow children to play with the packaging film.

Prevent children from pulling out small parts from the appliance or the accessory bag and inserting them in the mouth.Page 34 For your own safety Risks when handling chemical substances Risk of explosion! The improper handling of che- mical substances may cause explosions.

Do not store explosive substances or spray cans with flammable propellants in the appliance, as they may form ignitable gas/air mixtures.

Never use defroster sprays for defrosting. They may generate explosive gases. CAUTION Risks for certain group of persons Risks for children and persons with limited physical, sensory or mental abilities!

This appliance can be used by children from the age of 8 years and persons with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or if they are instructed in the safe use of the appliance and have understood the resulting hazards.

Children must not carry out cleaning or maintenance unless supervised.

Children must not play with the appliance. Risks when handling refrigerators and freezers Risk of fire! The improper handling of the appliance may cause fire and damage.

Only connect the appliance to a properly installed protective contact socket. It is impermissible to connect the appliance to a power strip or multiple socket.

In order to ensure adequate air circulation, do not close the ventilation openings in the appliance housing or installation housing.

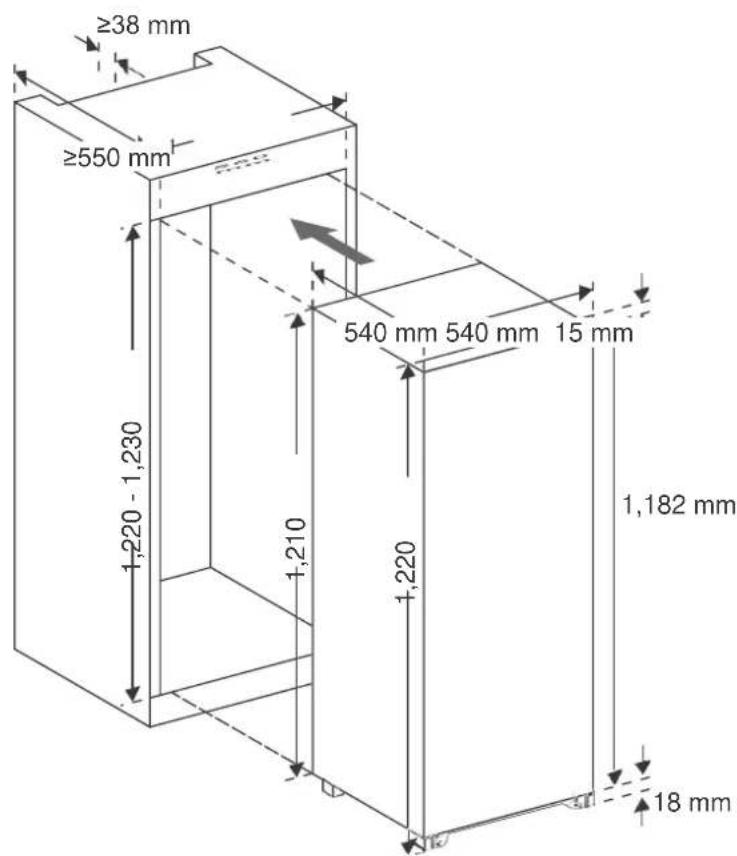

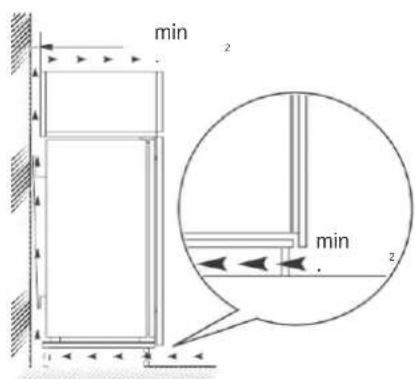

Comply with the minimum dimensions of the built-in cabinet (see "Installing the appliance" on page 51). Risks from refrigerants! The refrigerant circuit of your appliance contains the environmentally friendly, but flammable refrigerant R600a (isobutane).

Only authorized specialists are allowed to make mechanical modifications to the refrigerating system.

Do not damage the refrigerant circuit, e.g. by piercing the refrigerant channels of the evaporator with sharp objects, bending pipes, etc.

Escaping refrigerant is flammable and can cause eye damage. In this case, flush the eyes with cold water and consult a physician immediately.

To prevent an ignitable gas/air mixture in the event of a leak of the refrigerant circuit, the installation room must have a minimum size of 1 m3 per 8 g of refrigerant according to DIN standard EN 378. Please refer to the data sheet for the amount of refrigerant in your appliance (see "Data sheet" on page 55).Page 35 For your own safety Risk of injury! The improper handling of the appliance may cause injury.

The appliance is heavy and unwieldy. During transport and installation, get the help of another person.

Do not use the base, drawers, doors etc. as a step or support. Health hazard!! Improper handling, insufficient refrigeration or overstocking may cause the stored food to spoil. If spoiled food is consumed, there is a risk of food poisoning!

Ensure in particular that raw meat and fish are adequately packed to prevent adjacent food from becoming contaminated by salmonella or other contaminants.

Comply with the shelf life recommendations of food manufacturers.

Note that the shelf life of frozen food may decrease due to an increase in temperature inside the appliance (defrosting, cleaning or power failure).

Remove the stored frozen products from the appliance – even if only temporarily switching it off – and store in a sufficiently cool room or another refrigerator.

Do not refreeze, but rather immediately consume fully or partially thawed food.

After a possible power failure, check whether the stored food is still fit for consumption. The appliance may not function properly if it is exposed to an excessively low ambient temperature for a long period. This may result in a temperature increase in the interior.

Comply with the intended ambient temperature (see line "Climate class" on page 55). Risk of injury from frozen goods! The improper handling of the appliance may cause injury. There is a risk of burns from low temperatures.

The food and the inside walls of the freezer compartment have a very low temperature. Never touch with wet hands. This may cause skin injuries. Skin damage is event possible if the skin is dry.

Do not put ice cubes or ice pops in your mouth directly after taking them from the freezer compartment. NOTE Risk of damage! If the refrigerator was transported in a horizontal position, lubricant from the compressor may have entered the refrigerator circuit.

Wherever possible, do not tilt the refrigerator into a horizontal position.

Before putting it into operation, allow the refrigerator to stand upright for 2 hours. During this time, the refrigerant flows back into the compressor.Page 36 For your own safety The improper handling of the appliance may cause damage.

Do not store glass or metal containers containing liquid in the freezer compartment. The containers may burst.

Do not use the doors or handles to pull or lift the appliance.

Do not use any sharp or pointed objects when unpacking the appliance.

Do not operate any electrical equipment inside the appliance that does not correspond to the construction type recommended by the manufacturer.

Do not use mechanical devices or other tools other than those recommended by the manufacturer.

Only use original accessories.

Wait 5 minutes after switching the appliance off. Only switch on the appliance after this time elapses.

In order to remove the odour typical of all new appliances, wipe out the inside with lukewarm vinegar/water solution.

Only use the refrigerator compartment lighting to illuminate the appliance interior. It is not suitable as room lighting.

Do not use any tools other than those recommended by the manufacturer to accelerate the defrosting process. For example, do not use electrical heaters, knives or devices with an open flame, e.g. candles. The thermal insulation and the inner container are sensitive to scratches and heat and may melt.

Note the following when cleaning:

Never use aggressive, granular or abrasive cleaning agents or those containing soda, acid or solvent. We recommend all- purpose cleaners with a neutral pH value.

Door seals and plastic appliance parts are sensitive to oil and grease. Remove any contaminants as quickly as possible.

Only use soft cloths.Page 37 Operation

Operation Requirements for safe use

You have read the chapter "For your own safety" on page 32 and have understood all the safety instructions. The appliance has been installed and connected as described in the chapter "Start-up" on page 47. Using the appliance for the first time NOTE Risk of damage! If the refrigerator was transported in a horizontal position, lubricant from the compressor may have entered the refrigerator circuit.

Wherever possible, do not tilt the refrigerator into a horizontal position.

Before putting it into operation, allow the refrigerator to stand upright for 2 hours. This gives the lubricant enough time to flow back into the compressor. The appliance is factory-set to switch on automatically as soon as you plug the power plug into the socket for the first time. • Switch on the fuse for the socket towhich the appliance is connected. Asignal tone sounds, and the refrigeratorcompartment lighting (7) lights up whenthe door is open. Switching the appliance on/off Switching on the appliance

• Press and hold the Adjust button (1) for 5seconds.A signal tone will sound and therefrigerator compartment lighting (7) willlight up. The appliance is switched on.If the appliance makes disturbing noises after being switched on, make sure it is stable and fitted correctly. Switching off the appliance 1. Press and hold the Adjust button (1) for 5 seconds.A signal tone will sound and the refrigerator compartment lighting (7) will go out. The appliance is switched off.2. Clear out and clean the appliance as described in the chapter "Care and maintenance" on page 44. Mode Adjust

Smart Setting the temperature WARNING Health hazard! The appliance may not function properly if it is exposed to an excessively low ambient temperature for a long period. A temperature increase in the refrigerator and freezer compartments may result.

Always comply with the prescribed ambient temperature (see "Climate class" on page 55). Setting the temperature in the refrigerator compartment In order to monitor the cooling capacity, you will require a refrigerator/freezer thermometer. Place the refrigerator/freezer thermometer • in the refrigerator compartment: on theglass shelf (10) above the fruit/vegetabledrawer; the correct temperature here is+6 °C.• in the freezer compartment: the idealstorage temperature here is −18 °C. Manual temperature setting

• Press theAdjust button (1) repeatedly to set therefrigeration temperature. The selectedsetting is indicated by the temperaturedisplay (2).Display 1 lights up only: minimum refrigeration. Displays 1 - 5 light up: maximum refrigeration. • Adjust the setting to the ambienttemperature. First select a mediumsetting (e.g. 3) and then readjust wherenecessary. Automatic temperature setting
• Press the Mode button (5) until theSmart display (4) lights up. The temperature will now be set automatically. You can check the currently set temperature on the display.
• To return to manual temperaturesetting, press the Mode button once. The Smart display will go out and then you can set the temperature manuallyagain. Setting the temperature in the freezer compartment The temperature in the freezer compartment is held automatically at -18 °C. To further lower the temperature, press the Mode button (5) until the Super Mode Adjust Smart Super Mod Adjus

• This further lowers the temperature in the freezer compartment, which generates additional freezing capacity for when you wish to freeze large amounts of fresh goods.

• To switch off the Super setting again, press the Mode button (5) until the Super display (3) is no longer lit. The Super setting remains active for a maximum of 54 hours. After this time, it switches off automatically. Door alarm To prevent excessive heat loss, a signal tone sounds if the refrigerator door is open longer than 1.5 minutes.

• Close the refrigerator door. The door alarm goes silent. Rearranging the shelves The glass shelves (10) and (13) the door shelves (6) and (8) can be taken out and rearranged where necessary.

• To remove the glass shelves, lift them up slightly in the back, pull them out forwards and re-insert them at the desired position.

• Pull out the door shelves upwards and re-insert them from above at a new position.Page 40 Refrigerating food Refrigerating food WARNING Risk of explosion! The storage of flammable gases and liquids may result in the formation of ignitable gas/air mixtures in the appliance. Explosions may result. Do not store explosive substances or spray cans with flammable propellants in the appliance. Refrigeration tips

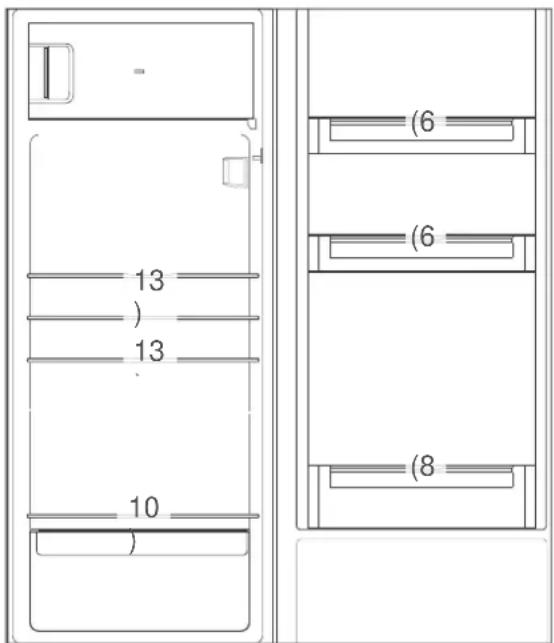

• Stock the refrigerator compartment in away that allows you to optimally exploitthe internal temperature conditions.– Place spreadable butter and cheese inthe uppermost door shelf (6). Thetemperature is the highest there.– Store preserves, glasses and eggs inthe door shelf (6). It is best to store eggsin the egg tray provided. – Place beverage cartons and bottles in the large door shelf (8). Place full containers closer to the hinge to reducethe stress on the door.– Place cooked and baked food on theglass shelves (13).– Place fresh meat, game, poultry,bacon, sausages and raw fish on theglass shelf (10) over the fruit/vegetable drawer (9). The temperature is the lowest there. – Place fresh fruit and vegetables in the fruit/vegetable drawer (9).– Place bottles in the bottle shelf (12).• Only store high-percentage alcohol ina vertical position and tightly closed.• Allow hot food to cool before you place it in the refrigerator compartment.• The temperatures in the appliance and thus your energy consumption may rise– if the doors are opened frequently or for a long time. – if the room temperature is above or below the prescribed room temperature.• The energy consumption also depends on the location selected (for more information, see page 47). Preserving quality
• To ensure that food retains its aromaand freshness in the refrigeratorcompartment, make sure that the foodyou wish to refrigerate in the refrigeratorcompartment is always packed. Usespecial plastic containers orcommercially available foils for food.• Place the food– in the refrigerator compartment in such a way that the air can circulate freely. Do not cover the shelves with paper orother materials. – not directly on the back wall. It may otherwise freeze to the back wall.

(9)Page 41 Freezing food / storing frozen food Freezing food / storing frozen food WARNING Risk of explosion! The storage of flammable gases and liquids may result in the formation of ignitable gas/air mixtures in the appliance. Explosions may result. Do not store explosive substances or spray cans with flammable propellants in the appliance. WARNING Health hazard! Improper handling, insufficient refrigeration or overstocking may cause the stored food to spoil. If spoiled food is consumed, there is a risk of food poisoning.

Ensure in particular that raw meat and fish are adequately packed to prevent adjacent food from becoming contaminated by salmonella or other contaminants.

Comply with the shelf life recommendations of food manufacturers. Note that the shelf life of frozen food may decrease due to an increase in temperature inside the appliance (defrosting, cleaning or power failure).

In the event of an extended power failure or a malfunction of the appliance, remove the stored frozen products from the appliance and store in a sufficiently cool room or another refrigerator (max. storage time in case of malfunction: 12 hours). After a malfunction, check whether the stored food is still fit for consumption. Do not refreeze fully or partially thawed food, but rather immediately consume it. CAUTION Risk of injury! The improper handling of the appliance may cause injury. Risk of burns from low temperatures.

The food and the inside walls of the freezer compartment have a very low temperature. Never touch with wet hands. This may cause skin injuries. Skin damage is also possible if the skin is dry.

Prior to consumption, allow ice cubes or ice pops to thaw a little. Do not put them in your mouth directly after taking them from the freezer compartment. Freezing Freezing means thoroughly freezing – ideally "shock-freezing" – fresh food at room temperature to the core. If cooled too slowly, the food "freezes to death", i.e. its structure is destroyed. Retaining consistency, taste and nutritional value demands a uniform storage temperature of –18 °C.Page 42 Freezing food / storing frozen food Preparing food

• Only freeze food of acceptable quality.

• Freeze fresh and prepared meals unsalted and unseasoned. Food frozen when unsalted has a longer shelf life.

• Allow prepared food to cool before you freeze it. This not only saves energy, but also prevents excessive frost formation in the freezer compartment.

• Carbonated beverages are not suitable for freezing as the carbon dioxide escapes when frozen. The right packaging Packaging is important when deep-freezing. It should protect against oxidation, microbes, the transmission of odours and flavours and desiccation (freezer burn).

• Only use packaging material that is durable, impermeable to air and liquids, not too rigid and that can be labelled. It should be identified as freezer packaging. Portioning

• Wherever possible, create flat portions, as they freeze through to the core more quickly.

• Stroke out the air from the freezer bag, as it encourages desiccation and takes away space.

• To close the bags, use plastic clips, rubber bands or adhesive tape.

• Fill liquid containers ¾ maximum, as liquids expand when frozen.

• Do not store glass or metal containers containing liquid. The containers may burst.

• Only freeze high-percentage alcohol when tightly closed.

• Label frozen goods according to the type, amount, freezing date and use-by date. Wherever possible, use smudge- proof felt-tip pens or adhesive labels. Freezing food

• Comply with the maximum freezing capacity. You can find the "Freezing capacity in kg/24h" in the data sheet on page 55.

• As soon as the temperature in the freezer compartment reaches -18 °C, you can freeze fresh food at room temperature.

• The fresh goods must not come into contact with the frozen goods already in storage, as they may otherwise thaw. If it is impossible to prevent contact with the stored frozen goods, we recommend generating additional freezing capacity in the freezer compartment prior to freezing the fresh goods. After storing the fresh goods, the temperature will temporarily rise in the freezer compartment. After a further 24 hours, the goods will be frozen to the core. Storing frozen food The deep-freeze chain must not be interrupted on the way from the manufacturer to your freezer. The temperature of the frozen goods must never exceed -18°C. For this reason, never purchase goods

located in frosted, very icy freezers.

stacked above the prescribed mark.

that are partially clumped together (which is especially easy to tell with berries and vegetables).

that exhibit traces of snow and juice. Transport frozen goods in special boxes made of polystyrene or in insulation bags. Observe the storage conditions and times specified on the packaging.Page 43 Freezing food / storing frozen food Defrosting food Observe the following basic rules when defrosting food:

To defrost food, take it out of the freezer and allow it to defrost, optimally at room temperature or in the refrigerator.

To defrost food quickly, use the defrost function of your microwave, for example. Observe the manufacturer specifications and bear in mind that defrosting may result in the proliferation of bacteria and germs.

Prepare defrosted food as quickly as possible.

Dispose of the defrosting liquid.

If you only wish to defrost part of a package, remove the part and close the package again immediately. This prevents "freezer burn" and reduces the formation of ice on the remaining food.

Always defrost meat, poultry and fish in the refrigerator. Make sure that the frozen food is not resting in its own defrosting liquid. Preparing ice cubes

• Fill ¾ of the included ice cube tray with fresh drinking water and place it horizontally in the freezer compartment. The ice cubes are released most easily if you twist the ice cube tray or hold it briefly under running water.Page 44 Care and maintenance Care and maintenance WARNING Risk of electrical shock! Touching live parts may result in serious injury or death.

Before cleaning, pull out the power plug or switch off the fuse.

When pulling out the power plug, always pull the plug itself, not the cable. CAUTION Risks for children and persons with limited physical, sensory or mental abilities!

Children must not carry out cleaning or user maintenance unless supervised. NOTE The surfaces and appliance parts are damaged by improper handling.

Never use aggressive or abrasive cleaning agents or those containing soda, acid or solvent. Such agents attack the plastic surfaces. We recommend all-purpose cleaners with a neutral pH value.

Only use care products for the outer surfaces.

Door seals and plastic appliance parts are sensitive to oil and grease. Remove any contaminants as quickly as possible.

Only use soft cloths. Inspecting and cleaning the door seals The door seals must be inspected regularly to ensure that no warm air enters the appliance.

1. To inspect the door seals, stick in thin

pieces of paper at different positions. The paper must be equally hard to pull through at all the positions.

2. If the seal does not make even contact

everywhere: Heat the seal at the relevant positions carefully with a hair dryer and pull it out a little with your fingers.

3. Clean dirty seals with clear water

only. Defrosting the refrigerator compartment This is not necessary, as the refrigerator compartment of your appliance has automatic defrosting. Frost and ice are defrosted automatically and the condensation is collected in a condensation tray on the back of your appliance. The heat of the motor causes the condensation to evaporate. Cleaning the refrigerator compartment

1. Switch off the appliance by

pressing the Adjust button (1) for 5 seconds.

2. Pull out the power plug from the

socket or switch off the fuse.

3. Remove the chilled goods and

place them in a cool room.

4. Take out the fruit/vegetable drawer (9),

the door shelves (6) and (8) and the glass shelves (13) and (10) and clean all the parts in lukewarm dishwater. Then dry all the parts thoroughly.Page 45 Care and maintenance

5. Wipe off the interior with a cloth

dampened slightly with dishwater. Ensure that no liquid enters the control and the refrigerator lighting.

6. When wiping again, add a few drops of

vinegar to the water to prevent mould formation. Wipe the interior dry and leave the door open for a while to allow ventilation. Defrosting and cleaning the freezer compartment WARNING Risk of explosion! The improper handling of the appliance may cause a deflagration/explosion!

Never use defroster sprays. They may generate explosive gases.

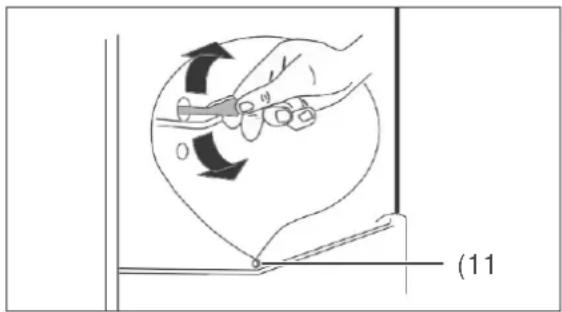

7. Clean the opening of the condensation

drain (11) using the provided cleaning swab.

8. Re-insert the shelves and drawer.

9. Put the food back in the refrigerator

10. Plug the power plug back in or switch

for 5 seconds. The appliance will switch on.

Defrost the appliance in due time before an ice and frost layer of over 5 mm forms. If too much ice forms, the power consumption rises and the freezer door may no longer close tight.

Do not use any tools other than those recommended by the manufacturer to accelerate the defrosting process. For example, do not use electrical heaters, knives or devices with an open flame, e.g. candles. The thermal insulation and the inner container are sensitive to scratches and heat and may melt. Note the following when cleaning:

Never use aggressive, granular or abrasive cleaning agents or those containing soda or solvent. We recommend all-purpose cleaners with a neutral pH value.

The door seal is sensitive to oil and grease, which cause the rubber to become porous and brittle. (11 )Page 46 Care and maintenance

The surfaces are damaged by unsuitable cleaning agents. Only use care products for the outer surfaces.

Only use soft cloths. Wherever possible, defrost the appliance in the winter, when the outside temperature is low. Then you can store the food on the balcony during the defrosting process, for example. Alternatively, you can wrap up the frozen food tightly in newspaper and store it in a cool room or an insulation bag.

1. Before defrosting, generate additional

freezing capacity by setting the freezer compartment to Super (3) for 3 hours by means of the Mode button (5).

2. After this time, switch off the appliance

by pressing the Adjust button (1) for 5 seconds.

3. Pull out the power plug from the

socket or switch off the fuse.

4. Take out the food from the refrigerator

and the frozen food from the freezer compartment.

5. Ensure that your food remains

sufficiently cooled.

6. Place a bowl with hot, but not boiling

water in the freezer compartment. This accelerates the defrosting process.

7. Leave the door open during the

defrosting process and place a cleaning rag in front of the appliance to absorb leaking condensation. The defrosting time depends on the thickness of the ice layer. Based on experience, you can begin with the cleaning of the appliance after approx. 1 hour.

8. Wipe out the interior with warm water

and detergent. When wiping again, add a few drops of vinegar to the water to prevent mould formation.

9. Clean the door seal with clear water

only; it is sensitive to oil and grease.

10. Wipe everything completely dry,

including the door seal, and aerate briefly.

11. Put the food back in the

refrigerator/freezer compartment.

12. Plug the power plug back in the socket

or switch on the fuse again.

13. Press and hold the Adjust button (1) for

5 seconds. The appliance will switch on.

15. As soon as the temperature −18 °C has

been reached in the freezer, turn the temperature regulator back to its normal position.

)Page 47 Start-up Start-up Transportation and unpacking WARNING Risk of suffocation!

Do not allow children to play with the packaging film. They may get entangled or suffocate.

Prevent children from pulling out small parts from the appliance or the accessory bag and inserting them in the mouth. CAUTION Risk of injury! The improper handling of the appliance may cause injury.

The appliance is heavy and unwieldy. During transport and installation, get the help of another person.

Do not use the base, drawers, doors etc. as a step or support. NOTE Risk of damage! The improper handling of the appliance may cause damage.

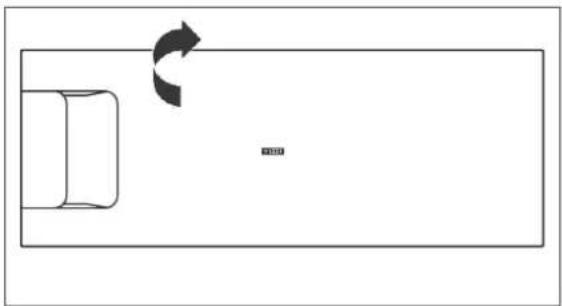

Wherever possible, do not tilt the refrigerator into a horizontal position.

After transporting the refrigerator, allow it to stand upright for 2 hours.

Do not use any sharp or pointed objects to unpack the appliance.

• Use a trolley or seek the assistance of asecond person when transporting theappliance.• Unpack the appliance and carefullyremove all packaging parts, plasticprofiles, adhesive strips, protective filmand foam padding on the inside,outside and on the back of theappliance. Selecting a suitable location CAUTION Risks from refrigerants!

Do not damage the refrigerant circuit, e.g. by piercing the refrigerant channels of the evaporator with sharp objects, bending pipes, etc.

Escaping refrigerant is flammable and can cause eye damage. In this case, flush the eyes with cold water and consult a physician immediately. NOTE Risk of damage! The appliance may not function properly if it is exposed to an excessively low ambient temperature for a long period. This may result in a temperature increase in the interior.

Ensure that the prescribed ambient temperature is complied with (see "Climate class" on page 55). To prevent an ignitable gas/air mixture in the event of a leak of the refrigerant circuit, the installation room must have a minimum size of 1 m³ per 8 g of refrigerant according to DIN standard EN 378. For this appliance, this results in a minimum room size of

Suitable locations are dry, well ventilatedand, if possible, cool rooms.

Unsuitable locations are those situated directly in the sunlight or immediately nextto a stove, oven or heater.Page 48 Start-up Changing the door hinge If necessary, you can change the door hinge of your refrigerator. This procedure requires manual dexterity. Please read through the following work steps completely before beginning work. You need the following tools:

PH2 Phillips screwdriver

8 mm wrench Changing the door hinge of the refrigerator door

1. Ensure that the appliance is not

connected to the power supply.

5. Unscrew the hinge pin from the hinge.

Rotate the hinge by 180°. Re-insert the hinge pin into the hinge.

6. Lift up the door while pulling it out of

the lower hinge pin and put it aside.

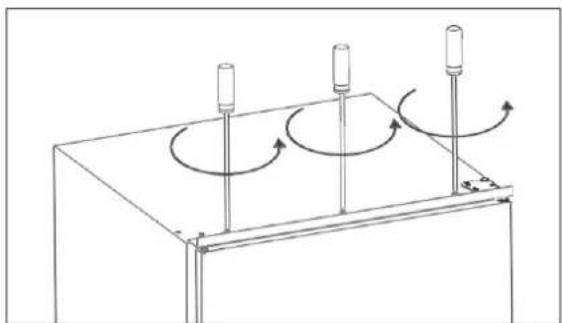

3. Unscrew the metal strip from the

refrigerator. To do this, use a Phillips screwdriver.

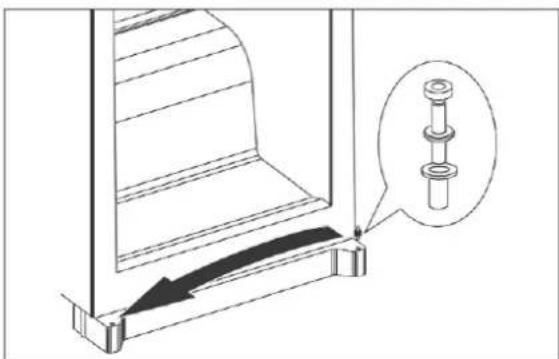

7. Insert the lower hinge pin on the

opposite side and re-insert the door.

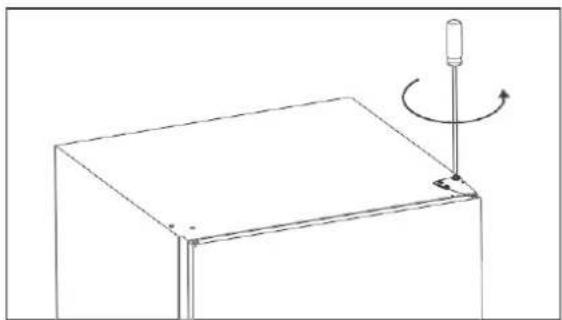

4. Loosen the screws from the upper

hinge using an 8 mm wrench and remove the hinge.

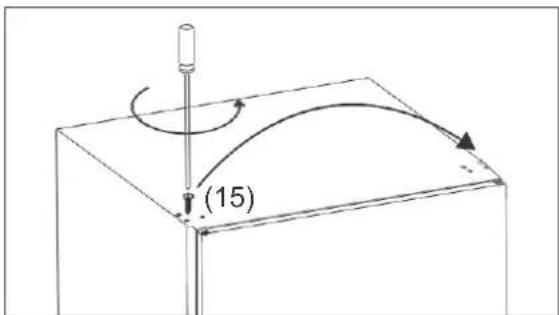

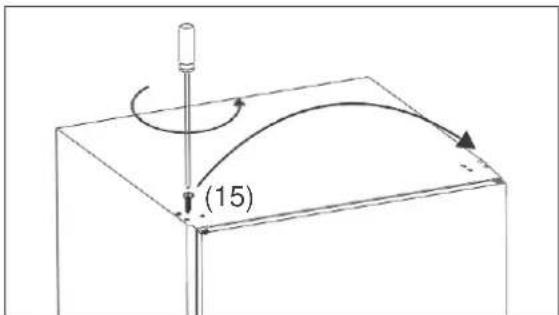

9. Unscrew the screw (15) with a Phillips

screwdriver and screw it back in on the opposite side. (15)Page 49 Start-up

10. Insert the upper hinge on the side of

the door hinge and screw it tight.

12. Check whether the door seal has good

contact (see "Inspecting and cleaning the door seals" on page 34). Changing the door hinge of the freezer compartment door

With the screws (17), remove the covers from the door latch and unscrew the two screws.

5. Rotate the door latch by 180° and attach

it to the opposite side. Use the screws (17) for this purpose.

6. Press the two covers back into the

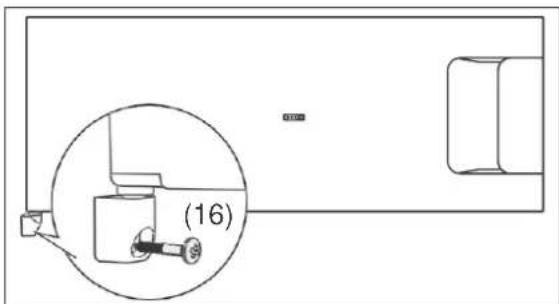

1. Unscrew the hinge screw (16) below the

freezer compartment (14). To do this, use a Phillips screwdriver.

2. Open the door of the freezer

compartment and remove the door and the hinge.

3. Take the hinge out of the door pin.

7. To insert the freezer compartment door

on the new side, rotate it by 180°.

8. Insert the door in the opening at the

top of the freezer compartment using the upper door pin.

9. Insert the hinge on the lower door pin

and screw it to the refrigerator using the hinge screw (16). (17)

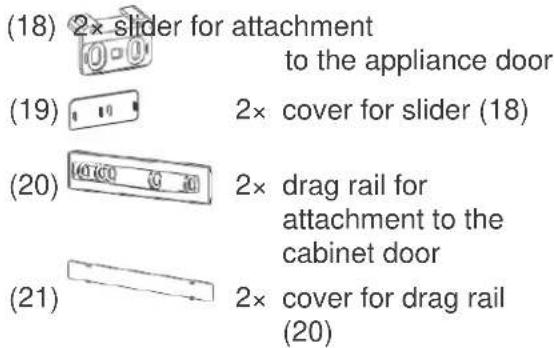

(16) (14) (16)Page 50 Start-up Installation Parts for the installation (18) 2× slider for attachment to the appliance door (22) 2× screw, long (23) 13× screw, short Built-in cabinet and ventilation The built-in cabinet must meet the following requirements: Installation dimensions: ≥38 mm Ventilation cross-section: ≥550 mm 540 mm 540 mm 15 mm 1,182 mm 18 mm min

cover for slider (18) (24) 1× sealing strip (20)

drag rail for attachment to the cabinet door (21)

cover for drag rail (20)Page 51 Start-up Installing the appliance Prior to installation, check whether the door hinge is on the correct side. If necessary, change the door hinge (see "Changing the door hinge" on page 48). For the installation, you will require a PH2 Phillips screwdriver.

1. Switch off the fuse for the designated

socket (220-240 V~ / 50 Hz). Then plug the power plug into the socket.

4. Push the drag rails (20) into the sliders

(18). Close and open the cabinet door to check whether it can be closed completely and easily. If necessary, correct the position of the refrigerator.

5. Open the door of the appliance and the

cabinet at the same time. Then mark the optimum positions of the drag rails inside the cabinet door.

6. Remove the drag rails from the sliders.

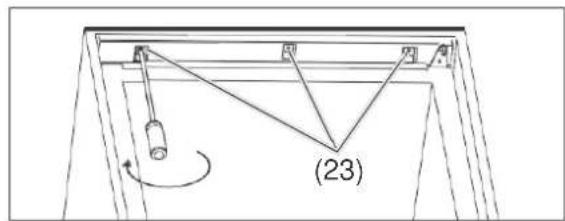

7. Screw the drag rails to the marked

positions on the inside of the cabinet door using 2 short screws (23) each.

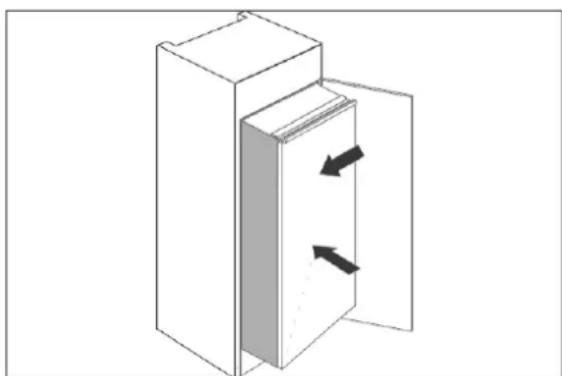

2. Slowly and cautiously push the

refrigerator into the built-in cabinet. When doing this, ensure that the side to be opened is located as close to the cabinet wall as possible.

8. Press the covers (21) onto the drag rails.

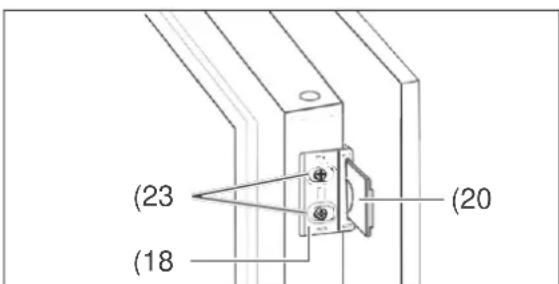

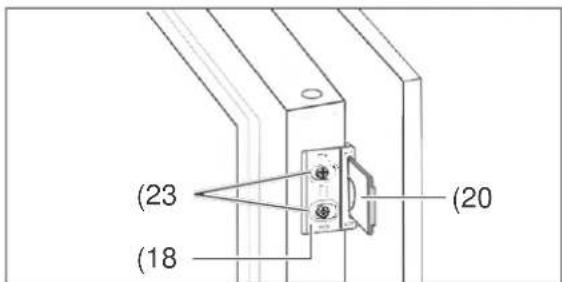

3. Holes are pre-drilled in the outer edges

of the appliance door for attaching the sliders (18). Screw the sliders to the side to be opened using the short screws (23).

9. Unscrew the sliders again and push

them on the attached drag rails.

10. Screw the sliders to the appliance

11. Press the covers (19) onto the sliders

close smoothly and whether the appliance door closes tightly. If necessary, adjust the standing position of the refrigerator and the position of the sliders and drag rails.

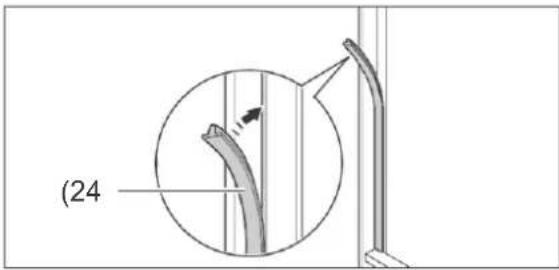

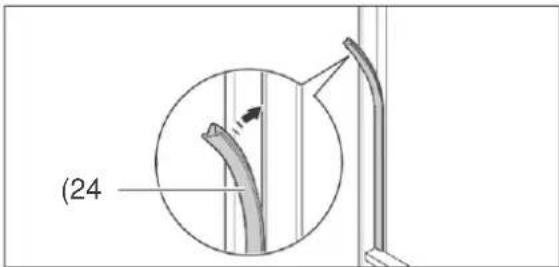

14. With the door open, press the sealing

strip into the gap between the refrigerator and the built-in cabinet. The installation is then complete. Basic cleaning In order to remove the odour typical of all new appliances, clean the appliance before you use it (see "Cleaning the refrigerator compartment" and see "Defrosting and cleaning the freezer compartment" on page 45). You can find all the important information about operation starting on page 37.

13. If the doors can be opened and closed

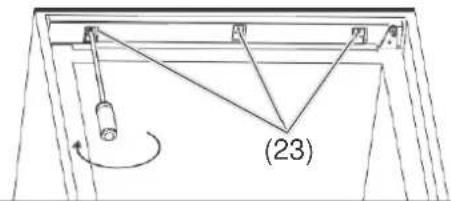

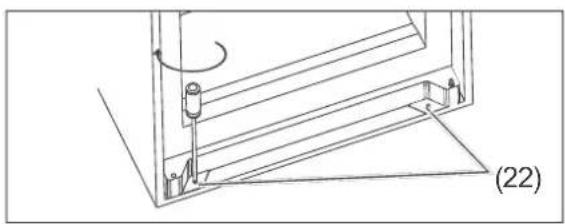

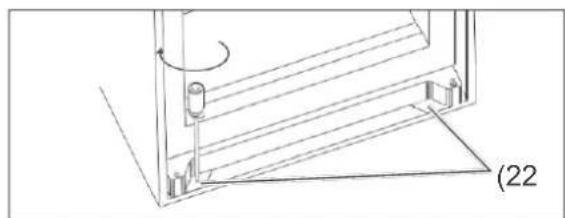

without difficulty, screw the refrigerator to the built-in cabinet. For this purpose, use 3 short screws (23) for the top and the two long screws (22) for the bottom. (18

(24 )Page 53 Troubleshooting table Troubleshooting table Faults can occur with any electrical appliance. Such faults are not necessarily defects in the appliance. For this reason, please use the table to verify whether you can remedy the fault. WARNING Risk of electrical shock due to improper repair! Never attempt to repair a defective – or supposedly defective – appliance yourself. You may thereby put yourself and future users at risk. Only authorized specialists may carry out these repairs. Problem Possible cause Solutions, tips, explanations Compressor off, interior lighting off. The appliance is switched off. Press the Adjust button (1) for 5 seconds. Socket without electricity. Check the socket with another device. Power plug loose. Make sure the power plug is inserted correctly. Compressor off, interior lighting on. The desired temperature has been reached. Additional refrigeration is unnecessary. If the internal temperature rises, the compressor switches on automatically. Excessive refrigeration in the appliance. The temperature regulator is set too high. Select a lower setting (see "Setting the temperature" on page 38). Insufficient refrigeration in the appliance. The temperature regulator is set too low. Select a higher setting (see "Setting the temperature" on page 38). The door is not closed tightly or the door seal is not making full contact everywhere. See "Inspecting and cleaning the door seals" on page 44. The appliance is located in the vicinity of a source of heat. Place an insulation panel between the appliance and the heat source or change the location. Warm food stored in the appliance. Only store cooled food. Too many goods placed in freezer. Place a maximum of 2 kg in the freezer at one time. The ambient temperature is too low or too high. Adjust the ambient temperature to the climate class (see "Data sheet" on page 55). The compressor appears to be defective. Set the appliance to maximum refrigeration (see "Setting the temperature" on page 38). If the compressor does not switch on within an hour, notify our service department (see page 245). The appliance is generating noises. Operating noises are related to the functioning of the appliance and do not indicate a fault. Continuous noise: The refrigeration unit is running. Flow noises: Refrigerant is flowing through the pipes. Clicking: The compressor is switching on or off. Disturbing noises. Inspect installation and readjust if necessary. Water has collected at the bottom of the refrigerator compartment. The condensation drain (11) is blocked. Remove the blockage of the condensation drain using the provided cleaning swab.Page 54 Environmental protection Environmental protection Disposing of the appliance Used appliances must not be disposed of with household waste! If the appliance is no longer used, every consumer is obligated to dispose of used appliances separately from household waste and to bring it to a collection point of his/her municipality or district, for example. Waste electrical equipment is accepted there free of charge. This ensures that old appliances are recycled properly and prevents negative impacts on the environment. For this reason, electronic appliances are marked with the symbol shown here. You can also find more information about this topic in the Service pages of our current catalogue and on our website under "Service". Our contribution to protecting the ozone layer 100% CFC and PFC-free refrigerants and foaming agents are used in this appliance. This protects the ozone layer and reduces the greenhouse effect. Our packaging is manufactured from environmentally friendly, recyclable materials.

Outer packaging made of cardboard

Moulded parts made of foamed, CFC- free polystyrene (PS)

Films and bags made of polyethylene (PE)

Tightening straps made of polypropylene (PP)

Saving on energy also protects our earth from excessive heat. Thanks to its environmentally friendly insulation and its technology, your new appliance consumes little energy. Sticker “OK” (not all models) The “OK” temperature monitor can be used to determine temperatures below +4 °C. Gradually reduce the temperature if the sticker does not indicate “OK”. Note When the appliance is switched on, it may take 12 hours until the temperature is reached. Correct settingData sheet Data sheet for household electrical refrigerators and freezers and their combinations according to Regulation (EU) No. 1060/2010, 643/2009.

1) Rating from A+++ (= low consumption) to D

(= high consumption).

2) Determined according to Regulation (EU) No.

1060/2010 and Regulation (EU) No. 643/2009. The applied measurement and calculation methods meet the requirements of standard EN 62552.

3) The climate class means that the appliance is

designed for operation at the named ambient temperature. If a combination is specified in the climate class information, this means for an appliance for which e.g. the combination SN-ST is specified that it is suitable for temperatures of + 10 °C to + 38 °C. If the room temperature falls significantly below this, the appliance will not switch on as frequently. This means that an undesirable temperature increase may result. If the appliance is located in a warm room, it must switch on more frequently to maintain the low temperatures inside the appliance. For this reason, please ensure compliance with the ambient temperature. Ambient temperature per climate class SN: +10 °C to +32 °C N: +16 °C to +32 °C ST: +16 °C to +38 °C T: +16 °C to +43 °C The data provided here refers to the ambient conditions exactly specified in the test standard. For this reason, the values in your household may differ from the data provided here. Brand Blaupunkt Appliance designation Built-in refrigerator with freezer compartment/without freezer compartment Model / article number 5CG24010 5CK24010 Category of refrigerator 2) Refrigerator-freezer Refrigerator Energy efficiency class 1), 2)

Annual energy consumption 2) 212 kWh/year 128 kWh/year Net capacity 2) Freezer compartment/ star rating of refrigerator compartment (frost-free) 2) 15 L / 171 L 201 L Storage time in case of malfunction 2) 12 hours Freezing capacity 2) 2 kg / 24 hours Climate classes 3) / Limit values of ambient temperature for which the built-in refrigerator with freezer compartment is designed N, ST / +16 °C to 38 °C N, ST / +16 °C to 38 °C Airborne acoustical noise 2) 42 dB(A) re 1pW Built-in appliance yes Connected load 90 W 80 W Supply voltage 220–240 V~ / 50 Hz Power consumption

cinghie in polipropilene (PP)
