USER MANUAL HyperX Alloy FPS Pro KINGSTON

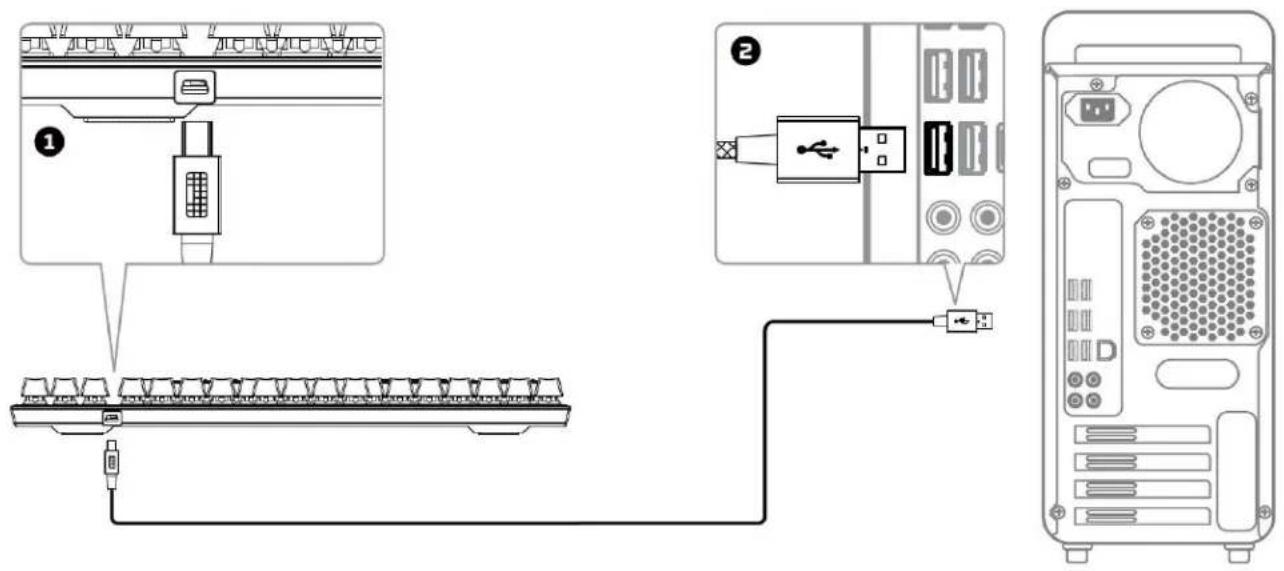

Keyboard Installation:

1- Connect the Mini USB connector to the keyboard.

2- Connect the USB connectors to the computer.Document No. 480HX-KB4001.A01

HyperX Alloy FPS Pro Mechanical Gaming Keyboard Page 5 of 7

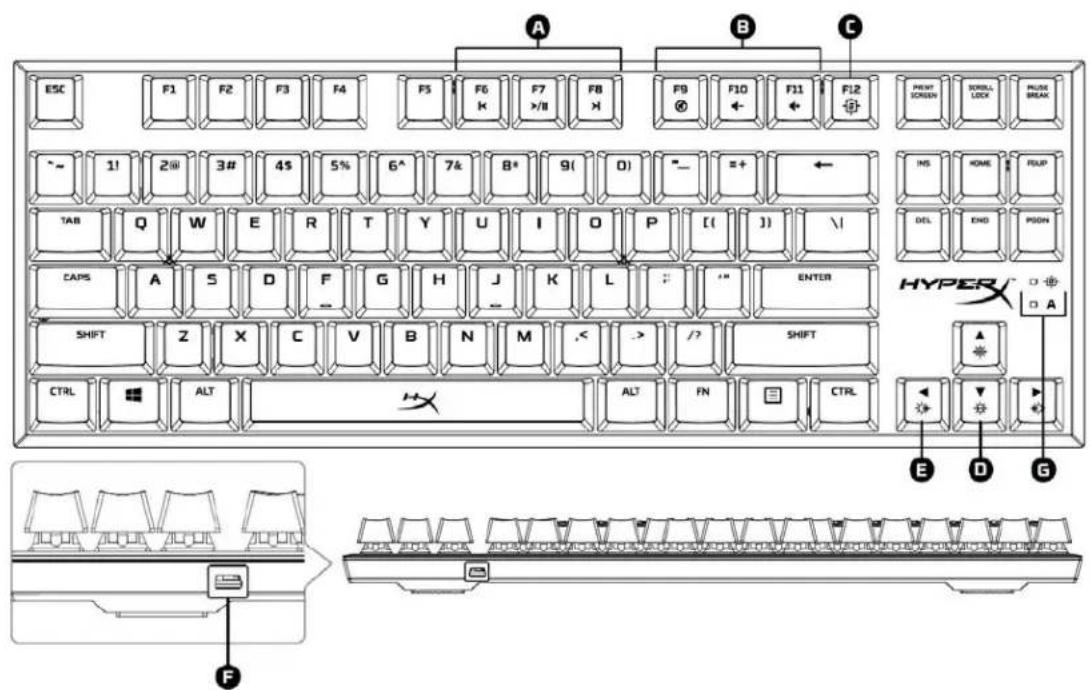

Function Keys: Press “FN” and a function key at the same time to activate it’s secondary feature.

Function Keys Secondary Feature

Mute , decrease or increase your computer audio.

Enable Game Mode to disable the Windows key and avoid accidental interruption during gaming. When Game Mode is enabled the indicator will illuminate.

Increase or decrease the LED backlight brightness. There are 5 levels of brightness: OFF, 25%, 50%, 75% and 100%.

Switch between the LED backlight modes with the following keys / .Document No. 480HX-KB4001.A01 HyperX Alloy FPS Pro Mechanical Gaming Keyboard Page 6 of 7

LED backlight modes: There are six LED backlight modes: Solid ► Breathing ► Trigger ► Explosion ► Wave ► Custom. Solid: Constant lightning (default setting). Breathing: Slow blinking that mimics breathing. Trigger: Individuals keys will light up when pressed and slowly fade after one second. Explosion: A lighting effect will radiate from individual keys when pressed. Wave: Keys will light up from left to right in a wave pattern. Custom: You can choose which keys you want to light up. Follow these steps to customize:

1- Switch the backlight mode to custom.

2- Hold + Right until the backlight turns off.

3- Press the key or keys you want to have backlight ON.

4- When finished, press + Right again to save your custom backlight profile.

Keyboard factory reset: If you are experiencing any issue with the keyboard you can perform a factory reset. You will lose your custom LED profile by doing this. Function Keys Secondary Feature
