USER MANUAL MUMS2TW01 BOSCH

1.3 Restriction on user group.........26

4 Unpacking and checking...........29

5 Familiarising yourself with your appliance............................30

6 Before using for the first time ...32

8 Cleaning and servicing..............34

8.1 Cleaning products....................34

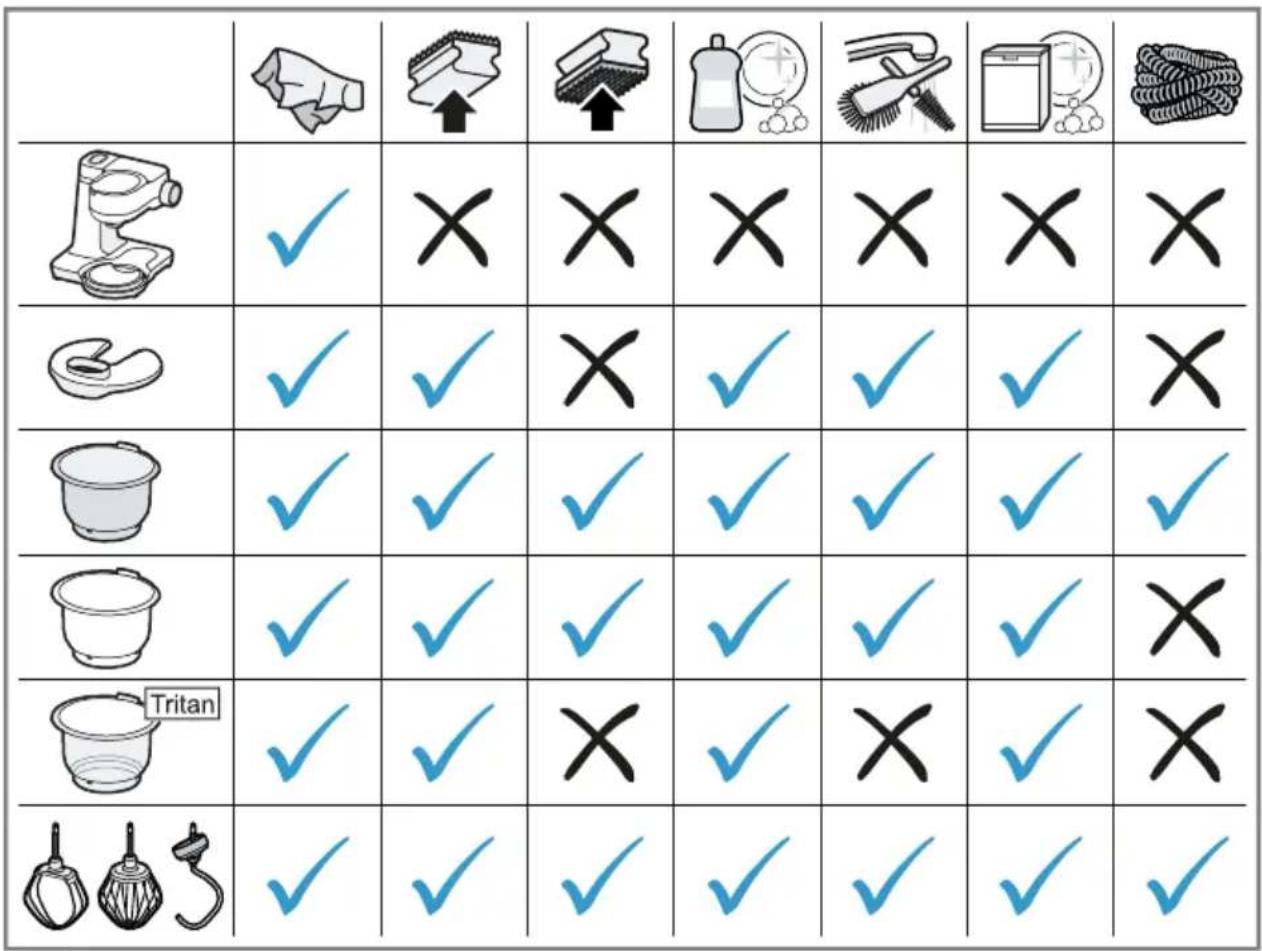

8.2 Overview of cleaning................35

12.1 Disposing of old appliance ....38

production number (FD).........38

13.2 Warranty conditions................38Safety en

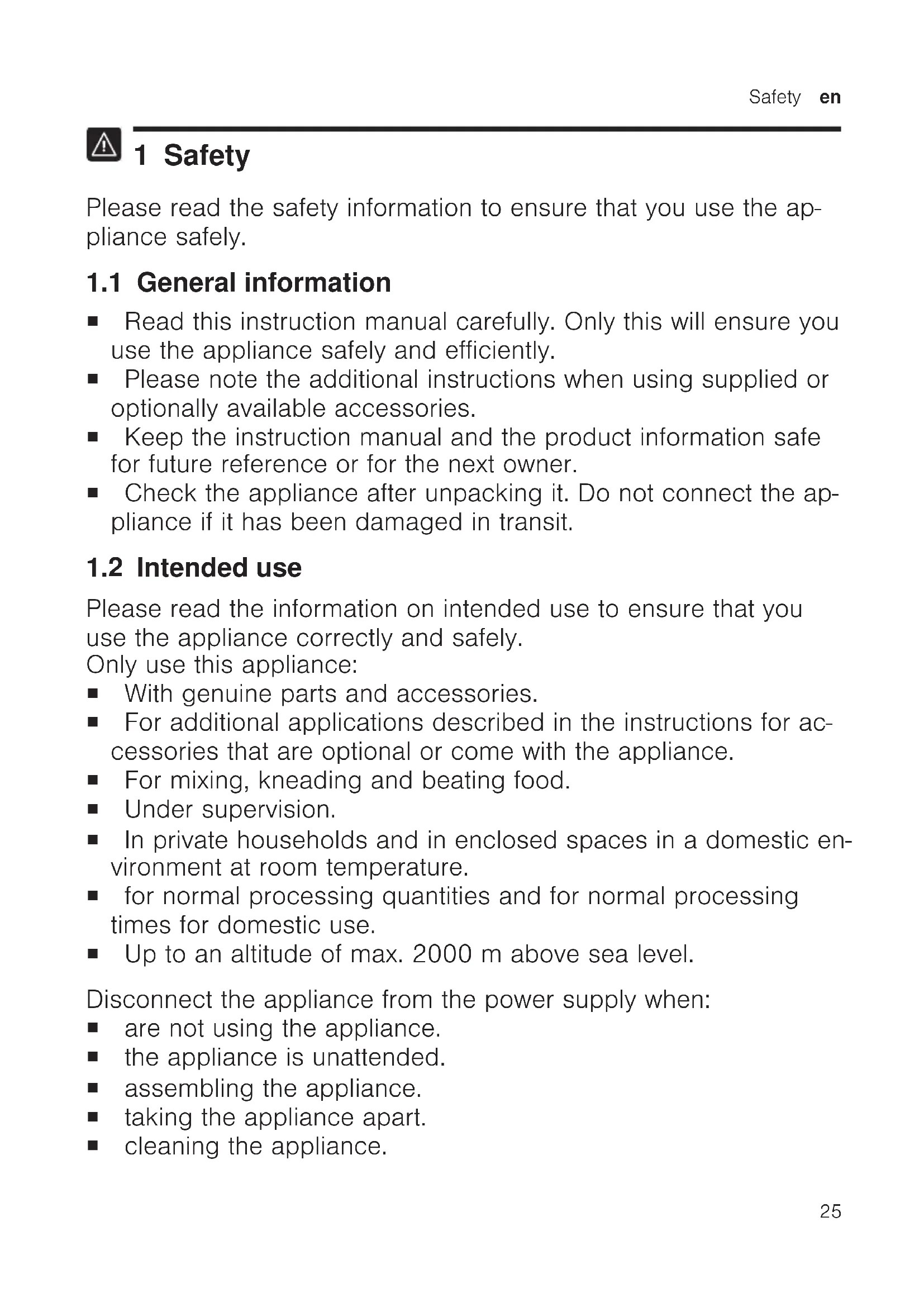

1 Safety Please read the safety information to ensure that you use the ap- pliance safely. 1.1 General information ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡ Please note the additional instructions when using supplied or optionally available accessories. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Check the appliance after unpacking it. Do not connect the ap- pliance if it has been damaged in transit. 1.2 Intended use Please read the information on intended use to ensure that you use the appliance correctly and safely. Only use this appliance: ¡ With genuine parts and accessories. ¡ For additional applications described in the instructions for ac- cessories that are optional or come with the appliance. ¡ For mixing, kneading and beating food. ¡ Under supervision. ¡ In private households and in enclosed spaces in a domestic en- vironment at room temperature. ¡ for normal processing quantities and for normal processing times for domestic use. ¡ Up to an altitude of max. 2000m above sea level. Disconnect the appliance from the power supply when: ¡ are not using the appliance. ¡ the appliance is unattended. ¡ assembling the appliance. ¡ taking the appliance apart. ¡ cleaning the appliance.en Safety

¡ approaching rotating parts. ¡ Change tools. ¡ confronted with a fault. 1.3 Restriction on user group Avoid risks to children and vulnerable persons. This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction con- cerning use of the appliance in a safe way and if they understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by chil- dren. The appliance must not be used by children. Keep children away from the appliance and power cable. 1.4 Safety instructions Observe the safety instructions. WARNING‒Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous.

Never operate a damaged appliance.

Never operate an appliance with a cracked or fractured surface.

Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.

If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box.

Repairs to the appliance should only be carried out by trained specialist staff. Improper installation is dangerous.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Incorrect repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.Safety en

Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. An ingress of moisture can cause an electric shock.

Never immerse the appliance or the power cord in water or clean in the dishwasher.

Only use the appliance in enclosed spaces.

Never expose the appliance to intense heat or humidity.

Do not use steam- or high-pressure cleaners to clean the appli- ance. If the insulation of the power cord is damaged, this is dangerous.

Never let the power cord come into contact with hot appliance parts or heat sources.

Never let the power cord come into contact with sharp points or edges.

Never kink, crush or modify the power cord. WARNING‒Risk of fire! Intense heat may cause the appliance and tools to catch fire.

Never place the appliance on or near hot surfaces. WARNING‒Risk of injury! Rotating drives, tools or accessory parts may cause injury.

Keep hands, hair, clothing and utensils away from rotating parts.

Only attach and remove tools and accessories once the drive has stopped and you have unplugged the appliance.

Before changing tools or cleaning the appliance, switch off and disconnect it from the mains.

Only use the tools when the bowl is inserted, the lid is fitted and the drive covers are in place.

Switch on the appliance only if all preparations are complete and the swivel arm is engaged in the position described.

Never open the swivel arm during processing.

Never leave the appliance switched on if the power supply is in- terrupted. The appliance will automatically start up again follow- ing the interruption in the power supply.en Safety

Operating the appliance with damaged parts may result in injury.

Parts which show cracks or other damage or do not fit correctly must be replaced with genuine spare parts. WARNING‒Risk of crushing! Your hands and fingers could get caught.

Do not reach into the bowl when lowering the swivel arm. WARNING‒Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate.

Keep packaging material away from children.

Do not let children play with packaging material. Children may breathe in or swallow small parts, causing them to suffocate.

Keep small parts away from children.

Do not let children play with small parts. WARNING‒Risk of harm to health! Soiling on surfaces may be harmful to health.

Follow the cleaning instructions.

Clean surfaces which come in contact with food before each use.Avoiding material damage en

Avoiding material damage 2 Avoiding material dam- age Avoiding material damage ATTENTION! Improper use may cause material damage.

Never use different drives at the same time.

Never operate the appliance longer than necessary.

Do not operate the appliance at no-load.

Never use genuine parts and ac- cessories for other appliances.

Observe the maximum processing quantities.

Do not use the bowl to store ob- jects which do not belong to it. During operation warm exhaust air escapes from the vent grille at the rear. If this is blocked, it may cause the appliance to overheat.

Set up the appliance at a sufficient distance from walls, easily dam- aged surfaces and other appli- ances. Environmental protection and saving energy 3 Environmental protec- tion and saving energy Environmental protection and saving energy Help protect the environment by us- ing your appliance in a way that con- serves resources and by disposing of reusable materials properly. 3.1 Disposing of packaging The packaging materials are environ- mentally compatible and can be re- cycled.

Sort the individual components by type and dispose of them separ- ately. Information about current disposal methods are available from your specialist dealer or local authority. Unpacking and checking 4 Unpacking and check- ing Unpacking and checking Find out here what you need to note when unpacking the appliance. 4.1 Unpacking the appliance and parts

1. Take the appliance out of the

2. Take all other parts and the ac-

companying documents out of the packaging and place them to hand.

3. Remove any packaging material.4. Remove any stickers or film.

4.2 Contents of package After unpacking all parts, check for any damage in transit and complete- ness of the delivery. Note:The appliance comes with ad- ditional accessories depending on its features. See the instructions for the accessories to discover the further contents of the package.

Base unit with mixing bowl

Lid with integrated filling shaft

Accompanying documentsen Familiarising yourself with your appliance

4.3 Setting up appliance WARNING Risk of fire! Intense heat may cause the appli- ance and tools to catch fire.

Never place the appliance on or near hot surfaces. ATTENTION! During operation warm exhaust air escapes from the vent grille at the rear. If this is blocked, it may cause the appliance to overheat.

Set up the appliance at a sufficient distance from walls, easily dam- aged surfaces and other appli- ances.

1. Place the appliance on a stable,

level, clean and flat work surface.

2. Pull the power cable out to the re-

• "Cable length", Page32 Do not insert the mains plug. Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here.

Lid with integrated filling shaft

Protective cover for drive 2

Protective cover for drive 3

Recess for bowl 5.2 Rotary switch The rotary switch is used to start and stop processing and select the speed. Symbol Function Stop processing. Process ingredients at low speed. Process ingredients at maximum speed. Move the drive to the parked position. 5.3 Swivel arm The swivel arm can be adjusted and fixed in different positions. If the release button is pressed, the swivel arm can be moved to the re- quired position.

Posi- tion Use ¡ Use accessory on drive 2, e.g. Continuous-feed shredder Posi- tion2 Swivel arm is open. ¡ Insert or remove bowl. ¡ Insert or remove tool. ¡ Add the ingredients to the bowl. Posi- tion3 ¡ Use accessory on main drive, e.g. Meat mincer. ¡ Use accessory on drive 3, e.g. Blender attach- ment. 5.4 Drives Your appliance is equipped with dif- ferent drives, which are specially de- signed for its tools and accessories. Note:Drives 2 and 3 come with pro- tective covers.

• "Drive cover", Page34 Overview of drives You can find an overview of the drives and their purposes here. Drive Use Drive1 For the tools. Drive1 For accessories, e.g. meat mincer Drive2 For accessories, e.g. ¡ Continuous-feed shredder ¡ Citrus press Drive3 For accessories, e.g. Blender attachment Drive Use 5.5 Tools You can find out everything you need to know about the different tools here. Overview of tools Use the appropriate tool depending on use. Tool Use Kneading hook ¡ Knead dough, e.g. yeast dough, bread dough, pizza dough, pasta dough, pastry dough. ¡ Fold ingredients into the dough, e.g. seeds. Stirrer ¡ Mix dough, e.g. cake mixture, fruit flan. ¡ Fold ingredients into the dough, e.g. raisins, chocolate chips. Whisk ¡ Beat whipped egg whites and cream (at least 30% fat). ¡ Mix light dough, e.g. sponge mixture. 5.6 Parked position Your appliance is equipped with a manual parked position. Note:The swivel arm will only open or close with the inserted tool when the drive is located in the correct parked position.en Before using for the first time

Moving the drive to the parked position Requirement:The rotary switch is set to .

Set the rotary switch to and hold. a The drive slowly moves until the correct parked position is reached. Note:If the drive does not move, the correct parked position has already been reached. Before using for the first time 6 Before using for the first time Before using for the first time Prepare the appliance for use. 6.1 Preparing the appliance

1. Press the release button and raise

the swivel arm until it engages.

• "Moving the swivel arm", Page32

2. Lift and remove the bowl.

• "Removing bowl", Page32

3. Clean all parts that come into con-

tact with food before using for the first time.

• "Cleaning and servicing", Page34

4. Put the cleaned and dried parts

out ready for use. Basic operation 7 Basic operation Basic operation 7.1 Cable length Adjust the length of the power cable to your needs. Adjusting cable length via cable storage compartment

1. Pull the power cable out to the re-

2. To shorten the cable, push it into

the cable storage compartment. 7.2 Moving the swivel arm

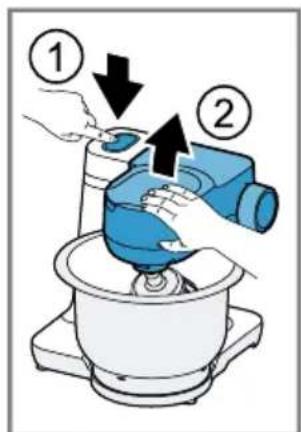

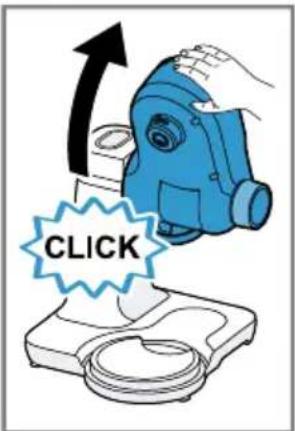

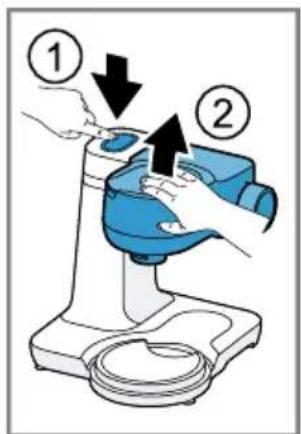

1. Press the release button and raise

the swivel arm until it engages.

a The swivel arm is fixed in posi- tion2.

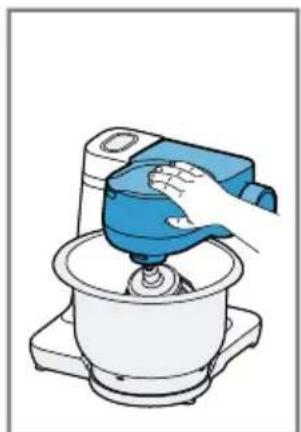

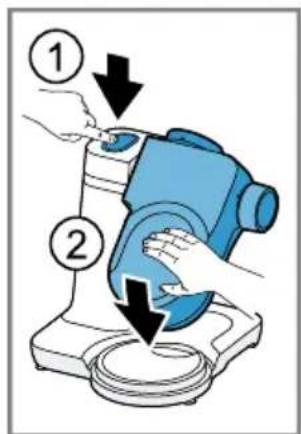

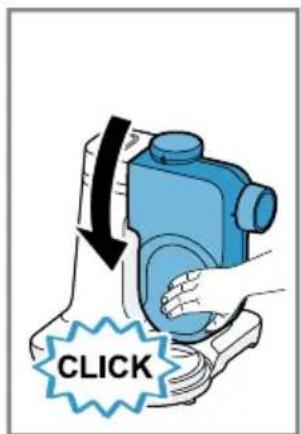

2. Press the release button and move

the swivel arm down until it en- gages in the vertical position.

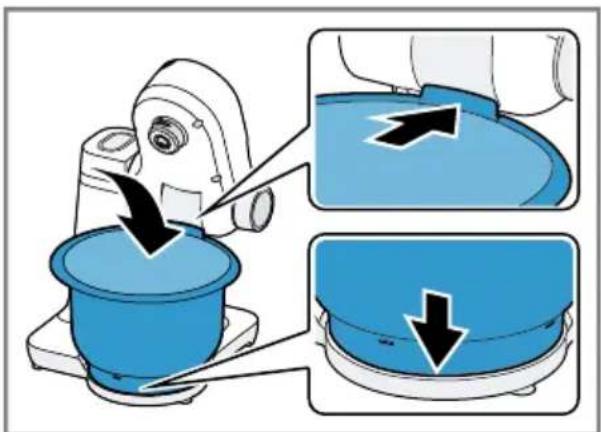

Place the bowl in the base unit.

The bowl must be positioned straight and firm on the base unit. 7.4 Removing bowl

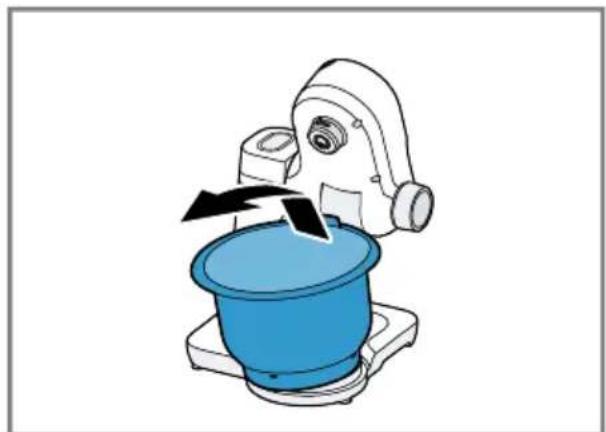

Lift and remove the bowl.

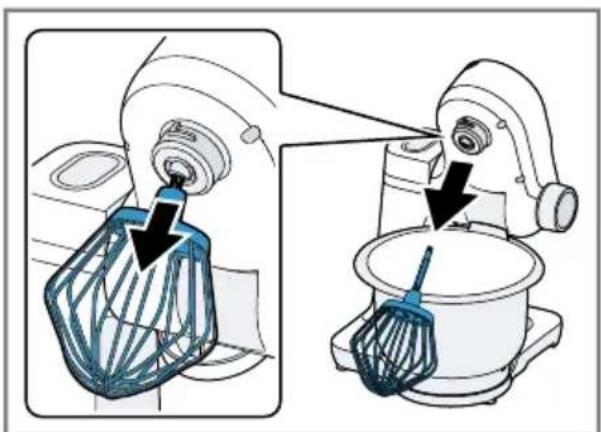

7.5 Inserting tools Requirement:The drive is in the parked position.

• "Moving the drive to the parked position", Page32

1. Select the tool required.

• "Overview of tools", Page31

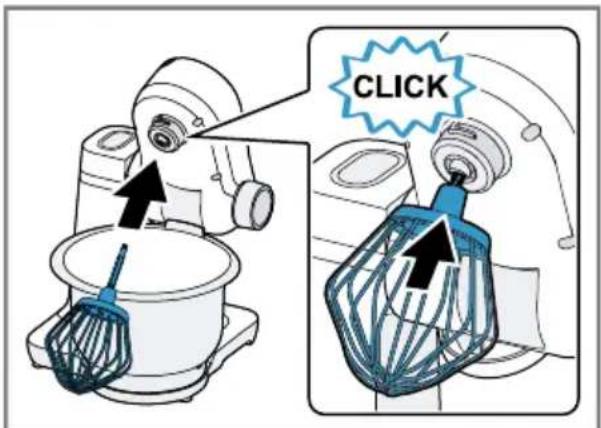

2. Press the tool into the main drive

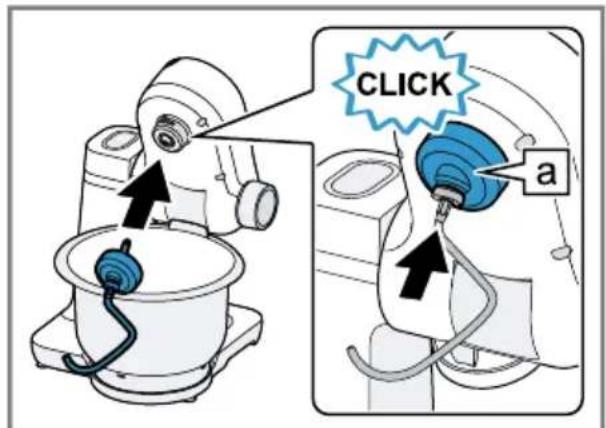

‒ Insert the kneading hook with the protective cap fitted in the main drive. ‒ Turn the protective cap until the kneading hook engages fully.

The protective cap must cover the main drive completely. 7.6 Removing tools

Pull the tool completely out of the drive.

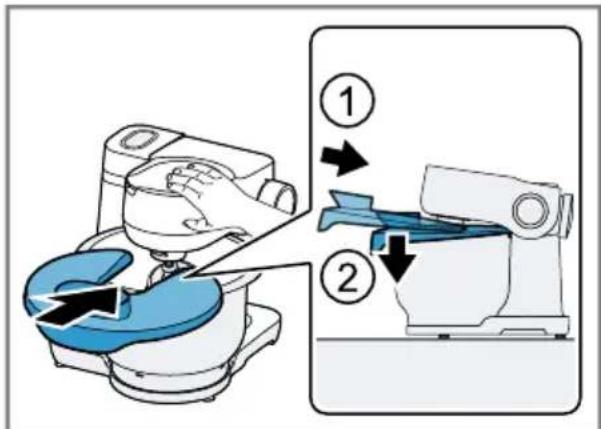

7.7 Attaching bowl lid Requirements ¡ The required tool is used here. ¡ The bowl has been inserted. ¡ The swivel arm is closed.

1. Press the release button, raise the

swivel arm slightly and hold in place.

2. Lift the lid slightly at the front, slide

fully onto the bowl and set down.

The filling shaft must face towards the front.

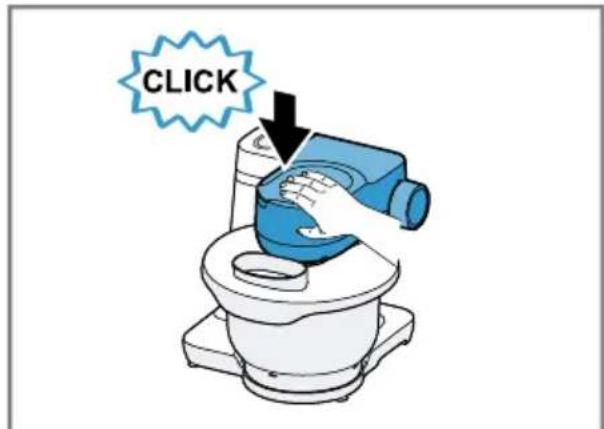

3. Push the swivel arm down until it

1. Press the release button, raise the

swivel arm slightly and hold in place.

2. Lift the lid slightly at the front and

pull it out towards the front.

3. Push the swivel arm up until it en-

gages. 7.9 Processing You can find out everything you need to know about processing food here. Recommended speeds Observe the recommended speeds for optimum results. Setting Use 1-2 Stir in and mix ingredients. 1-2 Knead heavy dough, e.g. yeast dough. 3-4 Beat and stir ingredients, e.g. whipped cream. Processing ingredients with tools WARNING Risk of injury! Rotating drives, tools or accessory parts may cause injury.

Keep hands, hair, clothing and utensils away from rotating parts.

Only attach and remove tools and accessories once the drive has stopped and you have unplugged the appliance.

Before changing tools or cleaning the appliance, switch off and dis- connect it from the mains.

Only use the tools when the bowl is inserted, the lid is fitted and the drive covers are in place.

Switch on the appliance only if all preparations are complete and the swivel arm is engaged in the posi- tion described.

Never open the swivel arm during processing.

Never leave the appliance switched on if the power supply is interrupted. The appliance will automatically start up again follow- ing the interruption in the power supply.en Cleaning and servicing

Requirements ¡ The bowl has been inserted. ¡ The required tool is inserted.

1. Add the ingredients to the bowl.2. Press the release button and push

the swivel arm down until it en- gages.

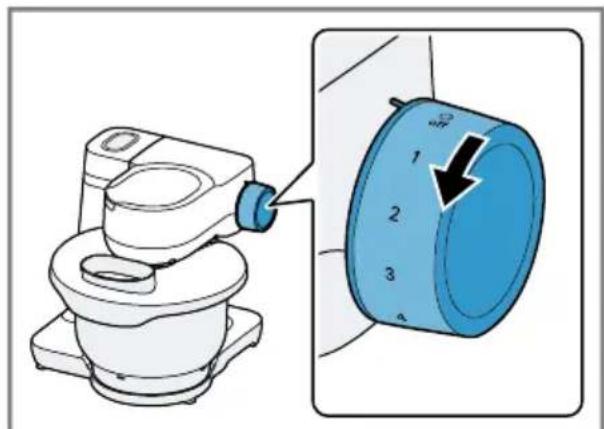

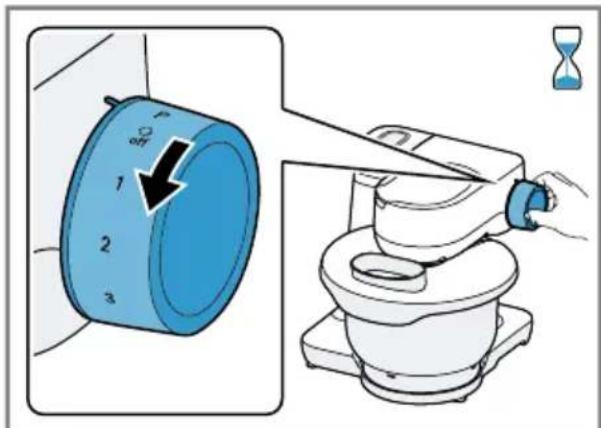

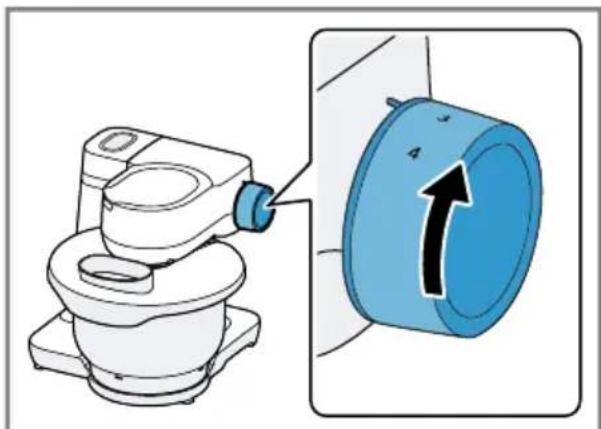

3. Insert the mains plug.4. Set the rotary switch to the re-

5. Process the ingredients until you

achieve the required result.

6. Set the rotary switch to .

Wait until the appliance stops.

7. Set the rotary switch to and hold.

a The drive slowly moves until the correct parked position is reached.

8. Unplug the mains plug.

Tips ¡ You can change the speed at any time during processing or interrupt processing. ¡ Clean all parts immediately after use so that residues do not dry on. Adding more ingredients

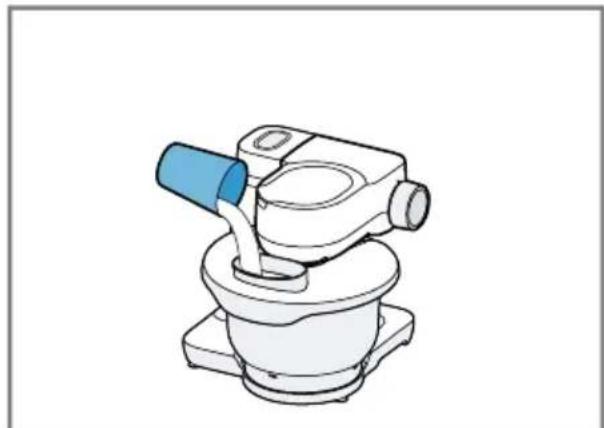

1. To add ingredients during pro-

cessing, use the filling shaft in the lid.

2. To add large quantities, set the

rotary switch to . Wait until the appliance stops.

3. Set the rotary switch to and hold.

a The drive slowly moves until the correct parked position is reached.

• "Attaching bowl lid", Page33

7. Process the ingredients until you

achieve the required result. 7.10 Drive cover Remove the protective cover to use accessories on drive 2 or 3. Removing drive cover

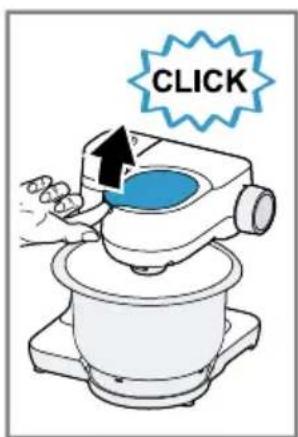

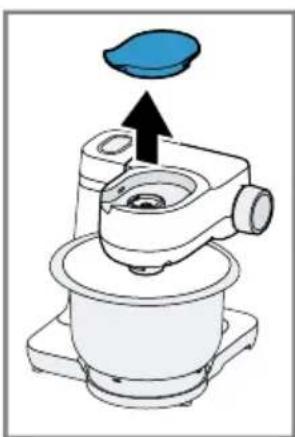

1. Lift the protective cover of drive 2

by the side lug and remove.

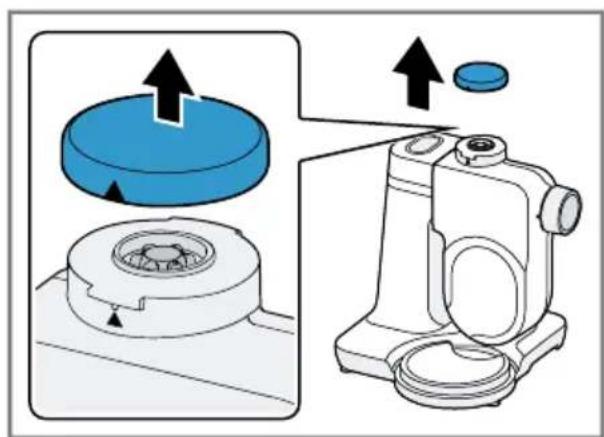

2. Pull up the protective cover for

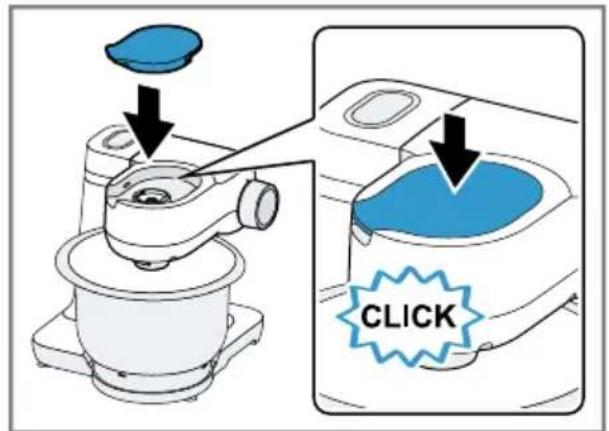

1. Position the protective cover for

the drive2 and press in place firmly.

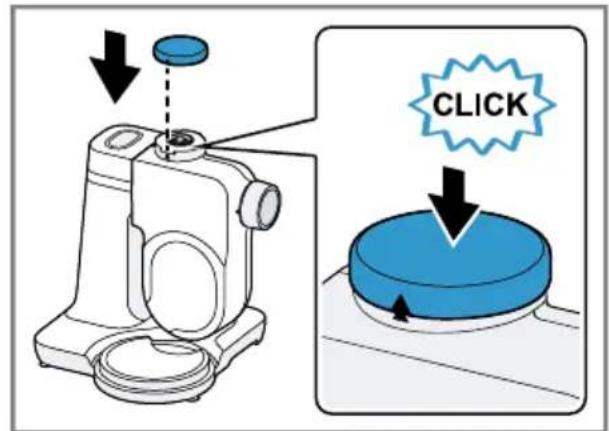

2. Position the protective cover for

the drive3 and press in place firmly.

Markings and must match up. Note:Always close unused drives with the protective covers. Cleaning and servicing 8 Cleaning and servicing Cleaning and servicing To keep your appliance working effi- ciently for a long time, it is important to clean and maintain it carefully. 8.1 Cleaning products Find out here which cleaning products are suitable for your appli- ance.Special accessories en

ATTENTION! Using unsuitable cleaning agents or incorrect cleaning may damage the appliance.

Do not use cleaning agents con- taining alcohol or spirits.

Do not use sharp, pointed or metal objects.

Do not use abrasive cloths or cleaning agents.

Only clean the transparent bowl made of Tritan with a detergent solution and a soft cloth or sponge. 8.2 Overview of cleaning You can find an overview of how to best clean the appliance and the other parts here.

Tip:When processing food such as carrots, plastic parts may become discoloured. Remove discolouration with a soft cloth and a few drops of cooking oil. Special accessories 9 Special accessories Special accessories You can buy accessories from the after-sales service, from specialist re- tailers or online. Only use genuine accessories as these have been spe- cifically designed for your appliance. Accessories vary from one appliance to another. When purchasing ac- cessories, always quote the exact product number (E no.) of your appli- ance. →Page38 You can find out which accessories are available for your appliance in our catalogue, in the online shop or from our after-sales service. www.bosch-home.com Application examples 10 Application examples Application examples Observe the comments and figures in the table.

Tip:You can find more application examples and recipes for your home appliance online. www.bosch- home.com Select your country site under the menu item "Find your local website" and search for your model using the search field. It is best to enter the E- Nr. (model type number) of your ap- pliance. This can be found on the rat- ing plate. After you have selected your model from the results list, your digital manual will be displayed under "Manuals and Documents" together with additional content. 10.1 Sample recipe You can find a sample recipe that has been specially developed for your appli- ance here. Recipe Ingredients Processing Heavy fruit cake ¡ 3eggs ¡ 135g sugar ¡ 135g margarine ¡ 255g flour ¡ 10g baking powder ¡ 150g currants ¡ Insert stirring whisk. ¡ Add all ingredients ex- cept the dried fruit. ¡ Process for 30seconds at set- ting1.en Application examples

Recipe Ingredients Processing ¡ 150g mixed dried fruit Note:Process max. 2 times the quantity at the same time. ¡ Then process for 3-5minutes at set- ting3. ¡ Select setting1. ¡ Add the dried fruit within the next 30-60seconds.Troubleshooting en

Troubleshooting 11 Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. Fault Cause and troubleshooting The appliance is not working. The mains plug of the power cord is not plugged in.

Connect the appliance to the power supply. The circuit breaker is faulty.

Check the circuit breaker in the fuse box. There has been a power cut.

Check whether the lighting in your kitchen or other appliances are working. The swivel arm cannot be opened or closed because the tool is jammed in the bowl. Drive is not in the parked position.

1. Set the rotary switch to .

2. When the swivel arm is open, remove the tool and

close the swivel arm.

3. Set the rotary switch to and hold it in this position.

a The drive slowly moves until the correct parked po- sition is reached.en Disposal

Disposal 12 Disposal Disposal Find out here how to dispose of old appliances correctly. 12.1 Disposing of old appli- ance Valuable raw materials can be re- used by recycling.

1. Unplug the appliance from the

2. Cut through the power cord.

3. Dispose of the appliance in an en-

vironmentally friendly manner. This appliance is la- belled in accordance with European Directive 2012/19/EU concerning used electrical and elec- tronic appliances (waste electrical and electronic equipment - WEEE). The guideline determ- ines the framework for the return and recycling of used appliances as applicable throughout the EU. Customer Service 13 Customer Service Customer Service If you have any queries, are unable to rectify faults on the appliance your- self or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Eco- design Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Note:Under the terms of the manu- facturer's warranty the use of Cus- tomer Service is free of charge. Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E- Nr.) and the production number (FD) of your appliance. The contact details for Customer Ser- vice can be found in the Customer Service directory at the end of the manual or on our website. 13.1 Product number (E-Nr.) and production number (FD) You can find the product number (E- Nr.) and the production number (FD) on the appliance's rating plate. Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly. 13.2 Warranty conditions You can make warranty claims for your appliance under the following conditions. The guarantee conditions for this ap- pliance are as defined by our repres- entative in the country in which it is sold. Details regarding these condi- tions can be obtained from the dealer from whom the appliance was pur- chased. The bill of sale or receipt must be produced when making any claim under the terms of this guaran- tee.fr
