USER MANUAL Glass UNOLD

Instructions for use Model 18580

Technical data. 13

Explanation of symbols. 13

For your safety. 13

Before using the appliance for the

first time. 16

Functions. 16

Use-heating or boiling water 17

Use - keeping water warm. 18

Cleaning and care 18

Dscaling. 19

Guarantee Conditions. 19

Waste Disposal /

Environmental Protection 19

Service 12

Navod k obsluze model 18580

Technické udaje 49

E-Mail [e-mail]

SCHWEIZ

MENAGROS SA

Route der Servion

CH-1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN

"Quadra-net" Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

TSCHECHIEN

befree.cz s.r.o.

Skroupova 150

537 01 Chrudim

Telefon [phone]

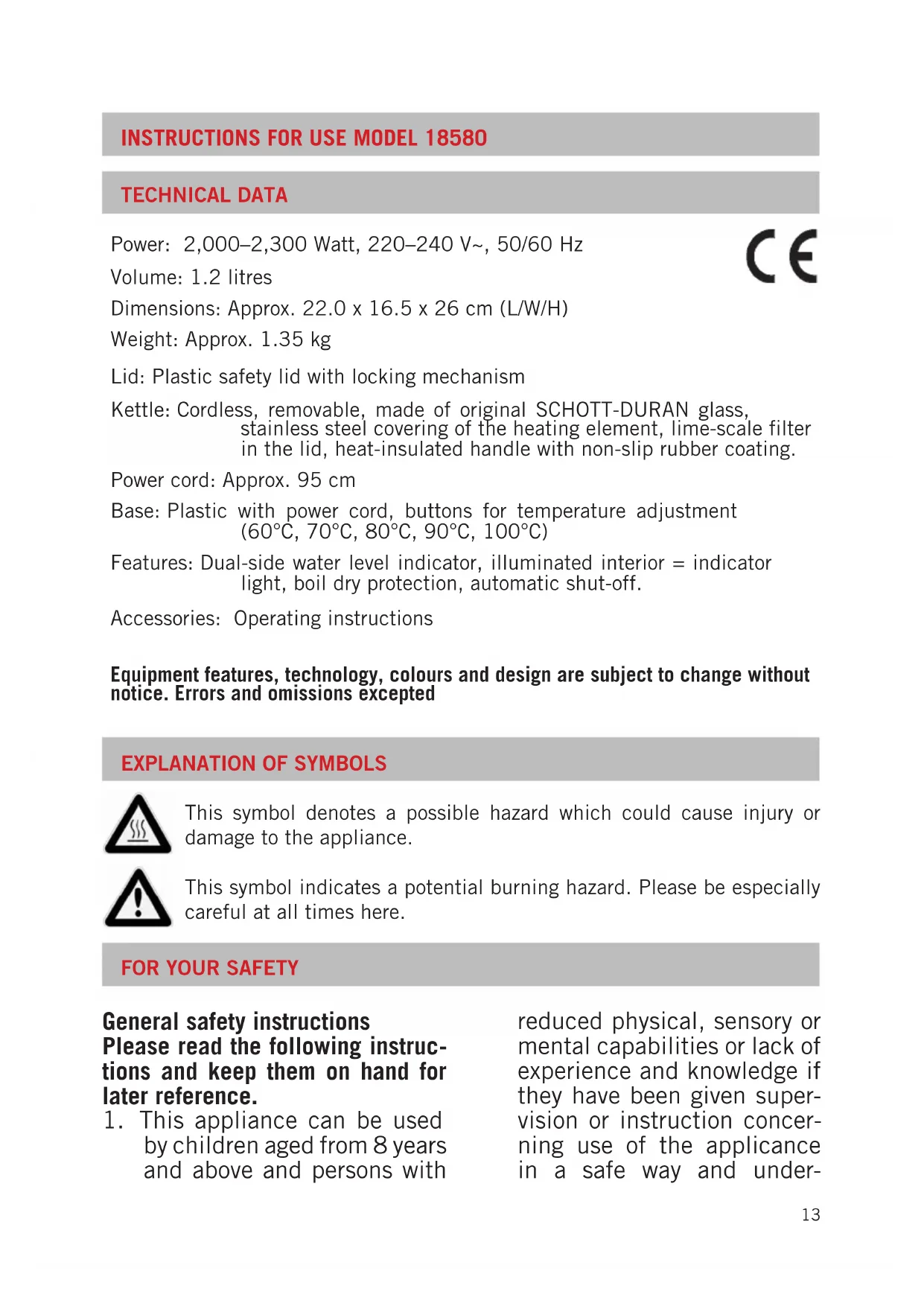

Weight: Approx. 1.35kg

Lid: Plastic safety lid with locking mechanism

Kettle: Cordless, removable, made of original SCHOTT-DURAN glass, stainless steel covering of the heating element, lime-scale filter in the lid, heat-insulated handle with non-slip rubber coating.

Power cord: Approx. 95 cm

Base: Plastic with power cord, buttons for temperature adjustment (60°C, 70°C, 80°C, 90°C, 100°C)

Features: Dual-side water level indicator, illuminated interior = indicator light, boil dry protection, automatic shut-off.

Accessories: Operating instructions

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

FOR YOUR SAFETY

General safety instructions Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the applicance in a safe way and under

stand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Children of less than 3 years should be kept away unless continuously supervised.
2. Children aged from 3 years and less than 8 years shall only swith on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Keep the appliance out of the reach of children.
5. Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.
7. Never immerse the appliance or the power cord in water or other liquids.
8. The base should never come into contact with water or

other liquids. In case this ever happens, it must be completely dry before operating the appliance again.

1. Do not clean the appliance in a dishwasher.
2. Never touch the appliance or power cord with wet hands.
3. The appliance is intended for household use only, or for similar areas of use, such as, kitchenettes in businesses, offices or other workplaces, agricultural enterprises, for use by guests in hotels, motels or other lodgings, in private guest houses or holiday homes.
4. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the base for inspection and repair to our after sales service. Unauthorised repairs can result in serious hazards for the user and void the warranty.
5. If the power cord of this appliance is damaged, it must be replaced by the manufacturer or by the manufacturer's customer service organisation, or by a person with similar qualifications, to prevent hazards.

Information on set-up and use of the appliance

1. For safety reasons, never place the appliance on hot

surfaces, a metal tray or a wet surface.

1. Do not place the appliance or power cord near open flames during operation.
2. Always use the electronic kettle on a level, uncluttered and heat-resistant surface.
3. Ensure that the power cord does not hang over the edge of the counter top or table, since this can cause accidents, for example if small children pull on the power cord.
4. Route the power cord so that there is no possibility of the cord being pulled or tripped over.
5. Never wrap the power cord around the appliance.
6. Use the electronic kettle only indoors.
7. Use the appliance only for heating water. Do not use it to heat milk or other liquids, since they will boil over when heated.
8. Never heat objects such as cans or bottles in the electronic kettle.
9. Make sure that the lid of the appliance is always completely closed, to prevent injuries due to hot splashing water.

10. Do not open the lid as long as the water is boiling, to prevent injuries due to hot splashing water.

11. Never fill the appliance with more than 1.2 litres of water, to prevent the water from boiling over.

12. Never switch on the appliance if there is no water in the kettle.
13. Make sure that all users, especially children, are aware of the danger of injury due to escaping steam or hot splashing water - danger of burns!
14. Do not move the appliance as long as it is in operation, to prevent burns due to splashing water.
15. The electronic kettle features boil dry protection, which means the appliance shuts off automatically if the heating element becomes too hot. Allow the appliance to cool for approx. 15 minutes. Then fill the electronic kettle with cold water. The boil dry protection is deactivated and the appliance is ready for operation again.
16. To avoid damage, do not use the appliance with accessories of other manufacturers or brands.
17. Unplug the mains plug from the electrical outlet after use and before cleaning. Never leave the appliance unattended when the mains plug is plugged in.

Caution!

Do not open the lid while the water is boiling. If the kettle is overfilled, boiling water can splash out.

The appliance becomes very hot during operation!

Never open the housing or the base of the appliance. There is danger of electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

1. Remove all packaging materials and any transport safeguards. Keep children away from the packaging materials due to the danger of suffocation.
2. Clean all parts with a damp cloth.
3. Connect the base to the power supply (220-240 V~, 50/60 Hz) via the power cord.
4. All indicator lights light up and indicate that the appliance is ready for operation.
5. Check to make sure that the appliance is stable.
6. Remove the kettle from the base.
7. Press the "Unold" opening button in the centre of the lid. The lid

is unlocked and opens automatically.

1. Fill with clean, cold water to the Max mark.
2. Close the lid by pressing lightly.
3. Place the kettle so it is straight on the base, to ensure that contact is established with the base.
4. Press the “ ” button to switch on the appliance.
5. When the water is boiling the automatic boil dry circuit switches off the appliance.
6. For hygienic reasons, please discard the water from the first boiling.

FUNCTIONS

The glass electronic kettle has two functions:

Heating or boiling water

The water is warmed to the pre-set temperature. Thus you obtain lukewarm to briskly boiling water, as desired. The temperature can be set in 10^ increments between 60^ and 100^ .

The factory preset is 100^ .

Keeping warm

The previously boiled water is kept warm at the desired temperature after boiling/ heating. The temperature at which the water is kept warm can be set in 10^ increments between 60^ and 100^ . The maximum temperature at which the water can be kept warm is the boiling temperature.

There is no factory preset for the temperature at which the water is kept warm. The keep warm function is ended automatically when the kettle is removed from the base.

Through this function you can ensure that your water also still has the desired temperature, even if you do not use it immediately after concluding the boiling process.

USE - HEATING OR BOILING WATER

1. Connect the base to the power supply (220-240 V~, 50/60 Hz) via the power cord.
2. All indicator lights briefly light up and indicate that the appliance is ready for operation.
3. Remove the kettle from the base.
4. Press the "Unold" opening button in the centre of the lid. The lid is unlocked and opens automatically.
5. Fill the kettle with the desired quantity of clean, cold water. At least 0.25 litres of water must be filled, the maximum fill quantity is 1.2 litres of water.
6. Caution: If the kettle is overfilled, boiling water can splash out and cause burn injuries!
7. Close the lid by pressing lightly.
8. Place the kettle so it is straight on the base, to ensure that contact is established with the base.
9. Check to make sure that the appliance is stable.

10. Caution: If the kettle is not correctly seated the appliance cannot be switched on.

11. Press the " " button The temperature display 100^ will light up to indicate that the boiling process has started. The indicator light in the interior of the appliance will be illuminated.

12. During the boiling process it is possible to select a different temperature.
13. If you desire a different temperature select it via the arrow keys. You can select 60^ , 70^ , 80^ , 90^ and 100^ .
14. When the water has reached the desired temperature, the automatic control shuts off the appliance.
15. Naturally you can also press the " " button again if you want to end the process earlier. In this process the currently set temperature will save for the next boiling process until the base is disconnected from the mains supply.

16. Please ensure that you always switch off the appliance via the " " button, before you take it off of the base.

17. Caution: The automatic temperature control only functions when the lid is properly closed.

18. If you want to heat up water again, let the appliance cool for several minutes.

Boiling water can cause scalding. Therefore, please handle the appliance with care when it contains hot water.

1. The appliance features boil dry protection. When operated without water or with excessive scaling, the appliance shuts off automatically. If this happens, please allow the appliance to cool off briefly before filling it with water again or descale the appliance as described in the chapter "Descending".

USE - KEEPING WATER WARM

1. With the keep warm function it is possible to keep water that has already been heated at the selected temperature.
2. Prepare the appliance as described above, however do not switch it on yet via the " " button.
3. Select the desired temperature to which the water should be heated.
4. Now press the " " button and keep it depressed for three seconds. This button, the UNOLD logo and the display of the selected temperature will flash three times to indicate that the appliance is in keep warm mode.
5. The keep warm mode will be maintained for a maximum of

120 minutes, then the appliance will switch off for safety reasons.

1. During keep warm mode the display of the selected temperature and the UNOLD logo are illuminated.
2. If you want to end keep warm mode, switch off the appliance via the " " button.
3. Keep warm mode will end automatically when you take the appliance off of the base.

Boiling water can cause scalding. Therefore, please handle the appliance with care when it contains hot water.

CLEANING AND CARE

Before cleaning, always turn off the appliance and unplug it from the electrical outlet.

Allow the appliance to cool before cleaning it.

1. Do not immerse the base, power cord or kettle in water or other

liquids or wash them in the dishwasher.

1. Wipe off the base and the kettle with a damp cloth and a little dishwashing detergent.

2. Do not use sponges that can scratch, abrasive scouring agents, steel wool, metal objects, disinfectants or hot cleaning agents, as they can damage the appliance.

DESCALING

1. To keep the appliance operating efficiently and to prolong its service life, it should be descaled regularly, depending on the hardness of your water.

2. Use off-the-shelf descending products for electronic kettles and comply with the manufacturer's instructions. To descale, fill the kettle half full, maximum, otherwise the liquid can boil over and can cause severe injuries.

3. The appliance must be completely dry on the outside before you use it again.

4. Heat the liquid to between 60 and 80^ (do not boil!) and allow it to sit for some time in the electronic kettle.

5. Pour the descending solution out of the kettle.
6. Then fill it with fresh water and bring to a boil. Pour this water out as well. Then rinse out the kettle at least twice with clean water.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

NOTICE D'UTILISATION MODELE 18580

CARACTERISTIQUES TECHNIQUES

Puissance: 2000-2300 watts, 220 - 240V 50 / 60Hz

CONDITIONS DE GARANTIE
