Product Type	Projector
Brand	Samsung
Model	SP-LSP9TFA
Display Resolution	3840 x 2160 (4K UHD)
Image Size (Diagonal)	100" to 130"
Sound Power	40 W
Dimensions (W x H x D)	550.0 x 128.0 x 367.0 mm (body)
Weight	11.5 kg
Power Supply	AC 100-240V, 50/60Hz
Projection Technology	Laser (Class 1)
Smart Hub	Yes, with Samsung Smart Remote
Connectivity	HDMI, USB, LAN, Wi-Fi, Bluetooth
Voice Assistant	Yes (Voice Assistant)
Maintenance	Clean with a soft, dry cloth
Safety	Do not look directly at the beam; safety instructions included
Box Contents	Samsung Smart Remote, AA batteries x2, power cable, user guide
Repairability	Contact a Samsung authorized service center
Operating Temperature	10°C to 40°C
Operating Humidity	10% to 80% without condensation

Frequently Asked Questions - SPLSP9TFA SAMSUNG

How to install the Samsung SPLSP9TFA projector?

Install the projector on a flat and horizontal surface. Place it at a sufficient distance from the screen according to the desired size (see distance table). Connect the power cable and turn it on. Follow the initial setup instructions on the screen. Use the tilt adjustment screws to adjust the angle if necessary.

How to pair the Samsung Smart Remote?

During the first power on, the remote pairs automatically. If not, point the remote at the projector's sensor and simultaneously press and hold the Back and Play/Pause buttons for at least 3 seconds.

What to do if the projected image is blurry?

Go to Settings > General > Projector Settings > Focus to adjust the focus. Also check that the projection distance is correct and that the lens is not dirty.

How to clean the projector?

Unplug the power cable. Use a soft, dry cloth to clean the surface. Do not use chemicals such as alcohol, benzene, or detergents. Do not spray water directly.

What are the important safety precautions?

Never look directly at the projector light. Do not block the ventilation openings. Install it away from heat sources. Avoid exposure to rain or moisture. Use only properly grounded outlets.

How to adjust the image size?

The image size depends on the projection distance. Refer to the distance table in the manual. Move the projector forward or backward to adjust the size. Use the adjustment screws to correct tilt.

How to use the universal remote to control external devices?

Go to Source > Universal Remote Setup. Follow the instructions to set up control of your external devices (set-top box, Blu-ray player, etc.). Functionality may vary by model.

How to update the projector software?

Go to Settings > Support > Software Update. Select Update Now to check and install available updates. You can also enable automatic update.

What to do if the projector does not turn on?

Check that the power cable is properly connected to the projector and the wall outlet. Make sure the outlet works. If the red light on the remote sensor is not lit, press the Power button on the back of the projector.

How to change the projector password?

Go to Settings > General > System Manager > Change PIN. Enter the current password (default 0000 or 1111 for France). Enter a new PIN and confirm.

USER MANUAL SPLSP9TFA SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com

Model

Serial No.

Before Reading This User Manual

This Projector comes with this user manual and an embedded e-Manual. Before reading this user manual, review the following:

	User Manual	Read this provided user manual to see information about product safety, installation, accessories, initial configuration, and product specifications.
	e-Manual	For more information about this Projector, read the e-Manual embedded in the product. • To open the e-Manual, Settings > Support > Open e-Manual

On the website (www.samsung.com), you can download the manuals and see its contents on your PC or mobile device.

Learning the e-Manual's assistance functions

Some menu screens cannot be accessed from the e-Manual.

Q	Search	Select an item from the search results to load the corresponding page.
A-Z	Index	Select a keyword to navigate to the relevant page. - The menus may not appear depending on the geographical area.
品	Site Map	It displays the lists for each item in e-Manual.
	Recently Viewed Topics	Select a topic from the list of recently viewed topics.

Learning the functions of the buttons that appear on e-Manual topic pages

Try Now	Allows you to access the corresponding menu item and try out the feature right away.
Link	Access an underlined topic referred to on an e-Manual page immediately.

Warning! Important Safety Instructions

Please read the Safety Instructions before using your Projector.

Refer to the table below for an explanation of symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol indicates that this product has included important literature concerning operation and maintenance.

AC voltage: Rated voltage marked with this symbol is AC voltage.

DC voltage: Rated voltage marked with this symbol is DC voltage.

Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

Installation

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus and to protect it from overheating, these slots and openings must never be blocked or covered.

• Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

• Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or electric shock.

• Do not expose this apparatus to rain or moisture.

• Be sure to contact an authorised Samsung service centre for information if you intend to install your Projector in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failure to do so may lead to serious damage to your Projector.

• Do not expose this apparatus to dripping or splashing.

• Do not dispose of batteries in a fire.

• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• CAUTION: There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery. Replace only with the same or equivalent type.

WARNING-TO PREVENT THE SPREAD OF FIRE,KEEP CANDLES AND OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

• Use care when touching the Projector after it has been on for some time. Some parts can be warm to the touch.

Operation

• This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling information.
• Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a Samsung service centre.
• When you need to turn off the Projector completely, wait until the fan stops completely so that the Project can cool down completely.

Power

• Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in fire or electric shock.
• Power-supply cords should be placed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at the plug end, at wall outlets, and at the point where they exit from the appliance.
• To protect this apparatus from a lightning storm, or when left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.
• Before plugging in the AC power cord of the Projector, make sure that the operational voltage of the Projector matches the voltage of your local electrical power supply. Refer to the power specifications section of the manual and/or the power supply label on the product for voltage and amperage information.
• Never insert anything metallic into the open parts of this apparatus. This may cause electric shock.

• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

• Be sure to plug in the power cord until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord's plug. Never unplug it by pulling on the power cord. Do not touch the power cord with wet hands.

• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorised dealer or Samsung service centre.

• Be sure to pull the power plug out of the outlet if the Projector is to remain unused or if you are going to leave the house for an extended period of time (especially when children, elderly, or disabled people will be left alone in the house).

• Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat or by causing the insulation to deteriorate.

• Use only a properly grounded plug and wall outlet.

• An improper ground may cause electric shock or equipment damage. (Class I Equipment only.)
• To turn off this apparatus completely, disconnect it from the wall outlet. To ensure you can unplug this apparatus quickly if necessary, make sure that the wall outlet and power plug are readily accessible.

Cleaning

• To clean this apparatus, unplug the power cord from the wall outlet and wipe the product with a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, aerial fresheners, lubricants, or detergents. These chemicals can damage the appearance of the Projector or erase the printing on the product.
• Do not spray water or any liquid directly onto the Projector. Any liquid that goes into the product may cause a failure, fire, or electric shock.

Laser

• Do not block the light coming out of the projector lens when in operation. The light will heat the object and may melt, cause burns or start a fire.
• Do not look directly at the light from the Projector Lens or project the light into any person's eyes.

WARNING: MOUNT ABOVE THE HEADS OF CHILDREN. Additional warning against eye exposure for close exposures less than 1 m.
- As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
- This projector is class 1 laser product of IEC 60825-1:2014 and risk group 2 with the requirements of IEC 62471-5:2015
Additional instructions to supervise children, no staring, and not use optical aids

• Notice is given to supervise children and to never allow them to stare into the projector beam at any distance from the projector.
• Notice is given to use caution when using the remote control for starting the projector while in front of the projection lens.
• Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the beam.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser Radiation.

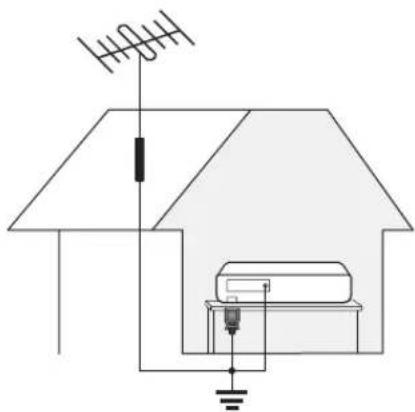

Antenna

• Bend down the part where the outdoor antenna line goes into the inside so that rainwater cannot flow into it.
• If you are using an outdoor antenna, please install it away from electrical wires to make sure it does not touch any nearby wires even when it falls down due to heavy wind.

Contents

Before Reading This User Manual 2

Warning! Important Safety Instructions 3

01 What's in the Box?
02 Product Overview

About the Projector 8

03 Controlling External Devices with a Samsung Remote Control - Using the Universal Remote
04 The Samsung Smart Remote

About the Buttons on the Samsung Smart Remote 10
Pairing the Projector to the Samsung Smart Remote 11
11

05 Installing the Projector

Image size and projection distance 13
Using the Power button 14
Mounting the Projector on a wall 15

06 Troubleshooting and Maintenance

Troubleshooting 16
Changing the Projector's password 17

07 Specifications and Other Information

Specifications 18
Environmental Considerations 18
Decreasing power consumption 19
Licences 19

01 What's in the Box?

Make sure the following items are included with your Projector. If any items are missing, contact your dealer.

Samsung Smart Remote & Batteries (AA x 2)
- User Manual

• Warranty Card / Regulatory Guide (Not available in some locations)
  Power Cable

• The items' colours and shapes may vary depending on the models.

• Cables not included can be purchased separately.

• When connecting an HDMI or USB cable, or connecting a USB flash drive to the HDMI or USB port, use a product that has a width of 18mm or less and a height of 10mm or less. If the USB cable or USB flash drive does not fit the USB ports of the projector, use an extension cable that supports USB 2.0.

• Use a certified cable with the HDMI logo attached.

• If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI cable types)
• Ultra High-Speed HDMI Cable (3 m or less)

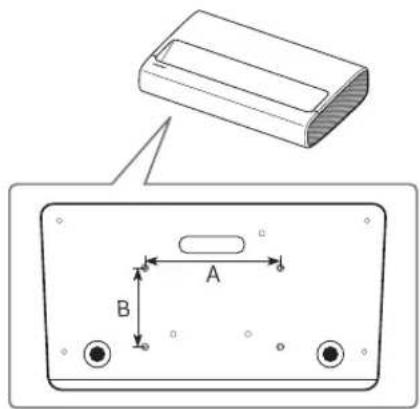

A ≤ 10mm / B≤ 18mm

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual has not been read).
(b) You bring the unit to the Samsung service centre, but it is found that the product has no defect (i.e., where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

02 Product Overview

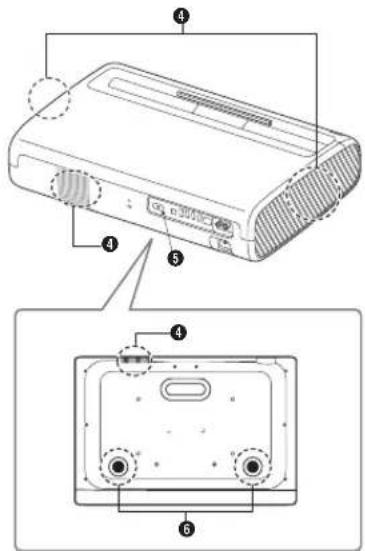

About the Projector

SP-LSP7TFA SP-LSP9TFA

Lens
Remote control sensor / LED Indicators
3 Speaker

4 Ventilation
5 Power button
6 Tilt-Adjustment Foot

• The product colour and shape may vary depending on the model.

• Do not block projector intake and exhaust vents.

• When operating the projector in an enclosed space, allow at least 50~cm clearance around the intake and exhaust vents.

03 Controlling External Devices with a Samsung Remote Control - Using the Universal Remote

Source Universal Remote

The universal remote control feature lets you control cable boxes, Blu-ray players, home theatres, and other external devices connected to the Projector using the Projector's remote control.

For more information on using the Universal Remote function, see the e-Manual chapter, "Guide > Peripherals > Controlling External Devices with a Samsung Remote Control - Using the Universal Remote".

• Certain external devices connected to the Projector may not support the universal remote feature.

04 The Samsung Smart Remote

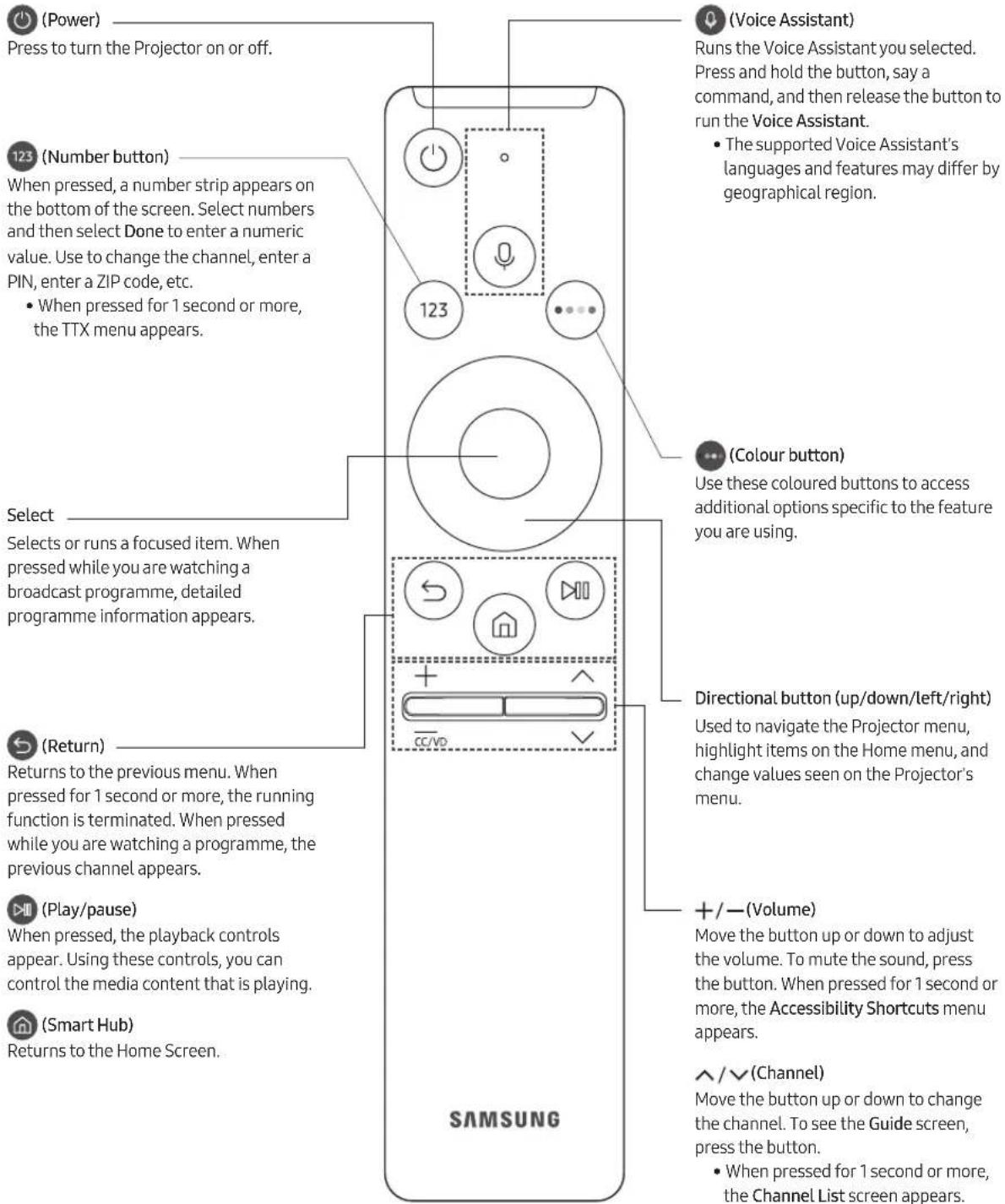

About the Buttons on the Samsung Smart Remote

• The images, buttons, and functions of the Samsung Smart Remote may differ depending on the model.
• The Universal Remote function operates normally only when you use the Samsung Smart Remote that comes with the Projector.

Pairing the Projector to the Samsung Smart Remote

When you turn on the Projector for the first time, the Samsung Smart Remote pairs to the Projector automatically. If the Samsung Smart Remote does not pair to the Projector automatically, point it at the remote control sensor of the Projector, and then press and hold the buttons labelled l and as shown in the figure on the left simultaneously for 3 seconds or more.

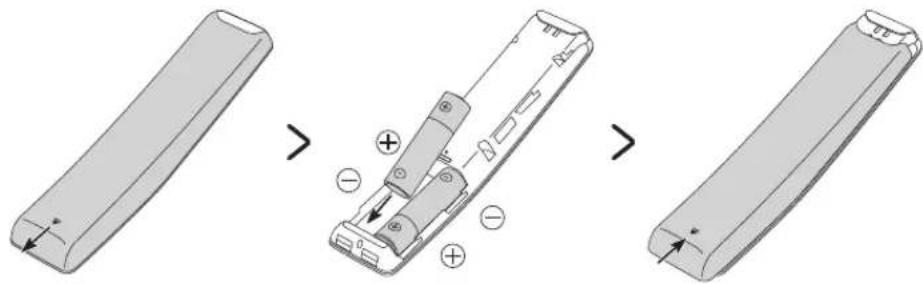

Installing batteries into the Samsung Smart Remote

To install the batteries, push the rear cover open in the direction of the arrow at the bottom of the illustration, and then insert the batteries as shown in the figure. Make sure that the positive and negative ends are facing in the correct direction. Close the rear cover as shown.

Alkaline batteries are recommended for longer battery life.

05 Installing the Projector

Install the projector horizontally on a flat surface to prevent it from being tilted.

When the screen and the projector are not aligned horizontally and vertically, or the screen is curved, the display may get distorted.

1. Place the projector at an appropriate distance from the screen to be projected, connect with the power cable, and then turn it on.

2. When you turn on your Projector for the first time, it immediately starts the Initial Setup. Follow the instructions displayed on the screen and configure the Projector's basic settings to suit your viewing environment.

3. You can turn on the Projector with the power button at the rear of the Projector, and then use the Control menu. The Control menu appears when the power button is pressed while the Projector is On.

4. When the screen looks skewed or blurred, adjust the display settings by following the next instruction.

The product colour and shape may vary depending on the model.

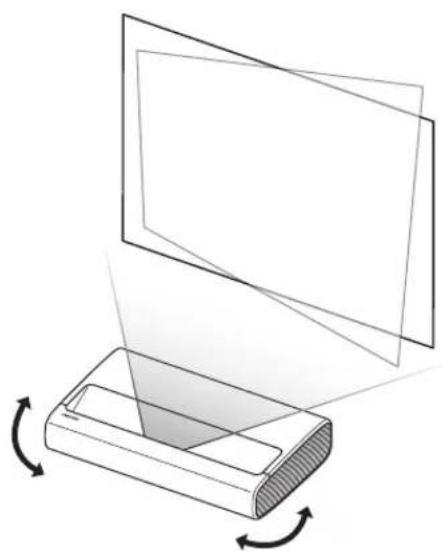

1. Adjust the angle by moving the projector left or right or adjust the angle adjusting tilt-adjustment foot at the bottom to make the screen to be rectangular.

English-12

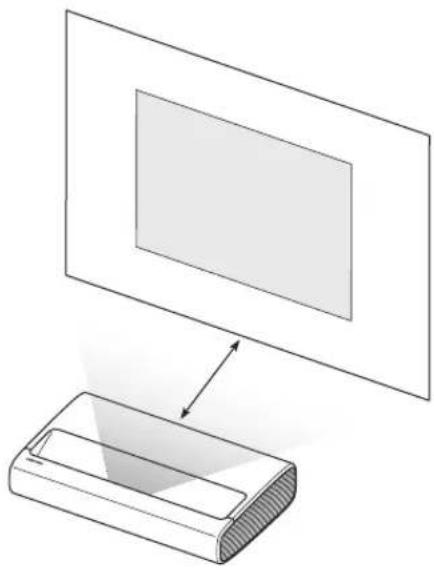

1. Move the projector forward or backward to adjust the projection distance for a desired screen size.

2. When the projected screen is unclear, adjust in Settings > General > Projector Settings > Focus.

3. When the projected screen is not a right angle, adjust in Projector Settings > Screen Adjustment.

In this case, the screen resolution may decrease.

• For information about the screen sizes for each projection distance, refer to the following table.

45663

Image size and projection distance

• The screen sizes for each projection distance may differ depending on the installation environment.

SP-LSP7TFA

C (inches)	X (mm)	Y (mm)	A (mm)	B (mm)
90 1992	1121	247 349
95 2103	183	275	364
100	2214	1245	303	379
105	2324	1308	331	394
110	2435	1370	359	409
115	2546	1432	387	424
120	2657	1494	415	439

SP-LSP9TFA

C (inches)	X (mm)	Y (mm)	A (mm)	B (mm)
100	2214	1245	113	351
105	2324	1308	134	363
110	2435	1370	154	376
115	2546	1432	175	388
120	2657	1494	196	401
125	2767	1557	217	413
130	2878	1619	238	426

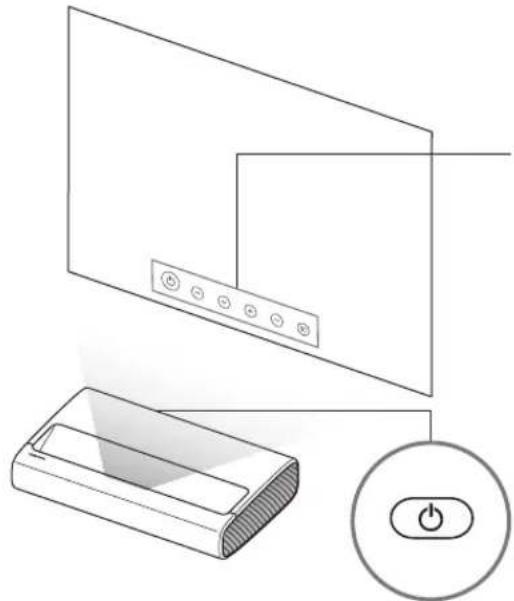

Using the Power button

You can turn on the Projector with the power button at the rear of the Projector, and then use the Control menu. The Control menu appears when the power button is pressed while the Projector is On. For more information about its usage, refer to the figure below.

• Manipulate buttons on the side of the product so that the projected screen is not covered.
• Be careful not to directly get the light emitted from the projector lens.

Control menu

:Poweroff
:ChannelUp
:Channel Down

:VolumeUp
Volume Down
：Source

Power button

Press:Move
Press & Hold: Select

The product colour and shape may vary depending on the model.

Mounting the Projector on a wall

In order to install the projector on a wall, be sure to consult with a professional service agency. Otherwise, the projector may slip or fall off, resulting in personal injury or damage to the product.

When installing a wall mount kit, we recommend you fasten all four screws.

Screw hole specs (A * B) in millimetres	Screw Depth (mm)	Standard Screw	Quantity
235 x 135 7-9 M6 4

The product colour and shape may vary depending on the model.

Do not install your wall mount kit while your Projector is turned on. This may result in personal injury from electric shock.

• Do not use screws that are longer than the standard dimension or do not comply with the standard screw specifications. Screws that are too long may cause damage to the inside of the Projector set.
• For wall mounts that do not comply with the standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
  Samsung is not liable for product damage or personal injury when a non-specified wall mount is used or when the consumer fails to follow the product installation instructions.
  Always have two people mount the Projector onto a wall.

06 Troubleshooting and Maintenance

Troubleshooting

If the Projector seems to have a problem, first review this list of possible problems and solutions. Alternatively, review the Troubleshooting Section in the e-Manual. If none of the troubleshooting tips apply, please visit "www.samsung.com" and click Support or contact the Samsung service centre listed on the back cover of this manual.

• To keep your Projector in optimum condition, upgrade to the latest software. Use the Update Now or Auto update functions on the Projector's menu (Settings > Support > Software Update > Update Now or Auto update).

The Projector won't turn on.

• Make sure that the AC power cable is securely plugged in to the Projector and the wall outlet.
• Make sure that the wall outlet is working and the Remote control sensor at the front right of the Projector is lit and glowing a solid red.
• Try pressing the Power button at the rear of the Projector to make sure that the problem is not with the remote control. If the Projector turns on, refer to "The remote control does not work".

There is no picture/video/sound, or a distorted picture/video/sound from an external device, or "Weak or No Signal" is displayed on the Projector, or you cannot find a channel.

• Make sure the connection to the device is correct and that all cables are fully inserted.
• Remove and reconnect all cables connected to the Projector and the external devices. Try new cables if possible.
• Confirm that the correct input source has been selected (Source).
• Perform a Projector self diagnosis to determine if the problem is caused by the Projector or the device (Settings > Support > Device Care > Self Diagnosis > Picture Test or Sound Test).
• If the test results are normal, reboot the connected devices by unplugging each device's power cable and then plugging it in again. If the issue persists, refer to the connection guide in the user manual of the connected device.

• If you are not using a cable box or satellite box, and your Projector is receiving TV signals from an antenna or a cable wall connector, run Auto Tuning to search for channels > Settings > Broadcasting > (Auto Tuning Settings) > Auto Tuning).

• The Auto Tuning Settings may not appear depending on the model or geographical area.

• If you are using a cable box or satellite box, please refer to the cable box or satellite box manual.

The remote control does not work.

• Check if the Remote control sensor at the front right of the Projector blinks when you press the remote's Power button. If it does not, replace the remote control's batteries.
• Make sure that the batteries are installed with their poles (+ / -) in the correct direction.
• Try pointing the remote directly at the Projector from 1.5-1.8 m away.
• If your Projector came with a Samsung Smart Remote (Bluetooth Remote), make sure to pair the remote to the Projector.

Changing the Projector's password

>Settings >General >System Manager >Change PIN

1. Run Change PIN and then enter the current password in the password field. The default password is "0000" (France: "1111").

2. Enter a new password and then enter it again to confirm it. The password change is complete.

3. If you forgot your PIN code, press the buttons in the following sequence to reset the PIN to "0000" (France: "1111"): On the Samsung Smart Remote: Select +/− (Volume) button. > Volume Up > > Volume Down > > Volume Up >

07 Specifications and Other Information

Specifications

Model Name	SP-LSP7TFA SP-LSP9TFA
Display Resolution 3840 x 2160
Lens Fixed Lens
Image Size (Diagonal) 90" ~ 120" 100" ~ 130"
Sound (Output)	30 W	40 W
Dimensions (W x H x D)
Body	532.0 x 119.1 x 342.0 mm	550.0 x 128.0 x 367.0 mm
With Feet	532.0 x 132.7 x 342.0 mm	550.0 x 141.0 x 367.0 mm
Weight (With Feet)	9.1 kg	11.5 kg

Environmental Considerations

Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Storage Humidity	5% to 95%, non-condensing

Notes

• The design and specifications are subject to change without prior notice.
• This device is a Class B digital apparatus.

• For information about the power supply, and more information about power consumption, refer to the information on the label attached to the product.

• For the label-rating and laser-related cautions, see the surface of the bottom of the projector.

Typical power consumption is measured according to IEC 62087.
- All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions before installing your Projector. Not responsible for typographical or printed errors.
- To connect a LAN cable, use a CAT 7 (*STP type) cable for the connection. (100/10 Mbps)

• Shielded Twisted Pair

• Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may change without notice.

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

Please visit samsung.com/support to find further information about external power adapter and remote control associated with EU Ecodesign directive - ErP regulation

Decreasing power consumption

When you shut the Projector off, it enters Standby mode. In Standby mode, it continues to draw a small amount of power. To decrease power consumption, unplug the power cord when you don't intend to use the Projector for a long time.

Licences

DOLBY AUDIO* POWERED BY QUICKSET rovi guide

HEVCAvance™ Covered by Patents at patentlist.hevcAdvance.com

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements.

The full text of the declaration of conformity is available at the following internet address:

http://www.samsung.com go to Support and enter the model name.

This equipment may be operated in all EU countries and in the UK.

The 5 GHz WLAN(Wi-Fi) function of this equipment may only be operated indoors.

BT max transmitter power : 100mW at 2.4GHz - 2.4835GHz

Wi-Fi max transmitter power : 100mW at 2.4GHz-2.4835GHz, 200mW at 5.15GHz-5.25GHz, 100mW 5.25GHz-5.35GHz & 5.47GHz - 5.725GHz

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of the batteries in this product

(Applicable in countries with separate collection systems)

This marking on battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

This page is intentionally left blank.

HEVCAvance™ Covered by Patents at patentist.hevcAdvance.com

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HEVCAvance™ Covered by Patents at patentist.hevcAdvance.com

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HEVCAvance™ Covered by Patents at patentist.hevcAdvance.com

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HEVCAvance™ Covered by Patents at patentlist.hevcAdvance.com

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HEVCAvance™ Covered by Patents at patentlist.hevcAdvance.com

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HEVCAvance™ Covered by Patents at patentlist.hevcAdvance.com

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HEVCAvance™ Covered by Patents at patentist.hevcAdvance.com

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

If you have any questions or comments relating to Samsung products, please contact the Samsung service centre.

Country	Samsung Service Centre	Web Site
AUSTRIA 0800 72 67 864 (0800-SAMSUNG) www.samsung.com/at/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch) www.samsung.com/be_fr/support (French)
BOSNIA 055 233 999 www.samsung.com/ba/support
ALBANIA 045 620 202 www.samsung.com/al/support
BULGARIA	*3000 Βeena на édimn grāděckn párazròvop 0800 111 31 Bežnépaten за BCηчκи oneρaṭopn	www.samsung.com/bg/support
CROATIA 072 726 786 www.samsung.com/hr/support
CZECH	800 - SAMSUNG (800-726786) www.samsung.com/cz/support
	Samsung Electronics Czech and Slovak, s.r.o. V Parku 2323/14, 148 00 - Praha 4
DENMARK 707 019 70 www.samsung.com/dk/support
FINLAND 030-6227 515 www.samsung.com/fi/support
FRANCE 01 48 63 00 00 www.samsung.com/fr/support
GERMANY	06196 77 555 77	www.samsung.com/de/support
CYPRUS	8009 4000 only from landline, toll free
GREECE	80111-SAMSUNG (80111 726 7864) only from land line ([phone] from mobile and land line	www.samsung.com/gr/support
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
ITALIA	800-SAMSUNG (800.7267864)	www.samsung.com/it/support
LUXEMBURG	261 03 710	www.samsung.com/be_fr/support
MONTENEGRO	020 405 888	www.samsung.com/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
POLAND	801-172-678* lub [phone]* * (opłata wedlug taryfy operadora)	www.samsung.com/pl/support
PORTUGAL	808 207 267	www.samsung.com/pt/support
ROMANIA	*8000 (apel in retea) 08008-726-78-64 (08008-SAMSUNG) Apel Gratisuit Atentje: Dacă efectuți apelul din rețeaua Digi (RCS/RDS), vă rugăm să ne contactuți formân und numărul Telverde fãrã ultimele două cîfre, astfel: 0800872678.	www.samsung.com/ro/support
SERBIA	011 321 6899	www.samsung.com/rs/support
KOSOVO	0800 10 10 1	www.samsung.com/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN	0771 726 786	www.samsung.com/se/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support (German) www.samsung.com/ch_fr/support (French)
UK	0333 000 0333	www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100 www.samsung.com/ie/support
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/tv/support
ESTONIA 800-7267	www.samsung.com/ee/support
TURKEY	444 77 11	www.samsung.com/tr/support
