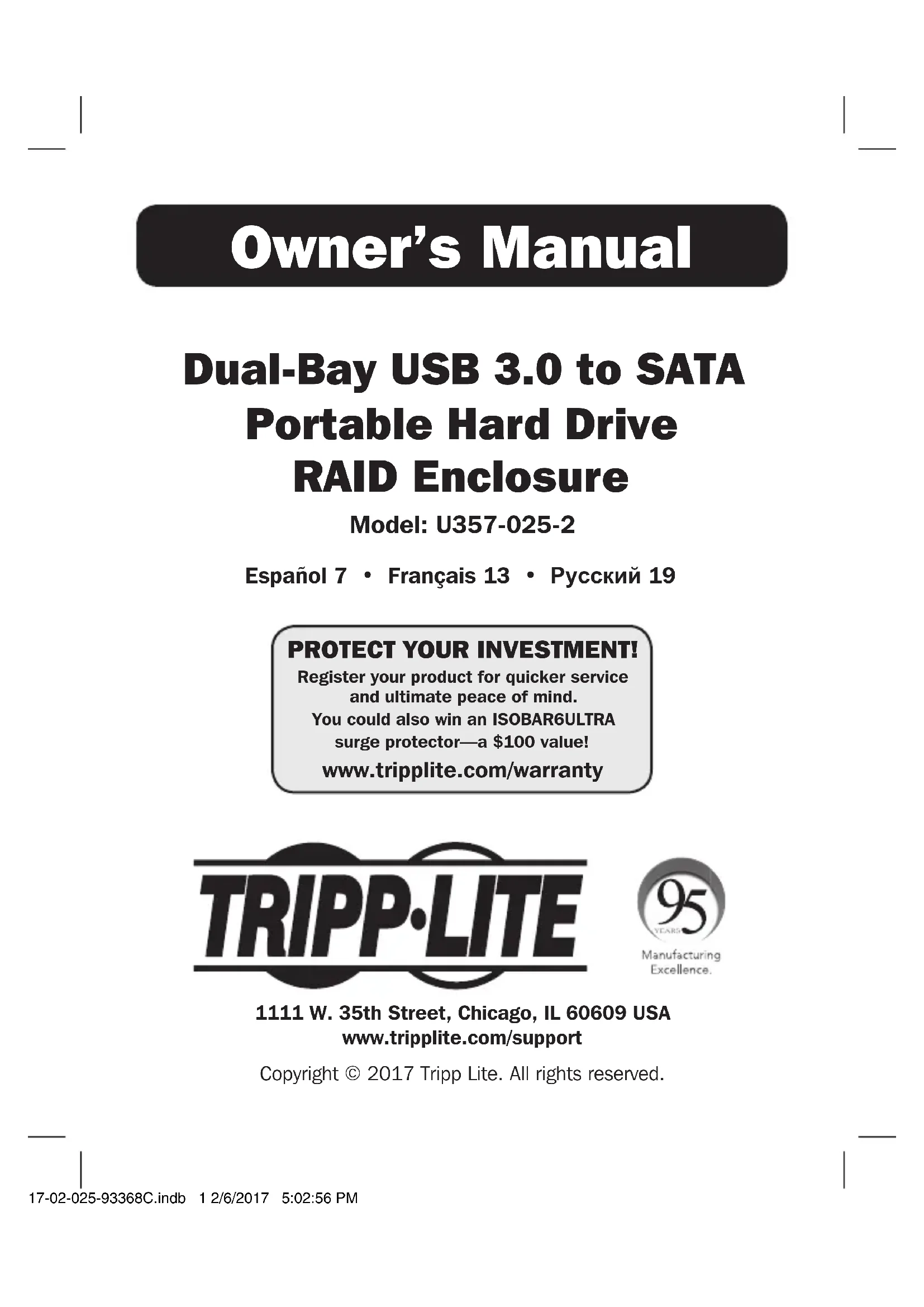

USER MANUAL U3570252 Tripp Lite
Dual-Bay USB 3.0 to SATA Portable Hard Drive RAID Enclosure
Model: U357-025-2
Español 7 • Français 13 • Русский 19
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a \$100 value!
www.tripplite.com/warranty
Manufacturing Excellence.
1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support
Copyright © 2017 Tripp Lite. All rights reserved.
Package Contents
- U357-025-2
• USB 3.0 A to Micro-B Device Cable, 2 ft.
• USB A to Micro-B Power Cable, 2 ft. - Owner's Manual
Product Features
- Converts any two 2.5 in. SATA drives up to 2 TB for connection to your computer's USB port
- Features RAID 0, RAID 1 and JBOD disk modes for flexible access to your data
- Portable tool-free design for quick on-the-go external storage
• Supports data transfer rates up to 5 Gbps - Backward compatible with previous USB generations
- Compatible with SATA I (1.5 Gbps), SATA II (3 Gbps) and SATA III (6 Gbps) drives
• UASP-compatible for performance up to 70% faster - Plug and play—no software or drivers required
System Requirements
• (2) 2.5 in. SATA hard drives (maximum height 0.4 in. [9.5 mm])
- Computer with available USB port (USB 3.0 port required to achieve USB 3.0 speeds)
• Any USB-enabled operating system
Optional Accessories
• U324-Series USB 3.0 SuperSpeed Extension Cable A to A (M/F)
• U326-Series USB 3.0 SuperSpeed Device Cable A to Micro-B (M/M)
• U280-002-W12 USB Wall Charger
Installation
Notes:
- HDD/SSD drives are sensitive to static electricity and must be handled carefully so as not to risk data loss. Always handle an HDD/SSD drive with caution by wearing an anti-static strap (such as Tripp Lite's P999-000) when transporting it or by touching a grounded metal surface to discharge yourself of static electricity before touching the drive.
- If your SATA drive has not been formatted, you must do so using your computer's Disk Management Utility in order to copy and access files.
- Before unplugging the enclosure, properly eject the drive from your computer to avoid potential data loss.
-
Make sure the Lock/Unlock button on the bottom of the unit is switched to Unlock.
-
Slide the covers away from each side of the enclosure to reveal the double-sided drive tray.
-
Slide a 2.5-inch HDD/SSD into each drive tray.
-
Line up the SATA plug on the drives to the SATA reciprocals on each drive tray.
-
Slide the covers back onto each side of the enclosure.
-
Switch the Lock/Unlock button to Lock.
-
Set the RAID configuration. See the RAID Mode section and table for instructions on how to do this.
Installation
- After changing the DIP switches as desired, hold down the Reset button until the LEDs quickly blink. If successful, the LED next to the chosen setting will stay on.
- Power on the unit by connecting the included USB 2.0 power cable between the DC In port and your computer's USB port or a USB charger.
- Connect the included USB 3.0 cable between the unit's USB port and the host computer's USB port.
- The unit is now ready to use.
RAID Mode
This unit can be set to function in one of three modes: JBOD, RAID1 or RAID2. Each mode is described below along with their corresponding DIP switch setting.
| RAID Mode Description DIP Switch 1 DIP Switch 2 | |||
| JBOD Allows access to both drives simultaneously | Down Down | ||
| RAID1 Creates | duplicate drives for data redundancy | Down Up | |
| RAID0 Combines | both drives into one larger drive to improve system performance | Up Up | |
Specifications
| SATA Connections (2) 22-Pin SATA Data + Power | |
| USB Connections USB 3.0 | Micro-B Data (Female)USB 2.0 Micro-B Power (Female) |
| Max Drive Capacity Tested | up to 2 TB |
| Operating Temperature 50° to 122° F (10° to 50° C) | |
| Operating Humidity 10% to 80% RH | |
Warranty and Product Registration
1-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Product Registration
Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Warranty and Product Registration
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:
- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
- Send the new equipment back for recycling when this ultimately becomes waste
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Manufacturing Excellence.
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
1111 W. 35th Street, Chicago, IL 60609 EE UU www.tripplite.com/support
1111 W. 35th Street, Chicago, IL 60609 EE UU www.tripplite.com/support
1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support
Manufacturing Excellence
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
Manufacturing Excellence.
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
17-02-025 93-368C_RevB
