Product Type	Mobile stand for flat screen
Brand	Tripp Lite
Model	DMCS3270XP
Use	Indoor only
Material	Steel, plastic
VESA compatibility	200x200 mm to 600x400 mm
Load capacity	45 kg (estimated)
Adjustable height	Yes, from 1200 to 1600 mm (screen center)
Tilt	+5° / -12°
Rotation (pivot)	90° (landscape/portrait)
Number of casters	4
DVD shelf included	Yes
Camera shelf included	Yes
Cable management	Yes, integrated
Warranty	5 year limited

Frequently Asked Questions - DMCS3270XP Tripp Lite

How to assemble the stand base?

Insert the right foot (C) into the center base (A) and secure with screws (Q) and Allen key (Y). Repeat for the left foot (B). Adjust the casters with key (Z) for fine tuning.

How to adjust the stand height?

Hold the inner column (J) and loosen the adjustment screws. Adjust to desired height (1200 to 1600 mm at screen center) then retighten all screws.

What types of screens are compatible?

The stand accepts screens with VESA hole patterns from 200x200 mm to 600x400 mm. It can support flat or recessed back screens.

How to attach the screen to the stand?

First attach the adapter brackets (I) to the screen with appropriate screws (M5, M6 or M8 as needed). Hook the universal plate (G) onto the support plate (F) and tighten screws (X).

How to orient the screen in portrait mode?

Remove two diagonal screws on the support plate, rotate the screen 90° clockwise, then screw into the new holes to secure.

How to install the DVD shelf?

Insert the two plastic brackets into the slots on the column. Close the lever to lock the shelf, then tighten screws (T) to secure it firmly.

How to adjust the screen tilt?

Loosen the knobs on the back of the support plate, adjust the screen to the desired angle (+5° to -12°), then retighten the knobs.

How to clean and maintain the stand?

Check every three months that all screws are tight and the stand is stable. Clean with a soft dry cloth. Avoid abrasive products.

Where to find spare parts?

If parts are missing or defective, visit www.tripplite.com/support for assistance and to order replacement parts.

What is the warranty for this product?

Tripp Lite offers a 5-year limited warranty against defects in materials and workmanship from the date of purchase. It does not cover normal wear or damage due to misuse.

USER MANUAL DMCS3270XP Tripp Lite

Technical line drawing of a vertical mechanical device with wheels and a central shaft (no text or symbols)

Español 13 • Français 25 • Русский 37 • Deutsch 49

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

200×200/300×300

400×200/400×400

600×400

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit www.triplite.com/support.
• This mounting bracket was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not over-tighten. Over-tightening screws can damage the items, greatly reducing their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Warranty & Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

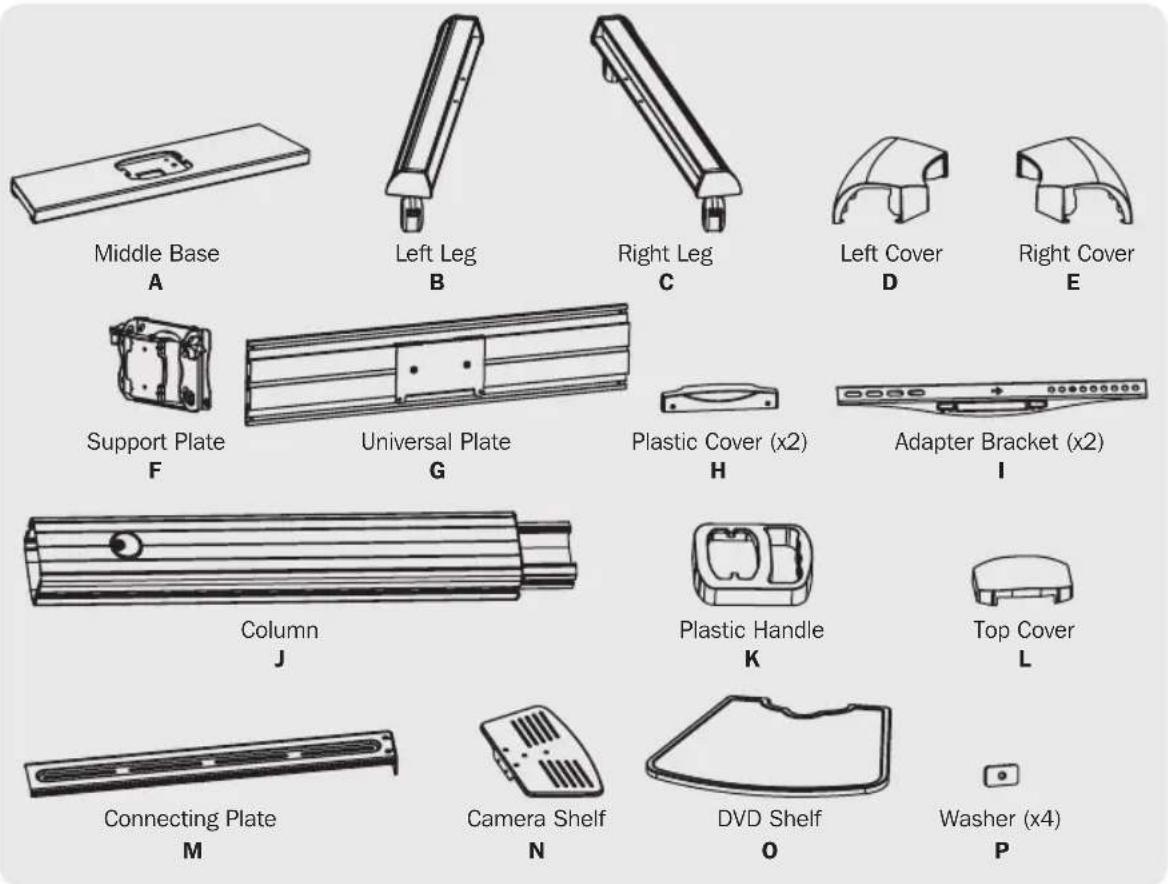

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit www.tripplite.com/support for service.

Package M

M5 x 14 Screw (x4)
M-A

M6 x 14 Screw (x4)
M-B

M8 x 20 Screw (x4)
M-C

M6 x 30 Screw (x4)
M-D

M8 x 30 Screw (x4)
M-E

M8 x 50 Screw (x4)
M-F

Washer (x4)
M-G

Small Spacer (x8)
M-H

Big Spacer (x8)
M-I

Package P

M6 x 16 Screw (x8)
Q

M6 x 25 Screw (x3)
R

M4 x 6 Screw (x3)
s

M4 x 6 Screw (x4)
T

M6 x 14 Screw (x2)
U

M6 x 8 Screw (x6)
V

M8 x 25 Screw (x4)
W

M5 x 8 Screw (x2)
X

Allen Wrench
Y

Wrench
Z

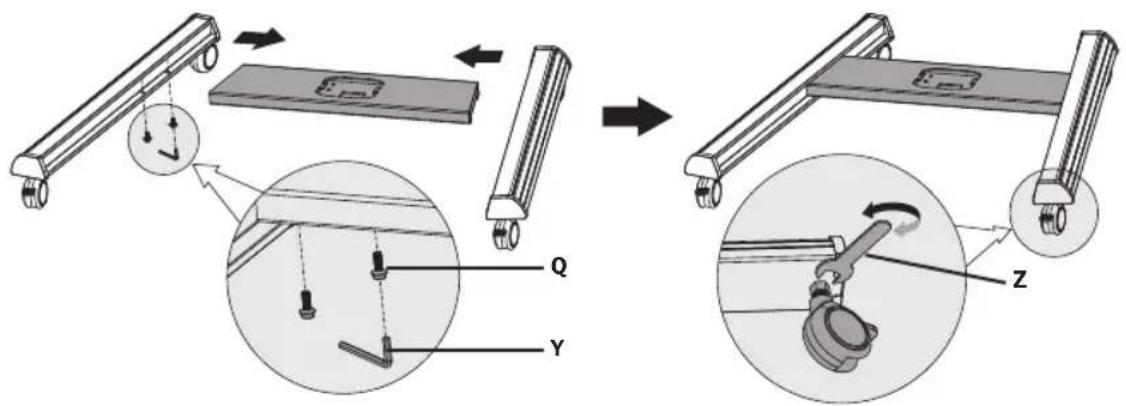

1. Assembling the Base

1) Insert Right Leg C into Middle Base A. Align the holes in the Right Leg to the holes in the Middle Base. Secure with Screws Q and Allen Wrench Y. Repeat this step for Left Leg B.
2) Each caster can be adjusted independently for fine tuning. Slightly turn the nut with Wrench Z to lower or raise Middle Base.

2. Attaching the Column to the Base

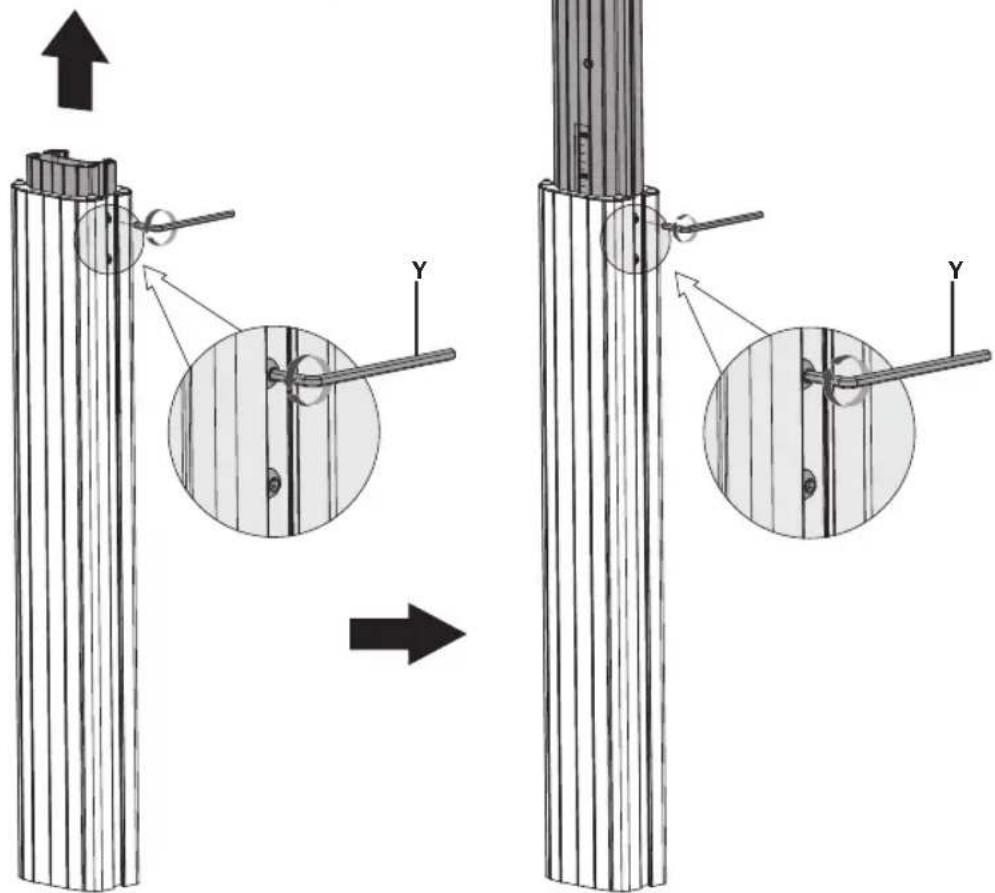

CAUTION: Hold the inner column when loosening the screws to adjust height.

Adjust inner Column J to the desired height, then tighten all screws.

2. Attaching the Column to the Base

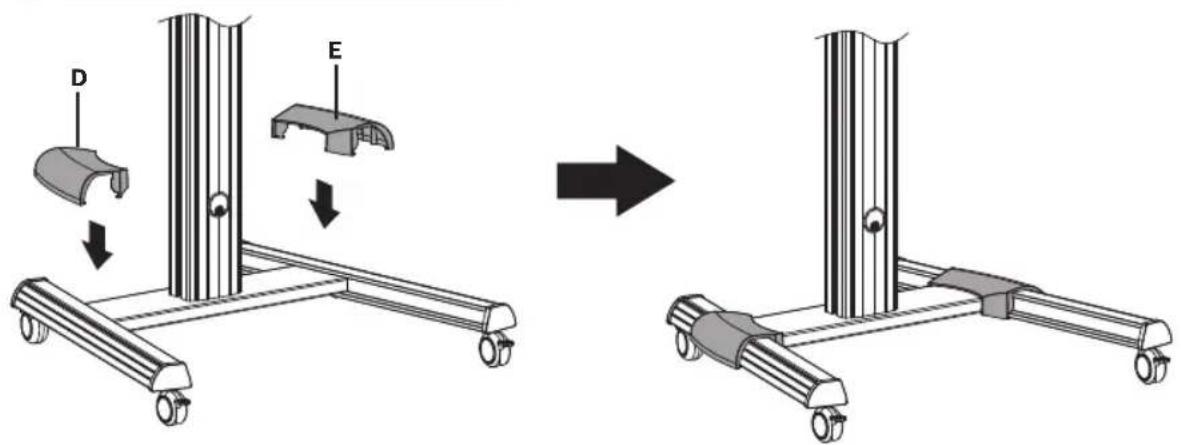

Attach Left Cover D and Right Cover E to Legs.

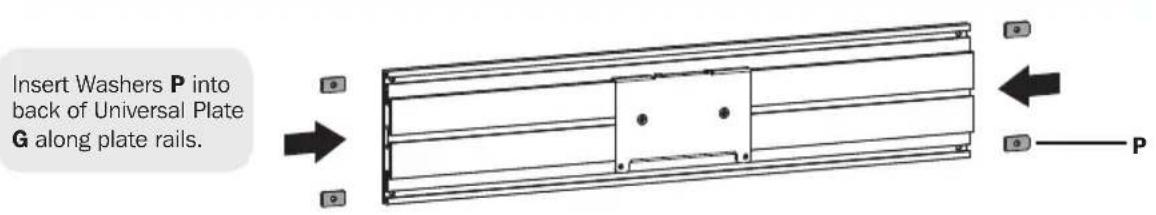

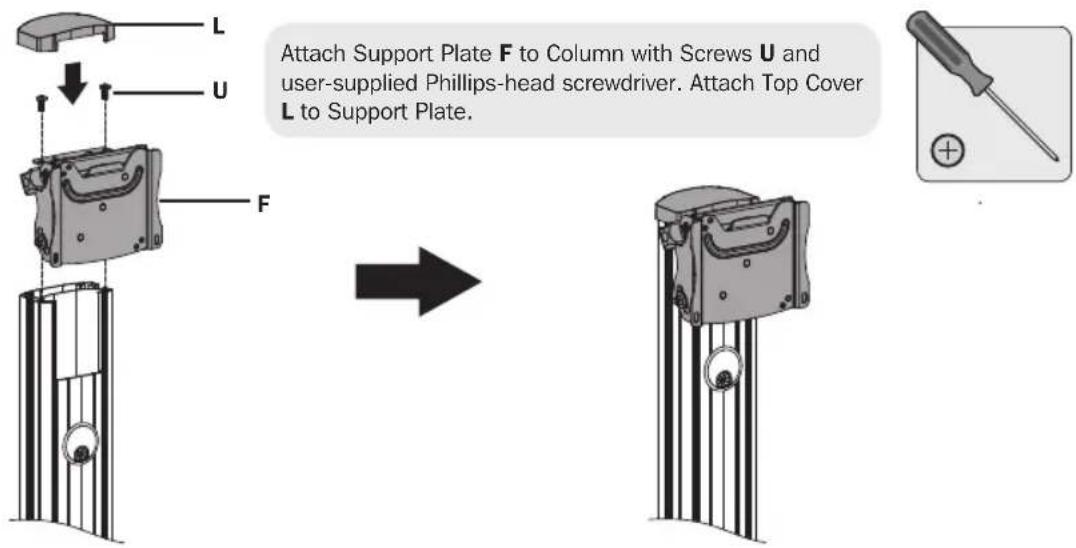

3. Installing the Support Plate

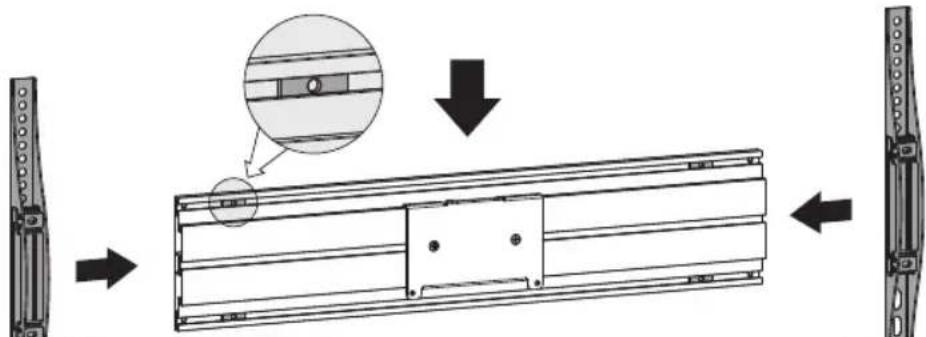

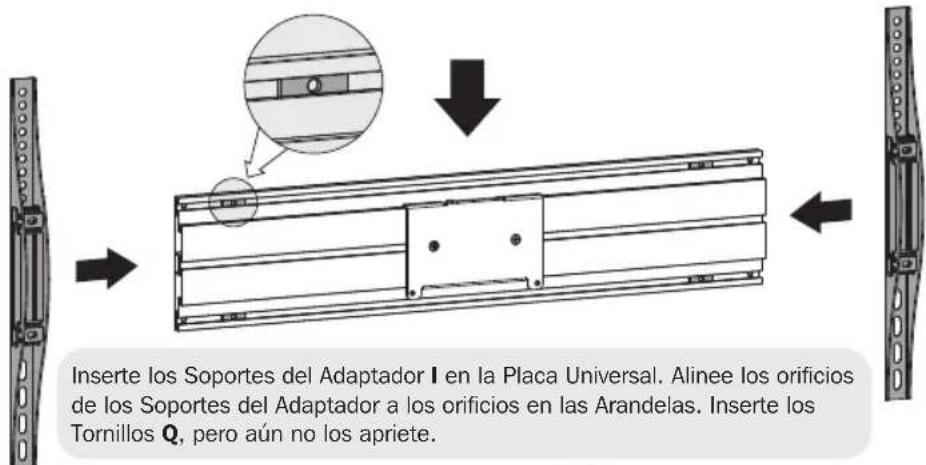

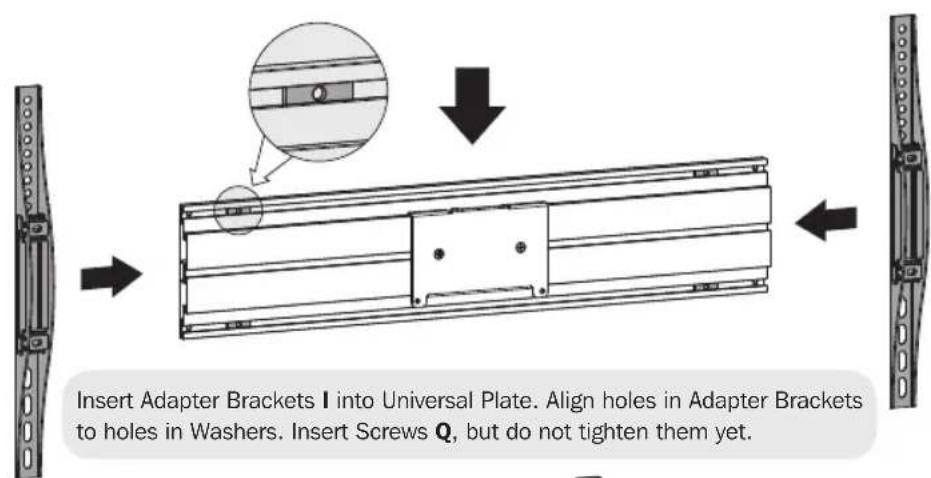

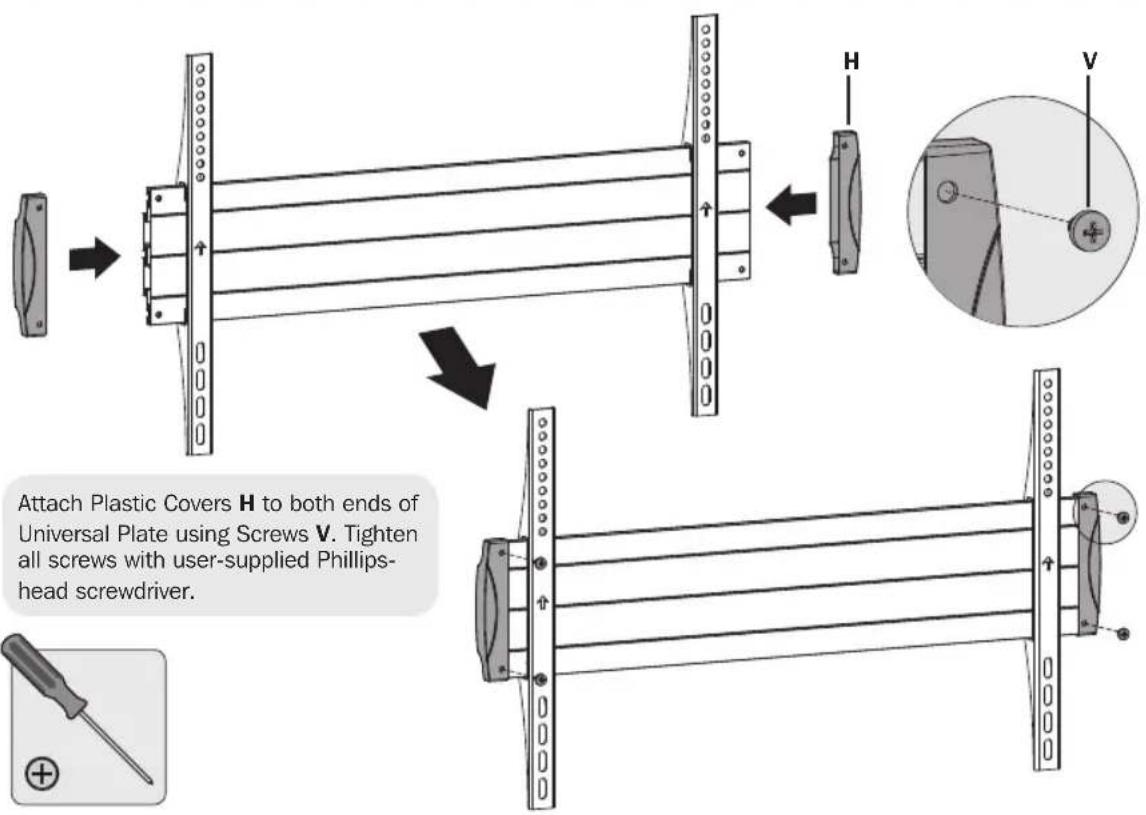

4. Installing the Adapter Brackets

Technical diagram of a mechanical assembly with an inset showing a close-up of a rotating component (no text or symbols present)

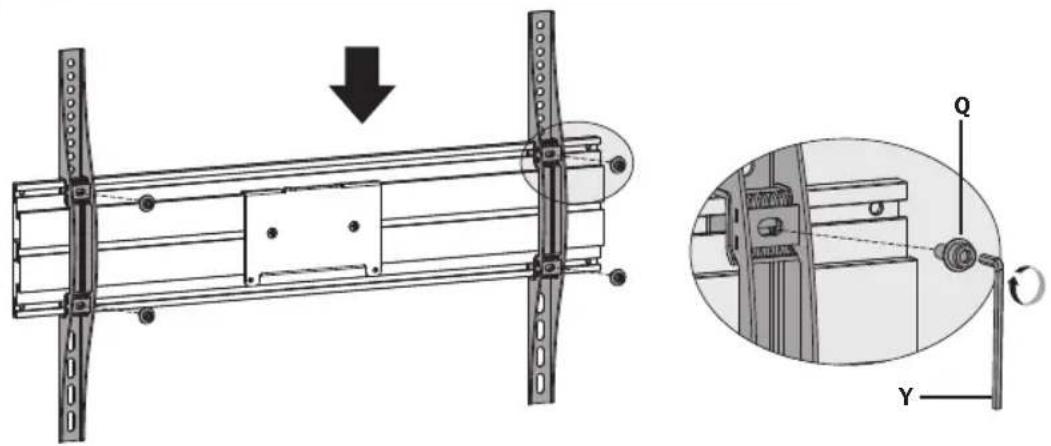

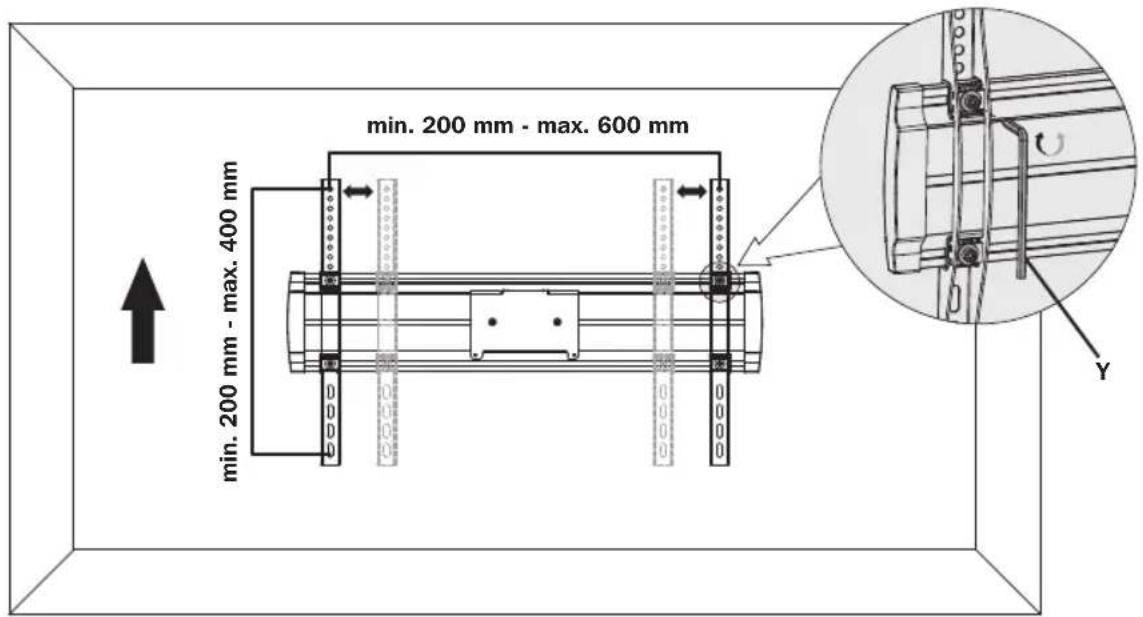

4. Installing the Adapter Brackets

Adjust Adapter Brackets to fit VESA hole pattern on your display. Tighten all Screws.
NOTE: Verify proper alignment of all holes.

4. Installing the Adapter Brackets

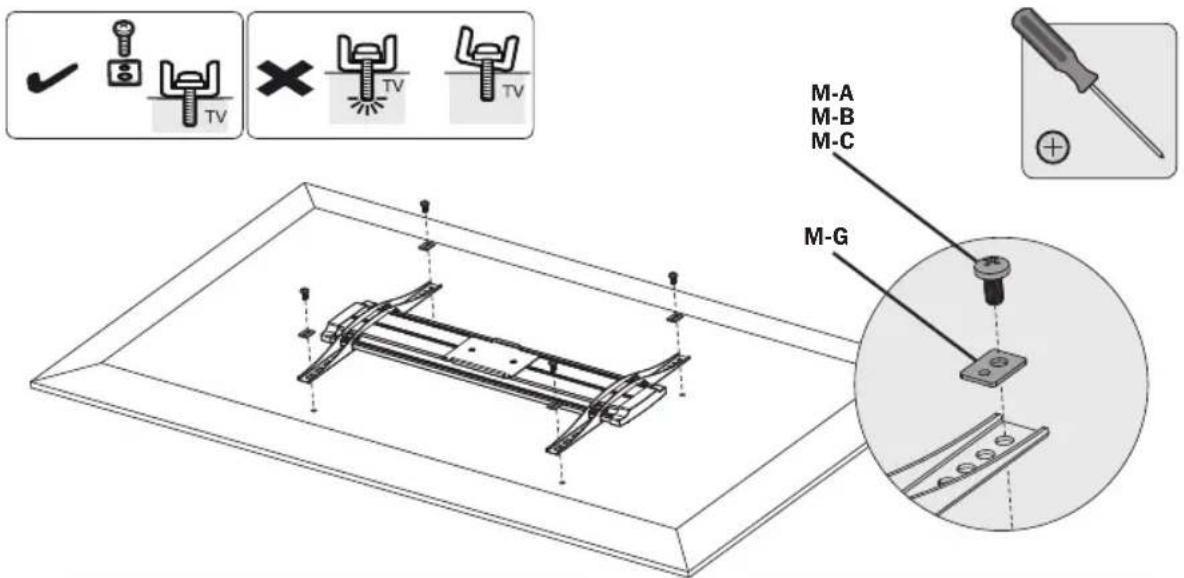

4.1 For Flat-Back Screens

Note: Choose the appropriate Screws, Washers and Spacers (if needed) according to the type of screen. Screw the Adapter Brackets onto the display.

CAUTION: Tighten all screws but do not over tighten.

4.2 For Recessed-Back Screens or Accessing A/V Inputs

Note: Choose the appropriate Screws, Washers and Spacers (if needed) according to the type of screen. Screw the Adapter Brackets onto the display.

CAUTION: Tighten all screws but do not over tighten.

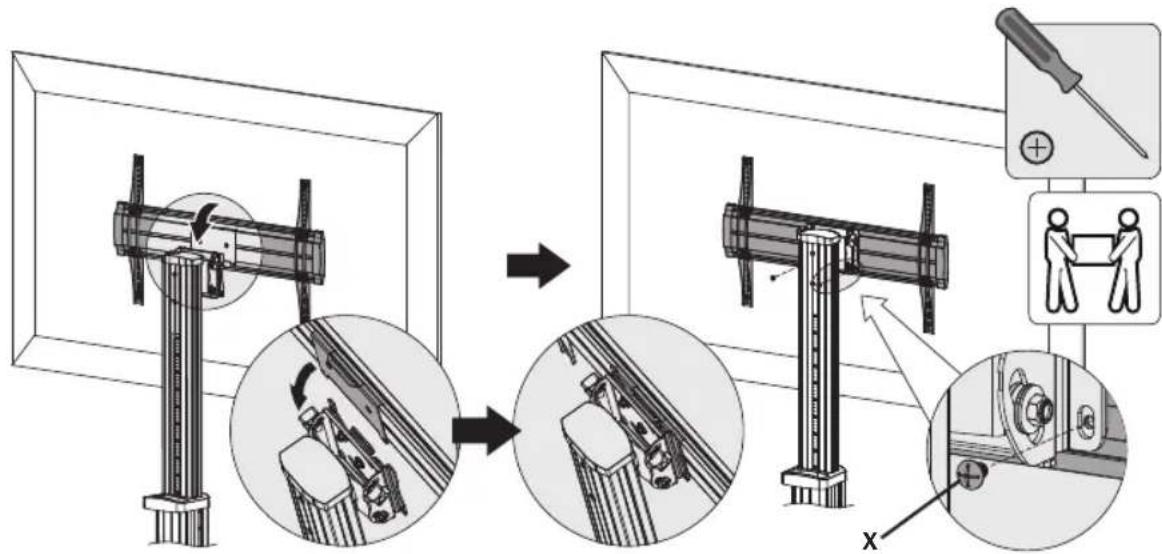

5. Hooking the Display to the Support Plate

Hook Universal Plate onto Support Plate.
Secure by tightening Screws X with user-supplied Phillips-head screwdriver.

CAUTION: Be sure the display is correctly mounted and that the screws are safely tightened before releasing the display.

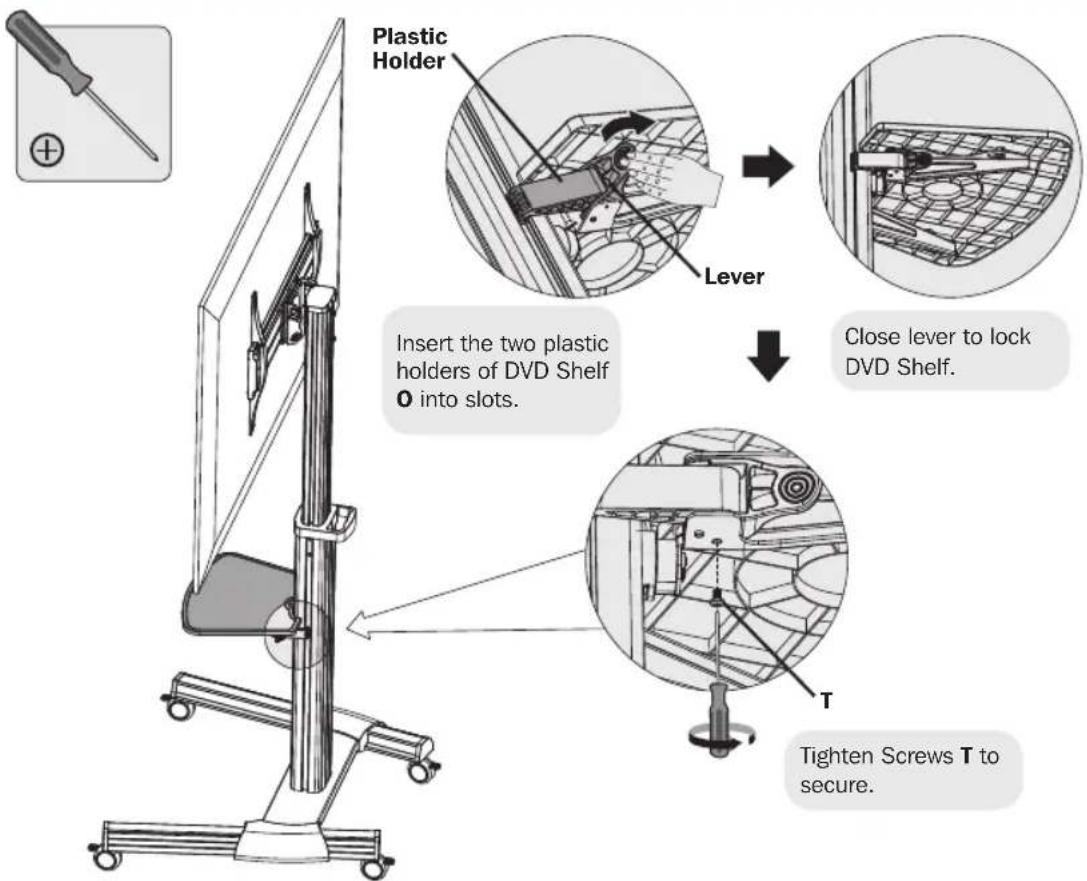

6. Installing the DVD Shelf

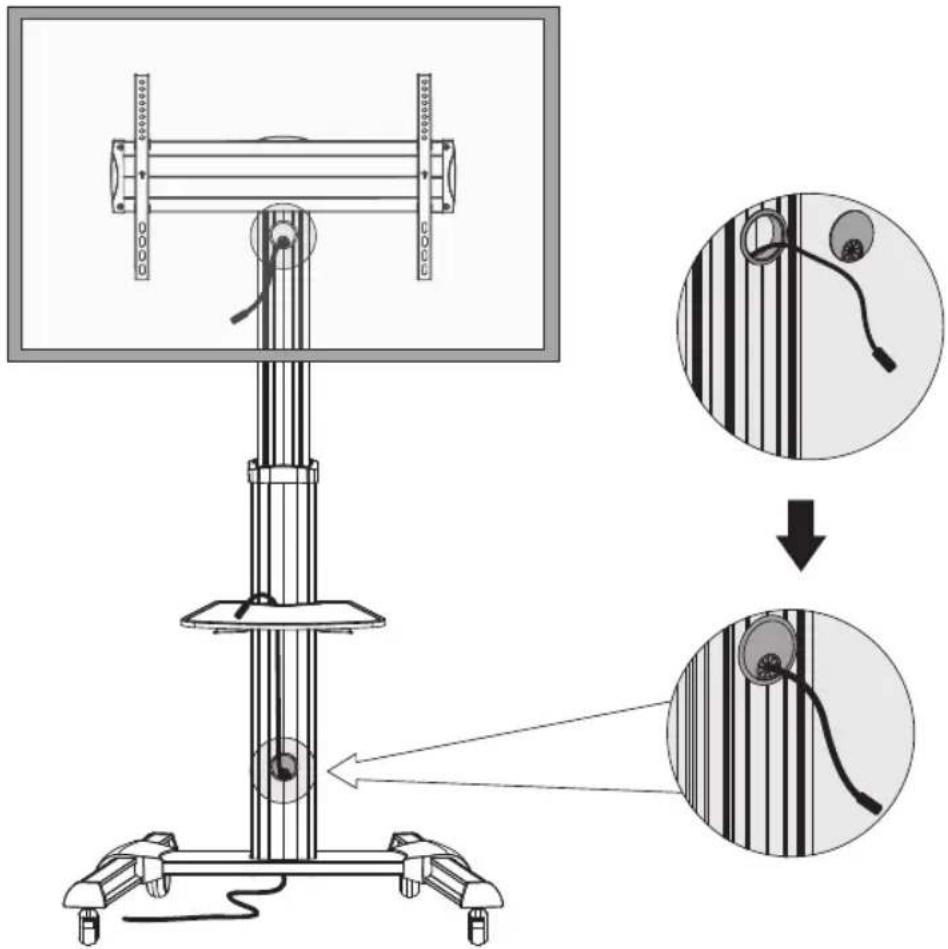

1. Cable Management

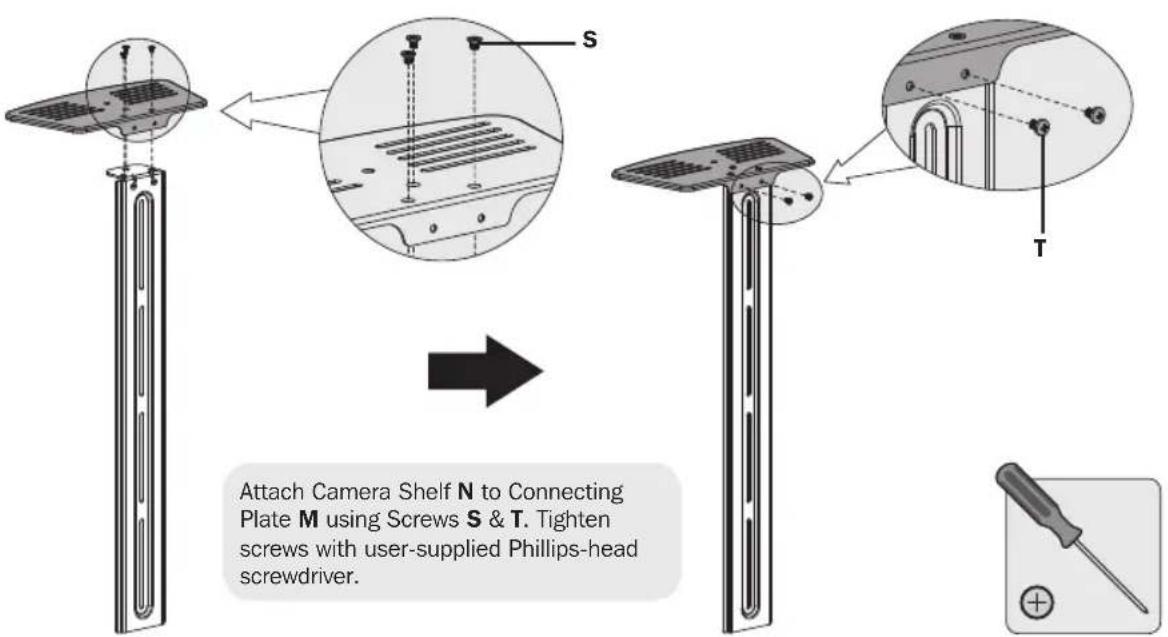

1. Installing the Camera Shelf

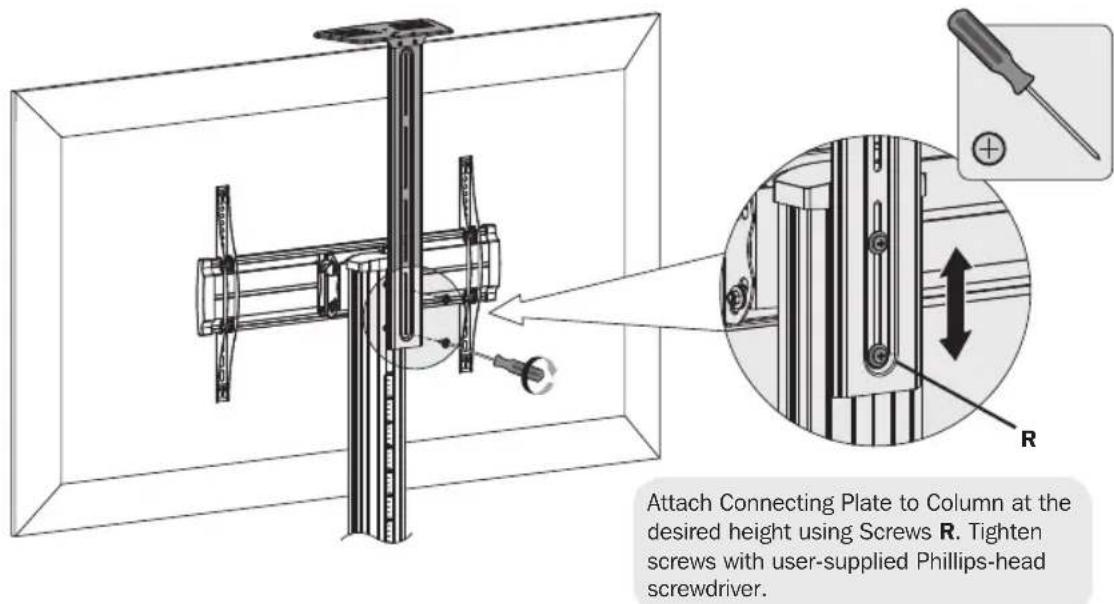

9. Installing the Connecting Plate

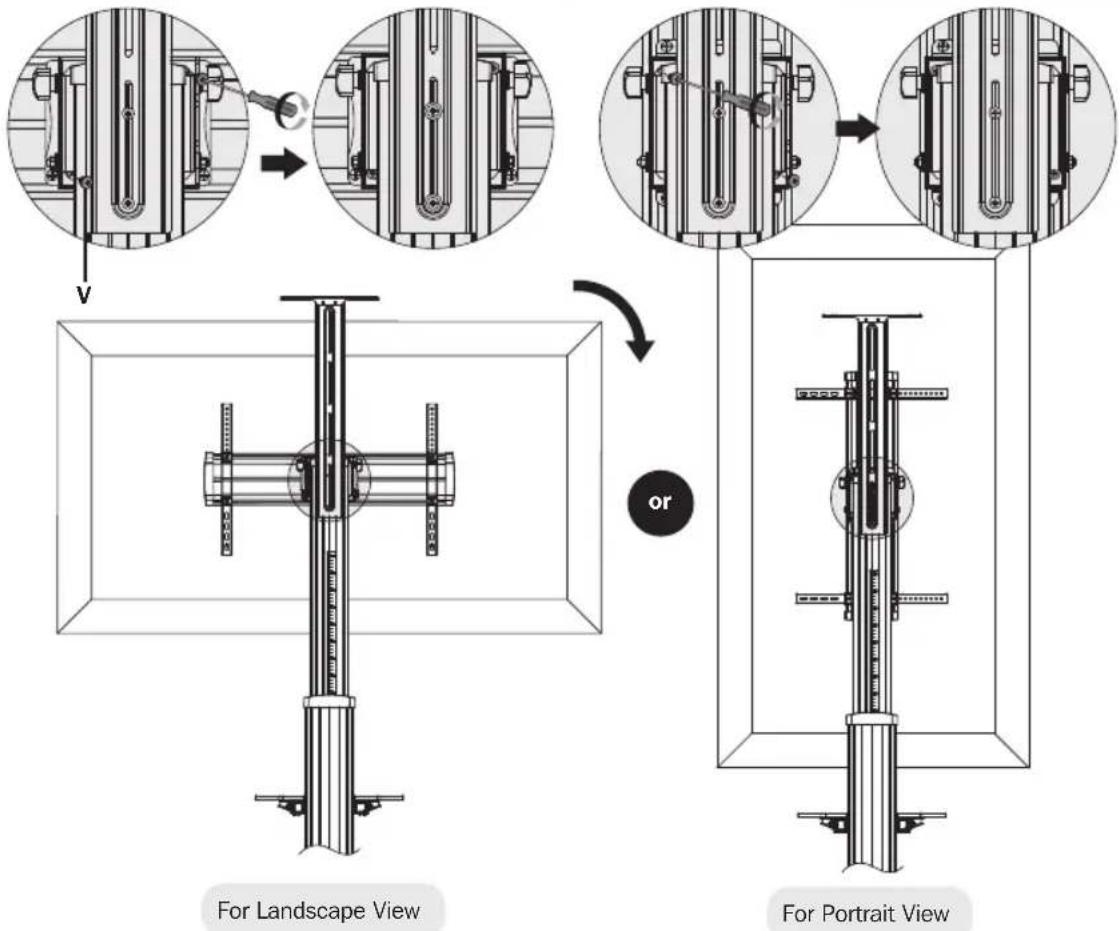

10. Display Orientation

Install at least two Screws V diagonally to secure the display.

Remove the two screws to rotate the display 90° clockwise.

Retighten the removed screws into the different hole position to secure the display.

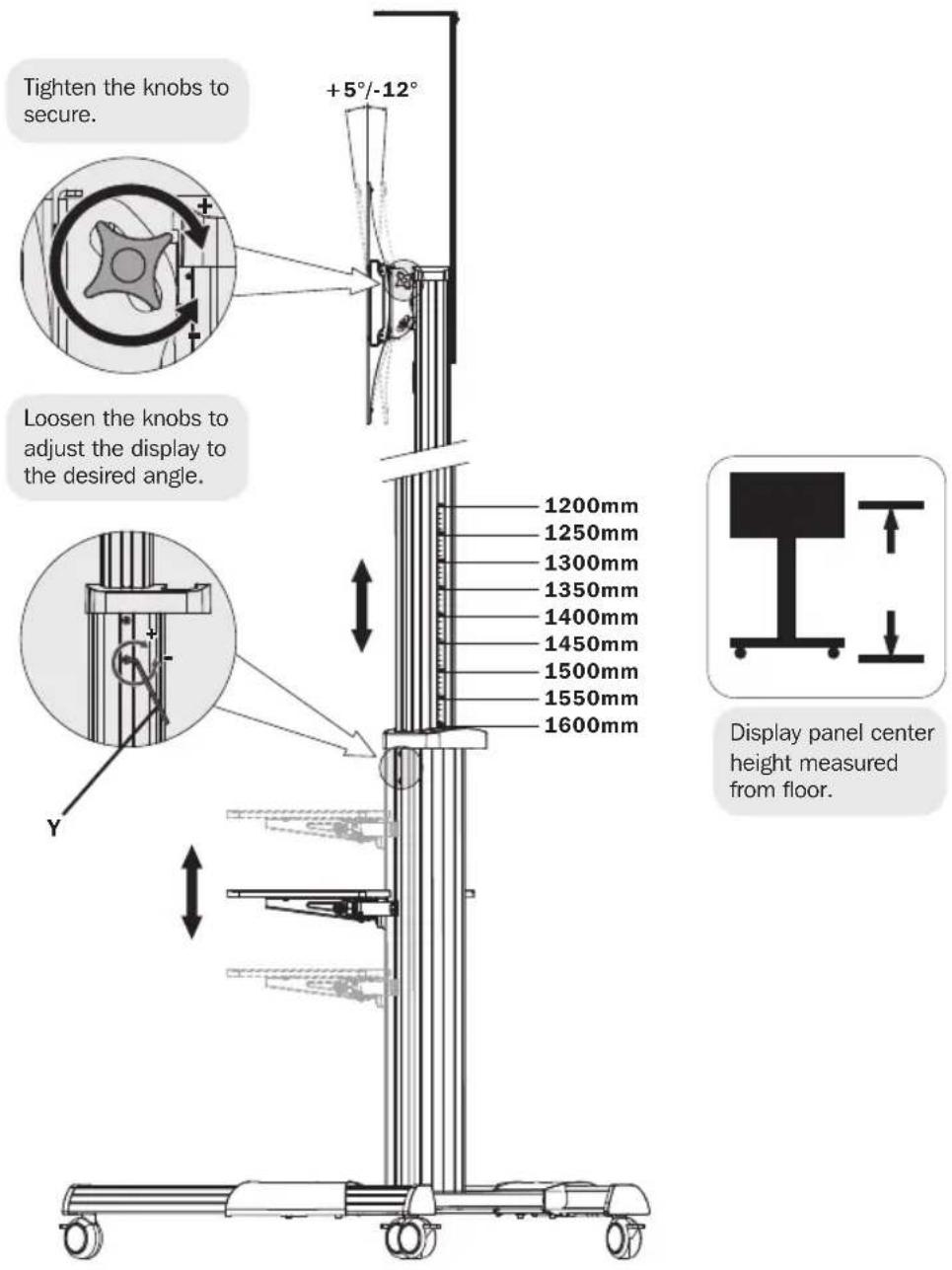

11. Adjustment

Display panel center height measured from floor.

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
  • For any additional questions, visit www.tripplite.com/support.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a vertical mechanical device with wheels and a central shaft (no text or symbols)

English 1 • Français 25 • Русский 37 • Deutsch 49

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Pure diagram of a mechanical structure with no text or symbols

1111 W. 35th Street, Chicago, IL 60609 EE UU • www.tripplite.com/support

Technical line drawing of a vertical mechanical device with wheels and a central shaft (no text or symbols)

English 1 • Español 13 • Русский 37 • Deutsch 49

MISE EN GARDE : NE PAS EXCÉDER LA CAPACITÉ PONDÉRALE MAXIMUM INDIQUÉE. CELA RISQUERAIT DE CAUSER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS!

200 x 200/300 x 300 400 x 200/400 x 400 600 x 400

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Vis M6 x 30 (x4)
M-D

Vis M8 x 30 (x4)
M-E

Vis M8 x 50 (x4)
M-F

Rondelle (x4)
M-G

Petite entretoise (x8)
M-H

Grande entretoise (x8)
M-I

Emballage P

Vis M6 x 16 (x8)
Q

Vis M6 x 25 (x3)
-

Vis M4 x 6 (x3)
。

Vis M4 x 6 (x4)
T

Vis M6 x 14 (x2)
U

Vis M6 x 8 (x6)
V

Vis M8 x 25 (x4)
W

Vis M5 x 8 (x2)
X

Clé Allen
Y

Clé
Z

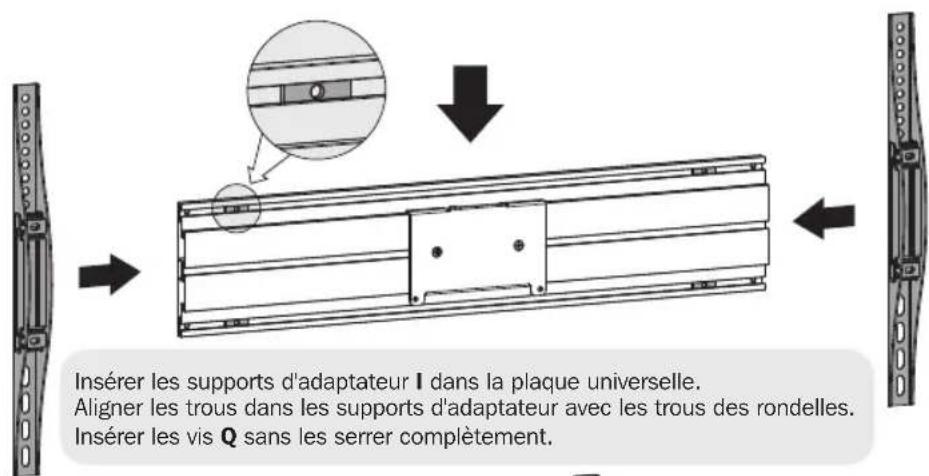

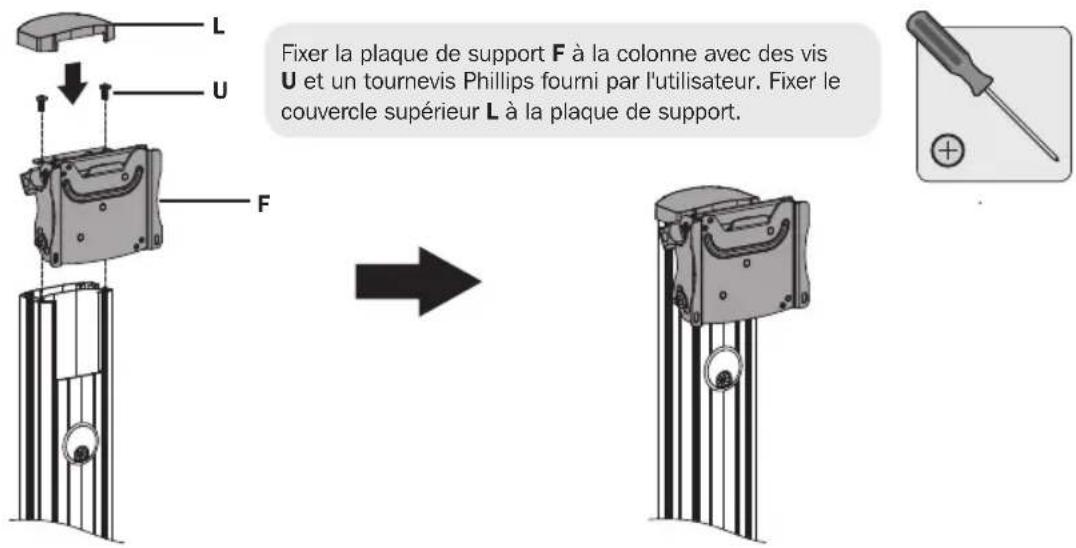

3. Installation de la plaque de support

Pure technical diagram of a mechanical assembly with arrows and labeled components (no text or symbols)

Technical diagram of a mechanical assembly with an inset showing a close-up of a component labeled Y and Q (no text or symbols beyond labels)

Pure diagram of a structural component with no text or symbols

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a vertical mechanical device with wheels and a central shaft (no text or symbols)

English 1 • Español 13 • Français 25 • Deutsch 49

1111 W. 35th Street, Chicago, IL 60609 USA · www.tripplite.com/support

Pure diagram of a mechanical structure with no text or symbols

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Bedienungsanleitung

Technical line drawing of a vertical mechanical device with wheels and a central shaft (no text or symbols)

English 1 • Español 13 • Français 25 • Русский 37

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Technical diagram of a mechanical assembly with an inset showing a close-up of a component labeled J and q (no text or symbols beyond labels)

Technical diagram of a mechanical assembly with a magnified inset showing a screwdriver inserted into a housing (no text or symbols present)
