USER MANUAL DMCS3255SG62W Tripp Lite

Professional Mobile Cart for 32" to 55" Screens

Technical line drawing of a vertical-mounted industrial platform with mounting base and wheels (no text or symbols)

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

75x75 / 100x100 / 200x100 / 200x200 300x300 / 400x200 / 400x400

Español 13 • Français 25 • Русский 37 • Deutsch 49

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2022 Tripp Lite. All rights reserved.

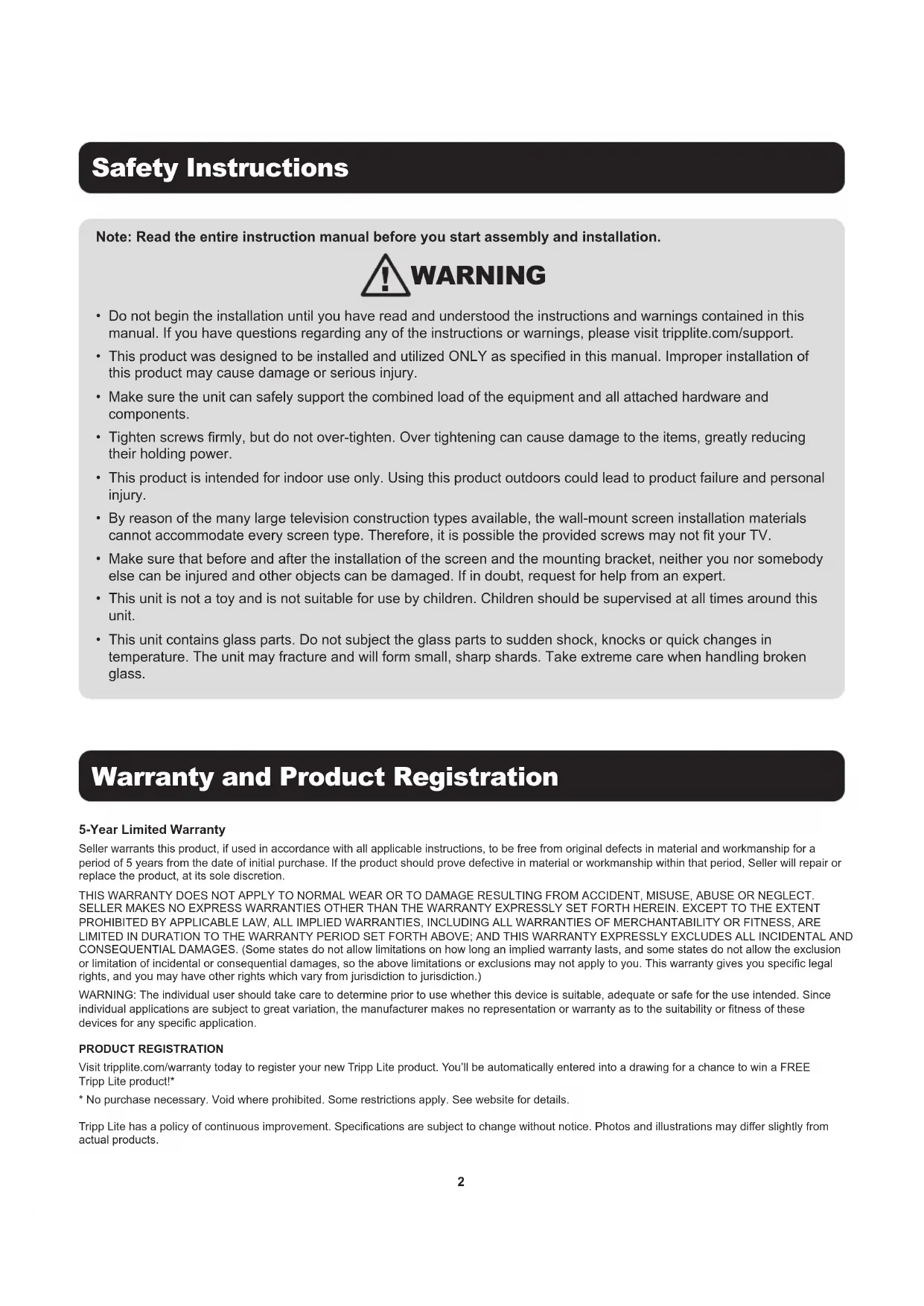

Safety Instructions

Note: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have questions regarding any of the instructions or warnings, please visit tripplite.com/support.
• This product was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• Make sure the unit can safely support the combined load of the equipment and all attached hardware and components.
• Tighten screws firmly, but do not over-tighten. Over tightening can cause damage to the items, greatly reducing their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• By reason of the many large television construction types available, the wall-mount screen installation materials cannot accommodate every screen type. Therefore, it is possible the provided screws may not fit your TV.
• Make sure that before and after the installation of the screen and the mounting bracket, neither you nor somebody else can be injured and other objects can be damaged. If in doubt, request for help from an expert.
• This unit is not a toy and is not suitable for use by children. Children should be supervised at all times around this unit.
• This unit contains glass parts. Do not subject the glass parts to sudden shock, knocks or quick changes in temperature. The unit may fracture and will form small, sharp shards. Take extreme care when handling broken glass.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

A
(x1)

B
(x1)

C
(x1)

D
(x1)

E
(x2)

F
(x4)

G
(x1)

H
(x1)

I
(x1)

J
(x1)

K
(x1)

L
(x1)

M
(x2)

N
(x2)

0
(x2)

P
(x1)

Package M

M-A
M6×10 (x4)

M-B
M6x30 (x4)

M-C
M6×16 (x4)

M-D
M6*8 (x4)

M-E
M6*35*2 (x4)

M-F
M6*35*2 (x4)

M-G
M6*16*2 (x4)

M-H
M8*12 (x4)

M-I
M8 (x4)

M-J
M2 (x1)

M-K
M4 (×1)

M-L
13+17 (x1)

Package P

P-A
M5*14 (x4)

P-B
M6*14 (x4)

P-C
M8*20 (x4)

P-D
M6*30 (x4)

P-E
M8*30 (x4)

P-F
M8*50 (x4)

P-G
M6*12*1 (x4)

P-H
M8*16*1 (x4)

P-1
∅9*∅14*5 (x8)

P-J
∅9*∅17*10 (x8)

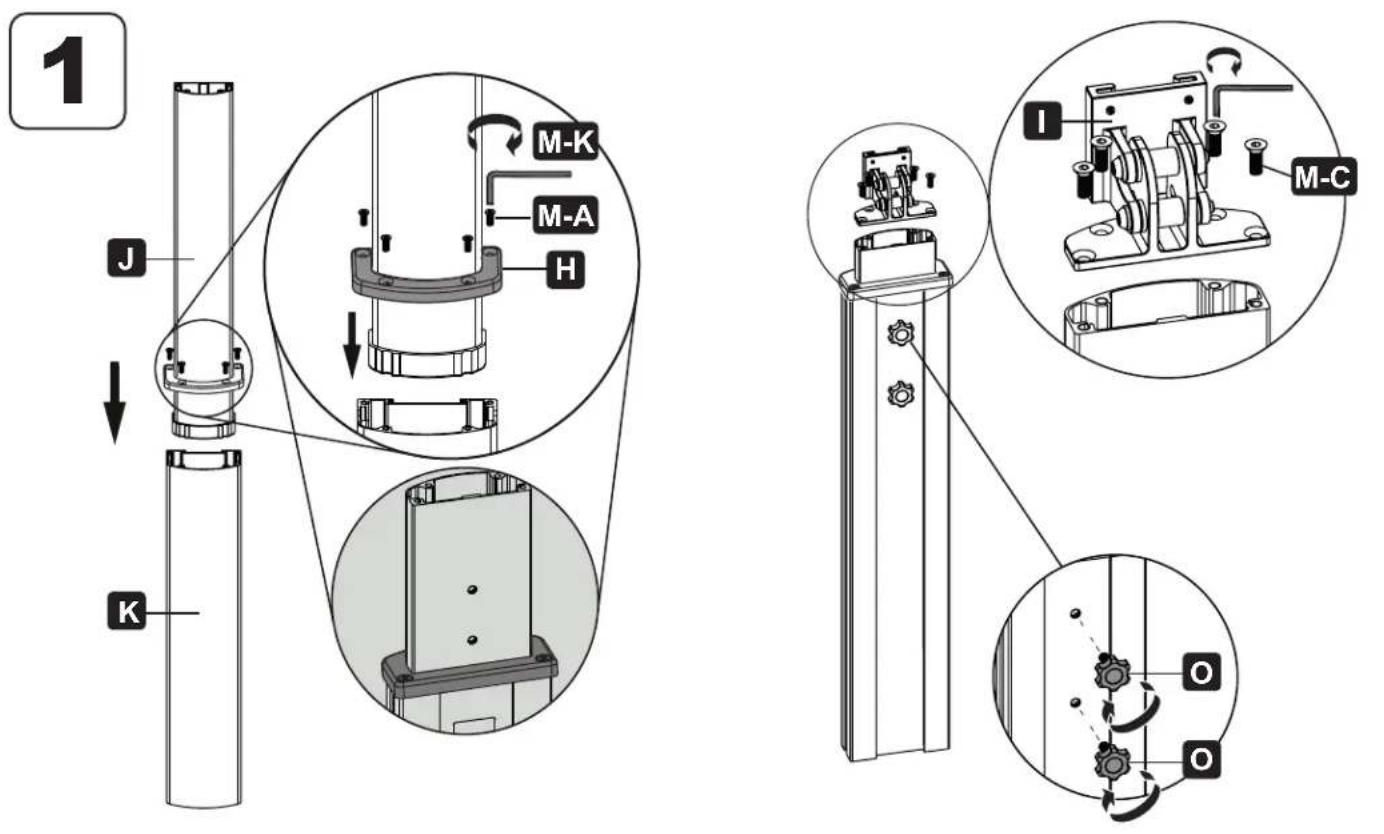

Assembly

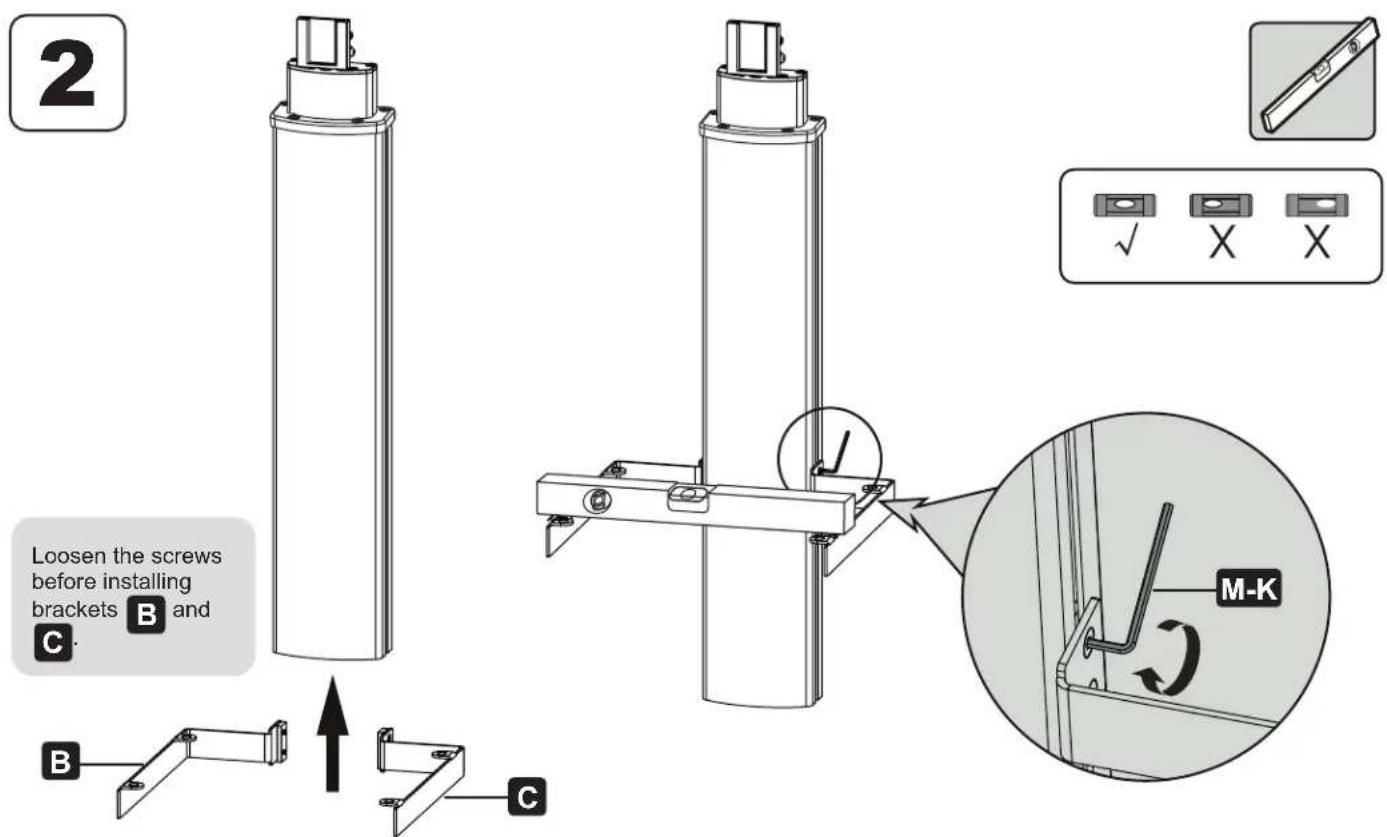

2 Loosen the screws before installing brackets B and C. M-K

Assembly

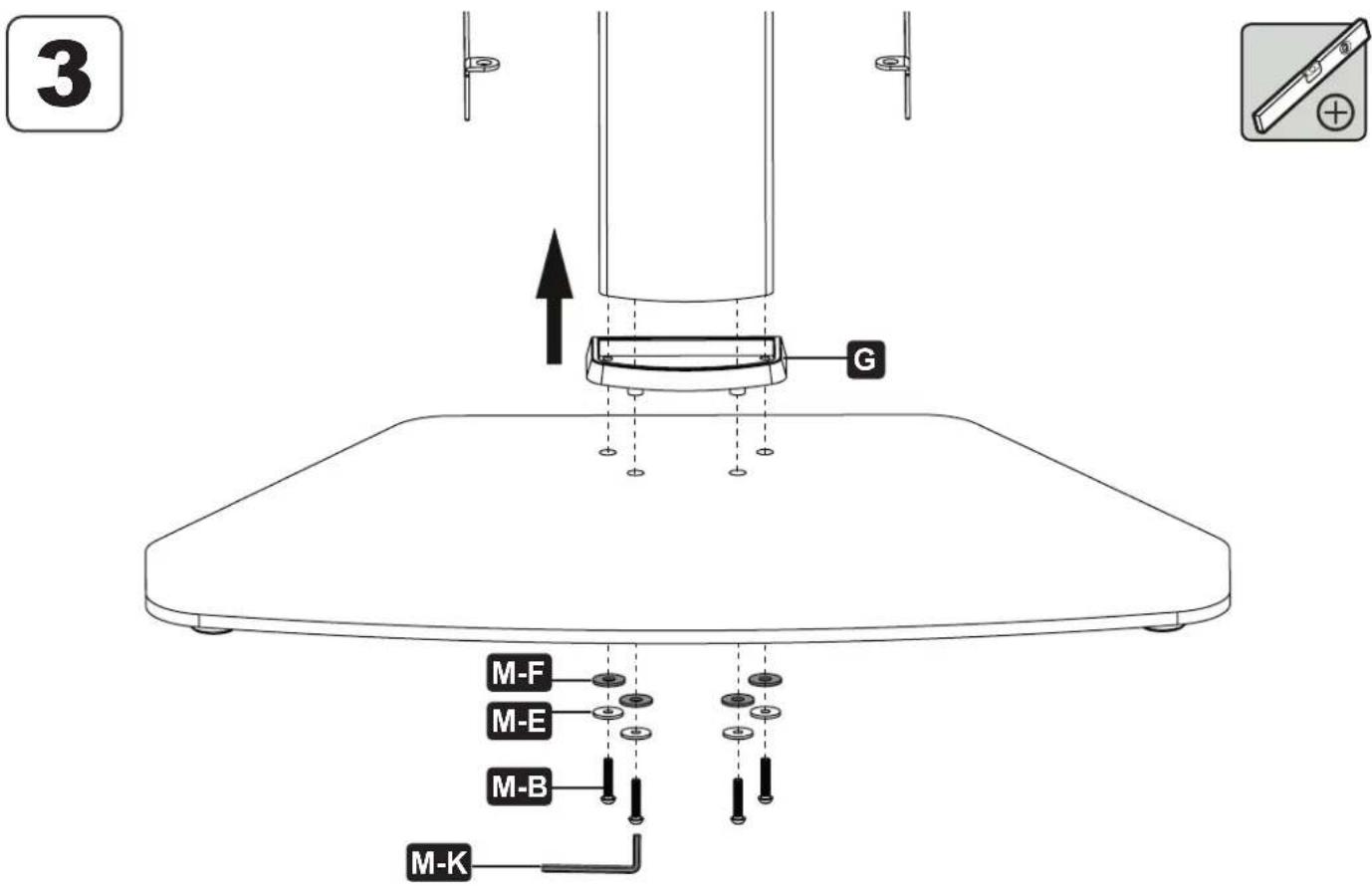

3 G M-F M-E M-B M-K

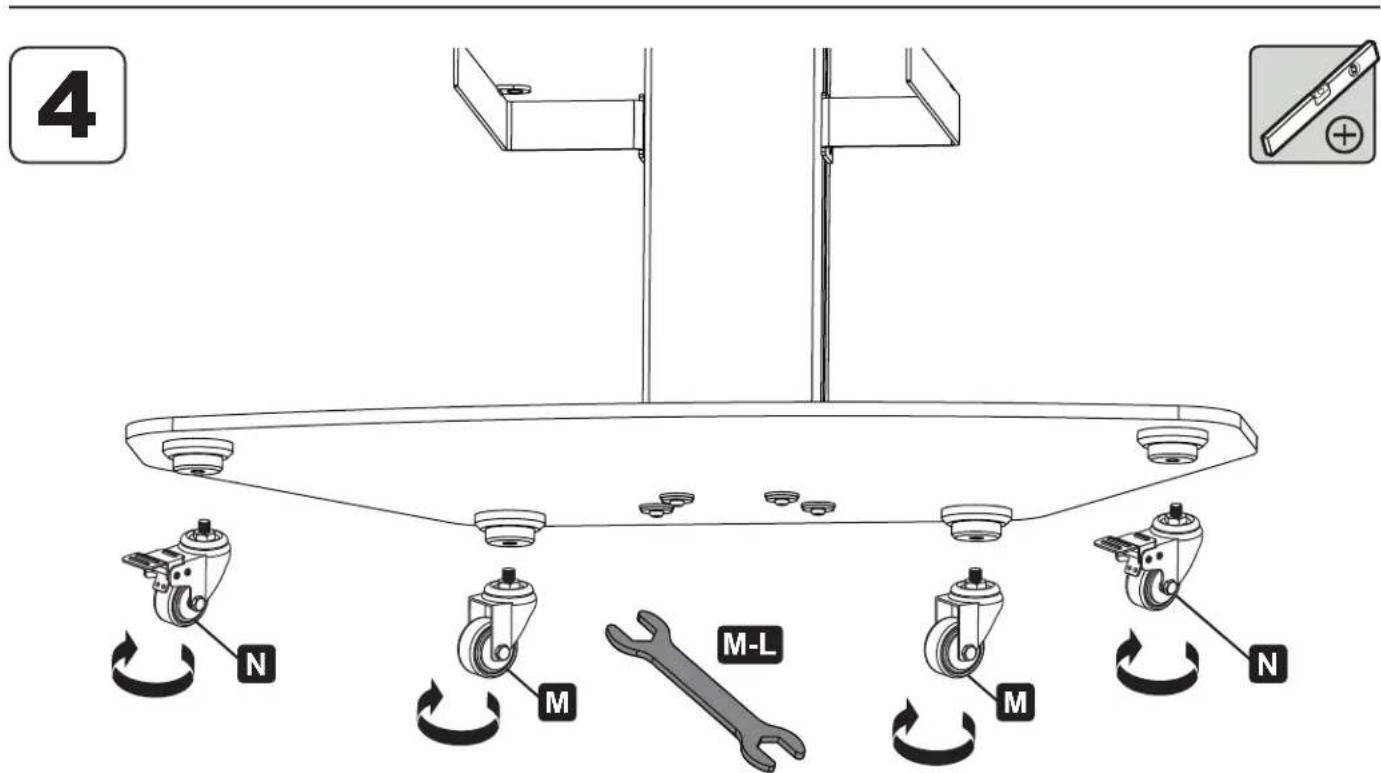

4 N M M-L M N

Assembly

5 A M-G M-D

Assembly

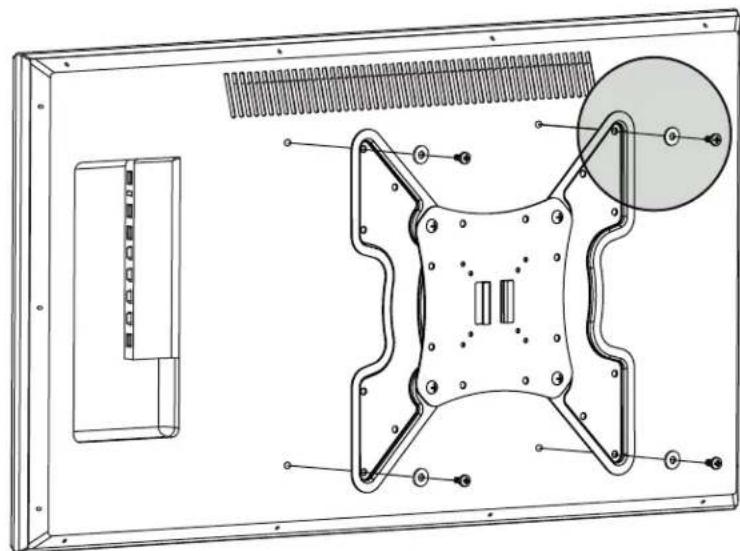

For Flat-Back Screens

Illustration of a screwdriver with a plus sign, no text or symbols present

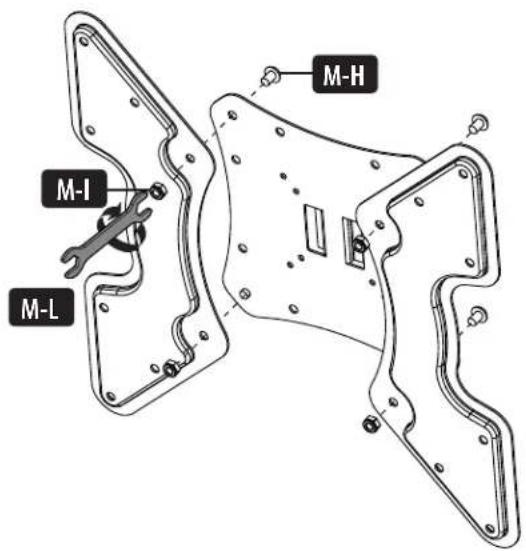

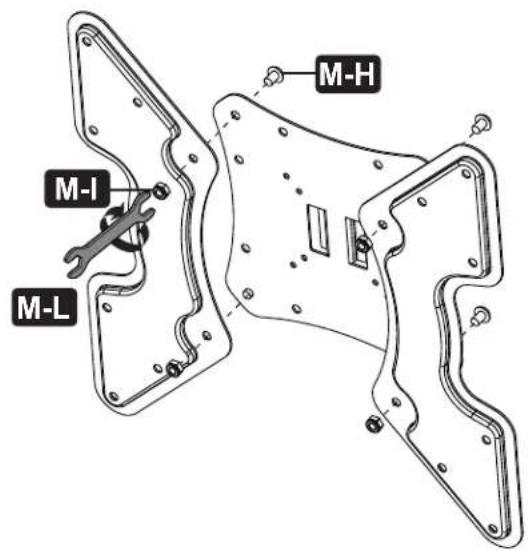

M-I M-L M-H

Top of

Top of display.

Diagram showing two types of TV lighting fixtures: one with a checkmark and another with an X mark, both labeled in English.

Technical line drawing of a mechanical component with mounting holes and a circular component (no text or symbols)

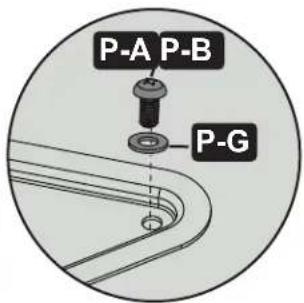

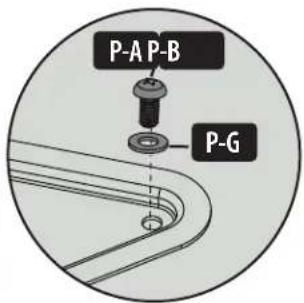

P-A P-B P-G

CAUTION:
Do not over-tighten
screws.

Assembly

6c

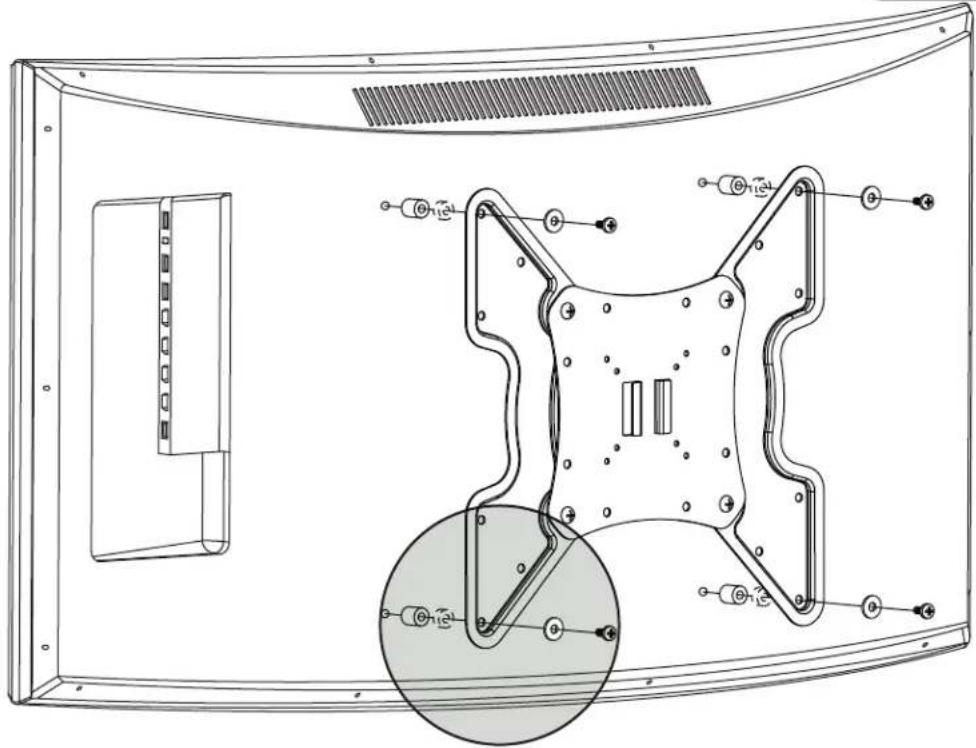

For Recessed-Back Screens or Accessing A/V Inputs

× TV TV

Illustration of a screwdriver with a plus sign, no text or symbols present

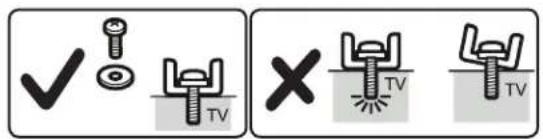

Note: Choose the appropriate Screws, Washers and Spacers (if needed) according to the type of screen.

Technical line drawing of a computer monitor case with internal components and a magnified inset showing internal wiring (no text or symbols)

CAUTION: Do not over-tighten screws.

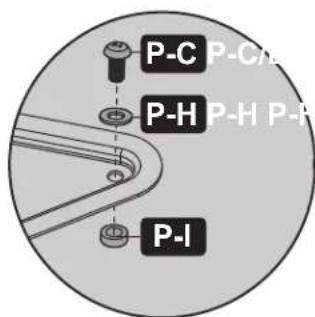

P-C P-CM P-H P-H P-P P-I

OR P-I P-J

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

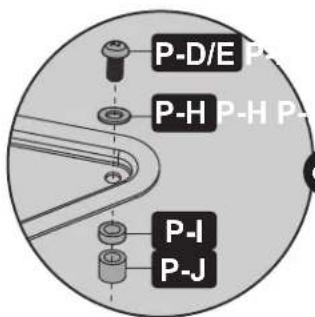

P-D/E P-H P-H P- P-I P-J

P H OR OR OR P-J

P-I P-J

P-I P-J

Assembly

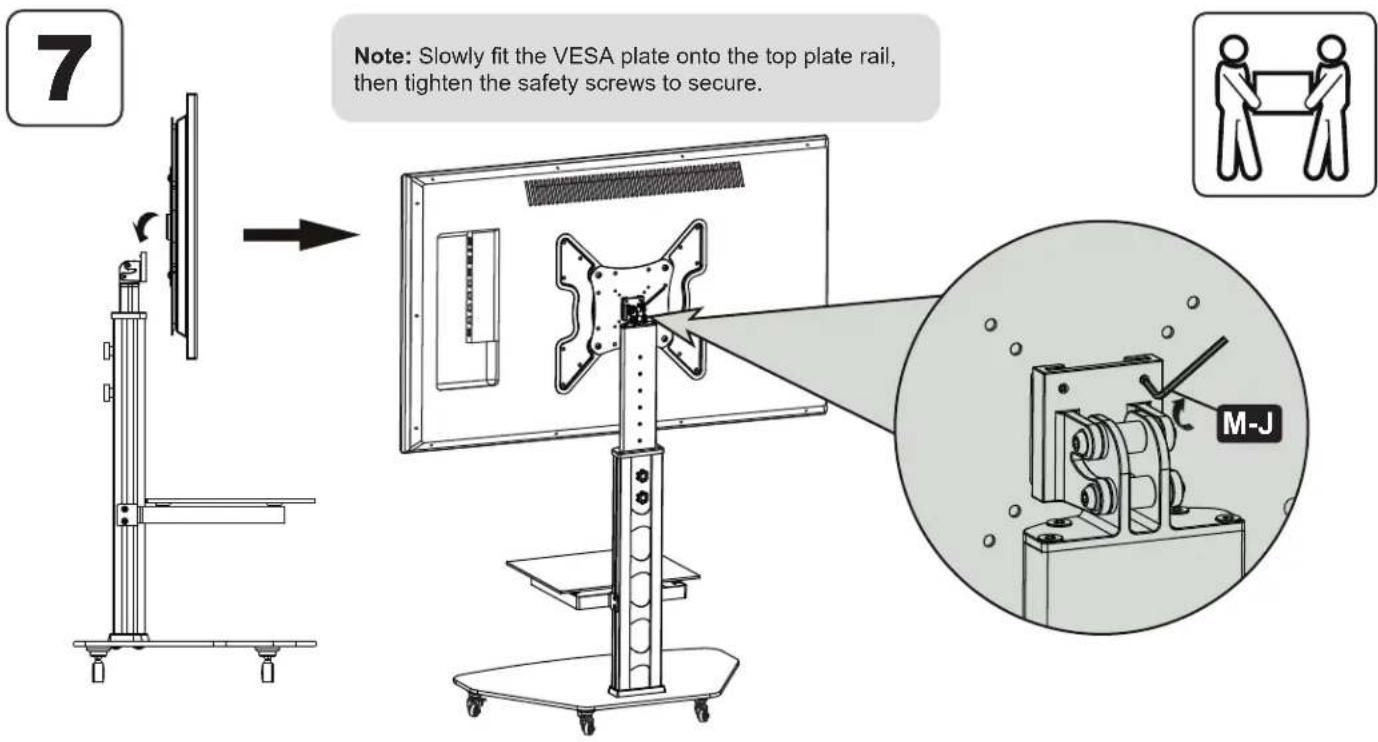

7 Note: Slowly fit the VESA plate onto the top plate rail, then tighten the safety screws to secure. M-J

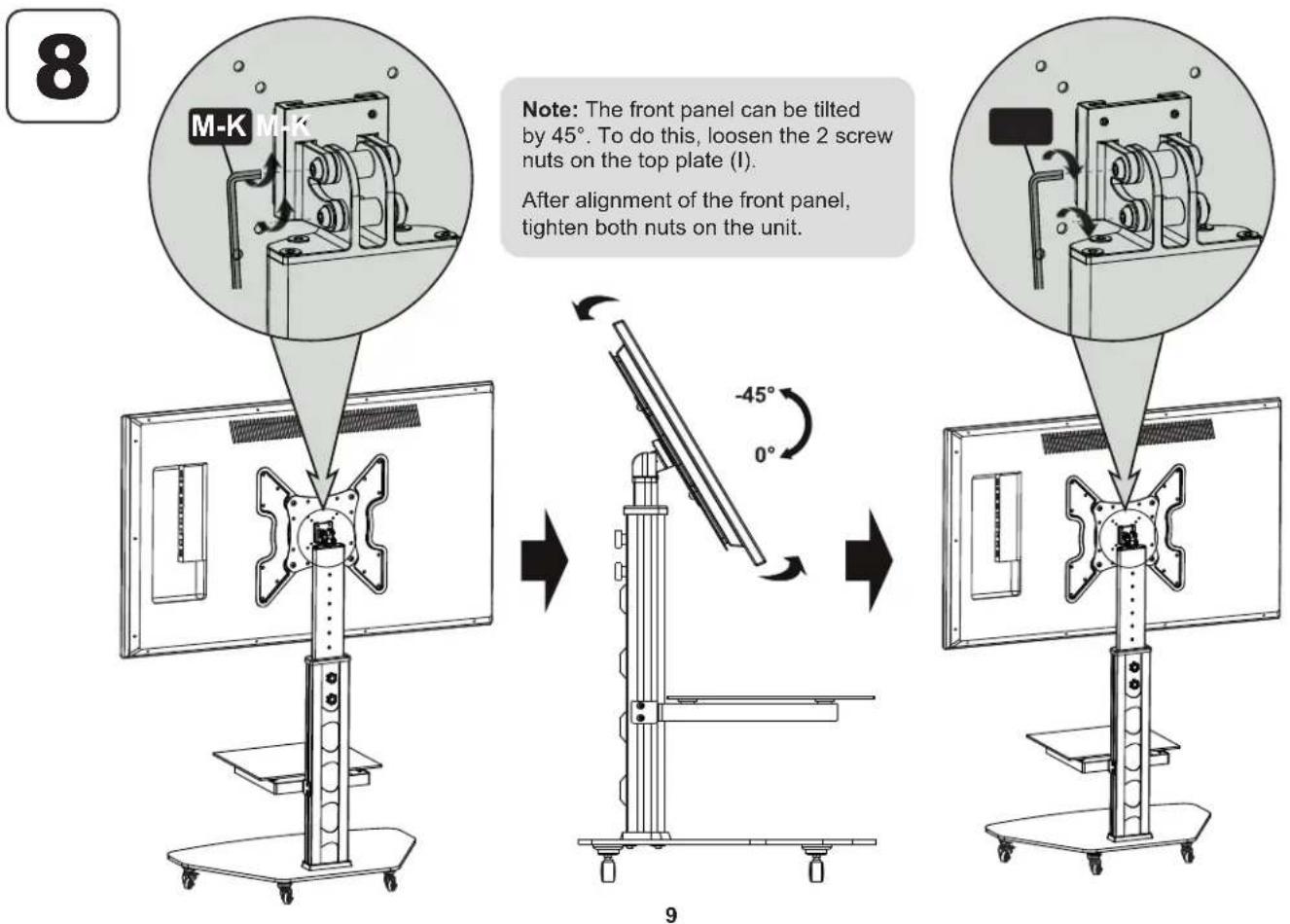

8 M-K M-K Note: The front panel can be tilted by 45°. To do this, loosen the 2 screw nuts on the top plate (I). After alignment of the front panel, tighten both nuts on the unit. -45° 0° 9

Assembly

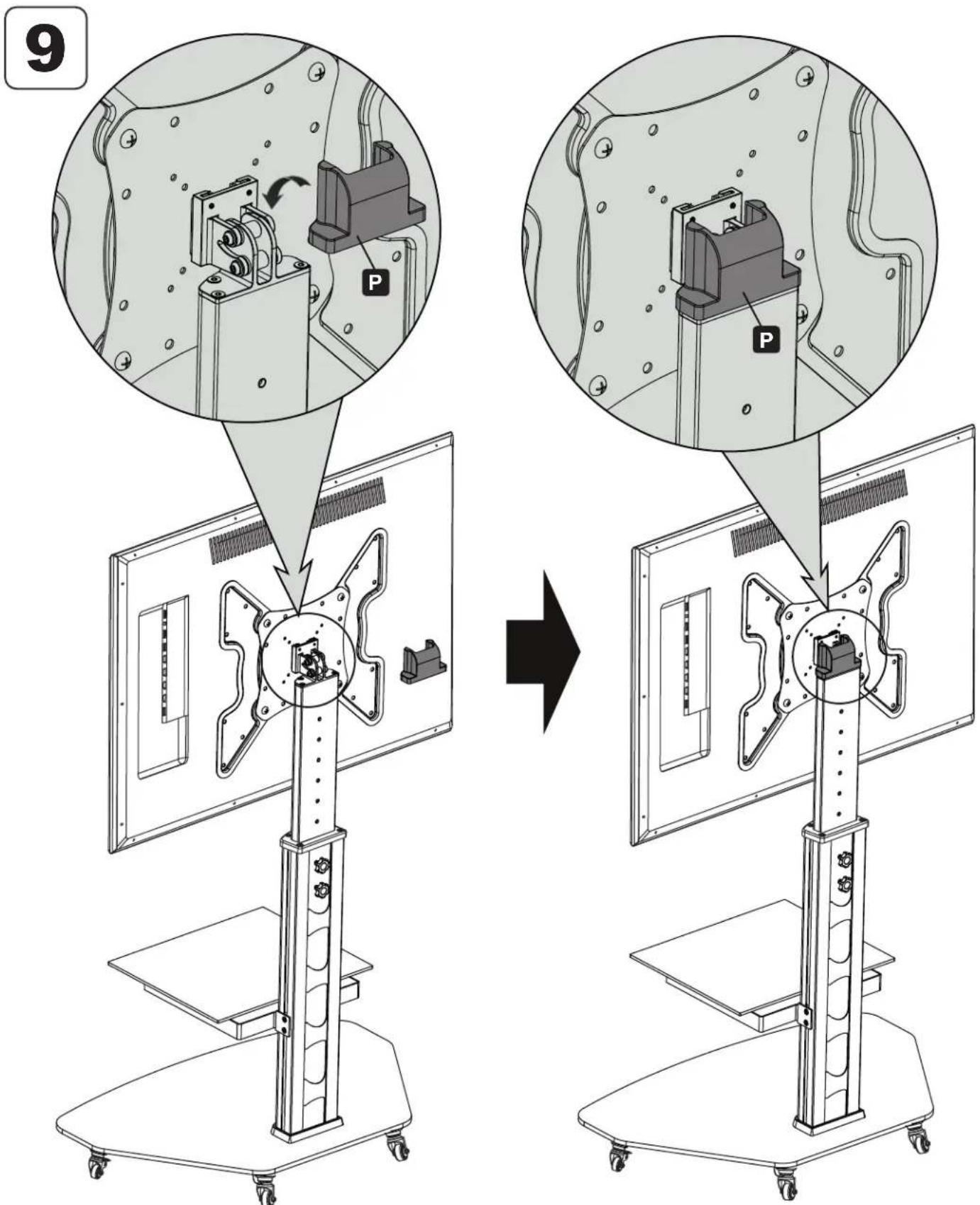

9 P P

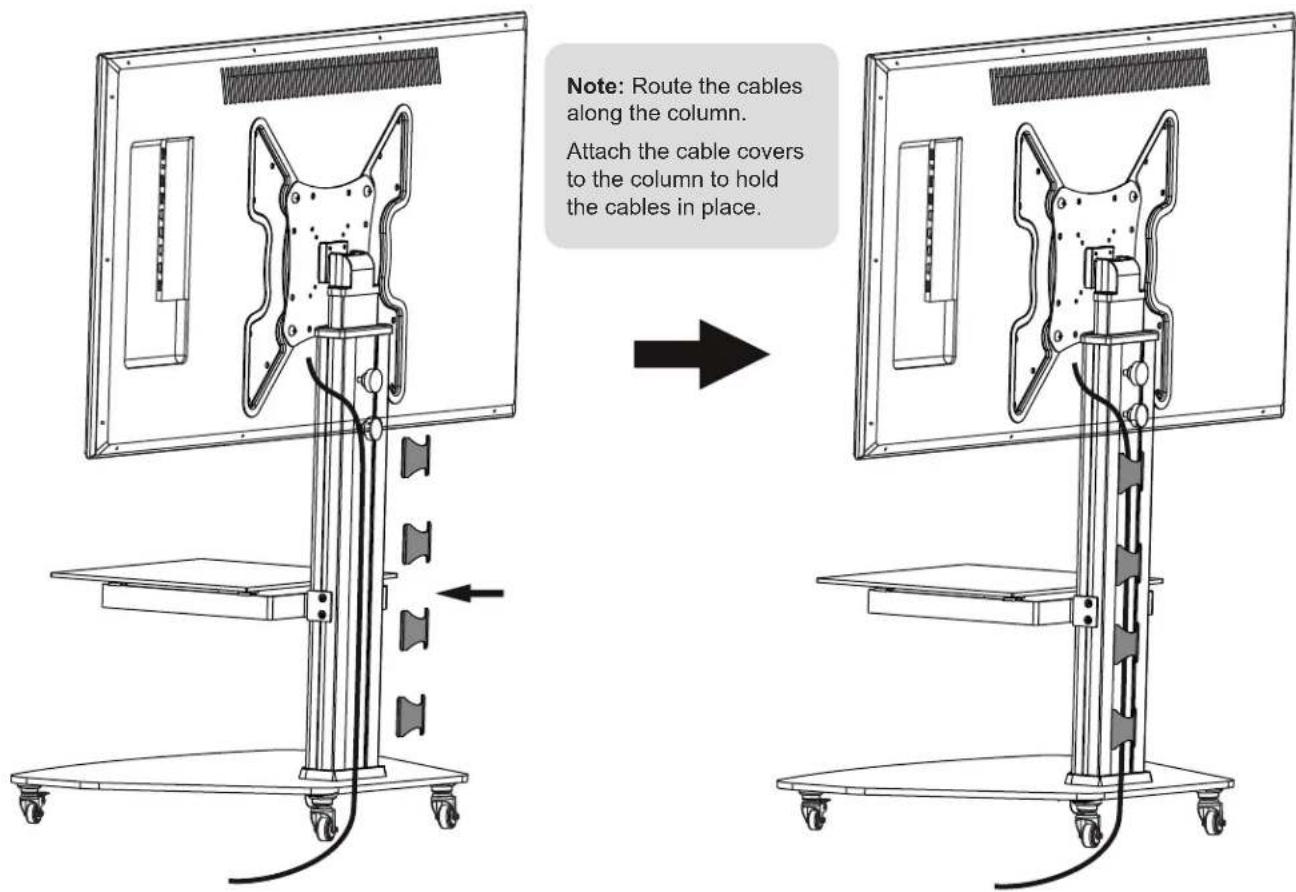

Cable Routing

Note: Route the cables along the column. Attach the cable covers to the column to hold the cables in place.

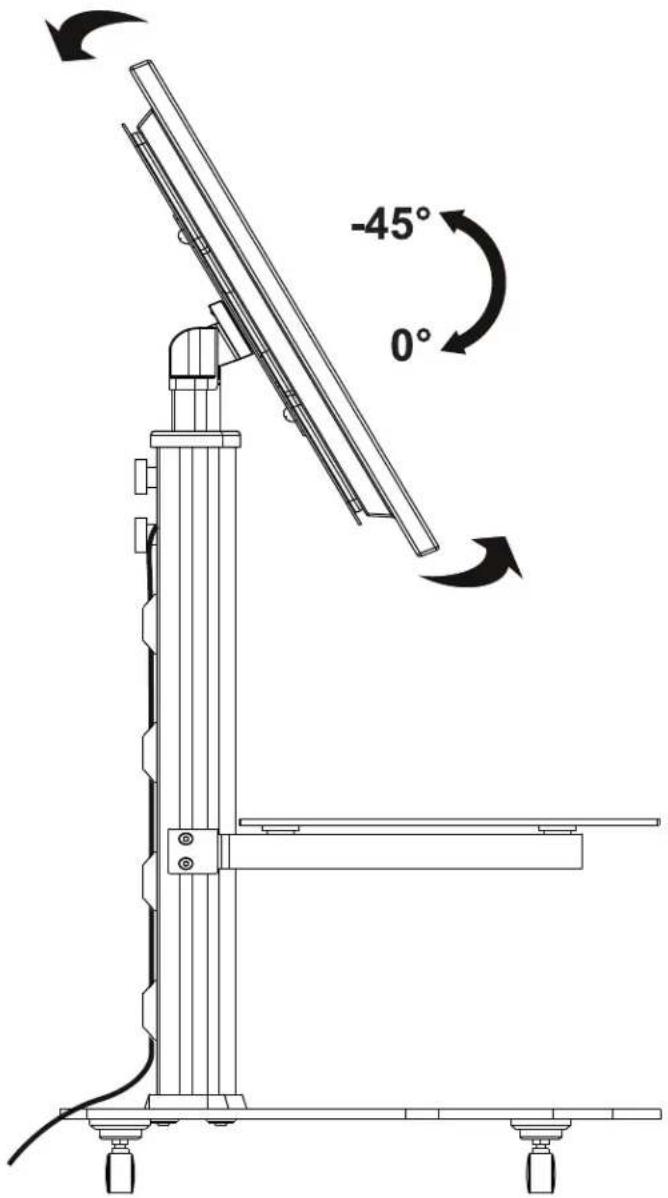

Adjustment

-45° 0°

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
• Please visit tripplite.com/support if you have any questions.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a vertical stand with four arms and a central hub, mounted on a platform (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support

3 G M-F M-E M-B M-K

4 N M M-L M N

Ensamble

5 A M-G M-D

Ensamble

Illustration of a screwdriver with a plus sign, no text or symbols present

M-I M-L M-H

Diagram showing two types of TV lighting fixtures: one with a screw and one with a U-shaped tube, both marked with checkmark and cross symbols.

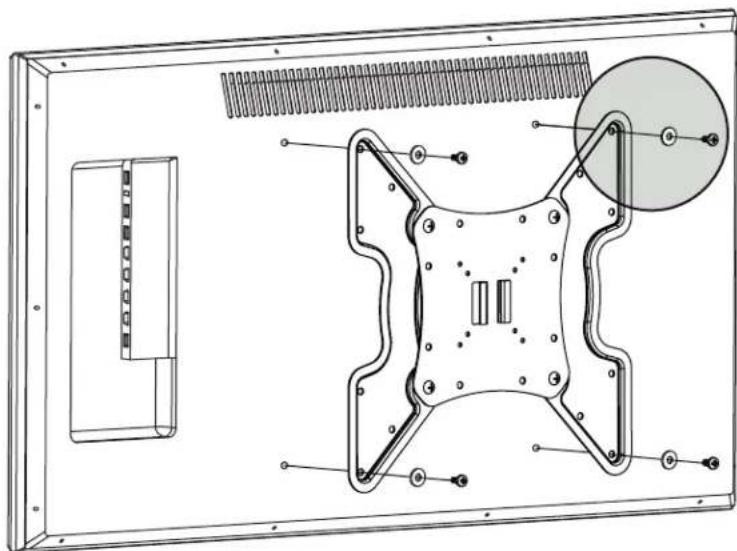

Technical line drawing of a device panel with internal components and mounting bracket (no text or symbols)

P-A P-B P-G

Illustration of a screwdriver with a plus sign, no text or symbols present

Nota: Elija los

P-C P-CN P-H P-H P-P P-I

0

P-I P-J

0

Pure mechanical diagram showing a curved pipe with multiple components and a dashed centerline, no text or symbols present.

P-D/E P-H P-H P- P-I P-J

00

H o P-J

•

P-I P-J

The image is too blurry to recognize any text content.

P-I P-J

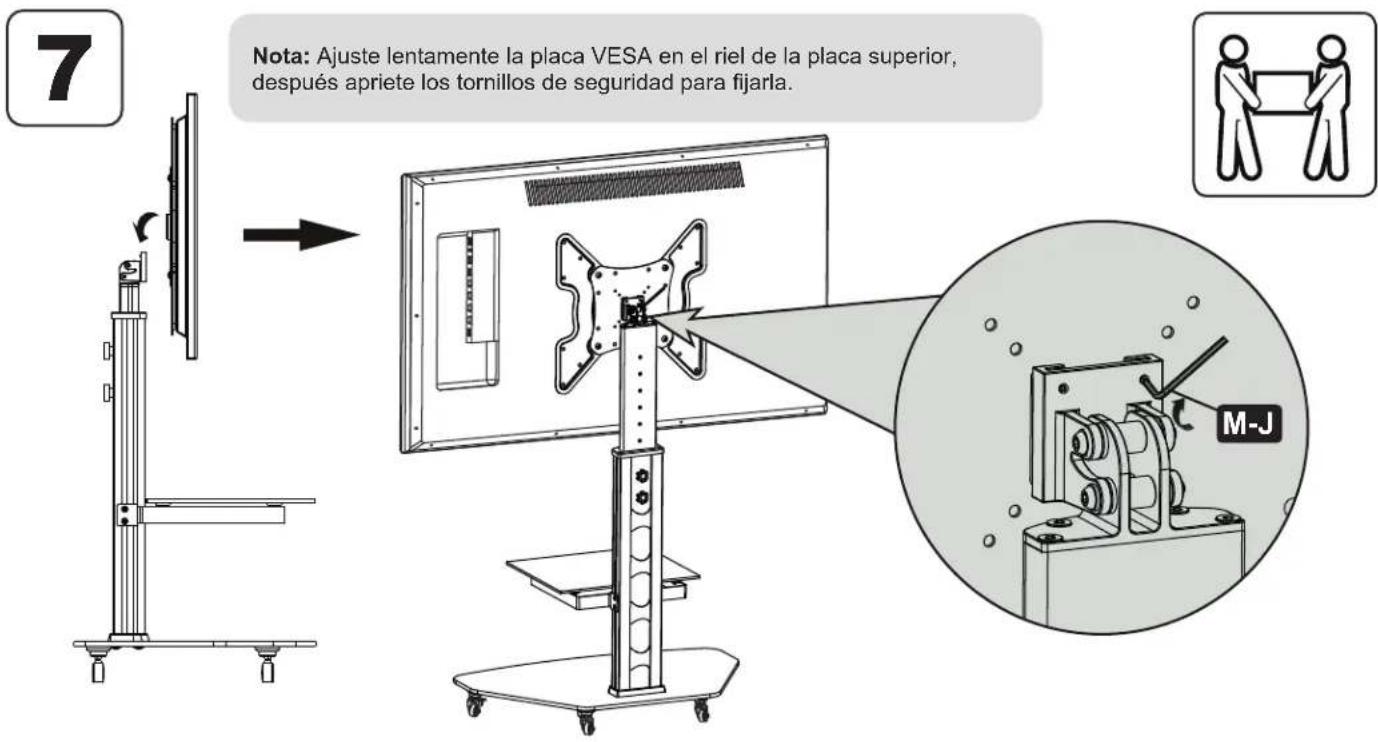

Ensamble

1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support

22-03-061 93413E RevA

Technical line drawing of a vertical stand with four arms and a central hub, mounted on a platform (no text or symbols)

MISE EN GARDE : NE PAS EXCÉDER LA CAPACITÉ PONDÉRALE MAXIMUM INDIQUÉE. CELA RISQUERAIT DE CAUSER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS!

75x75 / 100x100 / 200x100 / 200x200 300x300 / 400x200 / 400x400

English 1 • Español 13 • Русский 37 • Deutsch 49

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

3 G M-F M-E M-B M-K

4 N M M-L M N

Assemblage

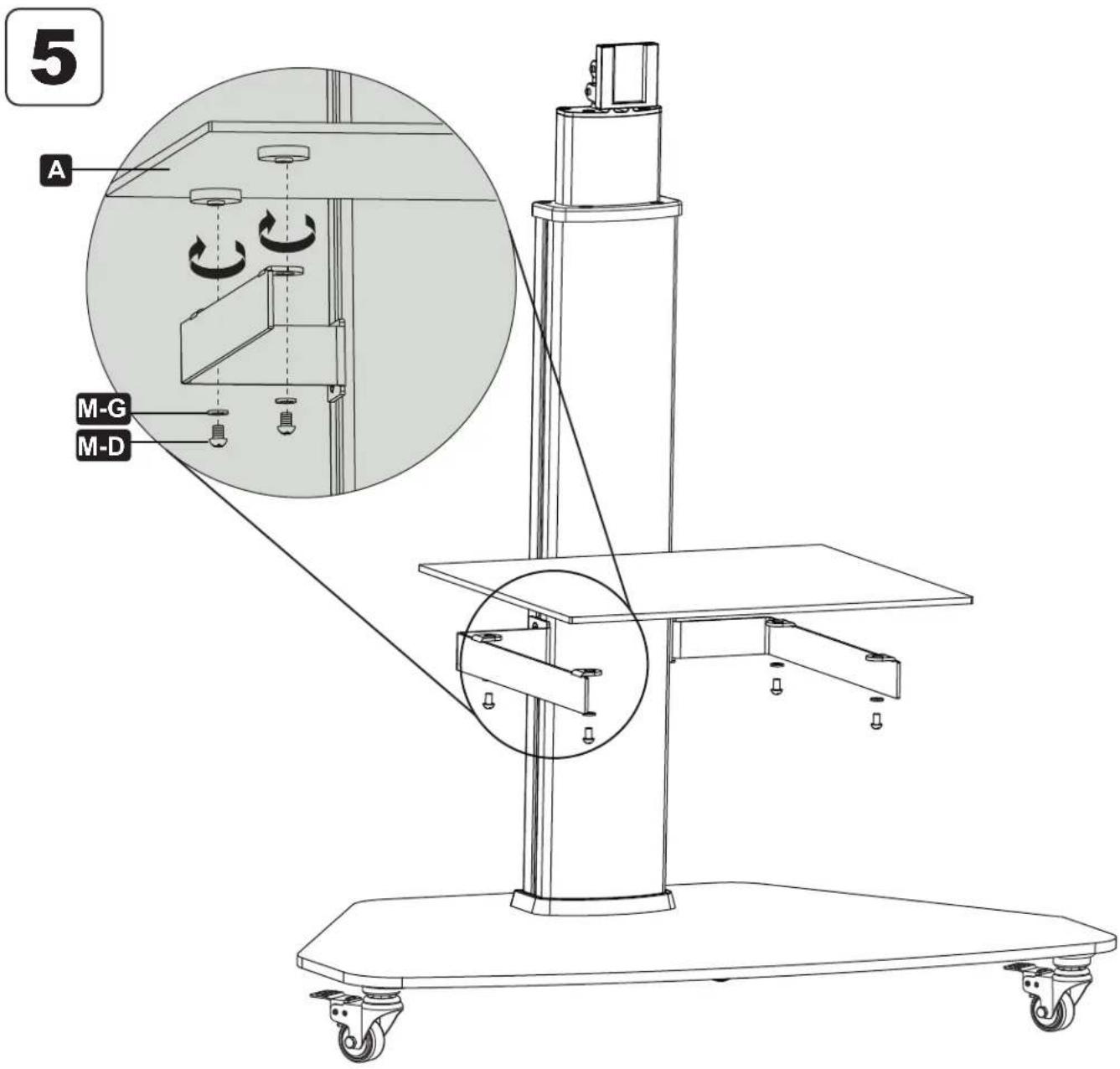

5 A M-G M-D

Assemblage

Illustration of a screwdriver with a plus sign, no text or symbols present

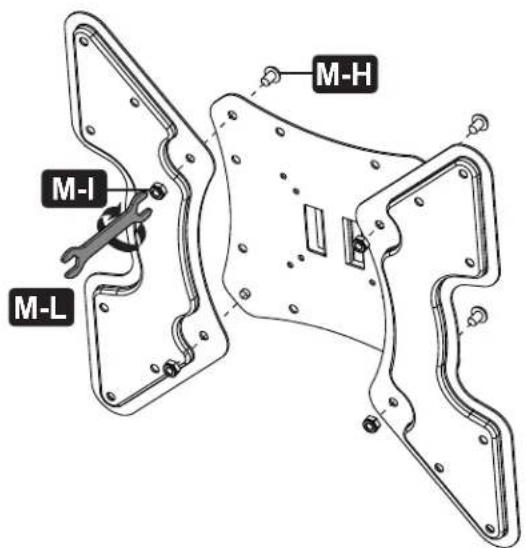

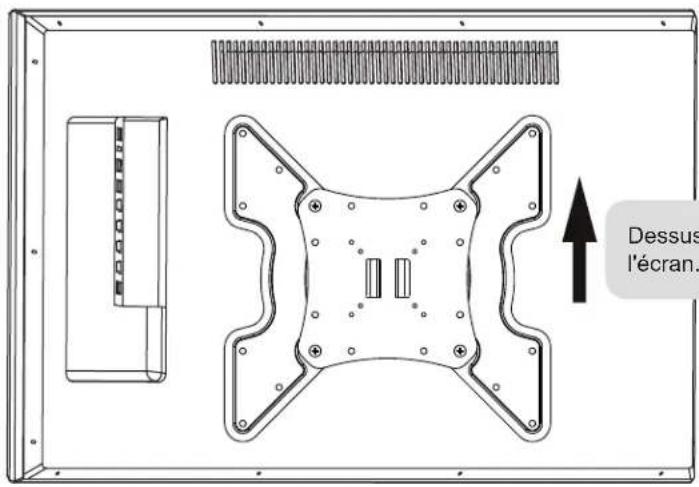

M-I M-L M-H

Diagram showing two types of screw fasteners with checkmark and cross symbols indicating different mounting points.

Technical line drawing of a device casing with internal components and mounting bracket (no text or symbols)

P-A P-B P-G

Illustration of a screwdriver with a plus sign, no text or symbols present

Technical line drawing of a computer monitor case with internal components and a magnified inset showing internal wiring (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

22-03-061 85413E RevA

Technical line drawing of a vertical-mounted industrial platform with mounting feet and wheels (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA - tripplite.com/support

3 G M-F M-E M-B M-K 4 N M-L M N

Порядок сборки

5 A M-G M-D

Порядок сборки

6a

Illustration of a screwdriver with a plus sign, no text or symbols present

M-I M-L M-H

Верх дисп

Верх дисплея.

6b

Diagram showing two types of TV lighting fixtures: one with a screw and one with a U-shaped tube, both marked with checkmark and cross symbols.

Technical line drawing of a device housing with internal components and mounting holes (no text or symbols)

P-A P-B P-G

Illustration of a screwdriver with a plus sign, no text or symbols present

Technical line drawing of a computer monitor case with internal components and a magnified inset showing internal wiring (no text or symbols)

ВНИМАНИЕ!

1111 W. 35th Street, Chicago, IL 60609 USA - tripplite.com/support

Bedienungsanleitung

Technical line drawing of a vertical stand with four arms and a central hub, mounted on a platform (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

3 G M-F M-E M-B M-K 4 N M-L M N

Montage

5 A M-G M-D

Montage

Illustration of a screwdriver with a plus sign, no text or symbols present

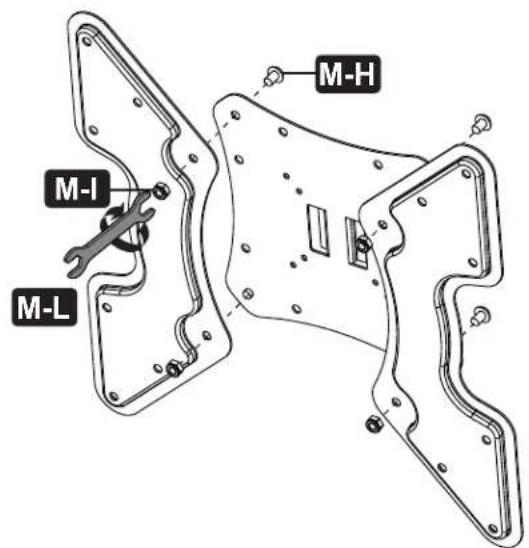

M-I M-L M-H

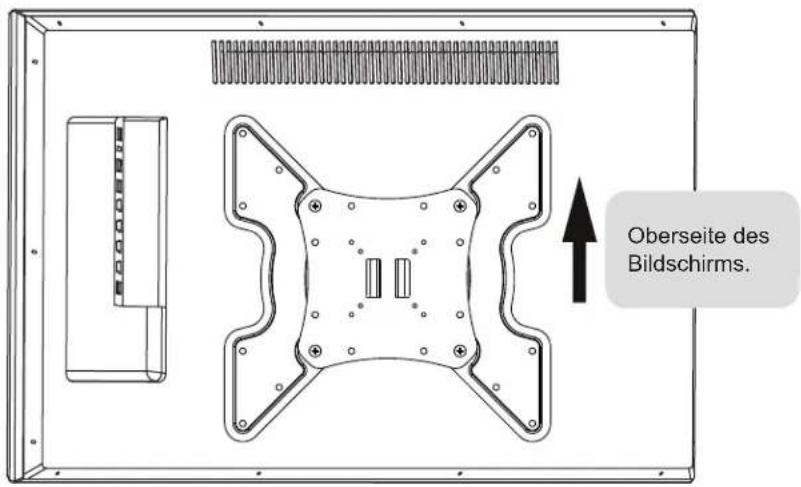

Diagram showing two types of TV lighting fixtures: one with a screw and one with a U-shaped tube, both marked with checkmark and cross symbols.

Technical line drawing of a mechanical component with mounting holes and a circular component (no text or symbols)

P-A P-B P-G

Illustration of a screwdriver with a plus sign, no text or symbols present

Technical line drawing of a computer monitor case with internal components and a magnified inset showing internal wiring (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

22-03-061 93413E RevA
