Product Type	TV Floor Cart with Wide Legs
Brand	Tripp Lite
Model	DMCS5585WL
Rated Capacity	198 lb (approx. 90 kg)
VESA Compatibility	100x100, 200x100, 200x200, 300x100, 300x200, 300x300, 400x100, 400x200, 400x300, 400x400, 600x400, 1000x400, 1000x600 mm
Usage	Indoor only
Warranty	5 years (limited warranty)
Materials	Steel
Assembly Required	Yes, with tools included
Maintenance	Check safety every 3 months
Package Contents	Supports, mounting arms, screws, washers, spacers, M and P packaging
Safety Instructions	Do not exceed rated capacity; use an assistant for lifting
Country of Manufacture	Not specified

Frequently Asked Questions - DMCS5585WL Tripp Lite

What is the maximum load capacity of the DMCS5585WL cart?

The rated capacity is 198 lb (approx. 90 kg). Never exceed this limit to avoid injury or damage.

What types of TVs are compatible with this cart?

The cart is compatible with TVs having one of the following VESA hole patterns: 100x100, 200x100, 200x200, 300x100, 300x200, 300x300, 400x100, 400x200, 400x300, 400x400, 600x400, 1000x400, 1000x600 mm.

Do I need to assemble the cart myself?

Yes, assembly is required. It is recommended to read the manual entirely before starting and to have an assistant for lifting the TV.

What tools are provided with the cart?

The cart comes with all necessary tools, including screws, washers, spacers, and a key. Check the component list in the manual.

Can I use this cart outdoors?

No, this product is designed for indoor use only. Outdoor use may lead to failure or injury.

How to maintain the cart?

Check every three months that all fasteners are tight and that the mount is secure. Clean with a soft, dry cloth.

What is the warranty period?

Tripp Lite offers a 5-year limited warranty against defects in materials and workmanship from the date of original purchase.

Can I mount a TV larger than 85 inches?

Compatibility depends on weight and dimensions. Ensure the TV respects the 198 lb load capacity and its VESA pattern is in the list. If the hole width exceeds 1000 mm or height 400 mm, stop installation and contact support.

What to do if parts are missing?

If parts are missing or defective, visit tripplite.com/support for assistance.

Does the cart come with casters?

Yes, the cart has wide legs with casters for easy movement. Make sure they are properly secured after assembly.

USER MANUAL DMCS5585WL Tripp Lite

Technical line drawing of a mechanical support structure with multiple legs and supports (no text or symbols)

TV Floor Cart with Wide Legs

Model: DMCS5585WL

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

100 x 100 / 200 x 100 / 200 x 200 / 300 x 100 / 300 x 200 / 300 x 300 / 400 x 100 / 400 x 200 / 400 x 300 / 400 x 400 / 600 x 400 / 1000 x 400 / 1000 x 600

Español 12 • Français 23 • Русский 34 • Deutsch 45

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2023 Tripp Lite. All rights reserved.

Safety Instructions

WARNING

NOTE: Read the entire instruction manual before you start assembly and installation.

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have questions regarding any of the instructions or warnings, please visit tripplite.com/support.
• This product was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure the unit can safely support the combined load of the equipment and all attached hardware and components.
  • Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and/or personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

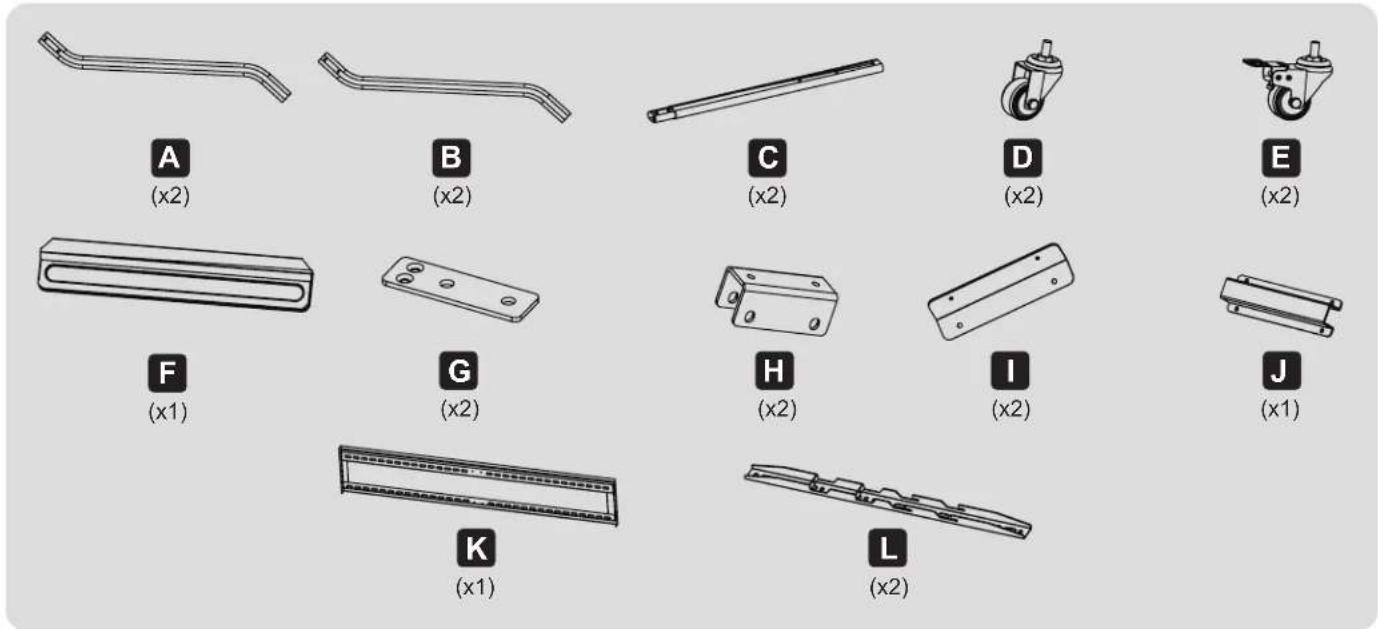

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

A (x2) B (x2) C (x2) D (x2) E (x2) F (x1) G (x2) H (x2) I (x2) J (x1) K (x1) L (x2)

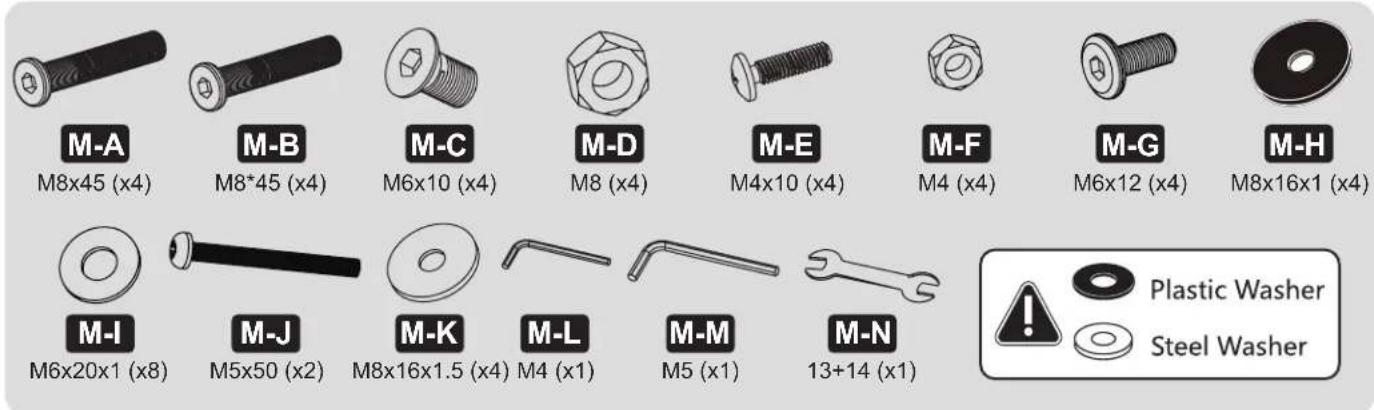

Package M

M-A M8x45 (x4) M-B M8*45 (x4) M-C M6x10 (x4) M-D M8 (x4) M-E M4x10 (x4) M-F M4 (x4) M-G M6x12 (x4) M-H M8x16x1 (x4) M-I M6x20x1 (x8) M-J M5x50 (x2) M-K M8x16x1.5 (x4) M4 (x1) M-L M-M M5 (x1) M-N 13+14 (x1) Plastic Washer Steel Washer

Package P

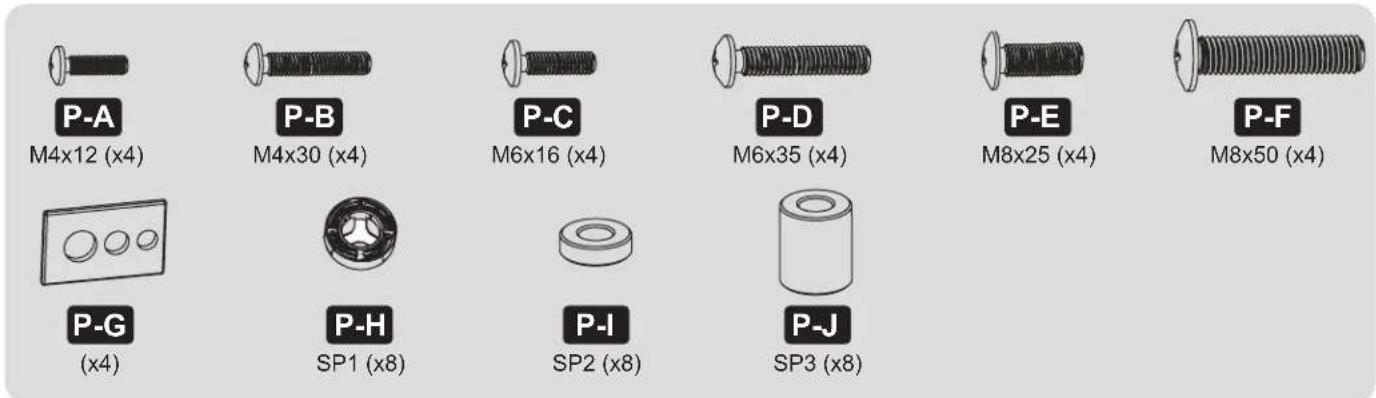

P-A M4x12 (x4) P-B M4x30 (x4) P-C M6x16 (x4) P-D M6x35 (x4) P-E M8x25 (x4) P-F M8x50 (x4) P-G (x4) P-H SP1 (x8) P-I SP2 (x8) P-J SP3 (x8)

Assembly

1

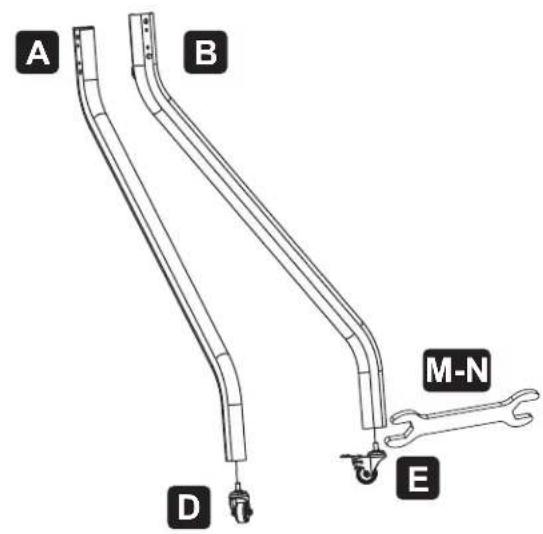

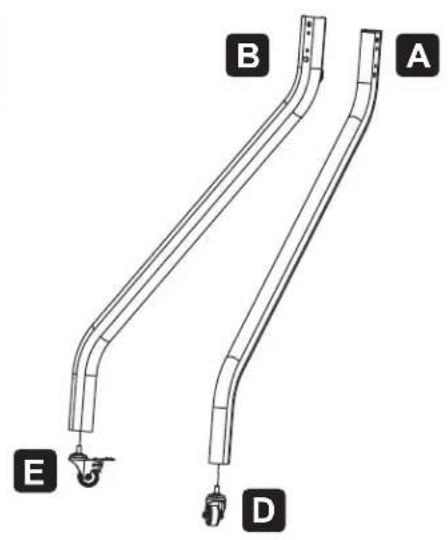

Technical line drawing of two curved mechanical components labeled A and B, with component D attached to the lower end (no text or symbols on the main structure)

A B D M-N E

2

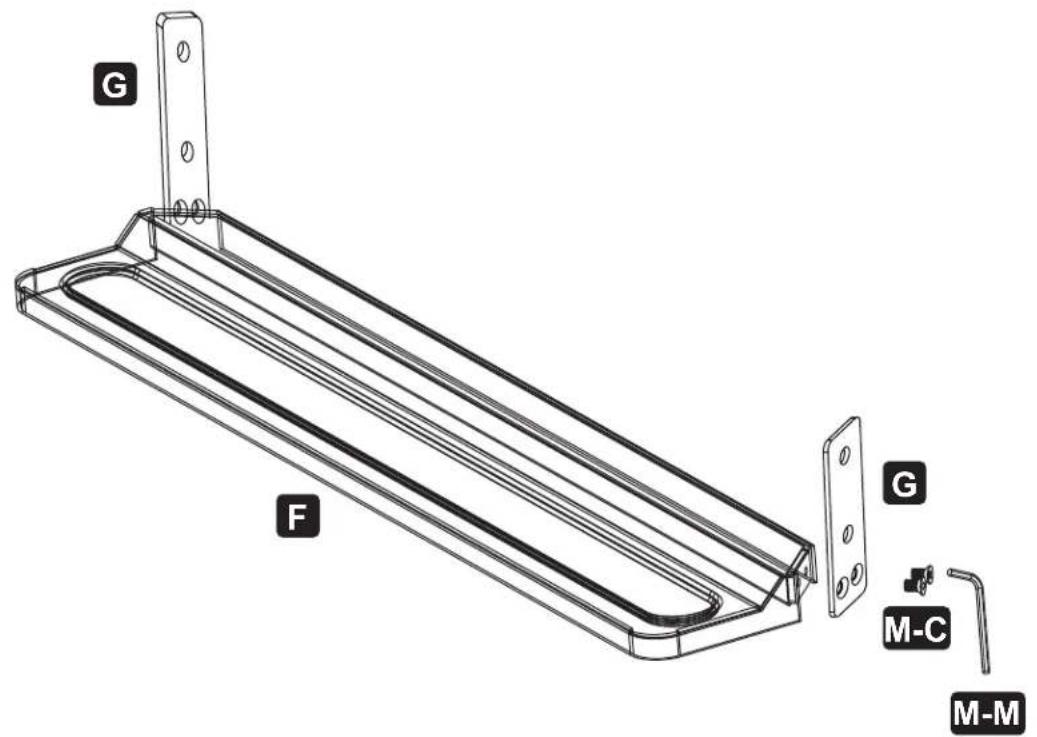

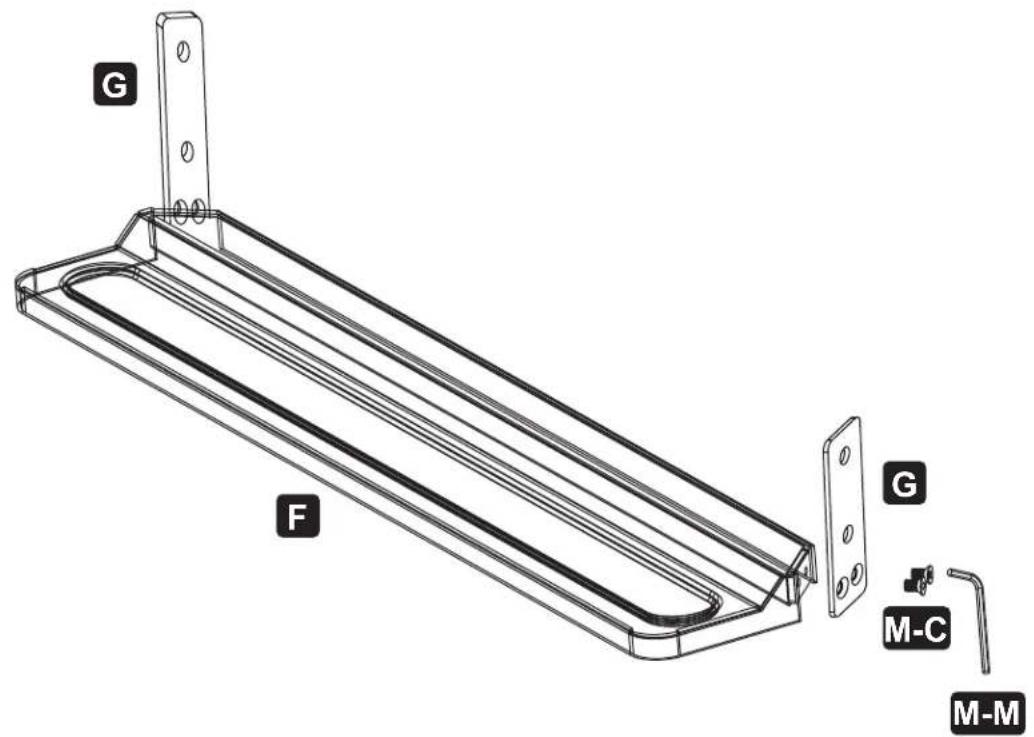

G F G M-C M-M

Assembly

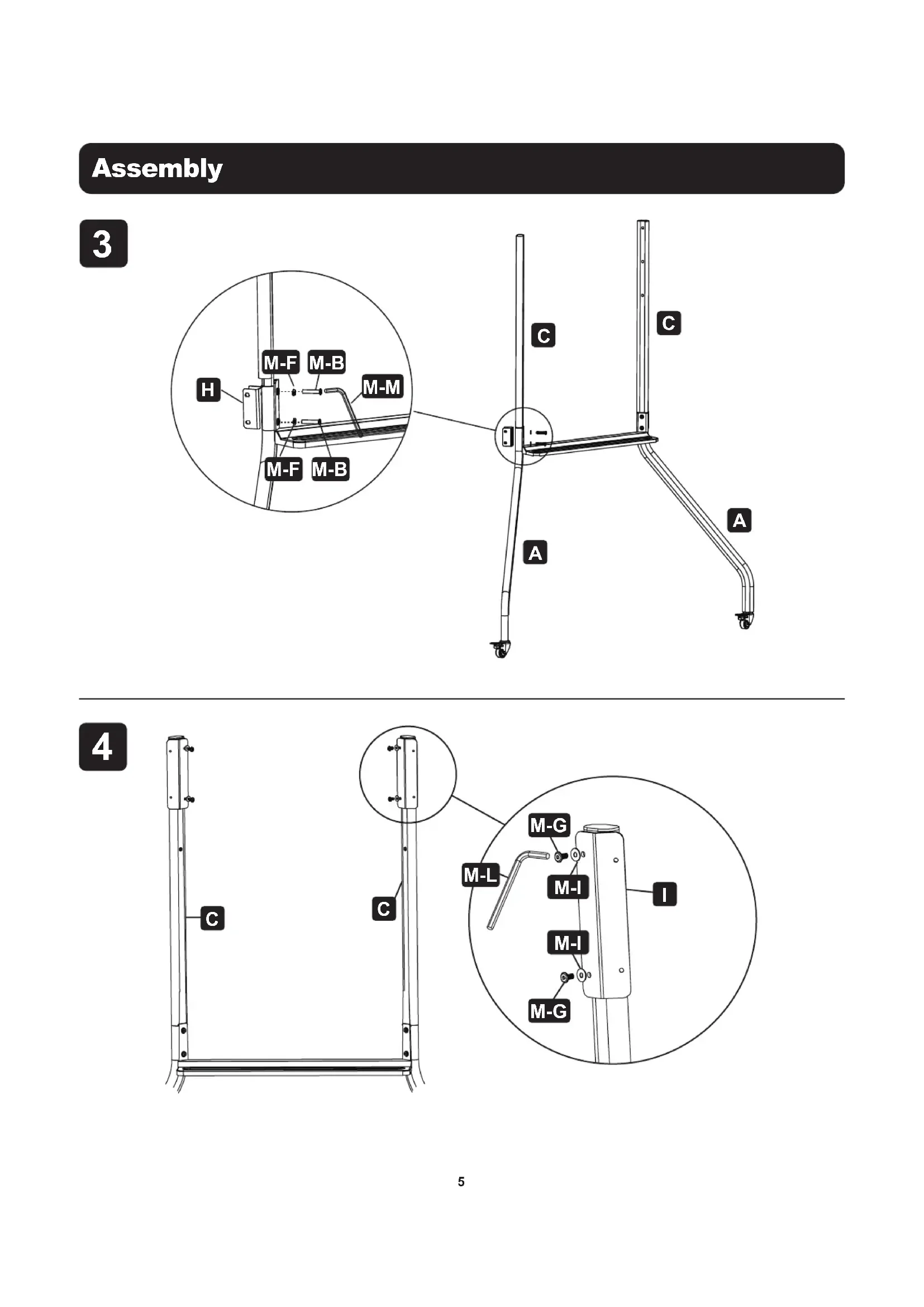

3

H M-F M-B M-M M-F M-B C C A A

4

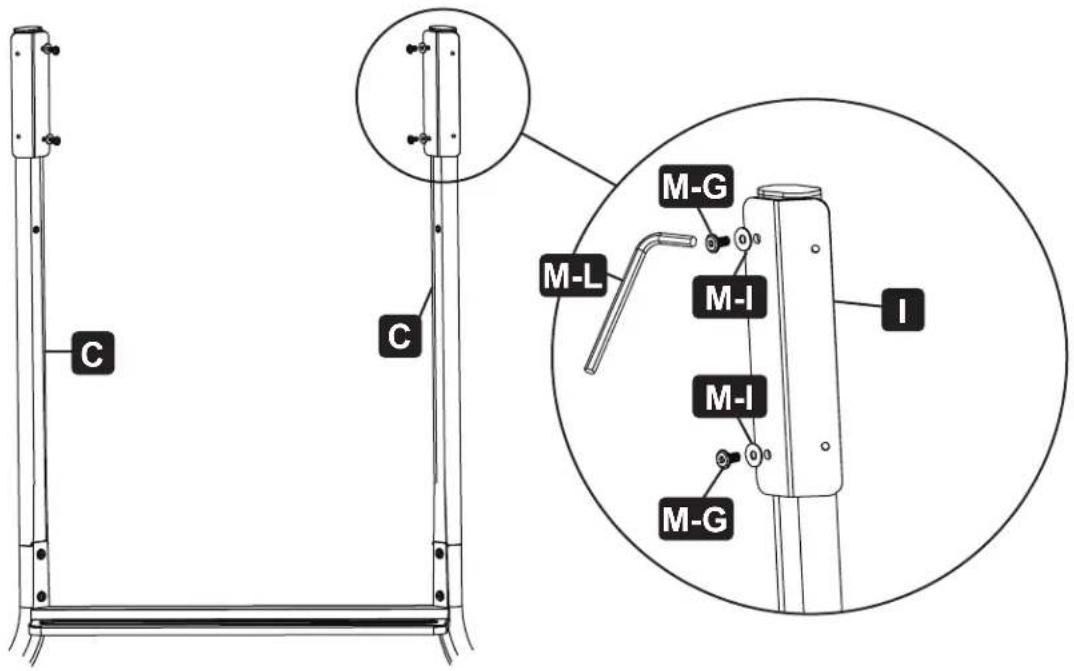

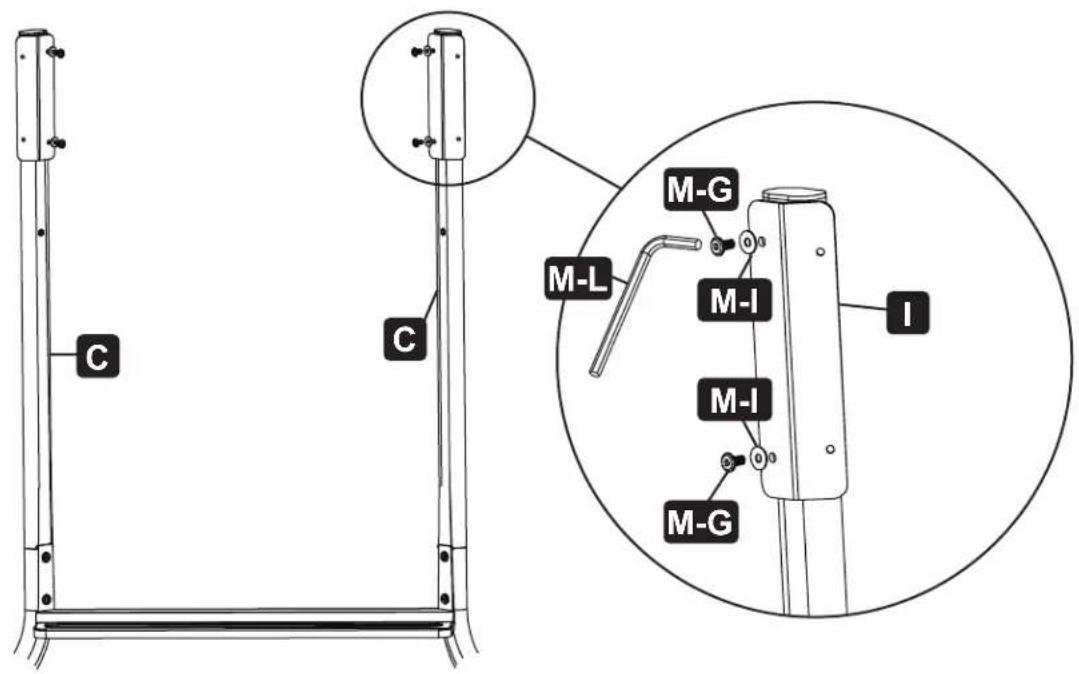

C M-L M-I M-I M-G M-G I

Assembly

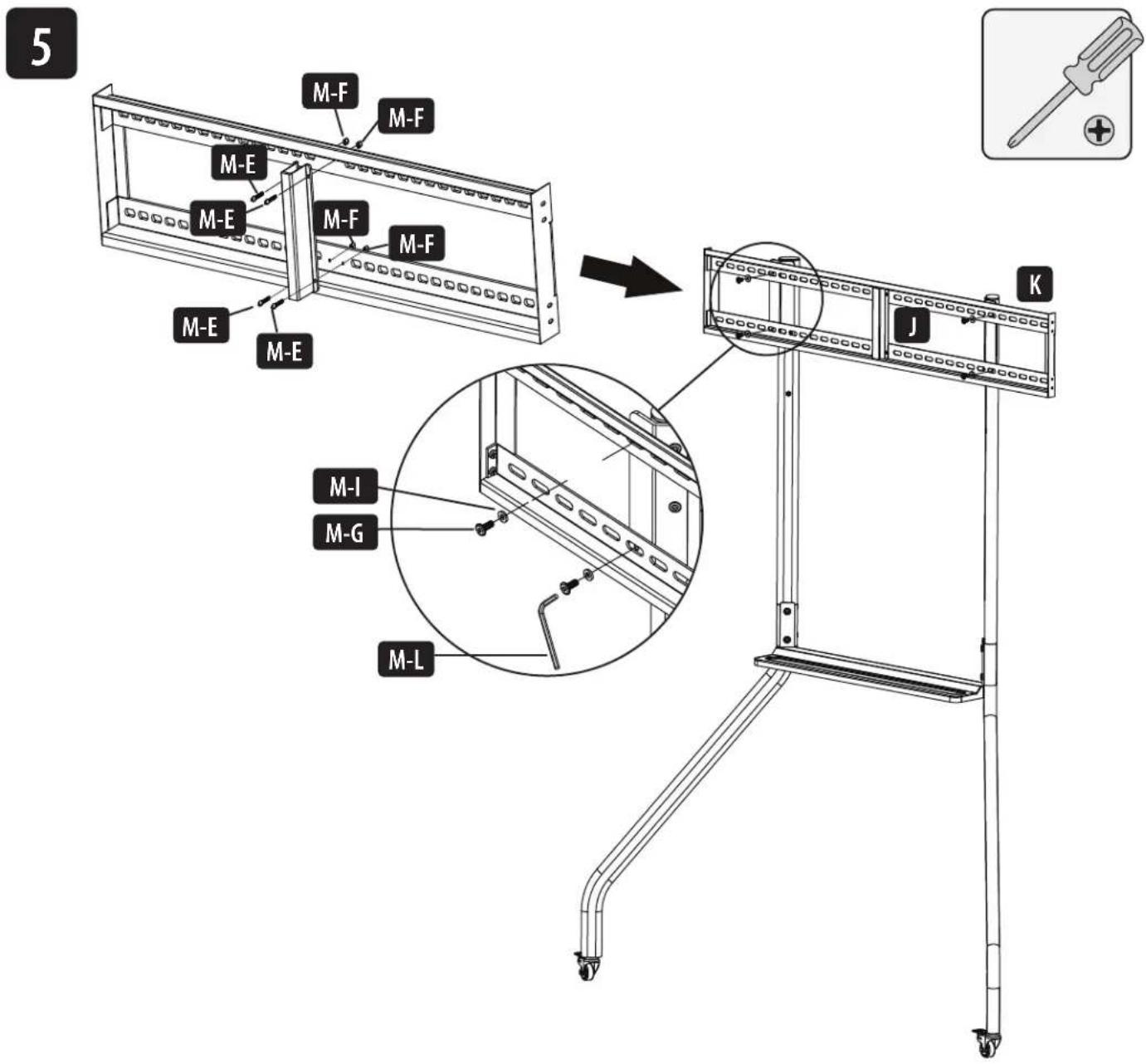

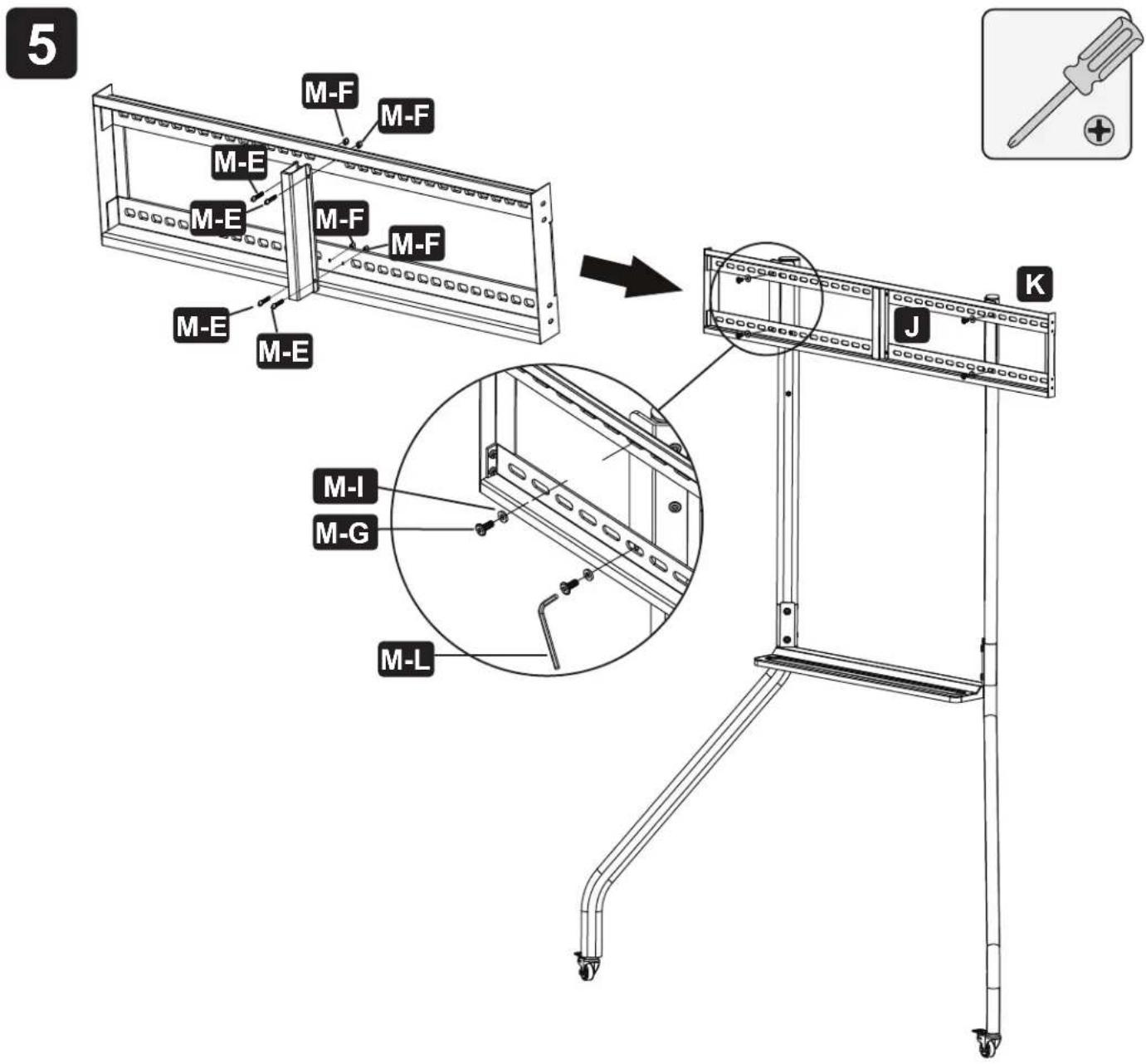

5 M-F M-F M-E M-E M-F M-F M-E M-E M-I M-G M-L K J

Assembly

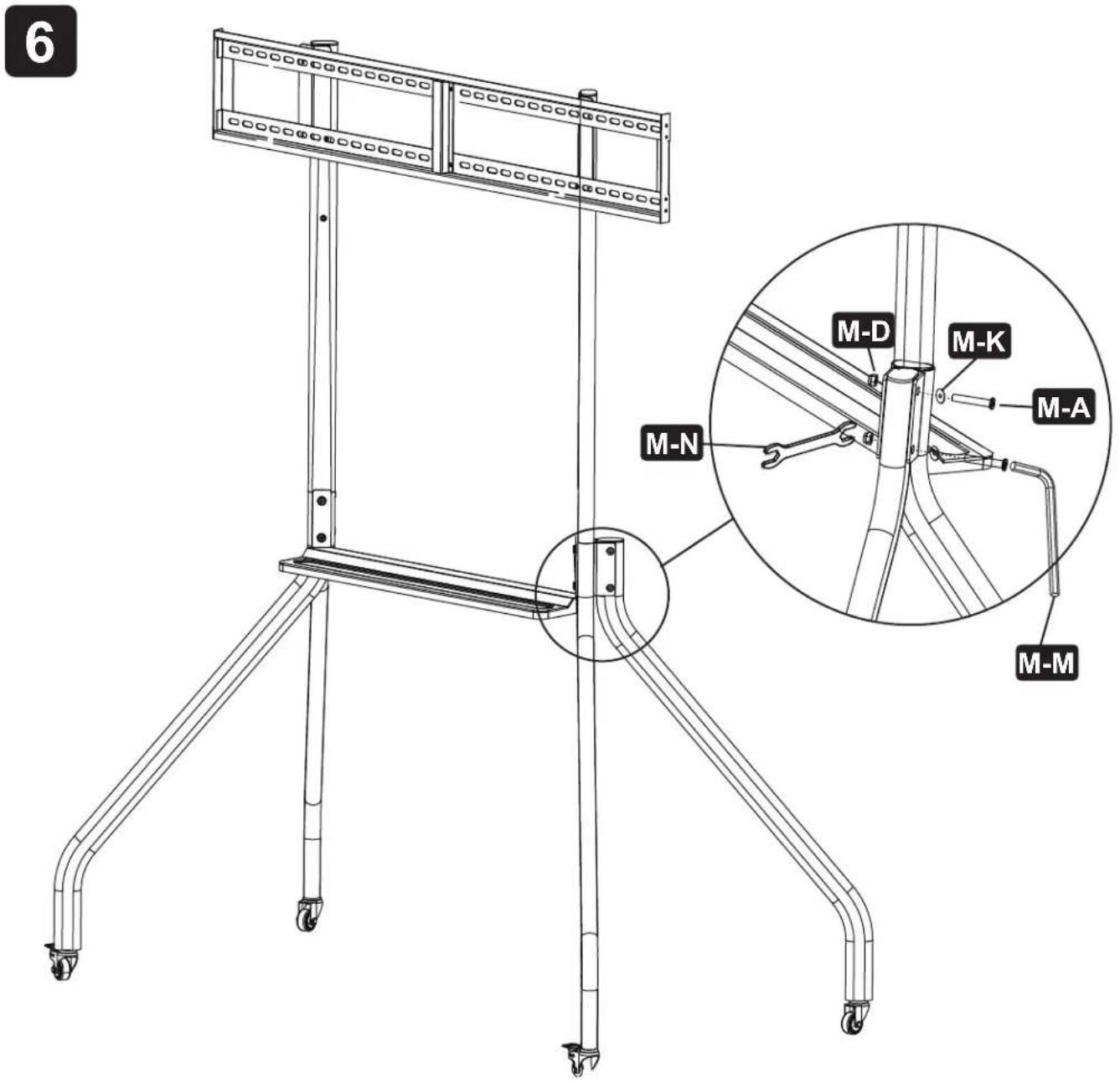

6 M-D M-K M-A M-N M-M

Assembly

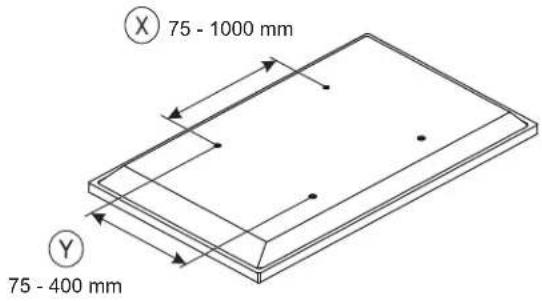

7 Measure the TV Fixing Holes Width and Height

75 - 1000 mm 75 - 400 mm

P-A P-B P-C P-D P-E P-F

If width X is greater than 1000 mm or height Y greater than 400 mm, STOP the installation and contact customer service.

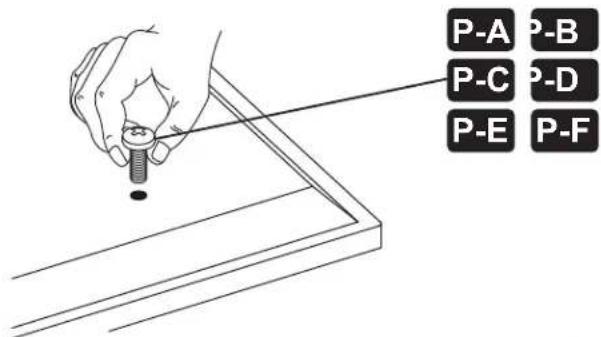

You are provided with 6 sets of TV fixing screws. Determine the screw that fits.

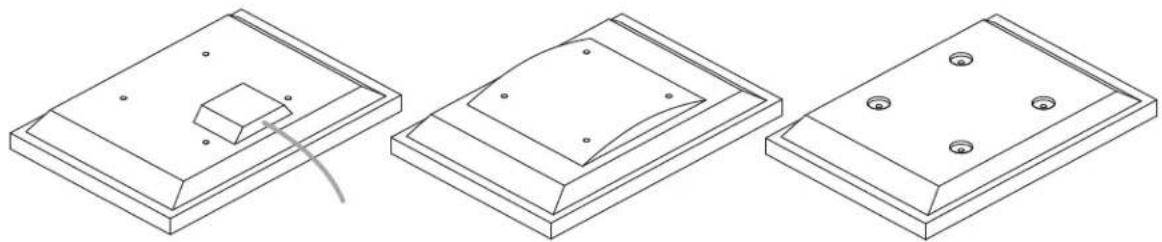

Spacers For TVs with irregular/obstructed backs

Three technical line drawings of a mechanical component with mounting holes and a small central feature (no text or symbols)

No Spacers For TVs with flat/unobstructed backs

Isometric line drawing of a rectangular plate with four circular holes, no text or symbols present

Assembly

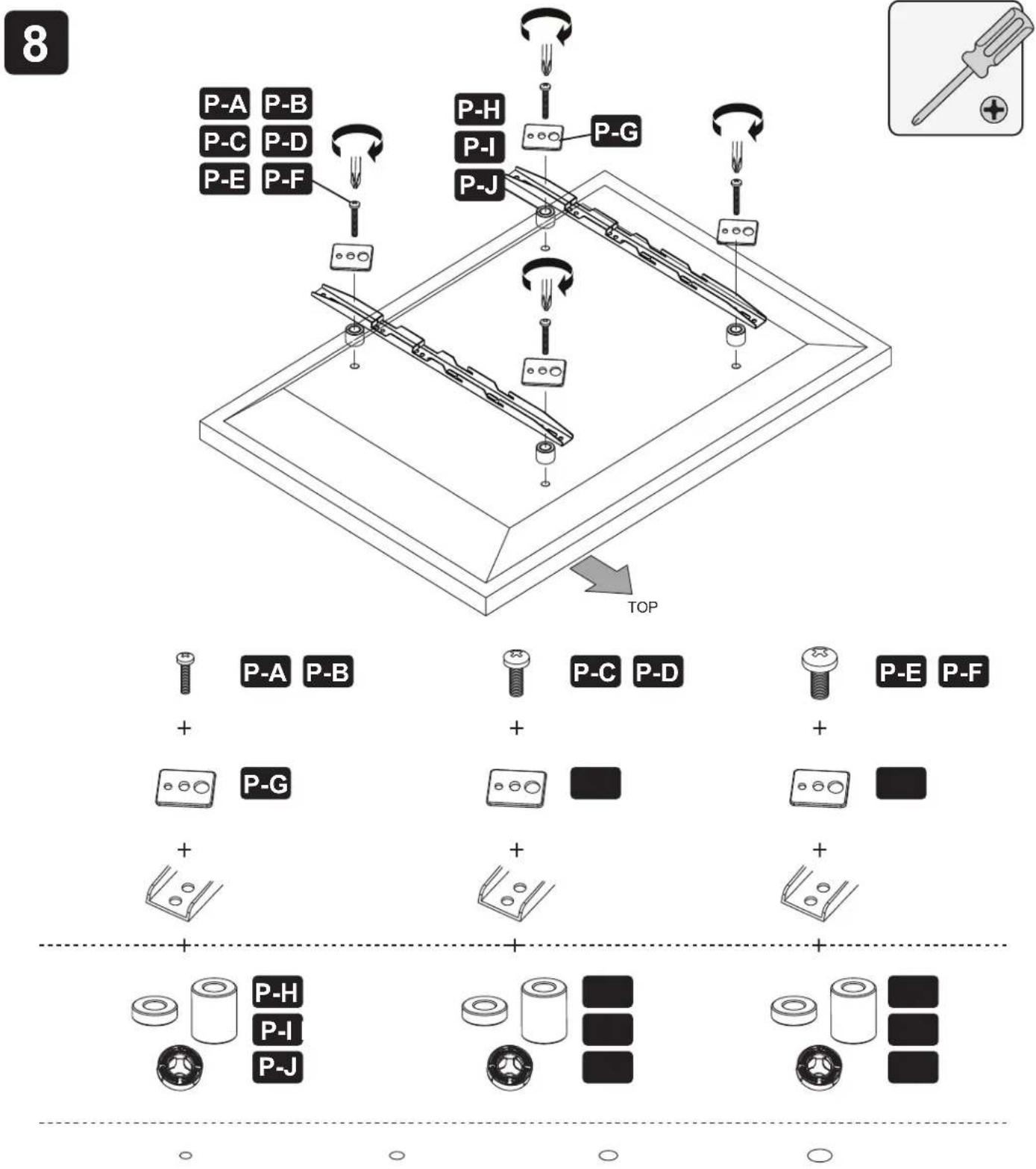

8 P-A P-B P-C P-D P-E P-F P-H P-I P-J P-G TOP P-A P-B + + + + + + + + + + + + + + + + + + + + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Note: Choose the appropriate Screws, Washers and Spacers (if needed) according to the type of screen.

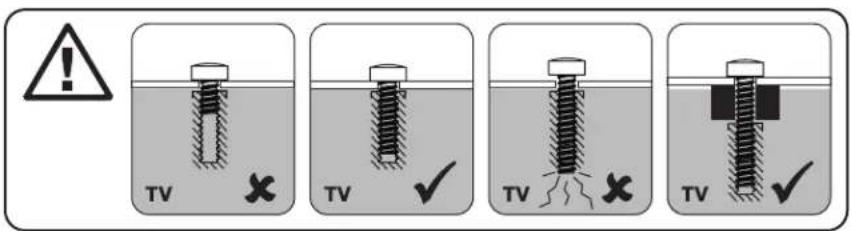

CAUTION: Do not over-tighten screws.

Assembly

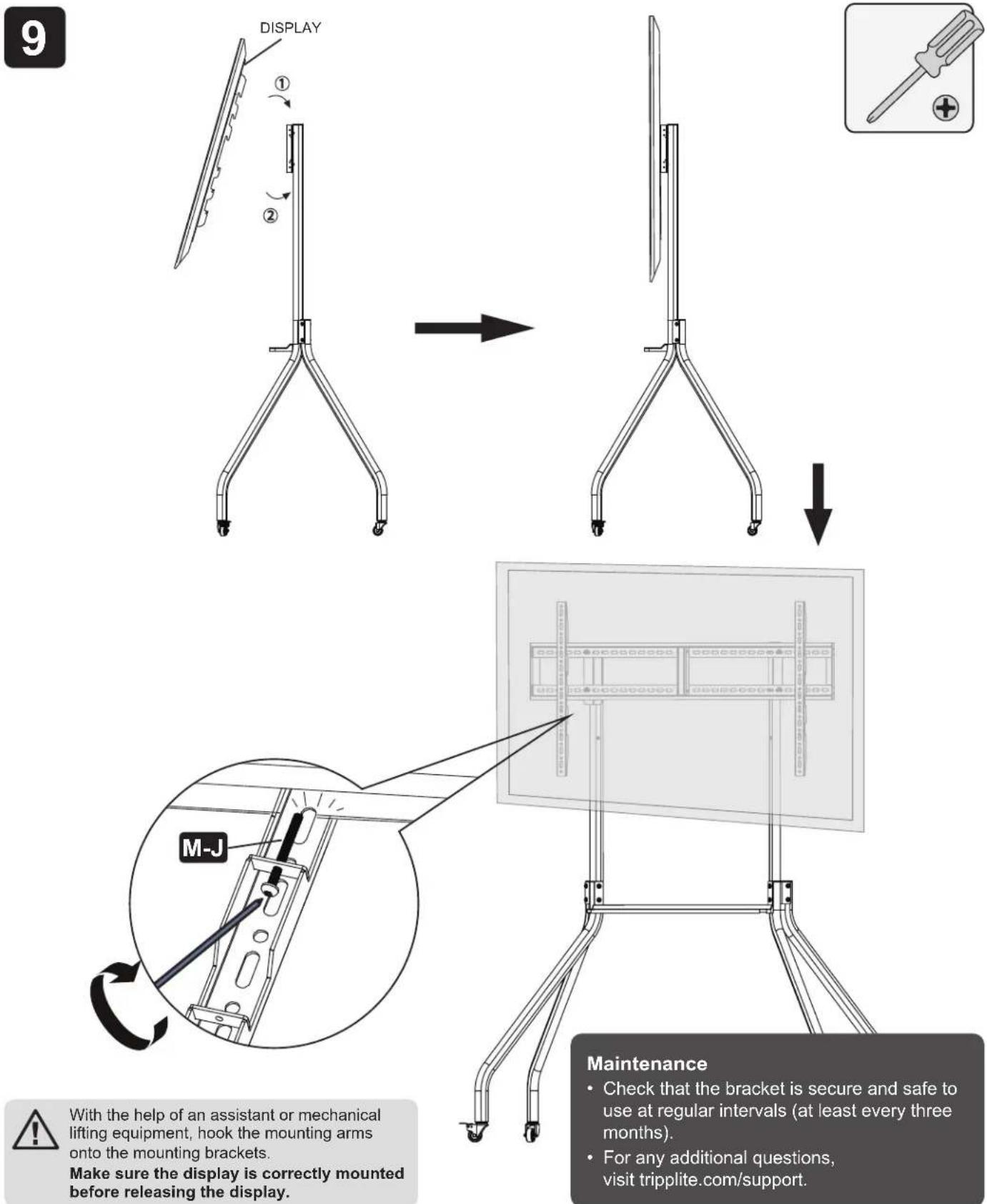

9 DISPLAY ① ② → ↓ M-J Maintenance • Check that the bracket is secure and safe to use at regular intervals (at least every three months). • For any additional questions, visit tripplite.com/support. With the help of an assistant or mechanical lifting equipment, hook the mounting arms onto the mounting brackets. Make sure the display is correctly mounted before releasing the display.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical support structure with no visible text or symbols

1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support

P-A M4x12 (x4) P-B M4x30 (x4) P-C M6x16 (x4) P-D M6x35 (x4) P-E M8x25 (x4) P-F M8x50 (x4) P-G (x4) P-H SP1 (x8) P-I SP2 (x8) P-J SP3 (x8)

Ensamble

1

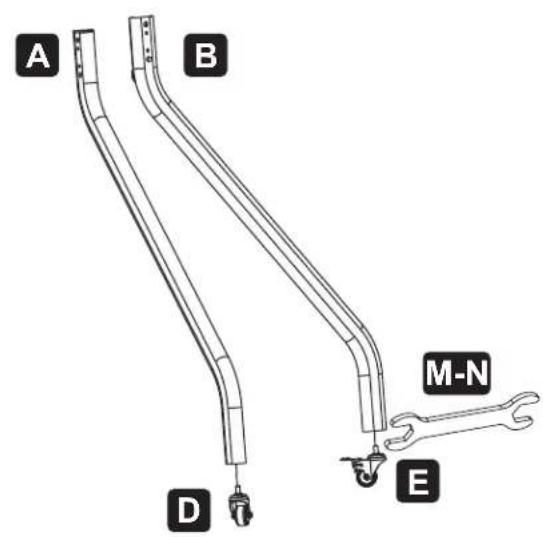

Technical line drawing of two mechanical components labeled A and B, with parts E and D attached to them (no text or symbols beyond labels)

A B D M-N E

2

G F G M-C M-M

Ensamble

3

H M-F M-B M-M M-F M-B C C A A

4

M-G M-L M-I M-I M-G I

Ensamble

5 M-F M-F M-E M-E M-F M-F M-E M-E M-I M-G M-L K J

Ensamble

6 M-D M-K M-A M-N M-M

Ensamble

75 - 1000 mm 75 - 400 mm P-A P-B P-C P-D P-E P-F

Three technical line drawings of a mechanical component with mounting holes and a small central feature (no text or symbols)

Sin Espaciadores

Isometric line drawing of a rectangular plate with four circular holes, no text or symbols present

Ensamble

8 P-A P-B P-C P-D P-E P-F P-H P-I P-J P-G PARTE SUPERIOR P-A P-B + + + P-C P-D + + P-E P-F P-G + + + P-H P-I P-J

1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support

Technical line drawing of a mechanical support structure with no visible text or symbols

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

P-A M4 x 12 (x4) P-B M4x30 (x4) P-C M6x16 (x4) P-D M6x35 (x4) P-E M8x25 (x4) P-F M8 x 50 (x4) P-G (x4) P-H SP1 (x8) P-I SP2 (x8) P-J SP3 (x8)

Assemblage

1

Technical line drawing of two mechanical components labeled A and B, with parts E and D attached to them (no text or symbols beyond labels)

A B D M-N E

2

G F G M-C M-M

Assemblage

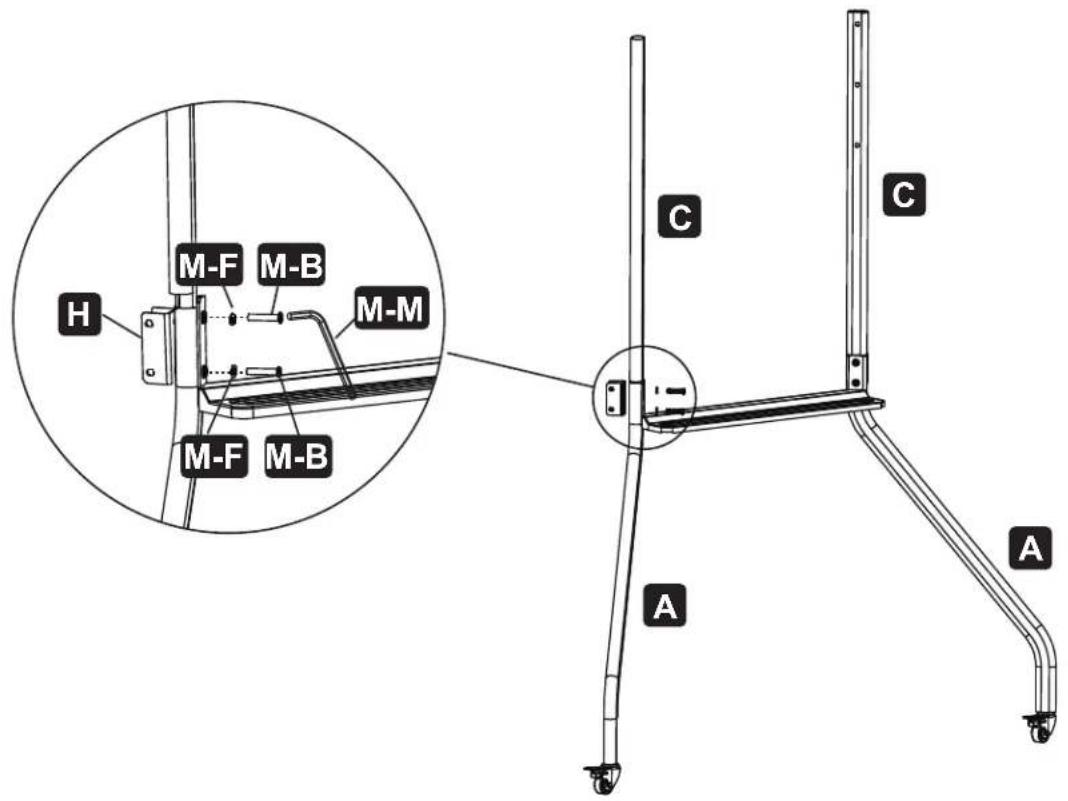

3

M-F M-B H M-M M-F M-B C C A A

4

C C M-G M-L M-I I M-I M-G

Assemblage

5 M-F M-F M-E M-E M-F M-F M-E M-E M-I M-G M-L K J

Assemblage

6 M-D M-K M-A M-N M-M

Assemblage

7

Three technical line drawings of a mechanical component with mounting holes and a small central feature (no text or symbols)

Aucune entretoise

Isometric line drawing of a rectangular plate with four circular holes, labeled 'gagés' in the top-left corner (text is minimal and not part of the diagram)

Assemblage

8 P-A P-B P-C P-D P-E P-F P-H P-I P-J P-G DESSUS P-A P-B + + P-C P-D + + P-E P-F P-G + + P-H P-I P-J

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical support structure with three legs and vertical supports (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA - tripplite.com/support

G F G M-C M-M

Порядок сборки

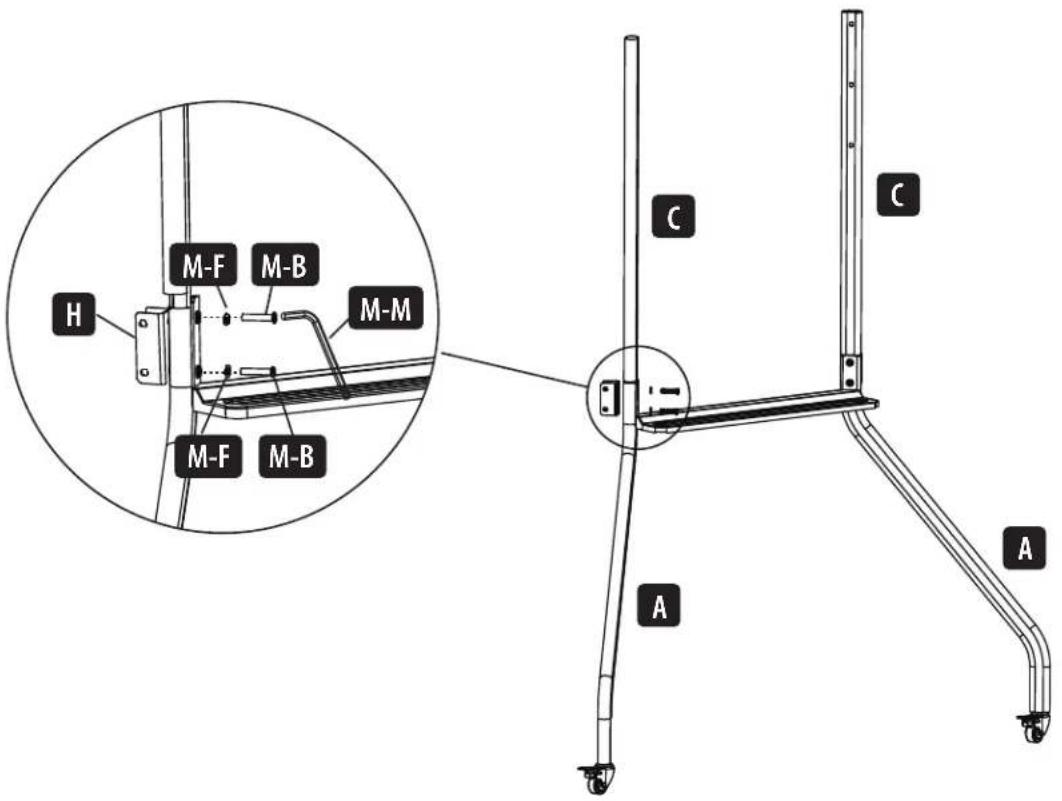

3

H M-F M-B M-M M-F M-B C C A A

4

C C M-G M-L M-I M-I M-G I

Порядок сборки

5 M-F M-F M-E M-E M-F M-F M-E M-E K J M-I M-G M-L

Порядок сборки

6

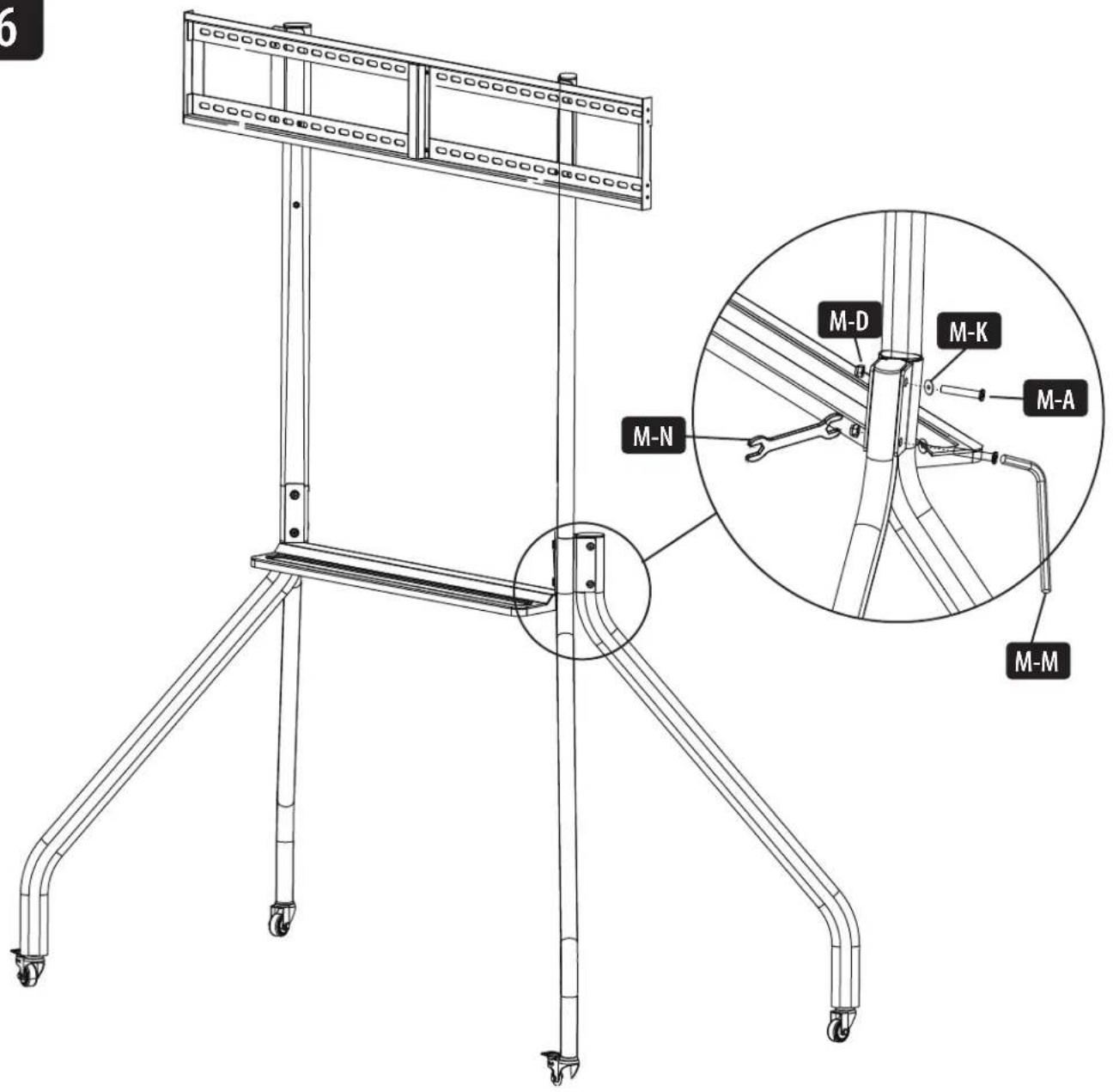

6 M-D M-K M-A M-N M-M

Порядок сборки

P-A P B P-C P D P-E P-F

Three technical line drawings of a mechanical component with mounting holes and a small central feature (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes, no text or symbols present

Порядок сборки

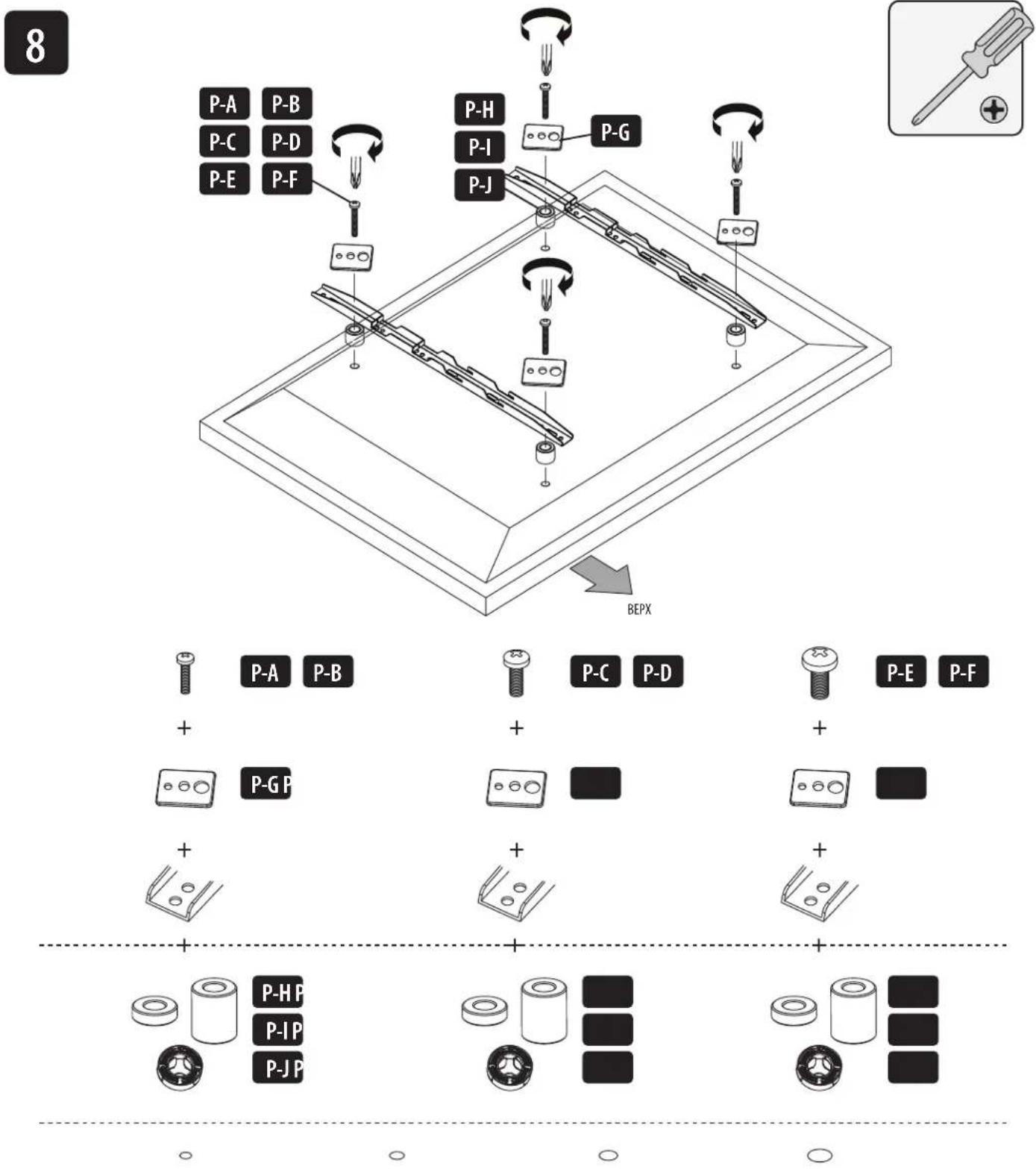

8 P-A P-B P-C P-D P-E P-F P-H P-I P-J P-G BEPX + + + + + + + + + + + + + + + - P-A P-B P-C P-D P-E P-F + + + + + + - P-G P P-H P P-I P P-J P - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - +

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Bedienungsanleitung

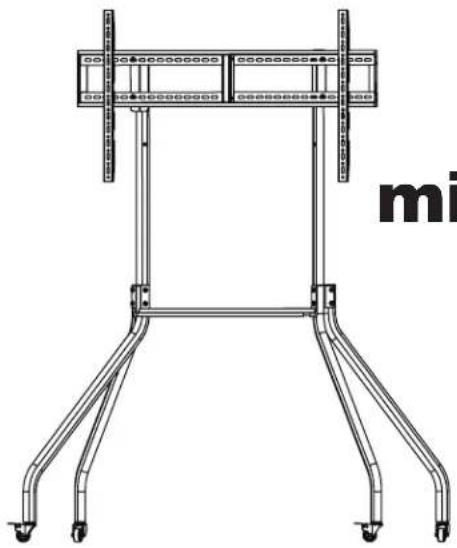

Technical line drawing of a mechanical support structure with no visible text or symbols

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

P-A M4x12 (x4) P-B M4x30 (x4) P-C M6x16 (4 x) P-D M6x35 (x4) P-E M8x25 (x4) P-F M8x50 (x4) P-G (x4) P-H SP1 (x8) P-I SP2 (x8) P-J SP3 (x8)

Montage

1

Technical line drawing of two curved mechanical components labeled A and B, with component D attached to the lower end (no text or symbols on the main structure)

A B D M-N E

2

G F G M-C M-M

Montage

3

H M-F M-B M-M M-F M-B C C A A

4

C C M-G M-L M-I M-I M-G I

Montage

5 M-F M-F M-E M-E M-F M-F M-E M-E M-I M-G M-L K J

Montage

6 M-D M-K M-A M-N M-M

Montage

7

75 - 1000 mm 75 - 400 mm P-A P-B P-C P-D P-E P-F

Three technical line drawings of a mechanical component with mounting holes and a central cavity (no text or symbols)

Keine Abstandhalter

Isometric line drawing of a rectangular plate with four circular holes, no text or symbols present

! TV TV TV TV

Montage

8 P-A P-B P-C P-D P-E P-F P-H P-I P-J P-G OBEN P-A P-B + + + + + + + + + + + + + + + + + + + + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
