Product Type	Mobile Stand for Flat Panel Display
Brand	Tripp Lite
Model	DMCS60100XX
Maximum Load Capacity	60 kg (estimated)
VESA Compatibility	Up to 600x400 mm (standard)
Adjustable Height	1200 to 1650 mm (screen center)
Tilt	-10° to +5°
Base	Wide base with adjustable casters
Material	Steel and plastic
Color	Black
Cable Management	Integrated cable routing in columns
Included Shelves	DVD shelf, camera shelf
Warranty	5 years (limited)
Usage	Indoor only
Installation	Assembly required, tools included
Maintenance	Check fastening every 3 months

Frequently Asked Questions - DMCS60100XX Tripp Lite

What is the maximum weight supported by the DMCS60100XX stand?

The manual does not specify an exact limit, but this type of stand can generally support up to 60 kg. Check your screen weight before installation.

How to adjust the height of the columns?

Loosen the screws on the support blocks with the provided hex key, adjust to the desired height using the height indicator, then tighten firmly. Make sure both columns are at the same height.

Can I tilt the screen after installation?

Yes, the camera shelf (optional) allows tilt from -10° to +5°. For the main screen, it is fixed unless you use the adjustment holes.

How to attach the DVD shelf?

First assemble the shelf by attaching the support bar with M6x14 screws and the knob. Then attach the assembly to the column support blocks using M6x25 screws and the hex key.

Is the stand compatible with curved back screens?

The manual only mentions flat screens. For curved screens, use spacers and appropriate screws to compensate for the curvature. Check compatibility before purchase.

How to install the screen on the stand?

First attach the adapter brackets to the back of the screen with appropriate screws, washers, and spacers. Then hang the screen on the universal plate and turn the bottom screws counterclockwise to lock.

Can I add a security lock for the screen?

Yes, you can use a padlock (not included) to secure the screen to the universal plate after installation.

How to maintain the stand?

Check at least every 3 months that all screws are tight and the stand is stable. Clean with a soft, dry cloth. Avoid abrasive products.

What is the maximum height of the screen center?

The adjustable height of the screen center from the floor is 1200 mm to 1650 mm, as specified in the manual.

What to do if a part is missing or damaged?

Contact Tripp Lite support via www.tripplite.com/support to obtain replacement parts under warranty.

USER MANUAL DMCS60100XX Tripp Lite

Technical illustration of a mechanical lifting device with vertical supports and a central column (no text or symbols)

Español 13 • Français 25 • Русский 37 • Deutsch 49

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

200 x 200 / 300 x 300 / 400 x 200 / 400 x 400 / 600 x 400 / 800 x 400 / 800 x 600 / 1000 x 600

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit www.tripplite.com/support
• This mounting bracket was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not over-tighten. Over-tightening screws can damage the items, greatly reducing their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Warranty & Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit www.tripplite.com/support for service.

Middle Base (x1)

Left Leg (x1) Right Leg (x1)

Left Cover (x1) Right Cover (x1)

Technical line drawing of a cylindrical mechanical component with internal mounting holes and mounting holes (no text or symbols)

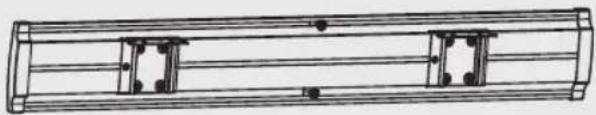

Universal Plate (x1)

Plastic Handle (x2)

Simple line drawing of a cylindrical object with a circular hole and a small protrusion (no text or symbols)

Left Column (x1)

Pure technical line drawing of a cylindrical mechanical part with internal features (no text or symbols)

Right Column (x1)

Left Adapter Bracket (x1)

Right Adapter Bracket (x1)

Top Cover (x2)

DVD Shelf (x1)

Connecting Plate (x1)

Camera Shelf (x1)

Support Bar (x1)

Knob (x2)

Package P

M6x25 Philips Rounded Head (x2)

M6x16 (x4)

M4x6 (x3)

M4x6 (x2) M6x25 Hex Socket Head (x2)

Hex Key (x1)

Wrench (x1)

M6x14 (x6) M8x25 (x8)

M6x25 Hex Rounded Head (x2)

Hex Key (x1)

Package M

M5 x 14 (x4) M8 x 50 (M6)x 14 x4)

M6 x 30 (x4)

M8 x 30 (x4)

Washer (x4) Small Spacer (x8)

Big Spacer (x8)

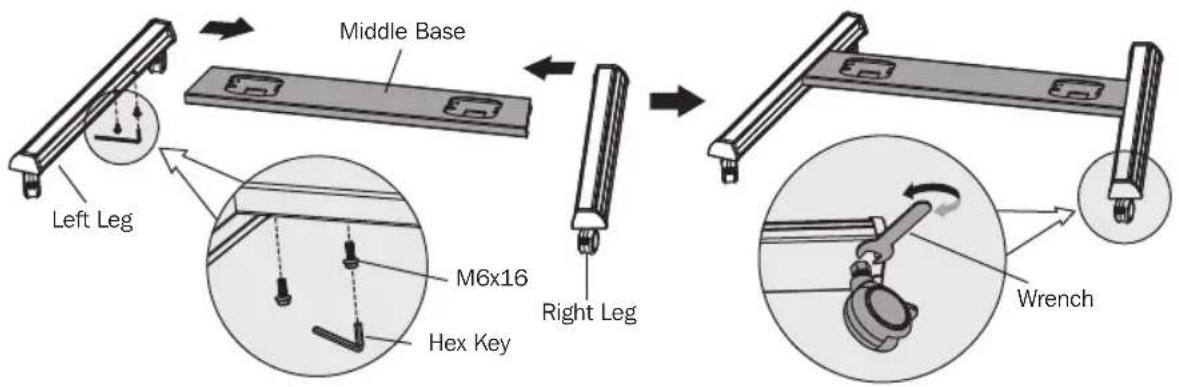

1. Assembling the Base

• Insert the right leg into the base. Align the holes in the right leg to the holes in the base. Secure with the screws. Repeat this step for the left leg.
  • Each caster can be adjusted independently for fine tuning. Slightly turn the nut to lower or raise the base.

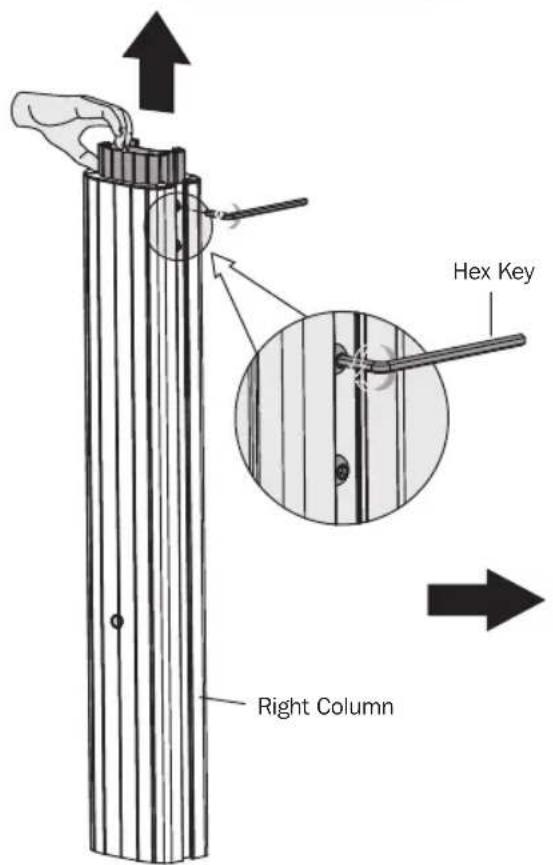

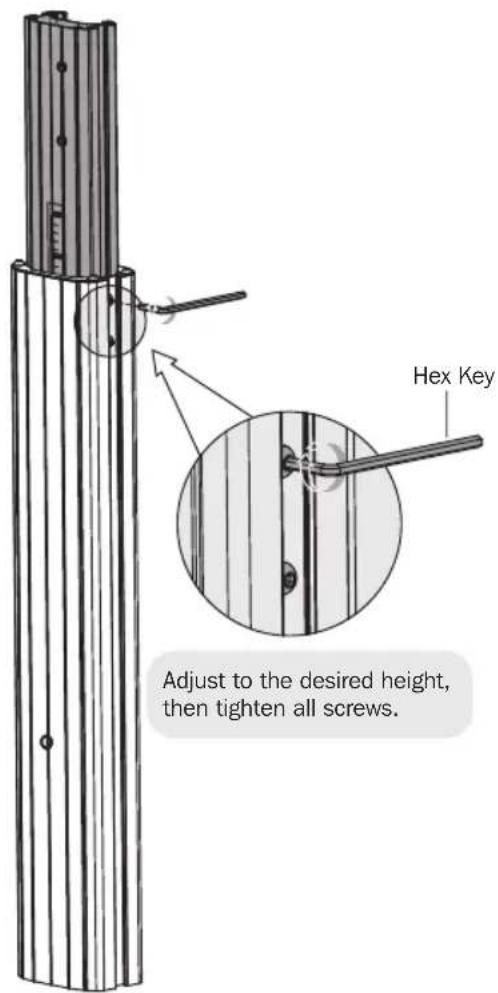

2. Adjust Column Height

CAUTION: Hold the inner column when loosening the screws to adjust height.

Repeat this step for the left column.
Note: Make sure both columns are at the same height using the height indicator as guide.

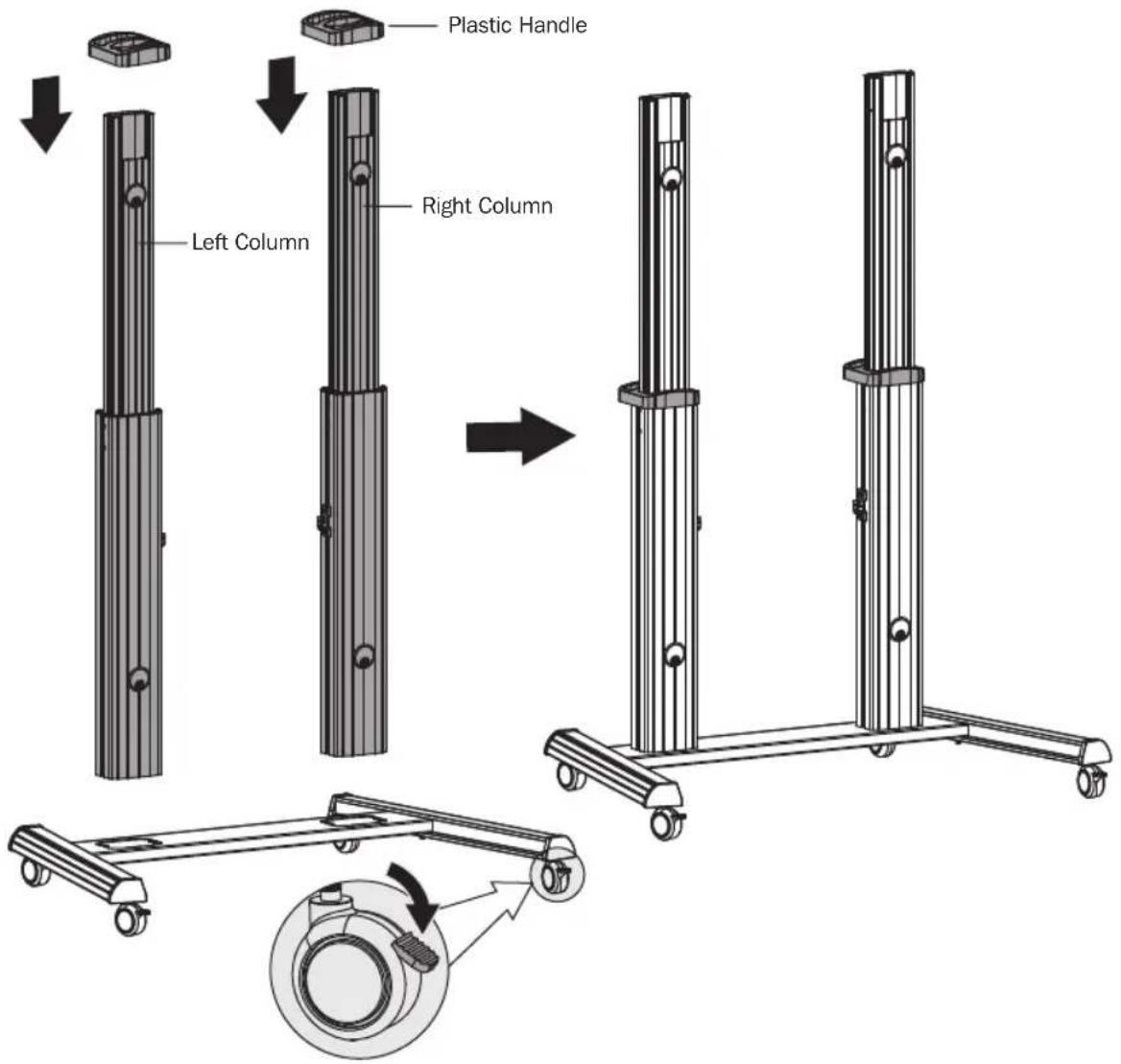

3. Attach Columns to Base

During this step, the columns are not secured to the base with screws.

Be careful not to knock the columns over.

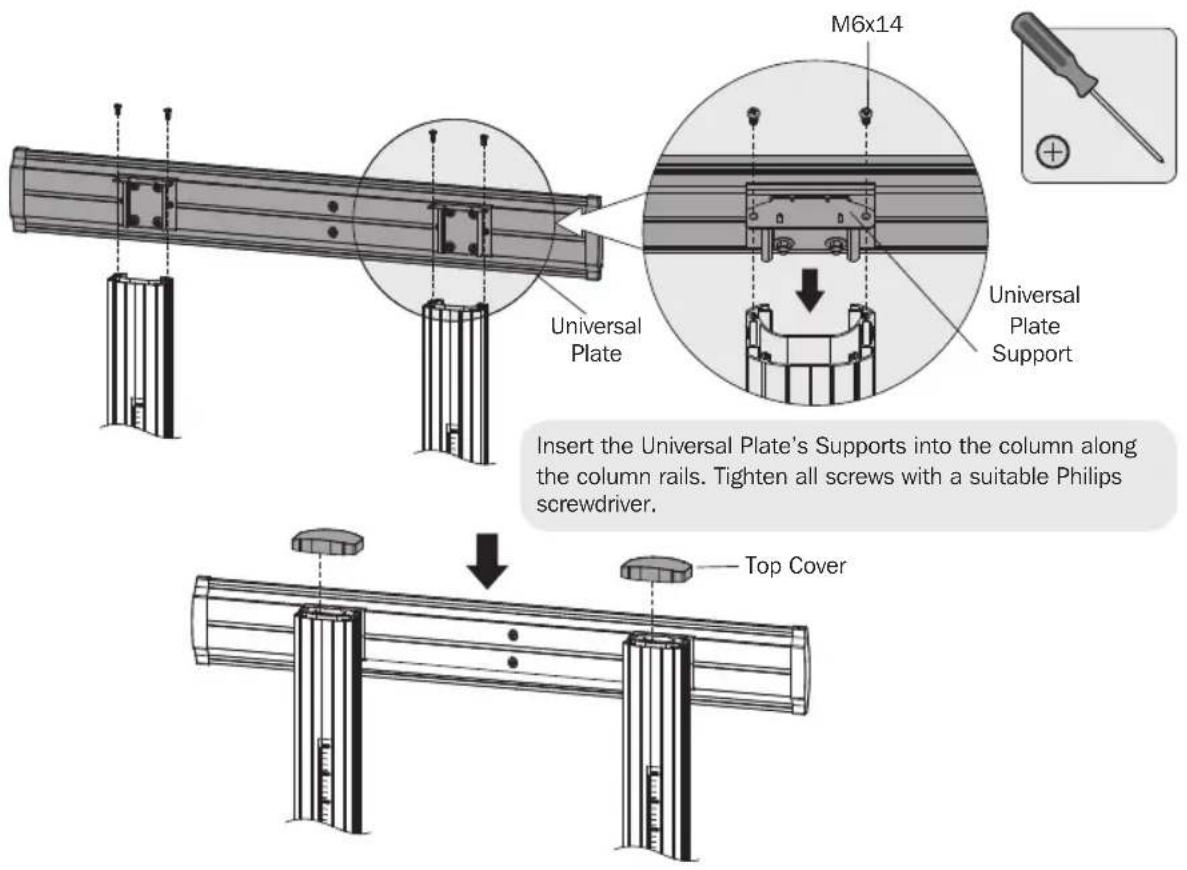

1. Attach Universal Plate to Columns

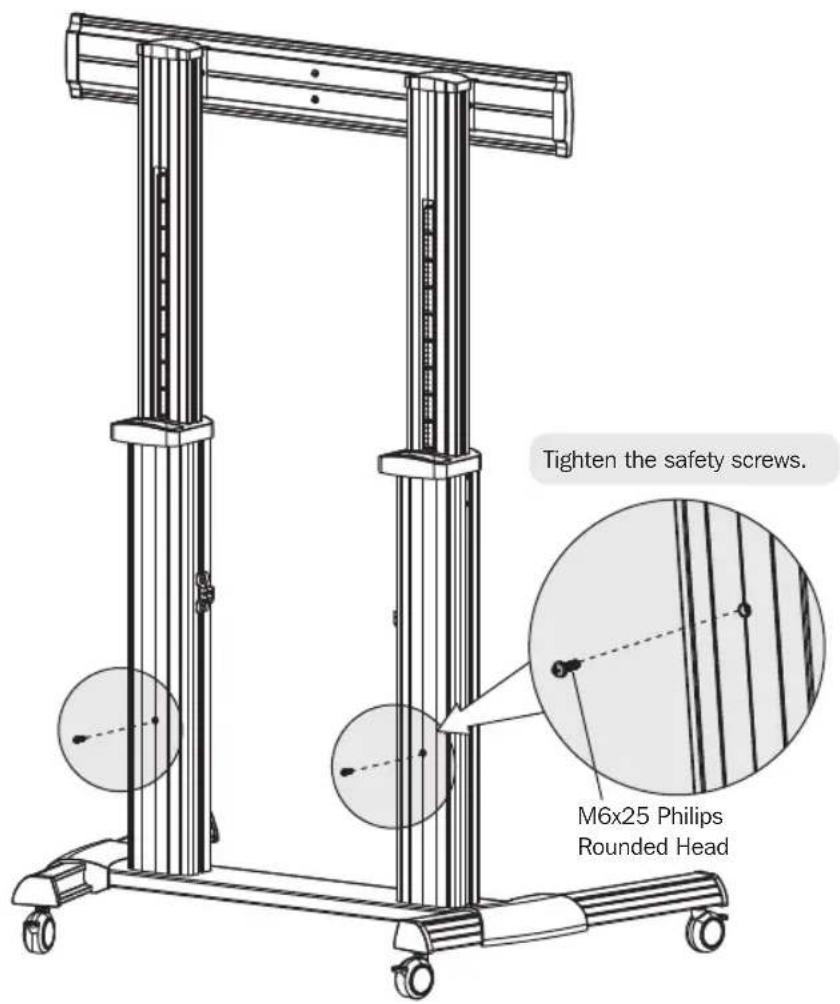

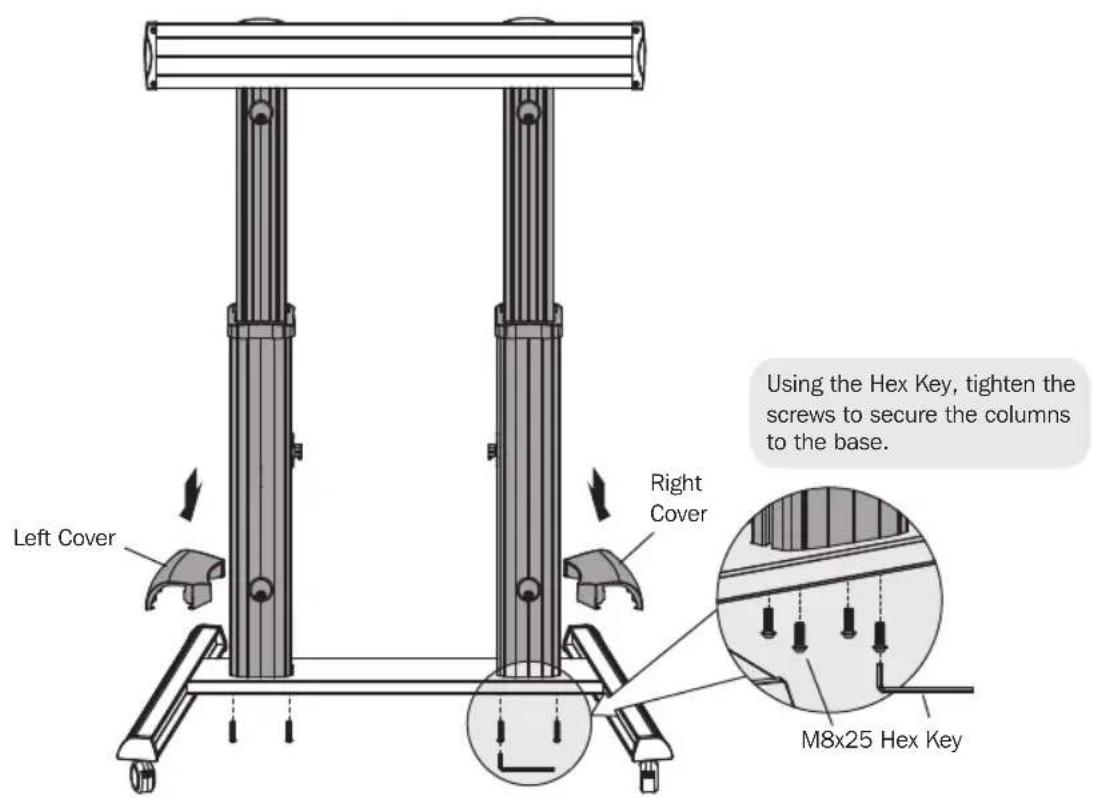

1. Secure Columns to Base

1. Secure Columns to Base

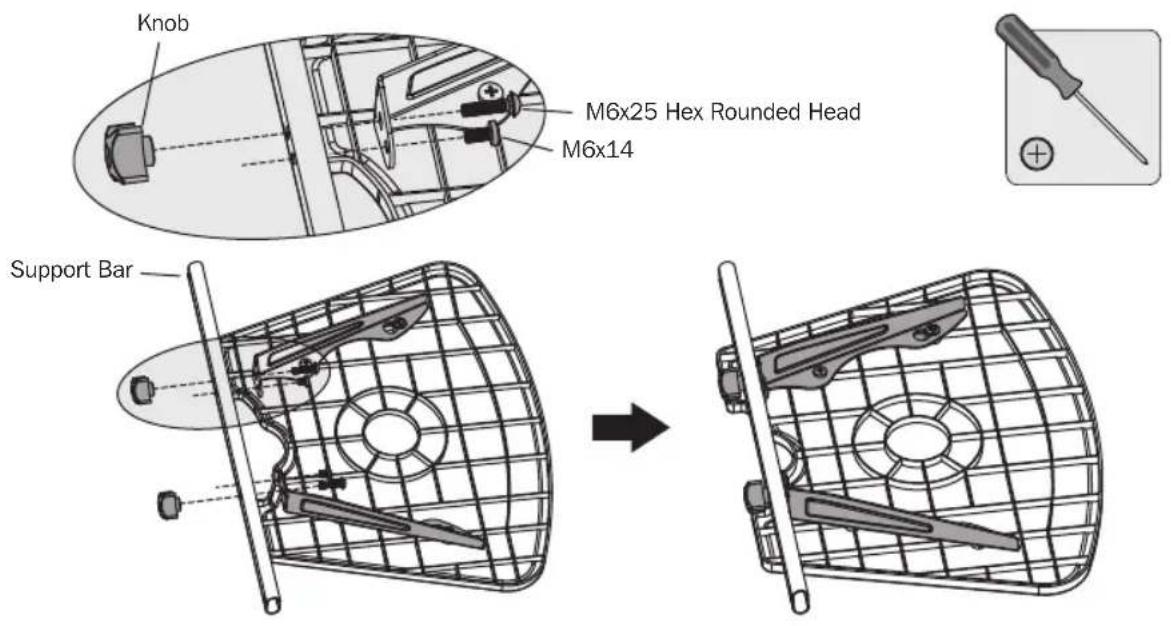

1. Assemble the DVD Shelf

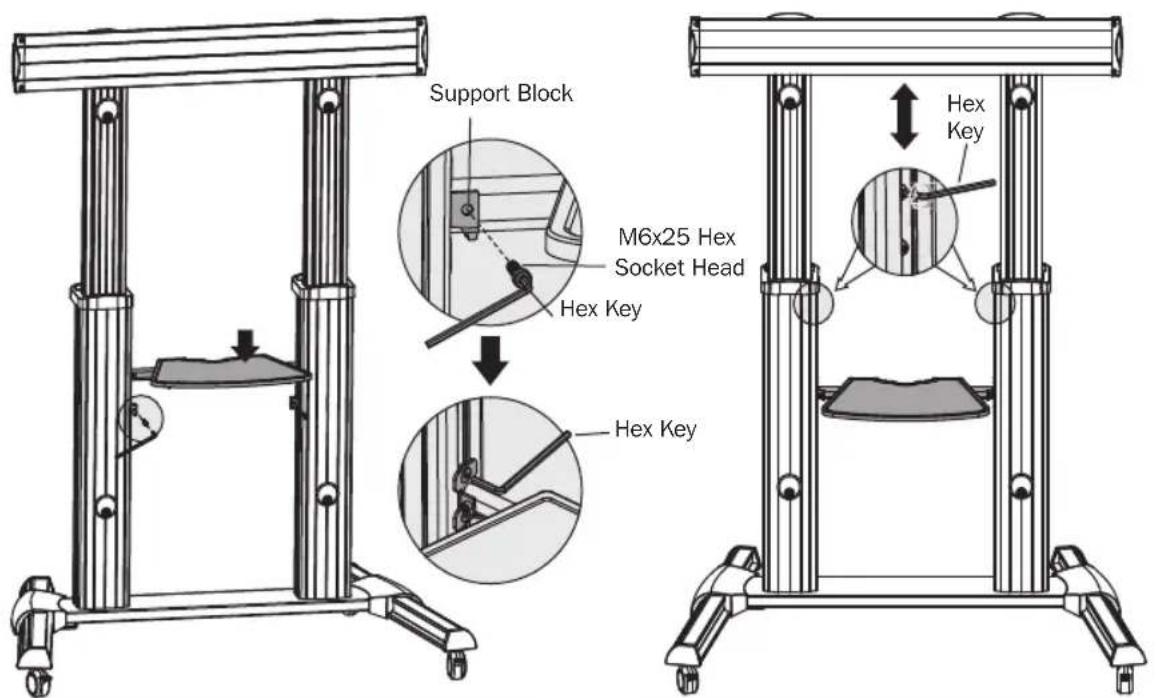

7. Attach DVD Shelf to Columns

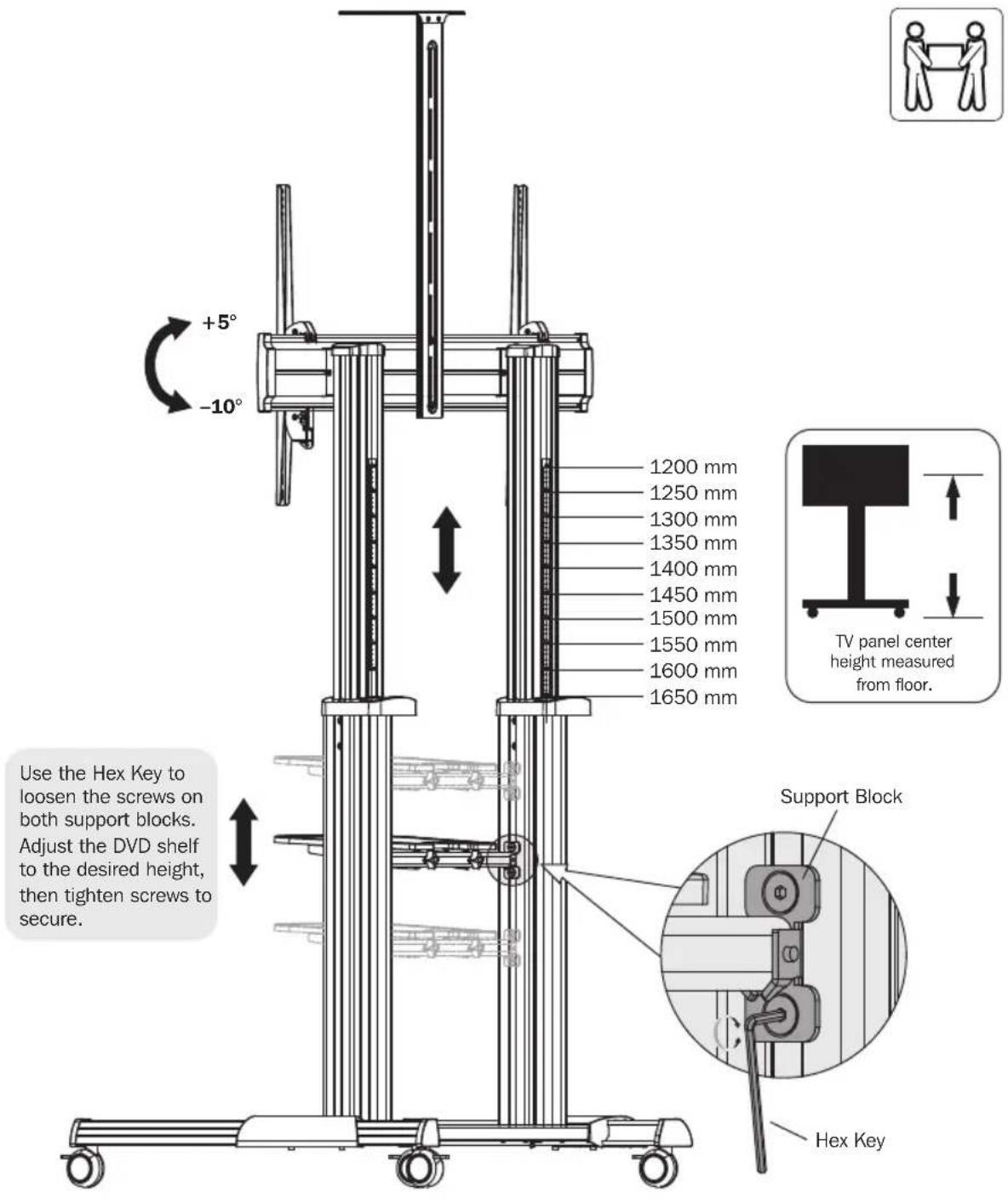

Use the Hex Key and screws to secure the DVD Shelf Assembly to the Columns' Support Blocks.
Adjust the Columns to the desired height before installing the display.

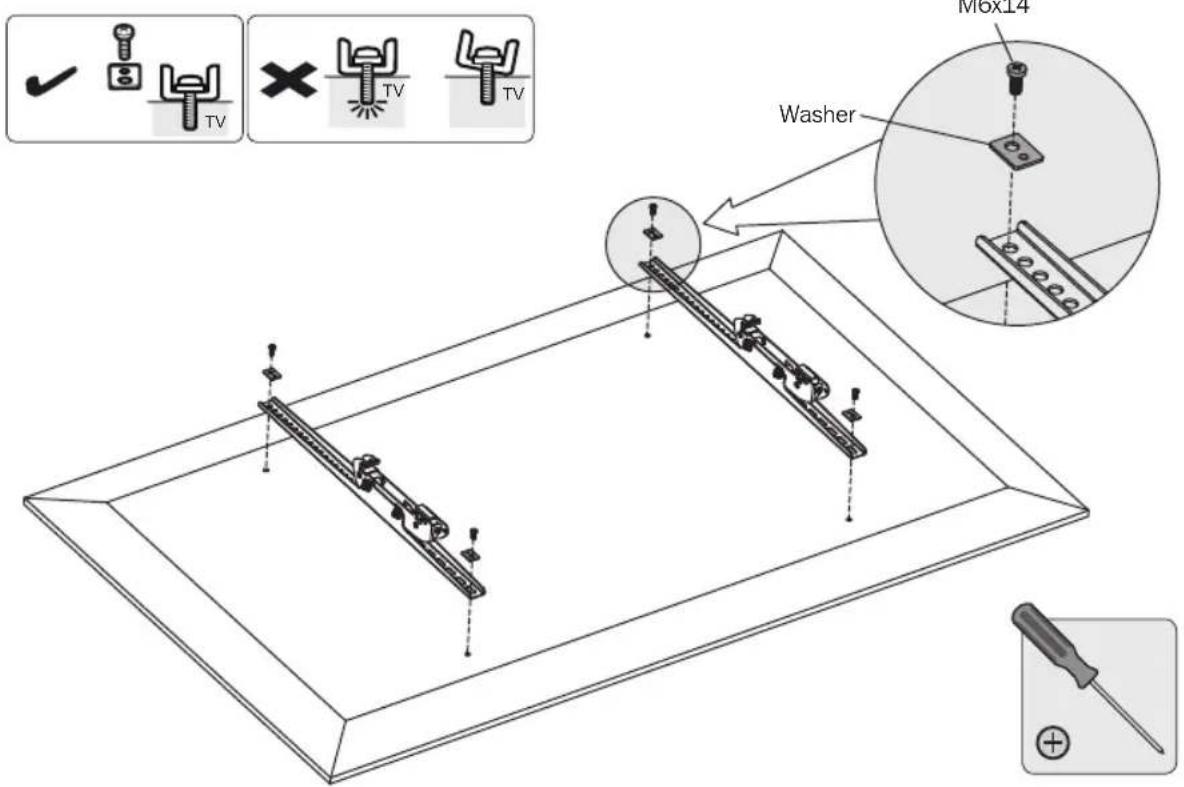

8. Attach Adapter Brackets to Display

8.1 For Flat Back Screens

8. Attach Adapter Brackets to Display

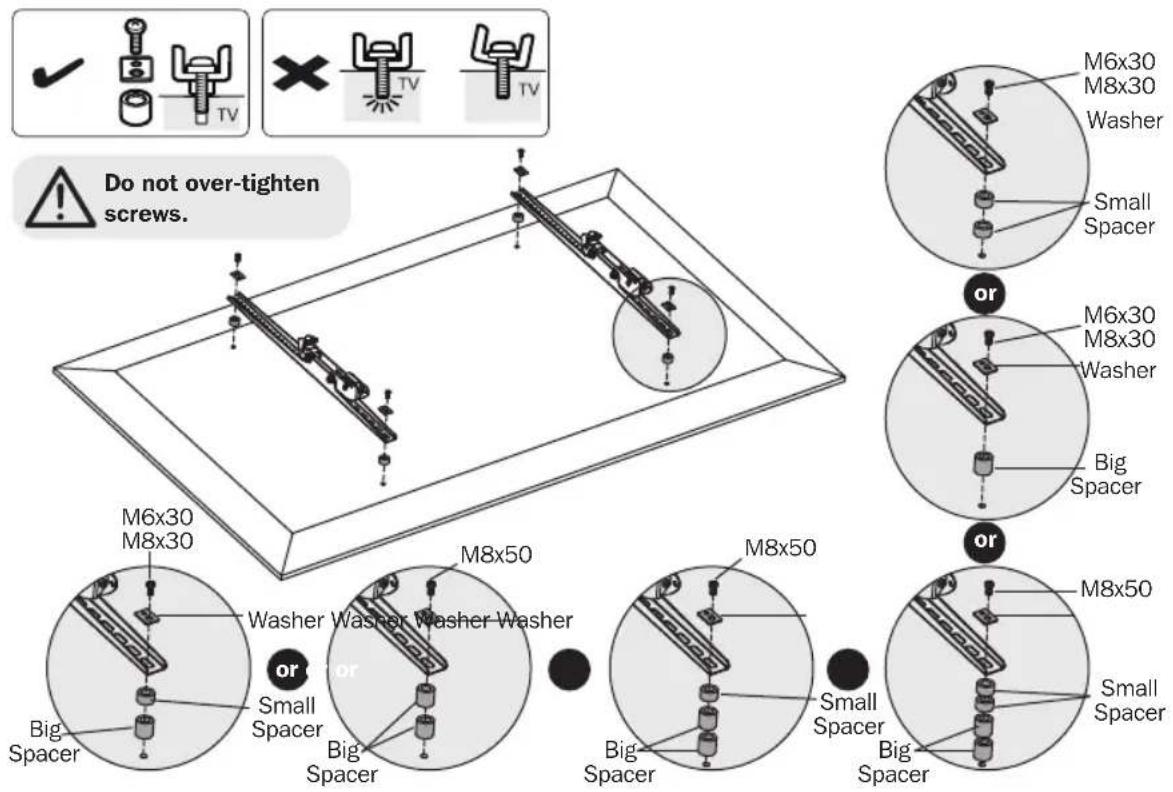

8.2 For Recessed Back Screens or Access to A/V Inputs

- Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

• Position the adapter brackets as close as possible to the center of the display.
• Screw the adapter brackets onto the display.

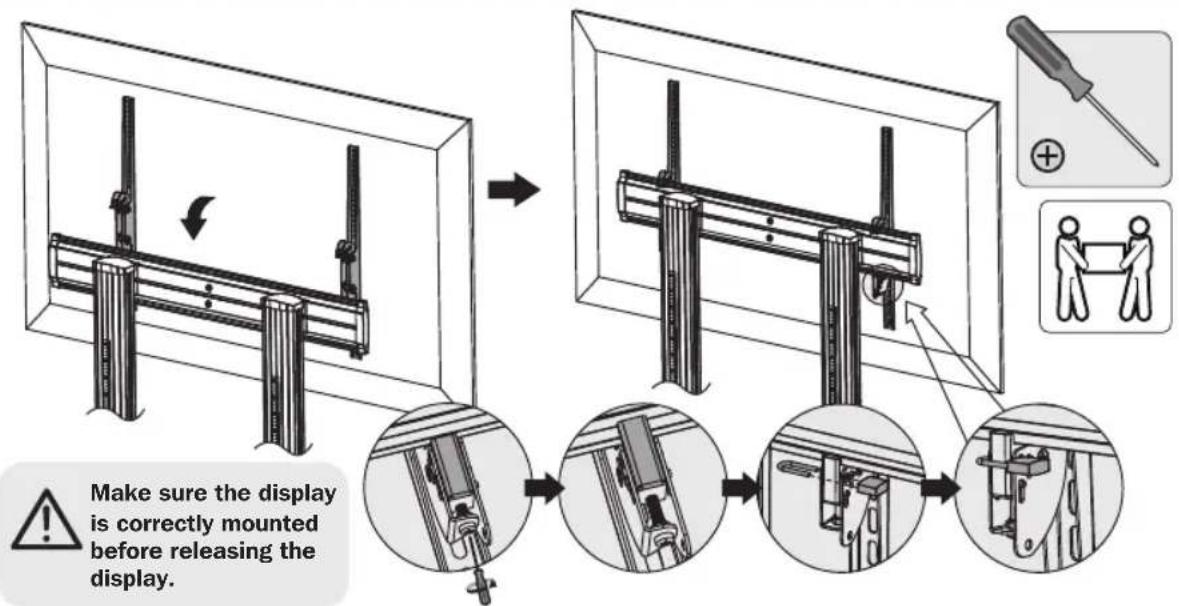

9. Hang the Display onto the Universal Plate

• Hook the adapter brackets (attached to the display) onto the universal plate.
• Rotate the bottom screws counterclockwise to lock.

- Rotate the bottom screws clockwise to unlock. - Use a padlock (not included) to prevent display from being stolen.

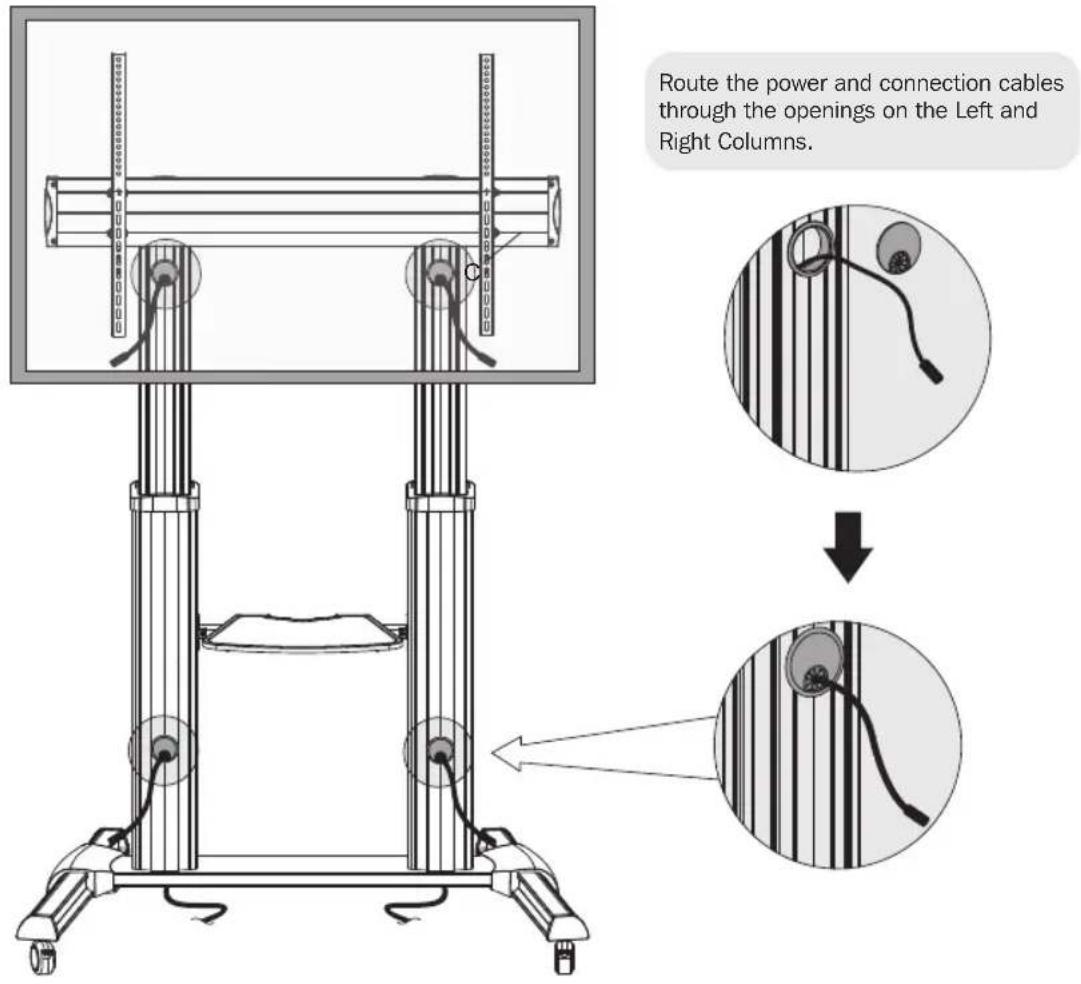

10. Cable Management

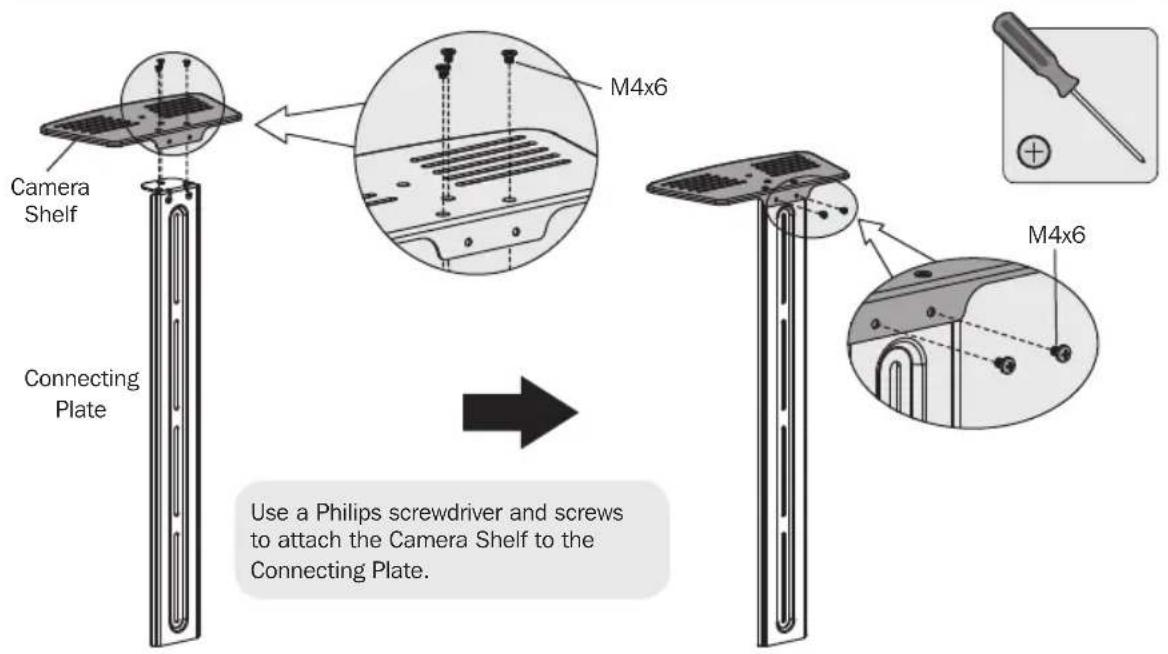

11. Assemble the Camera Shelf

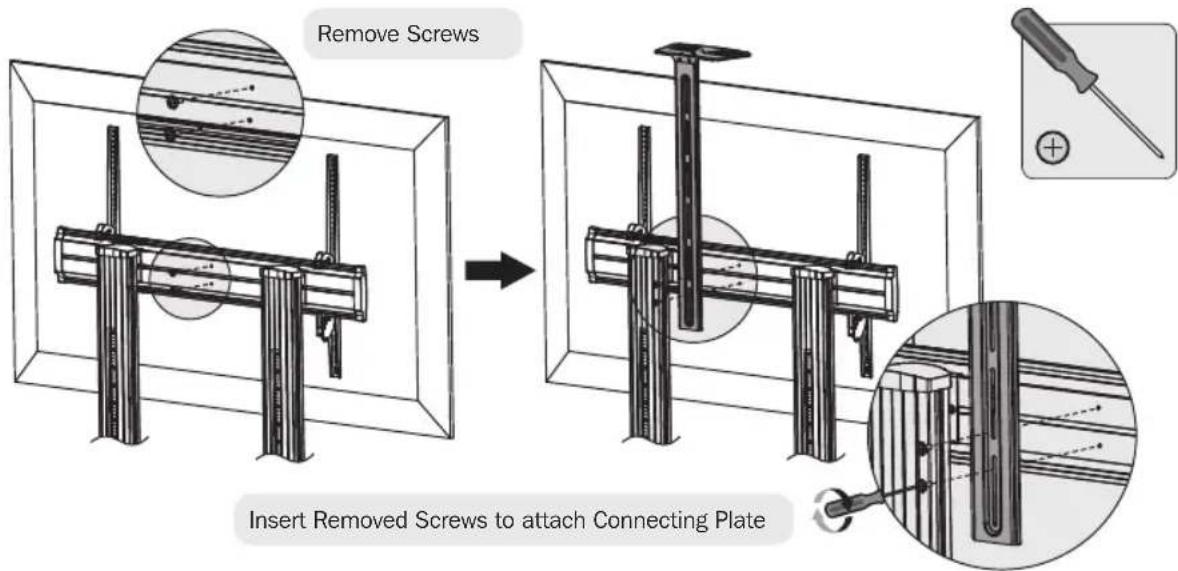

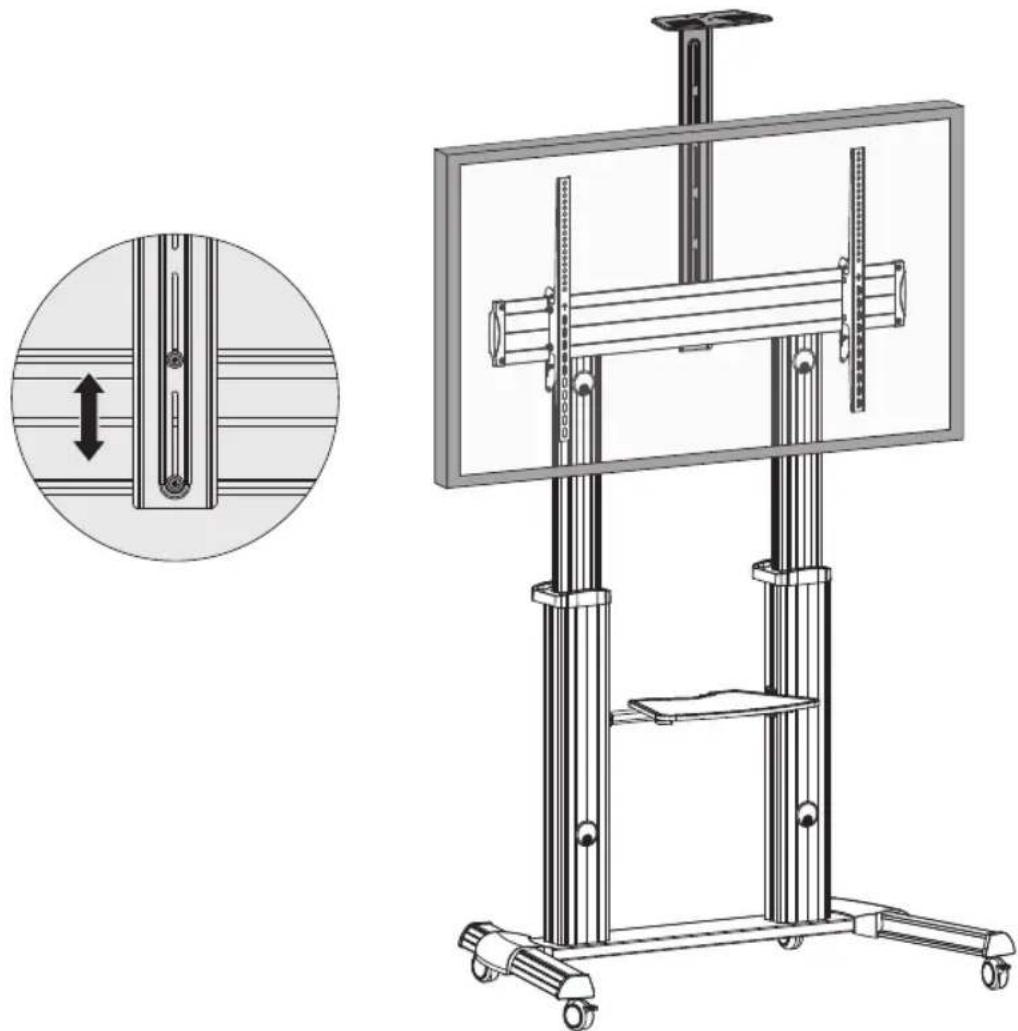

12. Attach the Camera Shelf Assembly to the Universal Plate

Remove the Universal Plate's two rear screws, then attach the Camera Shelf Assembly using the same screws just removed. Adjust the Camera Shelf Assembly to the desired height, then secure by tightening the screws with a Philips screwdriver.

Technical illustration of a mechanical device with a circular inset showing a vertical component and a detailed cross-section view (no text or symbols)

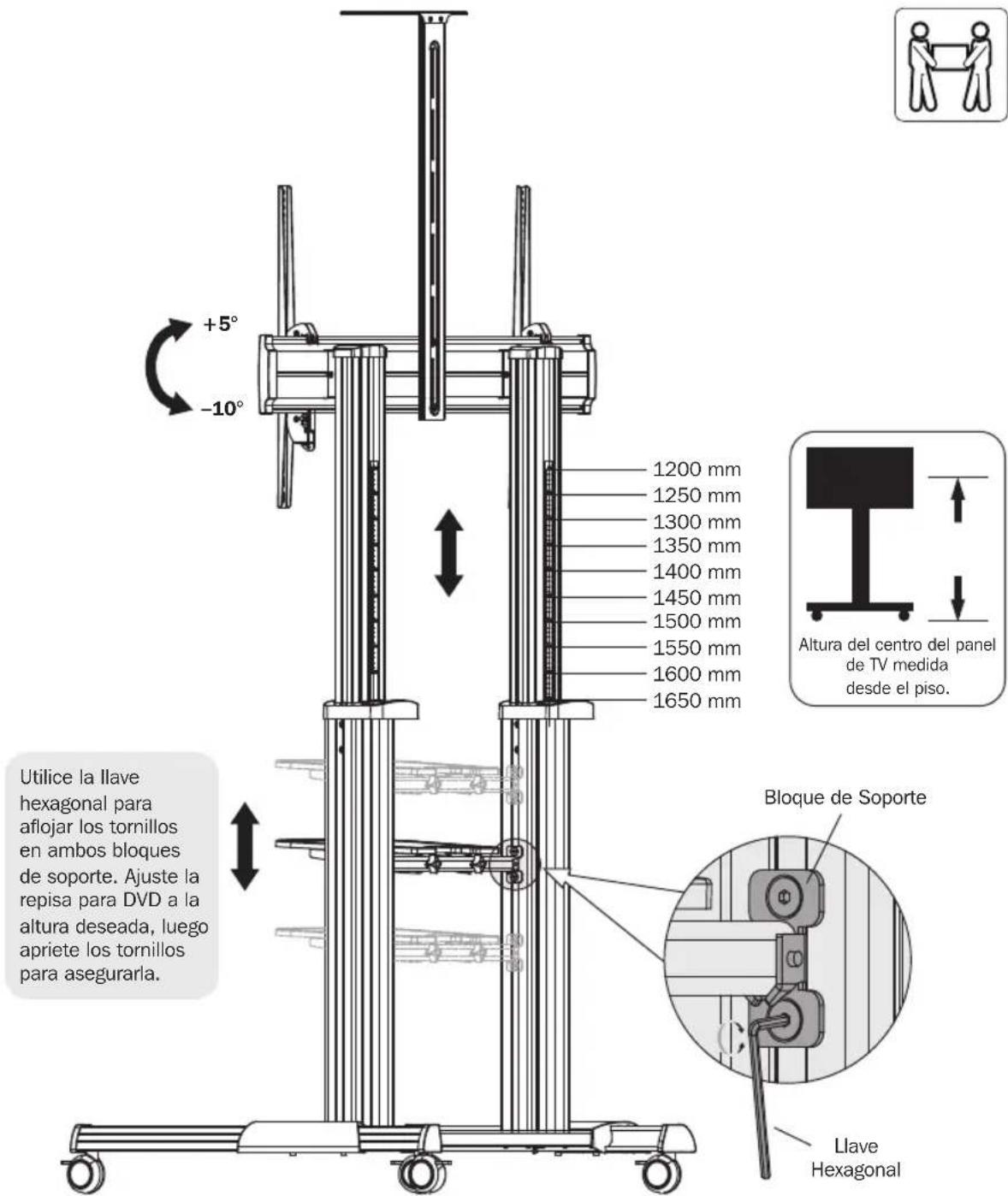

1. Adjustment


Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
  • For any additional questions, visit www.tripplite.com/support.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical illustration of a mechanical lifting device with vertical supports and a central column (no text or symbols)

English 1 • Français 25 • Русский 37 • Deutsch 49

Technical line drawing of a cylindrical mechanical component with internal mounting holes (no text or symbols)

Placa Universal (x1)

Manija de Plástico (x2)

Simple line drawing of a cylindrical mechanical part with a circular hole and a small protrusion (no text or symbols)

Simple line drawing of a cylindrical object with internal features and a small circular mark (no text or symbols)

Technical illustration of a mechanical device with a circular inset showing a vertical component and a side view of its internal structure (no text or symbols present)

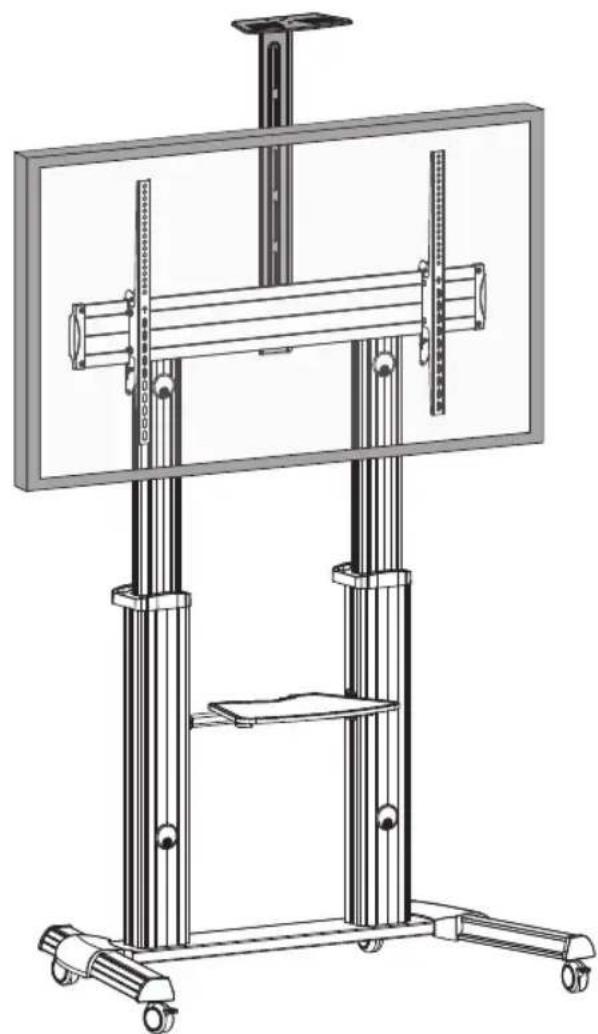

13. Ajuste

Technical illustration of a mechanical lifting device with vertical supports and a central column (no text or symbols)

English 1 • Español 13 • Русский 37 • Deutsch 49

MISE EN GARDE : NE PAS EXCÉDER LA CAPACITÉ PONDÉRALE MAXIMUM INDIQUÉE. CELA RISQUERAIT DE CAUSER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS!

200 × 200 / 300 × 300 / 400 × 200 / 400 × 400 / 600 × 400 / 800 × 400 / 800 × 600 / 1 000 × 600

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical illustration of a mechanical device with a circular inset showing a vertical component and a detailed cross-section view (no text or symbols)

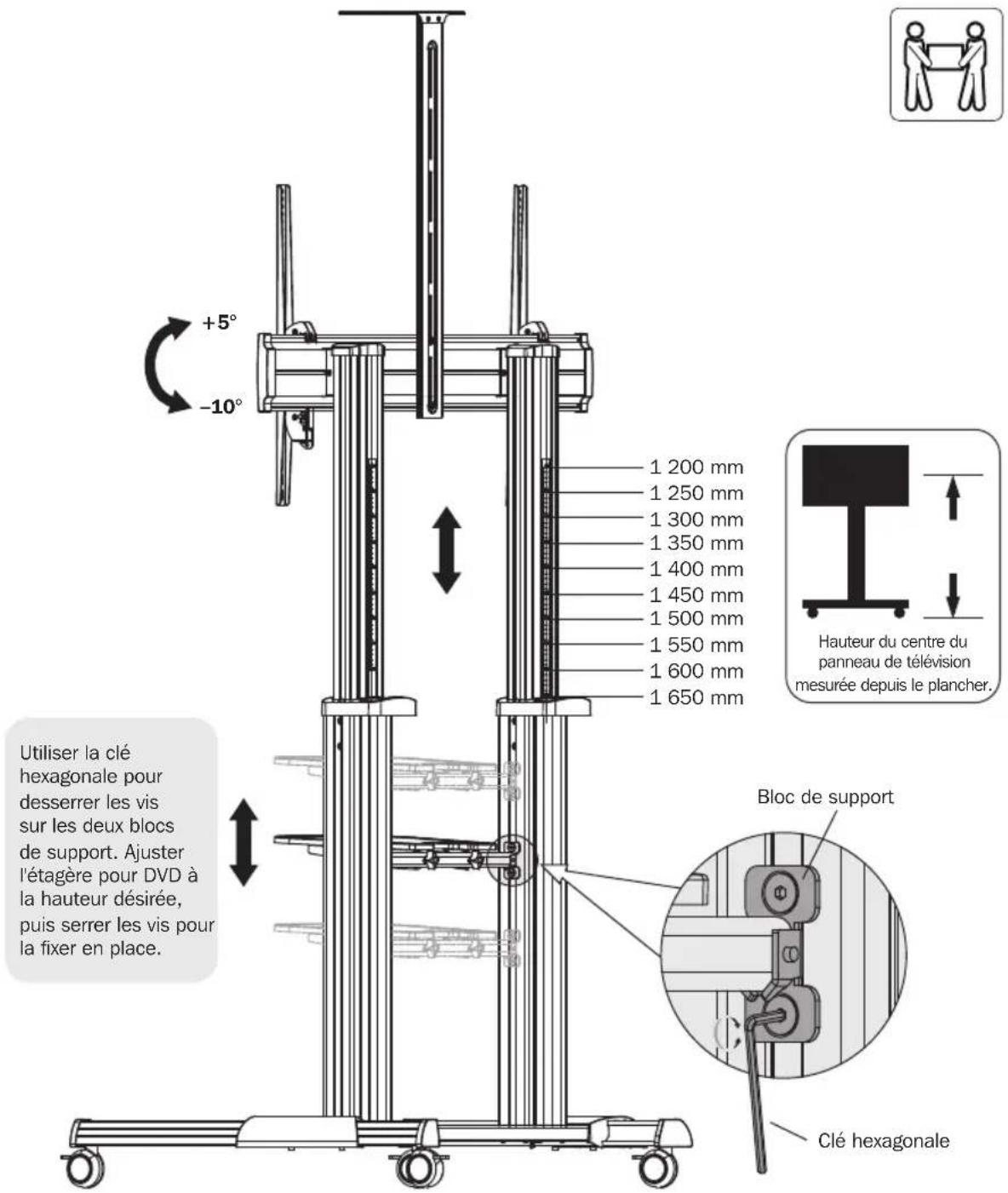

1. Réglage


1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a mechanical lifting device with vertical supports and a central column (no text or symbols)

English 1 • Español 13 • Français 25 • Deutsch 49

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a cylindrical mechanical component with internal mounting holes and mounting holes (no text or symbols)

Simple line drawing of a cylindrical object with a hole and a small protrusion, no text or symbols present.

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a vertical mechanical or structural component with a double-headed arrow indicating vertical displacement (no text or symbols present)

Technical line drawing of a mechanical testing apparatus with vertical supports and a horizontal beam (no text or symbols)

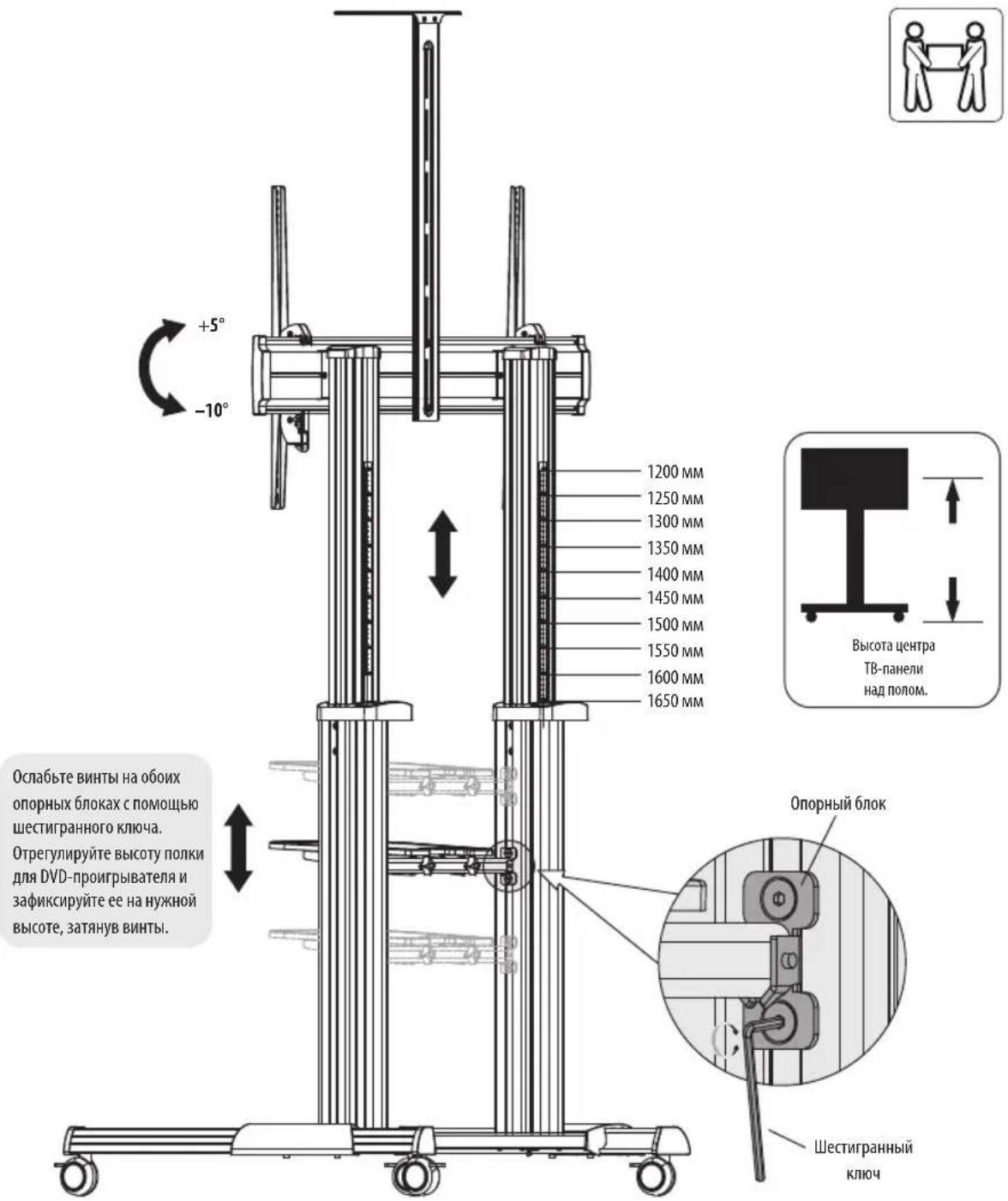

1. Регулировка


1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Bedienungsanleitung

Technical illustration of a mechanical lifting device with vertical supports and a central column (no text or symbols)

English 1 • Español 13 • Français 25 • Русский 37

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Abdeckung links (1 x)

Technical line drawing of a cylindrical mechanical component with internal mounting holes (no text or symbols)

Universalplatte (1 x)

Simple line drawing of a cylindrical object with a circular hole and a small protrusion at the bottom (no text or symbols)

Säule links (1 x)

Pure mechanical shaft diagram without any text, numbers, or symbols

Säule rechts (1 x)

Adapterwinkel links (x1)

Inbusschlüssel (1 x)

Schraubenschlüssel (1 x)

Paket M

M5 x 14 (4 x) M8 x 50M(€ x) 14 (4 x)

M6 x 30 (4 x)

M8 x 30 (4 x)

Beilagscheibe (4 x) Kleiner

Abstandhalter (8 x)

Technical illustration of a mechanical device with a circular inset showing a vertical component and a magnified view of its internal structure (no text or symbols present)

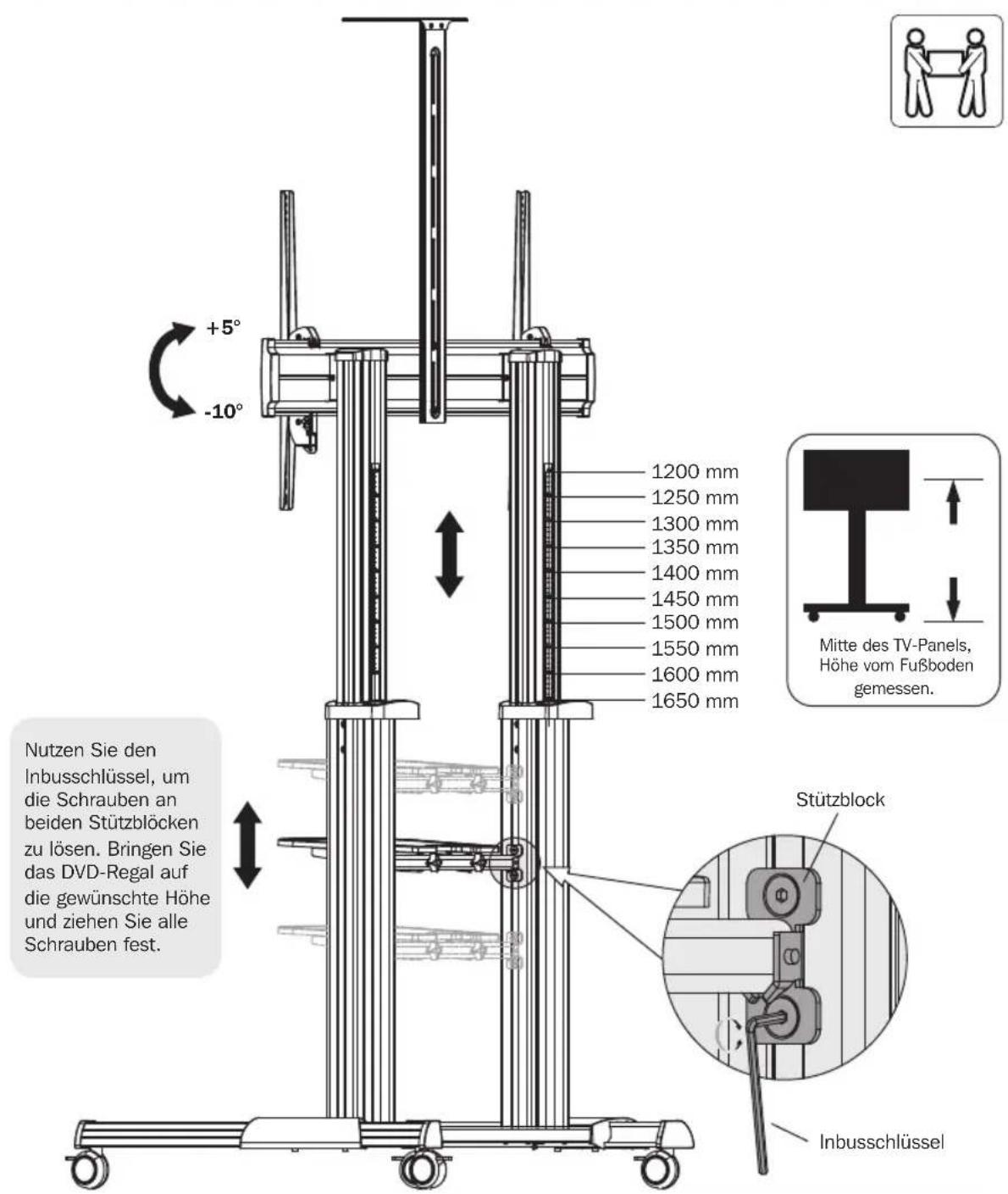

1. Einstellen
