Product Type	Trail camera (game camera)
Brand	Spypoint
Model	Force20
Power supply	8 AA batteries (alkaline or lithium, non-rechargeable)
Photo resolution	20 MP or 3 MP
Video resolution	HD (1280x720) or VGA (640x480)
Video length	10 to 60 seconds per clip
Trigger delay	Adjustable (time interval before new detection)
Timelapse mode	Yes, photos at regular intervals without detection
Motion sensor	Adjustable sensitivity: Low, Normal, High, Auto
Night vision	Infrared LEDs with two modes: Optimal or Boost
Screen	Built-in LCD
Memory card	SD/SDHC, Class 10, 2 to 32 GB
Tripod thread	Standard 1/4 inch - 20
12 V jack	Yes, for external power supply
Warranty	2 years ('You're Covered' warranty)
Interface languages	French, English, German
Display temperature	°C or °F, adjustable
Box contents	Camera, mounting strap, quick start guide

Frequently Asked Questions - Force20 Spypoint

How to insert and format the SD card?

Insert the SD card (Class 10, 2 to 32 GB) into the slot, following the indicated direction, until it clicks. Then, set the switch to SETUP, press OK, go to OTHER OPTIONS > FORMAT to format the card. Warning: this erases all data.

Which batteries to use?

Use 8 new AA batteries, either all alkaline or all lithium. Do not mix types or new and used batteries. Do not use rechargeable batteries (voltage too low).

How to adjust the motion sensor sensitivity?

In PHOTO or VIDEO mode, in the menu, select the DETECT option and choose from Low, Normal, High, or Auto. Confirm with OK.

How to set up video mode?

Set the switch to SETUP, press OK to enter the menu, then select VIDEO MODE. Adjust the delay, quality (HD/VGA), duration (10 to 60 seconds), and detector sensitivity.

What does the flashing red light at the front mean?

In SETUP position, the red light flashes to indicate detection is active. When switching to ON, it flashes for 30 seconds to let you walk away, then turns off: the camera is ready.

How to reset to default settings?

In the SETUP menu, go to OTHER OPTIONS, then choose DEFAULT and confirm. All parameters will be reset to factory values.

What installation height is recommended?

Mount the camera at the height of the center of the target animal's body. The ideal distance from the animal is about 7.5 meters for a good field of view. Avoid backlighting and branches in front of the detector.

How to use timelapse mode?

In the menu, select TIMELAPSE MODE. You can choose the time interval between photos. The camera will take photos at regular intervals, even without motion detection.

The camera does not take photos, what to check?

Check: 1) The switch is ON. 2) Batteries are properly inserted and new. 3) SD card is inserted and formatted. 4) The detector is not obstructed. 5) Sensitivity is not too low. Consult the online FAQ for more help.

Where to find technical support and updates?

Visit www.spypoint.com/support for manuals, FAQ, and updates. You can also use live chat or send an email to [e-mail].

USER MANUAL Force20 Spypoint

QUICK START GUIDE

FORCE-20 AND COMPARABLE \* v.1.7

IN THE BOX

1x Camera
1x 16 GB SD card
1x Installation strap
1x Quick Start Guide

NOTE

Batteries sold separately.

User Manual, software updates & FAQs available at: www.spypoint.com/support.

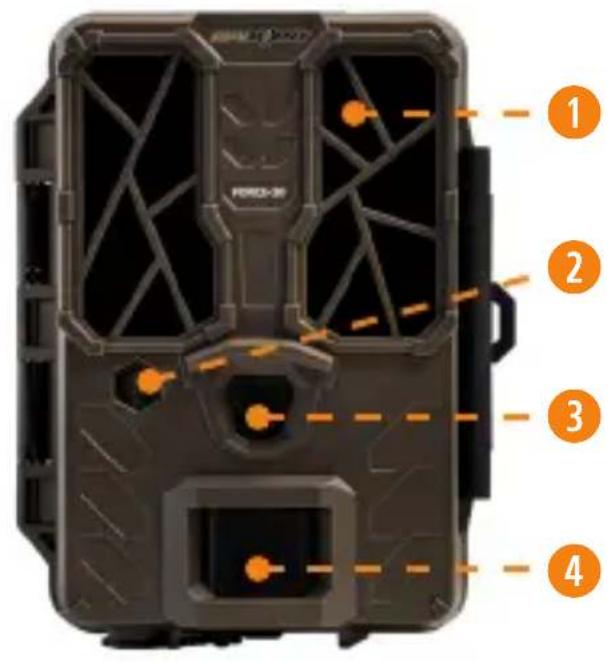

COMPONENTS

1 LED
2 Light sensor
3 Photo lens
4 Detection lens

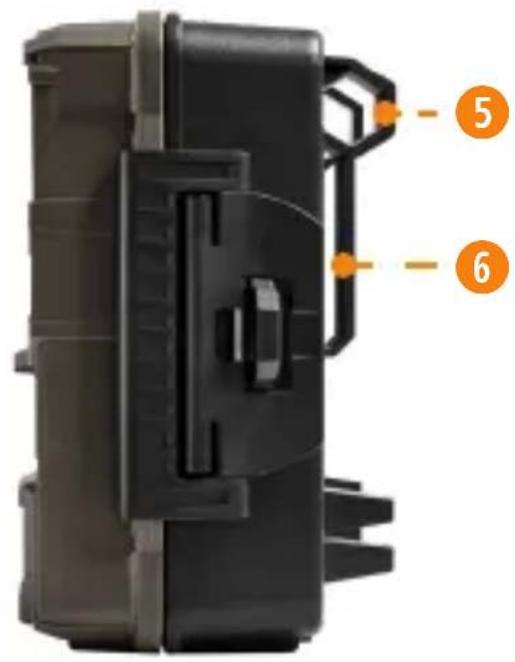

5 Locking latch
6 Slot for installation strap

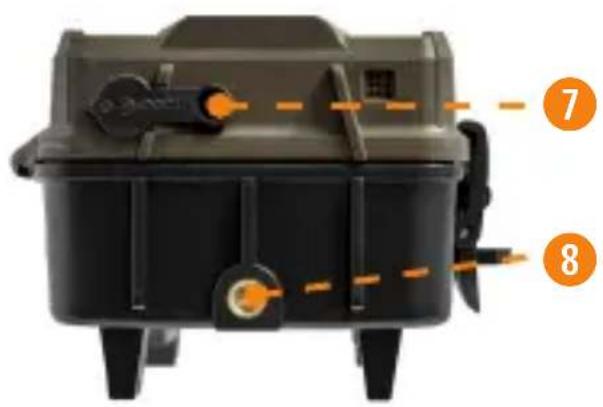

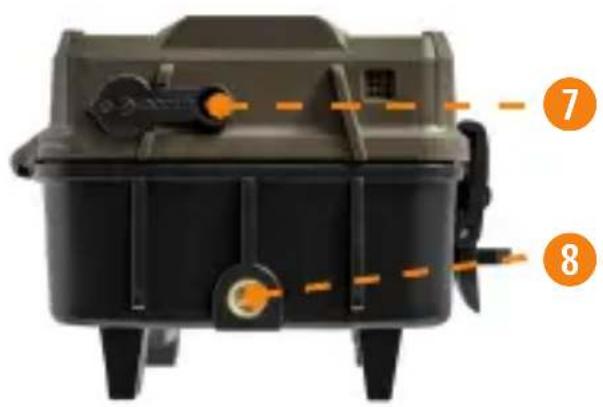

7 12 V jack

8 Screw-thread for standard 14 "-20

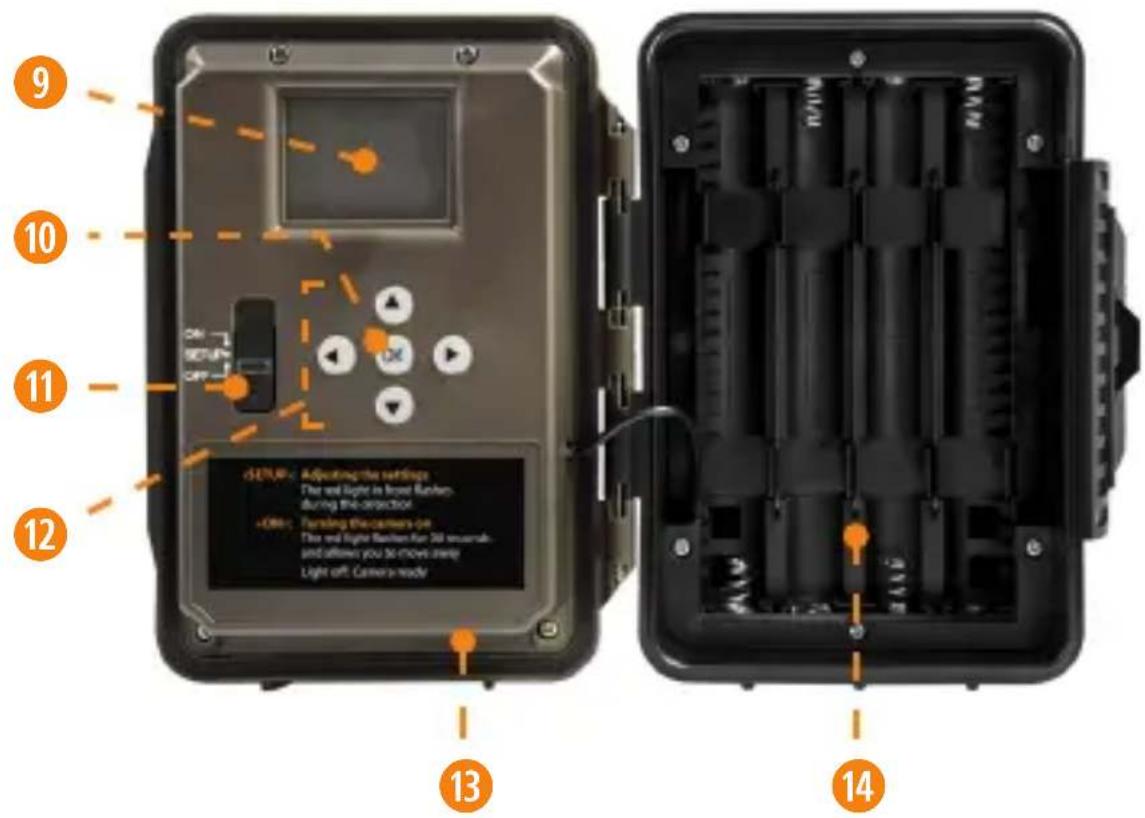

9 LCD screen
10 OK button
11 Switch ON/SETUP/OFF
12 Navigation buttons
13 SD card slot
14 Battery compartment

Close-up of a black plastic device with labeled parts (5 and 6), no readable text or symbols beyond labels

ENGLISH

Close-up of a portable electronic device with labeled parts (7 and 8), no visible text or symbols on the body itself.

The specifications and characteristics of similar models may vary. Refer to the website or packaging for details.

PREPARATION

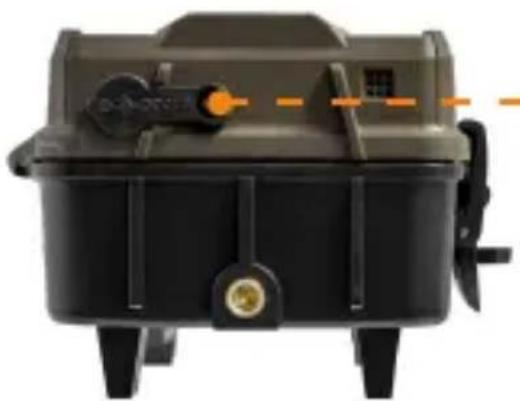

SELECT A POWER SOURCE

Close-up of a military-style portable device with black casing and orange warning label (no visible text or symbols)

12V

power source

8 AA alkaline or lithium batteries

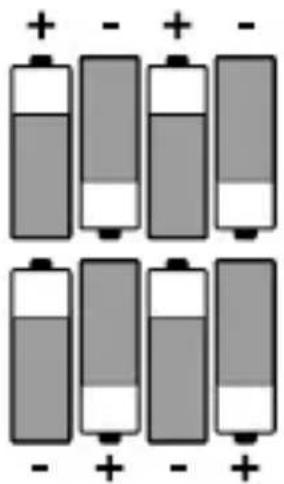

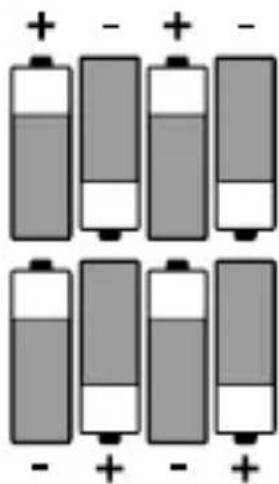

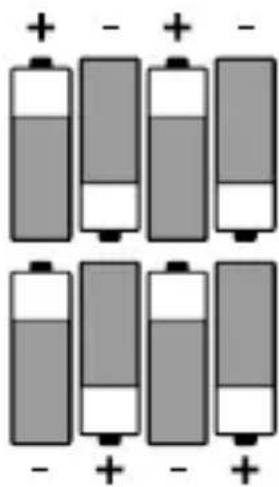

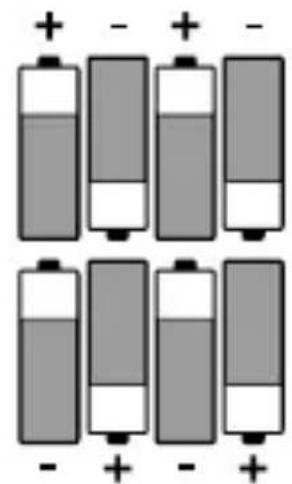

Make sure to insert the AA batteries according to their polarity (+) and (-).

FOR MAXIMUM PERFORMANCE AND WITHOUT LEAKING BATTERIES

• Use new batteries.
• Use ONLY alkaline or ONLY lithium batteries.
• Do not mix new and old batteries.
• Do not use rechargeable AA batteries, as their lower voltage may cause operating difficulties.

INSTALLING AN SD CARD

The camera was designed to operate with an SD card, class 10, between 2 and 32 GB of memory.

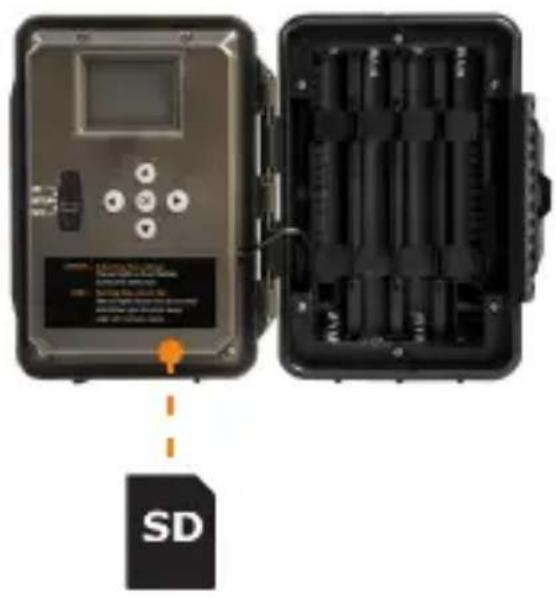

INSERT AN SD CARD

• Make sure the camera is turned OFF.
- Locate the SD card slot. It is on the right, above the LCD screen (see diagram).
- Insert an SD card (up to 32 GB) in the slot and make sure to respect the direction indicated in the diagram.
- The card is inserted correctly when a click is heard.

FORMAT YOUR SD CARD

Before inserting the SD card in your camera, it must be formatted to ensure proper operations. See section OTHER OPTIONS on page 8 for an explanation of the formatting process.

SETUP

Use the ▲▼◀▶ buttons to switch to the LCD display or to change options, and press OK to select. Several setup pages will be displayed.

GENERAL SETTINGS SETUP

1. To turn the camera ON/OFF, use the ON/SETUP/OFF switch.
2. The switch must be on SETUP to make your initial changes.

3. When the switch is on SETUP, press OK to open the MENU:

4. Set the language (English, Français, Deutsch)

5. Set the date (DD/JJ/YYYY or DD/MM/YYYY)
6. Set the time (12 h or 24 h)
7. Set the temperature (°F/°C)

ADJUST THE SETTINGS FOR THE 3 MODES OF OPERATION

PHOTO MODE

Delay: Allows you to select the time elapsed before the camera can detect again and take the next photo.

If you want to capture multiple photos, use a shorter delay.

Once you have selected the delay, press OK.

Quality: Allows you to select a resolution of 20 MP or 3 MP. Once you have made your selection, press OK.

Multi: Allows you to select the number of photos to be taken per shot (from 1 to 5 photos). Once you have made your selection, press OK.

Detect: Allows you to set motion-detector sensitivity (LOW, NORMAL, HIGH, AUTO). Once you have made your selection, press OK.

VIDEO MODE

Delay: Allows you to select the time elapsed before the camera can detect again and take the next video.

Quality: Allows you to choose between HD and VGA. Once you have made your selection, press OK.

Length: Allows the user to choose the video length (10 to 60 s). Once you have made your selection, press OK.

Detection: Allows you to set motion-detector sensitivity (LOW, NORMAL, HIGH, AUTO). Once you have made your selection, press OK.

TIME-LAPSE MODE

Allows you to take photos at regular predefined intervals without necessarily detecting a movement.

Night: Choose the BOOST option for maximum brightness for night vision. Select the OPTIMAL to reduce fuzziness at night. Once you have made your selection, press OK.

	OPTIMALMODE	BOOSTMODE
Invisibility of the LEDs	★★★★★	★★★★★
Battery life	★★★★★	★★★★★
Flash range	★★★★★	★★★★★
Blur reduction	★★★★★	★★★★★

OTHER OPTIONS

Name: Allows to give a name to your camera.

About: Indicates the software version.

Default: Resets all default settings.

Format: Allows the camera to format the SD card the next time it is used. (Reformatting the SD card will delete all photos and videos on the card. Only format the card if you are sure you want to delete everything on it. Transfer all data to your computer beforehand).

OPERATION

Once the setup is complete, turn the button from SETUP to ON.

You may also switch from SETUP to OFF and turn the device ON later.

RED LIGHT ON THE FRONT OF THE CAMERA

When the switch is in the SETUP position, the red light will flash to confirm a motion detection once you have adjusted your settings.

When you move the switch to the ON position, the red light at the front of the camera will flash for 30 seconds to allow you to move out of the camera's field of view.

When the light turns off, the camera is ready for use.

INSTALLATION

Recommended height of installation:

The camera must be installed at the height of the centre line of the animal's body.

Ideal setup for high-quality images and videos:

The target animal should be 7.5 m from the camera to get a better line of sight.

To produce brighter photos at night, there should be items reflecting the camera's flash in the background.

Please note that the camera should never be directly pointed at the sun to avoid back lighting and faulty detections.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.

Operation is subject to the following two conditions:

1. This device must not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

To ensure that you use your trail camera optimally and that it precisely meets your needs and ultimately to ensure greater success as a hunter, SPYPOINT offers you a range of useful additional digital features.

For more details on the SPYPOINT EXPERIENCE, refer to the following website www.spypoint.com/en/experience-spypoint.

DISPOSAL

ONLY USE ORIGINAL SPARE PARTS AND ACCESSORIES.

If, one day, your camera has been used so intensively that it has to be replaced, or if you no longer have any use for it, you are obliged to dispose of it at a recycling center.

Information on return points for your electrical appliance can be obtained from your local waste disposal company or from your local administrative offices.

Electrical appliances not only contain valuable recyclable raw materials, but also substances which, if disposed of improperly, can affect public health and the environment. Help ensure that valuable raw materials are recycled by returning your old appliance to a central collection point.

The WEEE (Waste Electrical and Electronic Equipment Directive) symbol represents the obligation of the labeled camera to be sent to a separate center for the proper recycling of electrical and electronic equipment.

THANK YOU FOR CHOOSING

WARRANTY

Sit back and relax as this device is covered by the "Know you're covered" 2-year warranty. We strive to provide our customers with a positive experience and an outstanding service.

For a complete list of specifications, features, and settings, visit our FORCE-20 page at www.spypoint.com.

FAQ, User Manual & latest firmware available at www.spypoint.com/support

Live chat support at www.spypoint.com or email support at [e-mail]

Join the community

GUIDE DE DÉMARRAGE RAPIDE FORCE-20 ET COMPARABLES*

DANS LA BOÎTE

1x Caméra

1x Carte SD 16 Go

Close-up of a black plastic device with labeled parts (no text or symbols visible)

FRANÇAIS

Close-up of a military-style device with labeled parts (7 and 8), no visible text or symbols beyond numbered annotations.

8 piles AA alcalines ou lithium

Close-up of a black plastic device casing with labeled parts (no text or symbols visible)

Close-up of a portable electronic device with labeled parts (7 and 8), no visible text or symbols beyond numbered annotations.

Close-up of a black portable electronic device with visible ports and control buttons (no text or symbols)

12V

Stromquelle

Close-up of a black plastic device with labeled parts (5 and 6), no readable text or symbols beyond labels

Close-up of a black mechanical device with orange annotations pointing to parts 7 and 8 (no text or symbols on the device itself)

Close-up of a black cylindrical device with a rotary knob and mounting feet, no visible text or symbols.

Close-up of a black plastic device with labeled parts (5 and 6), no readable text or symbols beyond labels

Close-up of a portable electronic device with labeled parts (7 and 8), no visible text or symbols on the body itself.

Close-up of a portable electronic device with black casing and orange control knob (no visible text or symbols)

Zdroj napájení 12 V

NASTAVTE NASTAVENÍ PRO 3 REŽIMY PROVOZU

PHOTO MODE (REŽIM FOTO)

Close-up of a black plastic device with labeled parts (5 and 6), no readable text or symbols beyond labels

Close-up of a portable electronic device with labeled parts (7 and 8), no visible text or symbols beyond labels

NASTAVTE NASTAVENIA PRE 3 REŽIMY PREVÁDZKY

PHOTO MODE (REŽIM FOTO)

Close-up of a black plastic device casing with labeled parts (no text or symbols on the body)

Close-up of a portable electronic device with labeled parts (7 and 8), no visible text or symbols beyond labels

SÄÄDÄ ASETUKSET 3 KÄYTTÖTILAAN

Close-up of a black plastic device casing with labeled parts (no text or symbols on the body)

ESPAÑOL

Close-up of a portable electronic device with labeled parts (7 and 8), no visible text or symbols beyond labels

Close-up of a black portable device with control knobs and a yellow indicator light (no visible text or symbols)

Close-up of a black plastic device with labeled parts (no text or symbols visible)

ITALIAN

Close-up of a portable electronic device with labeled parts (7 and 8), no visible text or symbols on the body itself.

Close-up of a portable electronic device with black casing and orange control knob (no visible text or symbols)

Alimentazione 12 V

Grid of six battery cells with varying internal charge levels (no text or symbols)

EU DECLARATION OF CONFORMITY (NO.SPO132)

Product Description: FORCE-20 Camera

Model: FORCE-20

Brand: SPYPOINT

Manufacturer: SPYPOINT

Address: 330 de la Jacques-Cartier

Victoriaville, Qc Canada

G6T 1Y3

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Community harmonisation legislation:

2014/30/EU Electromagnetic Compatibility (EMC)

2011/65/EU The restriction of the use of

certain hazardous substances

Directive (ROHS)

(EU)2015/863

References to the relevant harmonised standards used or references to the specifications in relation to which conformity is declared:

EMC:

EN 55032:2015

EN 55024:2010+A1:2015

ROHS:

IEC 62321-1:2013

IEC 62321-2:2013

IEC 62321-3-1:2013

IEC 62321-4:2013

IEC 62321-5:2013

IEC 62321-6:2015

IEC 62321-7-1:2015

IEC 62321-7-2:2017

IEC 62321-8:2017

Additional information:

The product carries the

CE Mark.

Signed for and on behalf of:

SPYPOINT

Place of issue: Victoriaville

Date of issue: April 1 ^st , 2020

Name and position: Yan Gagnon, CEO

Signature:
