USER MANUAL U442DOCK15S Tripp Lite

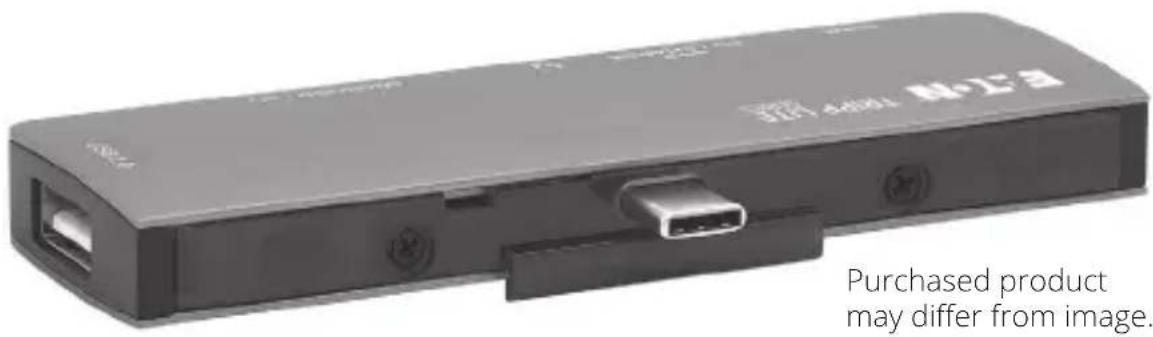

Removable Clip for Laptops and Tablets

Model:

U442-DOCK15-S

USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.

M2.3 Purchased product may differ from image.

Español 9

Français 16

Deutsch 23

Italiano 30

Product Features

• On-the-go docking station connects to a USB-C port to give your device HDMI video, audio, data and memory card ports.
• USB-C Power Delivery (PD) 3.0 port provides up to 60W of power to your USB-C enabled device.
• Sends crystal-clear 4K x 2K @ 30 Hz video signals to a 4K-enabled HDMI TV or projector.
• USB 2.0 Type-A port supports data transfer speeds up to 480 Mbps and is backward compatible with USB 1.1.
• SD and Micro SD memory card slots can be used simultaneously and support 5 Gbps transfer speeds.
• Listen to music or record a podcast using the available 3.5 mm audio port.
  • HDMI 1.4 and HDCP 1.4 compliant.
• Plug-and-play design, no external power or drivers needed.

Package Contents

• U442-DOCK15-S
- Owner's Manual

Optional Accessories:

• P312-Series 3.5 mm Mini Stereo Audio Cables
• P569-Series High-Speed HDMI Cables
• U050-XXX-GY-MAX Heavy-Duty USB-A to USB Micro-B Cables

Product Overview

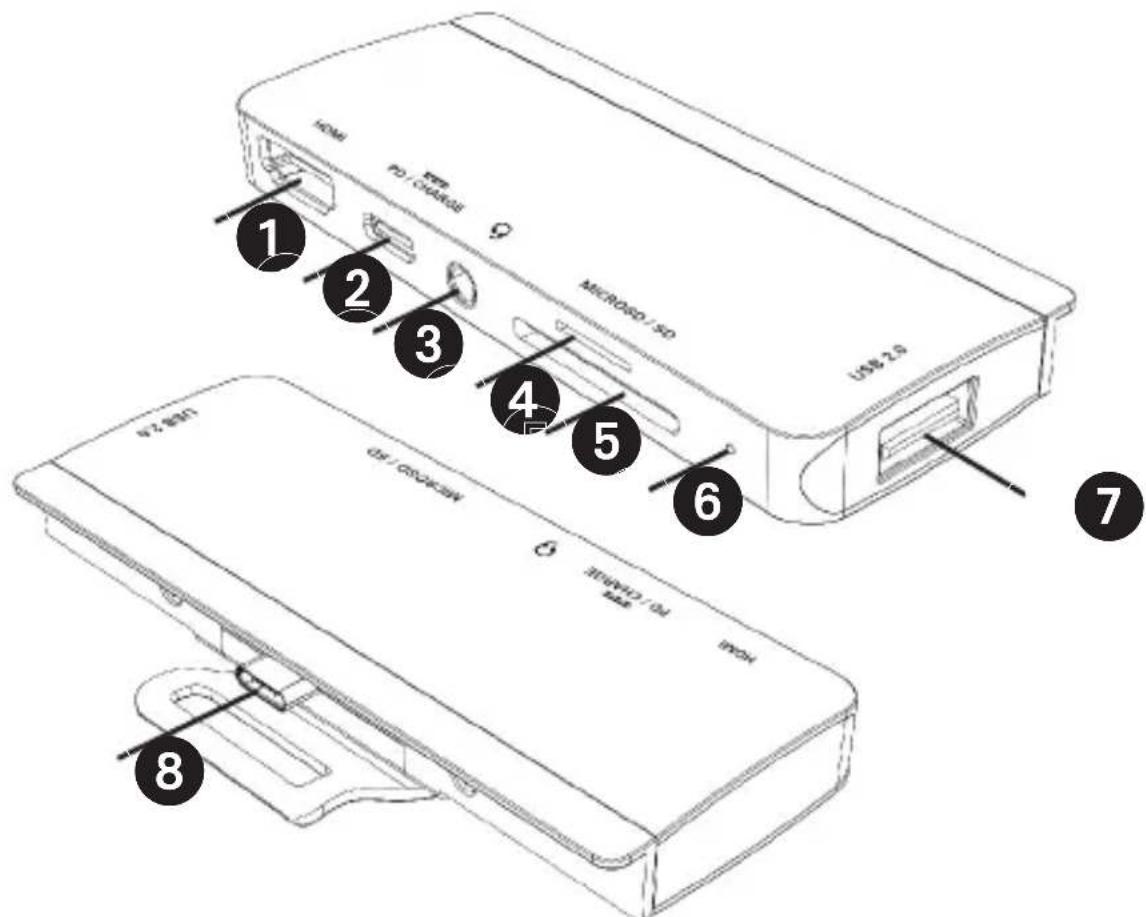

HDMI PD / CHARGS MICROSO-SD USB 2.0 1 2 3 4 5 6 7 V2.8 MB USB / CHARGS F0 / CHARGE HDMI

① HDMI Port: Supports resolutions up to 4K x 2K (3840 x 2160) @ 30 Hz
② USB-C Port: Supports PD 3.0 Charging up to 60W (20V/3A)
3 3.5 mm Audio Port: Supports audio output and microphone input
4 Micro SD Card Slot
⑤ SD Card Slot
6 LED: Illuminates white when power is supplied
⑦ USB 2.0 Type-A: Supports data transfer rates up to 480 Mbps
⑧ USB 3.2 Gen 1 Type-C (Male)

Installation

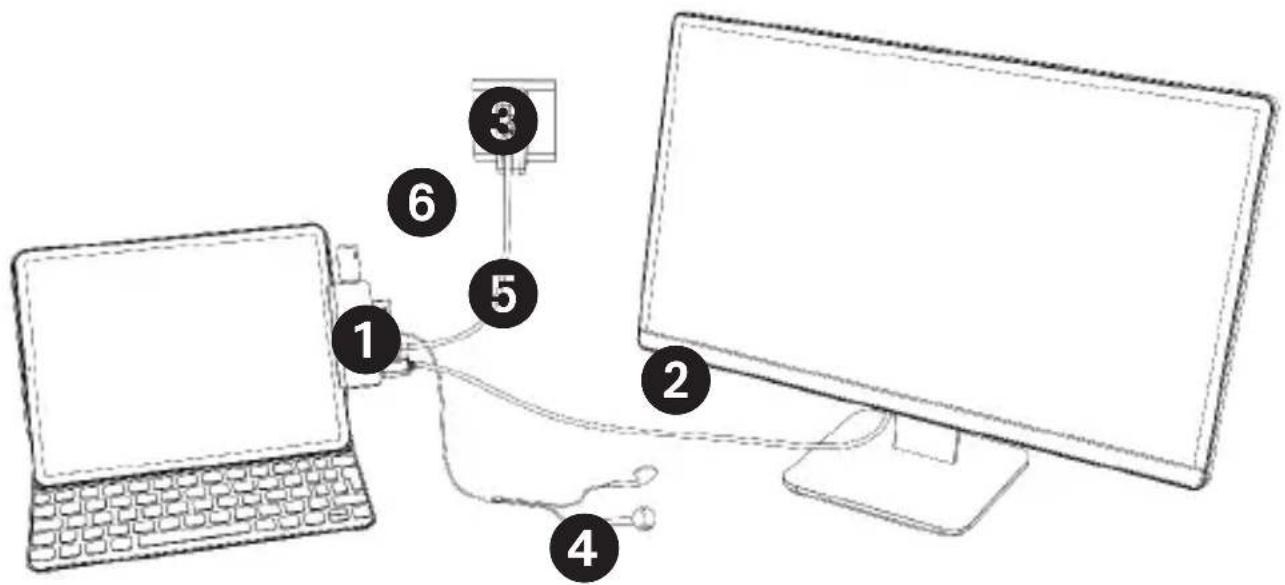

Diagram showing a computer connected to two monitors via cable, labeled with numbered components.

1 Connect the USB 3.2 Gen 1 Type-C male connector to your USB-C enabled device.

Note: Insert until the clip is fully secured to your device or until a click is heard.

2 Using an HDMI cable, such as P569-Series (sold separately), connect the HDMI port to your monitor, TV or projector.
3 Connect your USB-C device's power supply or adapter to the available USB-C PD 3.0 port.
4 Connect headphones or a microphone to the 3.5 mm port.
5 Insert an SD or Micro SD memory card into the corresponding slot to access external memory.

Note: Both memory card slots can be used simultaneously.

6 Transfer data up to 480 Mbps using the USB 2.0 Type-A port.

Specifications

Input Connector
USB-C (x1) USB 3.2 Gen 1 Type-C (Male)
Output Connectors
USB-A (x1) USB 2.0
USB-C (x1) USB-C PD Charging	Only
HDMI HDMI
Audio 3.5 mm
Memory Cards (x1) SD, (x1) Micro SD
Environmental
Operating Temperature 32°F to 122°F (0°C to 50°C)
Operating Humidity 10 to 90% RH, Non-Condensing
Storage Temperature -4°F to 158°F (-20°C to 70°C)
Storage Humidity 0 to 95% RH, Non-Condensing
Mechanical
Unit Dimensions	1.3 x 3.9 x 0.5 in. (33 x 99 x 12.7 mm)
Unit Weight 0.1 lb. (0.05 kg)
Specifications
HDMI Specification 1.4
HDCP Specification 1.4
Max Supported Video Resolution(s)	HDMI: 3840 x 2160 @ 30 Hz
Support Color Depth (HDMI) 36 bit (12 bits per channel)
Chroma Subsampling (HDMI) YCbCr: 4:4:4, 4:2:2, 4:2:0
Audio Specifications Stereo Audio and Microphone Input
PD Charging Specification PD 3.0 (60W)

Warranty

3-Year Limited Warranty

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
