USER MANUAL U442DOCK11S Tripp Lite

USB 3.2 Gen 1 USB-C Aluminum Docking Station

Model:

U442-DOCK11-S

PD Charging

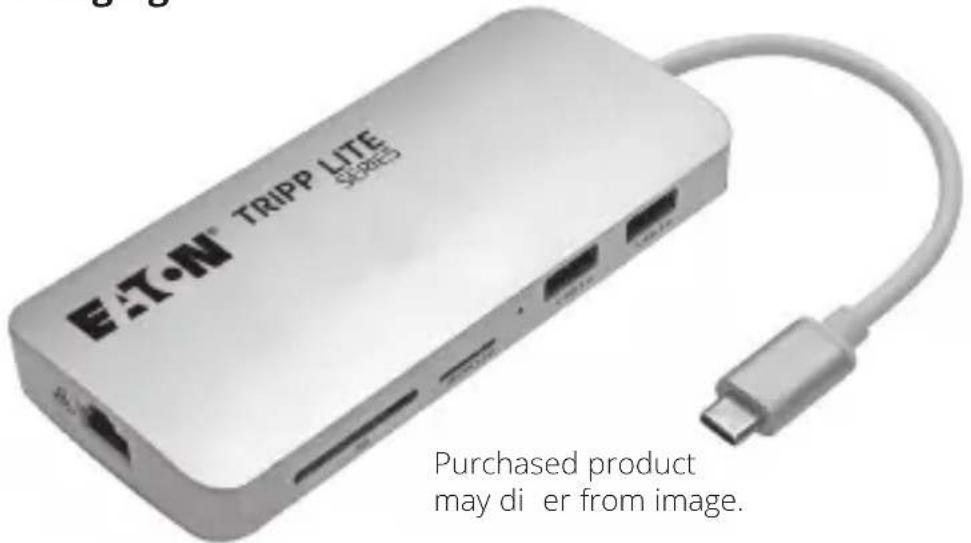

Purchased product may differ from image.

Espanol 13

Francais 24

Deutsch 35

Italiano 46

Package Contents

U442-DOCK11-S
- Owner's Manual

Optional Accessories

• N201-Series Cat6 Gigabit Snagless Patch Cables
• P566-Series HDMI to DVI Adapter Cables
• P569-XXX-CERT* Series High Speed HDMI Cables
  U322-Series USB A/B Device Cables
  U326-Series USB Micro-B Device Cables
• U420-003-G2-5A USB 3.2 Gen 2 (10 Gbps) USB-C M/M Cable with 5A rating, 3 ft.
• U428-003 USB 3.2 Gen 1 (5 Gbps) Cable, USB-C to USB-A M/M, 3 ft.

*XXX represents length, in feet (e.g. 003 for 3 ft., 006 for 6 ft., etc.).

System Requirements

• Computer with USB-C® port that supports USB DisplayPort Alternate Mode
• DVI* or HDMI monitor
• Ethernet network with speeds up to 10/100/1000 Mbps

*Requires an adapter. See Optional Accessories for more information.

USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum

Product Features

Supports USB DisplayPort Alternate Mode for connecting an HDMI monitor
Supports connection of a DVI monitor (HDMI to DVI adapter required, sold separately)
• HDMI port supports 4K UHD video resolutions up to 3840 x 2160 @ 30 Hz
- Ethernet port supports true 10/100/1000 Mbps network speeds
- USB-A hub ports support data transfer rates up to 5 Gbps
- Micro SD and SD/MMC memory card slots provide external memory access
- USB-C port supports USB 3.2 Gen1 data transfer rates up to 5Gbps, and power input up to 20V 3A (60W)
- Automatically resumes operation from hibernation and suspend modes
- Complies with IEEE 802.3az (Energy Efficient Ethernet)

Product Features

Supports full- and half-duplex operations
Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading
Supports Wake-on-LAN
- Plug and play—no software, drivers or external power supply required

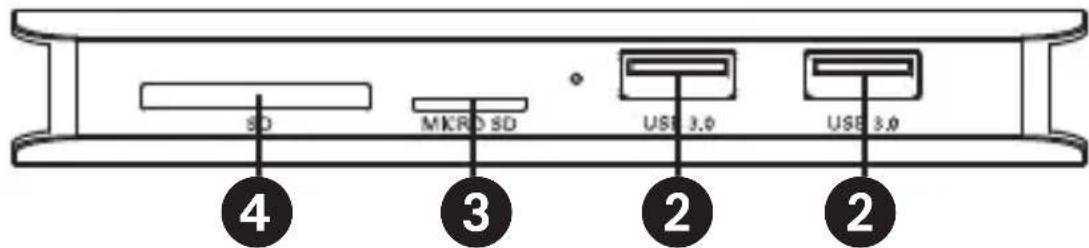

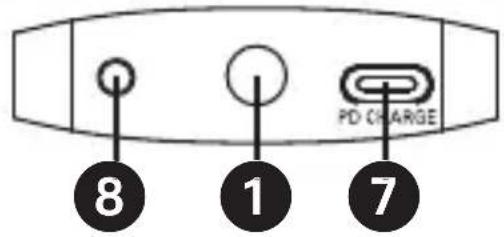

Product Overview

USB-C Connector with Built-In Cable
USB-A Ports
Micro SD Memory Card Slot
SD/MMC Memory Card Slot

Rj45 Ethernet Network Port

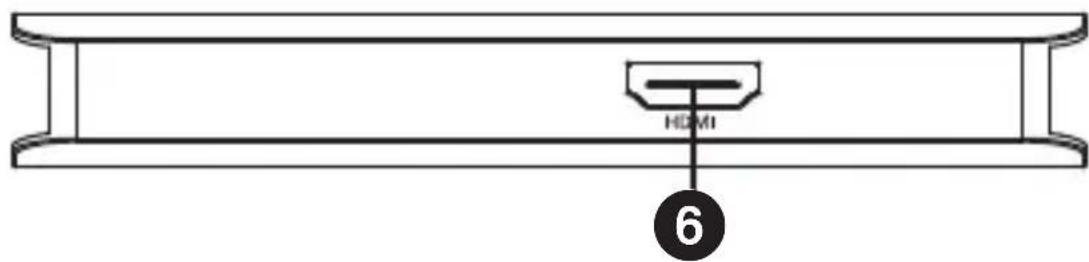

6 4K HDMI Port
USB-C Data/Charging Port
(Optional) 5V DC Power Jack

Installation

Notes:

• Both memory card slots can be used at the same time.
• When connected to an AC power source by way of the USB-C charging port, 5W is dedicated to the docking station and connected USB peripherals. The remaining power is used to charge the connected USB-C device.
  See Optional Accessories section for suggested cables.
• When the unit is connected to the USB-C port on your computer and to a network via Cat5e/6 cabling, a network connection will automatically be established. If no connection is made, one can be established manually by going to your computer's network settings page. For example, when using a Mac, navigate to the Network section found in System Preferences, click the 'Assist Me' button to get to the Network Setup Assistant, then follow the prompts to establish a connection.
• If additional power is required for your installation, the U442-DOCK11-S is compatible with user-supplied 5V DC power jacks equipped with a 3.5 × 1.35 × 9.5 mm output plug with a positive tip and negative sleeve.

Installation

1. Connect the built-in USB-C cable to USB-C port on your laptop, tablet or other device.
2. Use an HDMI cable to connect a monitor or display to the unit's HDMI port.
3. Connect USB peripherals to the unit's USB-A hub ports.
4. For an Ethernet connection, use Cat5e/6 UTP cable to connect to the unit's RJ45 port.
5. Insert Micro SD or SD/MMC cards into their corresponding slots to access external memory.
6. Charge a device by connecting a USB-C charger to the unit's USB-C port. The USB-C port can also be used to connect a USB-C peripheral device.

Specifications

Input Connectors
USB 1x USB-C (Male)
DC Port DC Power (Female)
Output Connectors
USB-A 2x USB-A (Female)
USB-C 1x USB-C (Female)
HDMI 1x HDMI (Female)
Memory Cards 1x Micro SD, 1x SD/MMC
Ethernet 1x RJ45
Environmental
Operating Temperature	32° to 131°F (0° to 55°C)
Operating Humidity	10% to 85% RH, Non-Condensing
Storage Temperature 1	4° to 158°F (-10° to 70°C)
Storage Humidity	5% to 90% RH, Non-Condensing
Power Requirements
USB-C Charging Port Support up to 20V 3A (60W) Input*
DC Port 5V 2A

*5W of power is dedicated to the unit; the remaining power goes to the USB-C device the unit is connected to.

Warranty

3-Year Limited Warranty

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Triplite. Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

Warranty

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

© 2023 Eaton

All Rights Reserved

Publication No.

23-08-335/

93-37BC RevD

September 2023

Eaton is a registered trademark.

All trademarks are property of their respective owners

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

Estados Unidos

Eaton.com

© 2023 Eaton

Todoosderechos

reservados

Publication No.

23-08-335/

93-37BC_RevD

Septiembre de 2023

Eaton es unamarca registrada.

Todas las marcas

registrarson

propiedad de

sus respectivos

propietarios.

Charge PD (Power Delivery)

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

Vereinigte Staaten

Eaton.com

© 2023 Eaton

Alle Rechte

vorbehalten.

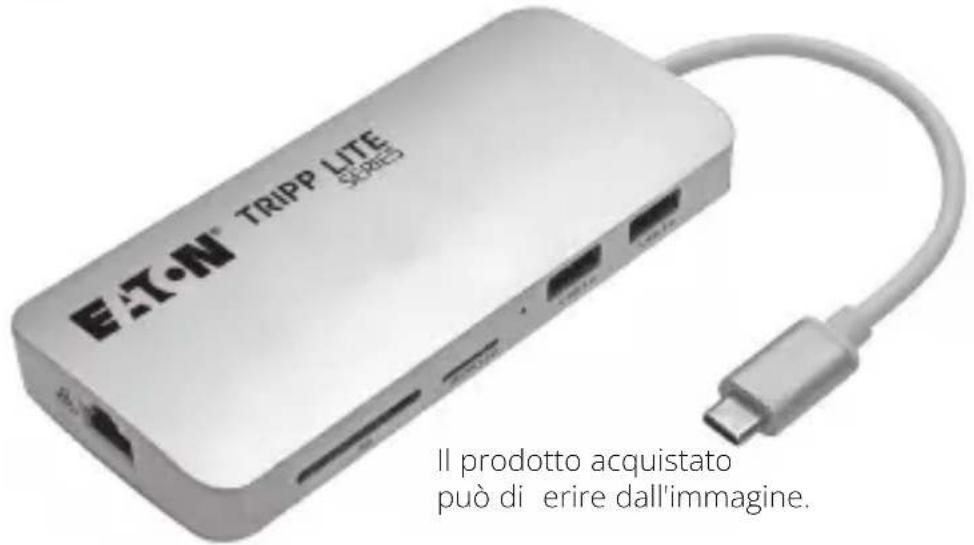

Docking station in alluminio
