Congratulations on your purchase of a Bushnell

Digital Navigation System (DNS) wrist top compass. It is a precision instrument constructed of the finest materials and assembled by highly skilled craftsmen for a lifetime of trouble-free use under the most demanding conditions. This booklet will help you achieve optimum performance by explaining how to use its various features.

WHAT THE BUTTONS MEAN

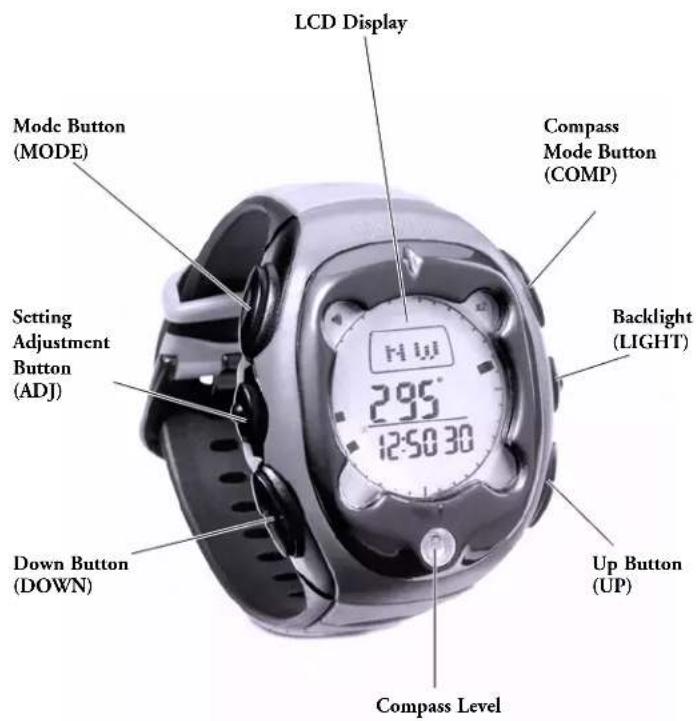

ADJ Use this to adjust your settings MODE Changes display from one feature to the next within the time or compass modes DOWN Lowers a setting LIGHT Turn light on to illuminate LCD display COMP Switch from Time Mode to Compass Mode UP Increases a setting LCD Display Setting Adjustment Button (ADJ) Mode Button (MODE) Down Button (DOWN) Up Button (UP) Backlight (LIGHT) Compass Mode Button (COMP) Compass Level ENGLISHNew Settings TEMPERATURE Temperature Mode Press MODE/NEXT button until Time Mode is displayed. If already in Time Mode then just press MODE/NEXT button and Temperature Mode is displayed. Press UP or DOWN button to toggle between Celsius and Fahrenheit readings. ALARM Alarm Setting Mode Press MODE button until Alarm Mode is displayed. The alarm consists of 5 alarms, 4 for Time and 1 for Temperature. Press UP or DOWN button to scroll through the different alarms. Press and hold down ADJ for 3 seconds until the minute blinks, press UP or DOWN button to adjust to desired values. Press MODE button for next setting. Press ADJ button at any time to save changes and exit. The alarm is activated automatically after adjustments have been made. To stop the alarm from beeping, press any button. The alarm can also be turned on or off by going to the relevant alarm and pressing the COMP button to activate alarm function, press again to activate Snooze function, and press again to de-activate alarm.

Default Time Mode / Time Settings Press MODE button until Time Mode is displayed. Press and hold down ADJ for 3 seconds. Press UP or DOWN button until desired value appears, and then press MODE button for next setting. Press ADJ button at any time to save changes and exit. When this is done, seconds will be reset to 00. A small "A" or "P" will be to the lower left of the hours to denote AM or PM. Date Settings When setting the date the year is also displayed. Press MODE button until Time Mode is displayed. Press and hold down ADJ for 3 seconds. Press MODE button and scroll to desired setting to change. Press UP or DOWN button until desired value appears, and then press MODE button for next setting. Press ADJ button at any time to save changes and exit. For 24/12 hour setting press MODE button until Time Mode is displayed. Press and hold down ADJ for 3 seconds. Press MODE button and scroll through settings until 24/12 hour setting appears, then press UP or DOWN button to enter desired setting. Press ADJ button at any time to save changes and exit.

Countdown / Reverse-Timer Mode Press the MODE button until Countdown Timer Mode is displayed, represented by ‘RT’ (reverse timer). To operate press the UP button to start and press again to stop, then press the DOWN button to reset the Countdown Timer. To set the Countdown Timer press and hold down the ADJ button for 3 seconds, which will cause the seconds setting to blink. Adjust with the UP or DOWN button, and then press the MODE button to adjust next setting. Press the ADJ button to save settings and exit. Press the COMP for ‘AUTO’ to allow Countdown Timer to repeat function automatically, and press COMP again to turn off ‘AUTO’ function. Press any button when alarm sounds to stop the Countdown Timer. If nothing is pressed the Countdown Timer will stop beeping after 10 seconds, but it will continue if the ‘AUTO’ function is set on. To stop the Countdown Timer if the ‘Auto’ function is on, you must go to the Countdown Timer Mode and press COMP to turn off the ‘Auto’ function and then press UP button to stop it. DIGITAL COMPASS Compass Mode Press the MODE button until Time Mode is displayed, and then press the COMP button. If already in Time Mode, simply press the COMP button and Compass Mode is displayed. Hold the compass level using the bubble level to get a reading. If the Cardinal Points blink then the compass probably needs to be calibrated. (See trouble shooting tips.) Compass Calibration In Compass Mode, hold down ADJ button for 3 seconds. Calibration Mode is displayed. Put the compass on a level, non- magnetic surface and press the COMP button. The word CAL will start blinking. Then, rotate the compass 2 full circles slowly WHILE

HOLDING THE COMPASS LEVEL

. When done, press COMP again. When completed, the display shows ‘DONE’ and it will then go automatically into Declination Setting Mode. If Calibration is Temperature Alarm Sets the alarm to sound when the temperature measurement reaches the programmed level. In the Alarm Mode, the Temperature alarm uses the same measurement units (ºC or F) that were last set in the Temperature Mode. To change this you must first change the temperature units in the Temperature Mode. Using the UP or DOWN buttons once changes the temperature in tenths of a degree. Holding either button down changes the temperature in increments of 1 degree. Beep Function In the Alarm mode, a Beep function is also available. When activated, the beep function causes a beep sound to be made whenever a button is depressed, even when the Alarm function is turned off. To activate the function go to the Beep function in the Alarm Mode, press the COMP button and ‘ON’ is displayed. Press again and ‘OFF’ is displayed. Stopwatch Mode Press the MODE button until Stop Watch Mode is displayed. To operate, press the UP button to start and press again to stop. Pressing the DOWN button will reset the Stop Watch. For split timing function, press the DOWN button while the Stop Watch is operating in order to stop the display and press again to continue. You can also press the DOWN button while the Stop Watch is operating to stop the display and then press the UP button to stop the Stop Watch and display the final reading. Press the DOWN button again to reset the Stop Watch. Stop Watch Mode / Split Timing Function Split timing function is displayed as ‘SPL’ when activated and the display returns to normal when DOWN button is pressed.

6To conserve energy the display in the Homing Mode will show 3 ‘bars’ instead of the current bearing, and the segments will not be displayed after 1minute. To activate the display again you must press COMP. To exit the Homing Mode press MODE again to return to default Compass Mode.

Press the LIGHT button to turn on LCD backlight for 5 seconds. Night Mode Night Mode allows the backlight to come on automatically when any of the function keys are pressed except when the compass is in Compass Mode. Press and hold down LIGHT button for 3 seconds, and the Night Mode icon (represented by the light symbol) appears. To turn off press and hold down LIGHT button until the light symbol disappears. BATTERY Installing a Battery To open the battery compartment cover, insert a coin in the coin slot and rotate cover in a clockwise direction until it lifts open. Insert the lithium cell (battery type: CR2430) into the compartment, making sure that the negative polarity faces downwards. Close battery compartment cover until it clicks shut. Low Battery Indicator A blinking battery icon will appear when the battery is low. The battery compartment is on the back of the compass. Replace the used battery with a CR2430 lithium battery. Note: The watch is automatically reset when the battery is removed. Battery Life Your DNS is designed for continuous use and batteries will last over one year with regular usage. Heavy use of the alarms, light, or compass will shorten battery life. unsuccessful, the Cardinal Points will blink and you will have to repeat the previous 4 steps again. To skip setting the declination, press the ADJ button to return to the Compass Mode. Declination Setting Declination adjusts the compass for the local magnetic fields. In some areas, magnetic declination can be considerable, so it is a good idea to check for declination on your map or on the Internet. To adjust the compass declination angle, go to Compass Mode and hold down ADJ button for 3 seconds, and the Compass Homing Mode is displayed. Press MODE button until you get into Declination Setting Mode displayed as ‘DEC’. Press UP or DOWN button for desired value then just press ADJ button to save settings and exit the mode. Declination is sometimes measured as degrees positive and negative. Degrees East are considered positive and Degrees West are considered negative. For example, to change from 3 degrees East (positive) declination to 3 degrees West (negative) press the DOWN button until 3W appears. Self Homing Mode Allows you to preset a reference bearing which tells the Compass to alert you to the direction you should be heading. Go into Compass Mode and press MODE button to display compass Homing. To adjust homing bearing, press and hold ADJ button for three seconds. Press UP button or DOWN button to adjust to desired bearing setting. Pressing UP or DOWN will increase or decrease bearing by increments of ten. A single push of UP or DOWN moves bearing by 1 degree. When done, press ADJ to return to Homing mode. To return to Compass Mode press MODE button. To operate the compass in Homing Mode go into the Compass Mode first, then press MODE button to get into Homing Mode. The main reading displays the actual bearing and the lower reading shows the ‘home’ bearing. The segments on the circumference show the difference between the two bearings, which can be used to redirect you to stay on course. 98WARRANTY / REPAIR

TROUBLE SHOOTING If the Cardinal points (N, NE, E, SE etc.) on your compass blink - Try holding the compass LEVEL using the bubble level as a guide. The Cardinal points may also blink when the Compass encounters magnetic interference from the surrounding areas. The Cardinal points blink because the Compass is unable to measure bearings accurately. If this does not fix the blinking, please recalibrate your compass. (Go to page 7 for Compass Calibration.) Remember to keep the Compass away from metal objects which may cause magnetic interference. Double check that your declination is properly set (In general, zero degrees should be the default setting). Three dashes are displayed – Your compass has gone into a "sleep" mode to save batteries. Press COMP to reactivate the compass. Can’t turn unit off – This unit is designed to be constantly on and the batteries will last about a year assuming normal usage. Reset compass - If, during operation, an external electrodischarge occurs near the compass, the unit may exhibit erroneous readings. To solve this problem, the watch must be reset and recalibrated. Note: The watch is automatically reset when the battery is removed. If your wristtop goes into a test mode after inserting the battery – You will need to re-install your battery. Remove battery. Wait 10 seconds then carefully re-insert the battery making sure that it is well placed in the battery compartment. Close battery door. You will know that your wristtop has gone into test mode – If you see the LCD segments around the display turning on one-by-one and moving in an counter-clockwise direction. After the test mode is completed, your wristtop will return to normal. The test mode will not harm your wristtop's normal operation.

Your Bushnell® product is warranted to be free of defects in materials and workmanship for two years after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department. Any return made under this warranty must be accompanied by the items listed below:

1) A check/money order in the amount of $10.00 to cover the

cost of postage and handling

2) Name and address for product return

3) An explanation of the defect

4) Proof of Date Purchased

5) Product should be well packed in a sturdy outside shipping carton, to prevent

damage in transit, with return postage prepaid to the address listed below: IN U.S.A. SEND TO: IN CANADA SEND TO: Bushnell Performance Optics Bushnell Performance Optics Attn.: Repairs Attn.: Repairs 8500 Marshall Drive 25A East Pearce Street, Unit 1 Lenexa, Kansas 66214 Richmond Hill, Ontario L4B 2M9 For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also contact Bushnell at: BUSHNELL Performance Optics Gmbh European Service Centre MORSESTRASSE 4
